Audi A5 (B10) specifications and photos
The third-generation Audi A5 (B10) was introduced in July 2024 as a premium D-class liftback. Available with both front-wheel and all-wheel drive, it brings updated exterior styling, a heavily digitalized cabin, and mild-hybrid engine options to the midsize segment.
Audi A5 (B10) at a glance
Quick model context before comparing photos and trim-level specifications.
Replacing the previous generation, the 2024 Audi A5 transitions fully into a practical yet stylized liftback format. With a footprint measuring 4829 mm in length and a 2892 mm wheelbase, it offers a substantial presence on the road. The B10 generation shifts its focus toward digitalization and efficiency, integrating an MHEV plus mild-hybrid system across key powertrains to lower emissions and enable limited electric-only operation. Positioned for buyers wanting executive comfort combined with a sloping roofline, the A5 balances everyday usability with characteristic European driving dynamics.
- Power: 150-204 hp
- Engine displacement: 1968-1984 cc
- Transmissions: 7 S-tronic
- Seating: 5 seats
Audi A5 (B10) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

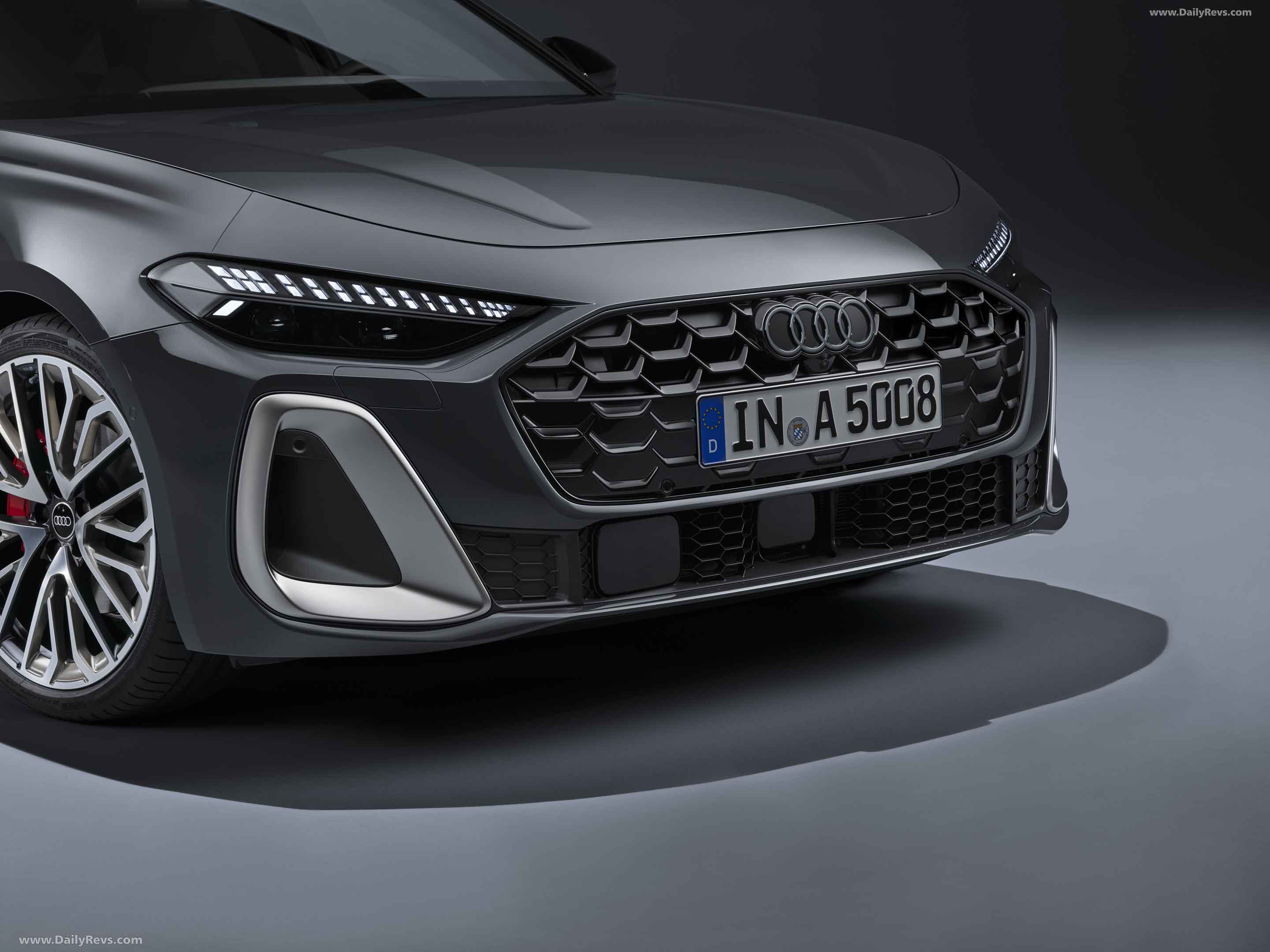

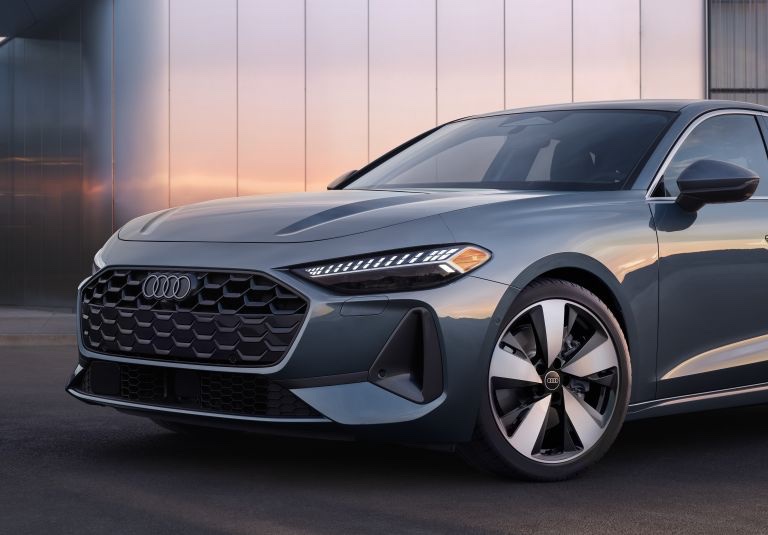

The B10 A5 draws on historical Audi styling cues, most notably the muscular wheel arches inspired by the classic Urquattro. At the front, a wide Singleframe grille features a three-dimensional honeycomb mesh, flanked by narrow LED headlights and a contoured hood. The profile highlights the liftback layout with a long wheelbase, short overhangs, and a sweeping roof. The rear design is defined by a full-width LED light bar that spans the tailgate, sitting above a rear bumper with integrated exhaust finishers.
Interior
Inside, the cabin layout is dominated by an MMI panoramic display utilizing OLED technology for high-contrast visibility. Audi incorporates an Interaction Light system that adjusts interior ambient lighting based on the active driving mode. Depending on the specification, the interior utilizes traditional premium materials like leather, natural wood trim, and aluminum accents. The 445-liter trunk accommodates luggage beneath the large liftback tailgate, offering easier cargo access than a traditional sedan.
Performance
Powertrain options center around 2.0-liter turbocharged four-cylinder engines paired with a 7-speed S-tronic dual-clutch transmission. The petrol range starts with a 150-horsepower 2.0 TFSI, with a more powerful 204-horsepower variant available in both front-wheel and all-wheel drive configurations. A 2.0-liter TDI mild-hybrid diesel produces 204 horsepower and a robust 400 Nm of torque, achieving a 0-100 km/h time of 6.9 seconds when equipped with the AWD system.
Practicality
As a midsize liftback, the A5 (B10) seats five passengers. Its 2892 mm wheelbase provides a comfortable cabin footprint for everyday family or executive transport, while the rear hatch layout significantly improves cargo loading compared to a standard trunk. Fuel efficiency is a priority, particularly with the mild-hybrid diesel, which is rated at around 5.4 to 5.5 liters per 100 km in a mixed cycle.
Safety and tech
Audi equips the new A5 with a suite of driver assistance features, including adaptive cruise control and forward obstacle warning systems. Built-in navigation is standard on the primary infotainment interface, while buyers can add an optional head-up display to project driving and routing data directly onto the windshield.
Buyer notes
When reviewing trims for the A5 (B10), buyers should consider whether their primary focus is fuel economy or all-weather traction. The front-wheel-drive 150-hp TFSI serves as a cost-effective entry point, while the AWD TDI provides the strongest torque and acceleration figures. Specific equipment, wood or aluminum trim availability, and hybrid features may vary depending on the regional market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.0 TFSI (150 hp) 7 S-tronic | 1984 cc | 150 hp | 5 | 7 S-tronic |
| 2.0 TFSI (204 hp) 7 S-tronic | 1984 cc | 204 hp | 5 | 7 S-tronic |
| 2.0 TDI Mild Hybrid (204 hp) 7 S-tronic | 1968 cc | 204 hp | 5 | 7 S-tronic |
| 2.0 TDI Mild Hybrid (204 hp) 7 S-tronic 4x4 | 1968 cc | 204 hp | 5 | 7 S-tronic |
| 2.0 TFSI (204 hp) 7 S-tronic 4x4 | 1984 cc | 204 hp | 5 | 7 S-tronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

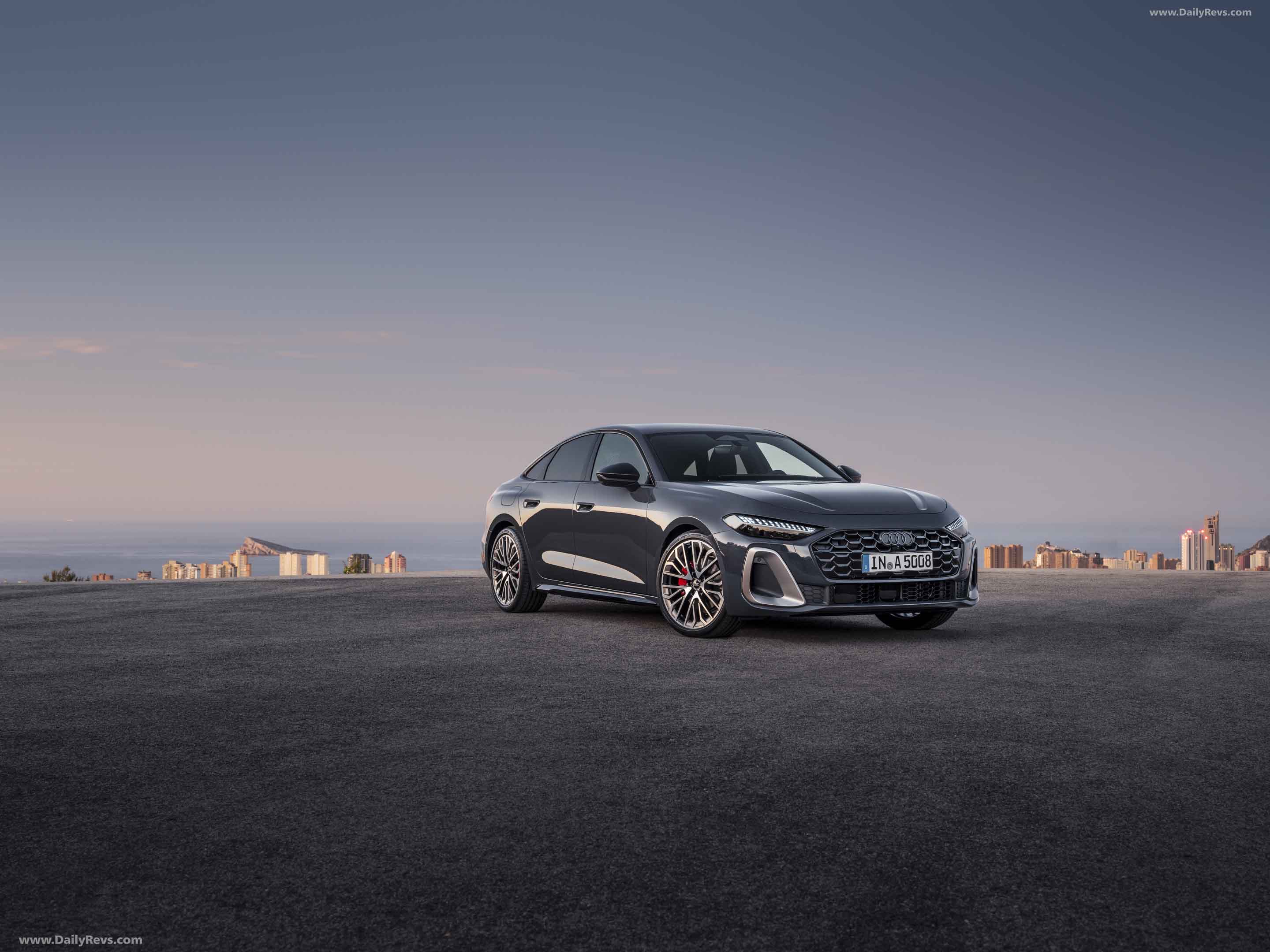

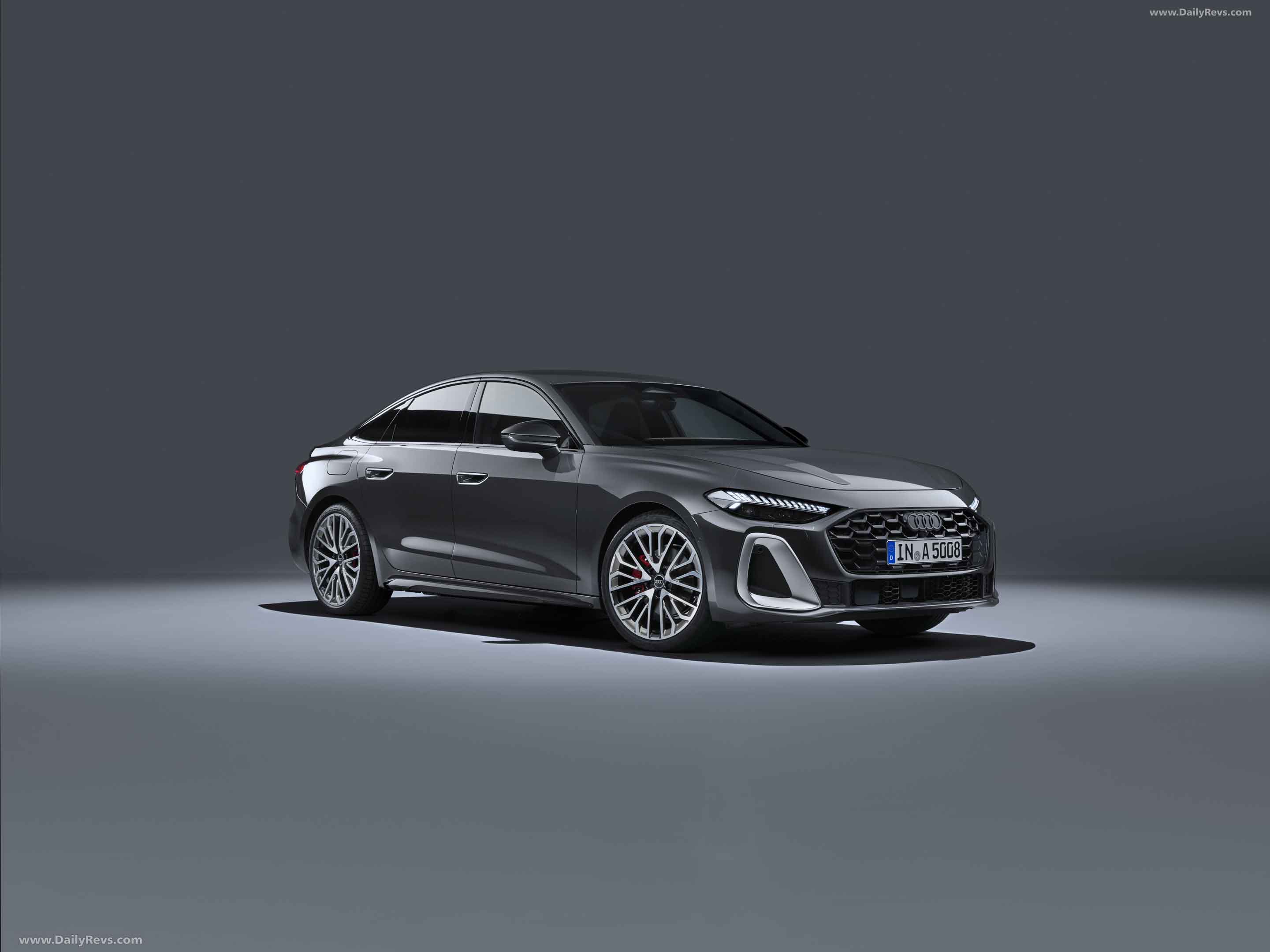

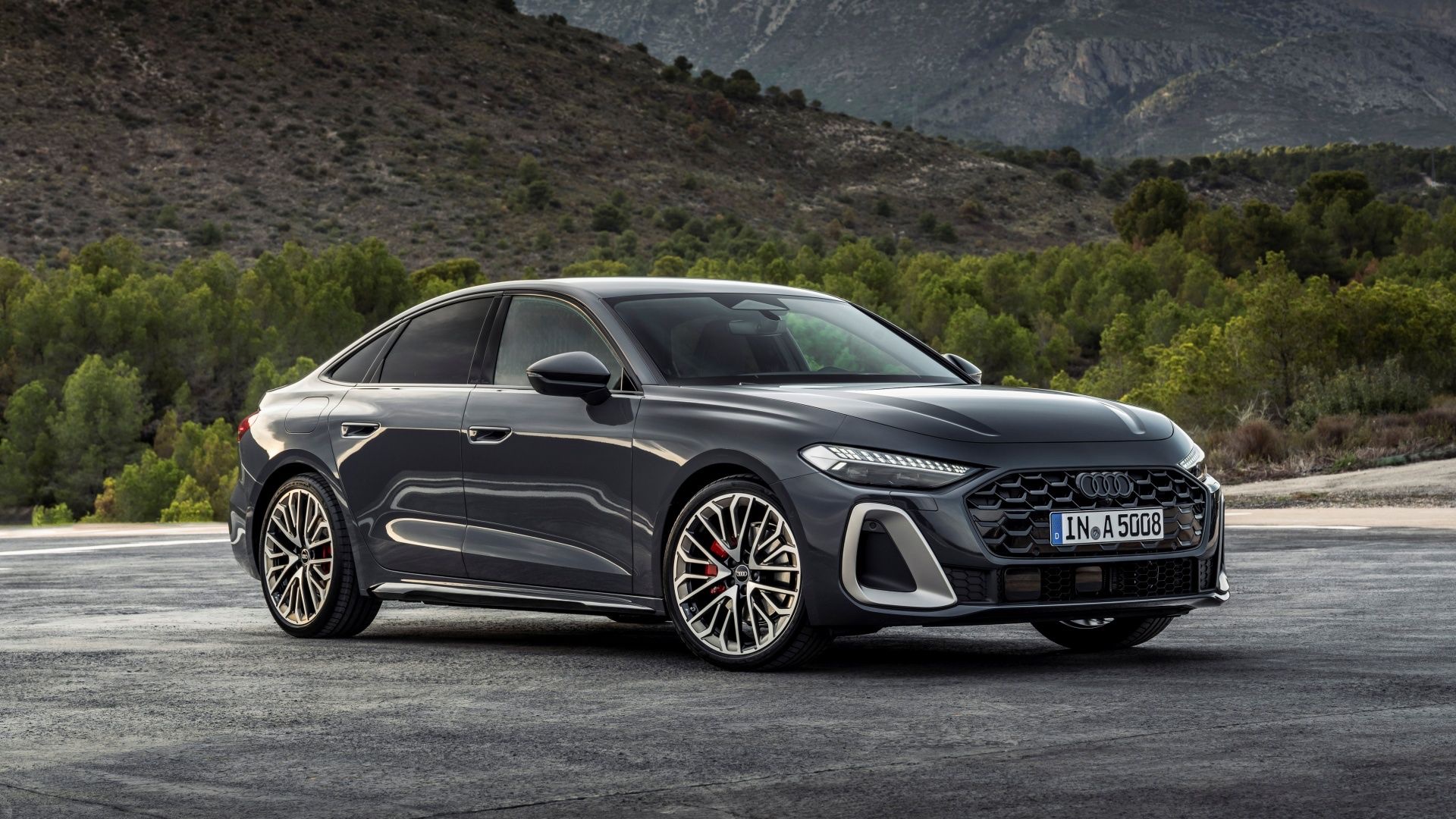

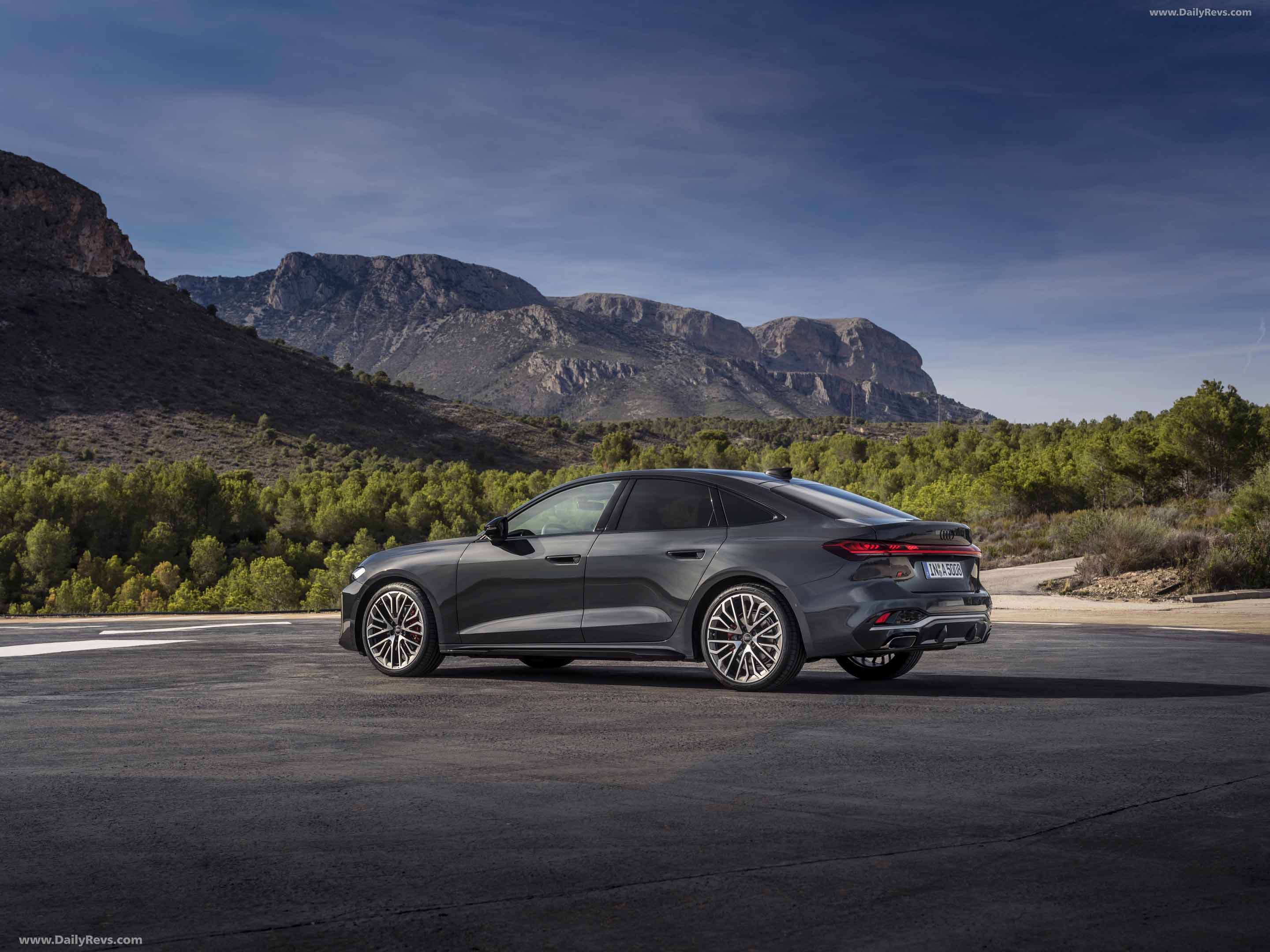

Audi A5 (B10) photo gallery
18 images are collected here with the main specifications and trim data for this model.

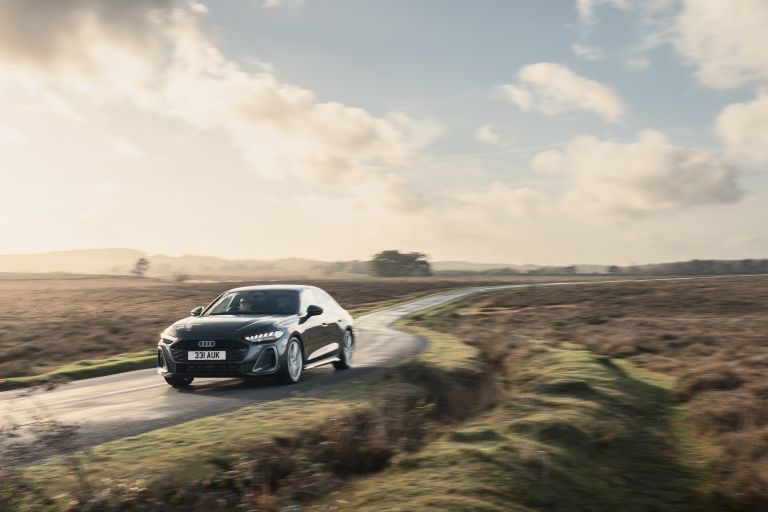

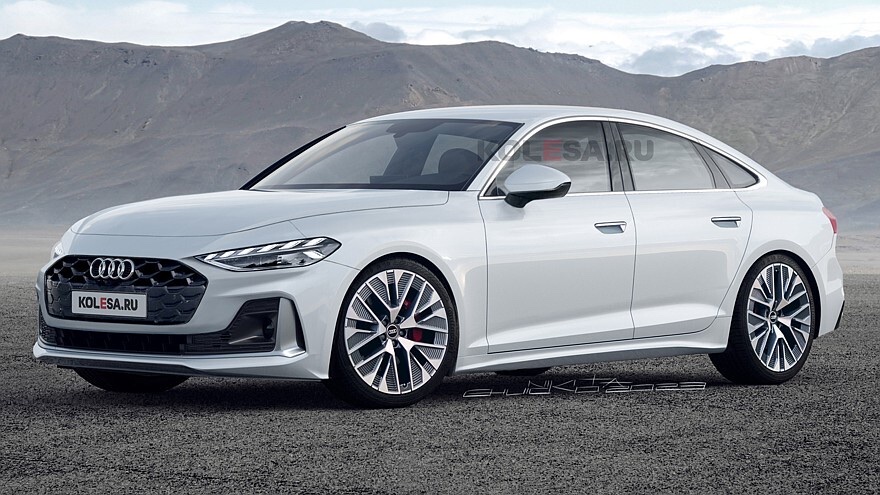

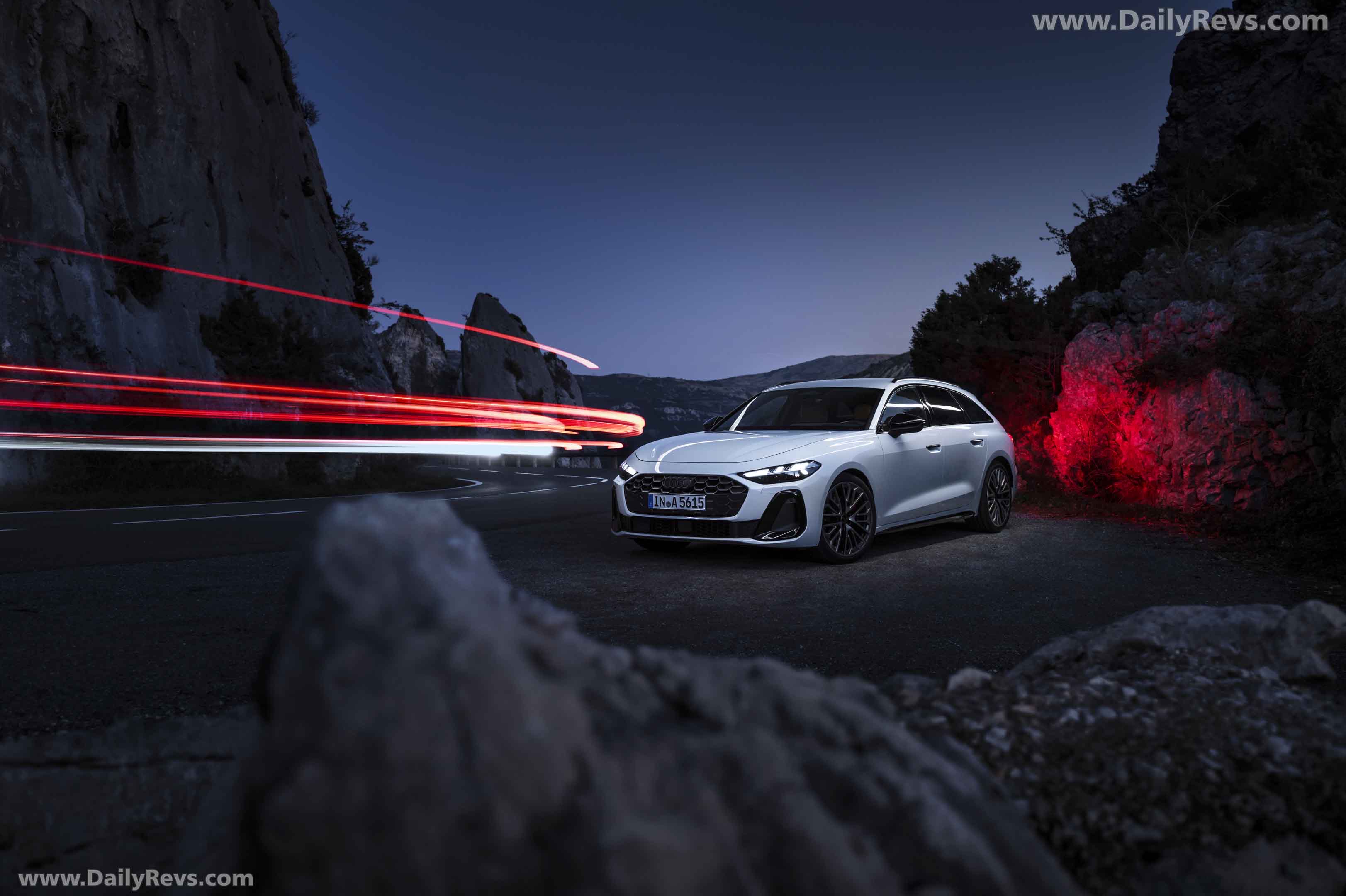

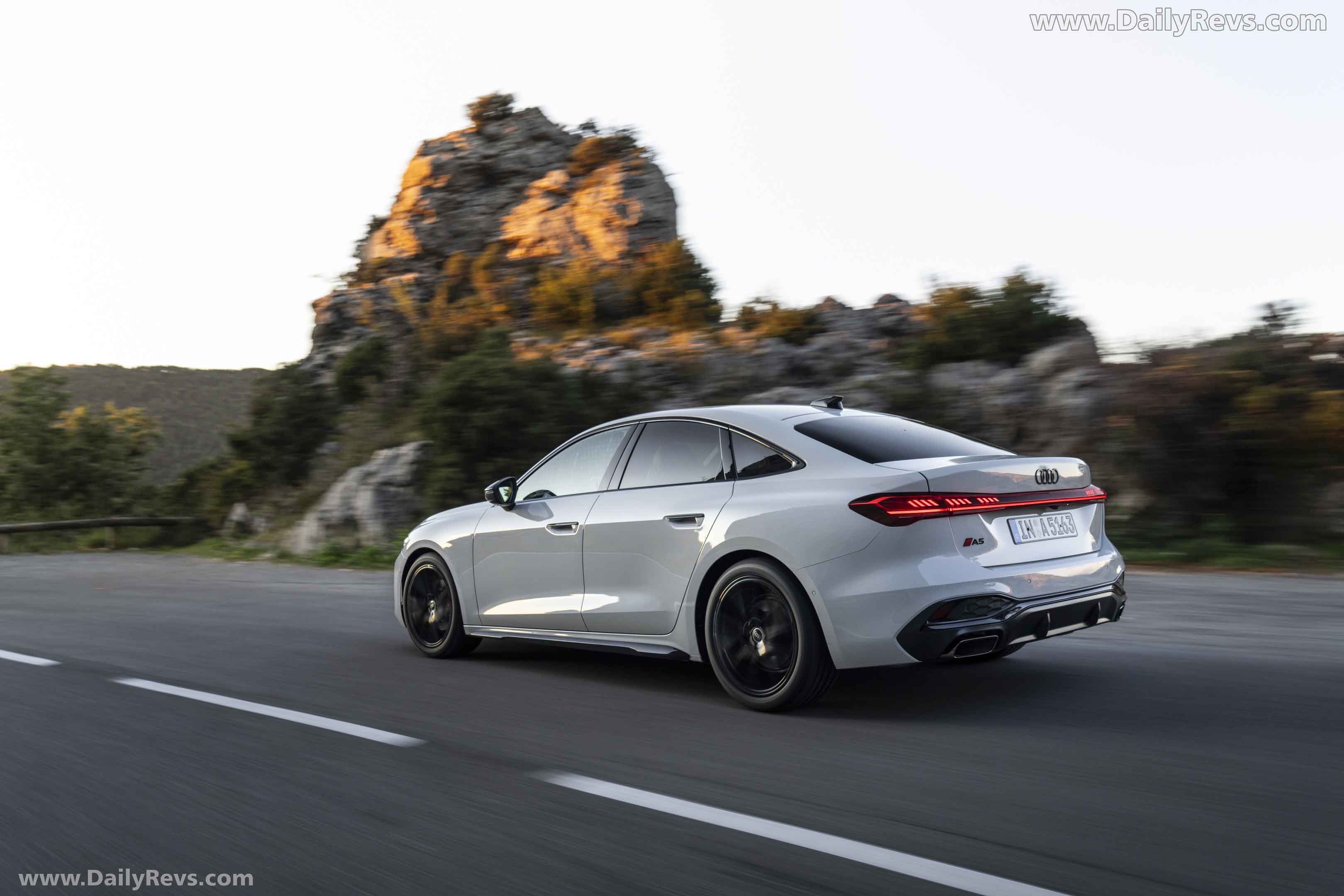

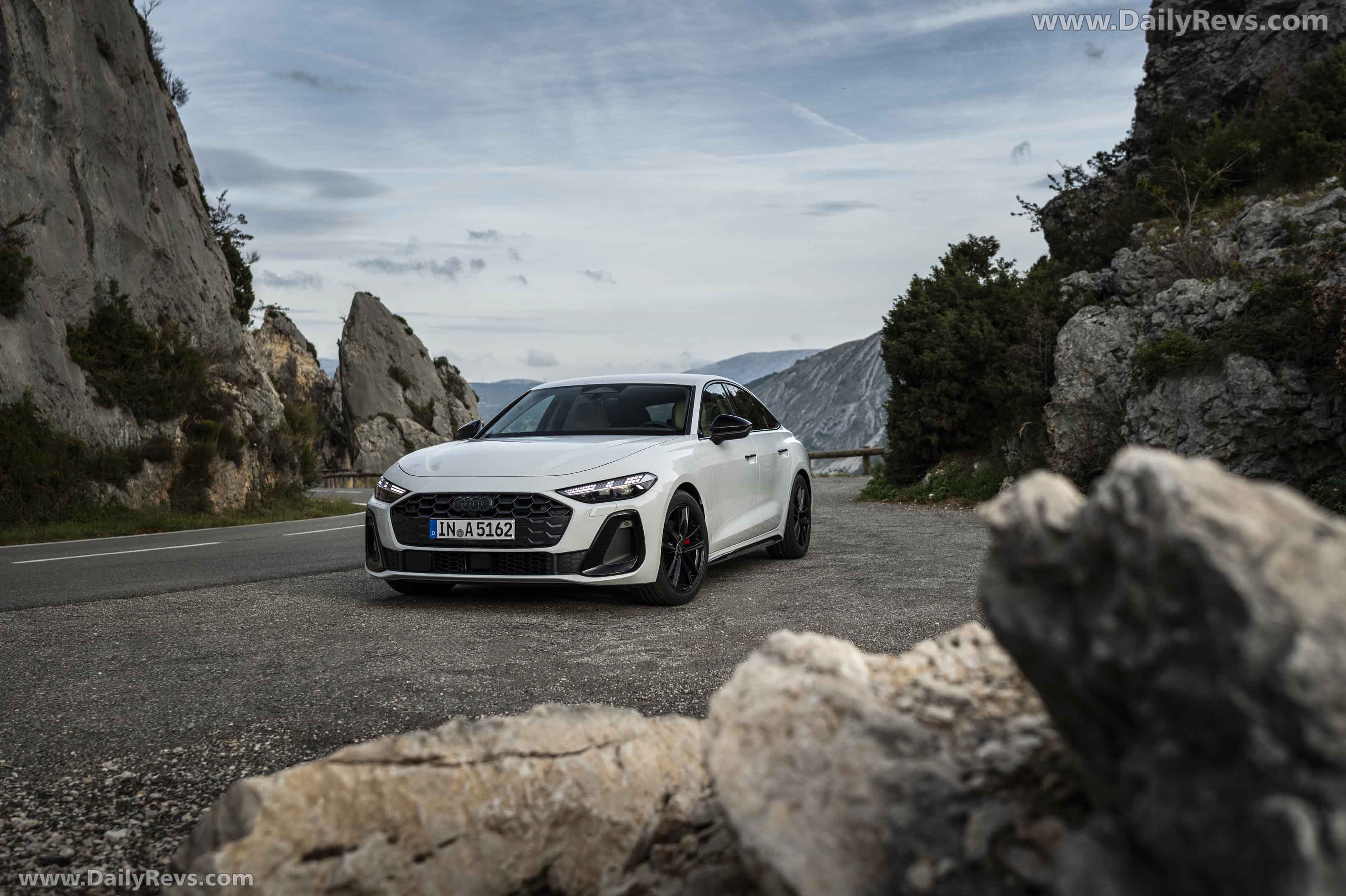

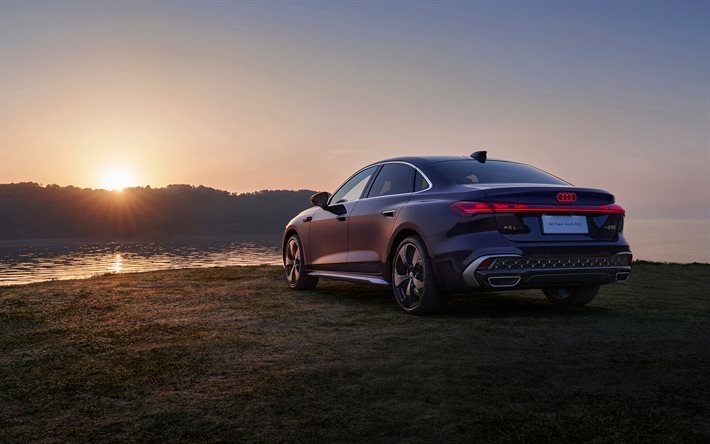

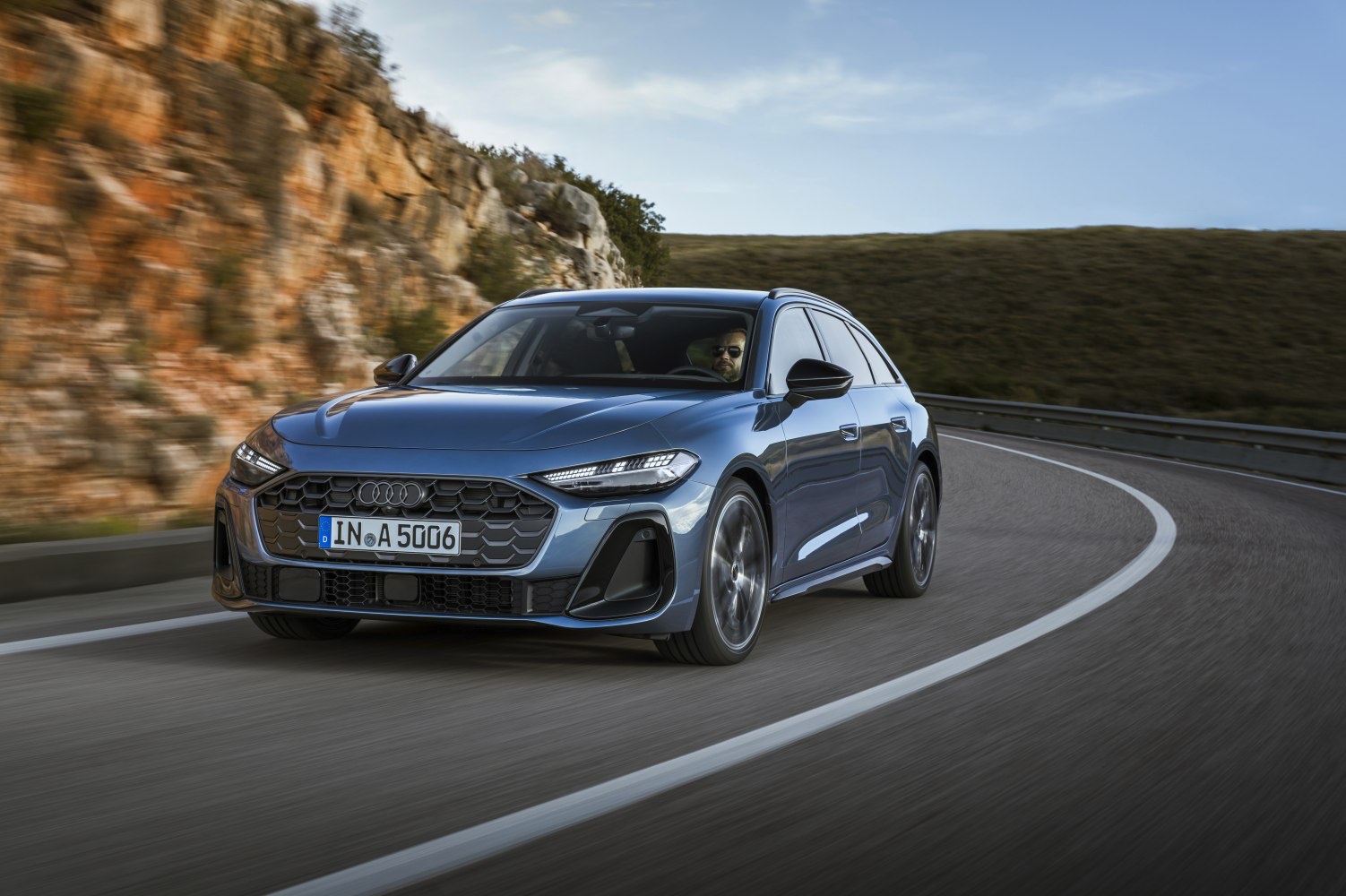

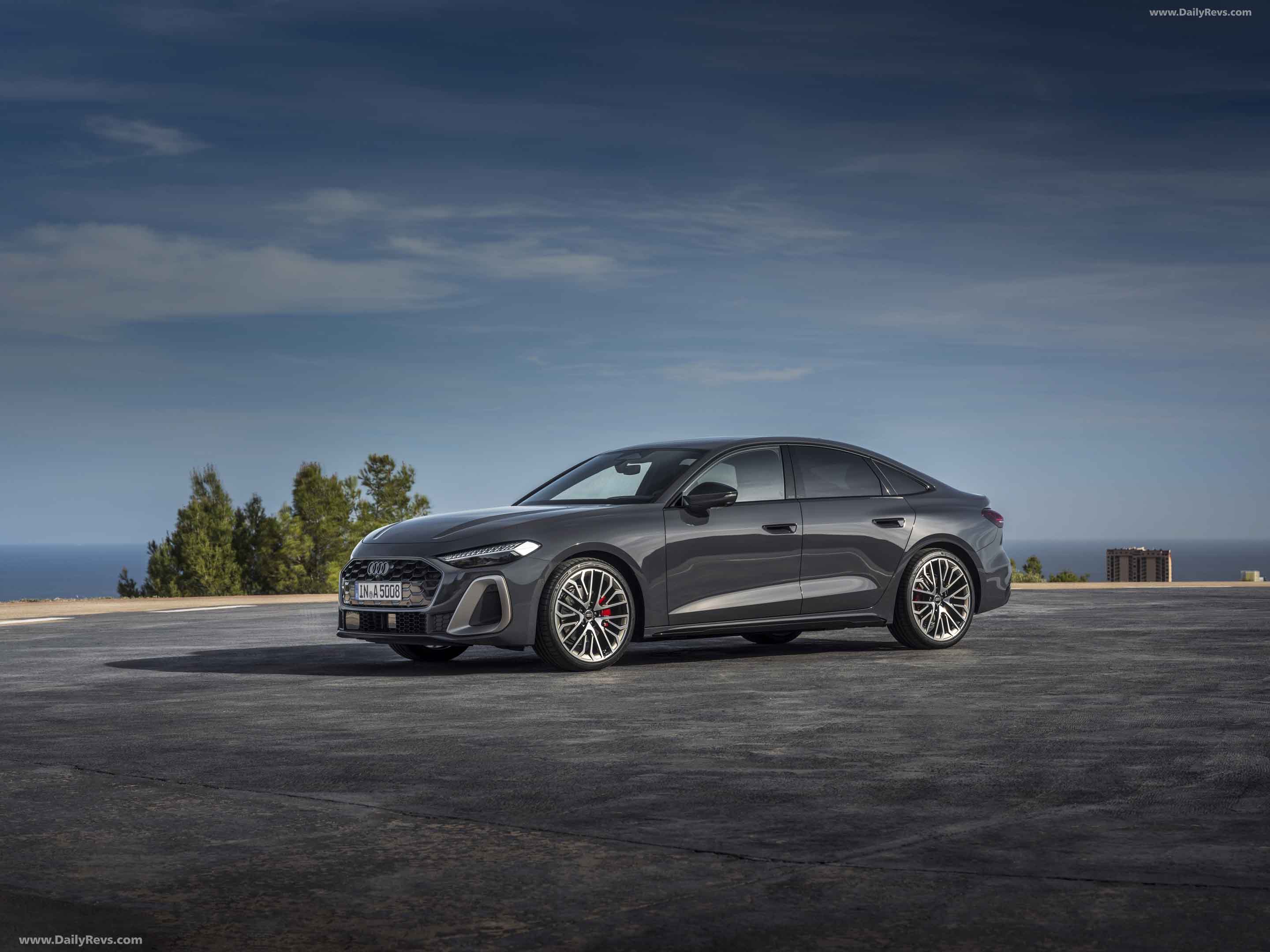

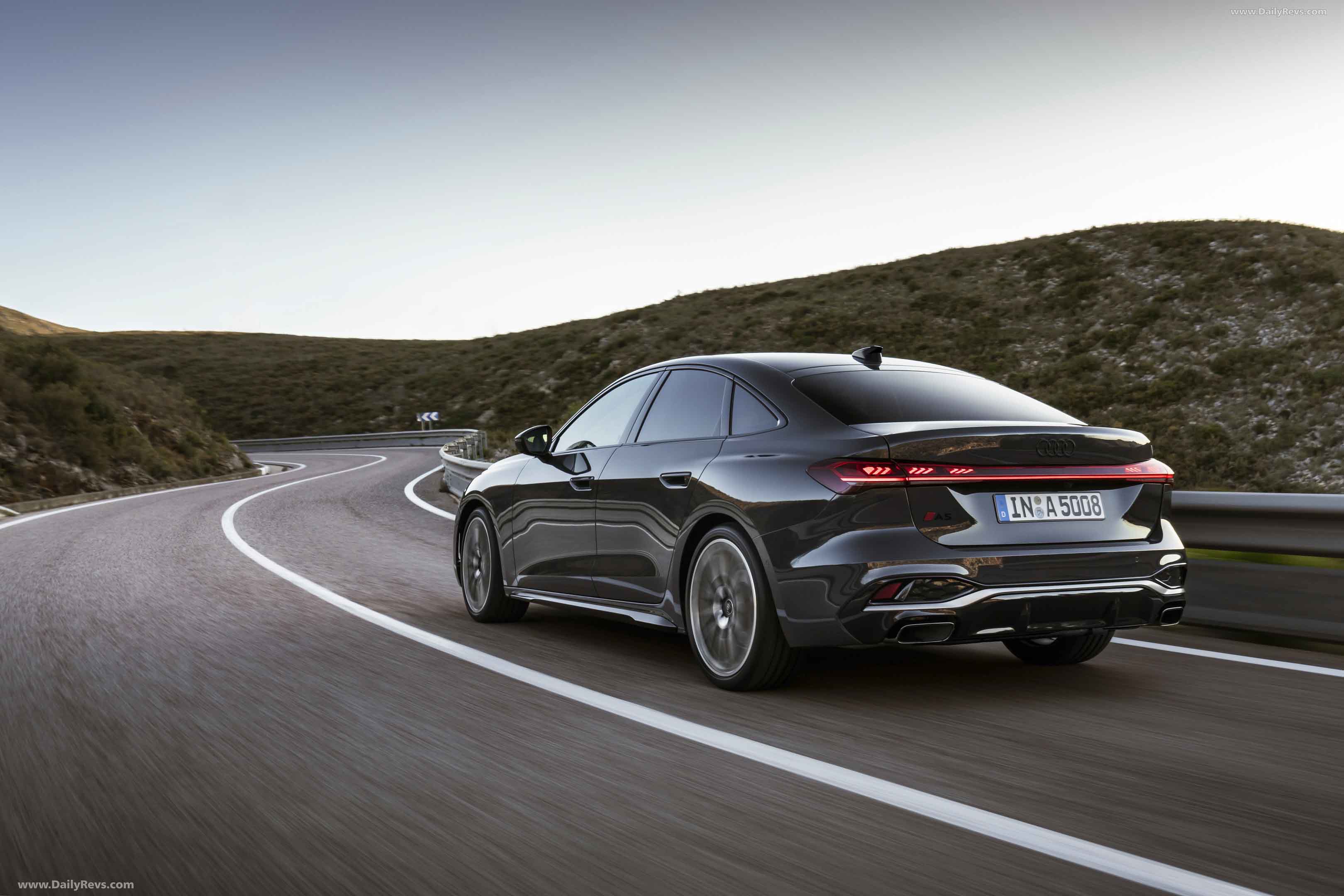

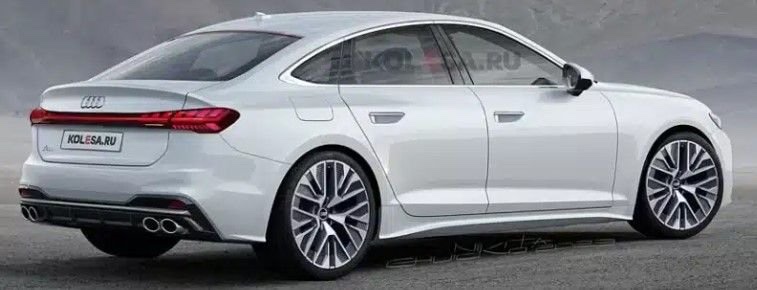

Photo Audi A5 (B10)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.0 TFSI (150 hp) 7 S-tronic 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.5 |
|---|---|
| Top speed, km/h | 216 |
| Acceleration 0-100 km/h, s | 9.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 12.5:1 |
| Power, hp | 150 |
| RPM at max power | 3900-6000 |
| Torque, Nm | 280 |
| RPM at max torque | 1400-3600 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4829 |
| Width, mm | 2099 |
| Height, mm | 1444 |
| Wheelbase, mm | 2892 |
| Front track, mm | 1624 |
| Rear track, mm | 1611 |
| Kerb weight, kg | 1695 |
| Fuel tank capacity, L | 56 |
| Turning circle, m | 12.1 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 445 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
2.0 TFSI (204 hp) 7 S-tronic 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.5 |
|---|---|
| Top speed, km/h | 248 |
| Acceleration 0-100 km/h, s | 7.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 12.5:1 |
| Power, hp | 204 |
| RPM at max power | 4300-6000 |
| Torque, Nm | 340 |
| RPM at max torque | 2000-4000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4829 |
| Width, mm | 2099 |
| Height, mm | 1444 |
| Wheelbase, mm | 2892 |
| Front track, mm | 1624 |
| Rear track, mm | 1611 |
| Kerb weight, kg | 1695 |
| Fuel tank capacity, L | 56 |
| Turning circle, m | 12.1 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 445 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
2.0 TDI Mild Hybrid (204 hp) 7 S-tronic 36 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.4 |
|---|---|
| Top speed, km/h | 242 |
| Acceleration 0-100 km/h, s | 7.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TDI Mild Hybrid |
|---|---|
| Engine code | EA288 evo |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1968 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.5:1 |
| Power, hp | 204 |
| RPM at max power | 3800-4200 |
| Torque, Nm | 400 |
| RPM at max torque | 1750-3250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4829 |
| Width, mm | 2099 |
| Height, mm | 1444 |
| Wheelbase, mm | 2892 |
| Front track, mm | 1624 |
| Rear track, mm | 1611 |
| Kerb weight, kg | 1695 |
| Fuel tank capacity, L | 56 |
| Turning circle, m | 12.1 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 445 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
2.0 TDI Mild Hybrid (204 hp) 7 S-tronic 4x4 36 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.5 |
|---|---|
| Top speed, km/h | 241 |
| Acceleration 0-100 km/h, s | 6.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TDI Mild Hybrid |
|---|---|
| Engine code | EA288 evo |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1968 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.5:1 |
| Power, hp | 204 |
| RPM at max power | 3800-4200 |
| Torque, Nm | 400 |
| RPM at max torque | 1750-3250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4829 |
| Width, mm | 2099 |
| Height, mm | 1444 |
| Wheelbase, mm | 2892 |
| Front track, mm | 1624 |
| Rear track, mm | 1611 |
| Kerb weight, kg | 1695 |
| Fuel tank capacity, L | 56 |
| Turning circle, m | 12.1 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 445 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
2.0 TFSI (204 hp) 7 S-tronic 4x4 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.7 |
|---|---|
| Top speed, km/h | 245 |
| Acceleration 0-100 km/h, s | 7.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 12.5:1 |
| Power, hp | 204 |
| RPM at max power | 3900-6000 |
| Torque, Nm | 340 |
| RPM at max torque | 2000-4000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4829 |
| Width, mm | 2099 |
| Height, mm | 1444 |
| Wheelbase, mm | 2892 |
| Front track, mm | 1624 |
| Rear track, mm | 1611 |
| Kerb weight, kg | 1695 |
| Fuel tank capacity, L | 56 |
| Turning circle, m | 12.1 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 445 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
Audi A5 (B10) questions
Short answers based on the specifications and photos available in this catalog.
What body style is the 2024 Audi A5 (B10)?
The 2024 Audi A5 is a D-class five-door liftback.
What engines are available for the Audi A5 (B10)?
Options include a 2.0-liter TFSI petrol engine offering 150 hp or 204 hp, and a 2.0-liter TDI mild-hybrid diesel producing 204 hp.
Does the Audi A5 (B10) offer all-wheel drive?
Yes, all-wheel drive is available on the 204-hp versions of both the TFSI petrol and TDI diesel engines.
How large is the trunk?
The liftback cargo area offers a capacity of 445 liters.
What type of transmission does the A5 use?
All versions utilize a 7-speed S-tronic dual-clutch automatic transmission.
