Audi A5 Avant (B10) specifications and photos
The third-generation Audi A5 Avant (B10), introduced in July 2024, is a premium D-segment wagon offering both front-wheel and all-wheel-drive configurations. It focuses on dynamic styling, advanced interior technology, and practical everyday utility.
Audi A5 Avant (B10) at a glance
Quick model context before comparing photos and trim-level specifications.
Introduced in the summer of 2024, the B10 generation of the Audi A5 Avant marks a significant step forward for the midsize wagon. As a D-class vehicle, it balances long-distance cruising comfort with responsive handling dynamics. Buyers can select between front-wheel drive and Audi's signature all-wheel-drive systems, matched to a modernized lineup of combustion and mild-hybrid powertrains. With a wheelbase of 2,892 mm and an overall length of 4,829 mm, the A5 Avant provides a substantial footprint that translates to stable highway performance and a roomy cabin. It targets families and professionals looking for a traditional estate car that does not compromise on modern technology, cargo capability, or premium build quality.
- Power: 150-204 hp
- Engine displacement: 1968-1984 cc
- Transmissions: 7 S-tronic
- Seating: 5 seats
Audi A5 Avant (B10) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

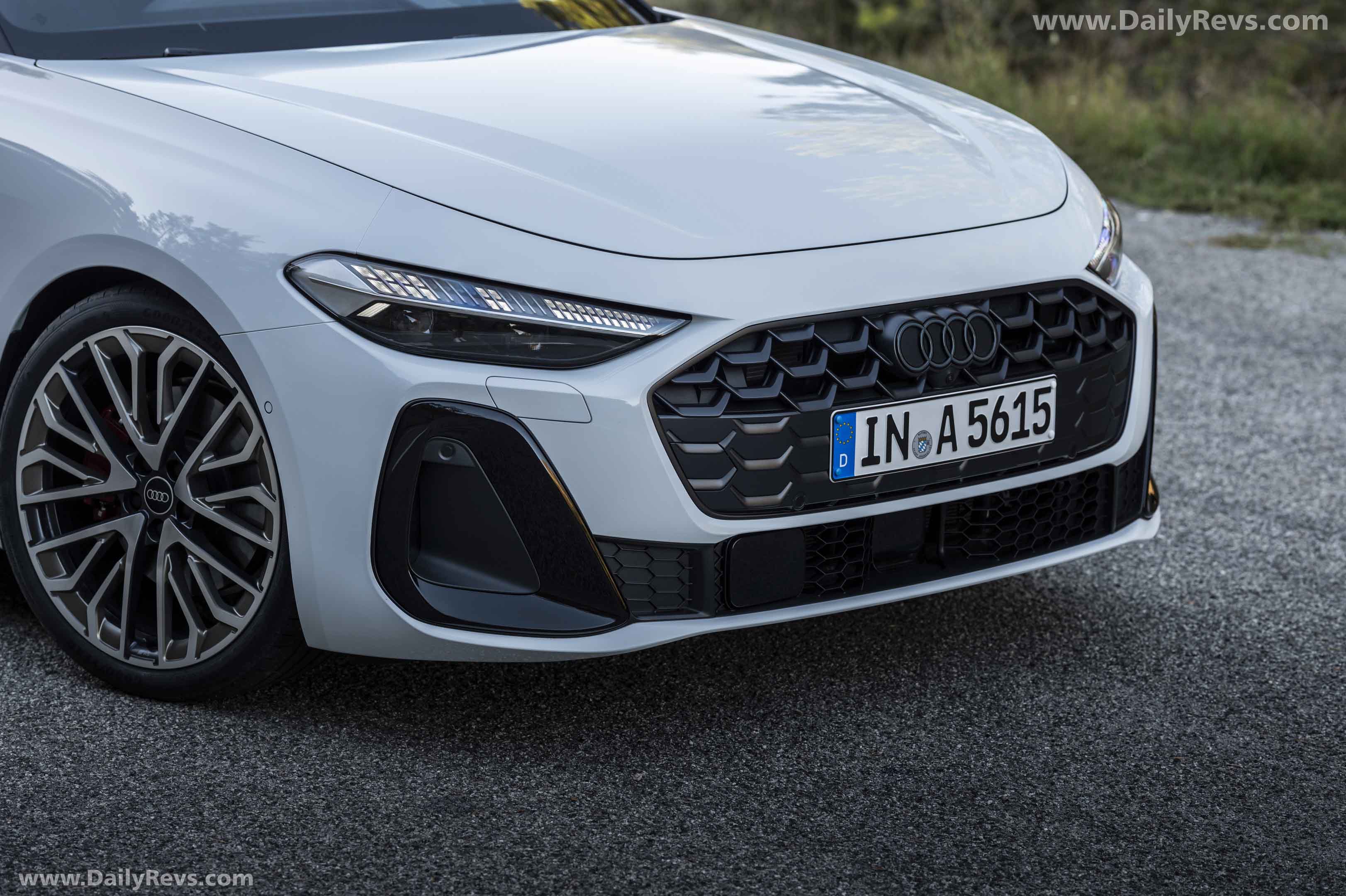

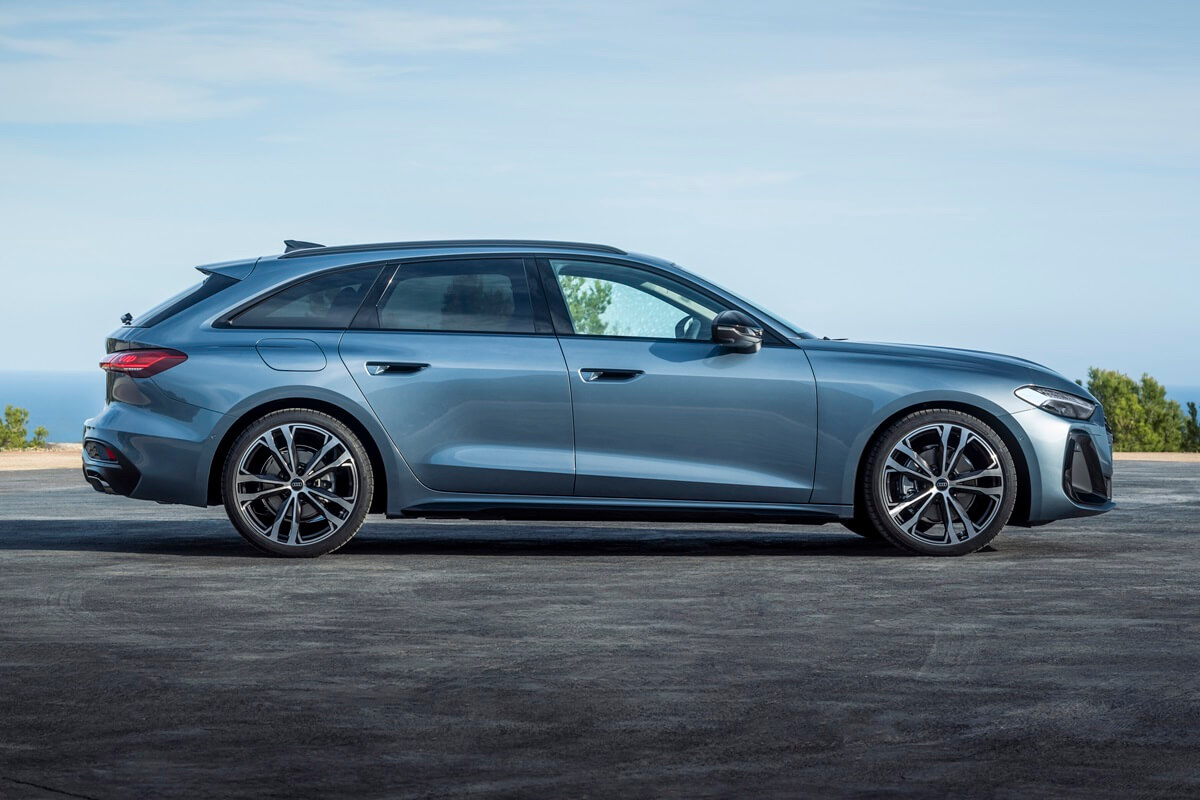

The exterior of the A5 Avant (B10) retains classic Audi proportions while adopting sharper details. The front fascia is defined by a wide Singleframe grille flanked by slim LED headlights. Along the sides, pronounced wheel arches and a sloping, extended roofline give the wagon a planted stance. At the rear, the roofline flows into a subtle spoiler, accompanied by a continuous OLED light strip that provides a distinct lighting signature at night. A standard power tailgate offers easy access to the cargo area.
Interior
Inside, the cabin features a curved OLED display that integrates both the virtual instrument cluster and the multimedia interface into a single unit. Materials include options for natural leather, decorative wood, and anodized aluminum trims. An available panoramic roof with adjustable transparency allows passengers to control the amount of natural light entering the cabin. The interactive ambient lighting system serves dual purposes, functioning both as mood lighting and as an active indicator for various driver assistance warnings.
Performance
The powertrain lineup relies on 2.0-liter four-cylinder engines paired with a 7-speed S-tronic dual-clutch transmission. The gasoline range starts with a 150-horsepower 2.0 TFSI, followed by a more robust 204-horsepower variant available in both FWD and AWD. For diesel buyers, the 2.0 TDI produces 204 horsepower and 400 Nm of torque. This diesel incorporates a MHEV plus mild-hybrid system, which improves fuel efficiency to an average of 5.5 to 5.6 L/100km and allows for brief periods of electric-only operation. The quickest model in this lineup is the TDI AWD, achieving 0-100 km/h in 6.9 seconds.
Practicality
As a wagon, the A5 Avant prioritizes utility alongside its premium finish. The trunk offers 476 liters of cargo capacity behind the second row, accessed via a standard power-operated liftgate. With its 2,892 mm wheelbase, rear-seat passengers benefit from competitive space for the segment. The combination of a relatively low 1,460 mm roof height and the long cargo floor makes loading heavy items easier compared to taller utility vehicles, making it highly practical for daily errands and family road trips.
Safety and tech
Audi equips the A5 Avant with a comprehensive suite of active safety and driver assistance systems. The infotainment setup includes an software-supported navigation system that integrates with Google Maps for real-time traffic analysis and route optimization. Active safety is further reinforced by the interior's smart ambient lighting, which reacts to specific road hazards or system statuses to provide visual alerts to the driver.
Buyer notes
Shoppers evaluating the Audi A5 Avant (B10) should consider their typical driving routes when choosing an engine. The entry-level 150-hp TFSI is adequate for city commuting, but the 204-hp TFSI or TDI engines provide noticeably better acceleration for highway passing. The diesel mild-hybrid stands out for high-mileage drivers due to its low fuel consumption. Note that the availability of specific interior trims, such as the adjustable-transparency panoramic roof, may depend on the selected trim level and market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.0 TFSI (150 hp) 7 S-tronic | 1984 cc | 150 hp | 5 | 7 S-tronic |
| 2.0 TFSI (204 hp) 7 S-tronic | 1984 cc | 204 hp | 5 | 7 S-tronic |
| 2.0 TFSI (204 hp) 7 S-tronic 4x4 | 1984 cc | 204 hp | 5 | 7 S-tronic |
| 2.0 TDI Mild Hybrid (204 hp) 7 S-tronic | 1968 cc | 204 hp | 5 | 7 S-tronic |
| 2.0 TDI Mild Hybrid (204 hp) 7 S-tronic 4x4 | 1968 cc | 204 hp | 5 | 7 S-tronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

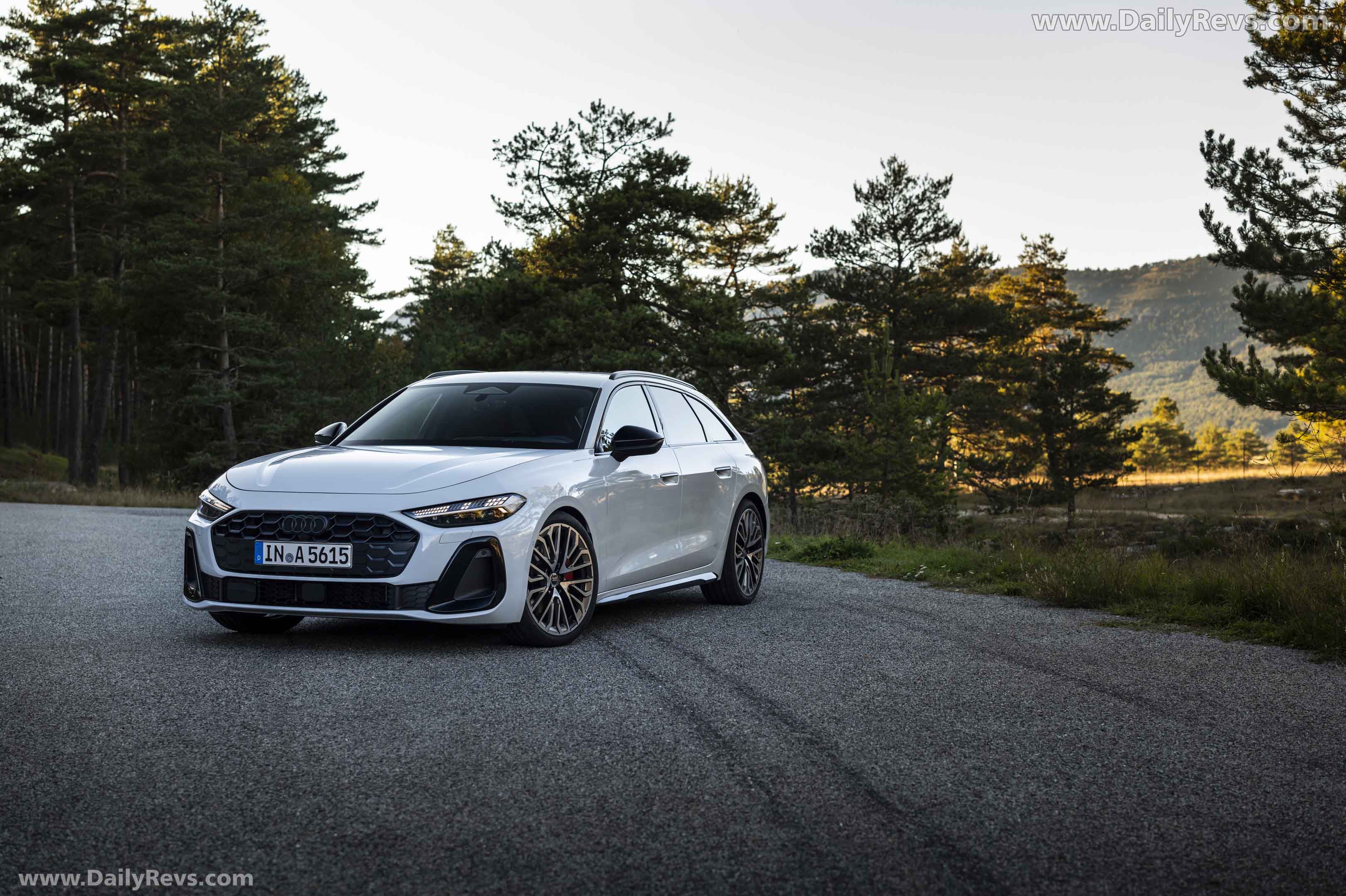

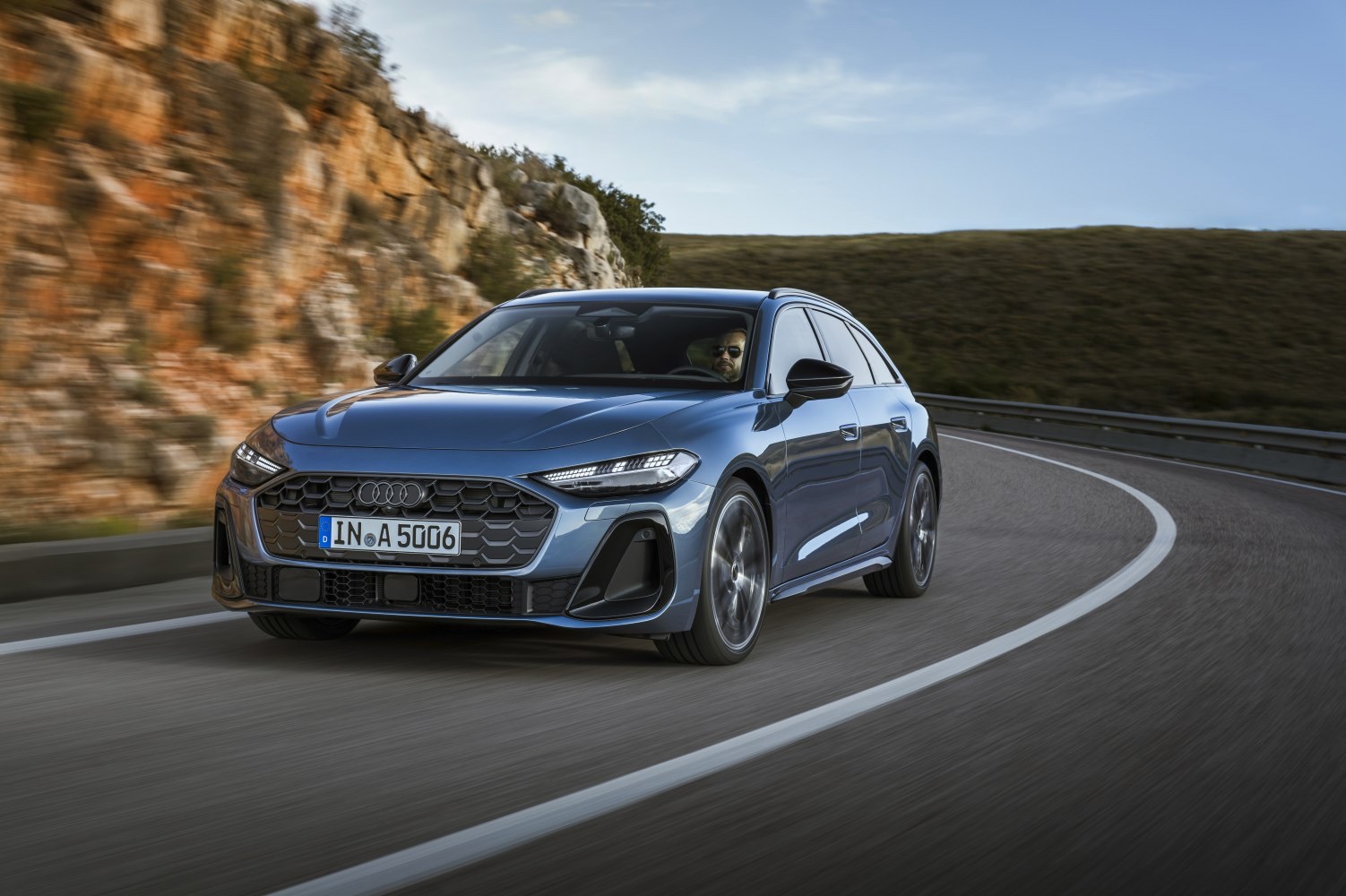

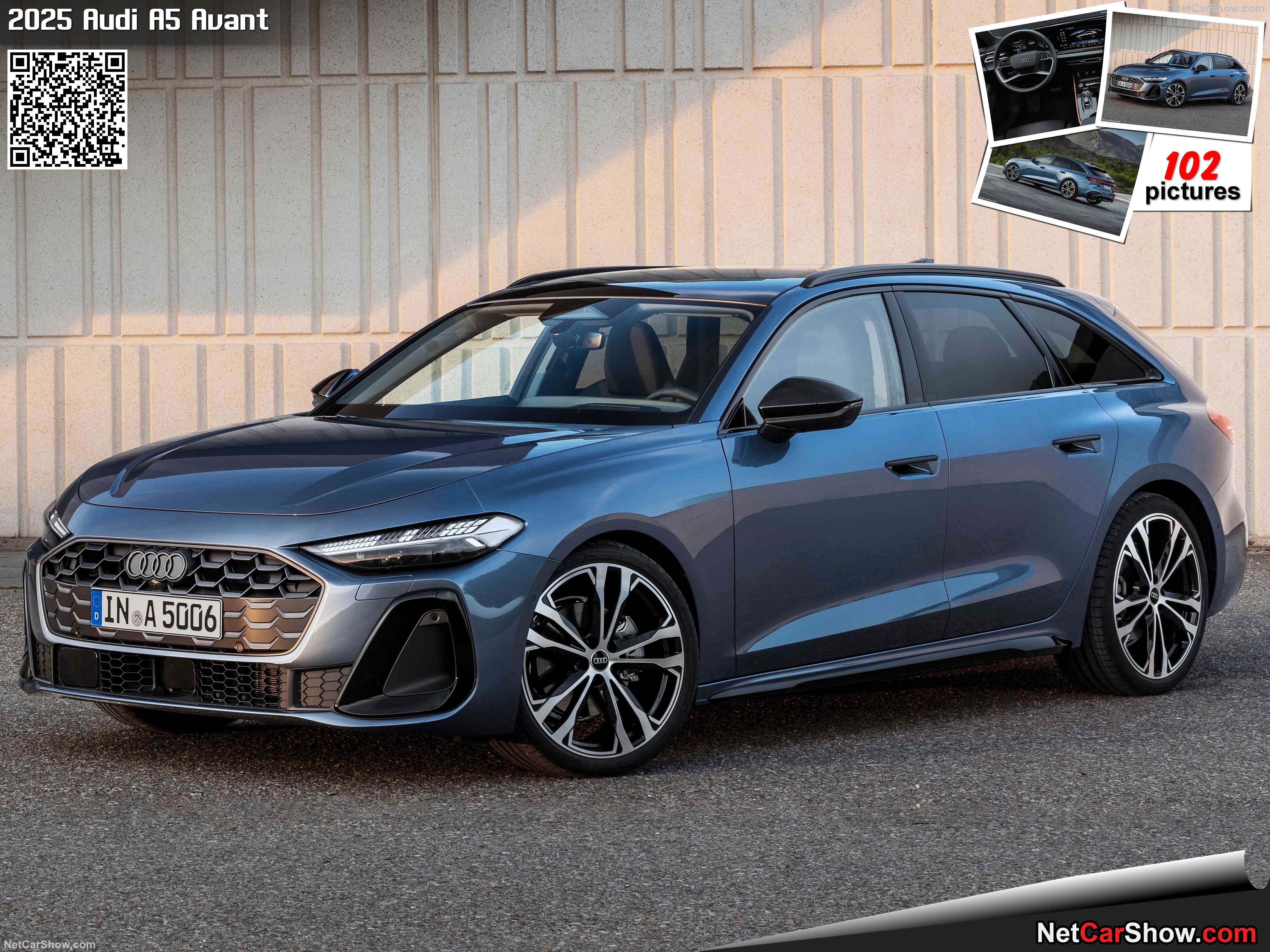

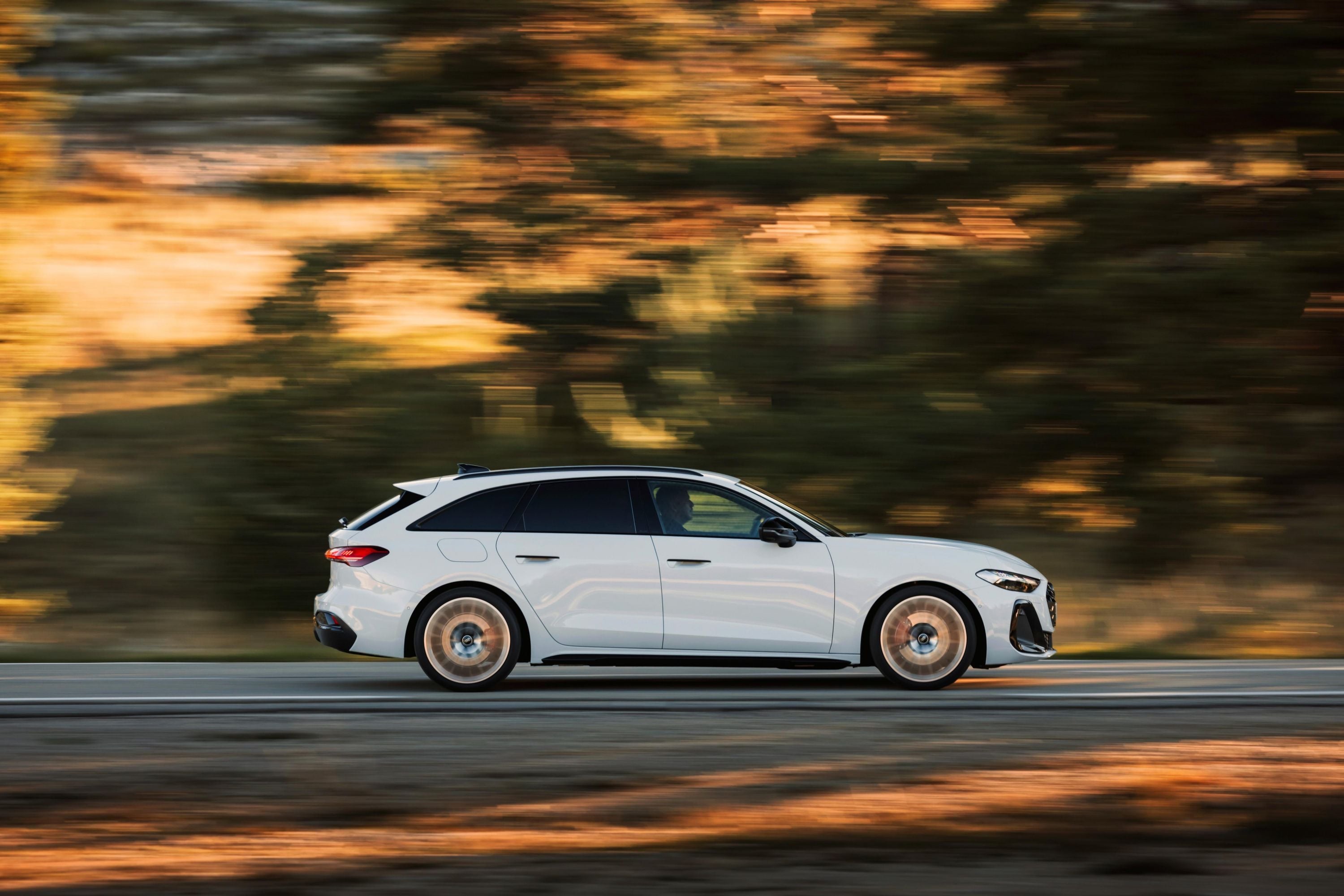

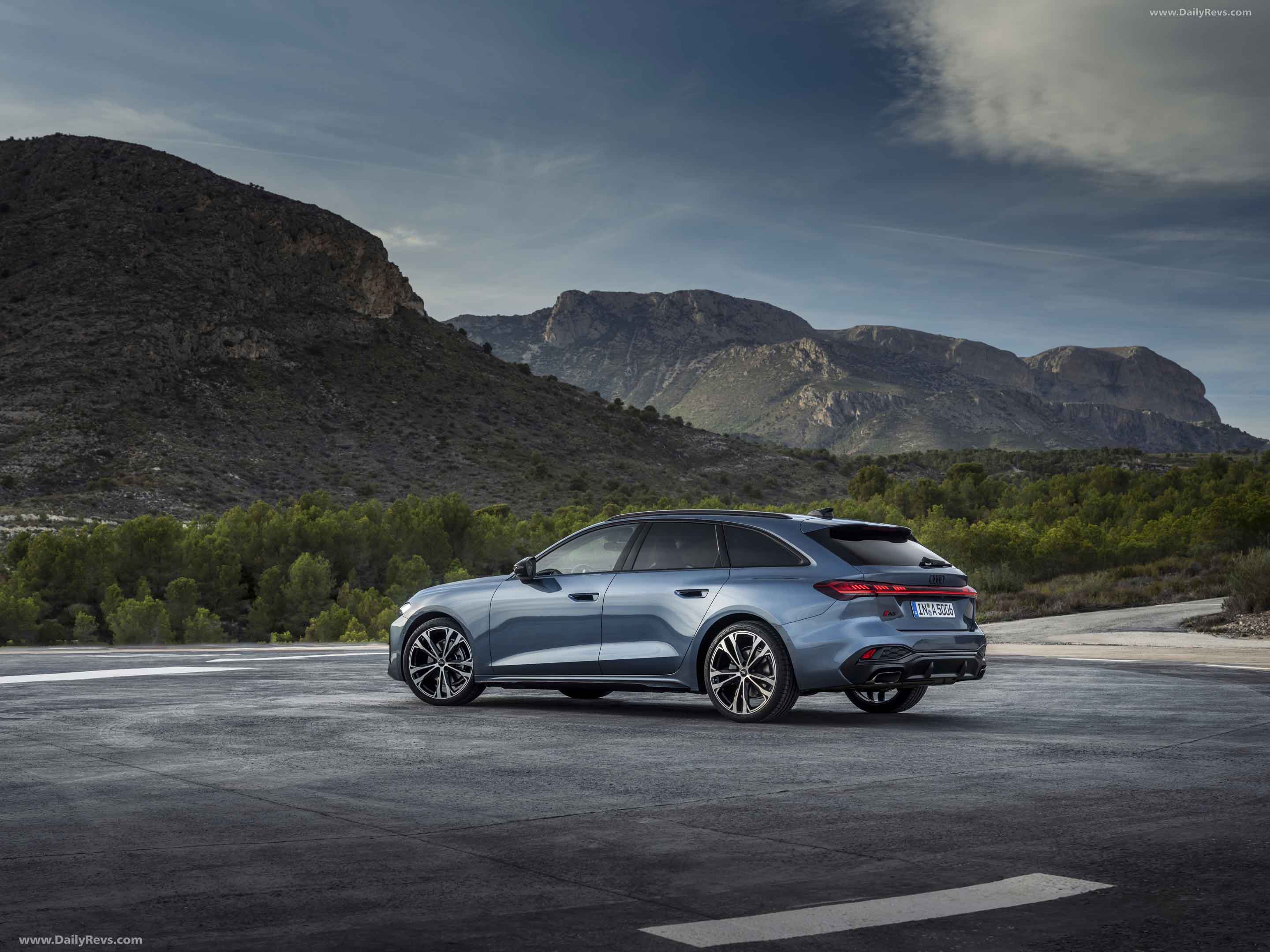

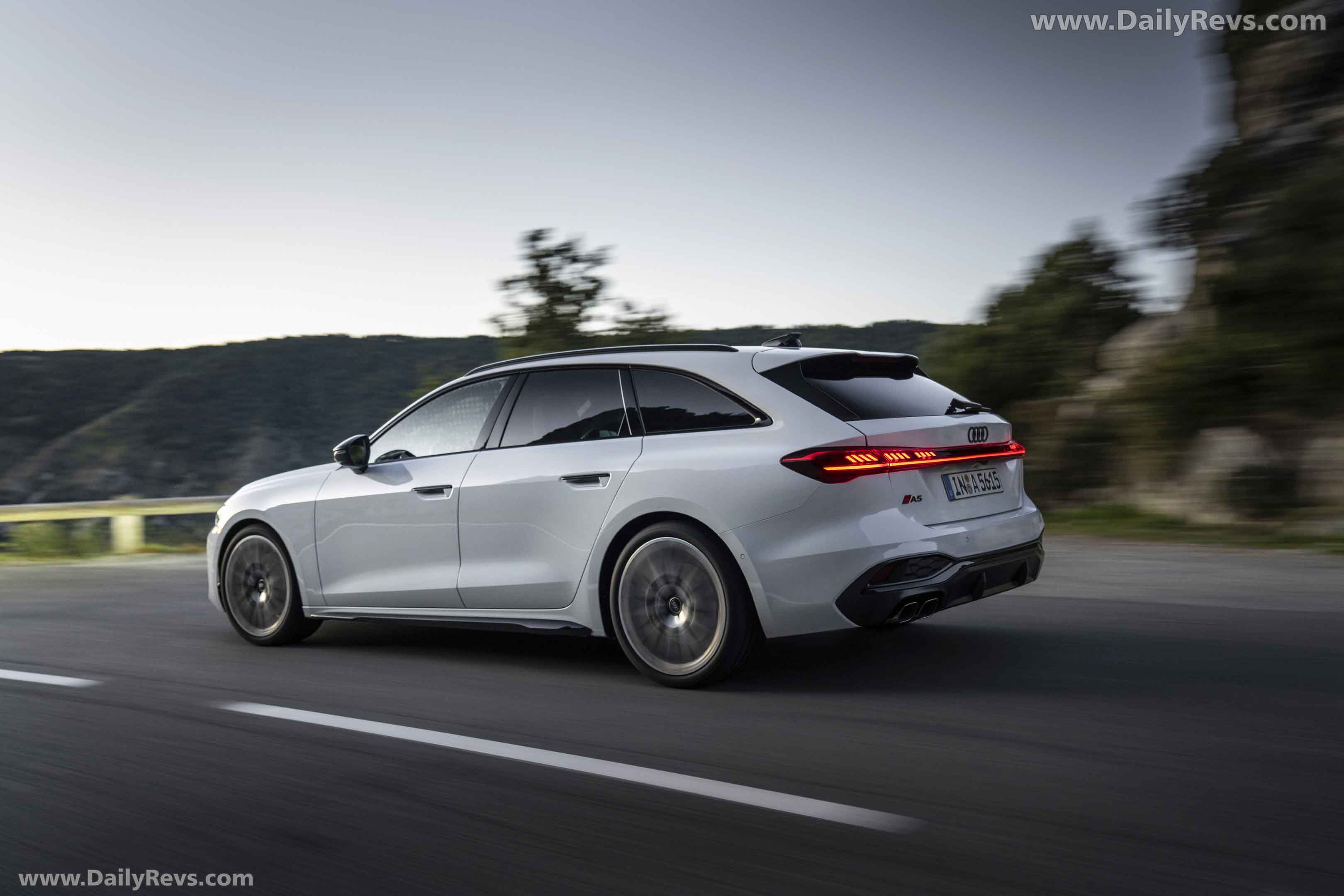

Audi A5 Avant (B10) photo gallery
18 images are collected here with the main specifications and trim data for this model.

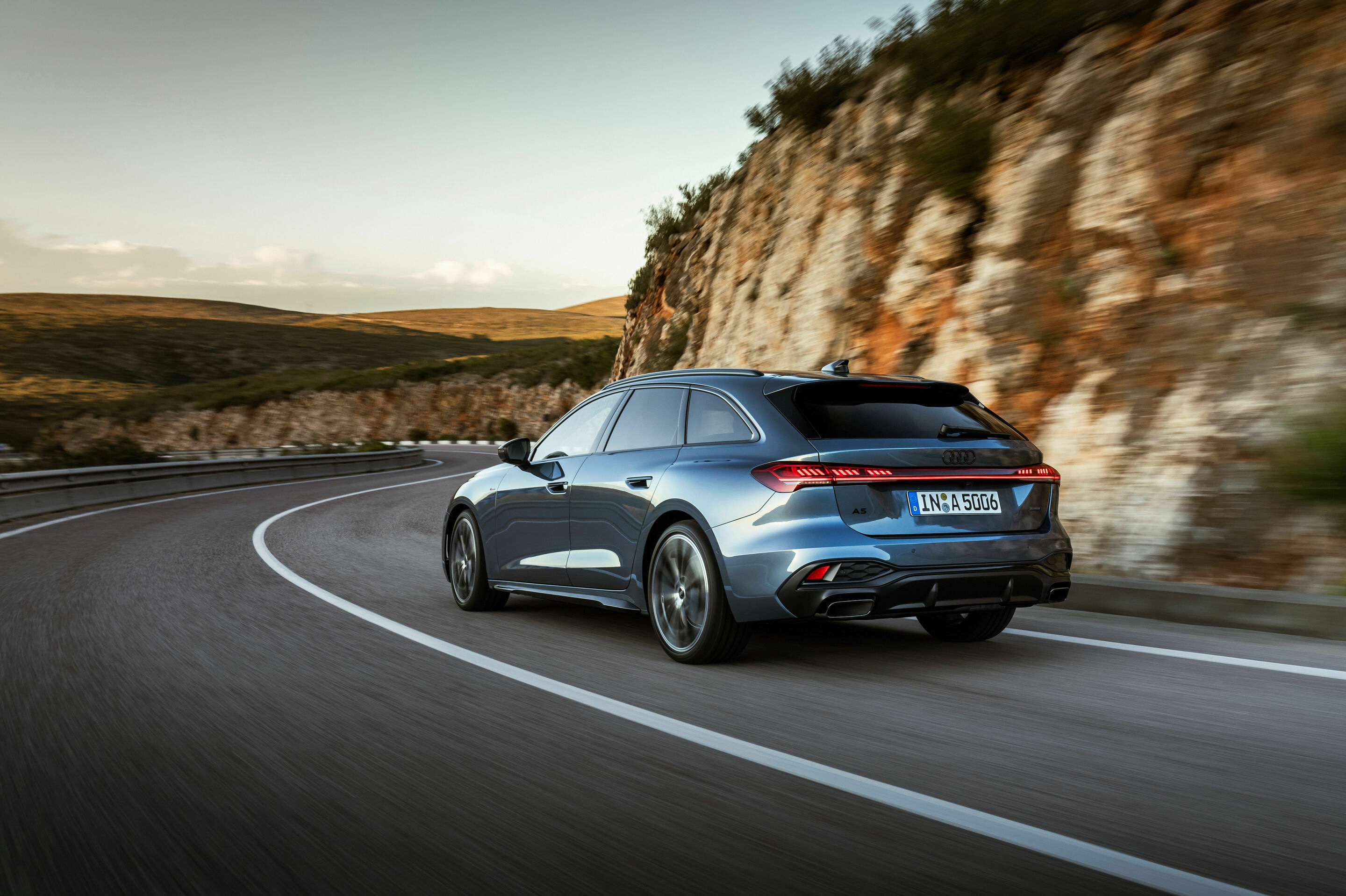

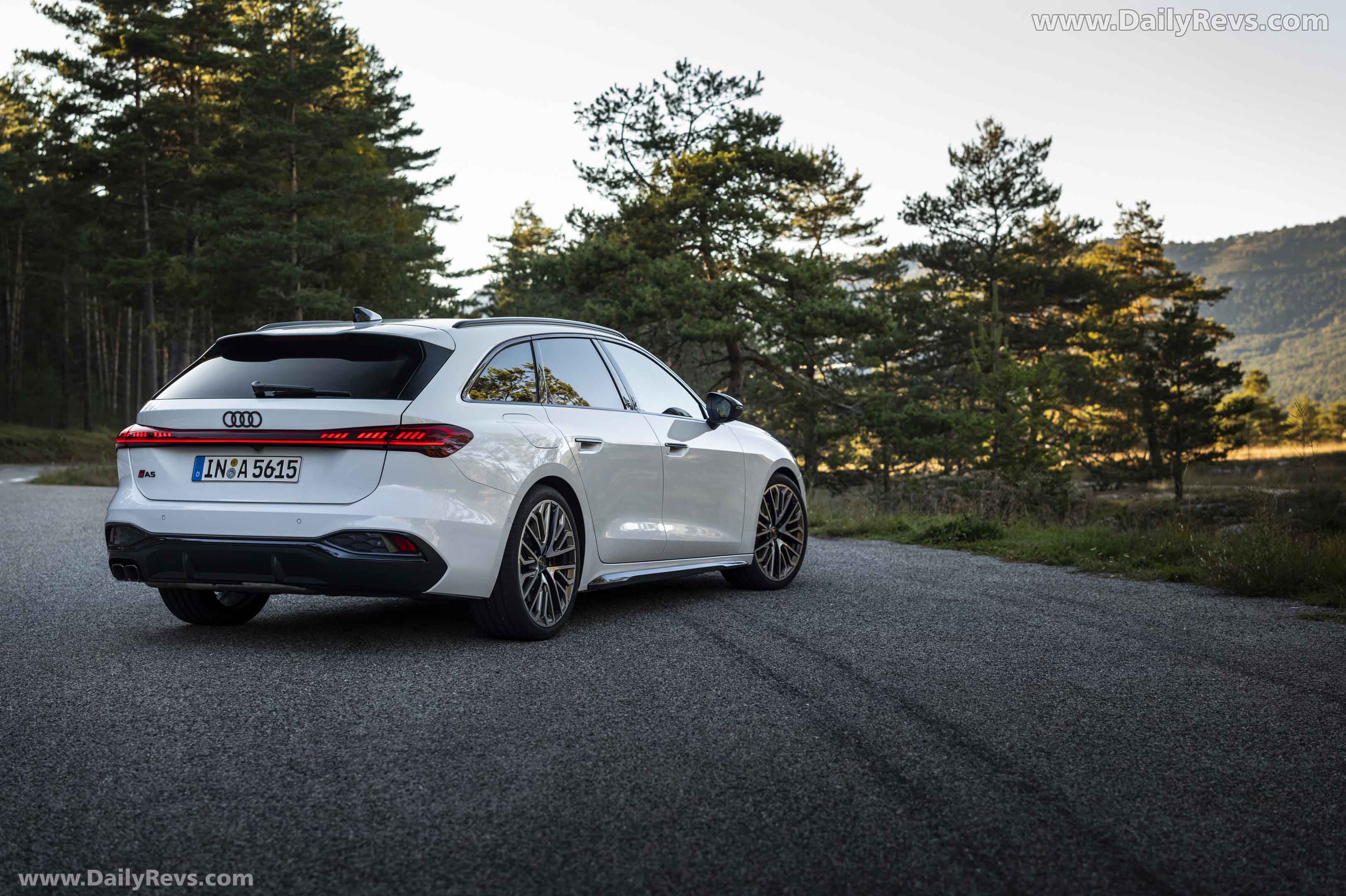

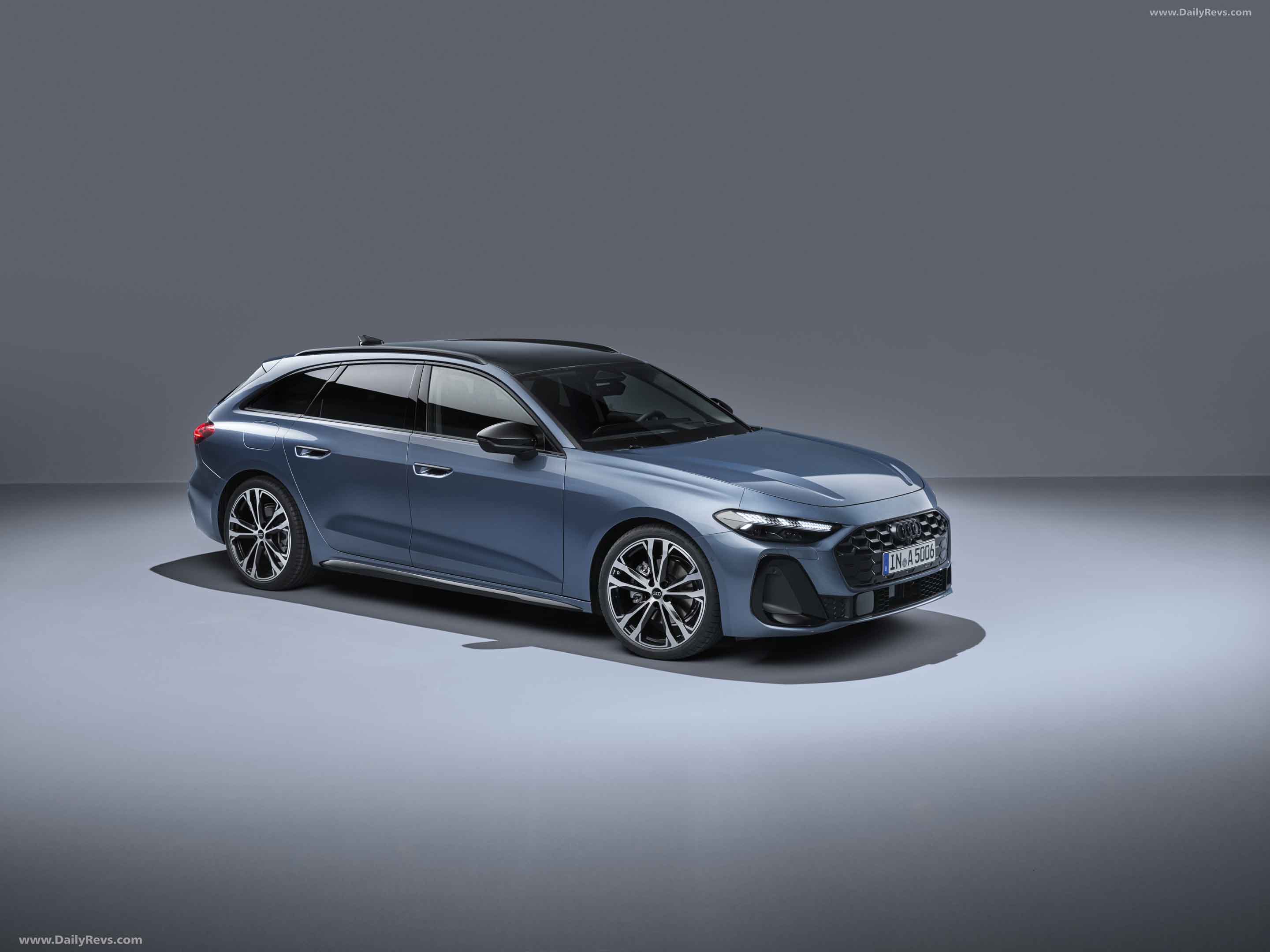

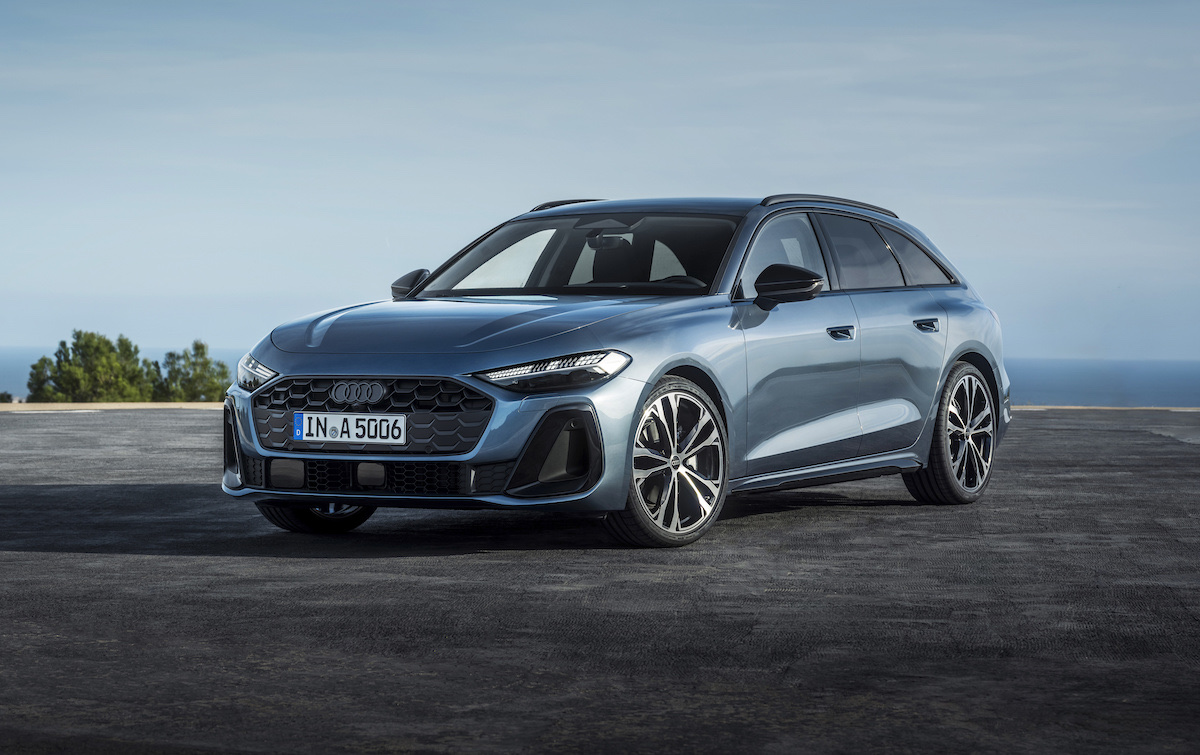

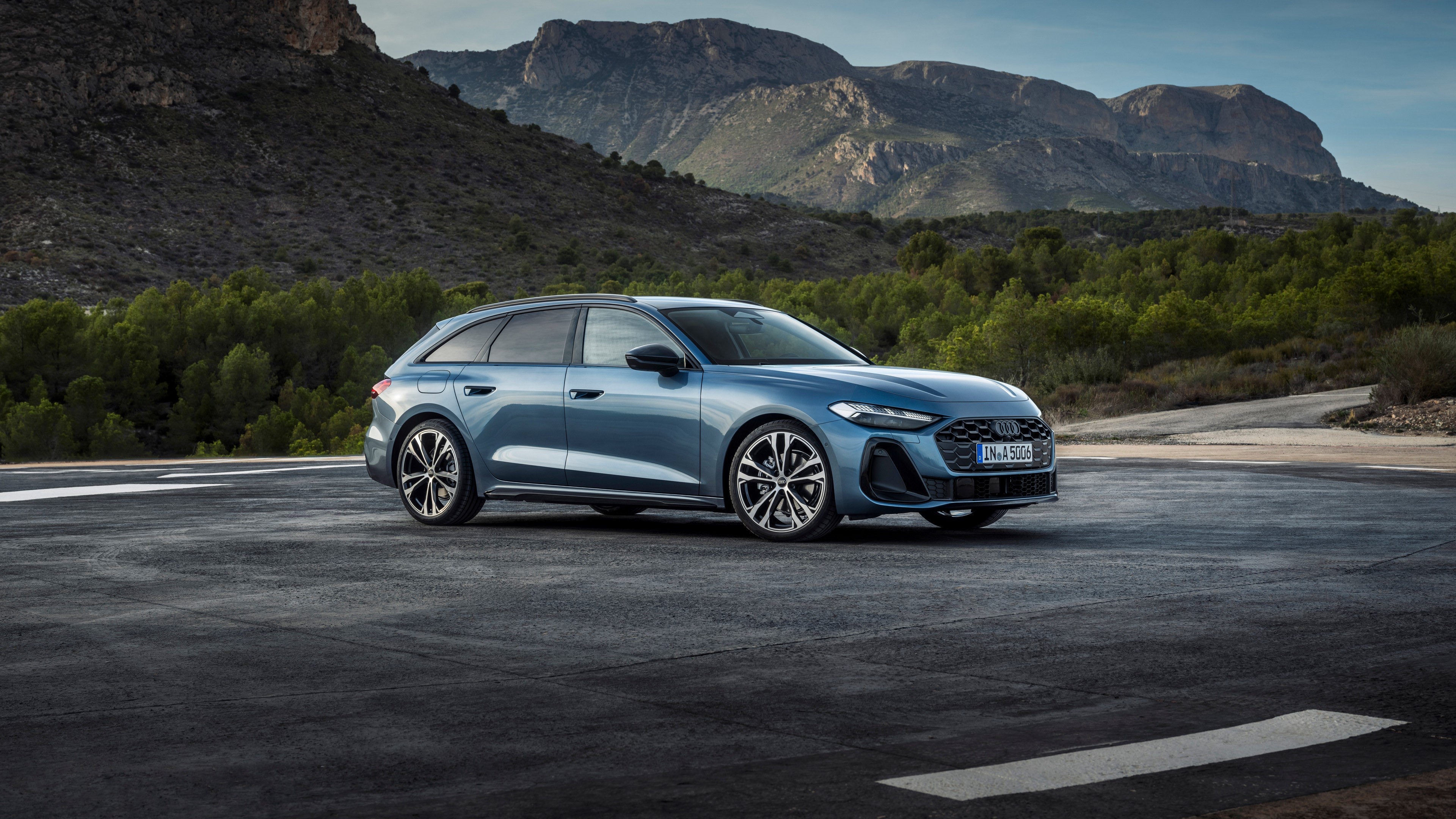

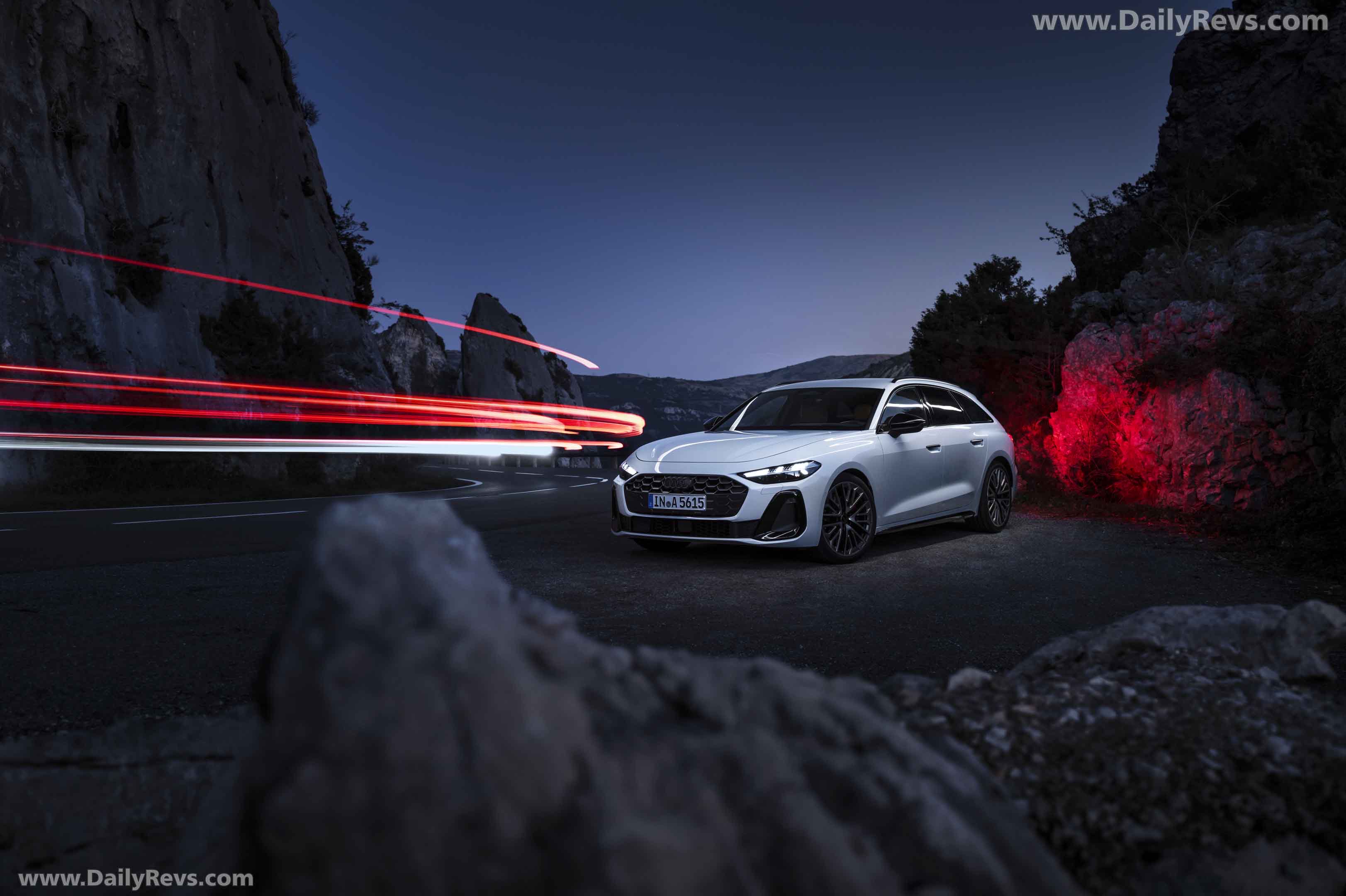

Photo Audi A5 Avant (B10)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.0 TFSI (150 hp) 7 S-tronic 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.6 |
|---|---|
| Top speed, km/h | 214 |
| Acceleration 0-100 km/h, s | 9.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 12.5:1 |
| Power, hp | 150 |
| RPM at max power | 3900-6000 |
| Torque, Nm | 280 |
| RPM at max torque | 1400-3600 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4829 |
| Width, mm | 2099 |
| Height, mm | 1460 |
| Wheelbase, mm | 2892 |
| Front track, mm | 1624 |
| Rear track, mm | 1611 |
| Kerb weight, kg | 1710 |
| Fuel tank capacity, L | 56 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 476 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
2.0 TFSI (204 hp) 7 S-tronic 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.6 |
|---|---|
| Top speed, km/h | 245 |
| Acceleration 0-100 km/h, s | 7.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 12.5:1 |
| Power, hp | 204 |
| RPM at max power | 4300-6000 |
| Torque, Nm | 340 |
| RPM at max torque | 2000-4000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4829 |
| Width, mm | 2099 |
| Height, mm | 1460 |
| Wheelbase, mm | 2892 |
| Front track, mm | 1624 |
| Rear track, mm | 1611 |
| Kerb weight, kg | 1710 |
| Fuel tank capacity, L | 56 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 476 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
2.0 TFSI (204 hp) 7 S-tronic 4x4 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.9 |
|---|---|
| Top speed, km/h | 242 |
| Acceleration 0-100 km/h, s | 7.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 12.5:1 |
| Power, hp | 204 |
| RPM at max power | 3900-6000 |
| Torque, Nm | 340 |
| RPM at max torque | 2000-4000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4829 |
| Width, mm | 2099 |
| Height, mm | 1460 |
| Wheelbase, mm | 2892 |
| Front track, mm | 1624 |
| Rear track, mm | 1611 |
| Kerb weight, kg | 1710 |
| Fuel tank capacity, L | 56 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 476 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
2.0 TDI Mild Hybrid (204 hp) 7 S-tronic 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.5 |
|---|---|
| Top speed, km/h | 240 |
| Acceleration 0-100 km/h, s | 7.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TDI Mild Hybrid |
|---|---|
| Engine code | EA288 evo |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1968 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.5:1 |
| Power, hp | 204 |
| RPM at max power | 3800-4200 |
| Torque, Nm | 400 |
| RPM at max torque | 1750-3250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4829 |
| Width, mm | 2099 |
| Height, mm | 1460 |
| Wheelbase, mm | 2892 |
| Front track, mm | 1624 |
| Rear track, mm | 1611 |
| Kerb weight, kg | 1710 |
| Fuel tank capacity, L | 56 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 476 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
2.0 TDI Mild Hybrid (204 hp) 7 S-tronic 4x4 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.6 |
|---|---|
| Top speed, km/h | 236 |
| Acceleration 0-100 km/h, s | 6.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TDI Mild Hybrid |
|---|---|
| Engine code | EA288 evo |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1968 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.5:1 |
| Power, hp | 204 |
| RPM at max power | 3800-4200 |
| Torque, Nm | 400 |
| RPM at max torque | 1750-3250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4829 |
| Width, mm | 2099 |
| Height, mm | 1460 |
| Wheelbase, mm | 2892 |
| Front track, mm | 1624 |
| Rear track, mm | 1611 |
| Kerb weight, kg | 1710 |
| Fuel tank capacity, L | 56 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 476 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
Audi A5 Avant (B10) questions
Short answers based on the specifications and photos available in this catalog.
What body style is the Audi A5 (B10)?
The Audi A5 (B10) is available as a five-door premium station wagon, officially designated as the A5 Avant.
What engines are available for the 2024 A5 Avant?
The lineup includes 2.0-liter TFSI gasoline engines producing either 150 or 204 horsepower, and a 2.0-liter TDI diesel mild-hybrid producing 204 horsepower.
Does the A5 Avant have all-wheel drive?
Yes, while front-wheel drive is standard on base models, Audi's all-wheel-drive system is available on the 204-hp gasoline and diesel variants.
How large is the trunk in the A5 Avant?
The trunk offers a cargo capacity of 476 liters with the rear seats in their upright position.
What transmission comes with the A5 Avant?
All engine options in the current lineup are paired with a 7-speed S-tronic dual-clutch automatic transmission.
