BMW 4 Series Gran Coupe (G26) specifications and photos
The second-generation BMW 4 Series Gran Coupe (G26) is a five-door liftback that combines a sleek roofline with practical rear cargo access. Introduced in 2021, it steps in to replace the previous generation as well as the discontinued 3 Series Gran Turismo, offering a larger footprint and improved aerodynamics.
BMW 4 Series Gran Coupe (G26) at a glance
Quick model context before comparing photos and trim-level specifications.
Replacing both the F36 generation and the outgoing 3 Series Gran Turismo, the G26 4 Series Gran Coupe represents a significant upsize for BMW's midsize liftback segment. It grew substantially over its predecessor, adding 143 mm in length and 46 mm to the wheelbase, translating to a more accommodating cabin. Aerodynamic efficiency also saw an improvement, with the drag coefficient dropping to 0.26. The vehicle caters to buyers who prefer the driving dynamics and bold styling of the 4 Series coupe but require the everyday functionality of rear doors and a versatile cargo area. Available in rear-wheel drive or xDrive all-wheel drive, the G26 pairs a standard eight-speed ZF automatic transmission with a range of turbocharged four-cylinder and six-cylinder engines.
- Power: 184-374 hp
- Engine displacement: 1995-2998 cc
- Transmissions: 8-Steptronic, 8-Steptronic Sport
- Seating: 5 seats
Photos, trims and specifications for BMW 4 Series Gran Coupe (G26)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2021 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
BMW 4 Series Gran Coupe (G26) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior styling directly mirrors the two-door 4 Series variants, characterized by its prominent vertical kidney grilles and slim headlight enclosures. Despite the extra set of doors and the elongated roofline, it retains a low, coupe-like stance with a 1442 mm height and 140 mm of ground clearance. Buyers can opt for advanced lighting technology, including the available BMW Laser Light system. The liftback tailgate is cleanly integrated into the rear profile, maintaining the sleek silhouette while providing excellent access to the cargo area.
Interior
Inside, the cabin layout is driver-focused, sharing its core architecture with the current 3 Series and 4 Series models. The dashboard angles the climate controls and infotainment screen toward the driver. Sport seats and a sport steering wheel are standard. Base models feature an 8.8-inch Live Cockpit Plus display, while a larger 12.3-inch digital instrument cluster and a 10.25-inch central touchscreen are available as part of the Live Cockpit Professional upgrade. The stretched wheelbase yields better rear passenger space, complete with standard rear climate control. Cargo capacity measures 470 liters, expanding to 1290 liters when the 40:20:40 split-folding rear seats are lowered. Optional Vernasca leather and a 464-watt Harman Kardon audio system can elevate the cabin environment.
Performance
The powertrain lineup includes 2.0-liter four-cylinder and 3.0-liter inline-six engines, all paired with an eight-speed automatic transmission. The entry-level 420i produces 184 horsepower, while the 430i increases output to 245 horsepower. A 190-horsepower 420d diesel is also available, offered with either rear-wheel drive or xDrive. The diesel and six-cylinder engines feature a mild-hybrid system with an 11-horsepower starter-generator. At the top of the range, the M440i xDrive utilizes a turbocharged 3.0-liter inline-six generating 374 horsepower and 500 Nm of torque, enabling a 0-100 km/h acceleration time of 4.7 seconds. Available performance upgrades include adaptive M suspension, upgraded brakes, and an electronic rear differential lock.
Practicality
As a five-door liftback, the 4 Series Gran Coupe bridges the gap between a traditional sedan and a wagon. The large rear hatch makes loading bulky items easier compared to a standard trunk. While the 470-liter cargo area is slightly smaller than the previous generation by 10 liters, the versatile folding rear bench allows for flexible passenger and cargo configurations. The increased dimensions provide a more comfortable environment for everyday commuting and longer road trips, particularly for rear-seat occupants.
Safety and tech
BMW Operating System 7 powers the infotainment, supporting over-the-air updates, Apple CarPlay, and Android Auto, with integration into the optional head-up display. Operation can be handled via touch, physical controls, voice, or optional gesture recognition. For driver assistance, the G26 can be equipped with level 2 autonomous driving features and a 360-degree camera system for easier maneuvering.
Buyer notes
Shoppers should consider whether they need the all-weather capability of the xDrive system, which is available on the 420d and standard on the M440i. The base 8.8-inch screen is adequate, but upgrading to the larger display setup is a common choice for a more modern digital interface. Keep in mind that features like the M sport suspension and adaptive dampers alter the ride quality, so test driving different suspension setups is advisable. Trim levels, standard equipment, and exact engine availability may vary by local market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 420i | 1998 cc | 184 hp | 5 | 8-Steptronic |
| 430i | 1998 cc | 245 hp | 5 | 8-Steptronic |
| M440i xDrive | 2998 cc | 374 hp | 5 | 8-Steptronic Sport |
| 420d | 1995 cc | 190 hp | 5 | 8-Steptronic |
| 420d xDrive | 1995 cc | 190 hp | 5 | 8-Steptronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

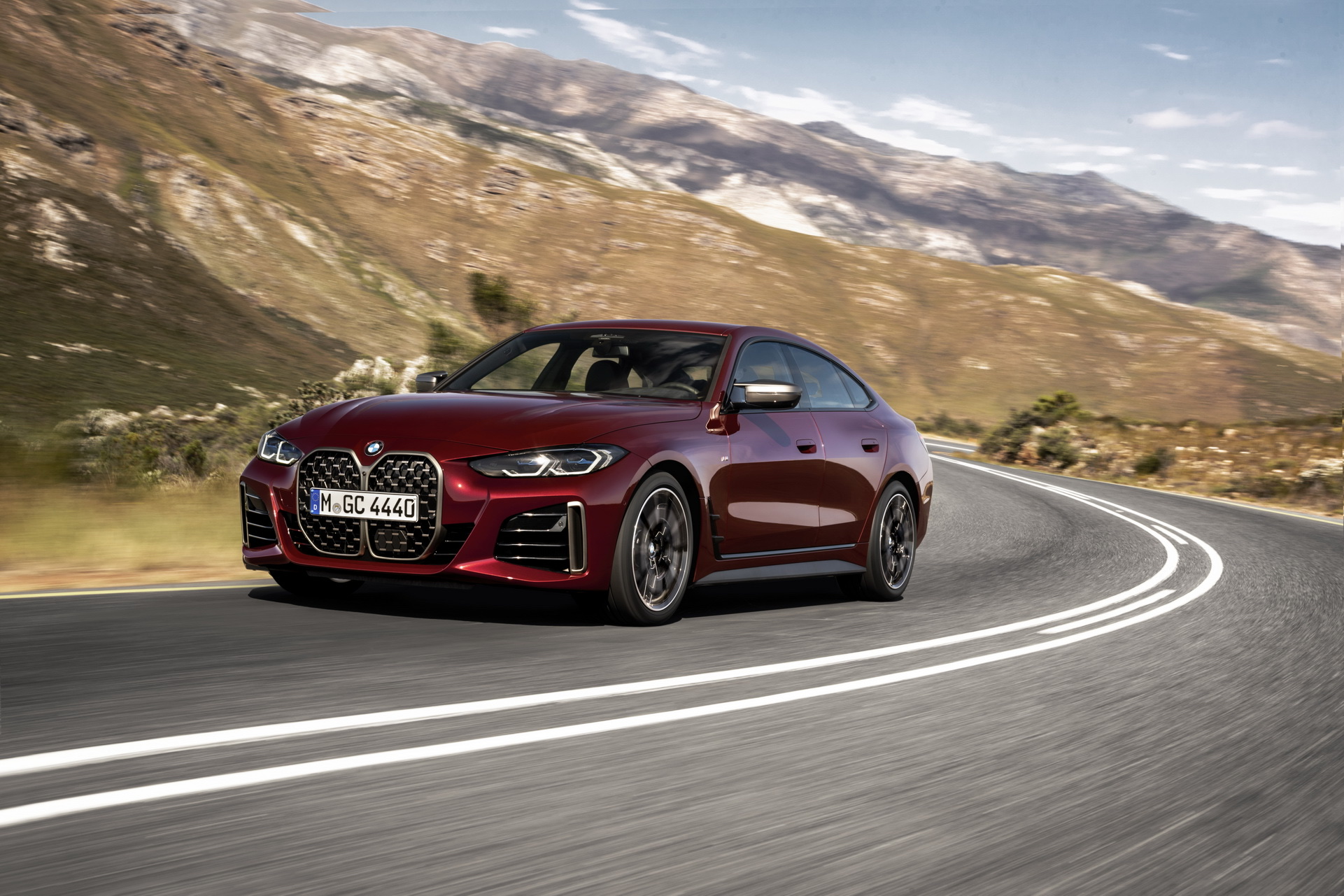

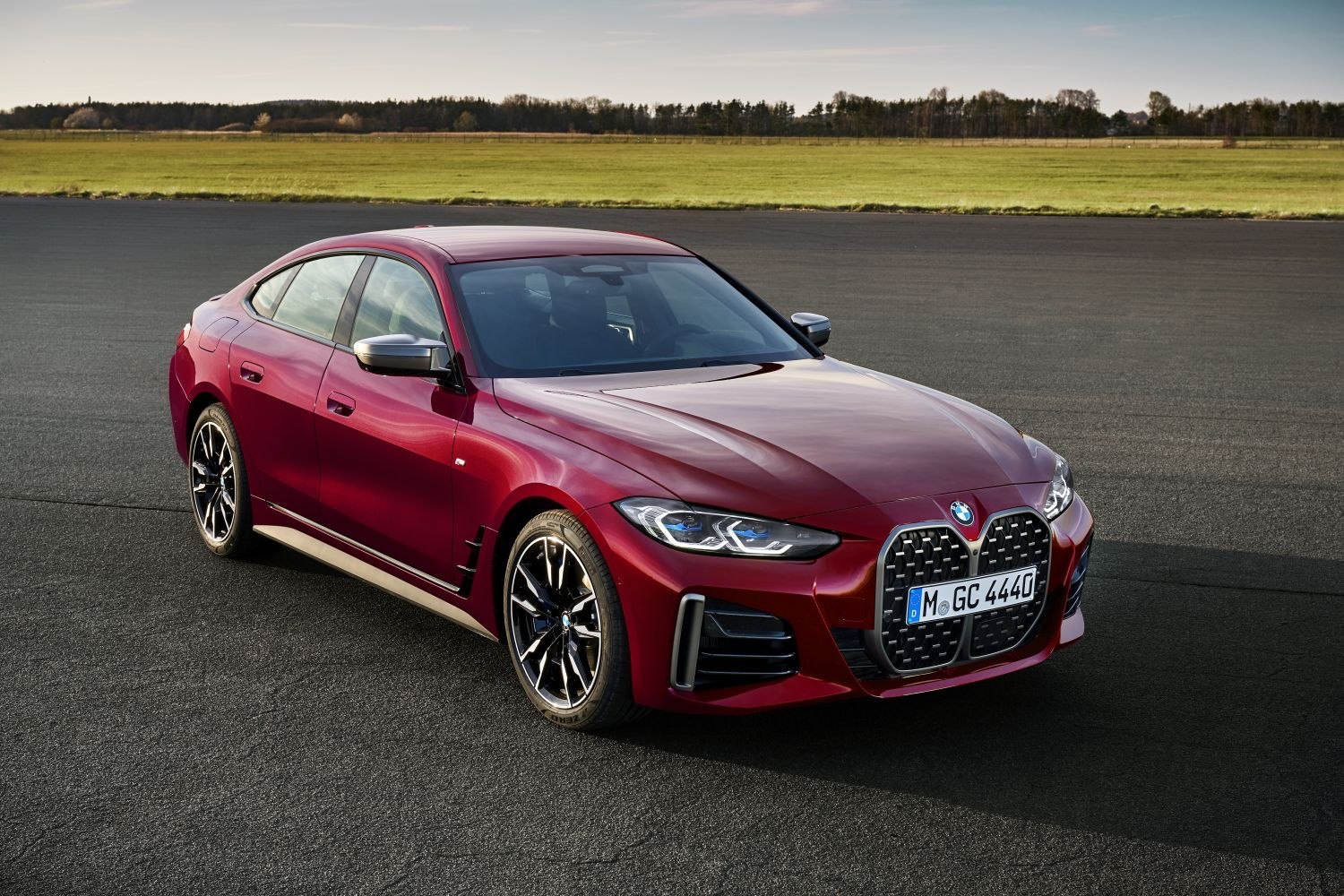

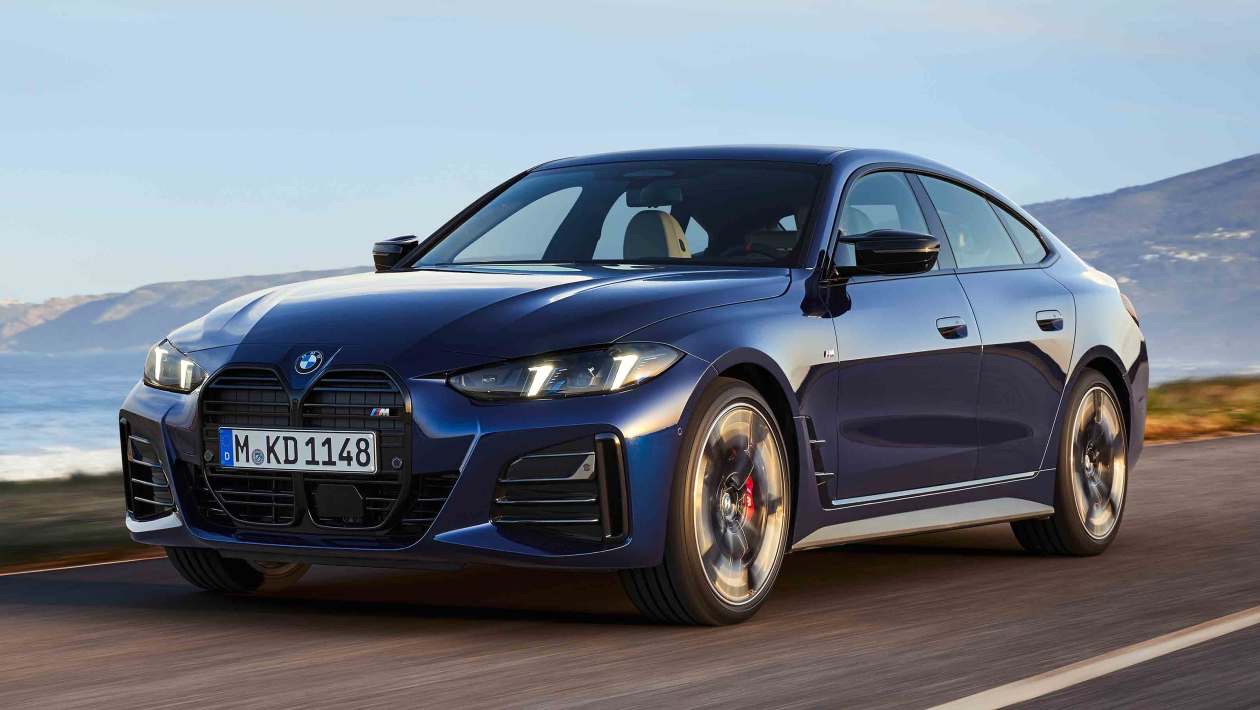

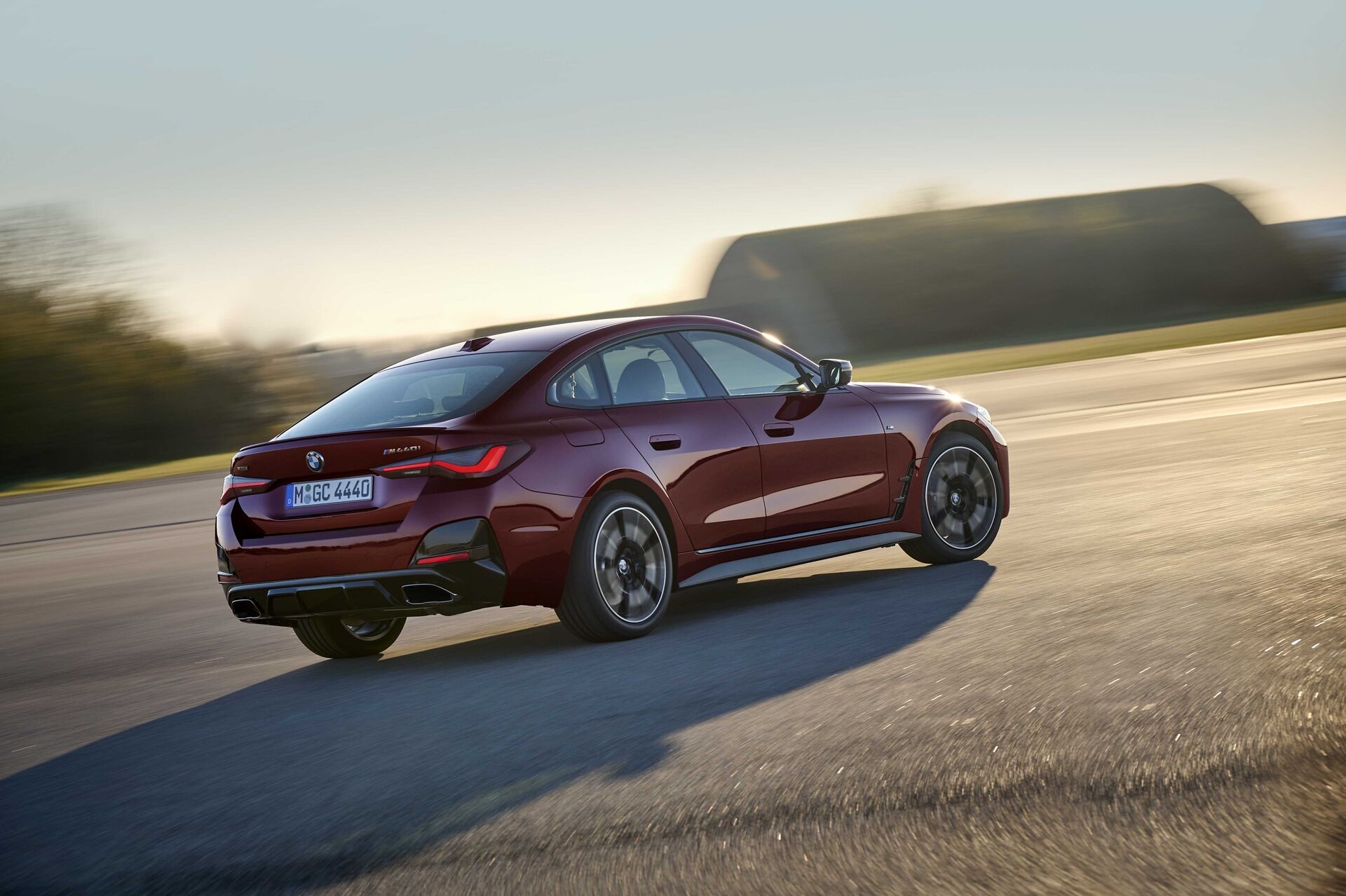

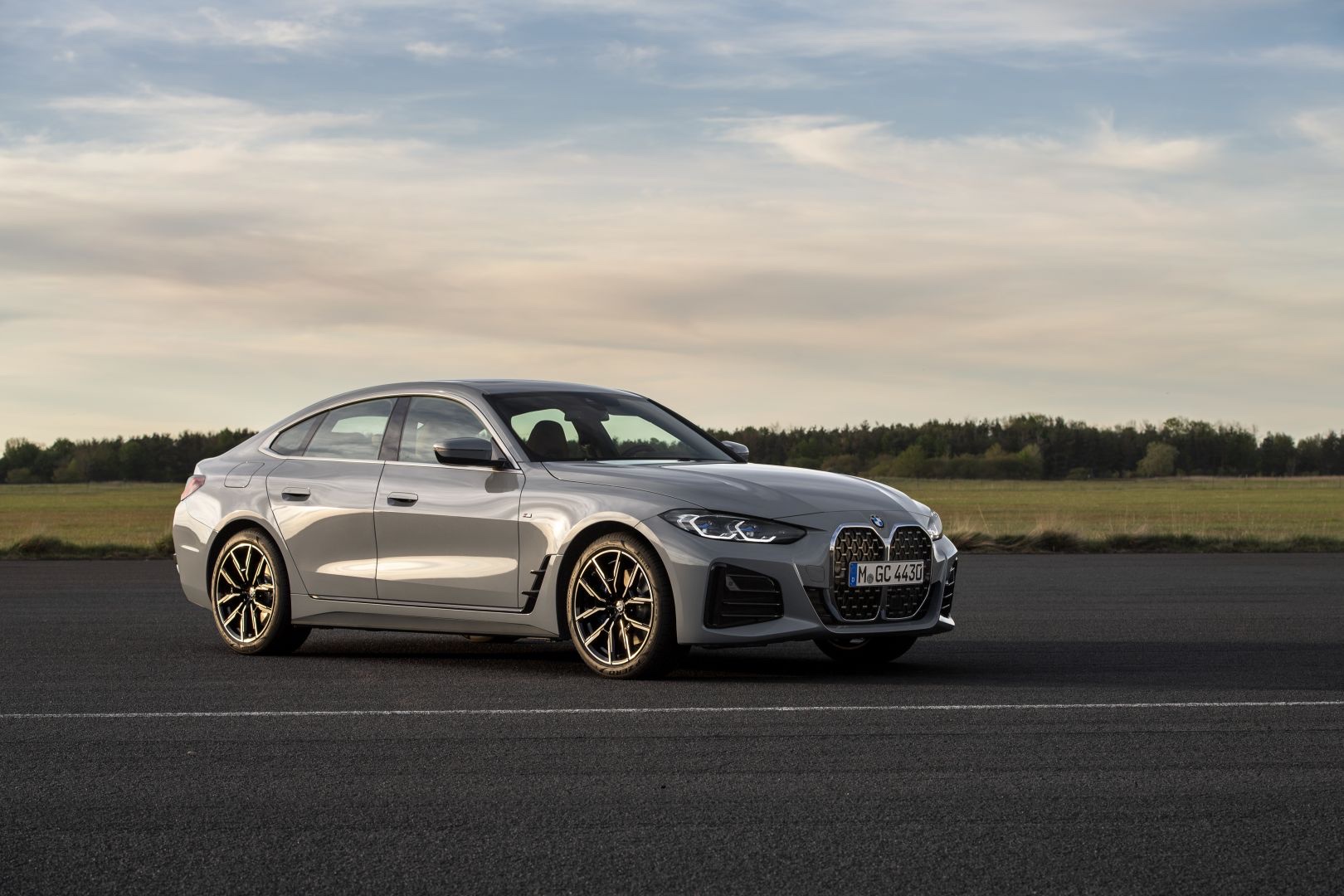

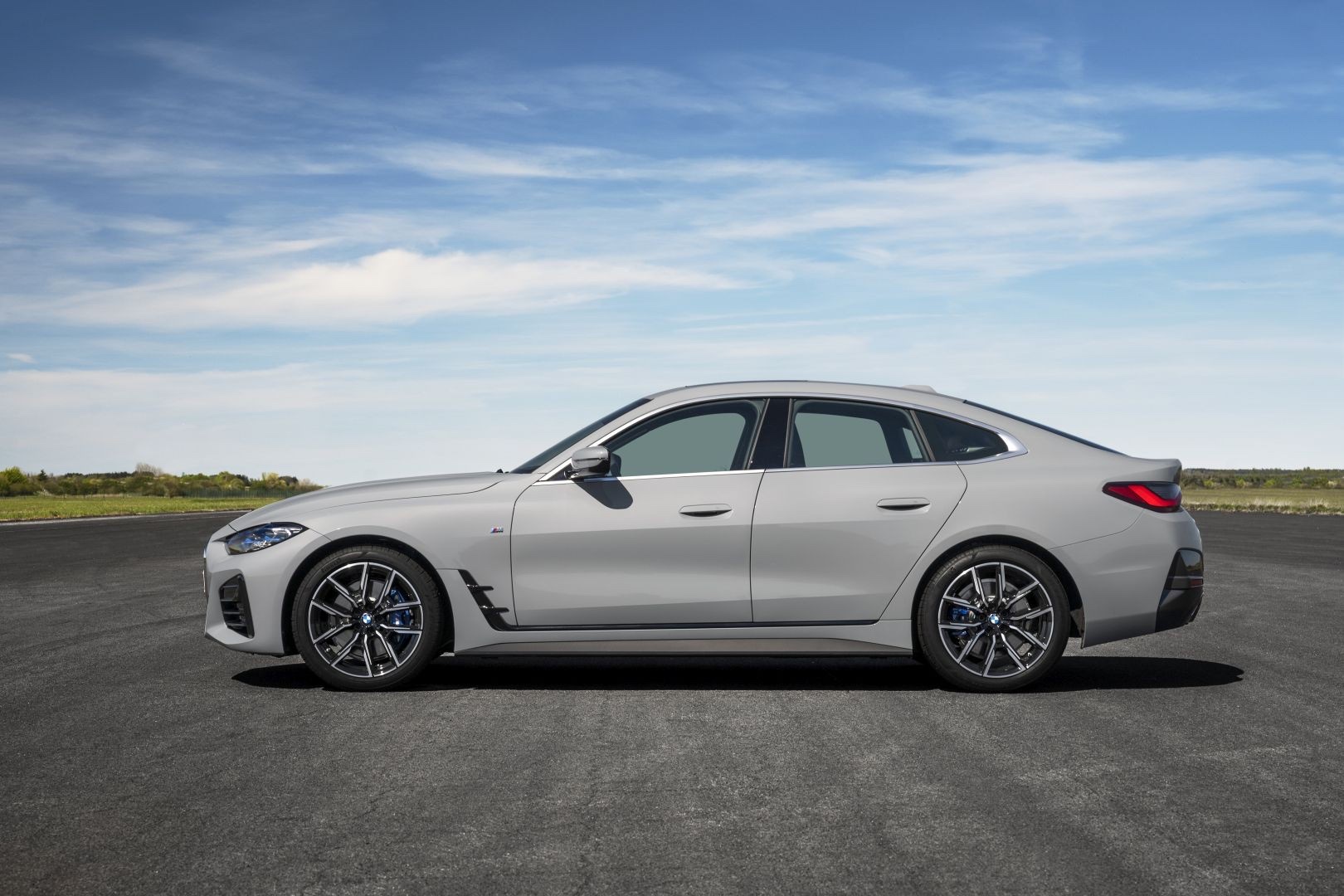

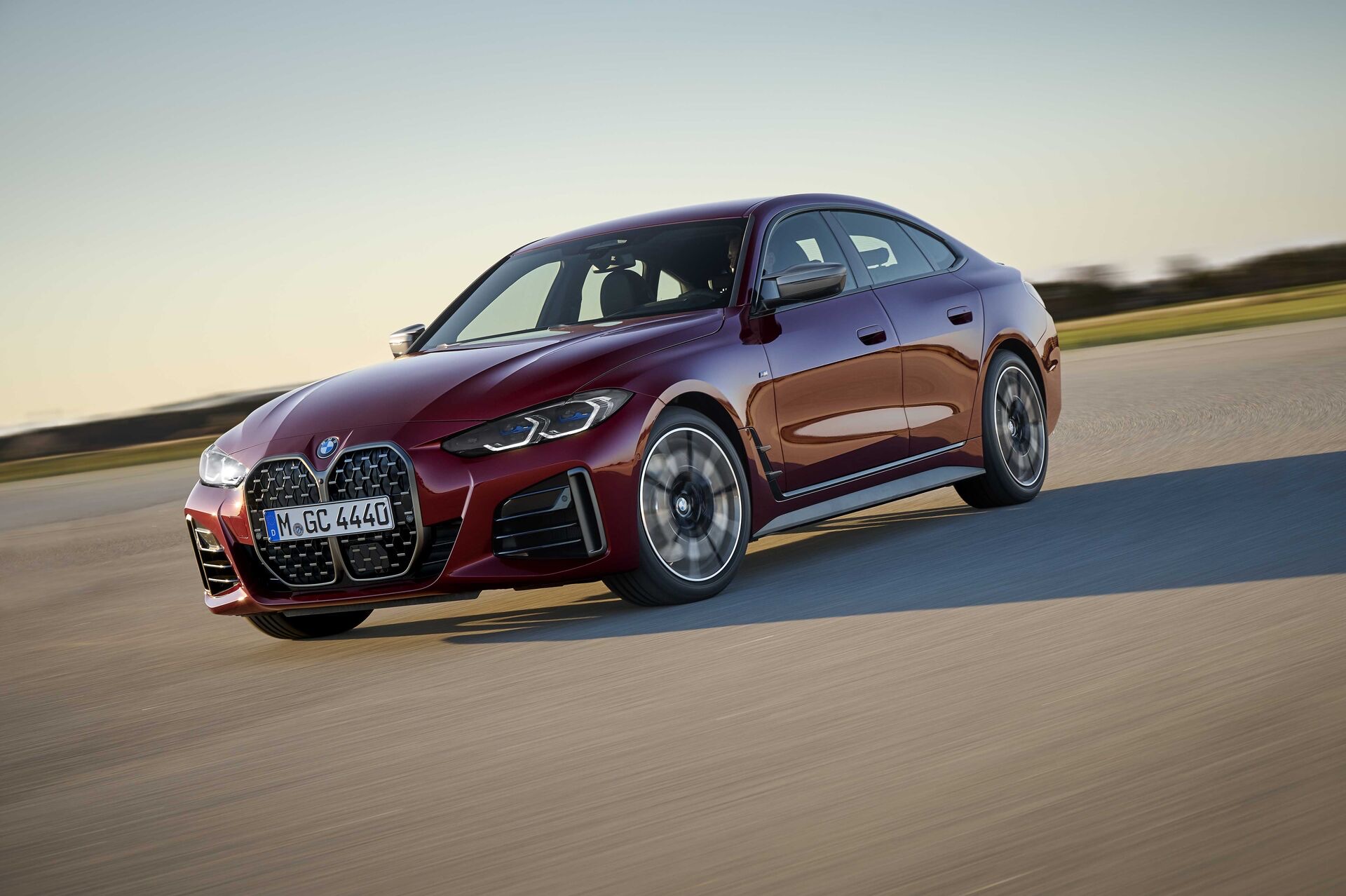

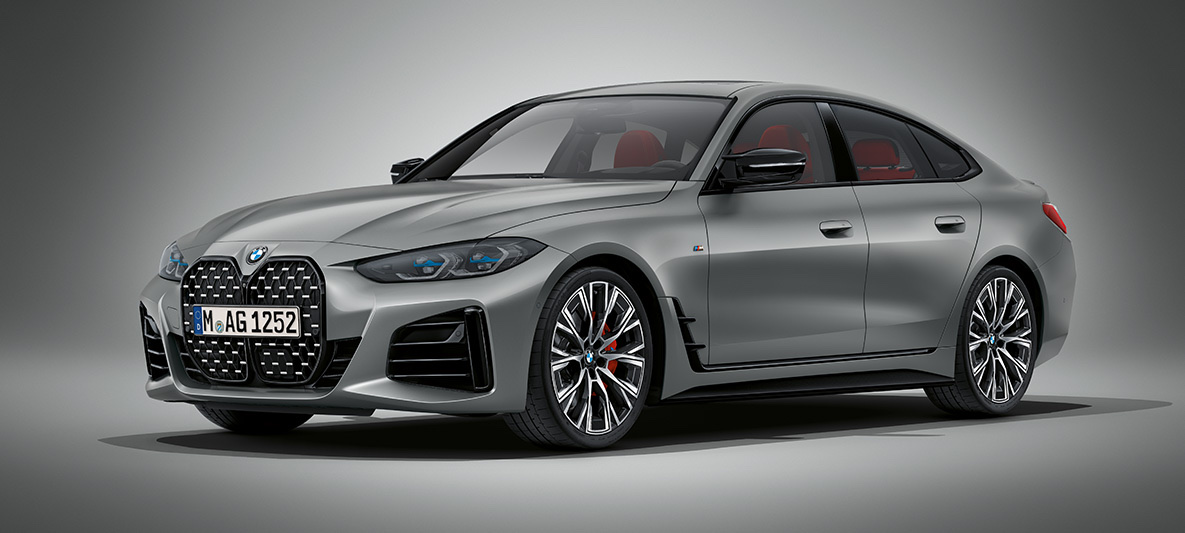

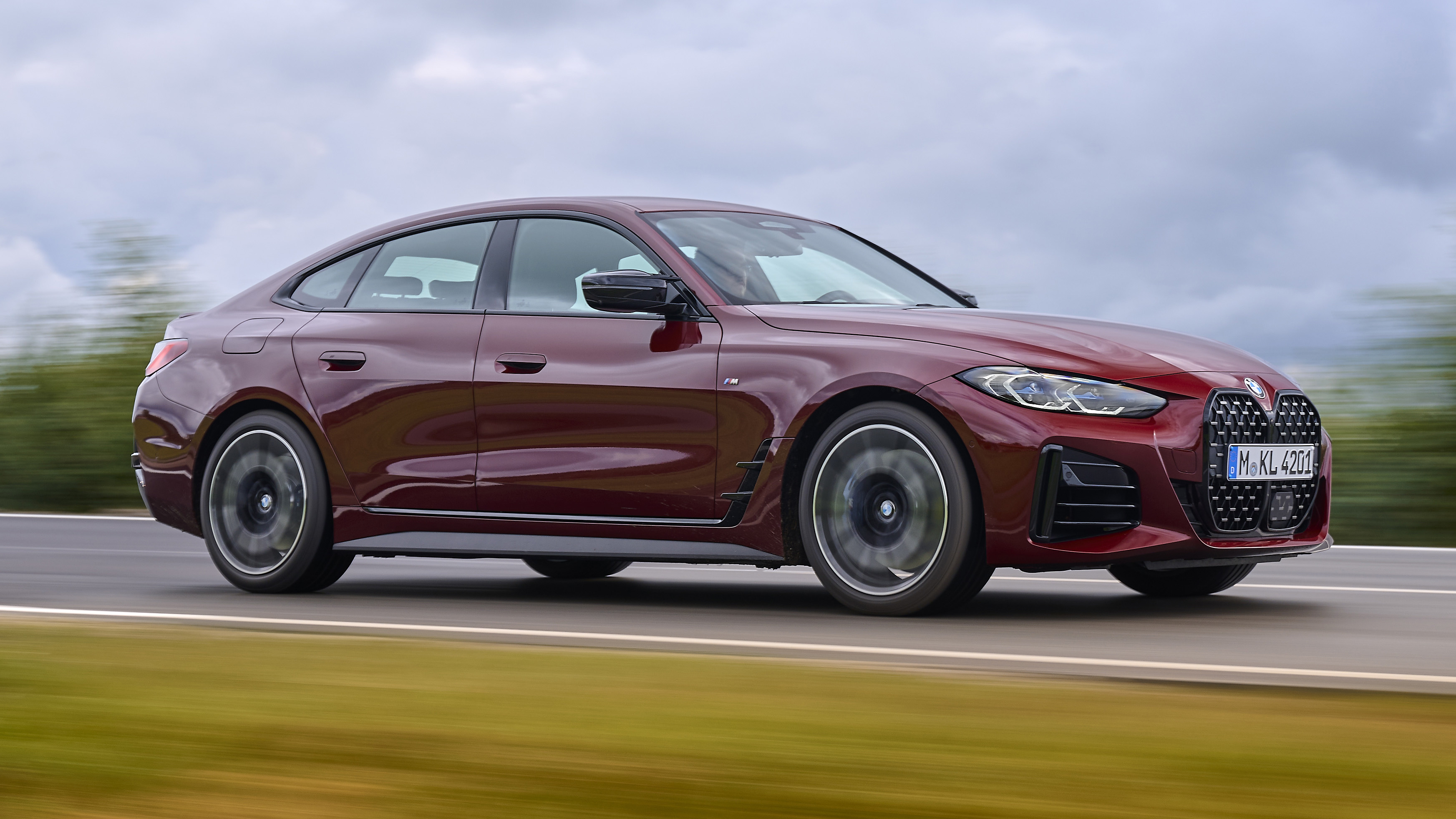

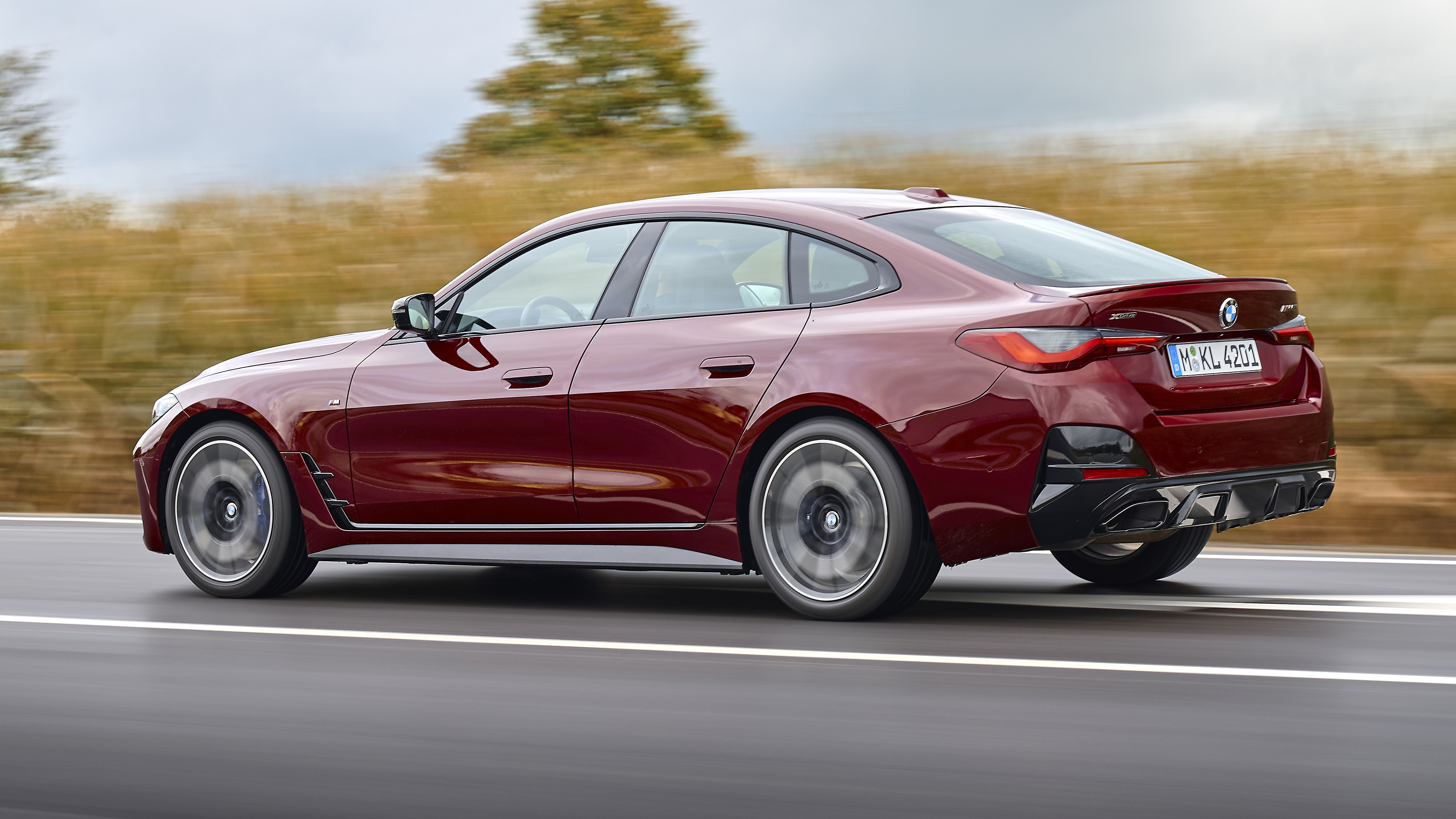

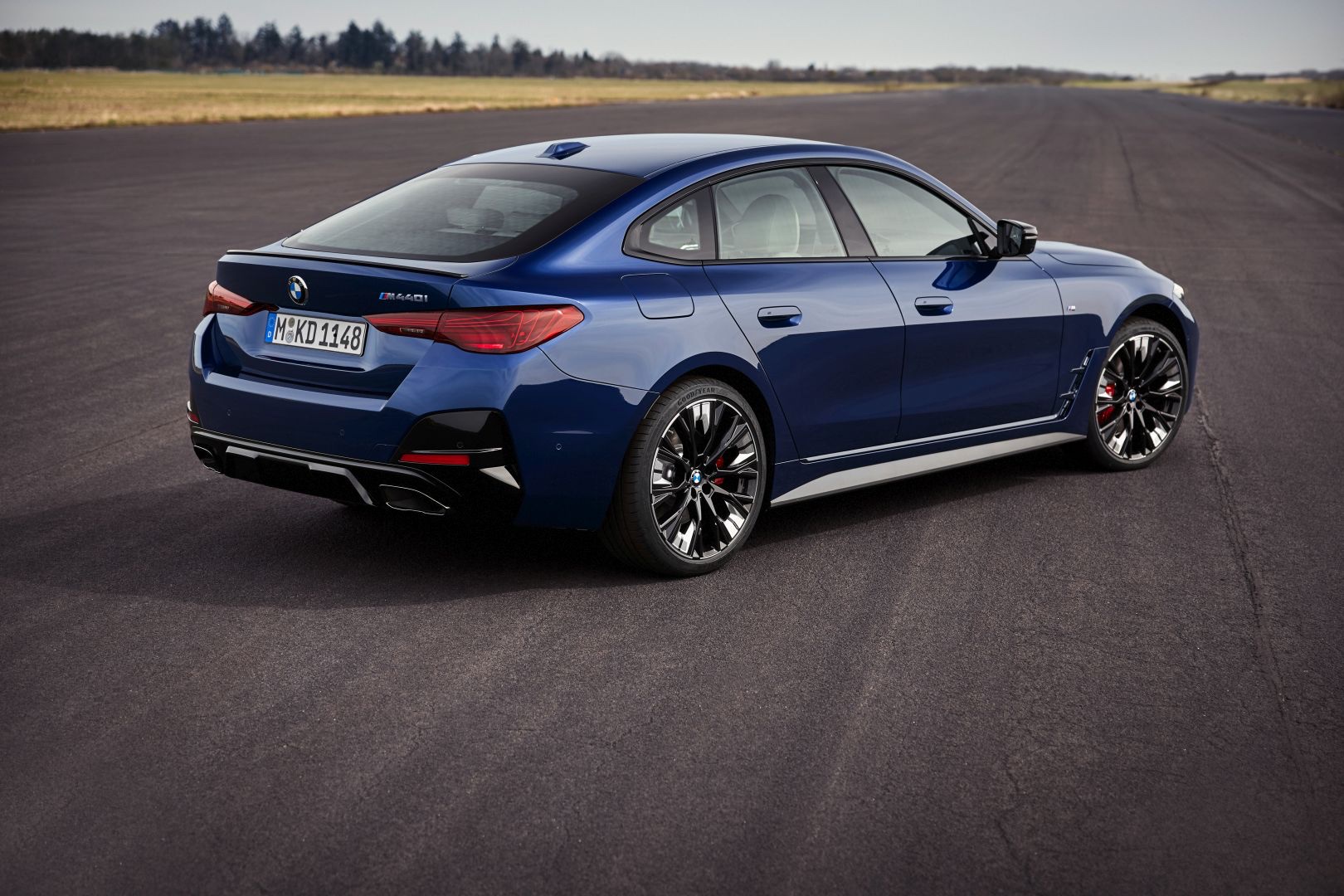

BMW 4 Series Gran Coupe (G26) photo gallery
19 images are collected here with the main specifications and trim data for this model.

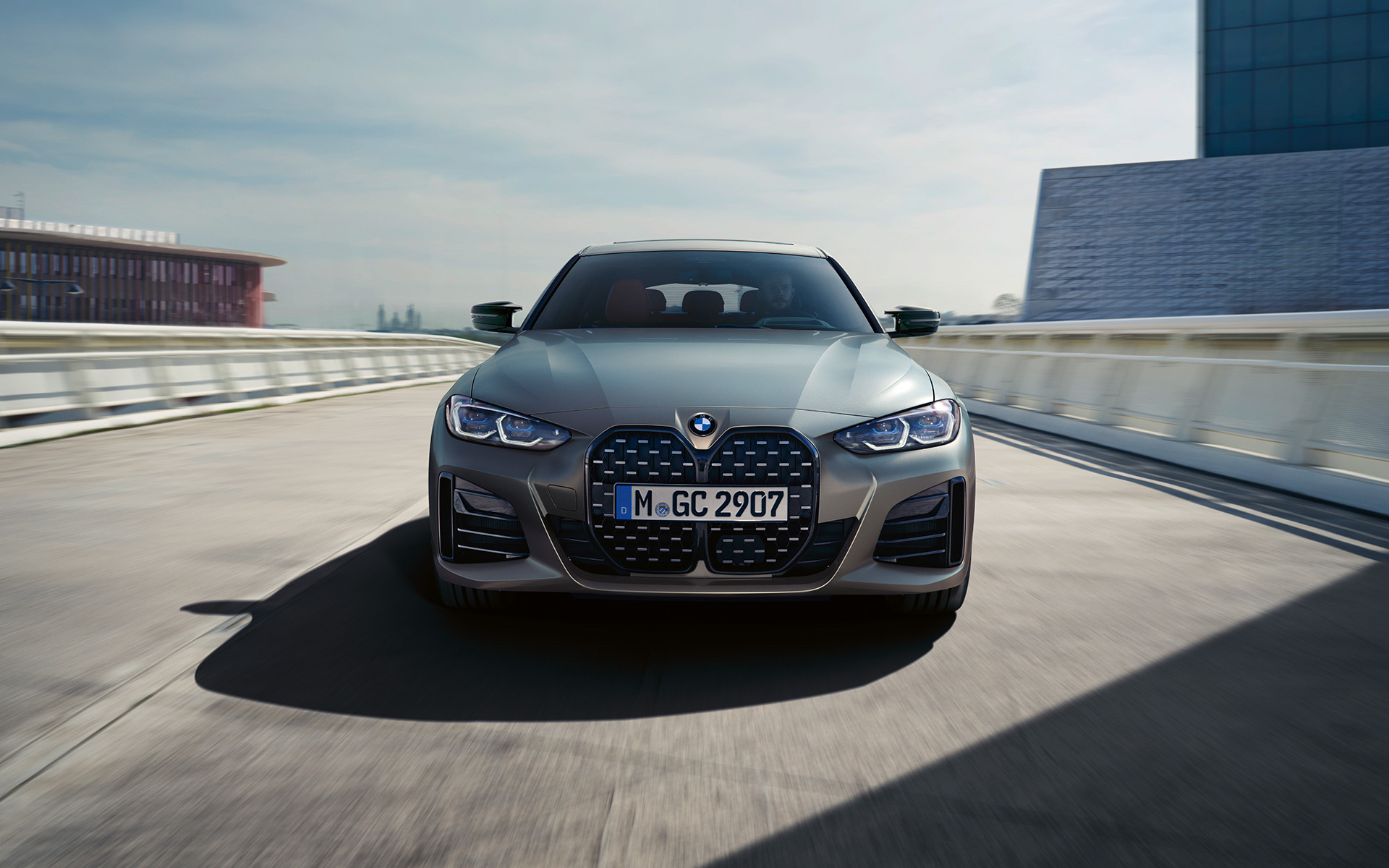

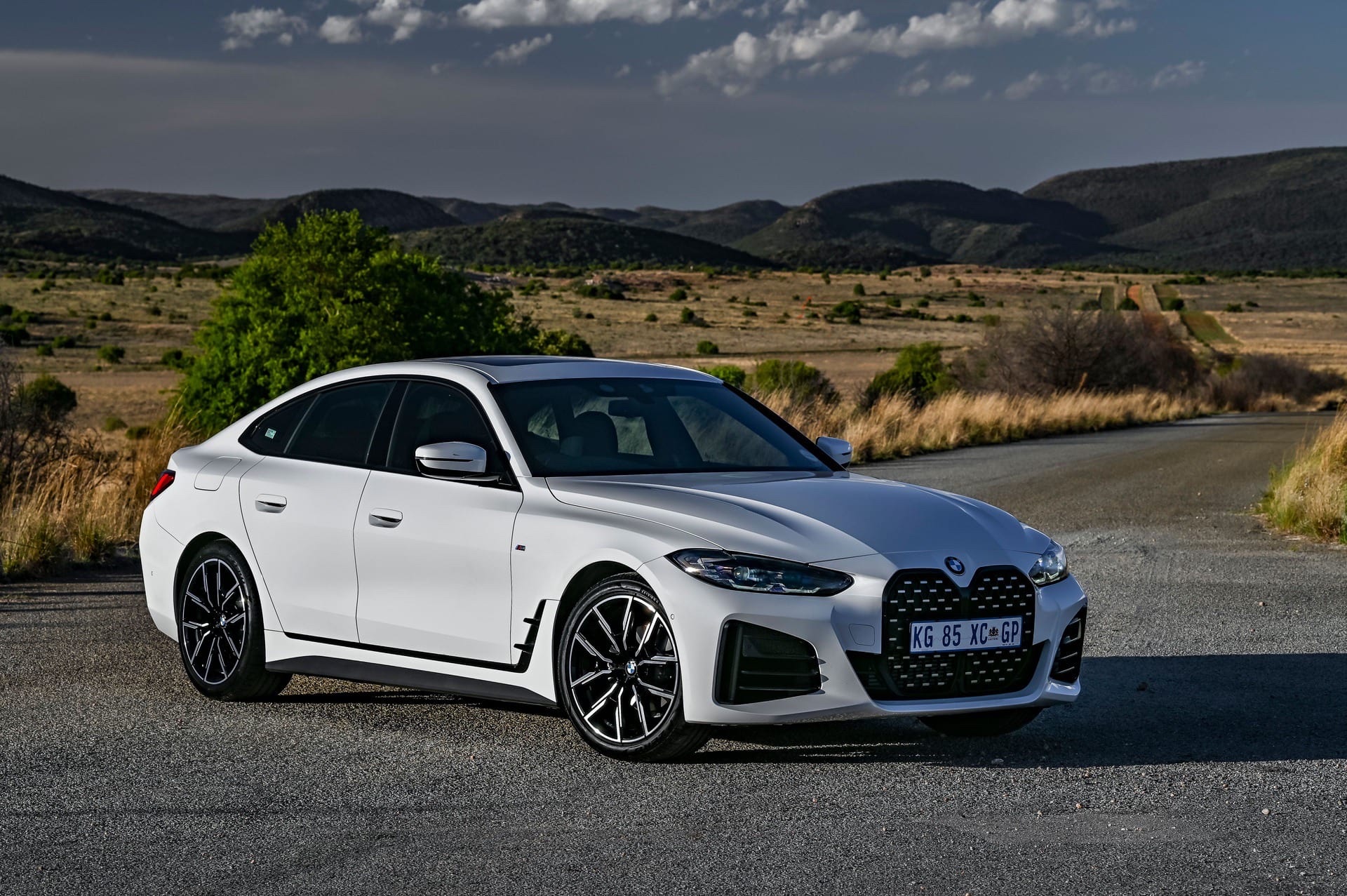

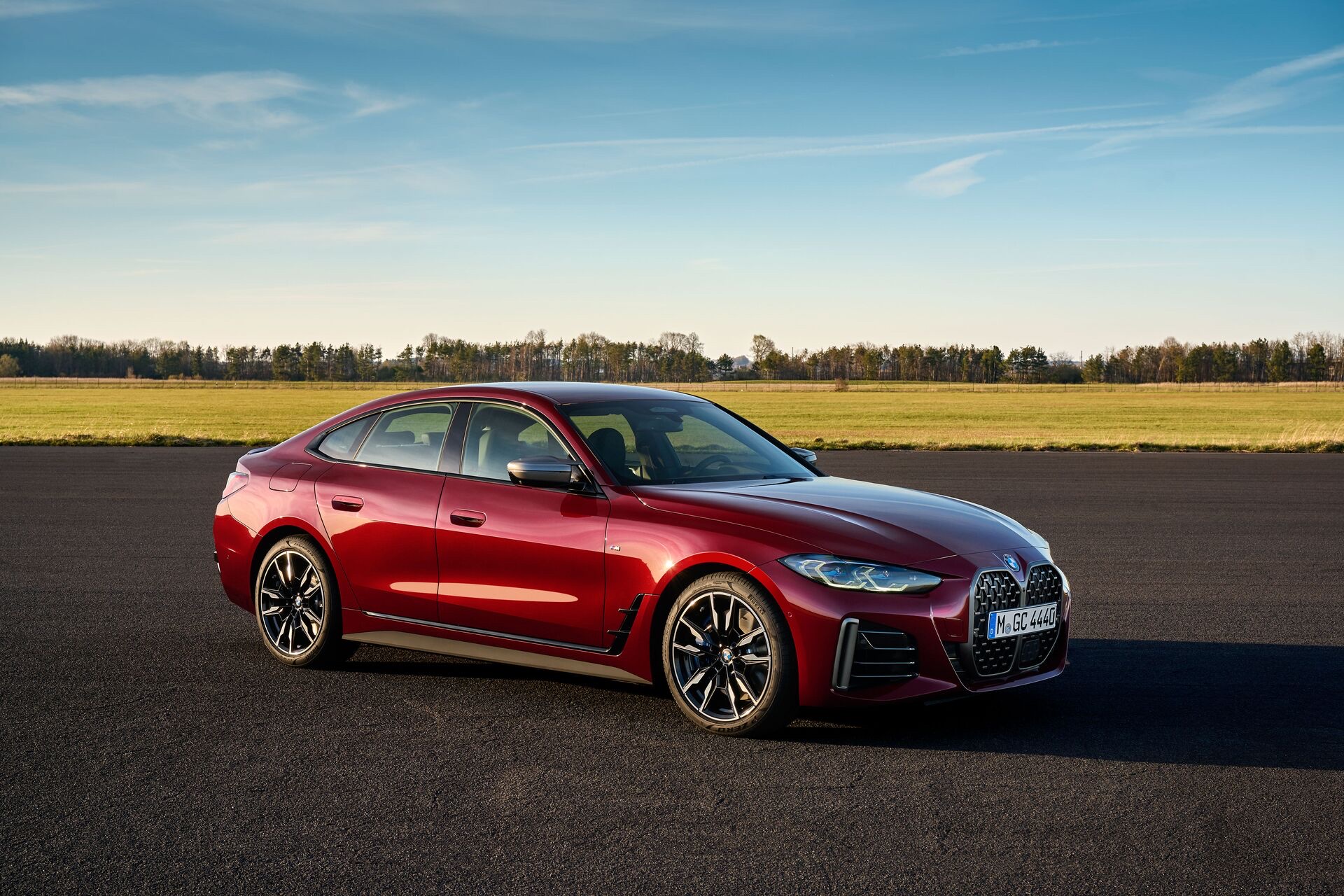

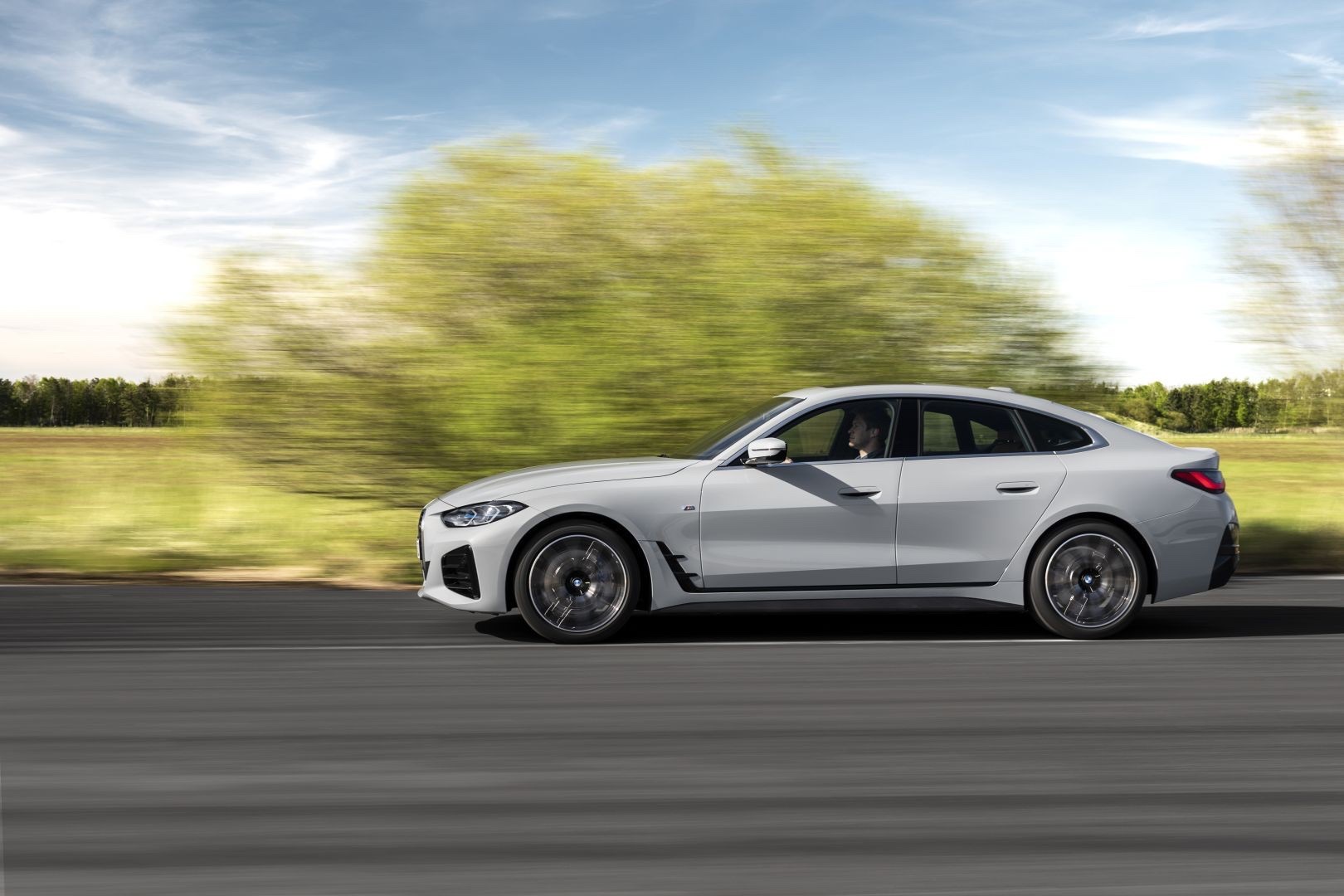

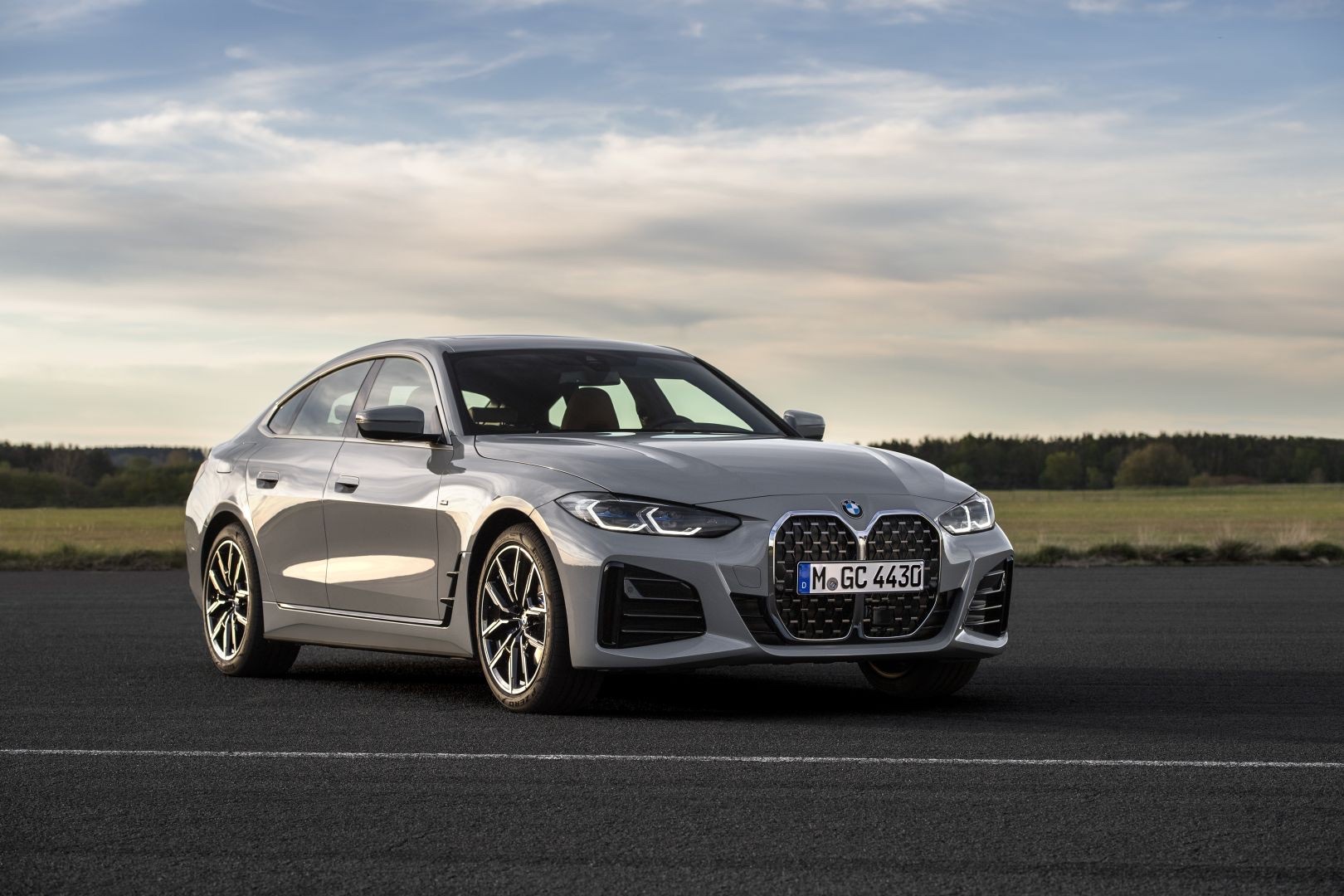

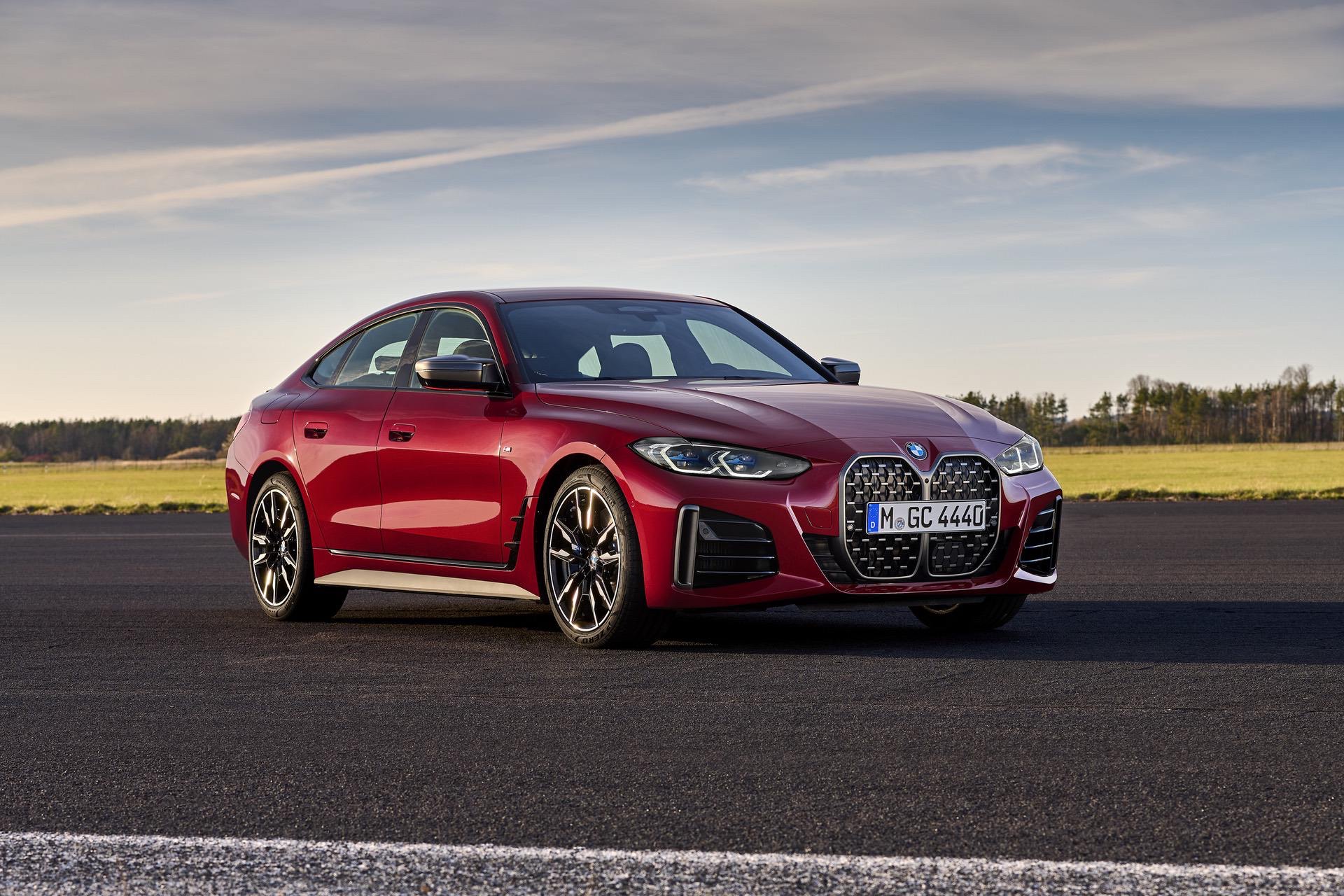

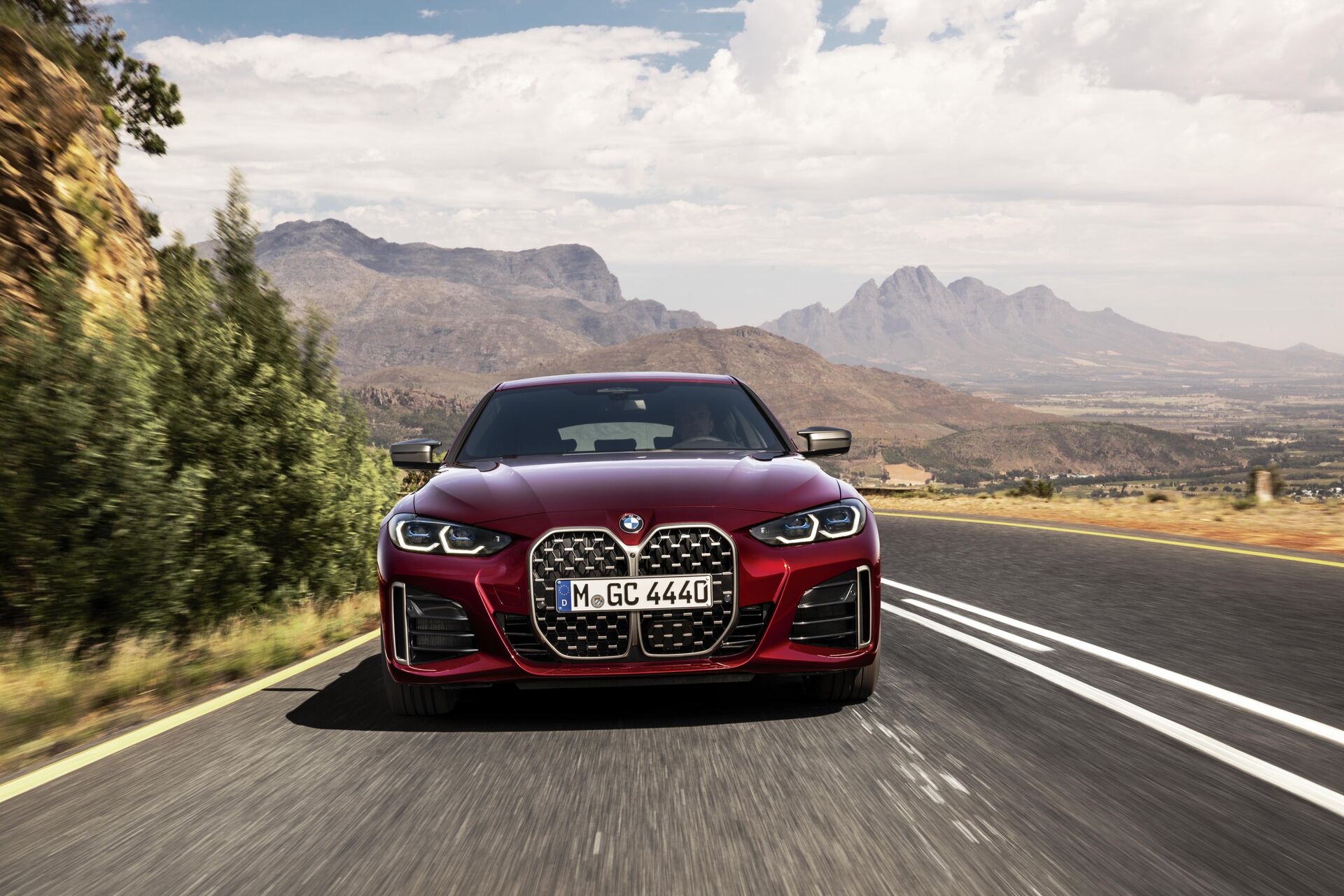

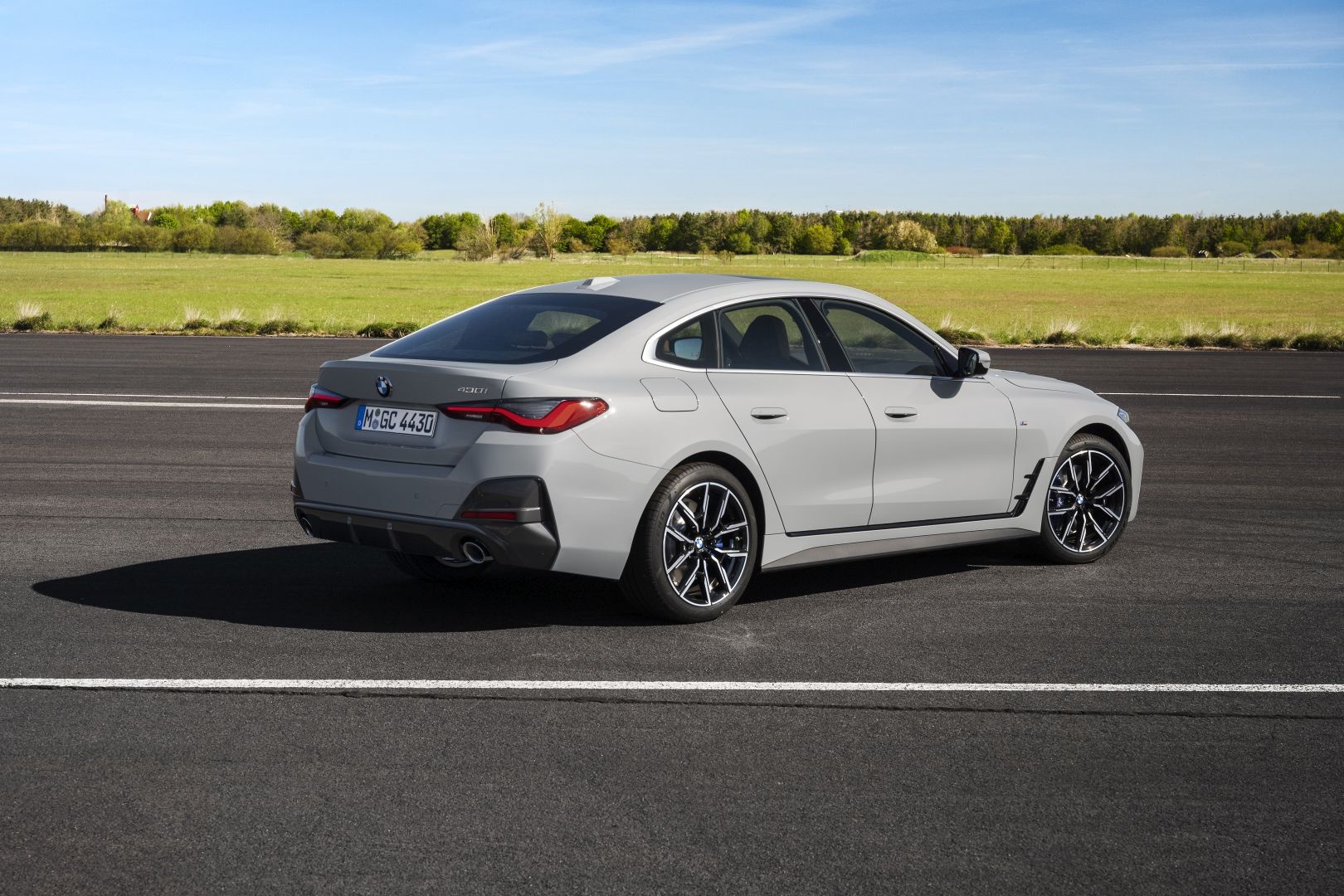

Photo BMW 4 Series Gran Coupe (G26)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
420i 37 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.3 |
|---|---|
| Top speed, km/h | 235 |
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i |
|---|---|
| Engine code | B48A20 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1998 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 184 |
| RPM at max power | 5000-6500 |
| Torque, Nm | 300 |
| RPM at max torque | 1350-4250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4783 |
| Height, mm | 1442 |
| Wheelbase, mm | 2856 |
| Front track, mm | 1595 |
| Rear track, mm | 1623 |
| Kerb weight, kg | 1620 |
| Gross weight, kg | 2175 |
| Fuel tank capacity, L | 59 |
| Turning circle, m | 12 |
| Ground clearance, mm | 140 |
| Width without mirrors, mm | 1852 |
| Trunk capacity, L | 470 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
430i 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.6 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 6.2 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i |
|---|---|
| Engine code | B48B20 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1998 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 10.2:1 |
| Power, hp | 245 |
| RPM at max power | 4500–6500 |
| Torque, Nm | 400 |
| RPM at max torque | 1600–4000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4783 |
| Height, mm | 1442 |
| Wheelbase, mm | 2856 |
| Front track, mm | 1595 |
| Rear track, mm | 1623 |
| Kerb weight, kg | 1620 |
| Gross weight, kg | 2175 |
| Fuel tank capacity, L | 59 |
| Turning circle, m | 12 |
| Ground clearance, mm | 140 |
| Width without mirrors, mm | 1852 |
| Trunk capacity, L | 470 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
M440i xDrive 36 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.5 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | B58B30TÜ1 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2998 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 374 |
| RPM at max power | 5500-6500 |
| Torque, Nm | 500 |
| RPM at max torque | 1850-5000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4783 |
| Height, mm | 1442 |
| Wheelbase, mm | 2856 |
| Front track, mm | 1595 |
| Rear track, mm | 1623 |
| Kerb weight, kg | 1620 |
| Gross weight, kg | 2175 |
| Fuel tank capacity, L | 59 |
| Turning circle, m | 12 |
| Ground clearance, mm | 140 |
| Width without mirrors, mm | 1852 |
| Trunk capacity, L | 470 |
Transmission and drive
| Transmission | 8-Steptronic Sport |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
420d 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.4 |
|---|---|
| Top speed, km/h | 235 |
| Acceleration 0-100 km/h, s | 7.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0d |
|---|---|
| Engine code | B47D20 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1995 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 16.5:1 |
| Power, hp | 190 |
| RPM at max power | 4000 |
| Torque, Nm | 400 |
| RPM at max torque | 1750-2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4783 |
| Height, mm | 1442 |
| Wheelbase, mm | 2856 |
| Front track, mm | 1595 |
| Rear track, mm | 1623 |
| Kerb weight, kg | 1620 |
| Gross weight, kg | 2175 |
| Fuel tank capacity, L | 59 |
| Turning circle, m | 12 |
| Ground clearance, mm | 140 |
| Width without mirrors, mm | 1852 |
| Trunk capacity, L | 470 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
420d xDrive 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.7 |
|---|---|
| Top speed, km/h | 233 |
| Acceleration 0-100 km/h, s | 7.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0d |
|---|---|
| Engine code | B47D20 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1995 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 16.5:1 |
| Power, hp | 190 |
| RPM at max power | 4000 |
| Torque, Nm | 400 |
| RPM at max torque | 1750-2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4783 |
| Height, mm | 1442 |
| Wheelbase, mm | 2856 |
| Front track, mm | 1595 |
| Rear track, mm | 1623 |
| Kerb weight, kg | 1620 |
| Gross weight, kg | 2175 |
| Fuel tank capacity, L | 59 |
| Turning circle, m | 12 |
| Ground clearance, mm | 140 |
| Width without mirrors, mm | 1852 |
| Trunk capacity, L | 470 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
BMW 4 Series Gran Coupe (G26) questions
Short answers based on the specifications and photos available in this catalog.
What body style is the BMW 4 Series Gran Coupe?
It is a five-door liftback. It features four passenger doors and a large rear hatch that opens together with the rear window for easier cargo loading.
What is the trunk capacity of the G26 4 Series Gran Coupe?
The cargo area holds 470 liters with the rear seats in place. It expands to 1290 liters when the 40:20:40 split rear seats are folded down.
Does the 4 Series Gran Coupe offer a manual transmission?
No, all versions of the G26 generation come standard with an eight-speed ZF automatic transmission.
What engines are available for this model?
The lineup includes a 2.0-liter turbocharged four-cylinder available in petrol and diesel, and a 3.0-liter turbocharged inline-six for the M440i. The diesel and six-cylinder models also feature a mild-hybrid system.
How does it compare in size to the previous generation?
The G26 is notably larger than its F36 predecessor. It is 143 mm longer, 27 mm wider, and features a 46 mm longer wheelbase, which improves interior space.
