BYD F3 specifications and photos

BYD F3 specifications are shown with trim options, key technical data, and a model photo gallery. Compare 4 configurations by engine size, power, seating, and transmission. The gallery includes 14 photos for visual reference.

Years 2016
Body type sedan
Trims 4
Photos 14

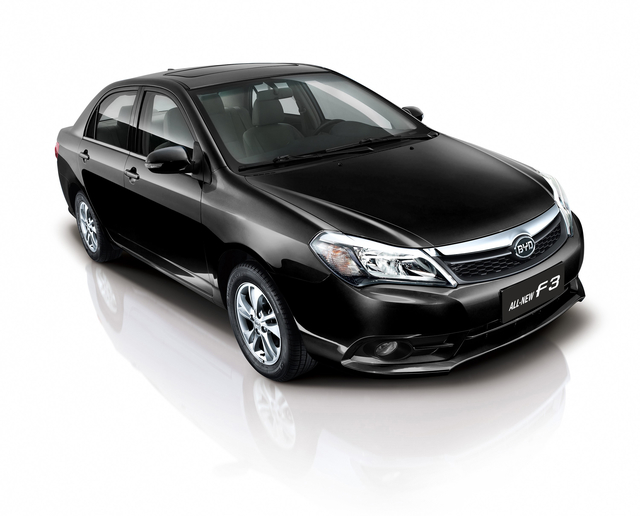

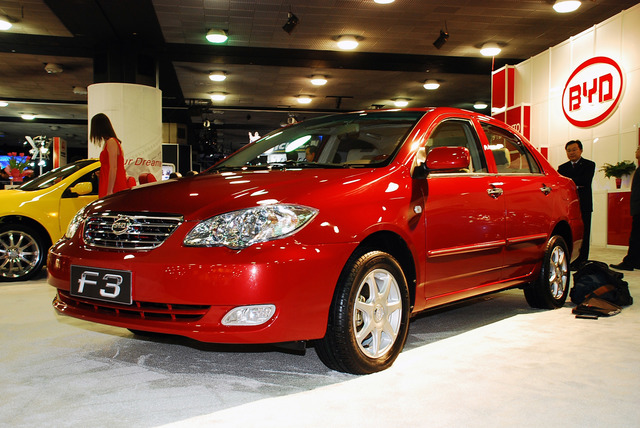

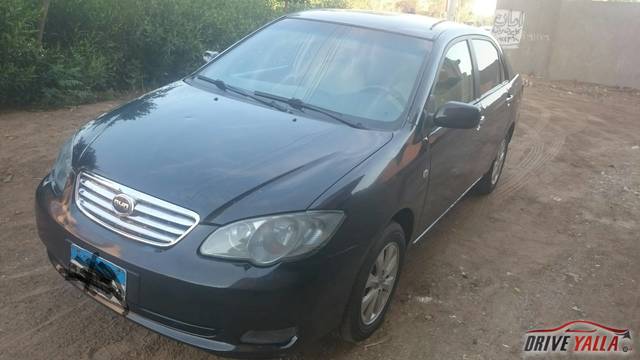

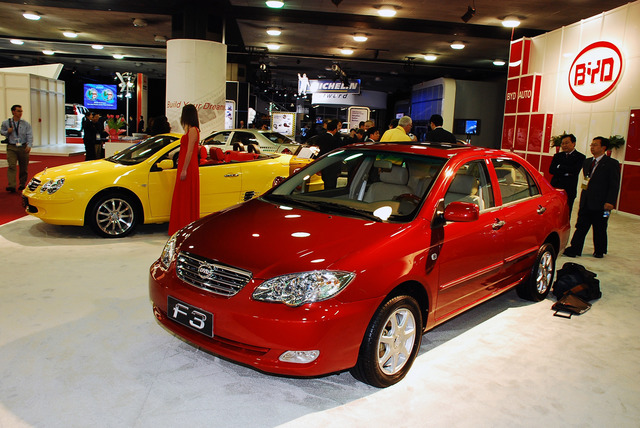

BYD F3 2016 photo
Overview

BYD F3 at a glance

Quick model context before comparing photos and trim-level specifications.

Use this BYD F3 page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 107 hp and 1497 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 107 hp
  • Engine displacement: 1497 cc
  • Transmissions: 5, 6
  • Seating: 5 seats
Research hub

Photos, trims and specifications for BYD F3

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 14 images Compare trims 4 configurations View detailed specs 1497 cc Explore related pages BYD and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 107 hp
Engine displacement 1497 cc
Seating 5 seats
Transmissions 5, 6
Trim / modification Engine Power Seats Transmission
1.5 5MT 1497 cc 107 hp 5 5
1.5 AT 1497 cc 107 hp 5 6
1.5i SOHC EGR (107 HP) 5-Mech 1497 cc 107 hp 5 5
1.5i SOHC EGR (107 HP) 6-DCT 1497 cc 107 hp 5 6

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.5 5MT 1.5 AT 1.5i SOHC EGR (107 HP) 5-Mech 1.5i SOHC EGR (107 HP) 6-DCT
1.5 5MT 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1497
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 107
Torque, Nm 145
RPM at max torque 4800
Engine 1.5i SOHC EGR
Compression 10.6
RPM at max power 5800
Engine code BYD473QE

Dimensions

Seats 5
Length mm 4617
Width 1716
Height mm 1480
Wheelbase mm 2615
Front track, mm 1480
Rear track, mm 1460
Trunk capacity, L 430
Fuel tank, l 50

Suspension

Type of front suspension MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Disk
Rear brakes Drum

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission country of origin China
1.5 AT 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1497
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 107
Torque, Nm 145
RPM at max torque 4800
Engine 1.5i SOHC EGR
Compression 10.6
RPM at max power 5800
Engine code BYD473QE

Dimensions

Seats 5
Length mm 4617
Width 1716
Height mm 1480
Wheelbase mm 2615
Front track, mm 1480
Rear track, mm 1460
Trunk capacity, L 430
Fuel tank, l 50

Suspension

Type of front suspension MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Disk
Rear brakes Disk

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed dual-clutch
Gearbox 2 clutch robot
Transmission country of origin China
1.5i SOHC EGR (107 HP) 5-Mech 27 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1497
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 107
Torque, Nm 145
RPM at max torque 4800
Engine 1.5i SOHC EGR
Compression 10.6
RPM at max power 5800
Engine code BYD473QE

Dimensions

Seats 5
Length mm 4617
Width 1716
Height mm 1480
Wheelbase mm 2615
Front track, mm 1480
Rear track, mm 1460
Trunk capacity, L 430
Fuel tank, l 50

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission country of origin China
1.5i SOHC EGR (107 HP) 6-DCT 28 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1497
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 107
Torque, Nm 145
RPM at max torque 4800
Engine 1.5i SOHC EGR
Compression 10.6
RPM at max power 5800
Engine code BYD473QE

Dimensions

Seats 5
Length mm 4617
Width 1716
Height mm 1480
Wheelbase mm 2615
Front track, mm 1480
Rear track, mm 1460
Trunk capacity, L 430
Fuel tank, l 50

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed dual-clutch
Gearbox 2 clutch robot
Transmission country of origin China
FAQ

BYD F3 questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the BYD F3?

This page lists 4 trims for the BYD F3, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the BYD F3?

The listed configurations show a power range of 107 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the BYD F3?

The available specification data shows engine displacement from 1497 cc across the trims listed on this page.

Which transmissions are listed for the BYD F3?

The transmission options currently shown for this model are: 5, 6. Open a trim section to see the full data for a specific configuration.

Are there photos for the BYD F3?

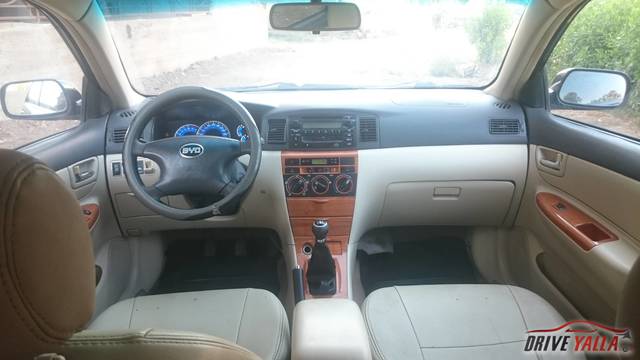

Yes. The gallery includes 14 photos for the BYD F3, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
