Ford Ranger Single Cab specifications and photos
Ford Ranger Single Cab specifications are shown with trim options, key technical data, and a model photo gallery. Compare 3 configurations by engine size, power, seating, and transmission. The gallery includes 28 photos for visual reference.
Ford Ranger Single Cab at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Ford Ranger Single Cab page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 130-160 hp and 2198 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 130-160 hp
- Engine displacement: 2198 cc
- Transmissions: 6-speed manual
- Seating: 2 seats
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.2 Duratorq TDCi (130 HP) 6-speed manual | 2198 cc | 130 hp | 2 | 6-speed manual |
| 2.2 Duratorq TDCi (130 HP) 6-speed manual 4x4 | 2198 cc | 130 hp | 2 | 6-speed manual |
| 2.2 Duratorq TDCi (160 HP) 6-speed manual 4x4 | 2198 cc | 160 hp | 2 | 6-speed manual |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

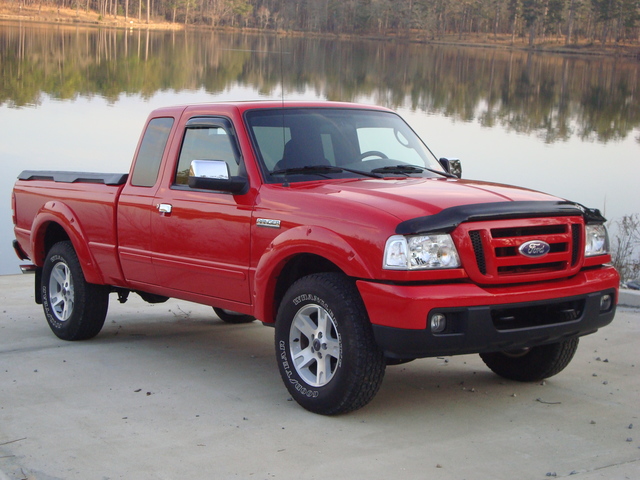

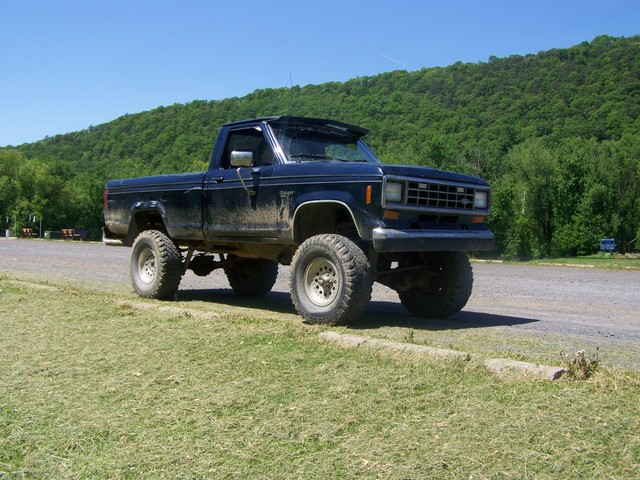

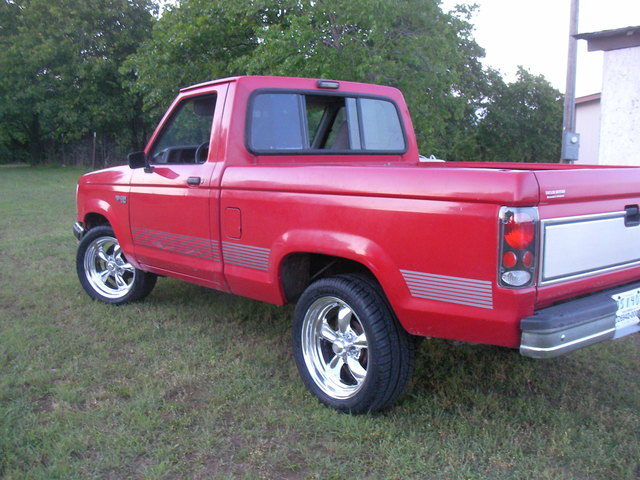

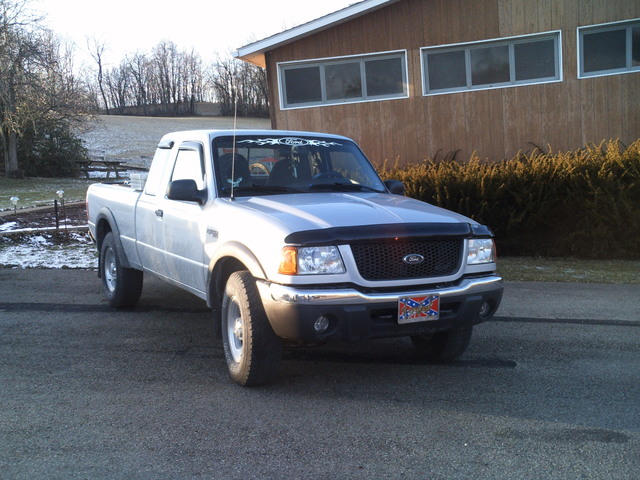

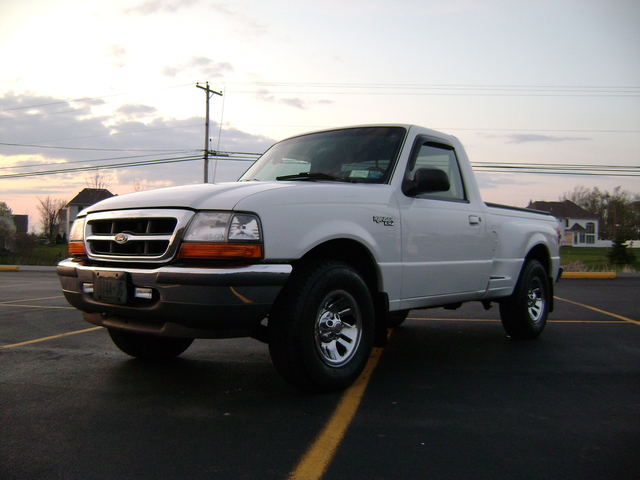

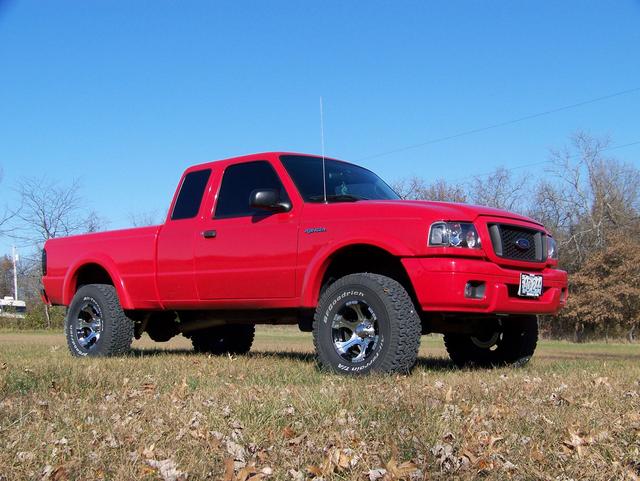

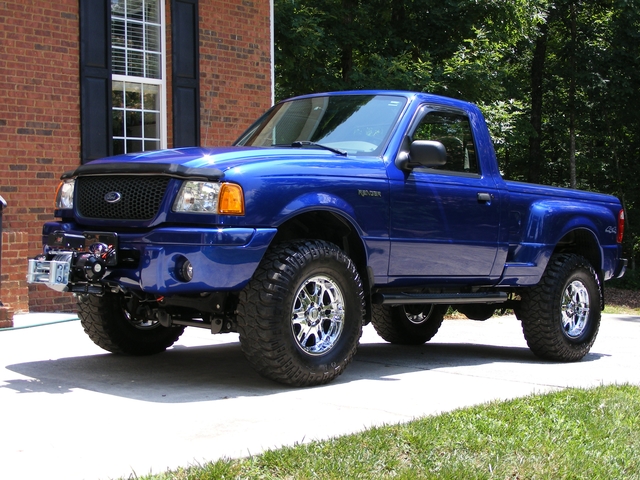

Ford Ranger Single Cab photo gallery
28 images are collected here with the main specifications and trim data for this model.

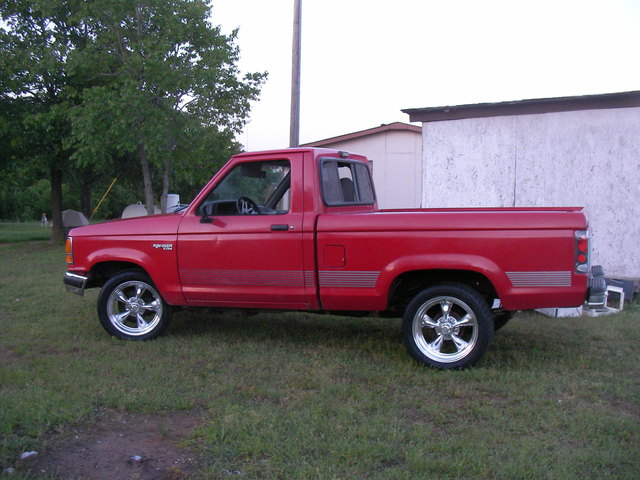

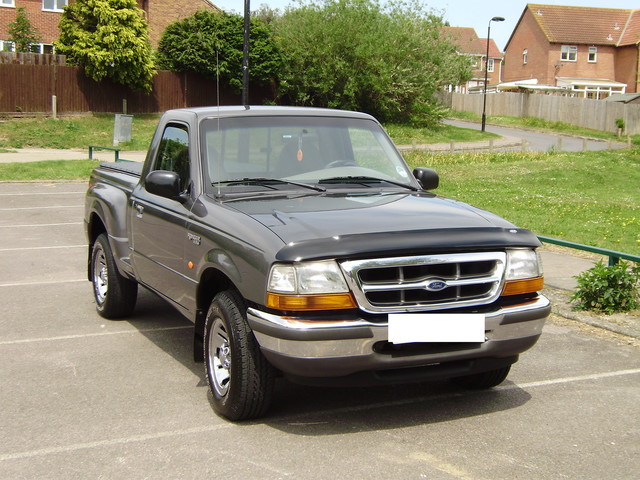

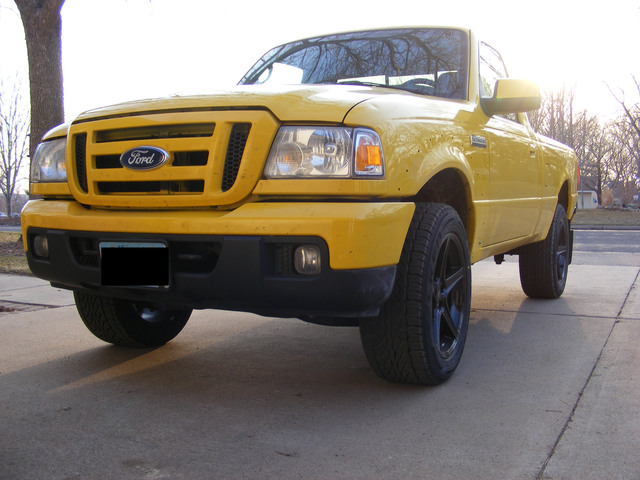

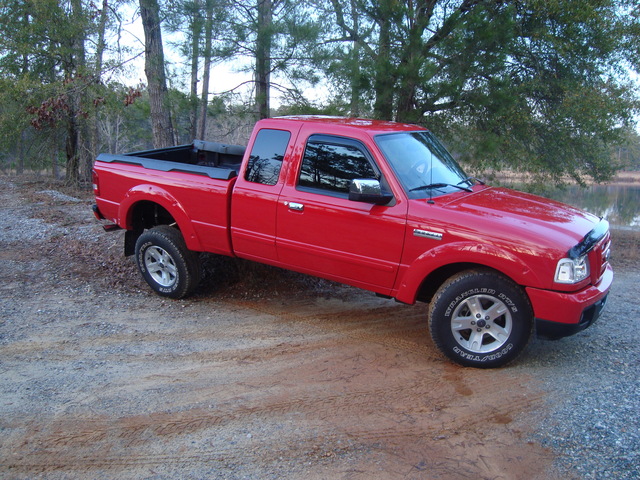

Photo Ford Ranger Single Cab
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.2 Duratorq TDCi (130 HP) 6-speed manual 34 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 2198 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 130 |
| Torque, Nm | 330 |
| RPM at max torque | 1500-2500 |
| Engine | 2.2 Duratorq TDCi |
| RPM at max power | 3200 |
| Turbo | + |
Dimensions
| Seats | 2 |
|---|---|
| Length mm | 5277 |
| Width | 2163 |
| Height mm | 1806 |
| Wheelbase mm | 3220 |
| Front track, mm | 1560 |
| Rear track, mm | 1560 |
| Fuel tank, l | 80 |
| Turning circle, m | 12.4 |
| Ground clearance, mm | 229 |
| Width (without mirrors) mm | 1860 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 8.4 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.7 |
| Fuel consumption (combined), l. 100 km | 6.6 |
| Acceleration (0-100 km/h), s | 13.5 |
| The maximum speed, km / h. | 170 |
| The rate of toxicity | Euro V |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Rear |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
| Transmission manufacturer | Ford |
2.2 Duratorq TDCi (130 HP) 6-speed manual 4x4 34 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 2198 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 130 |
| Torque, Nm | 330 |
| RPM at max torque | 1500-2500 |
| Engine | 2.2 Duratorq TDCi |
| RPM at max power | 3200 |
| Turbo | + |
Dimensions
| Seats | 2 |
|---|---|
| Length mm | 5277 |
| Width | 2163 |
| Height mm | 1806 |
| Wheelbase mm | 3220 |
| Front track, mm | 1560 |
| Rear track, mm | 1560 |
| Fuel tank, l | 80 |
| Turning circle, m | 12.4 |
| Ground clearance, mm | 229 |
| Width (without mirrors) mm | 1860 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 7.8 |
|---|---|
| Fuel consumption (urban), l. 100 km | 6.5 |
| Fuel consumption (combined), l. 100 km | 7 |
| Acceleration (0-100 km/h), s | 13.5 |
| The maximum speed, km / h. | 175 |
| The rate of toxicity | Euro V |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Full |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
| Transmission manufacturer | Ford |
2.2 Duratorq TDCi (160 HP) 6-speed manual 4x4 34 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 2198 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 160 |
| Torque, Nm | 385 |
| RPM at max torque | 1500-2500 |
| Engine | 2.2 Duratorq TDCi |
| RPM at max power | 3700 |
| Turbo | + |
Dimensions
| Seats | 2 |
|---|---|
| Length mm | 5277 |
| Width | 2163 |
| Height mm | 1806 |
| Wheelbase mm | 3220 |
| Front track, mm | 1560 |
| Rear track, mm | 1560 |
| Fuel tank, l | 80 |
| Turning circle, m | 12.4 |
| Ground clearance, mm | 229 |
| Width (without mirrors) mm | 1860 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 7.3 |
|---|---|
| Fuel consumption (urban), l. 100 km | 6 |
| Fuel consumption (combined), l. 100 km | 6.5 |
| Acceleration (0-100 km/h), s | 11.8 |
| The maximum speed, km / h. | 175 |
| The rate of toxicity | Euro V |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Full |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
| Transmission manufacturer | Ford |
Ford Ranger Single Cab questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Ford Ranger Single Cab?
This page lists 3 trims for the Ford Ranger Single Cab, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Ford Ranger Single Cab?
The listed configurations show a power range of 130-160 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Ford Ranger Single Cab?
The available specification data shows engine displacement from 2198 cc across the trims listed on this page.
Which transmissions are listed for the Ford Ranger Single Cab?
The transmission options currently shown for this model are: 6-speed manual. Open a trim section to see the full data for a specific configuration.
Are there photos for the Ford Ranger Single Cab?
Yes. The gallery includes 28 photos for the Ford Ranger Single Cab, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
