Ford Tourneo Custom specifications and photos
The 2023 Ford Tourneo Custom marks the second generation of the brand's dedicated passenger minivan. Built on a newly developed architecture, it offers improved cabin flexibility, modern driver assistance technologies, and an expanded range of powertrains including a plug-in hybrid.
Ford Tourneo Custom at a glance
Quick model context before comparing photos and trim-level specifications.
First revealed in late 2022 and arriving at dealerships in early 2023, the second-generation Ford Tourneo Custom aims to balance passenger comfort with daily usability. Moving to a new platform allowed engineers to lower the floor height and integrate a side step for easier cabin access. Crucially, the overall height of the vehicle has been kept just under two meters on most configurations, which improves aerodynamic efficiency and ensures access to standard parking garages. Aimed at both large families and commercial transport services, the van introduces a wider footprint and heavily updated interior materials compared to its predecessor.
- Power: 136-233 hp
- Engine displacement: 1996-2488 cc
- Transmissions: 6-speed manual, 8-speed automatic, eCVT
Ford Tourneo Custom overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior styling emphasizes a wide, planted stance that gives the van a more refined presence on the road. The front and rear fascias align closely with Ford's modern design language, moving away from utilitarian commercial aesthetics. A key practical design change is the reduced roof height, which benefits aerodynamics without compromising interior space. Access to the rear passenger area is simplified by power-sliding side doors equipped with a hands-free function, making it easier to load cargo or help passengers in when carrying items.
Interior
Inside, the Tourneo Custom is highly adaptable, seating eight to nine occupants across two or three rows. The flexible seating tracks allow the second and third rows to be repositioned or entirely removed to maximize cargo space. Ford has elevated the cabin materials and introduced features like a large panoramic glass roof that increases natural light. Technology includes a wireless charging pad and an available 14-speaker B&O audio system with a subwoofer. A unique practical touch is the tilting steering wheel, which can fold flat to act as a small table or device stand when parked.
Performance
Buyers have a broad choice of powertrains to suit different driving cycles. The traditional route relies on the 2.0-liter EcoBlue diesel engine, available in 136, 150, or 170 horsepower outputs. These can be paired with either a six-speed manual or a new eight-speed automatic transmission. For the first time, all-wheel drive is available with the automatic diesel models. Additionally, a plug-in hybrid (PHEV) version pairs a 2.5-liter Atkinson-cycle petrol engine with an electric motor to generate a combined 233 horsepower. The PHEV model uses an 11.8 kWh battery, offering up to 52 kilometers of pure electric driving.
Practicality
Practicality is the defining trait of the Tourneo Custom. Riding on a 3,100 mm wheelbase with an overall length of 5,050 mm, the interior dimensions provide generous legroom and cargo capacity. With the seats in place, the cargo area holds 673 liters. The track-based seating system means the van can quickly transition from a shuttle configuration to a large cargo carrier, making it highly versatile for executive transport, airport runs, or active family duty.
Safety and tech
The safety equipment list includes a comprehensive suite of modern driver aids. Maneuvering the large vehicle is aided by a 360-degree camera system. On the highway, drivers can utilize adaptive cruise control with stop-and-go functionality, lane centering, and traffic sign recognition. The van is also equipped with a blind-spot monitoring system that includes cross-traffic alert, as well as an exit warning feature designed to alert occupants to approaching cyclists or vehicles before they open the side doors.
Buyer notes
When comparing Tourneo Custom configurations, buyers should weigh their typical driving environments. The PHEV model is highly efficient for urban routes and shuttle services where daily charging is possible, while the EcoBlue diesels remain the stronger choice for frequent, long-distance highway travel. Buyers in colder climates or those needing extra traction will want to seek out the automatic diesel trims equipped with the available all-wheel-drive system.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.0 EcoBlue (136 hp) 6-speed manual | 1996 cc | 136 hp | 8/9 | 6-speed manual |
| 2.0 EcoBlue (136 hp) 8-speed automatic | 1996 cc | 136 hp | 8/9 | 8-speed automatic |
| 2.0 EcoBlue (136 hp) 8-speed automatic 4x4 | 1996 cc | 136 hp | 8/9 | 8-speed automatic |
| 2.0 EcoBlue (150 hp) 6-speed manual | 1996 cc | 150 hp | 8/9 | 6-speed manual |
| 2.0 EcoBlue (170 hp) 8-speed automatic | - | 170 hp | 8/9 | 8-speed automatic |
| 2.0 EcoBlue (170 hp) 8-speed automatic 4x4 | - | 170 hp | 8/9 | 8-speed automatic |
| 2.5 PHEV (233 hp) eCVT | 2488 cc | 233 hp | 8/9 | eCVT |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

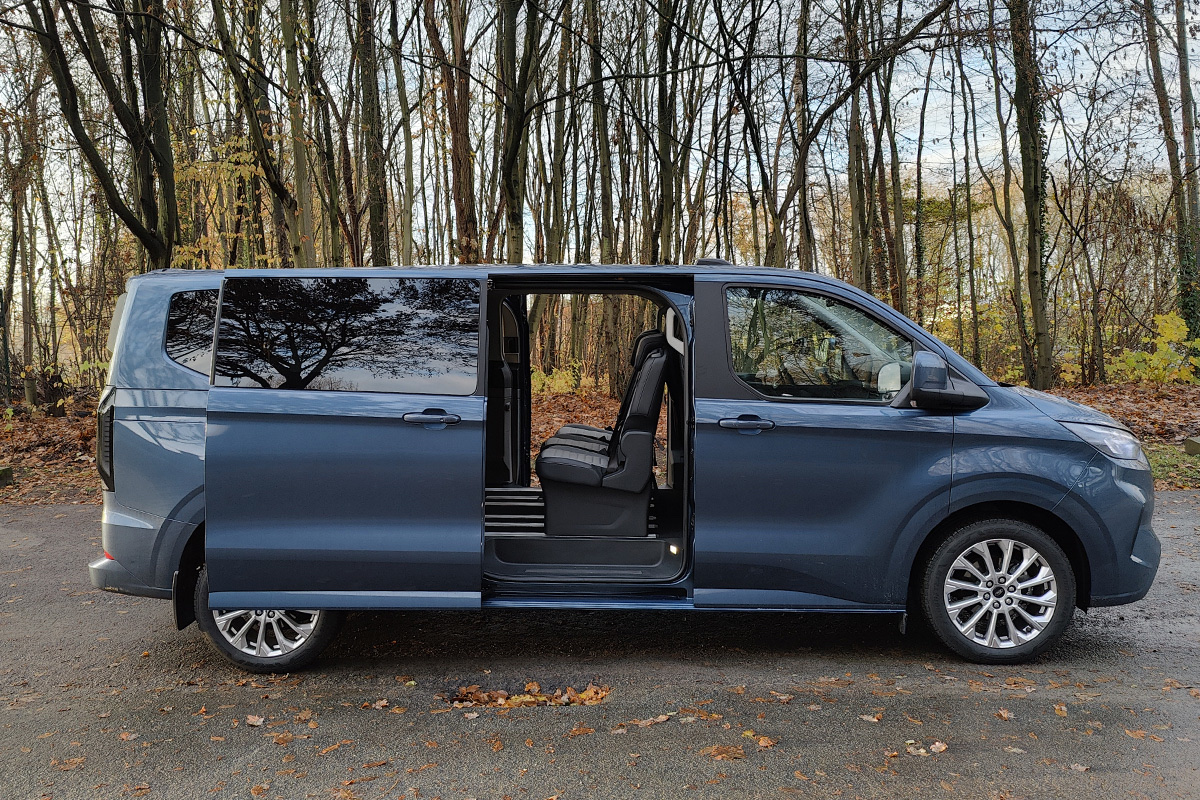

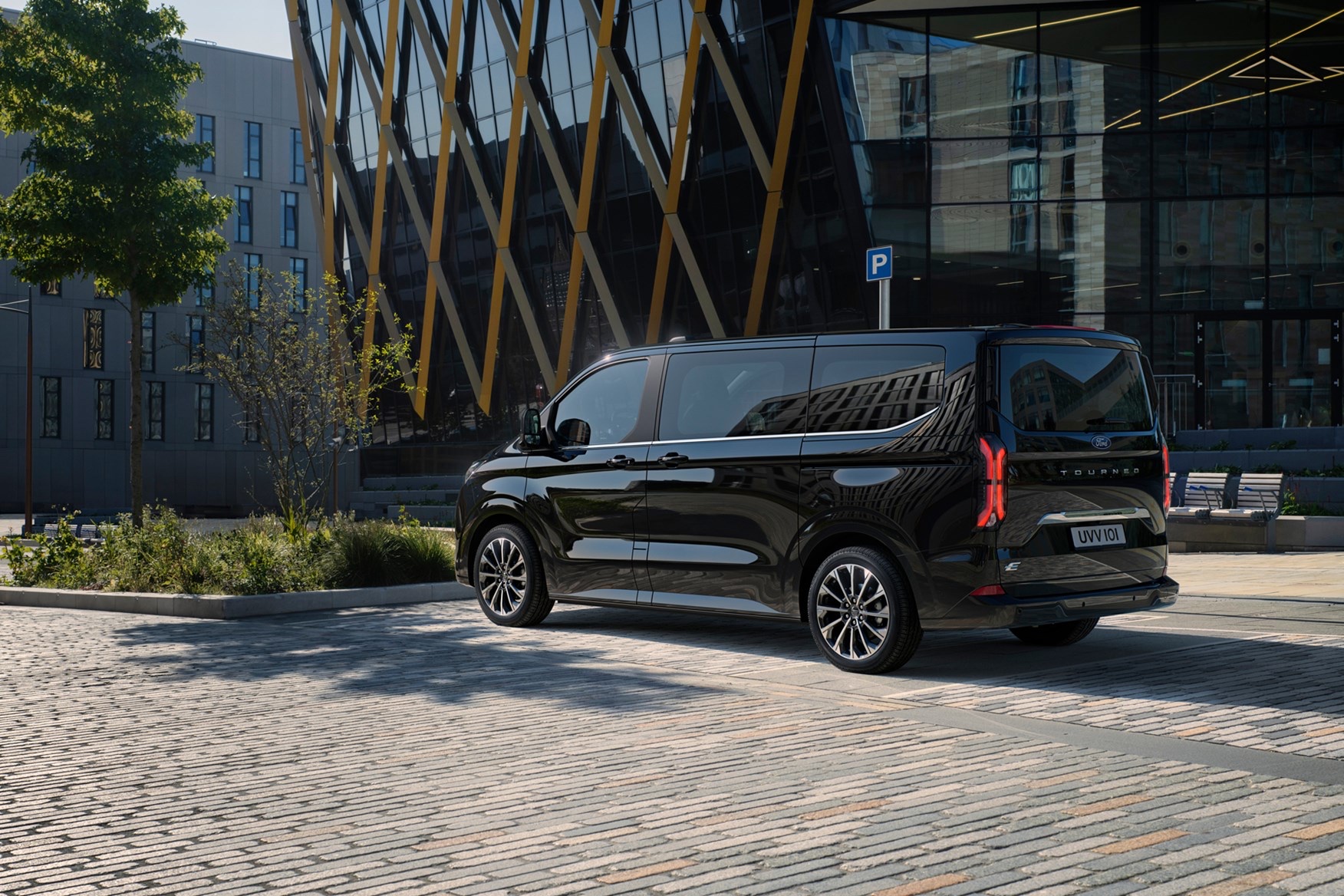

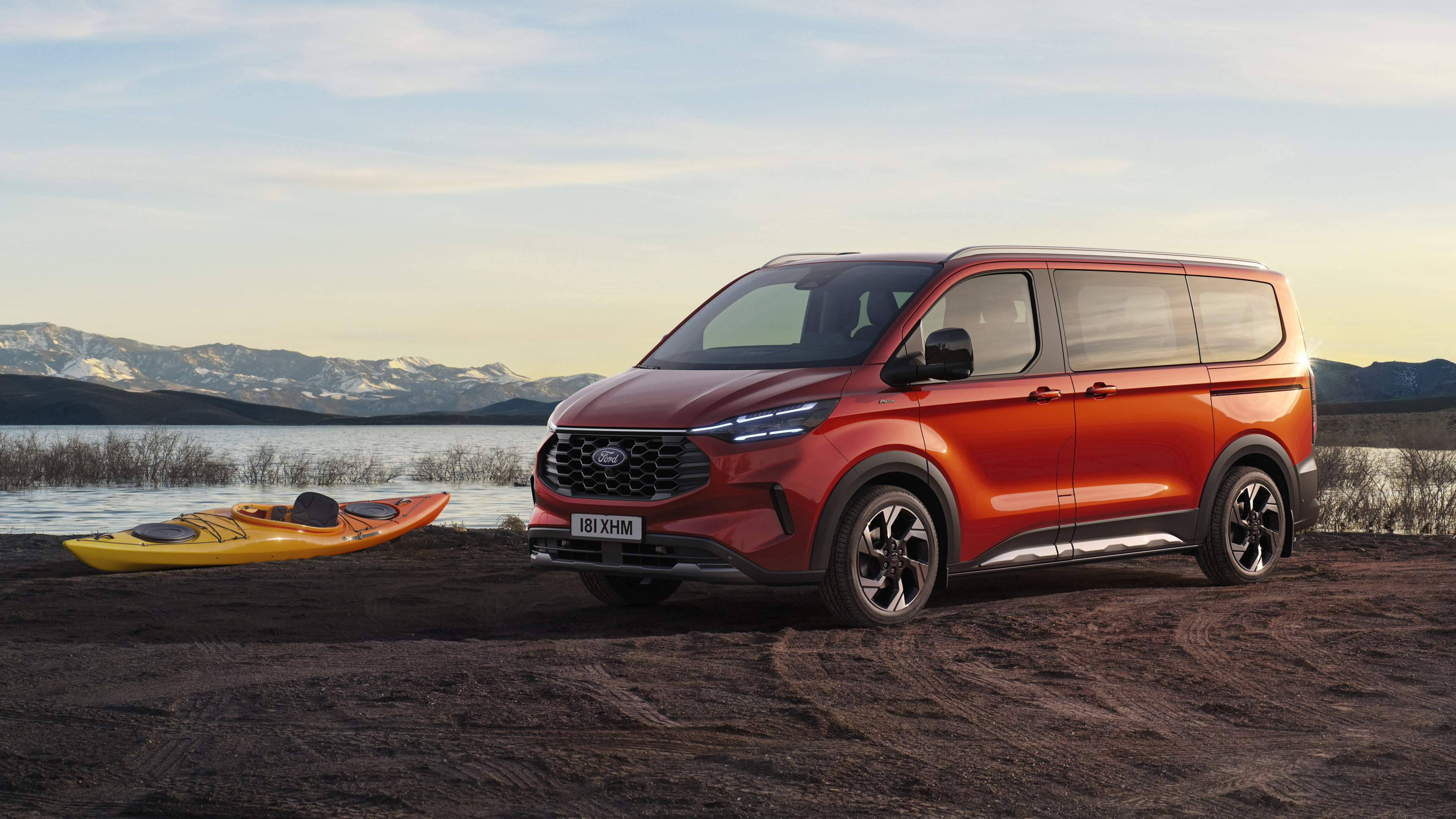

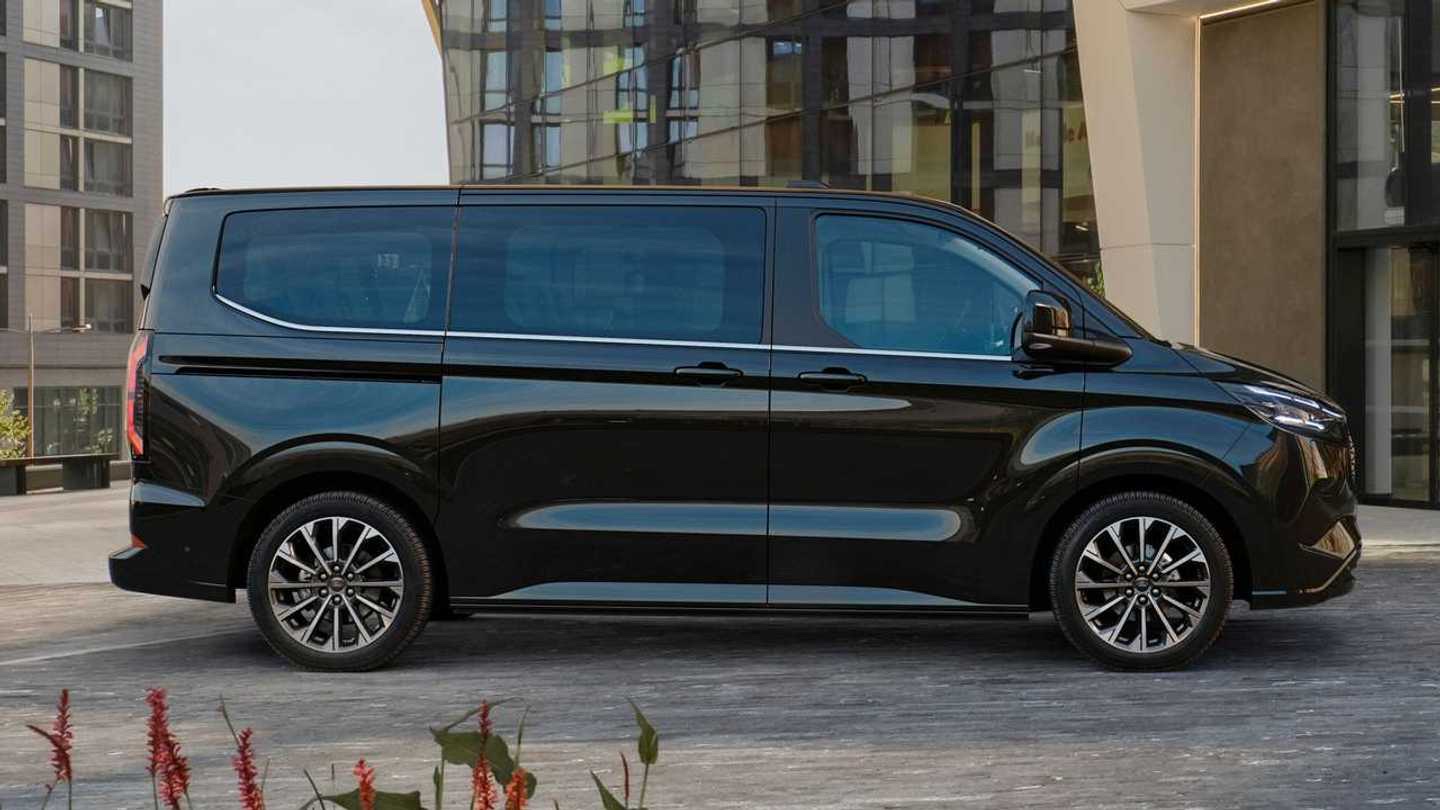

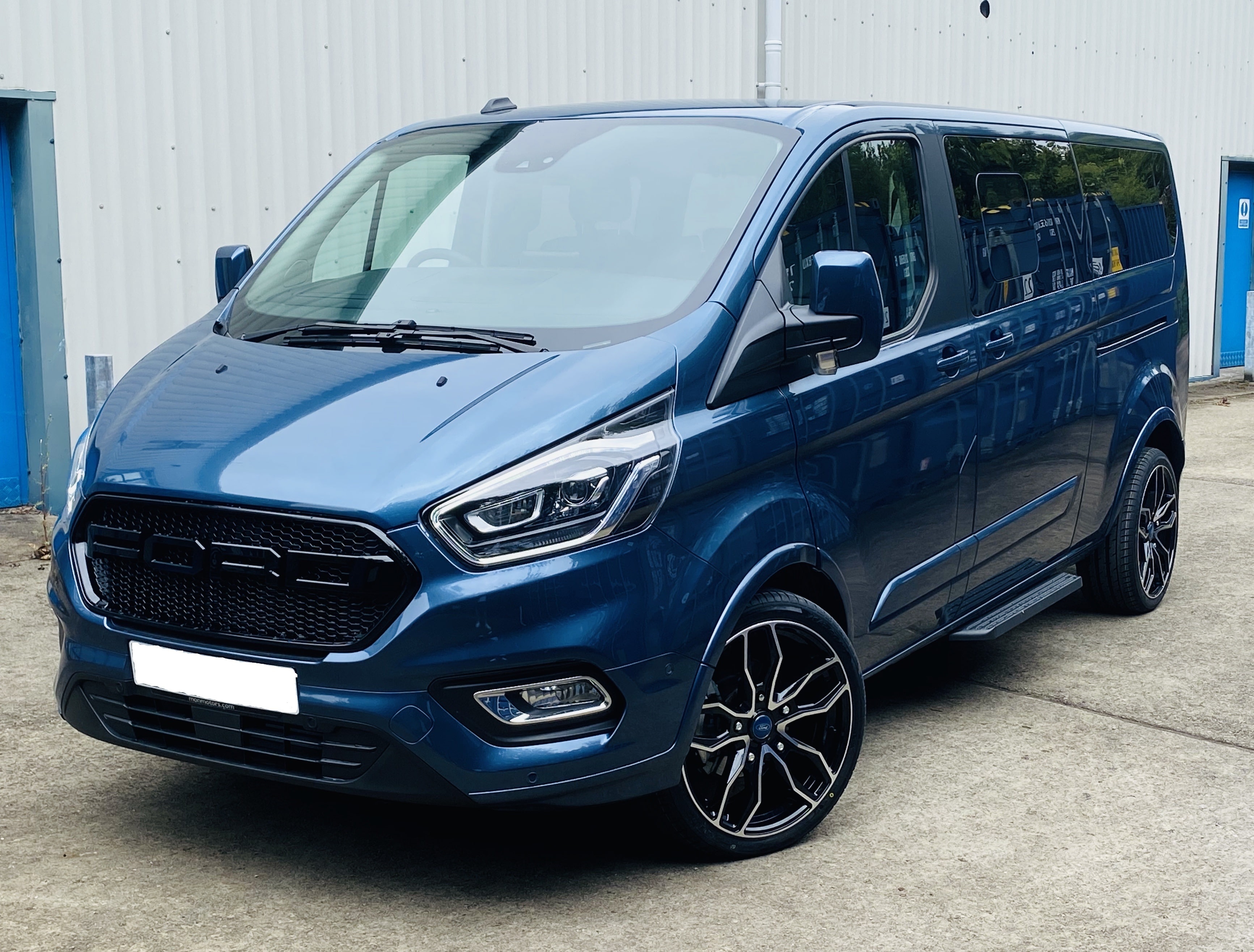

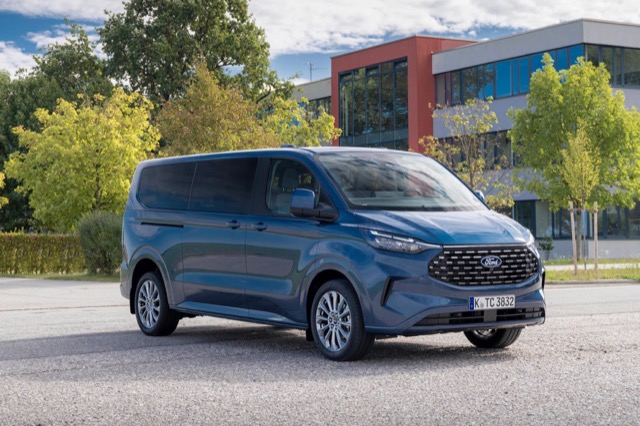

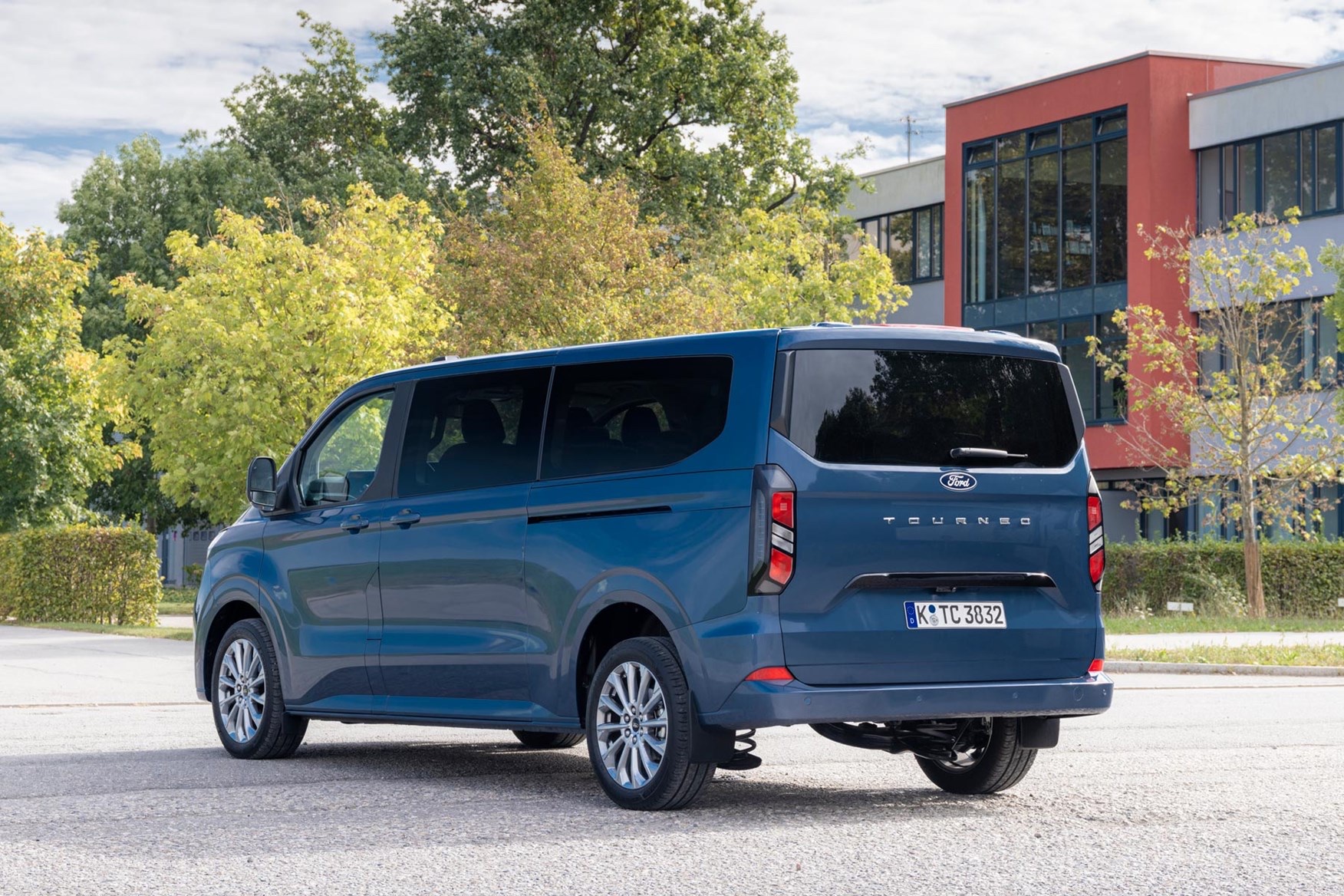

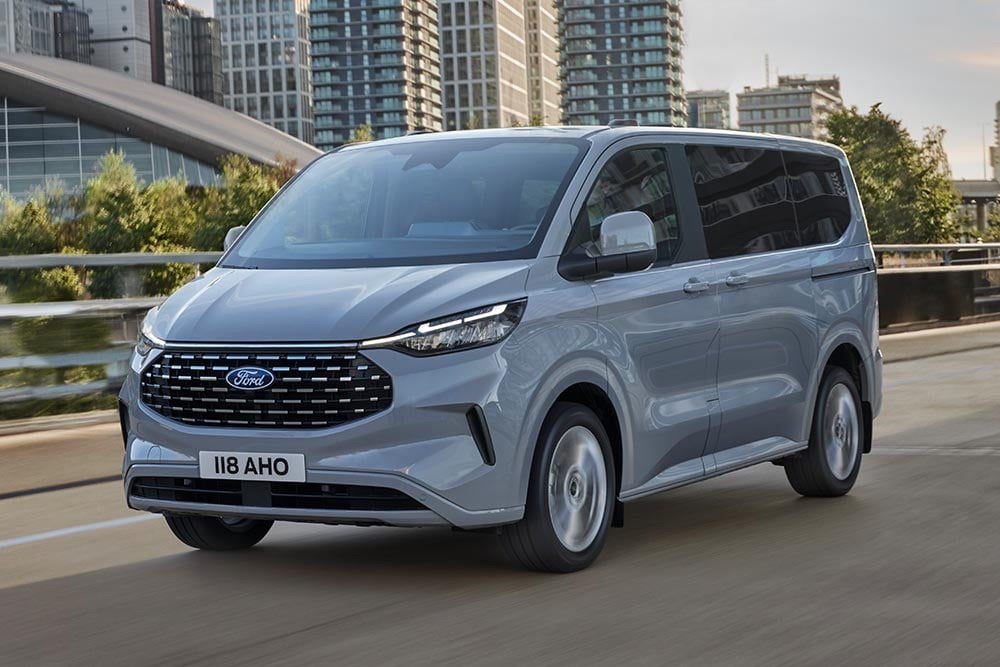

Ford Tourneo Custom photo gallery
18 images are collected here with the main specifications and trim data for this model.

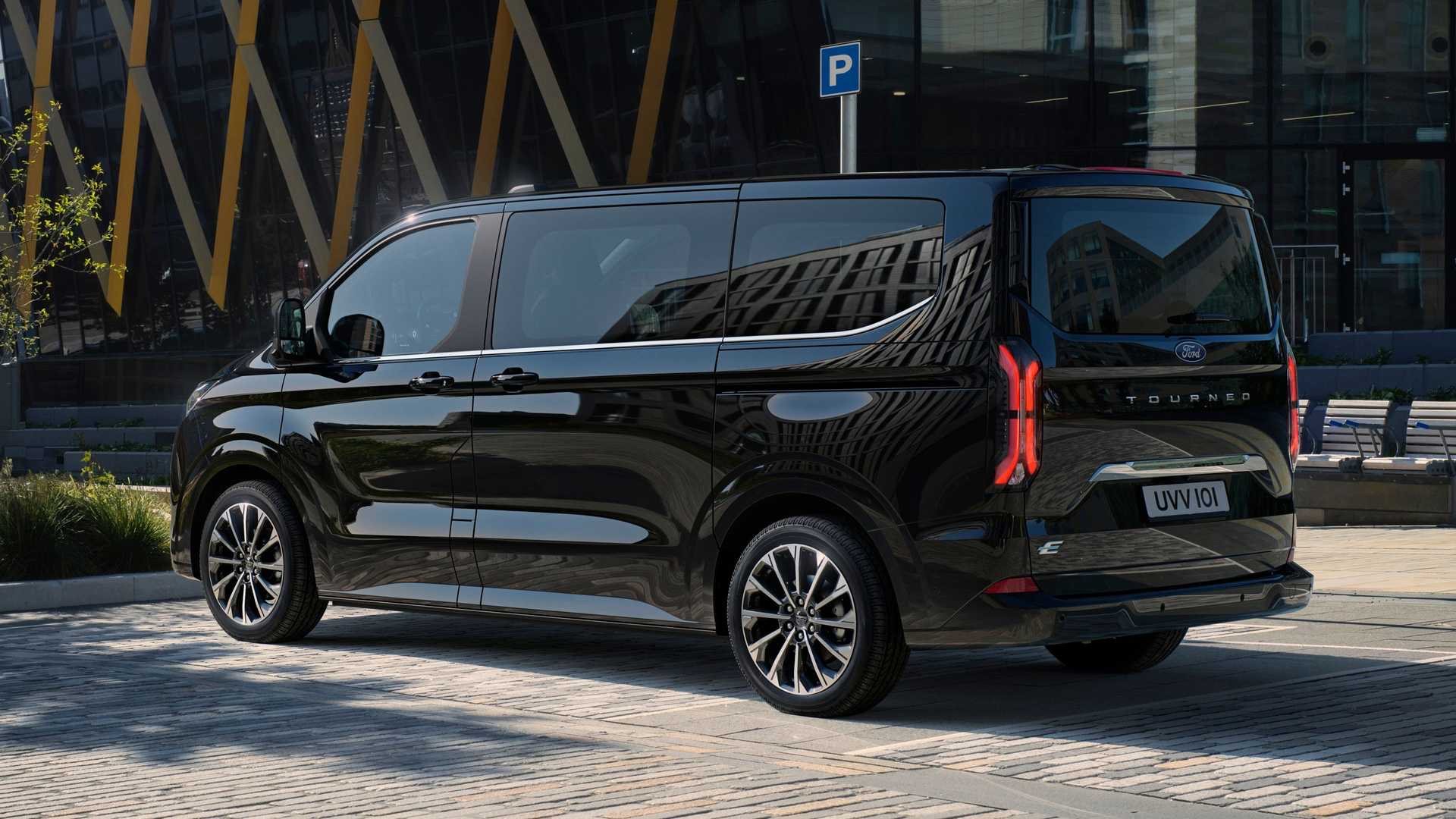

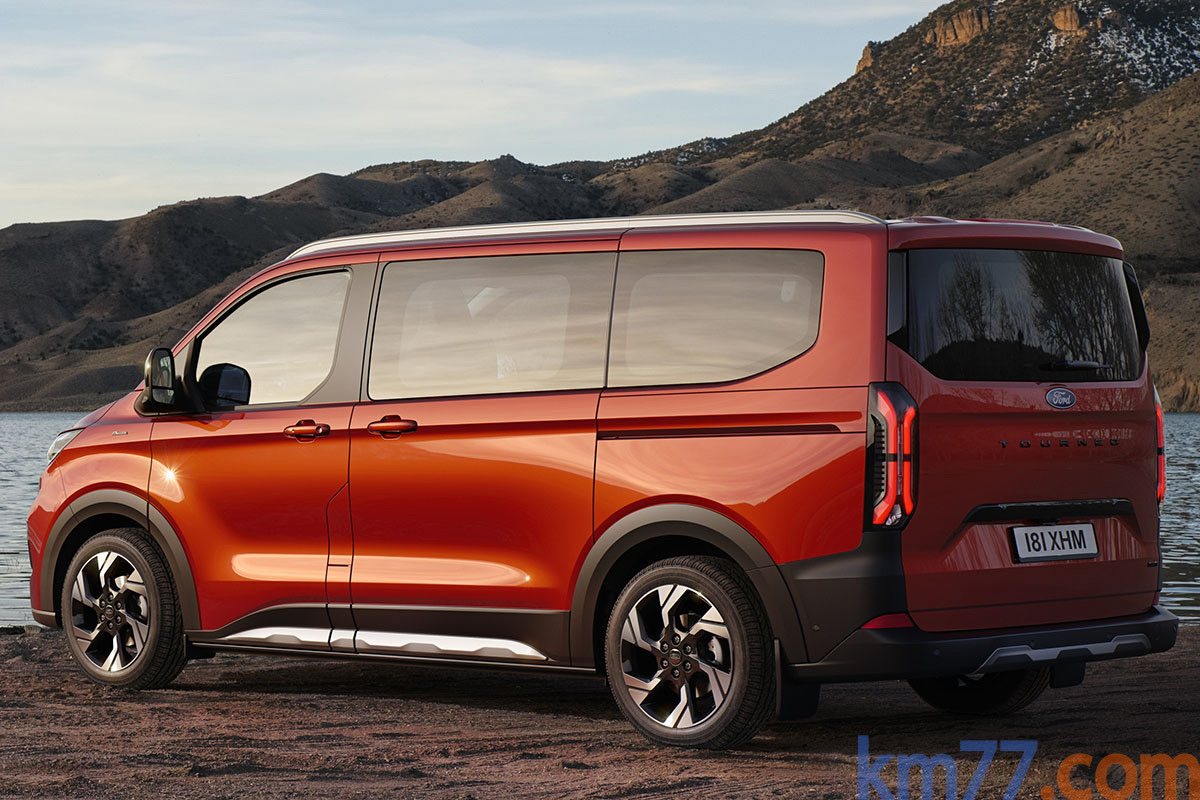

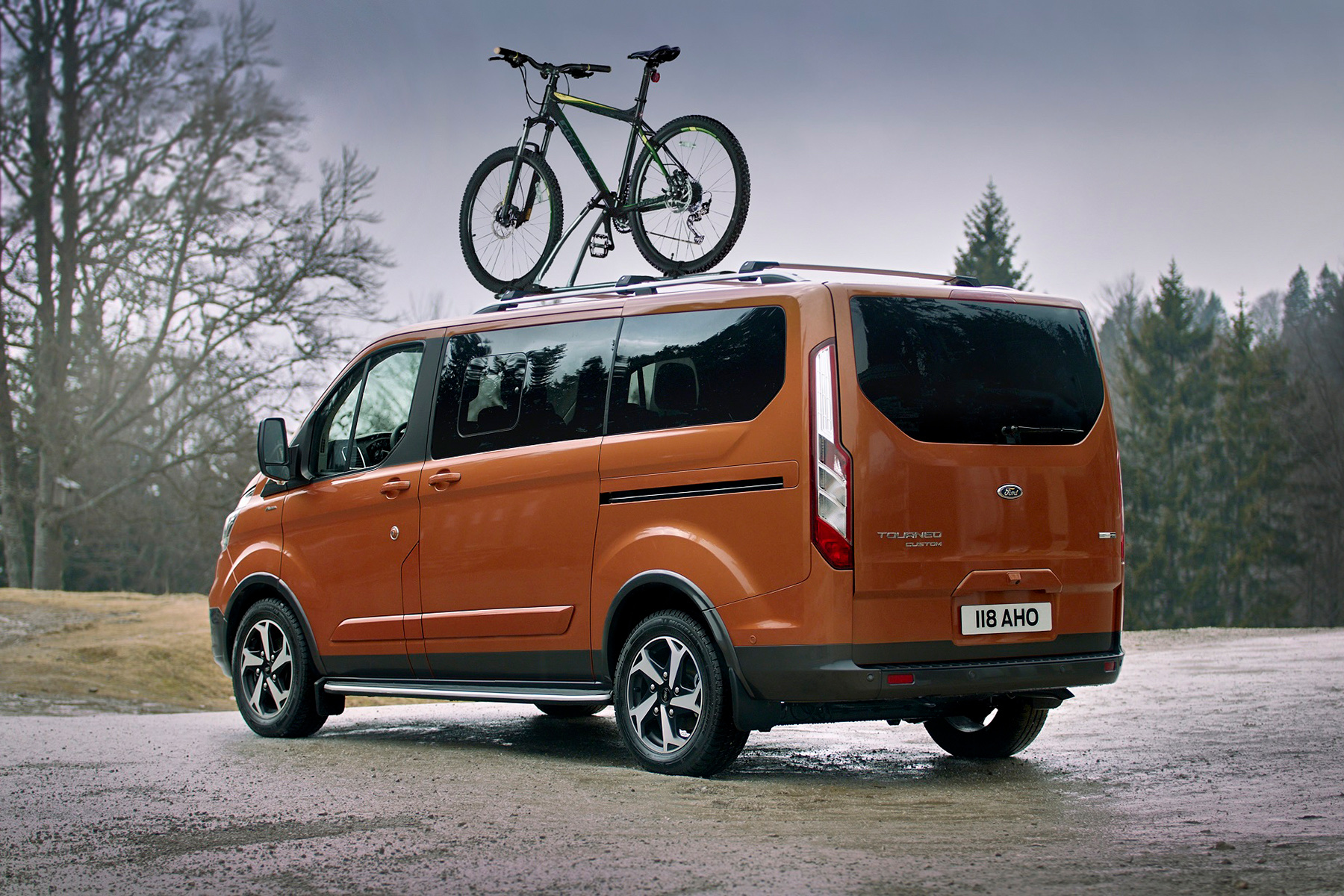

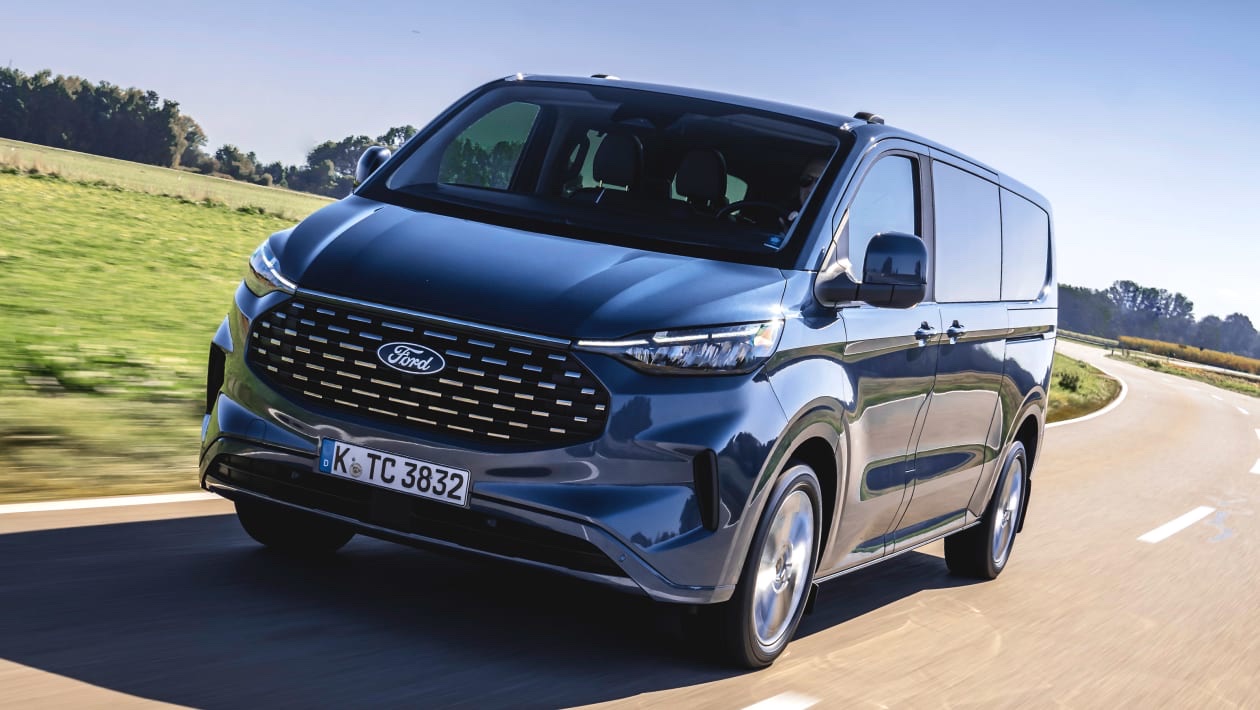

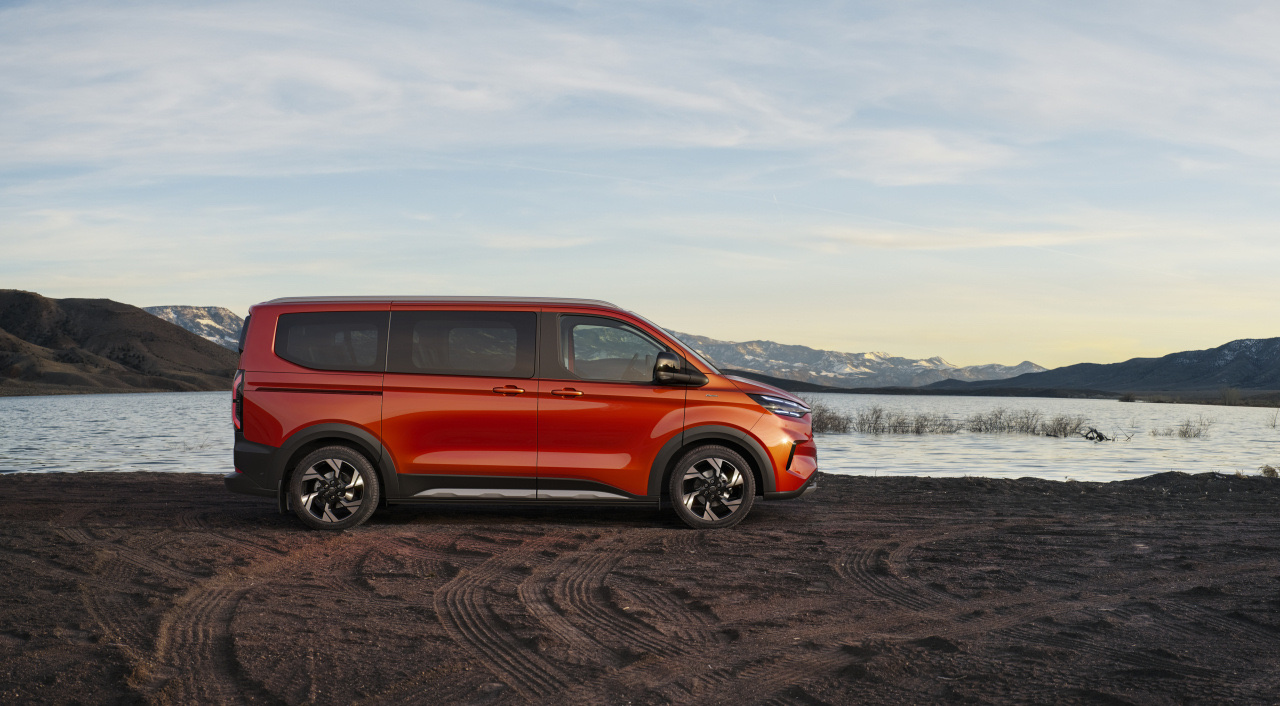

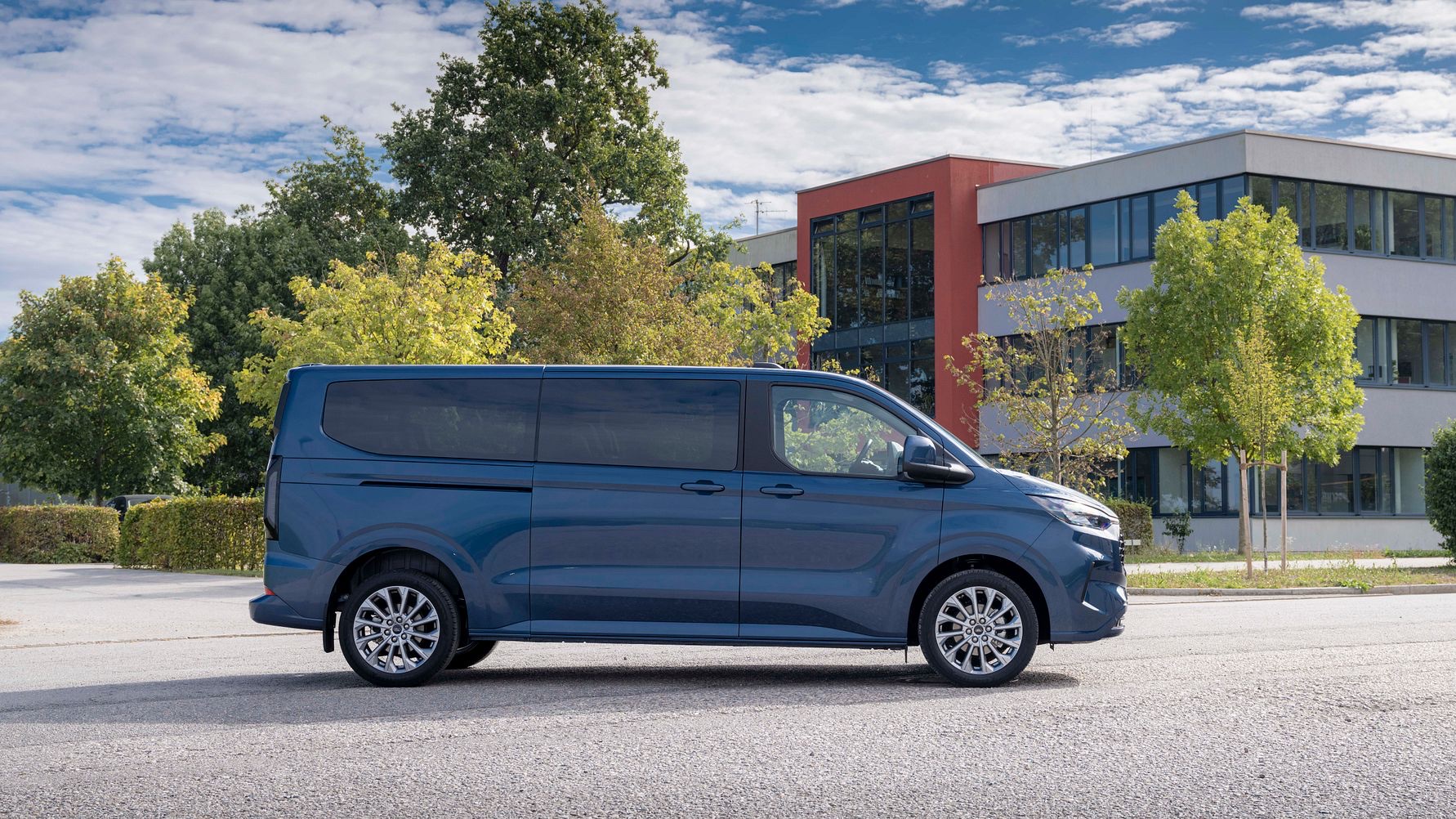

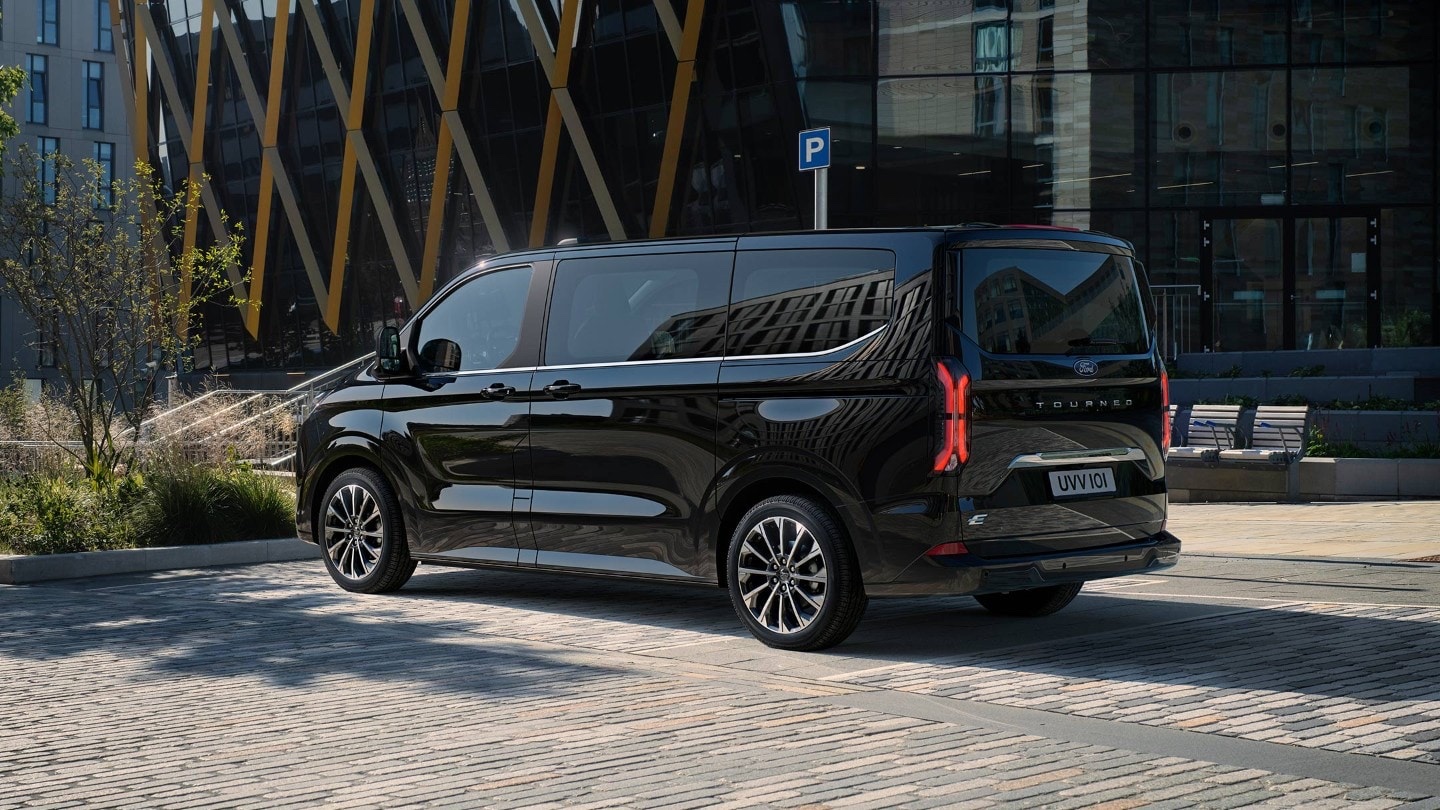

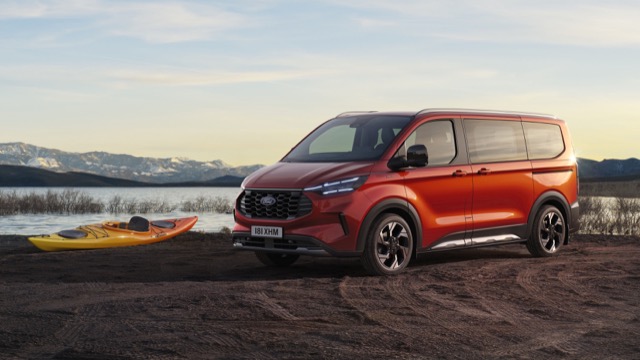

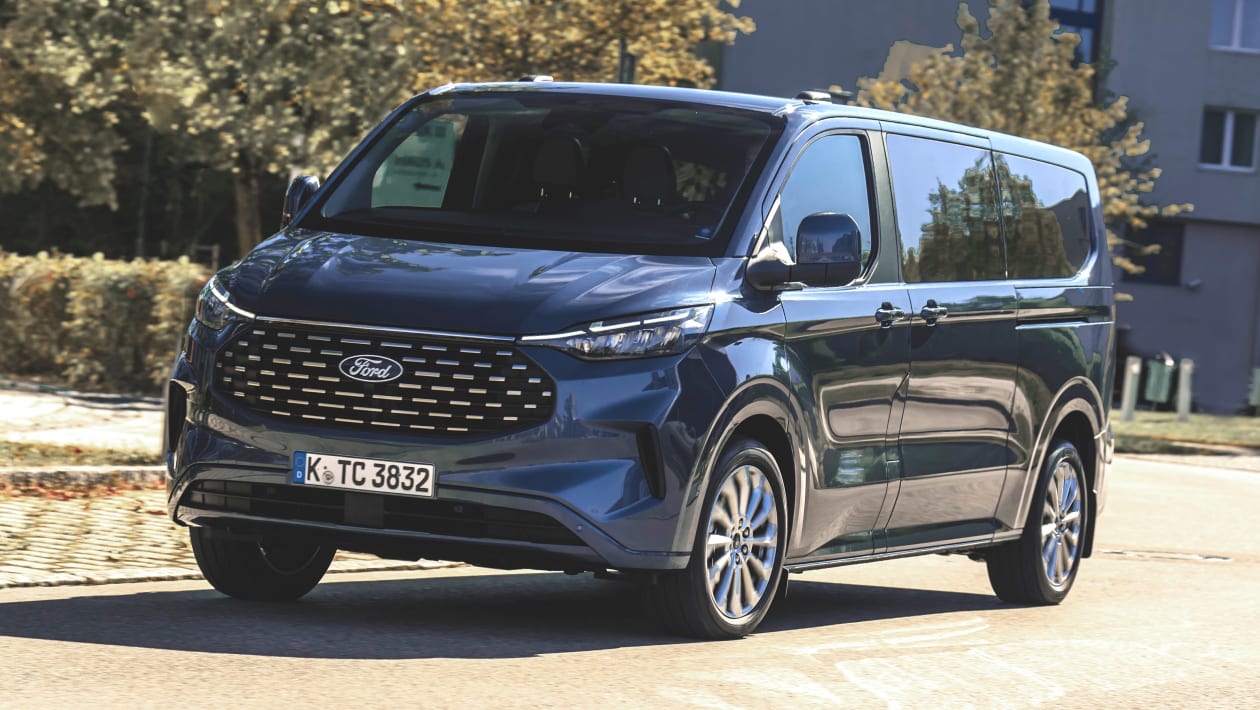

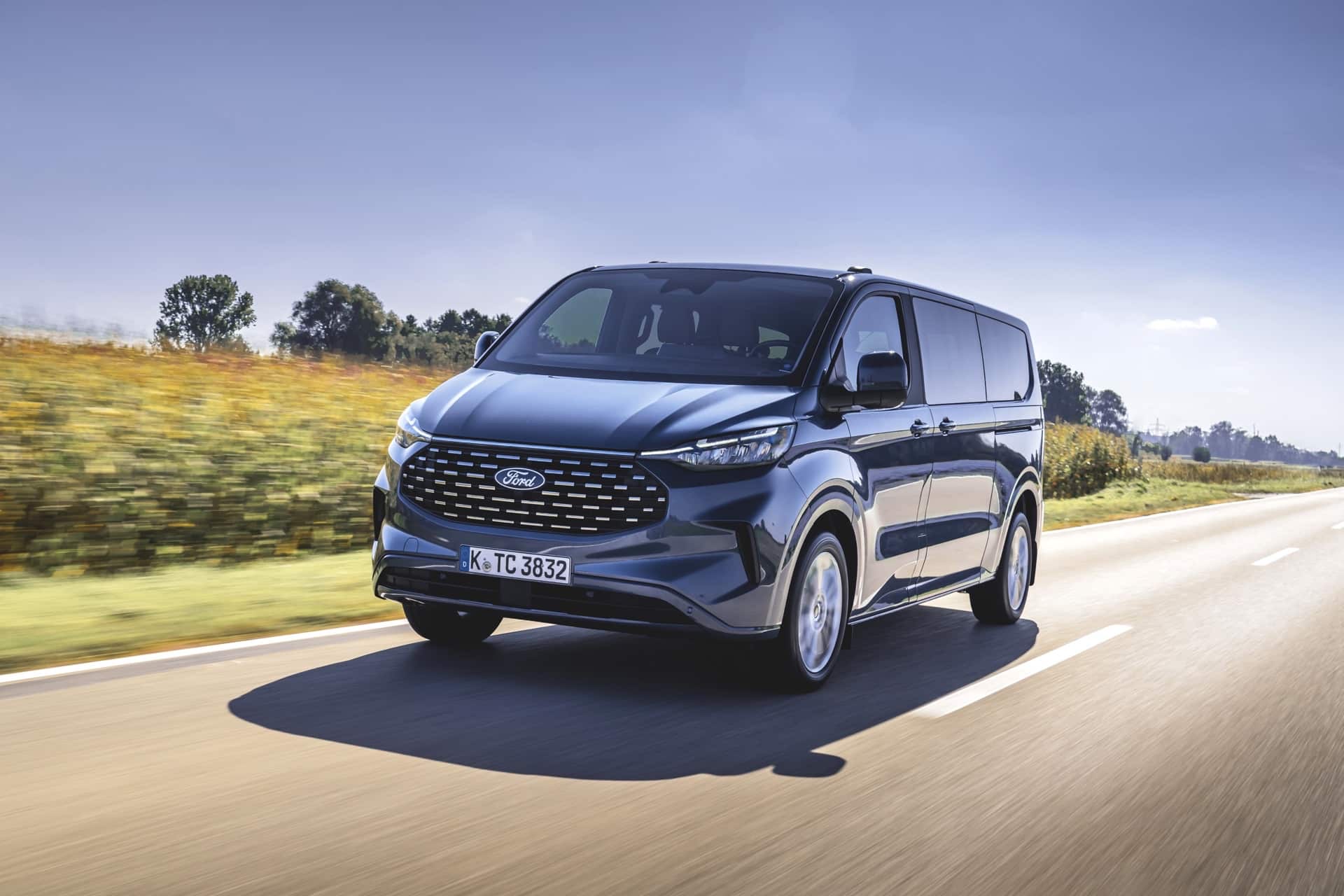

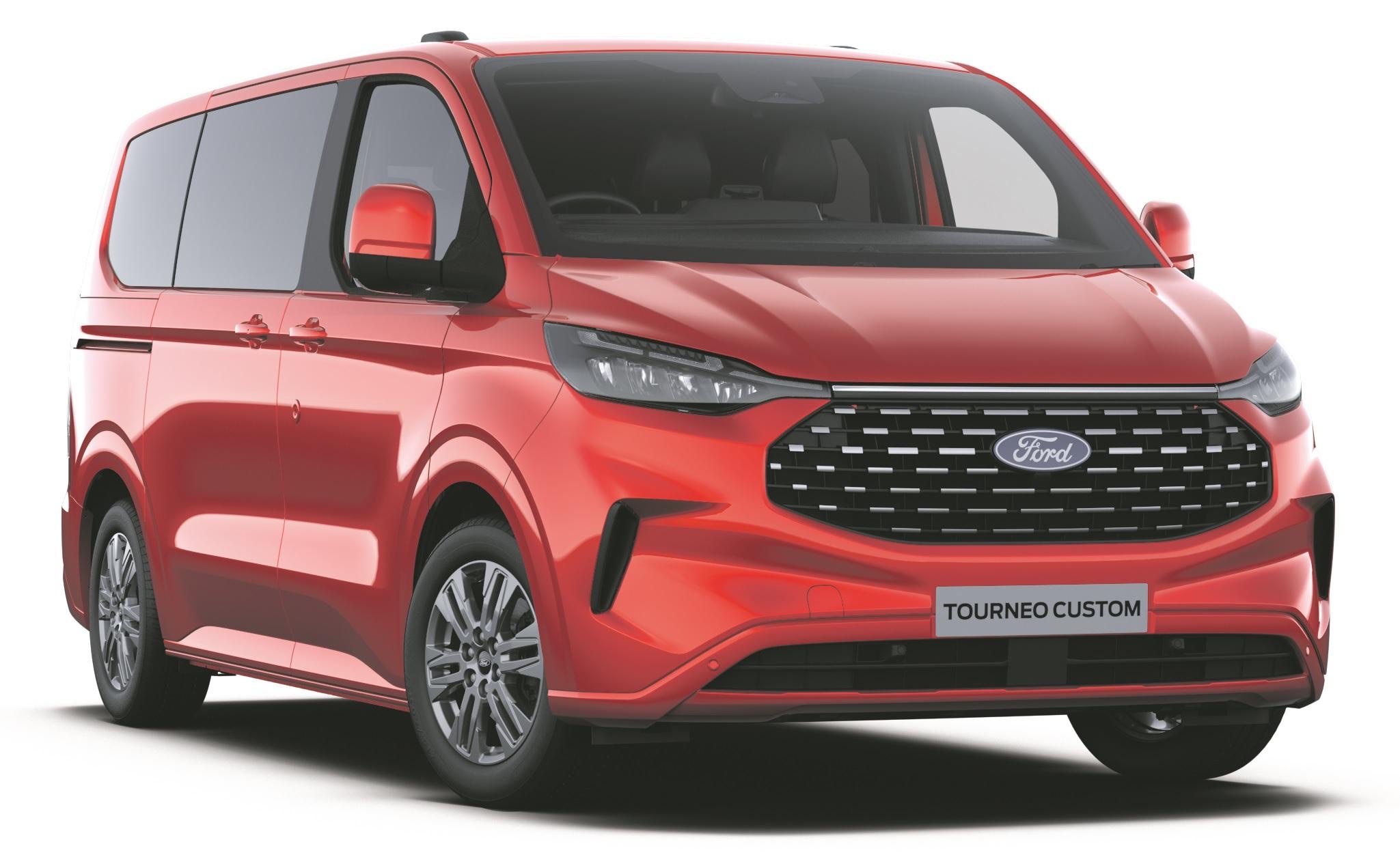

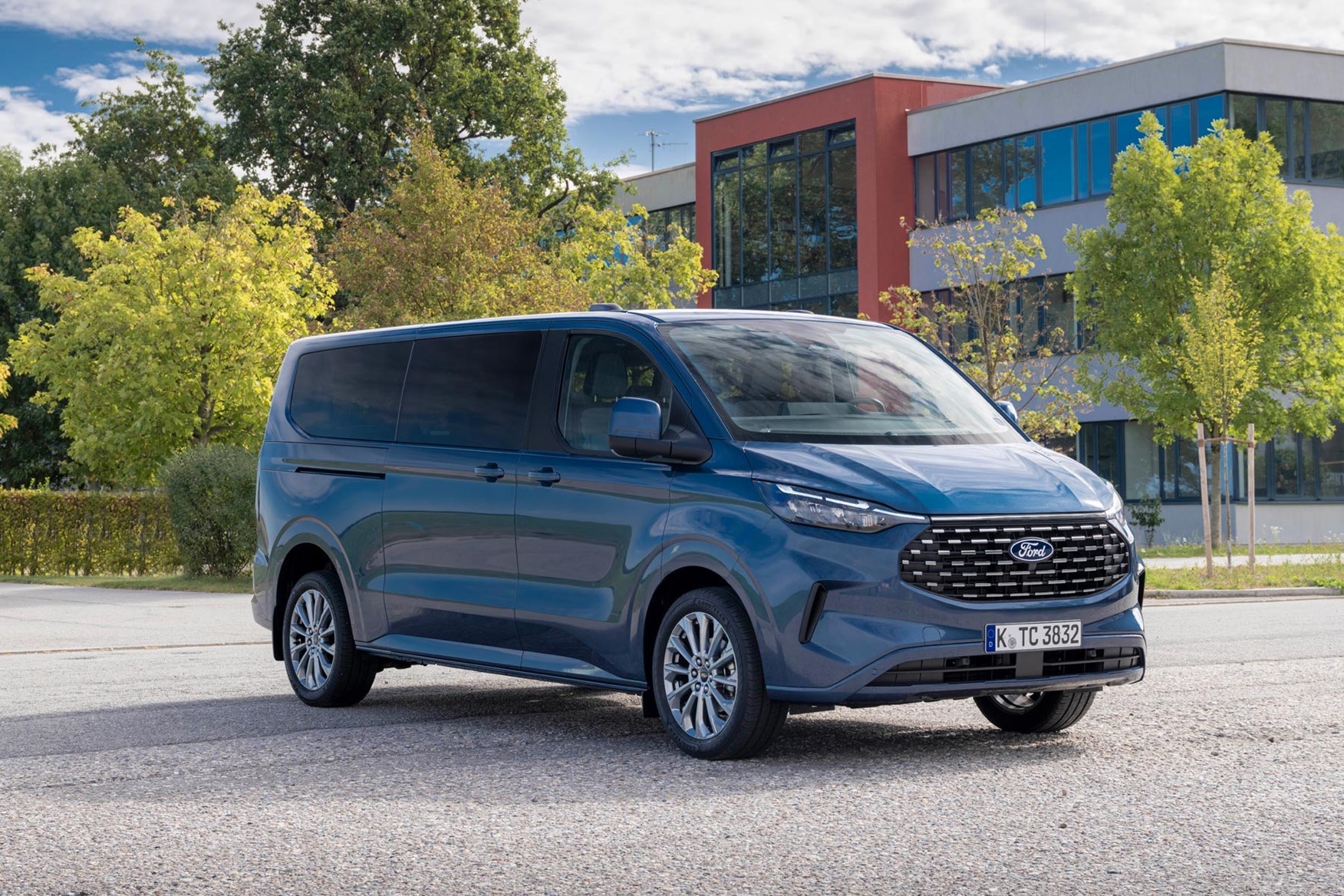

Photo Ford Tourneo Custom
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.0 EcoBlue (136 hp) 6-speed manual 25 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.3 |
|---|---|
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1996 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 136 |
| Torque, Nm | 360 |
Dimensions
| Seats | 8/9 |
|---|---|
| Length, mm | 5050 |
| Width, mm | 2275 |
| Height, mm | 1958 |
| Wheelbase, mm | 3100 |
| Turning circle, m | 12.3 |
| Width without mirrors, mm | 2032 |
| Trunk capacity, L | 673 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Ford |
2.0 EcoBlue (136 hp) 8-speed automatic 25 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8 |
|---|---|
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1996 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 136 |
| Torque, Nm | 360 |
Dimensions
| Seats | 8/9 |
|---|---|
| Length, mm | 5050 |
| Width, mm | 2275 |
| Height, mm | 1958 |
| Wheelbase, mm | 3100 |
| Turning circle, m | 12.3 |
| Width without mirrors, mm | 2032 |
| Trunk capacity, L | 673 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 8 |
| Automatic transmission | + |
2.0 EcoBlue (136 hp) 8-speed automatic 4x4 25 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.6 |
|---|---|
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1996 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 136 |
| Torque, Nm | 360 |
Dimensions
| Seats | 8/9 |
|---|---|
| Length, mm | 5050 |
| Width, mm | 2275 |
| Height, mm | 1958 |
| Wheelbase, mm | 3100 |
| Turning circle, m | 12.3 |
| Width without mirrors, mm | 2032 |
| Trunk capacity, L | 673 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Automatic transmission | + |
2.0 EcoBlue (150 hp) 6-speed manual 25 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.4 |
|---|---|
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1996 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 150 |
| Torque, Nm | 360 |
Dimensions
| Seats | 8/9 |
|---|---|
| Length, mm | 5050 |
| Width, mm | 2275 |
| Height, mm | 1958 |
| Wheelbase, mm | 3100 |
| Turning circle, m | 12.3 |
| Width without mirrors, mm | 2032 |
| Trunk capacity, L | 673 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Ford |
2.0 EcoBlue (170 hp) 8-speed automatic 24 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8 |
|---|---|
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 170 |
| Torque, Nm | 390 |
Dimensions
| Seats | 8/9 |
|---|---|
| Length, mm | 5050 |
| Width, mm | 2275 |
| Height, mm | 1958 |
| Wheelbase, mm | 3100 |
| Turning circle, m | 12.3 |
| Width without mirrors, mm | 2032 |
| Trunk capacity, L | 673 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 8 |
| Automatic transmission | + |
2.0 EcoBlue (170 hp) 8-speed automatic 4x4 24 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.6 |
|---|---|
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 170 |
| Torque, Nm | 390 |
Dimensions
| Seats | 8/9 |
|---|---|
| Length, mm | 5050 |
| Width, mm | 2275 |
| Height, mm | 1958 |
| Wheelbase, mm | 3100 |
| Turning circle, m | 12.3 |
| Width without mirrors, mm | 2032 |
| Trunk capacity, L | 673 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Automatic transmission | + |
2.5 PHEV (233 hp) eCVT 25 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 1.7 |
|---|---|
| Emissions standard | Euro VI |
Engine
| Engine | 2.5 PHEV |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2488 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 233 |
| Combustion engine torque, Nm | 205 |
| Electric motor torque, Nm | 320 |
Dimensions
| Seats | 8/9 |
|---|---|
| Length, mm | 5050 |
| Width, mm | 2275 |
| Height, mm | 1958 |
| Wheelbase, mm | 3100 |
| Turning circle, m | 12.3 |
| Width without mirrors, mm | 2032 |
| Trunk capacity, L | 673 |
Transmission and drive
| Transmission | eCVT |
|---|---|
| Transmission type | CVT |
| Drive | Front-wheel drive |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
Ford Tourneo Custom questions
Short answers based on the specifications and photos available in this catalog.
What body style is the Ford Tourneo Custom?
The Tourneo Custom is a mid-size passenger minivan designed to carry up to eight or nine occupants, depending on the chosen interior layout.
What engine options are available?
The lineup features a 2.0-liter EcoBlue diesel engine with outputs ranging from 136 to 170 horsepower, as well as a 233-horsepower 2.5-liter Plug-in Hybrid (PHEV) powertrain.
Can I get the Tourneo Custom with all-wheel drive?
Yes, all-wheel drive is available on this generation. It is offered in conjunction with the 8-speed automatic transmission on the EcoBlue diesel variants.
What is the electric range of the PHEV model?
The plug-in hybrid version uses an 11.8 kWh battery pack that provides an estimated pure electric driving range of up to 52 kilometers.
Will the van fit in standard parking garages?
Ford designed most variants of the second-generation Tourneo Custom to have an overall height of just under two meters, allowing it to clear standard multi-story parking structures.
