Honda NSX specifications and photos
Honda NSX specifications are shown with trim options, key technical data, and a model photo gallery. Compare 1 configurations by engine size, power, seating, and transmission. The gallery includes 22 photos for visual reference.
Honda NSX at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Honda NSX page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 581 hp and 3493 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 581 hp
- Engine displacement: 3493 cc
- Transmissions: 9
- Seating: 2 seats
Photos, trims and specifications for Honda NSX
This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.5h V6 Turbo (581 HP) 9-car DTC 4x4 | 3493 cc | 581 hp | 2 | 9 |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

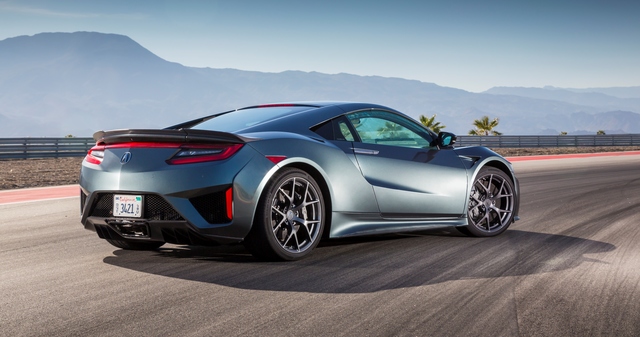

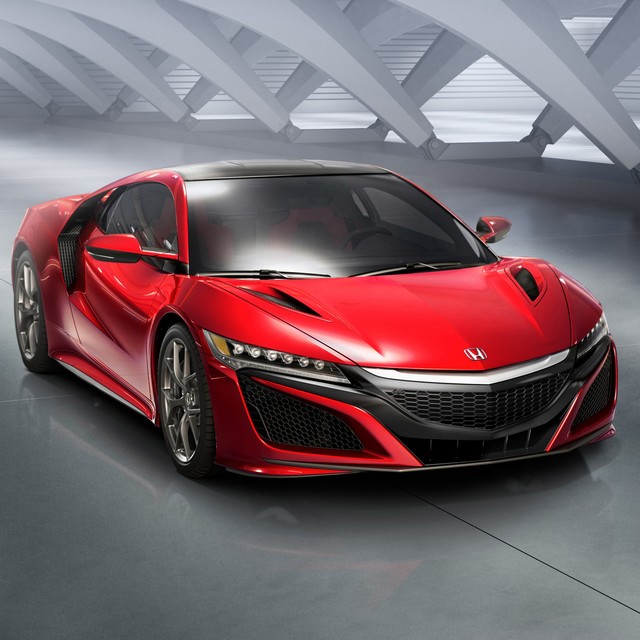

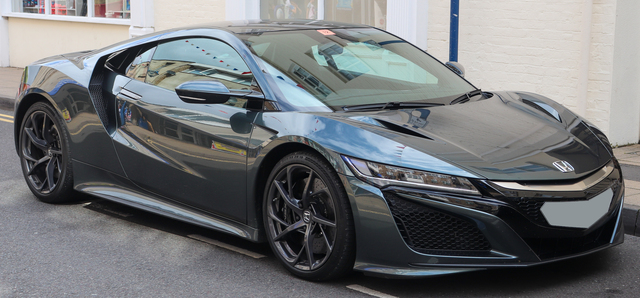

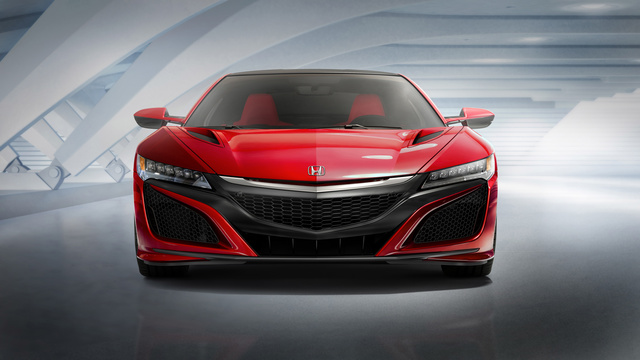

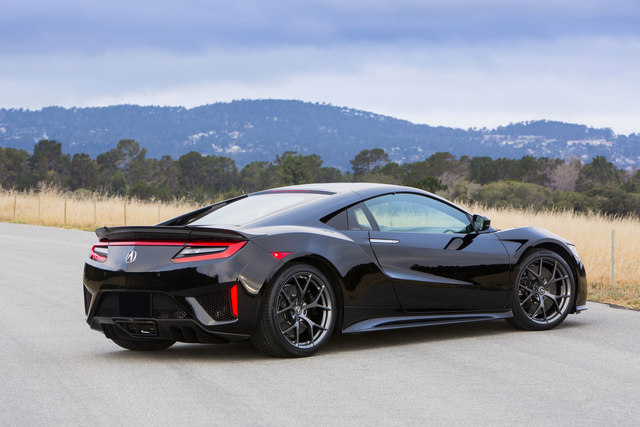

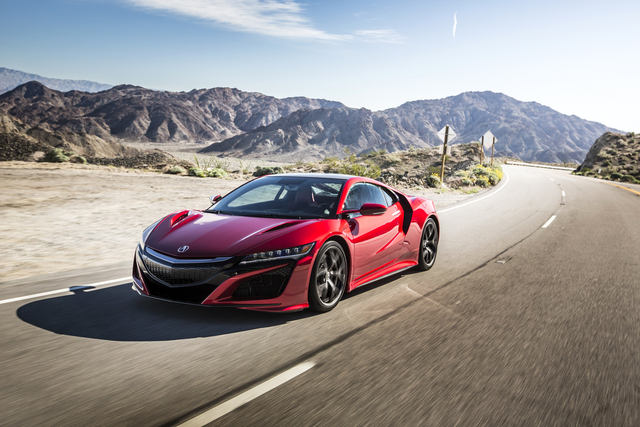

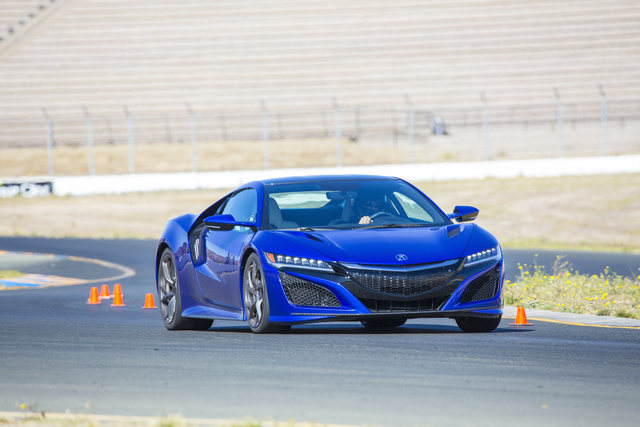

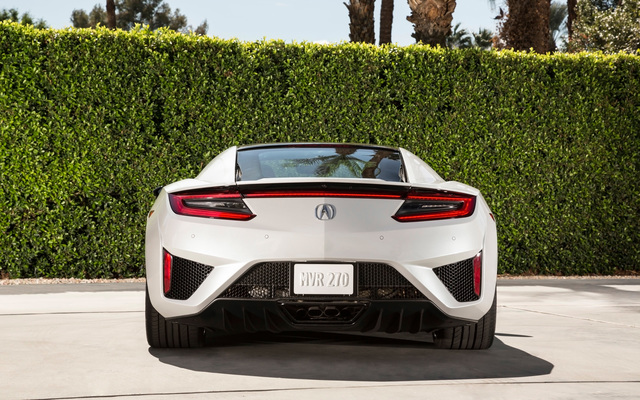

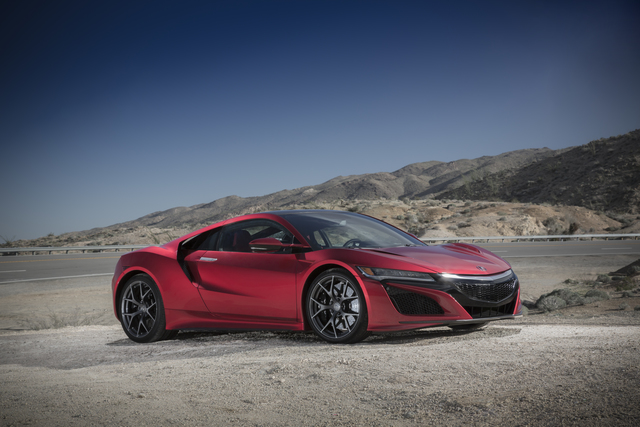

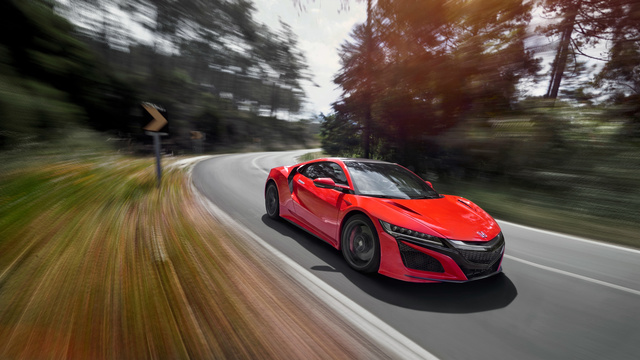

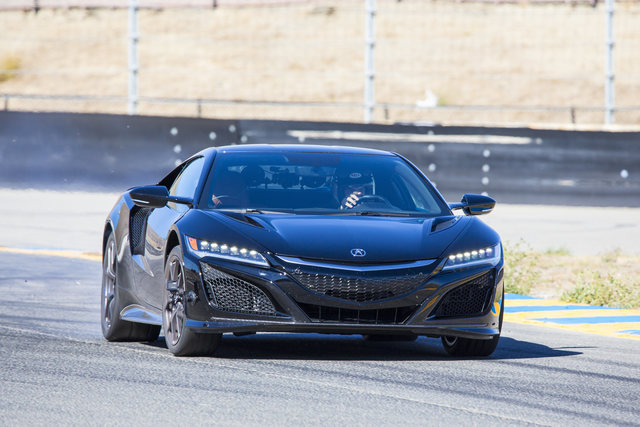

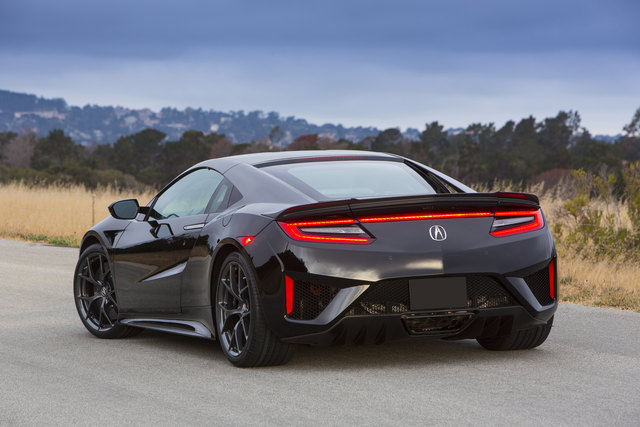

Honda NSX photo gallery
22 images are collected here with the main specifications and trim data for this model.
Photo Honda NSX
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.5h V6 Turbo (581 HP) 9-car DTC 4x4 46 specifications
Specifications
Engine
| Type of engine | Hybrid |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3493 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 581 |
| Torque, Nm | 645 |
| RPM at max torque | 2000-6000 |
| Engine | 3.5h V6 Turbo |
| Compression | 10.0 |
| Turbo | + |
| Number of motors | 1 |
| Power electric motor HP | 48 |
| Revolutions max. electric power, rev / min | 3000 |
| the motor torque Nm | 147 |
| Revolutions max. motor torque, rev / min | 500-2000 |
| Engine power, hp | 507 |
| Revolutions max. Engine power, vol. / min. | 6500-7500 |
| the engine torque, Nm | 550 |
| Revolutions max. engine torque, vol. / min. | 2000-6000 |
| Engine code | JNC1 |
| EV-mode | + |
| The possibility of charging from the network | + |
Dimensions
| Seats | 2 |
|---|---|
| Length mm | 4487 |
| Width | 2217 |
| Height mm | 1204 |
| Wheelbase mm | 2630 |
| Front track, mm | 1659 |
| Rear track, mm | 1620 |
| Trunk capacity, L | 110 |
| Fuel tank, l | 59 |
| Ground clearance, mm | 104 |
| Gross weight, kg | 2040 |
| Width (without mirrors) mm | 1939 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 10.3 |
|---|---|
| Fuel consumption (urban), l. 100 km | 9.9 |
| Fuel consumption (combined), l. 100 km | 10 |
| Acceleration (0-100 km/h), s | 3 |
| The maximum speed, km / h. | 308 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 9 |
| Drive | Full |
| Transmission | 9th DTC |
| Gearbox | 2 clutch robot |
Honda NSX questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Honda NSX?
This page lists 1 trim for the Honda NSX, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Honda NSX?
The listed configurations show a power range of 581 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Honda NSX?
The available specification data shows engine displacement from 3493 cc across the trims listed on this page.
Which transmissions are listed for the Honda NSX?
The transmission options currently shown for this model are: 9. Open a trim section to see the full data for a specific configuration.
Are there photos for the Honda NSX?
Yes. The gallery includes 22 photos for the Honda NSX, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
