Honda Ridgeline specifications and photos

Honda Ridgeline specifications are shown with trim options, key technical data, and a model photo gallery. Compare 4 configurations by engine size, power, seating, and transmission. The gallery includes 24 photos for visual reference.

Years 2016
Body type pickup
Trims 4
Photos 24

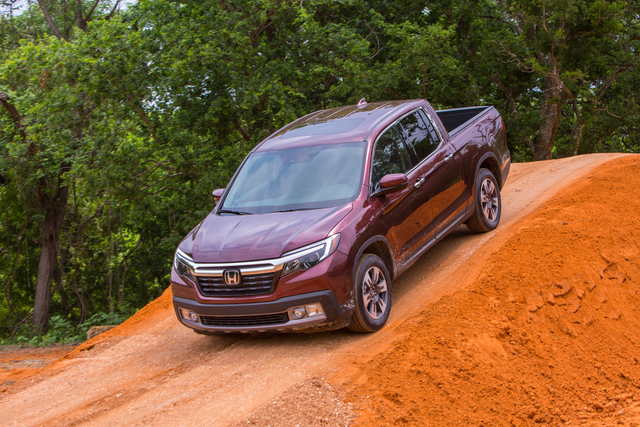

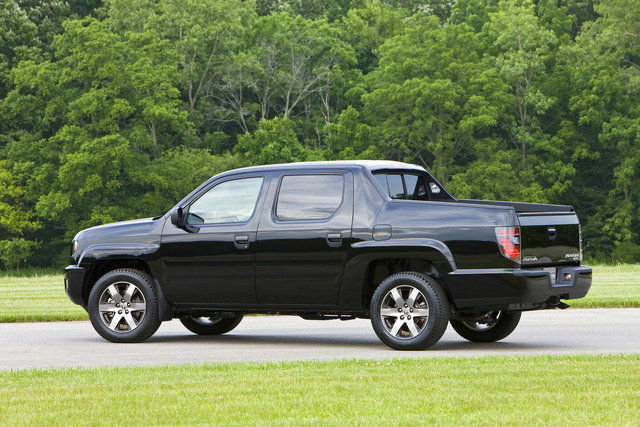

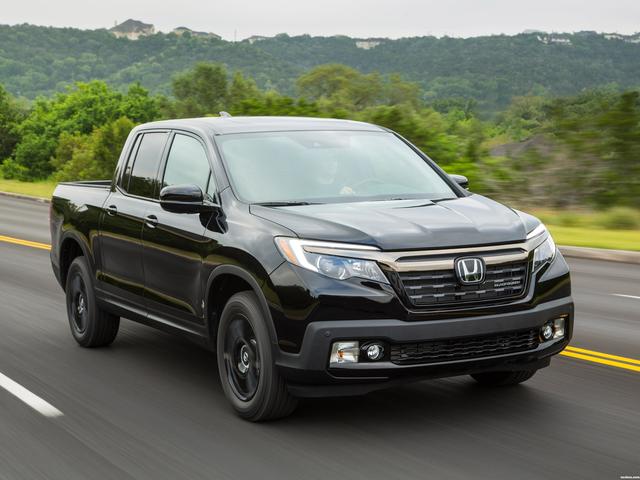

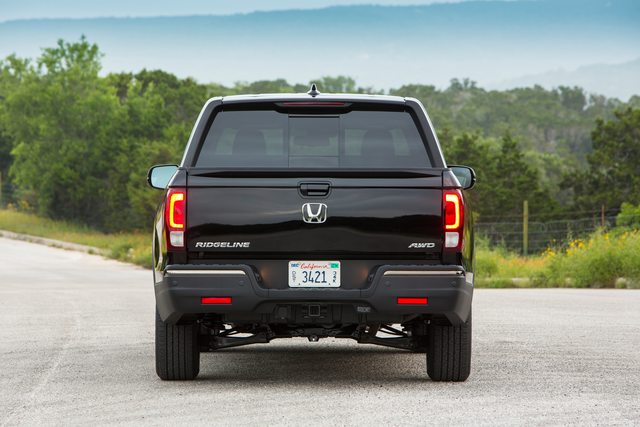

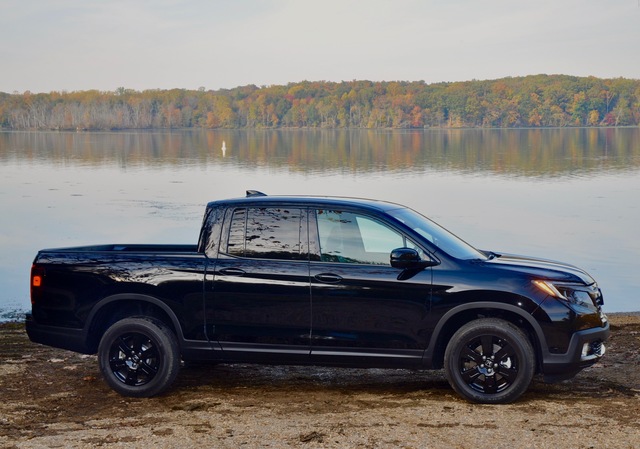

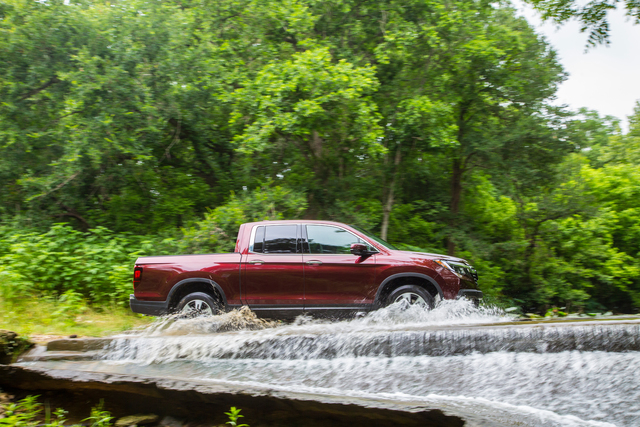

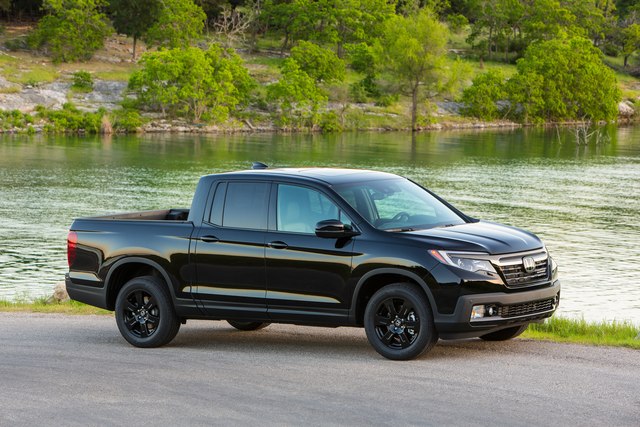

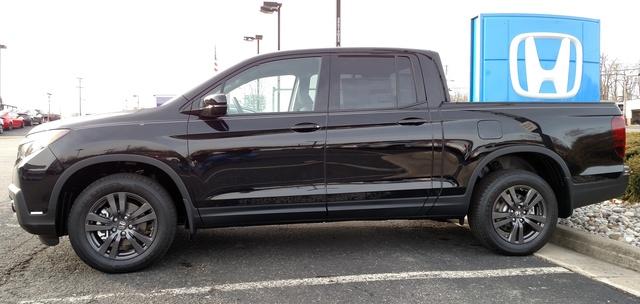

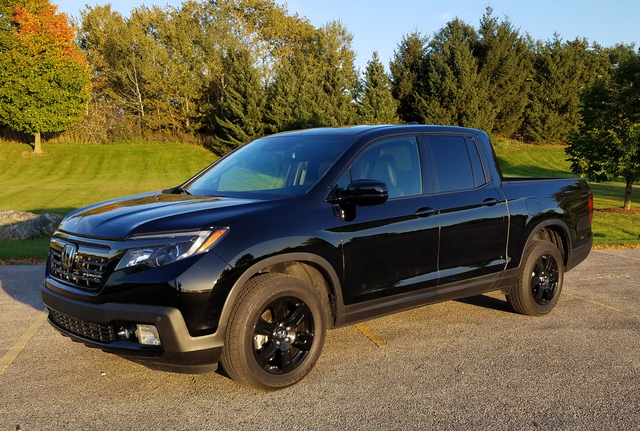

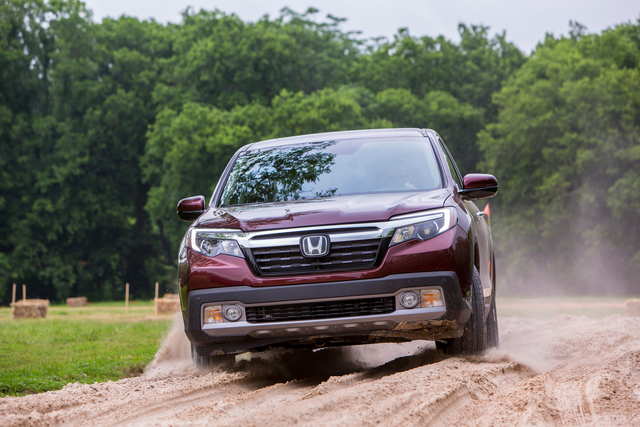

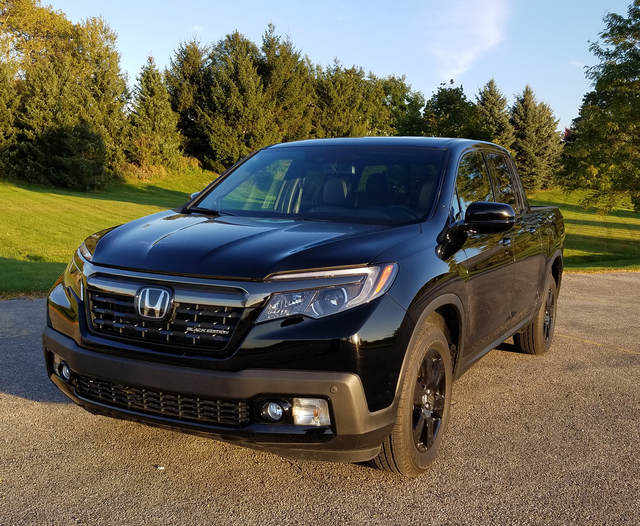

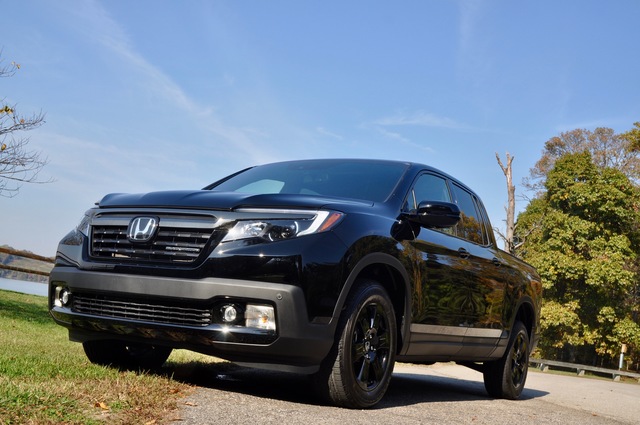

Honda Ridgeline 2016 pickup
Overview

Honda Ridgeline at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Honda Ridgeline page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 280 hp and 3471 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 280 hp
  • Engine displacement: 3471 cc
  • Transmissions: 6
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Honda Ridgeline

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 24 images Compare trims 4 configurations View detailed specs 3471 cc Explore related pages Honda and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 280 hp
Engine displacement 3471 cc
Seating 5 seats
Transmissions 6
Trim / modification Engine Power Seats Transmission
3.5 AT 3471 cc 280 hp 5 6
3.5 AT AWD 3471 cc 280 hp 5 6
3.5 i-VTEC (280 HP) 6-car 3471 cc 280 hp 5 6
3.5 i-VTEC (280 HP) 6-car 4x4 3471 cc 280 hp 5 6

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

3.5 AT 3.5 AT AWD 3.5 i-VTEC (280 HP) 6-car 3.5 i-VTEC (280 HP) 6-car 4x4
3.5 AT 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3471
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 280
Torque, Nm 355
RPM at max torque 4700
Engine 3.5 i-VTEC
Compression 11.5
RPM at max power 6000
Engine code J35Y6

Dimensions

Seats 5
Length mm 5335
Width 2279
Height mm 1798
Wheelbase mm 3180
Front track, mm 1678
Rear track, mm 1677
Fuel tank, l 74
Turning circle, m 13.5
Ground clearance, mm 200
Width (without mirrors) mm 2116

Suspension

Type of front suspension MacPherson
Rear suspension Multi-link independent

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Steering

Power steering Electric power

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car
Gearbox Machine

Equipment

Wheels

Disc diameter 17
Rim type Alloy
Tires 165/90R17
3.5 AT AWD 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3471
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 280
Torque, Nm 355
RPM at max torque 4700
Engine 3.5 i-VTEC
Compression 11.5
RPM at max power 6000
Engine code J35Y6

Dimensions

Seats 5
Length mm 5335
Width 2279
Height mm 1798
Wheelbase mm 3180
Front track, mm 1678
Rear track, mm 1677
Fuel tank, l 74
Turning circle, m 13.5
Ground clearance, mm 200
Width (without mirrors) mm 2116

Suspension

Type of front suspension MacPherson
Rear suspension Multi-link independent

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 12.8
Fuel consumption (urban), l. 100 km 9.5
Fuel consumption (combined), l. 100 km 11.3

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-car
Gearbox Machine

Equipment

Wheels

Disc diameter 17
Rim type Alloy
Tires 165/90R17
3.5 i-VTEC (280 HP) 6-car 29 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3471
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 280
Torque, Nm 355
RPM at max torque 4700
Engine 3.5 i-VTEC
Compression 11.5
RPM at max power 6000
Engine code J35Y6

Dimensions

Seats 5
Length mm 5335
Width 2279
Height mm 1798
Wheelbase mm 3180
Front track, mm 1678
Rear track, mm 1677
Fuel tank, l 74
Turning circle, m 13.5
Ground clearance, mm 200
Width (without mirrors) mm 2116

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car
Gearbox Machine
3.5 i-VTEC (280 HP) 6-car 4x4 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3471
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 280
Torque, Nm 355
RPM at max torque 4700
Engine 3.5 i-VTEC
Compression 11.5
RPM at max power 6000
Engine code J35Y6

Dimensions

Seats 5
Length mm 5335
Width 2279
Height mm 1798
Wheelbase mm 3180
Front track, mm 1678
Rear track, mm 1677
Fuel tank, l 74
Turning circle, m 13.5
Ground clearance, mm 200
Width (without mirrors) mm 2116

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 12.8
Fuel consumption (urban), l. 100 km 9.5
Fuel consumption (combined), l. 100 km 11.3

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-car
Gearbox Machine
FAQ

Honda Ridgeline questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Honda Ridgeline?

This page lists 4 trims for the Honda Ridgeline, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Honda Ridgeline?

The listed configurations show a power range of 280 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Honda Ridgeline?

The available specification data shows engine displacement from 3471 cc across the trims listed on this page.

Which transmissions are listed for the Honda Ridgeline?

The transmission options currently shown for this model are: 6. Open a trim section to see the full data for a specific configuration.

Are there photos for the Honda Ridgeline?

Yes. The gallery includes 24 photos for the Honda Ridgeline, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
