KIA Ceed SW specifications and photos
The 2021 KIA Ceed SW is a practical C-segment wagon that offers a spacious alternative to the standard hatchback. Introducing updated styling, modern cabin technology, and a diverse range of powertrains, this refresh builds on the third-generation platform.
KIA Ceed SW at a glance
Quick model context before comparing photos and trim-level specifications.
Representing a mid-cycle refresh of the third-generation model, the 2021 KIA Ceed SW (Sportswagon) refines the vehicle's design and features while maintaining its core focus on utility. The wagon shares a 2650 mm wheelbase with the Ceed hatchback but extends the rear overhang to add significant cargo capacity. This update brings revised front and rear styling, including updated bumpers and full LED headlamps. Geared toward families and long-distance drivers, the updated Ceed SW balances compact exterior dimensions with a high-capacity trunk and flexible seating, making it a competitive choice in the traditional European compact wagon class.
- Power: 100-160 hp
- Engine displacement: 998-1598 cc
- Transmissions: 6-speed automatic, 6-speed manual, 7-speed dual-clutch
- Seating: 5 seats
Photos, trims and specifications for KIA Ceed SW
This model page brings gallery images, trim comparison, and detailed technical data together for the 2021 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
KIA Ceed SW overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
Exterior updates for the 2021 model year include redesigned front and rear bumpers that give the Ceed SW a more modern look. The signature grille is flanked by revised full LED headlights with new internal graphics. Buyers can choose from updated alloy wheel designs up to 16 inches and fresh paint colors. Structurally, the vehicle retains its 4600 mm length and 1800 mm width (excluding mirrors), presenting a clean, contemporary profile with standard features like body-colored door handles and mirror caps.
Interior
The cabin introduces revised upholstery choices alongside upgraded digital interfaces. Drivers can look forward to a customizable 12.3-inch digital instrument cluster and a central touchscreen display, offered in 8-inch or 10.25-inch sizes depending on the trim level. The infotainment setup supports Apple CarPlay, Android Auto, and Bluetooth connectivity. KIA Connect integration is also featured, allowing owners to control certain vehicle parameters remotely via smartphone. Comfort options include heated seats for both rows, ventilated front seats, dual-zone automatic climate control, and a premium JBL audio system.
Performance
The Ceed SW features a versatile lineup of engines. Traditional gasoline options include a 1.0-liter three-cylinder T-GDI producing 100 or 120 horsepower, a 1.5-liter four-cylinder T-GDI with 150 or 160 horsepower, and a naturally aspirated 1.6-liter MPi generating 128 horsepower. For diesel buyers, the 1.6-liter CRDi offers 136 horsepower and is available with either a 6-speed manual or a 7-speed dual-clutch transmission (DCT). A major addition is the 1.6-liter GDI Plug-in Hybrid (PHEV), combining a gasoline engine with an electric motor and an 8.9 kWh battery to deliver a combined 141 horsepower and up to 57 kilometers of electric-only driving range.
Practicality
Practicality remains the defining characteristic of the Ceed SW. Its trunk offers 625 liters of cargo space, which is 230 liters more than the hatchback variant. A key interior refinement is the rear seats, which fold in a versatile 40:20:40 configuration in higher trims, enabling long items to be loaded easily while retaining seating for two rear passengers. The low load lip and optional power tailgate make loading heavy cargo straightforward, ensuring the wagon is well-suited for family road trips and daily utility.
Safety and tech
A comprehensive suite of driver assistance features updates the Ceed SW safety profile. Key upgrades include separating the adaptive cruise control and lane-keeping assist, allowing manual transmission models to benefit from active steering guidance. The autonomous emergency braking system now detects pedestrians and cyclists, and the blind-spot monitor has been upgraded to an active system that can apply brakes to prevent collisions. Rear cross-traffic alert and an automatic braking function for reversing are also included.
Buyer notes
When shopping for a pre-owned 2021 KIA Ceed SW, buyers should note that exact trim levels and engine availability can vary significantly depending on the original market. The Classic trim represents a standard entry point, typically paired with the 1.6-liter MPi engine and a six-speed automatic transmission. Those looking for maximum fuel economy should seek out the PHEV hybrid model, though it may sacrifice a small amount of under-floor trunk space due to the battery pack. The 1.5-liter T-GDI with the 7-speed DCT offers a balanced mix of performance and modern driving dynamics.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.6 MPI AT Classic | 1591 cc | 128 hp | 5 | 6-speed automatic |
| 1.0 T-GDI (100 hp) 6-speed manual | 998 cc | 100 hp | 5 | 6-speed manual |
| 1.0 T-GDI (120 hp) 6-speed manual | 998 cc | 120 hp | 5 | 6-speed manual |
| 1.5 T-GDI (160 hp) 6-speed manual | 1482 cc | 160 hp | 5 | 6-speed manual |
| 1.5 T-GDI (160 hp) 7-DCT | 1482 cc | 160 hp | 5 | 7-speed dual-clutch |
| 1.6 CRDi (136 hp) 6-speed manual | 1598 cc | 136 hp | 5 | 6-speed manual |
| 1.6 CRDi (136 hp) 7-DCT | 1598 cc | 136 hp | 5 | 7-speed dual-clutch |
| 1.6 MPi (128 hp) 6-speed automatic | 1591 cc | 128 hp | 5 | 6-speed automatic |
| 1.5 T-GDI (150 hp) 7-DCT | 1482 cc | 150 hp | 5 | 7-speed dual-clutch |
| 1.6 GDI PHEV (141 hp) 6-DCT | 1580 cc | 141 hp | 5 | 6-speed dual-clutch |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

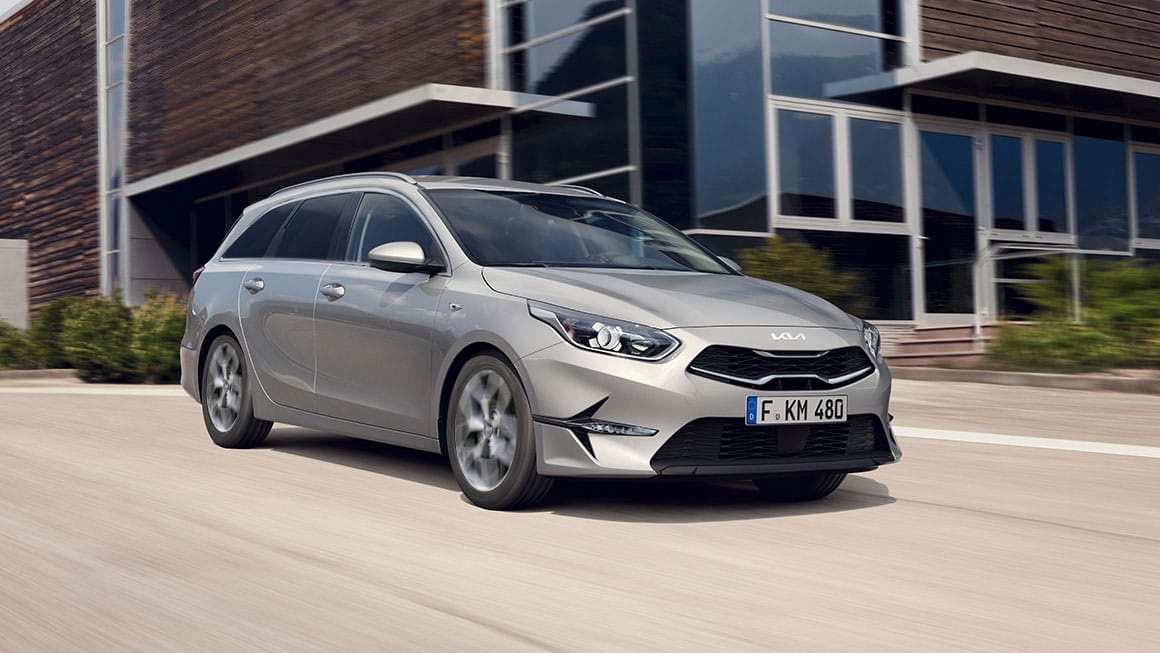

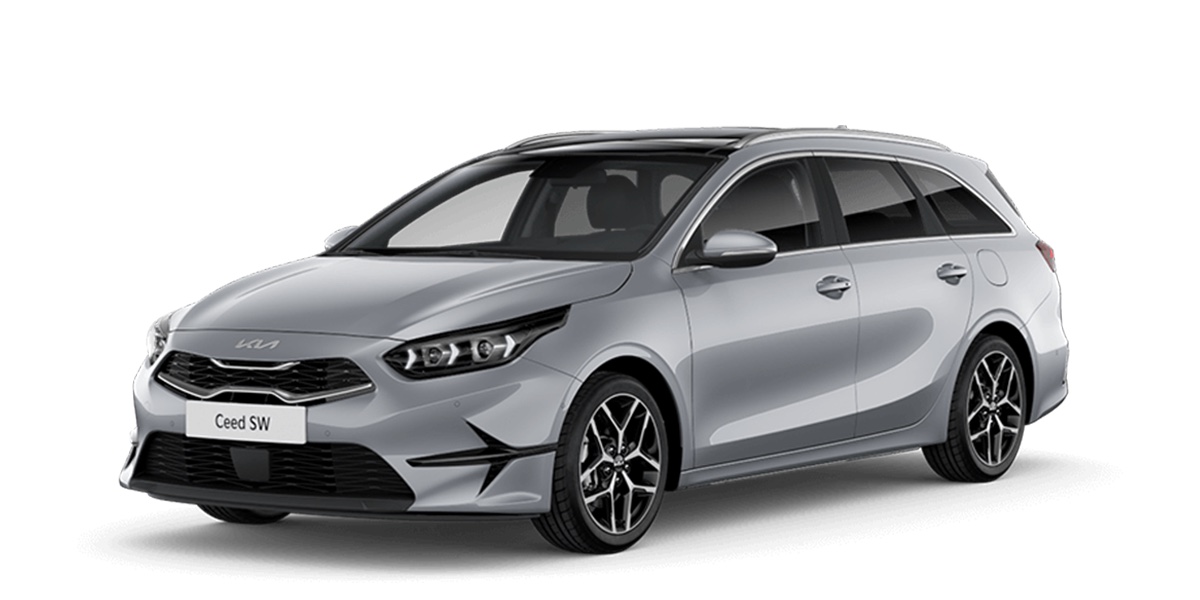

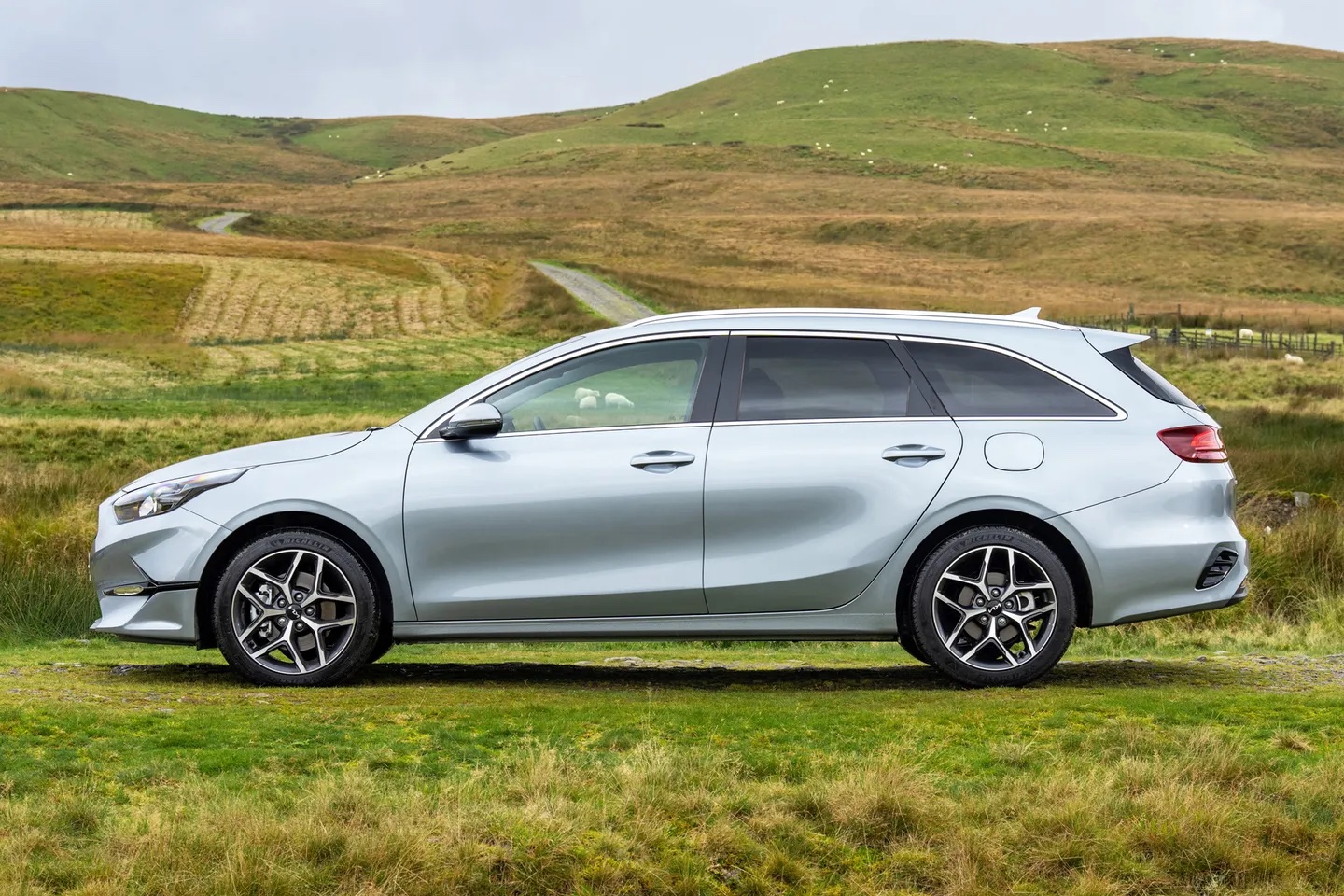

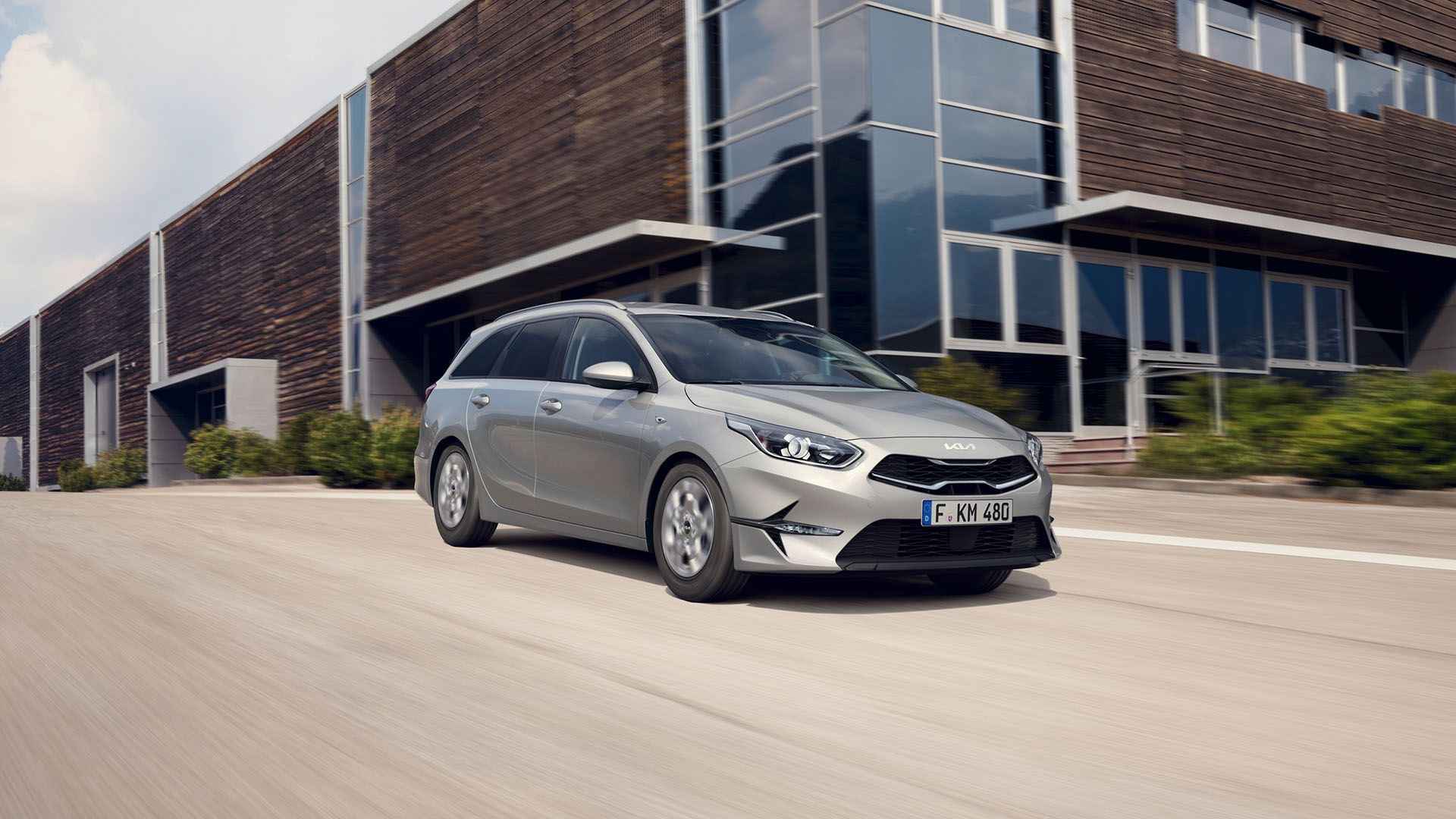

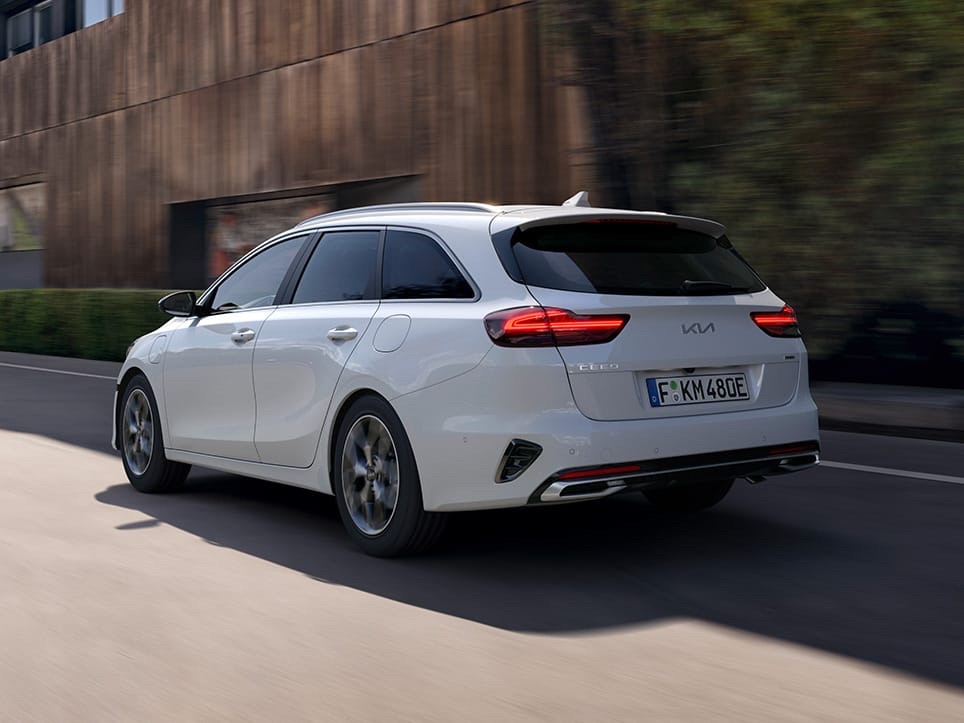

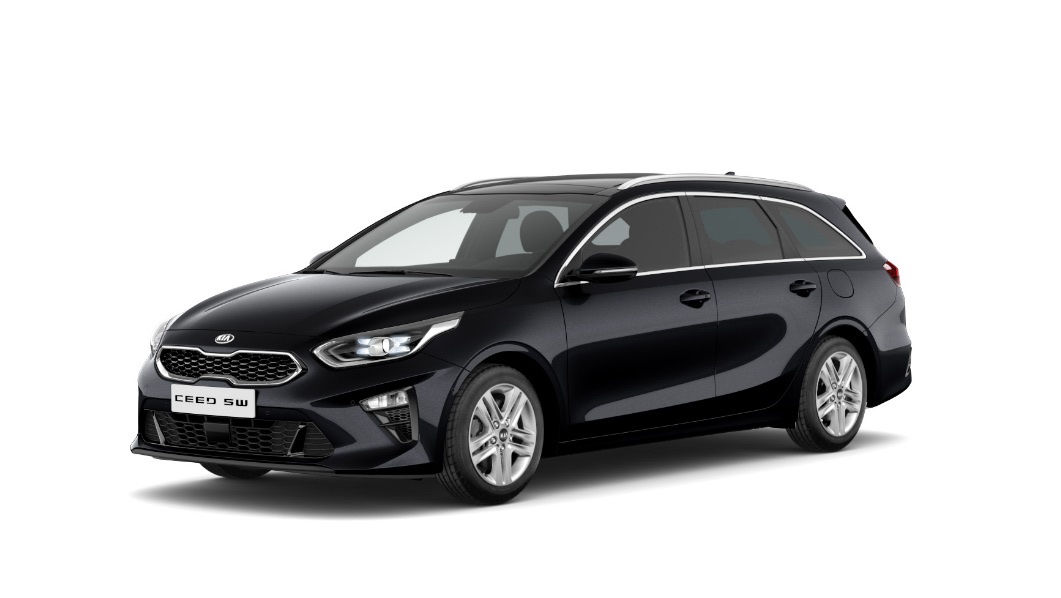

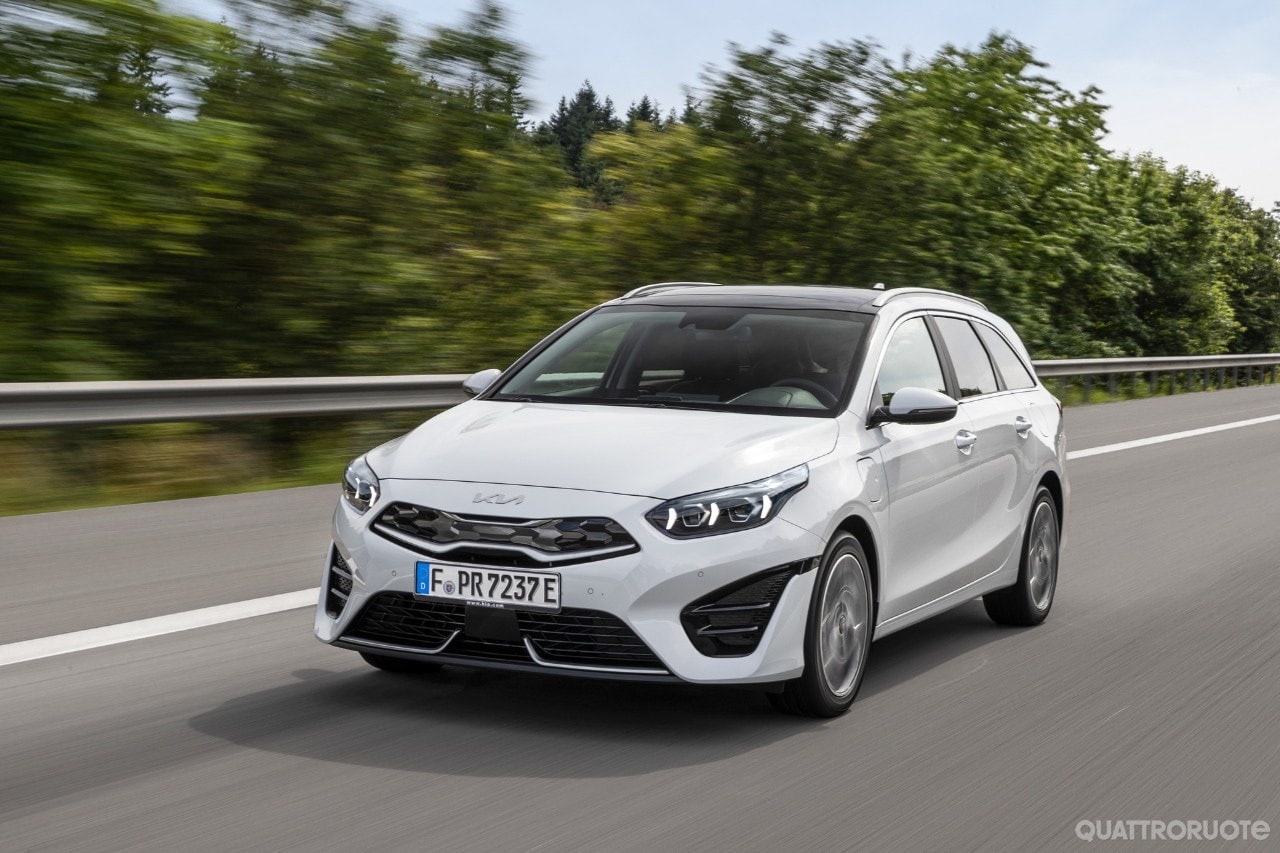

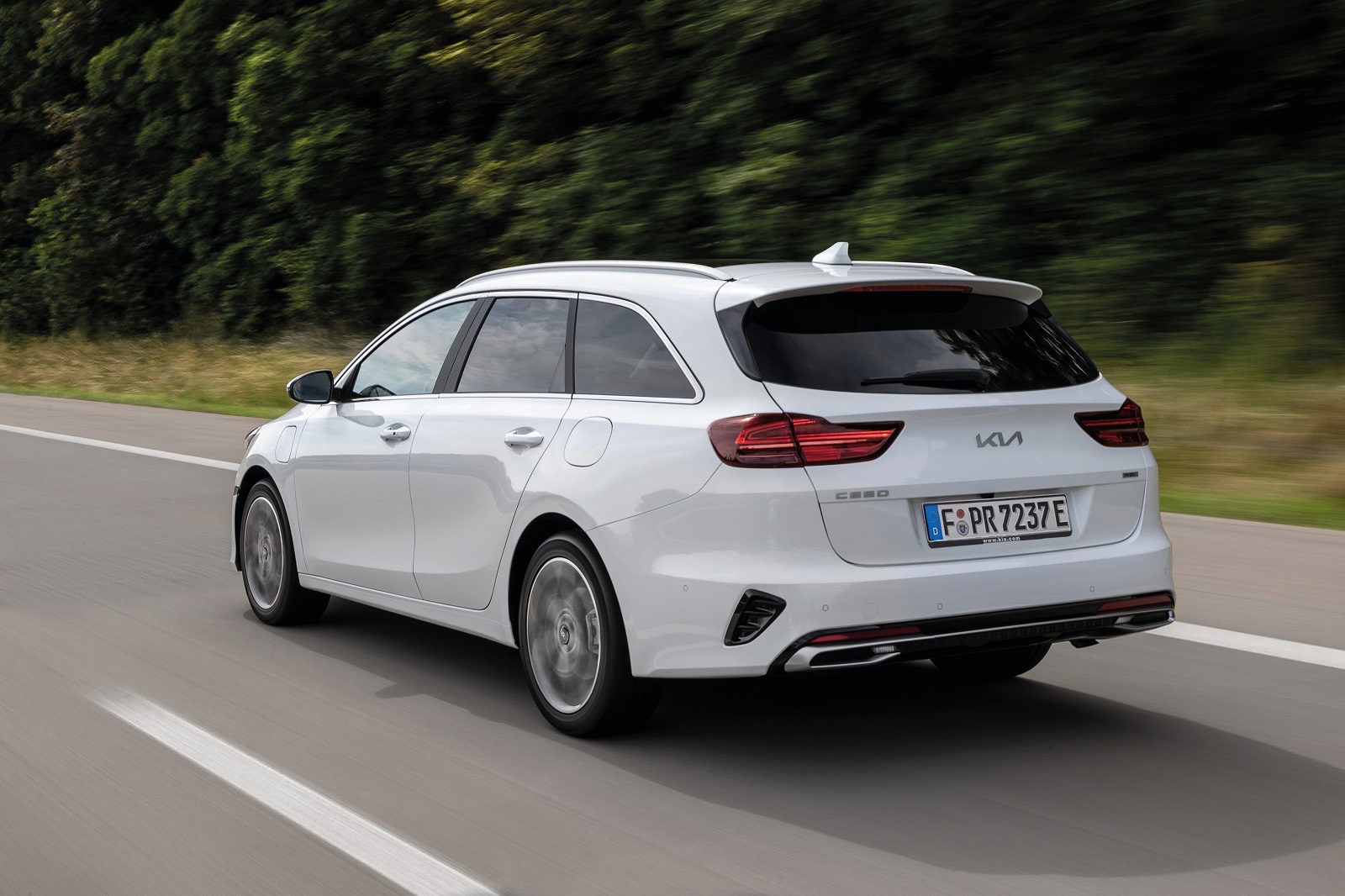

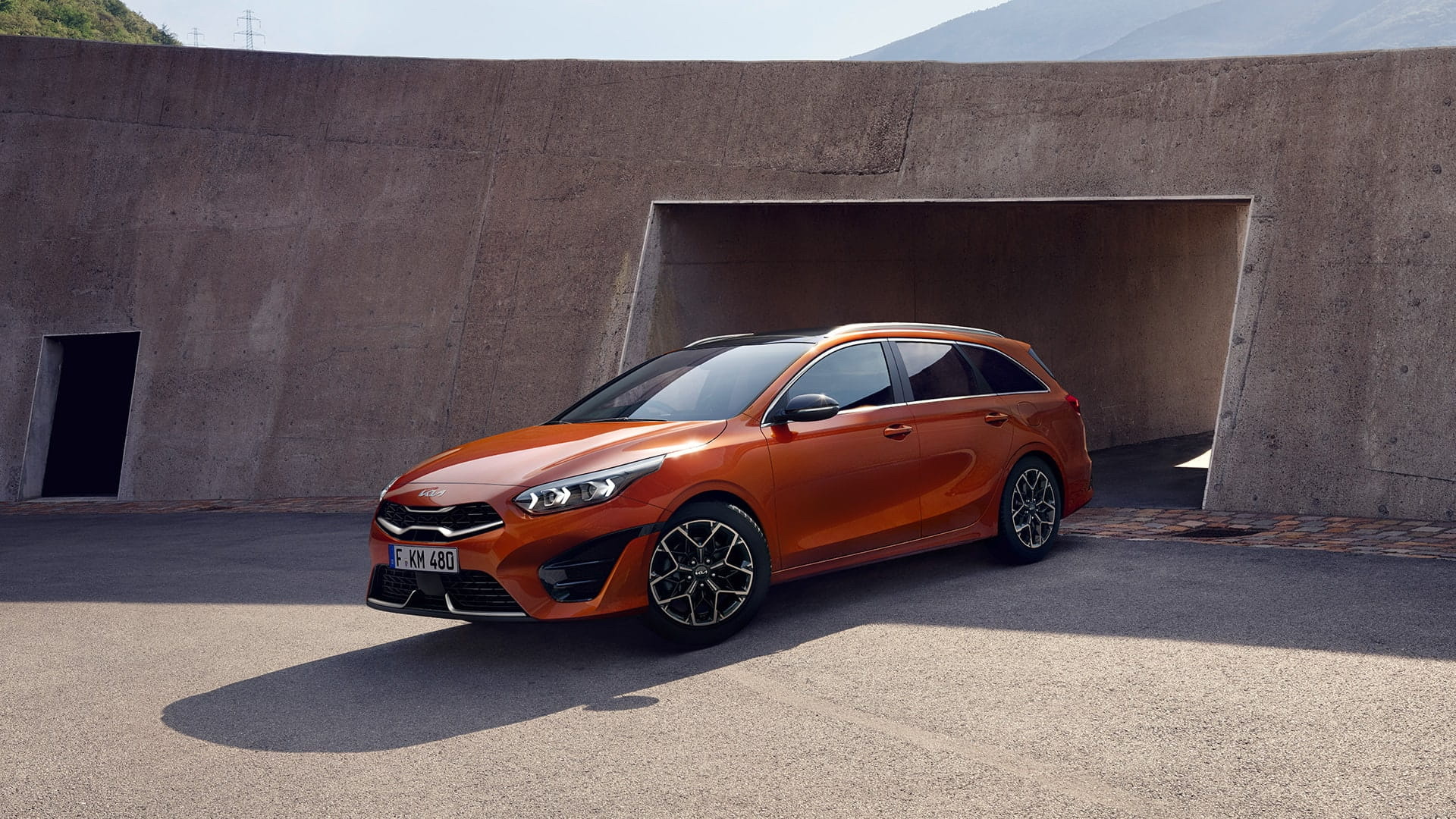

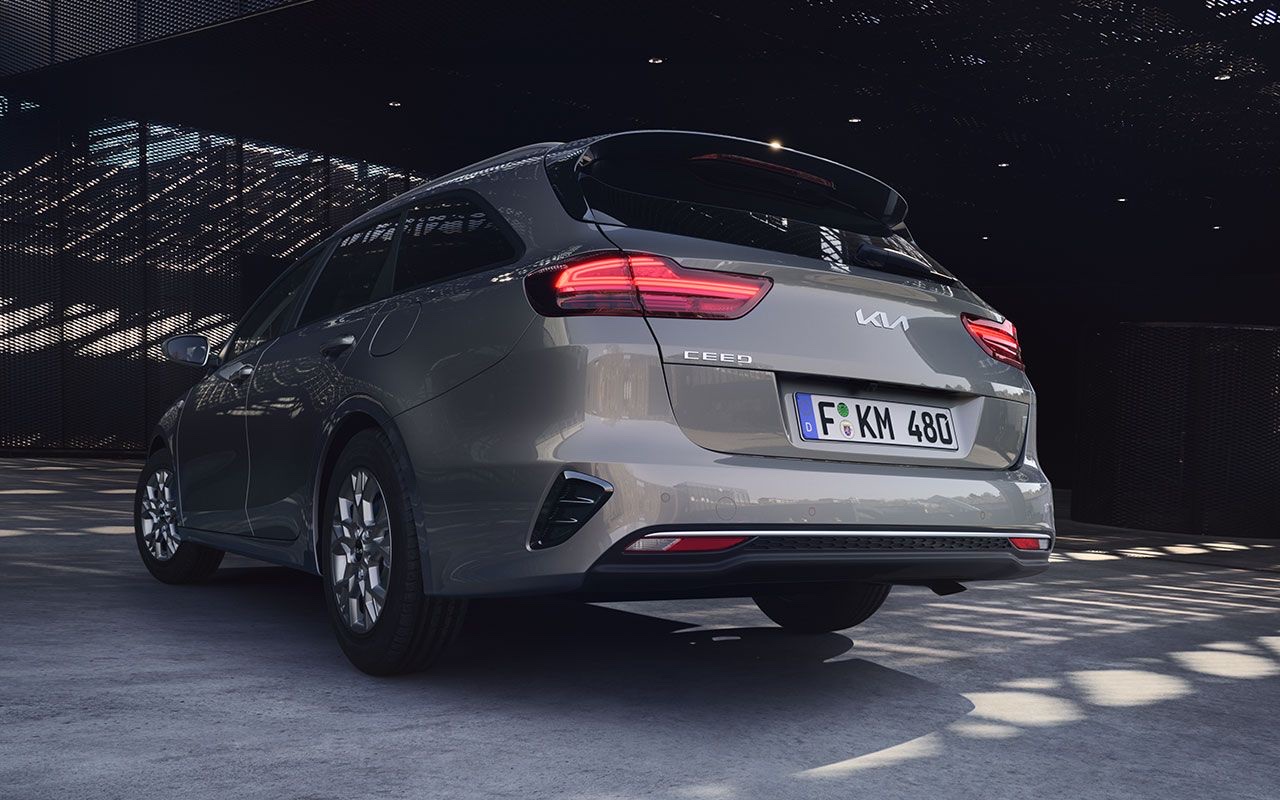

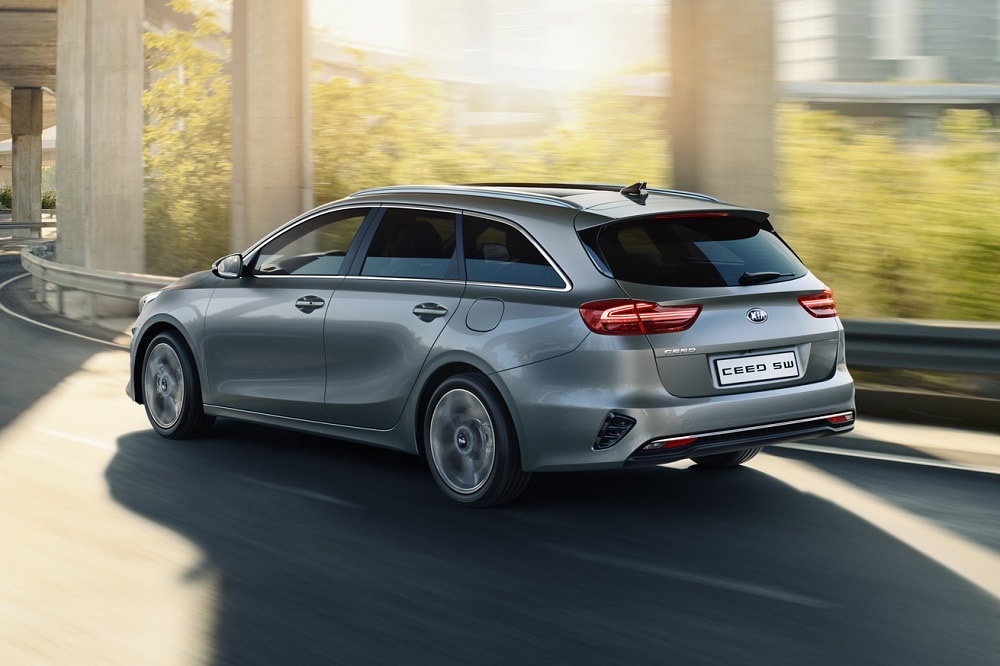

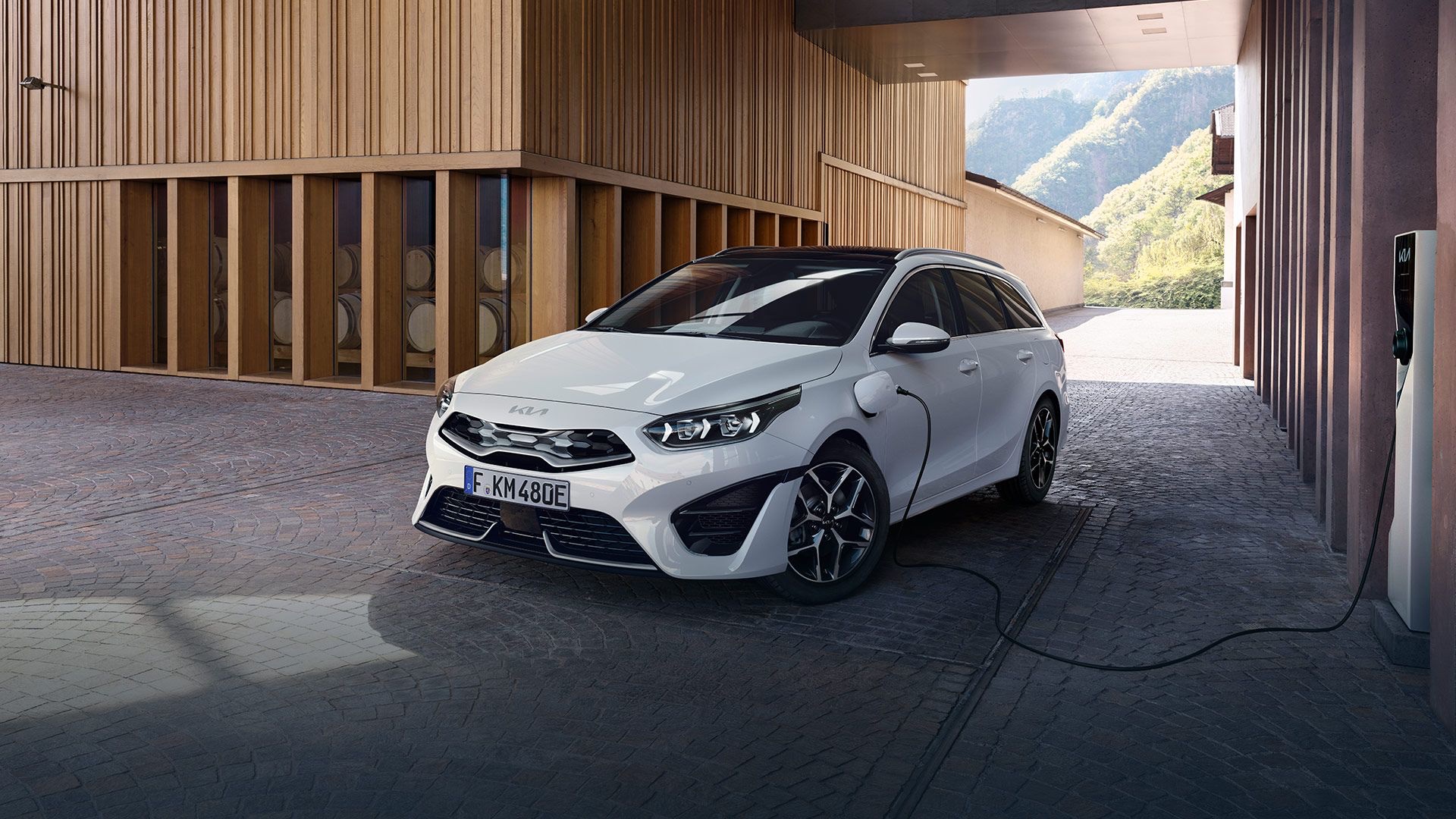

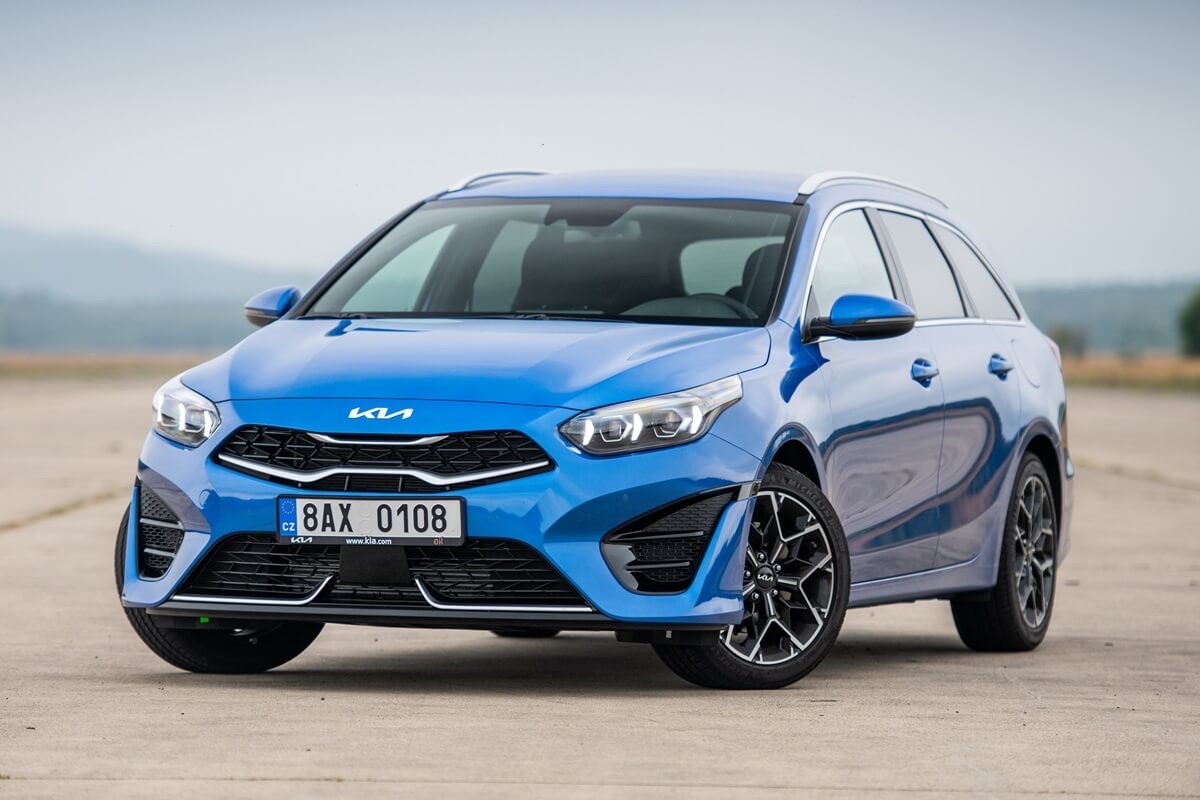

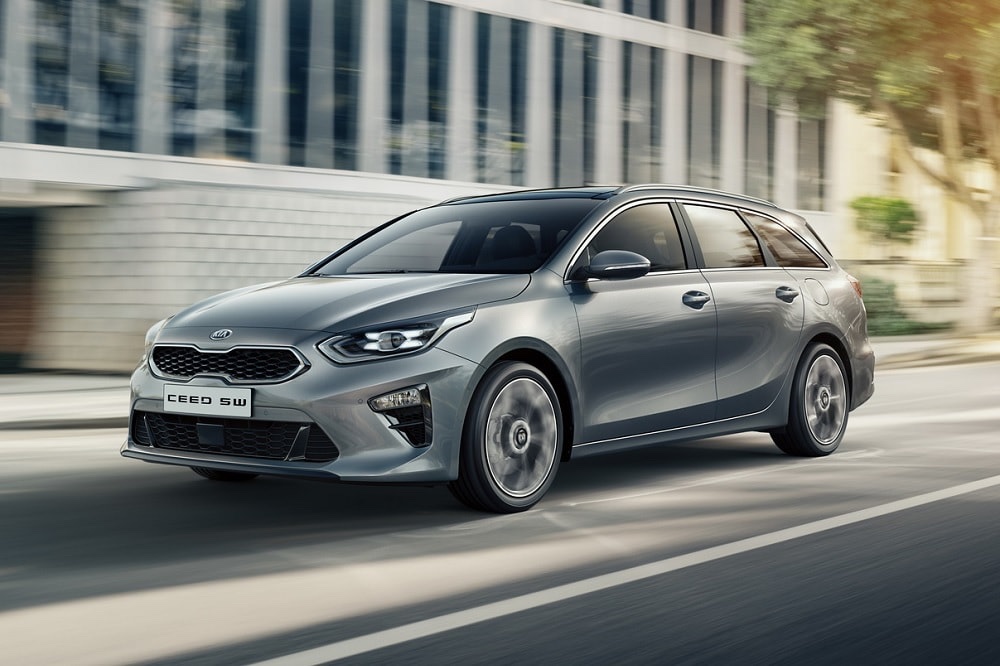

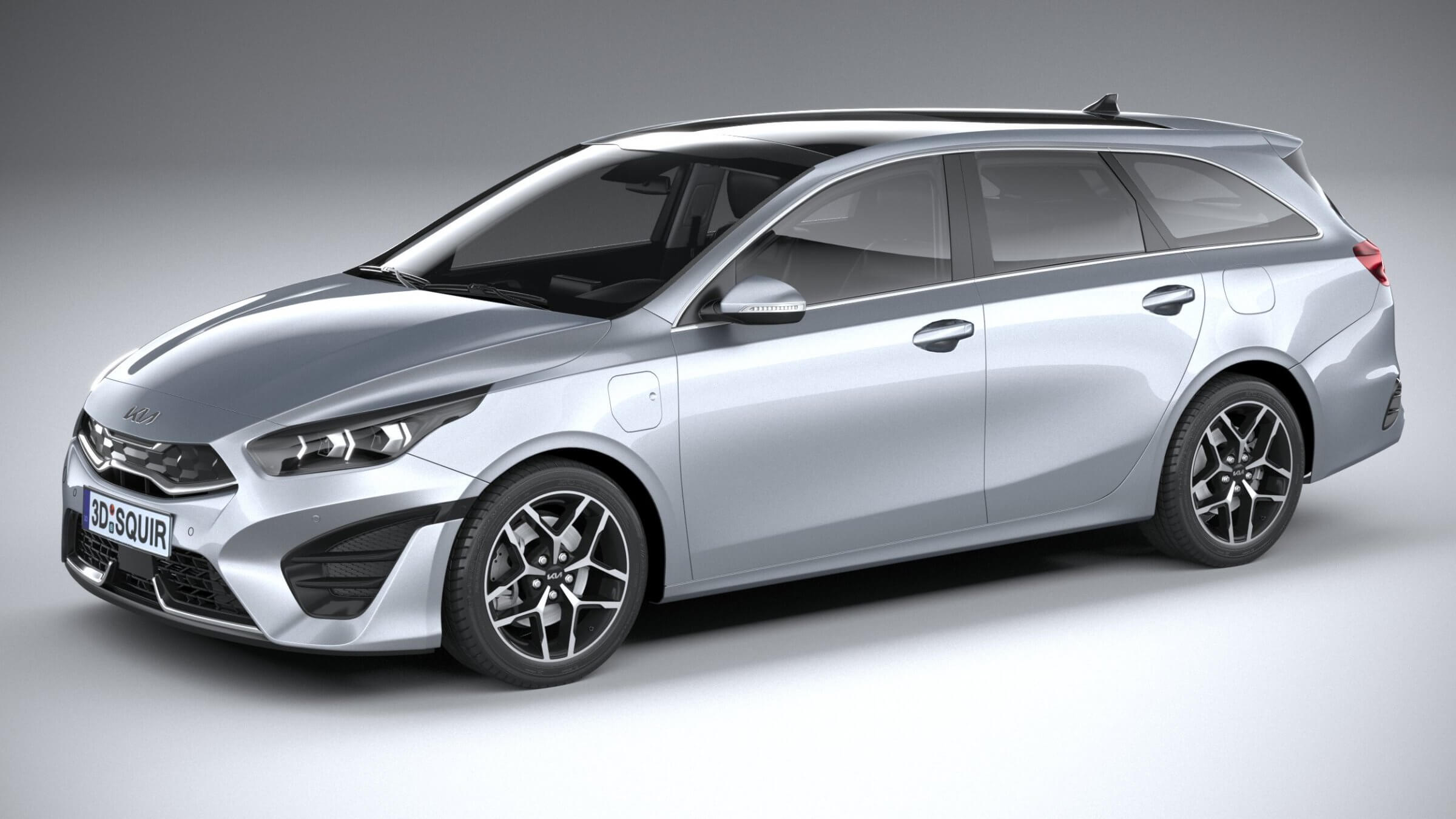

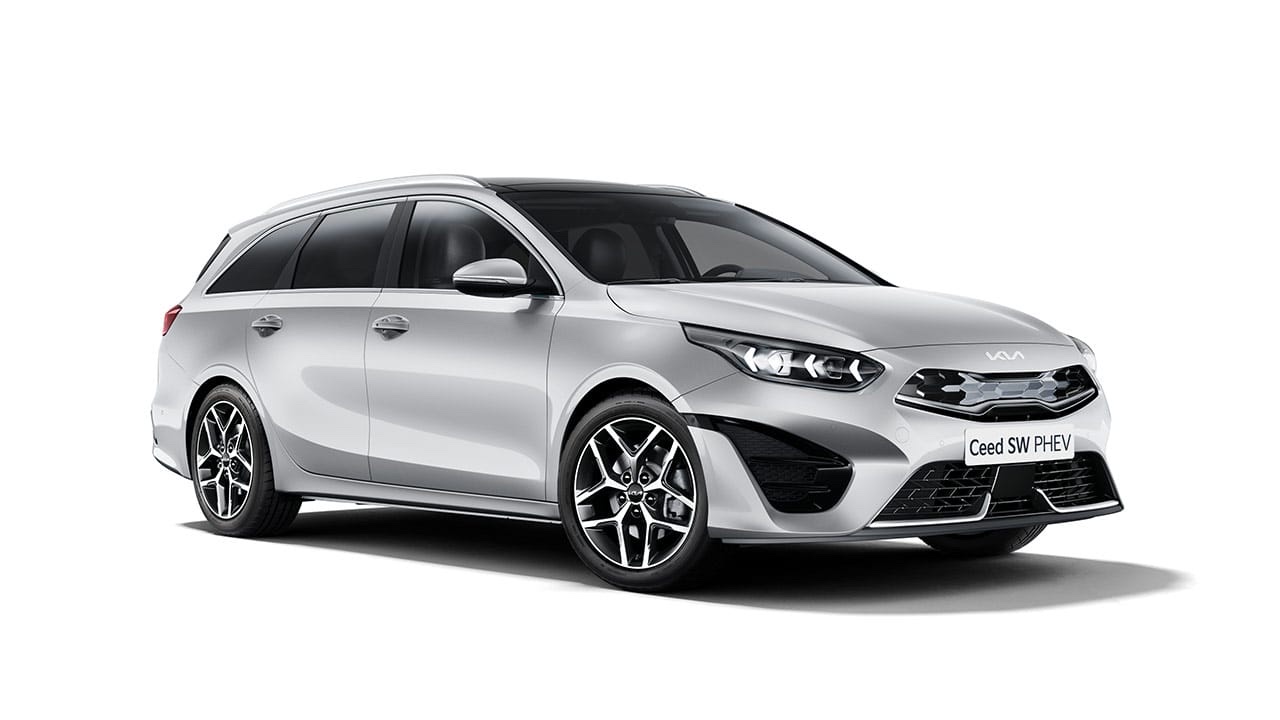

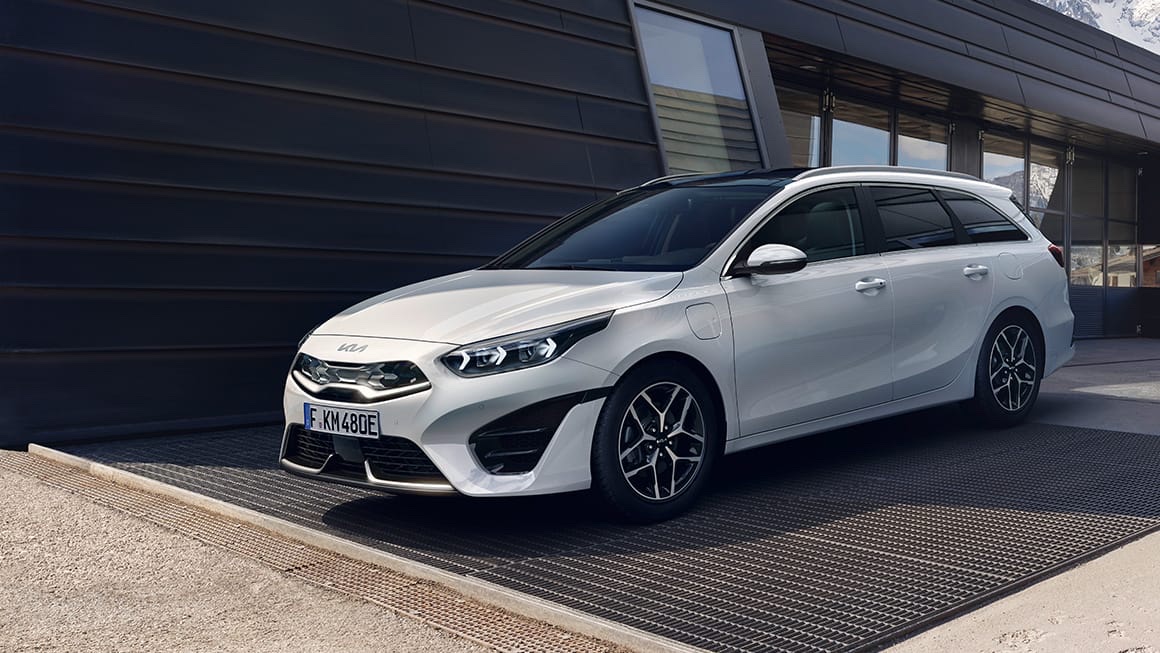

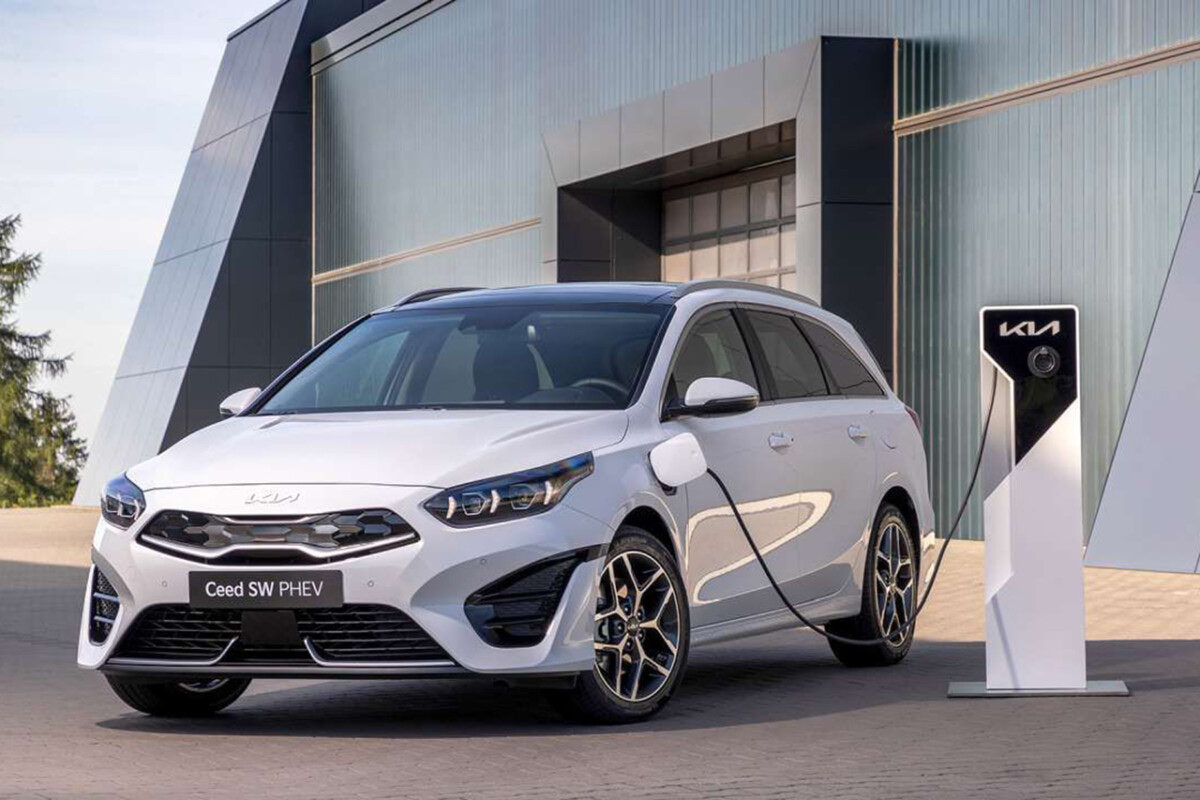

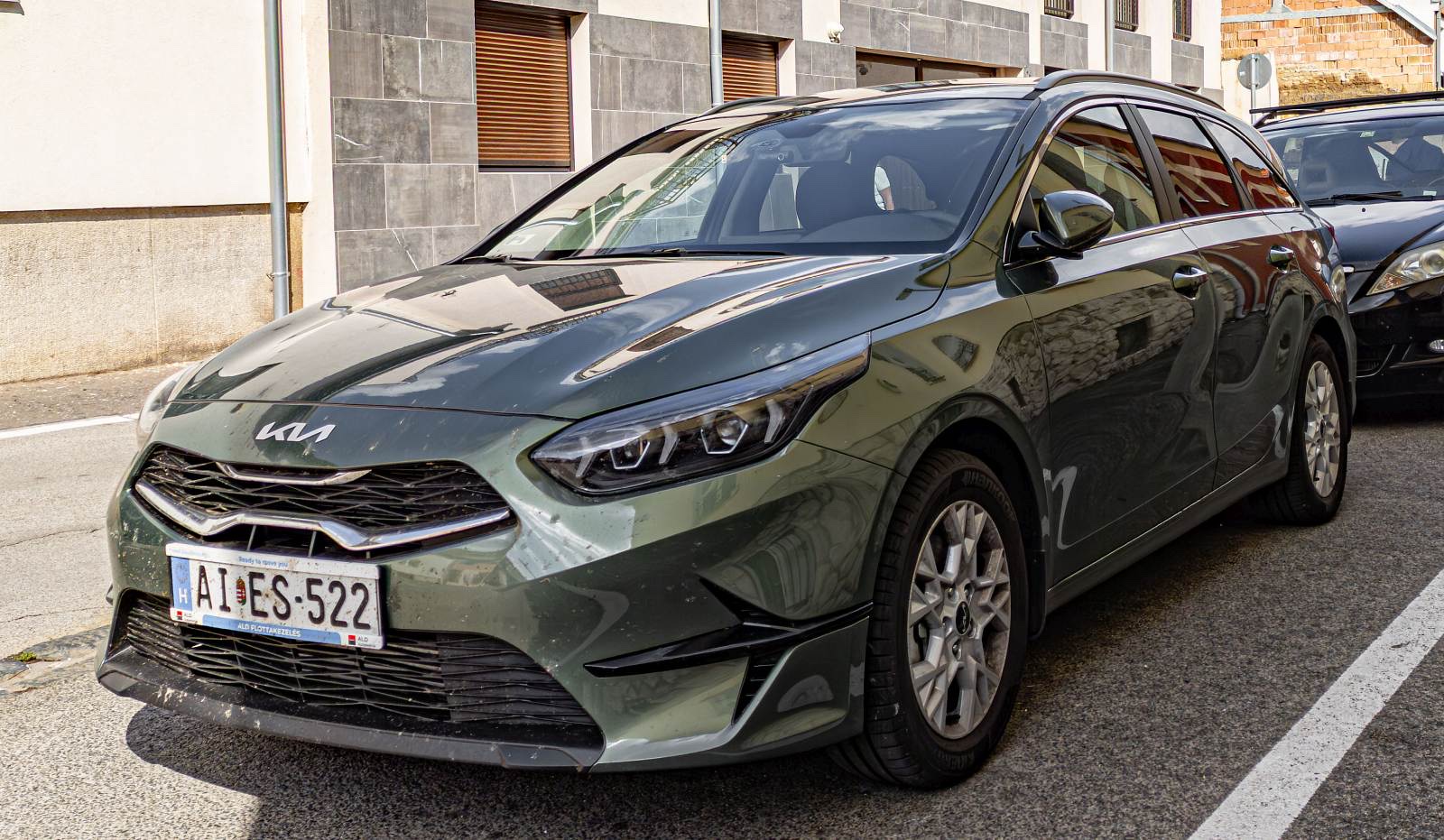

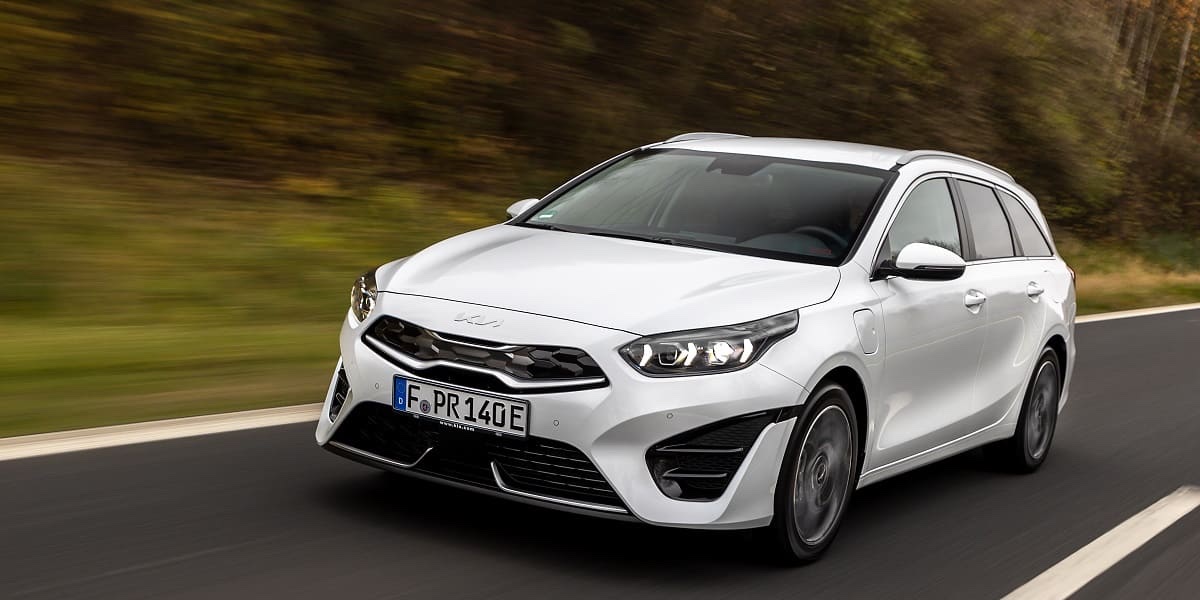

KIA Ceed SW photo gallery
20 images are collected here with the main specifications and trim data for this model.
Photo KIA Ceed SW
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.6 MPI AT Classic 77 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.2 |
|---|---|
| Acceleration 0-100 km/h, s | 11.8 |
Engine
| Engine | 1.6 MPi |
|---|---|
| Engine code | G4FG |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1591 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 128 |
| RPM at max power | 6300 |
| Torque, Nm | 154 |
| RPM at max torque | 4850 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4600 |
| Width, mm | 2055 |
| Height, mm | 1465 |
| Wheelbase, mm | 2650 |
| Front track, mm | 1565 |
| Rear track, mm | 1573 |
| Kerb weight, kg | 1335 |
| Gross weight, kg | 1820 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 10.6 |
| Ground clearance, mm | 150 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 625 |
Transmission and drive
| Transmission | 6-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Hyundai |
| Automatic transmission | + |
Brake system
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Door sill plates | + |
|---|---|
| Mud flaps | + |
Comfort
| Cruise control | + |
|---|---|
| Adjustable headrests | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
Wheels
| Rim diameter | 16 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Space-saver spare wheel |
| Tires | 205/55R16 |
Climate and sound insulation
| Air conditioning | + |
|---|
Off-road
| Hill-start assist | + |
|---|
Seats
| Front armrest | + |
|---|---|
| Height-adjustable driver's seat | + |
| 60/40 split-folding rear seat | + |
Headlights and lighting
| Light sensor | + |
|---|---|
| Rear fog lights | + |
| Daytime running lights | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| USB | + |
| Number of speakers | 6 |
| Apple CarPlay / Android Auto | + |
| Touchscreen | + |
| Steering wheel controls | + |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|
Body paint and exterior parts
| Body-colored door handles | + |
|---|---|
| Body-colored side mirrors | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Child locks | + |
Anti-theft systems
| Remote central locking | + |
|---|---|
| Immobilizer | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
1.0 T-GDI (100 hp) 6-speed manual 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.4 |
|---|---|
| Top speed, km/h | 183 |
| Acceleration 0-100 km/h, s | 12 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.0 T-GDI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 998 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 100 |
| RPM at max power | 4500–6000 |
| Torque, Nm | 172 |
| RPM at max torque | 1500–4000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4600 |
| Width, mm | 2055 |
| Height, mm | 1465 |
| Wheelbase, mm | 2650 |
| Front track, mm | 1565 |
| Rear track, mm | 1573 |
| Kerb weight, kg | 1335 |
| Gross weight, kg | 1820 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 10.6 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 625 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Kia Motors |
1.0 T-GDI (120 hp) 6-speed manual 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.4 |
|---|---|
| Top speed, km/h | 190 |
| Acceleration 0-100 km/h, s | 11.4 |
Engine
| Engine | 1.0 T-GDI |
|---|---|
| Engine code | G3LC |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 998 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Turbocharger | + |
| Compression ratio | 10.0:1 |
| Power, hp | 120 |
| RPM at max power | 6000 |
| Torque, Nm | 172 |
| RPM at max torque | 1500-4000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4600 |
| Width, mm | 2055 |
| Height, mm | 1465 |
| Wheelbase, mm | 2650 |
| Front track, mm | 1565 |
| Rear track, mm | 1573 |
| Kerb weight, kg | 1335 |
| Gross weight, kg | 1820 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 10.6 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 625 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Kia Motors |
1.5 T-GDI (160 hp) 6-speed manual 36 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.3 |
|---|---|
| Top speed, km/h | 210 |
| Acceleration 0-100 km/h, s | 8.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 T-GDI |
|---|---|
| Engine code | G4LH |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1482 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 160 |
| RPM at max power | 5500 |
| Torque, Nm | 253 |
| RPM at max torque | 1500–3000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4600 |
| Width, mm | 2055 |
| Height, mm | 1465 |
| Wheelbase, mm | 2650 |
| Front track, mm | 1565 |
| Rear track, mm | 1573 |
| Kerb weight, kg | 1335 |
| Gross weight, kg | 1820 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 10.6 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 625 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Kia Motors |
1.5 T-GDI (160 hp) 7-DCT 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.1 |
|---|---|
| Top speed, km/h | 210 |
| Acceleration 0-100 km/h, s | 8.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 T-GDI |
|---|---|
| Engine code | G4LH |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1482 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 160 |
| RPM at max power | 5500 |
| Torque, Nm | 253 |
| RPM at max torque | 1500–3000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4600 |
| Width, mm | 2055 |
| Height, mm | 1465 |
| Wheelbase, mm | 2650 |
| Front track, mm | 1565 |
| Rear track, mm | 1573 |
| Kerb weight, kg | 1335 |
| Gross weight, kg | 1820 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 10.6 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 625 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Hyundai-KIA |
| Automatic transmission | + |
| Transmission country | South Korea |
1.6 CRDi (136 hp) 6-speed manual 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 4.5 |
|---|---|
| Top speed, km/h | 200 |
| Acceleration 0-100 km/h, s | 10.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.6 CRDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.9:1 |
| Power, hp | 136 |
| Torque, Nm | 280 |
| RPM at max torque | 1500–3000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4600 |
| Width, mm | 2055 |
| Height, mm | 1465 |
| Wheelbase, mm | 2650 |
| Front track, mm | 1565 |
| Rear track, mm | 1573 |
| Kerb weight, kg | 1335 |
| Gross weight, kg | 1820 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 10.6 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 625 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Kia Motors |
1.6 CRDi (136 hp) 7-DCT 37 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.1 |
|---|---|
| Top speed, km/h | 200 |
| Acceleration 0-100 km/h, s | 10.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.6 CRDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 16,0:1 |
| Power, hp | 136 |
| RPM at max power | 4000 |
| Torque, Nm | 320 |
| RPM at max torque | 2000-2250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4600 |
| Width, mm | 2055 |
| Height, mm | 1465 |
| Wheelbase, mm | 2650 |
| Front track, mm | 1565 |
| Rear track, mm | 1573 |
| Kerb weight, kg | 1335 |
| Gross weight, kg | 1820 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 10.6 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 625 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Hyundai-KIA |
| Automatic transmission | + |
| Transmission country | South Korea |
1.6 MPi (128 hp) 6-speed automatic 33 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.2 |
|---|---|
| Acceleration 0-100 km/h, s | 11.8 |
Engine
| Engine | 1.6 MPi |
|---|---|
| Engine code | G4FG |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1591 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 128 |
| RPM at max power | 6300 |
| Torque, Nm | 154 |
| RPM at max torque | 4850 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4600 |
| Width, mm | 2055 |
| Height, mm | 1465 |
| Wheelbase, mm | 2650 |
| Front track, mm | 1565 |
| Rear track, mm | 1573 |
| Kerb weight, kg | 1335 |
| Gross weight, kg | 1820 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 10.6 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 625 |
Transmission and drive
| Transmission | 6-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Hyundai |
| Automatic transmission | + |
1.5 T-GDI (150 hp) 7-DCT 32 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.8 |
|---|---|
| Acceleration 0-100 km/h, s | 8.8 |
Engine
| Engine | 1.5 T-GDI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1482 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 150 |
| Torque, Nm | 253 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4600 |
| Width, mm | 2055 |
| Height, mm | 1465 |
| Wheelbase, mm | 2650 |
| Front track, mm | 1565 |
| Rear track, mm | 1573 |
| Kerb weight, kg | 1335 |
| Gross weight, kg | 1820 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 10.6 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 625 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Hyundai-KIA |
| Automatic transmission | + |
| Transmission country | South Korea |
1.6 GDI PHEV (141 hp) 6-DCT 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 1.3 |
|---|---|
| Acceleration 0-100 km/h, s | 10.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.6 GDI PHEV |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1580 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 141 |
| RPM at max power | 5700 |
| Torque, Nm | 265 |
| RPM at max torque | 4000 |
| Number of electric motors | 1 |
| EV mode | + |
| Plug-in charging support | + |
| Electric range, km | 57 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4600 |
| Width, mm | 2055 |
| Height, mm | 1465 |
| Wheelbase, mm | 2650 |
| Front track, mm | 1565 |
| Rear track, mm | 1573 |
| Kerb weight, kg | 1335 |
| Gross weight, kg | 1820 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 10.6 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 625 |
Transmission and drive
| Transmission | 6-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | KIA |
| Automatic transmission | + |
| Transmission country | Korea |
KIA Ceed SW questions
Short answers based on the specifications and photos available in this catalog.
What body style is the 2021 KIA Ceed SW?
The KIA Ceed SW is a C-segment, five-door compact wagon. The 'SW' suffix stands for Sportswagon, highlighting its focus on cargo capacity and utility compared to the standard hatchback variant.
What are the cargo capacity specifications for this wagon?
The wagon features a trunk capacity of 625 liters with the rear seats in place. To improve flexibility, the rear seatback can be folded down, and some trims offer a 40:20:40 split arrangement rather than the standard 40:60 configuration.
Does the 2021 KIA Ceed SW offer a hybrid powertrain?
Yes, it is available as a Plug-in Hybrid (PHEV) which combines a 1.6-liter naturally aspirated GDI gasoline engine with an electric motor and an 8.9 kWh battery pack. This setup produces 141 horsepower and offers a manufacturer-estimated electric range of up to 57 kilometers.
What active safety features are included on the updated Ceed SW?
The safety suite includes adaptive cruise control, lane-keeping assist, forward collision warning with automatic emergency braking for pedestrians and cyclists, active blind-spot collision avoidance, and rear cross-traffic alert with automatic braking.
What screen options are available inside the cabin?
Higher-trim models feature a customizable 12.3-inch digital driver information display. Infotainment is managed via either an 8-inch or a larger 10.25-inch central touchscreen, depending on the chosen equipment package.
