Lexus LS 500 specifications and photos
Lexus LS 500 specifications are shown with trim options, key technical data, and a model photo gallery. Compare 2 configurations by engine size, power, seating, and transmission. The gallery includes 18 photos for visual reference.
Lexus LS 500 at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Lexus LS 500 page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 315-420 hp and 3445-3456 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 315-420 hp
- Engine displacement: 3445-3456 cc
- Transmissions: 10
- Seating: 5 seats
Photos, trims and specifications for Lexus LS 500
This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| LS 350 | 3456 cc | 315 hp | 5 | 10 |
| LS 500 AWD | 3445 cc | 420 hp | 5 | 10 |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Lexus LS 500 photo gallery
18 images are collected here with the main specifications and trim data for this model.

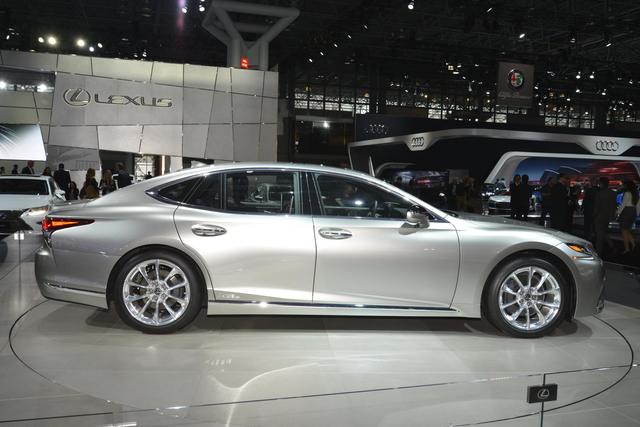

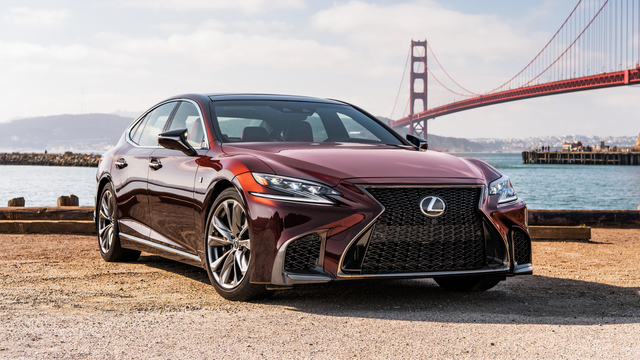

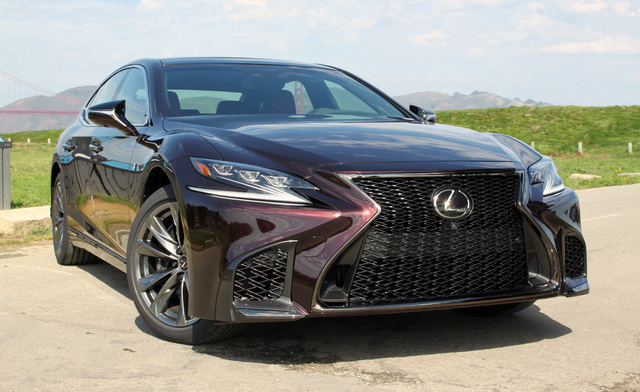

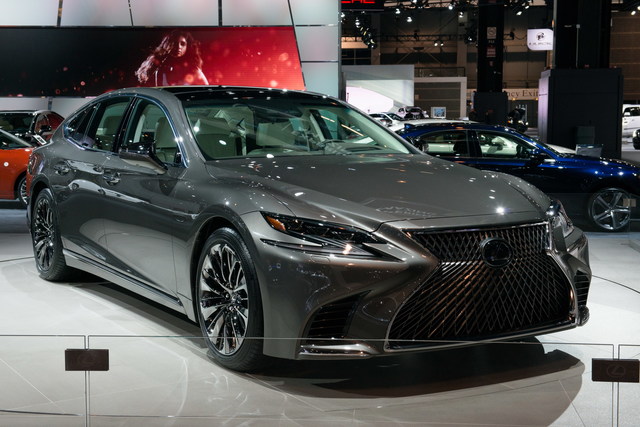

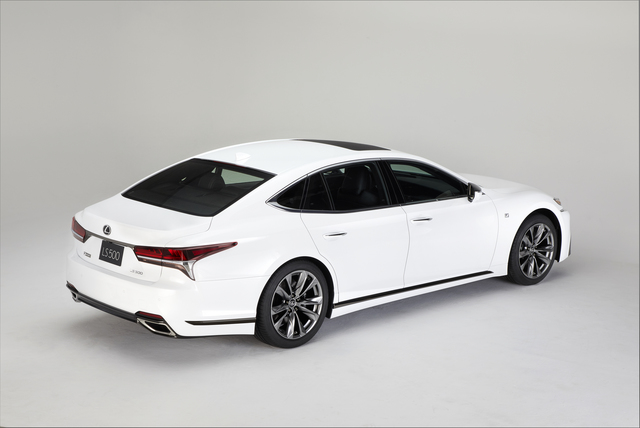

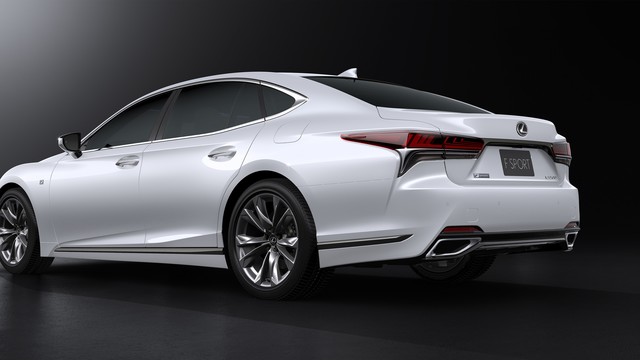

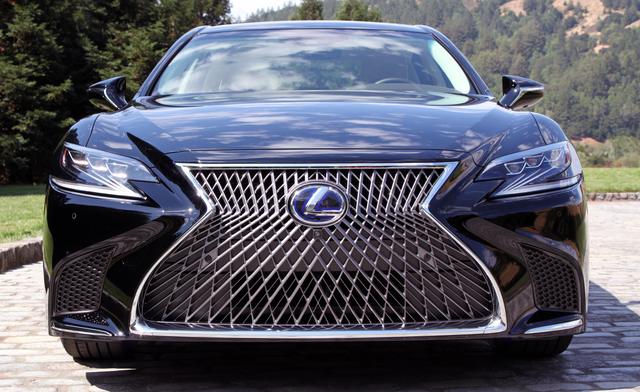

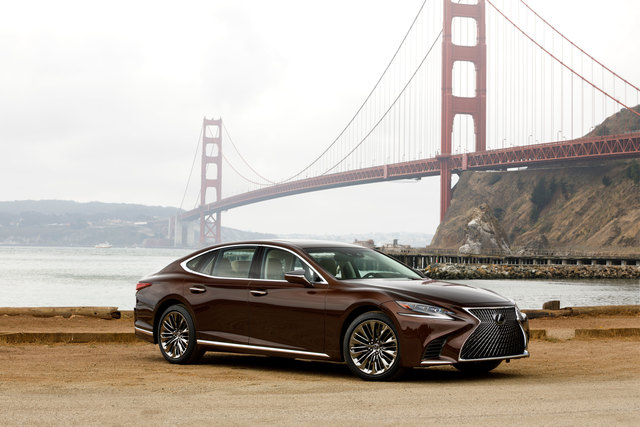

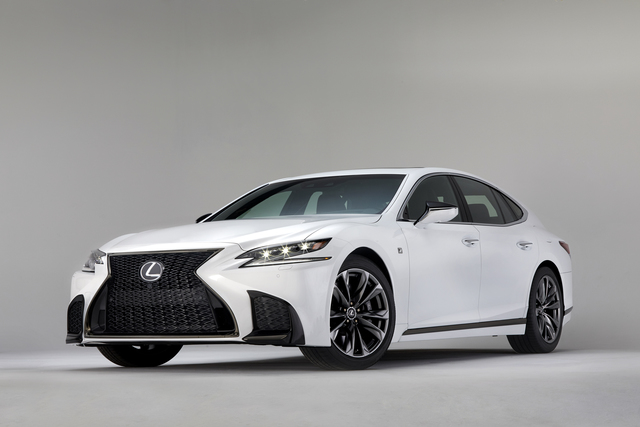

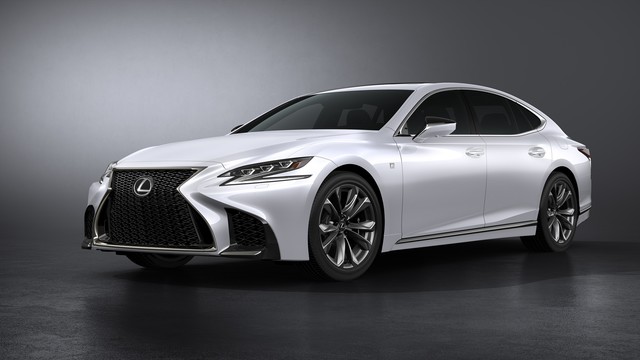

Photo Lexus LS 500
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
LS 350 34 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3456 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 315 |
| Torque, Nm | 380 |
| RPM at max torque | 4800-4900 |
| Engine | 3.5i Dual VVT-I |
| RPM at max power | 6600 |
| Engine code | 2GR-FKS |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5235 |
| Width | 2160 |
| Height mm | 1450 |
| Wheelbase mm | 3125 |
| Front track, mm | 1630 |
| Rear track, mm | 1635 |
| Trunk capacity, L | 480 |
| Fuel tank, l | 82 |
| Width (without mirrors) mm | 1900 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 13.1 |
|---|---|
| Fuel consumption (urban), l. 100 km | 7.6 |
| Fuel consumption (combined), l. 100 km | 9.6 |
| Acceleration (0-100 km/h), s | 6.5 |
| The maximum speed, km / h. | 250 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 10 |
| Drive | Rear |
| Transmission | 10-car |
| Gearbox | Machine |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
LS 500 AWD 34 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3445 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 420 |
| Torque, Nm | 600 |
| RPM at max torque | 1600-4800 |
| Engine | 3.5i Dual VVT-I |
| RPM at max power | 6000 |
| Engine code | V35A-FTS |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5235 |
| Width | 2160 |
| Height mm | 1450 |
| Wheelbase mm | 3125 |
| Front track, mm | 1630 |
| Rear track, mm | 1635 |
| Trunk capacity, L | 480 |
| Fuel tank, l | 82 |
| Width (without mirrors) mm | 1900 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 13.5 |
|---|---|
| Fuel consumption (urban), l. 100 km | 7.8 |
| Fuel consumption (combined), l. 100 km | 9.9 |
| Acceleration (0-100 km/h), s | 4.9 |
| The maximum speed, km / h. | 250 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 10 |
| Drive | Full |
| Transmission | 10-car |
| Gearbox | Machine |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
Lexus LS 500 questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Lexus LS 500?
This page lists 2 trims for the Lexus LS 500, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Lexus LS 500?
The listed configurations show a power range of 315-420 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Lexus LS 500?
The available specification data shows engine displacement from 3445-3456 cc across the trims listed on this page.
Which transmissions are listed for the Lexus LS 500?
The transmission options currently shown for this model are: 10. Open a trim section to see the full data for a specific configuration.
Are there photos for the Lexus LS 500?
Yes. The gallery includes 18 photos for the Lexus LS 500, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
