Mercedes E-Class All Terrain (S214) specifications and photos
The Mercedes-Benz E-Class All-Terrain (S214) is a premium all-wheel-drive wagon designed for varied road conditions. Introduced in late 2023, it combines the refined comfort of a luxury sedan with the raised ground clearance and capability typical of an SUV.
Mercedes E-Class All Terrain (S214) at a glance
Quick model context before comparing photos and trim-level specifications.
Unveiled as the sixth generation of the model family during the 2023 IAA Mobility show in Munich, the E-Class All-Terrain serves buyers who want premium driving dynamics without sacrificing practicality. It bridges the gap between a traditional estate and an SUV by incorporating standard 4MATIC all-wheel drive, increased ride height, and rugged styling elements. It appeals to families and active lifestyle drivers looking for advanced technology, robust powertrains, and a spacious cabin suitable for long-distance cruising as well as light off-road paths.
- Power: 197-381 hp
- Engine displacement: 1993-2999 cc
- Transmissions: 9G-Tronic
- Seating: 5 seats
Mercedes E-Class All Terrain (S214) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior features distinct protective cladding, including dark-grey wheel arches and polished chrome accents, emphasizing its rugged intent. A unique two-bar front grille with a prominent center logo sets it apart from standard E-Class models. It comes equipped with adaptive DIGITAL LIGHT LED headlamps and distinctive LED taillights. With a length of 4,950 mm and a heightened stance supported by standard AIRMATIC air suspension, the wagon strikes an imposing yet elegant profile.
Interior
Inside, the cabin uses premium materials such as leather, wood, and metal accents. The focal point of the dashboard is the MBUX multimedia system with a large touch display and advanced voice controls. Comfort is a priority, with available features like a panoramic roof, customizable ambient lighting, and power-adjustable front seats offering heating and massage functions. The spacious rear quarters and high-quality materials ensure a relaxed environment for all passengers.
Performance
The All-Terrain lineup includes several mild-hybrid and plug-in hybrid options paired with a 9G-Tronic automatic transmission and 4MATIC all-wheel drive. The diesel E 220 d delivers 197 hp, while the six-cylinder E 450 d produces 367 hp and 750 Nm of torque. The petrol E 450 offers 381 hp, achieving 0-100 km/h in 4.7 seconds. For maximum efficiency, the E 300 de plug-in hybrid diesel offers a combined 313 hp, 700 Nm of torque, and an electric-only driving range of up to 100 km. Standard AIRMATIC air suspension automatically adjusts ground clearance based on conditions.
Practicality
As a luxury wagon, it offers substantial utility for daily use and family road trips. The cargo area provides 615 liters of volume, made easily accessible by the EASY-PACK tailgate system. The extended 2,961 mm wheelbase ensures ample legroom for rear passengers. The combination of a large trunk, all-weather capability, and standard roof rails makes it a highly adaptable vehicle for carrying gear and passengers alike.
Safety and tech
Mercedes equips the All-Terrain with a comprehensive suite of driver assistance systems. A notable feature is the "transparent hood" function, using the 360-degree camera to help drivers spot obstacles under the front bumper during off-road driving. It also includes Active Park Assist for automated maneuvering, active cruise control, lane-keeping assist, and emergency braking systems to maintain a high level of passenger security.
Buyer notes
Shoppers cross-shopping premium wagons should compare the engine options to find the suitable fit, as the plug-in hybrid E 300 de offers excellent efficiency for daily commutes, while the six-cylinder E 450 models provide much stronger highway performance. Keep in mind that specific trim availability and standard equipment can vary by market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 220d 4MATIC | 1993 cc | 197 hp | 5 | 9G-Tronic |
| 300de 4MATIC | 1993 cc | 313 hp | 5 | 9G-Tronic |
| 450 4MATIC | 2999 cc | 381 hp | 5 | 9G-Tronic |
| 450d 4MATIC | 2989 cc | 367 hp | 5 | 9G-Tronic |
| E 220d 4MATIC | 1993 cc | 197 hp | 5 | 9G-Tronic |
| E 450 4MATIC | 2999 cc | 381 hp | 5 | 9G-Tronic |
| E 450d 4MATIC | 2989 cc | 367 hp | 5 | 9G-Tronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

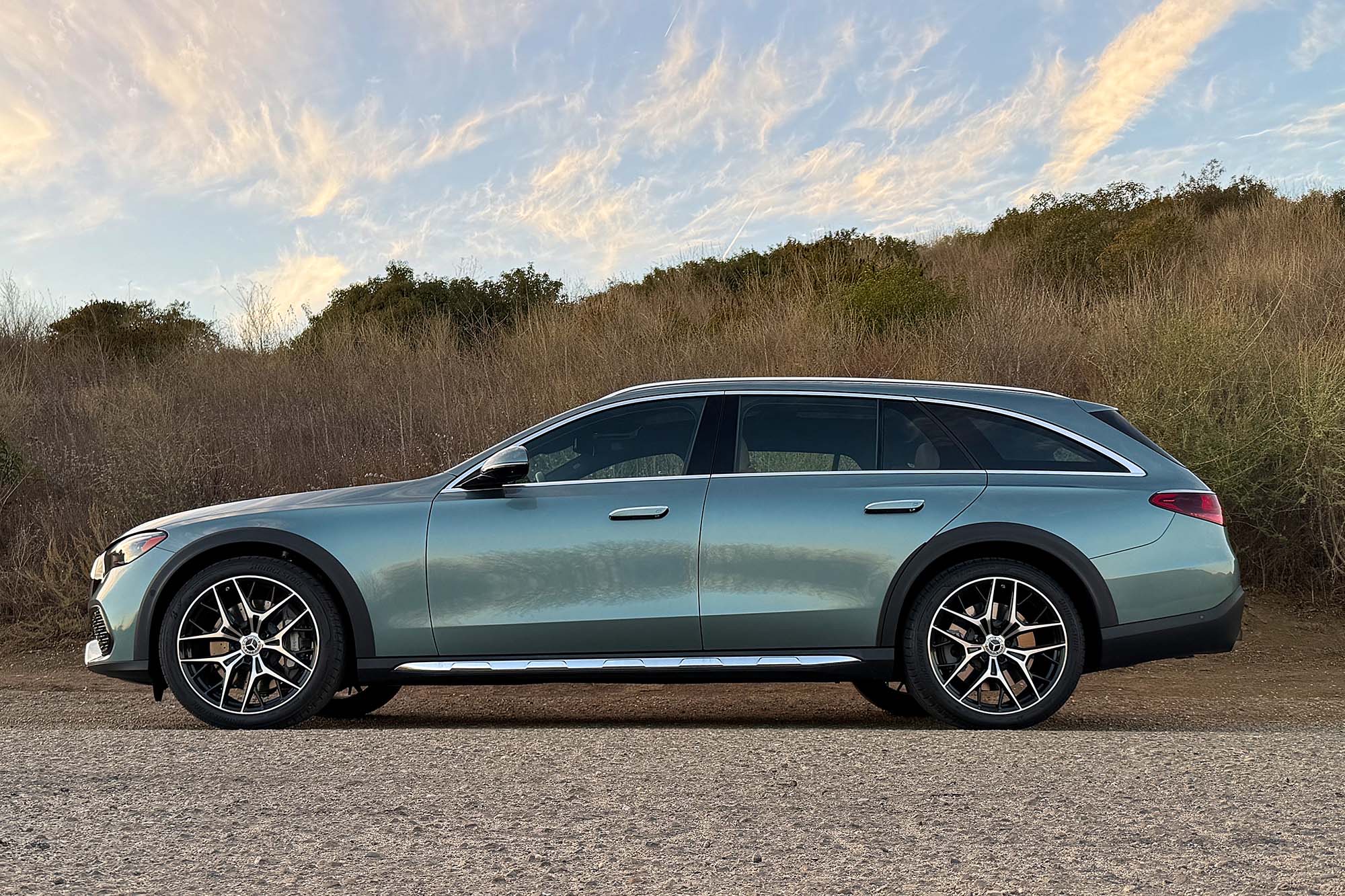

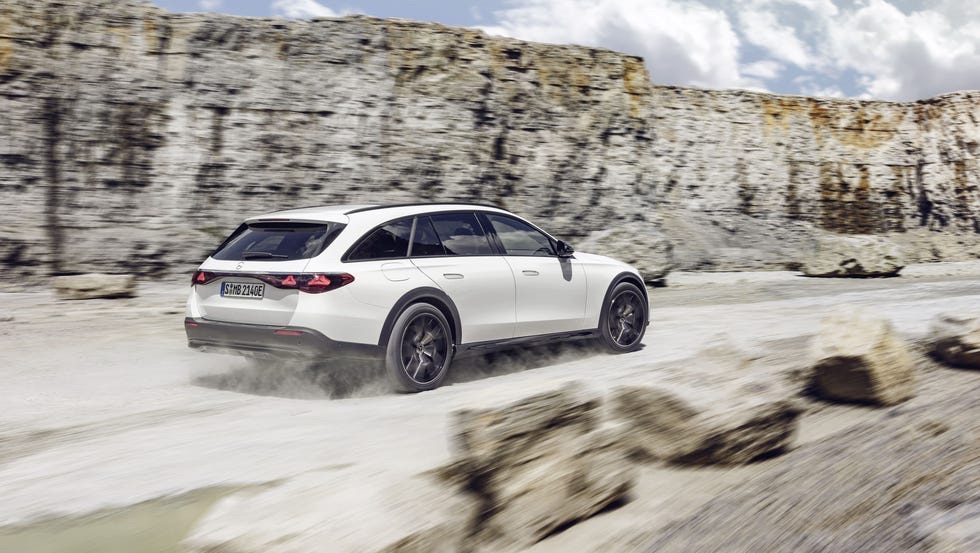

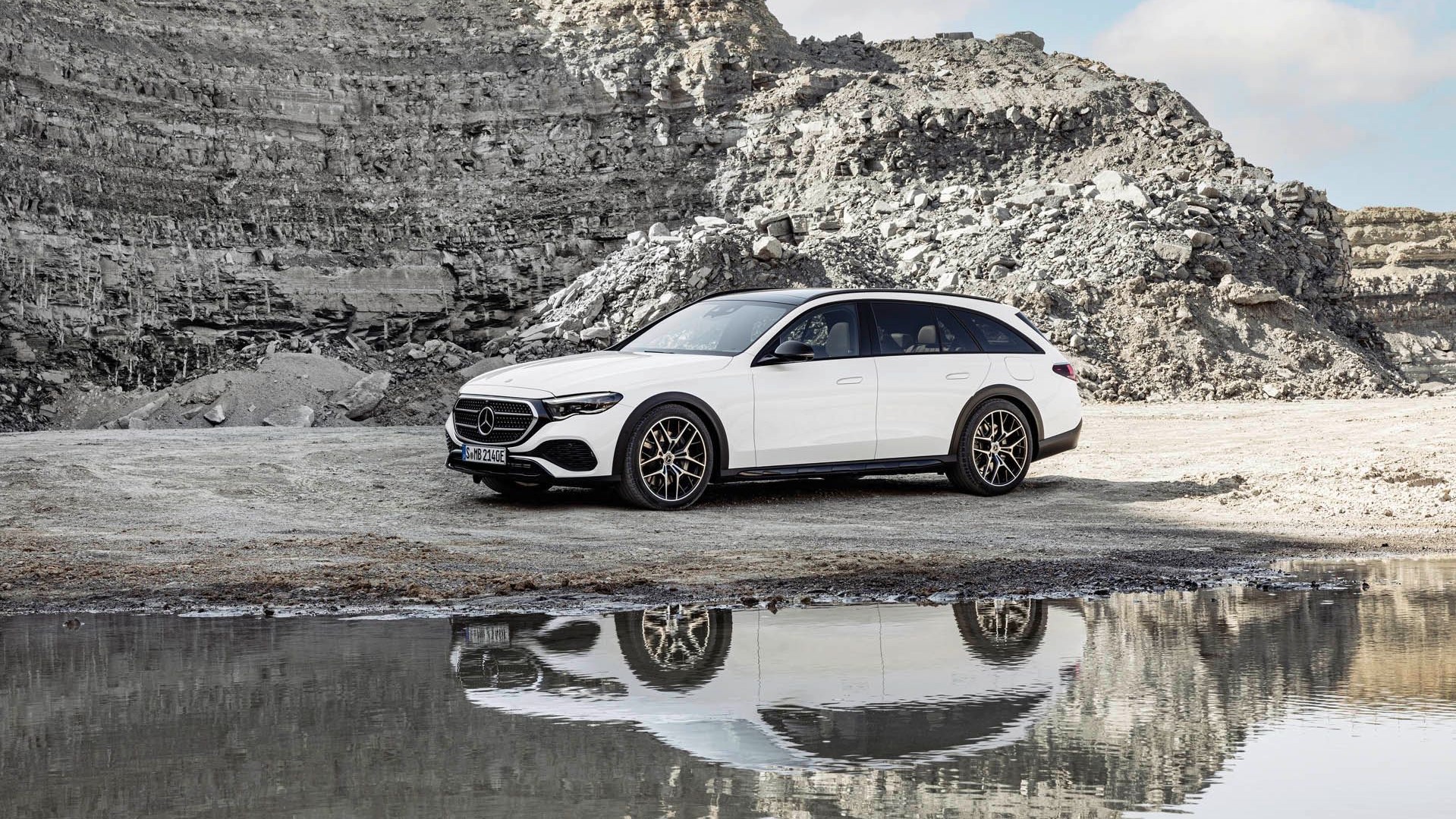

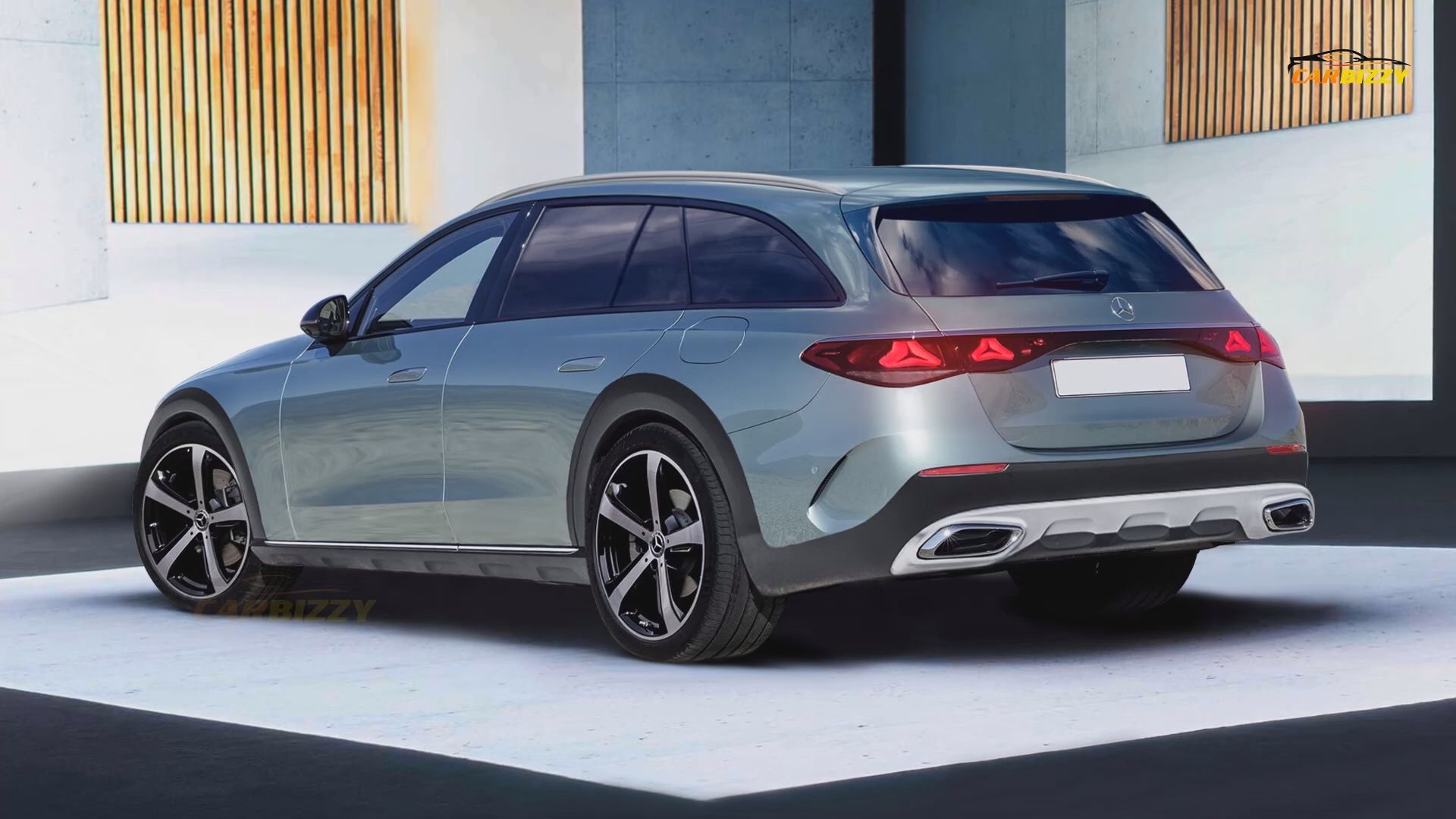

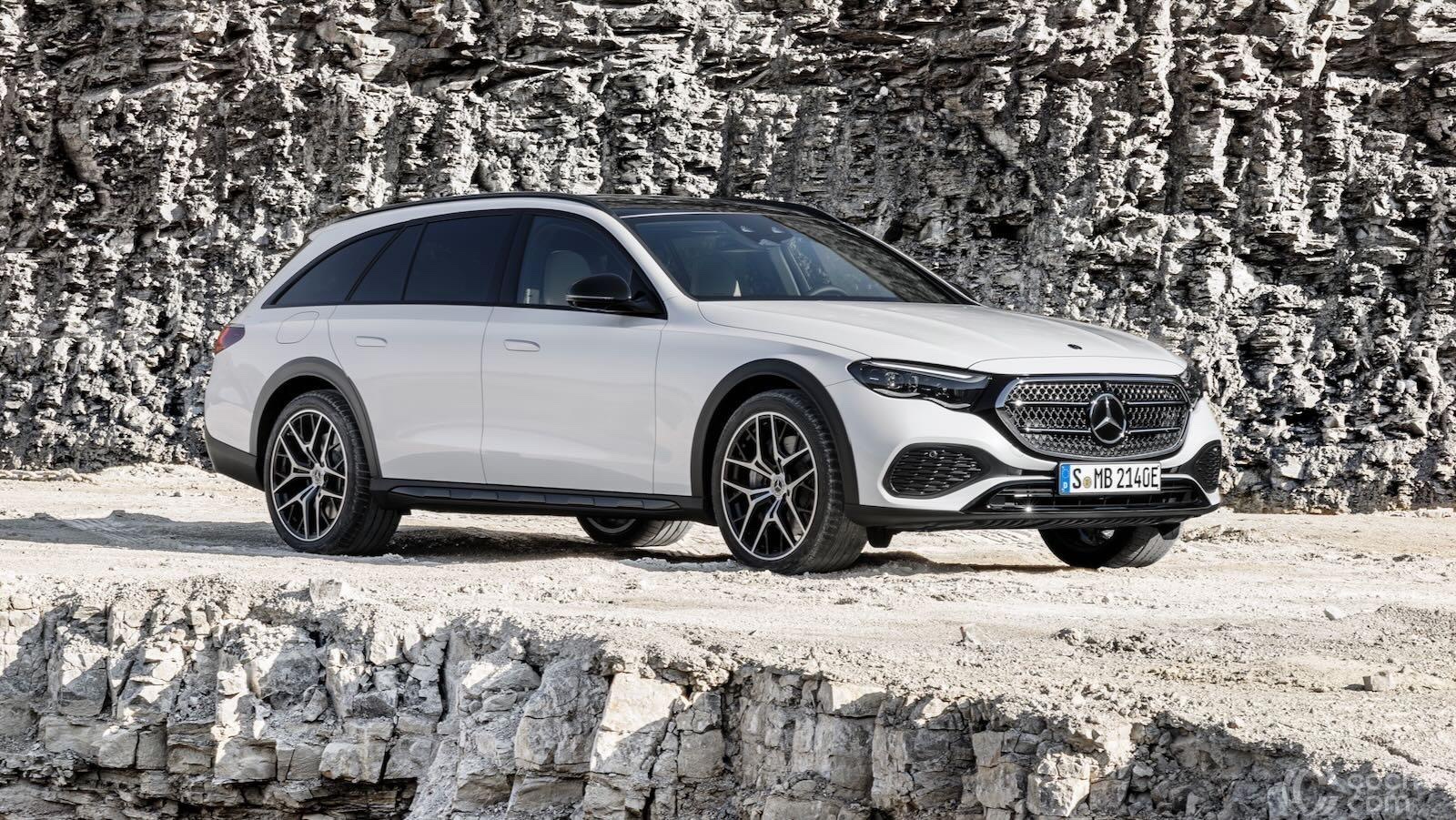

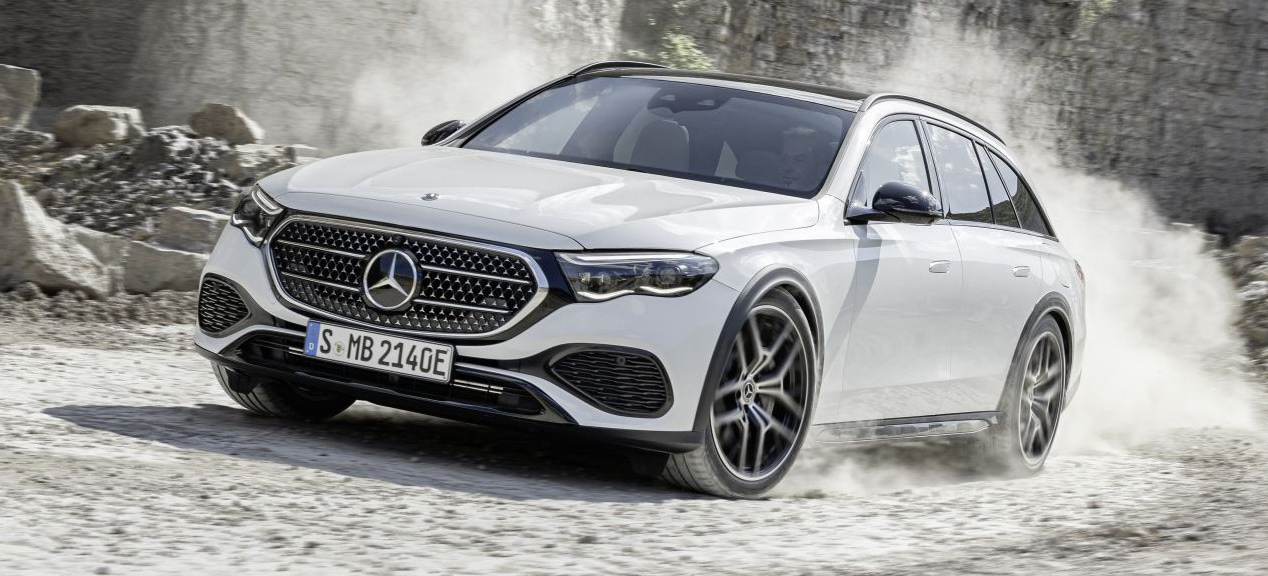

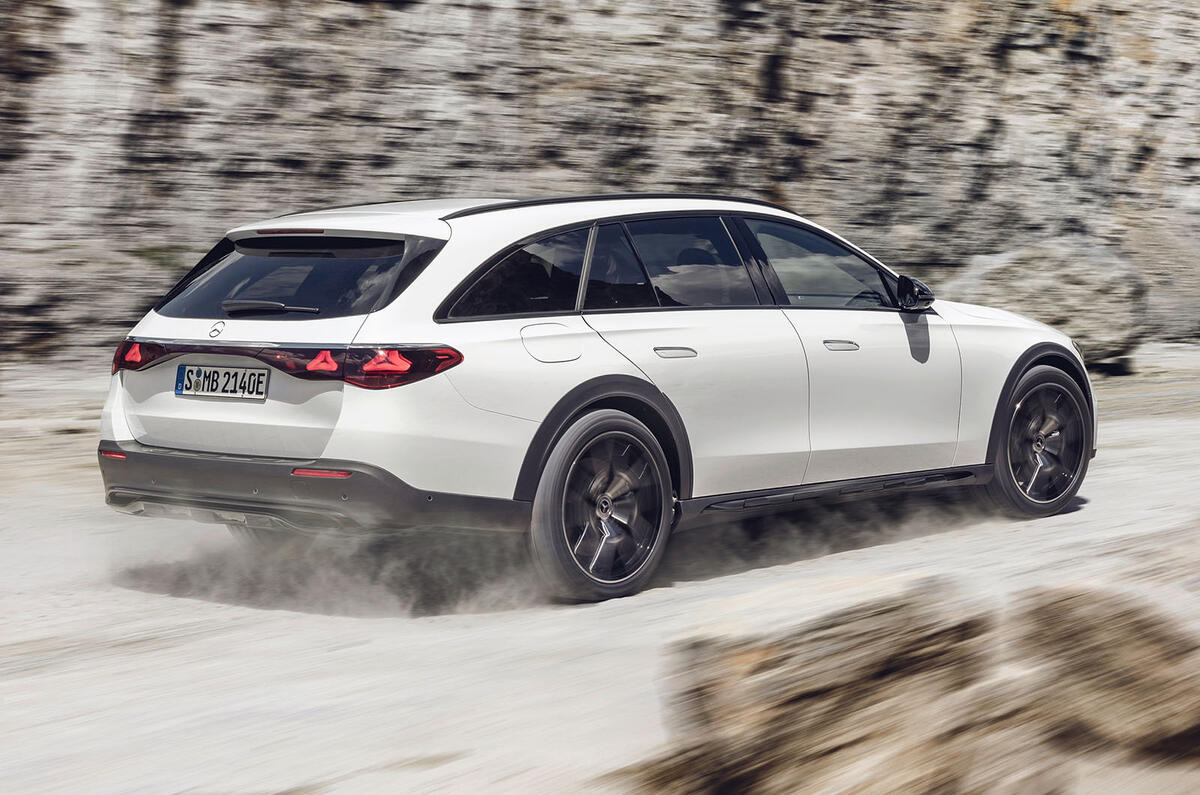

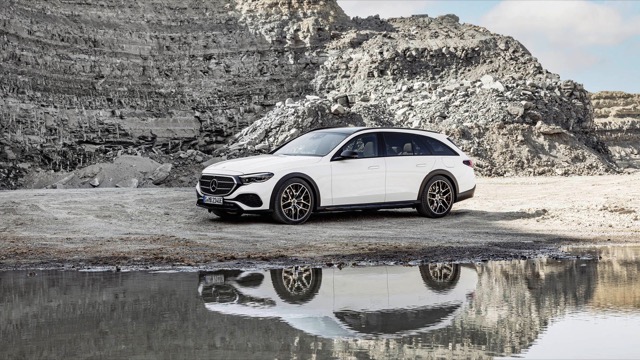

Mercedes E-Class All Terrain (S214) photo gallery
17 images are collected here with the main specifications and trim data for this model.

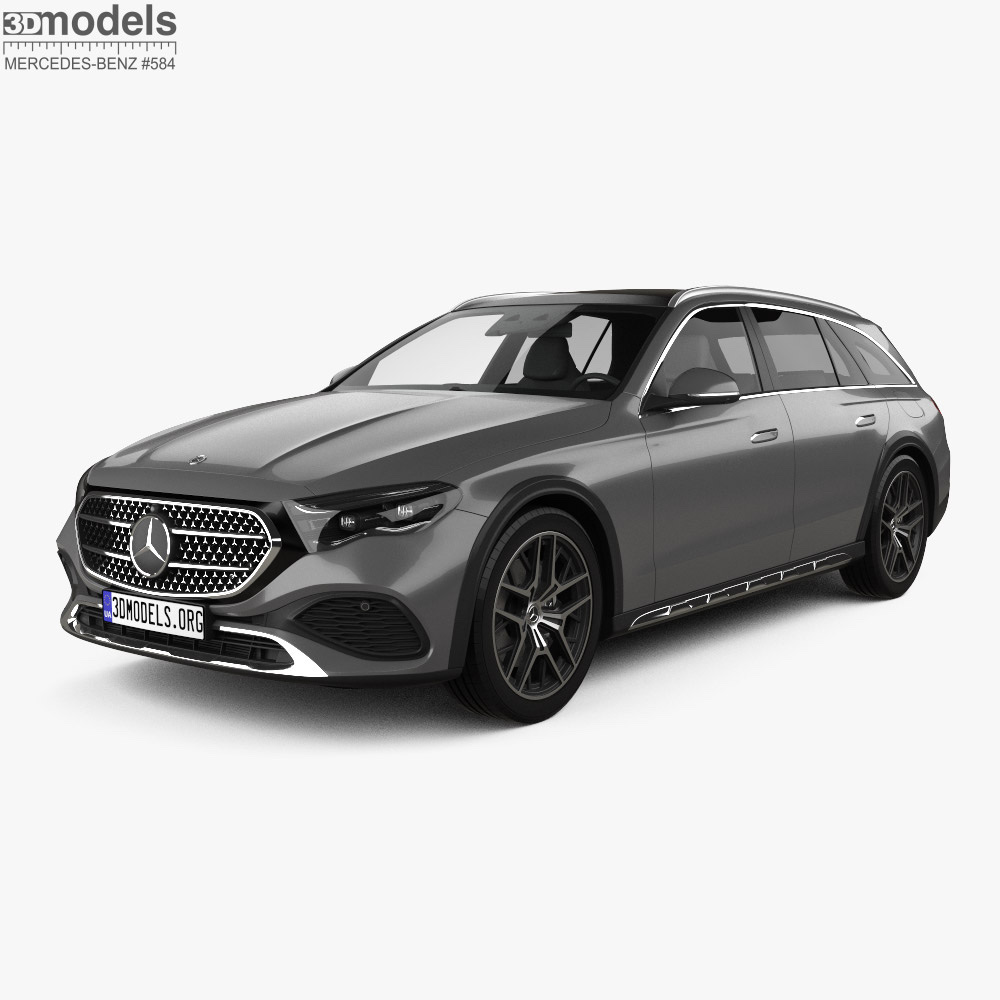

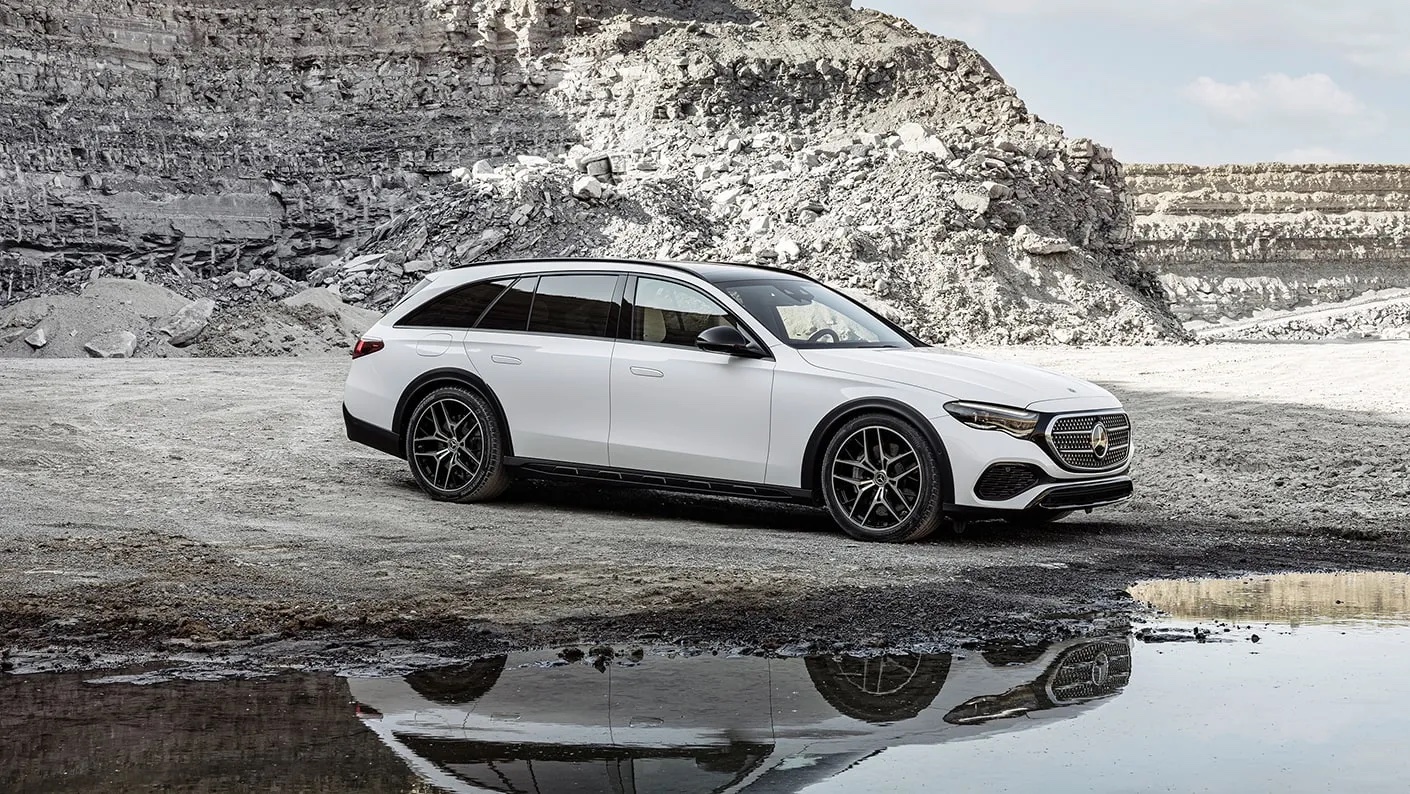

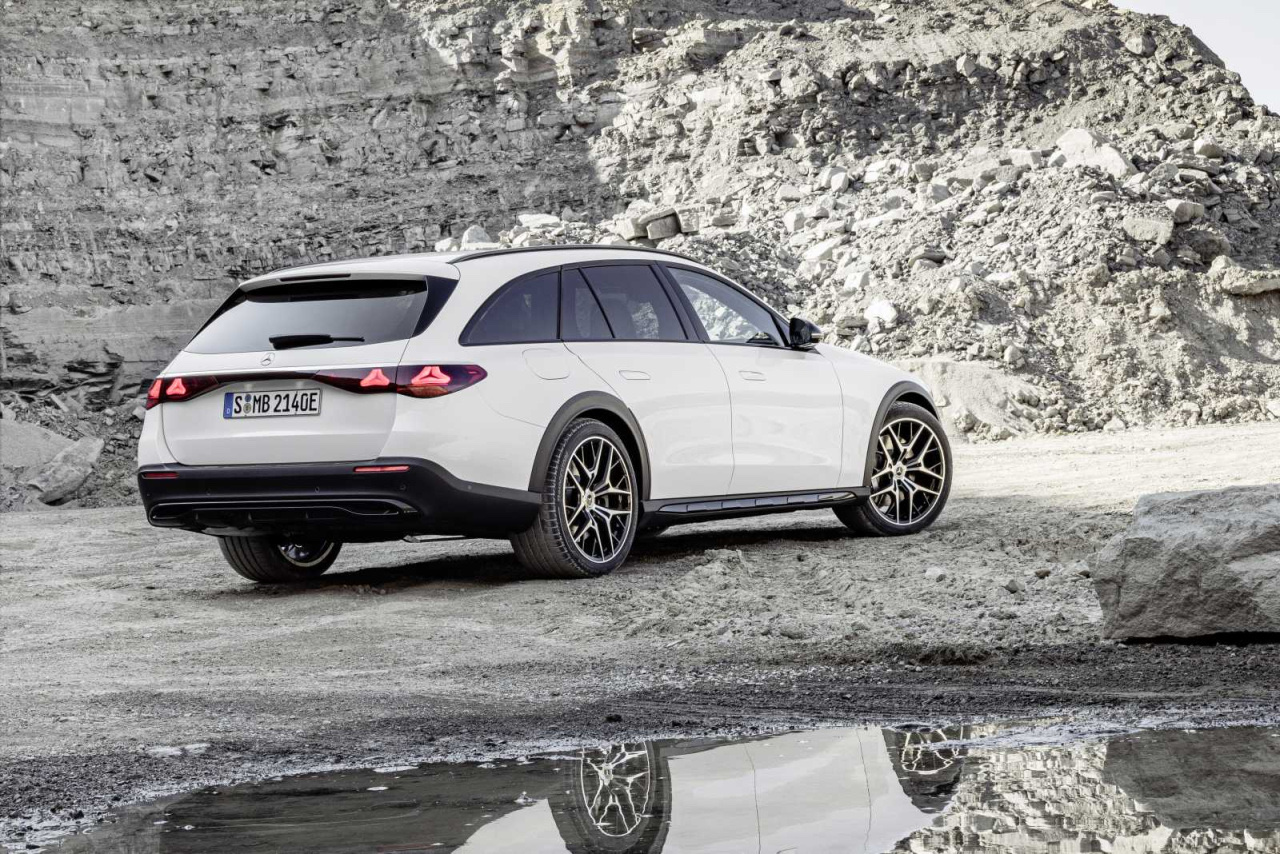

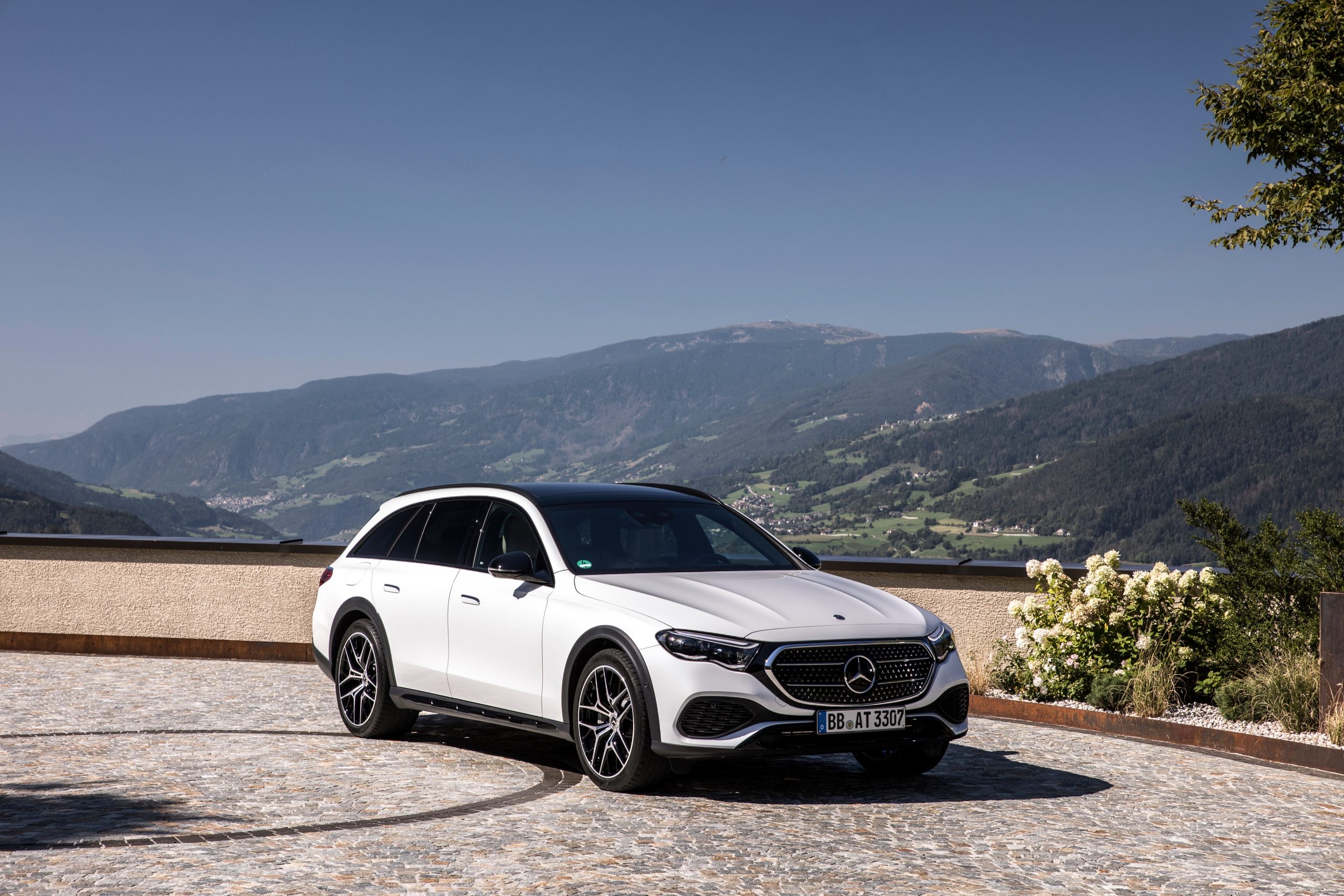

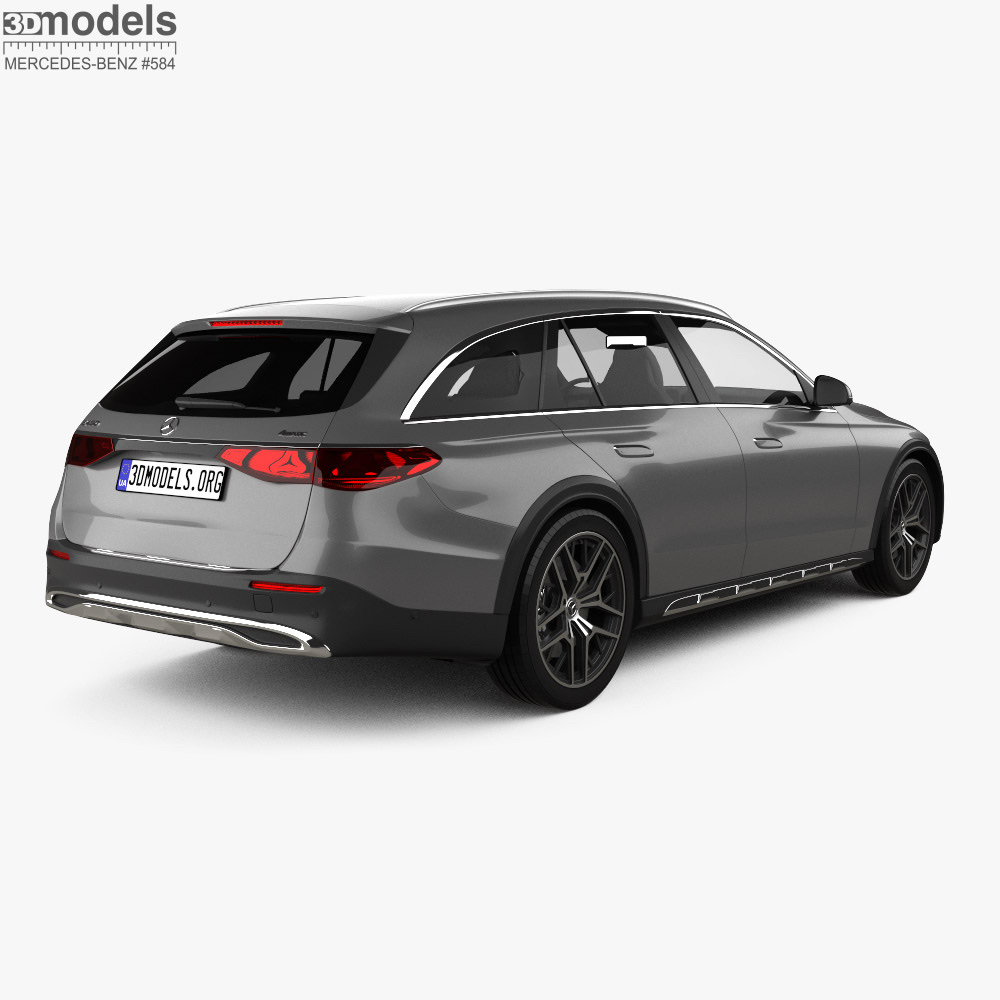

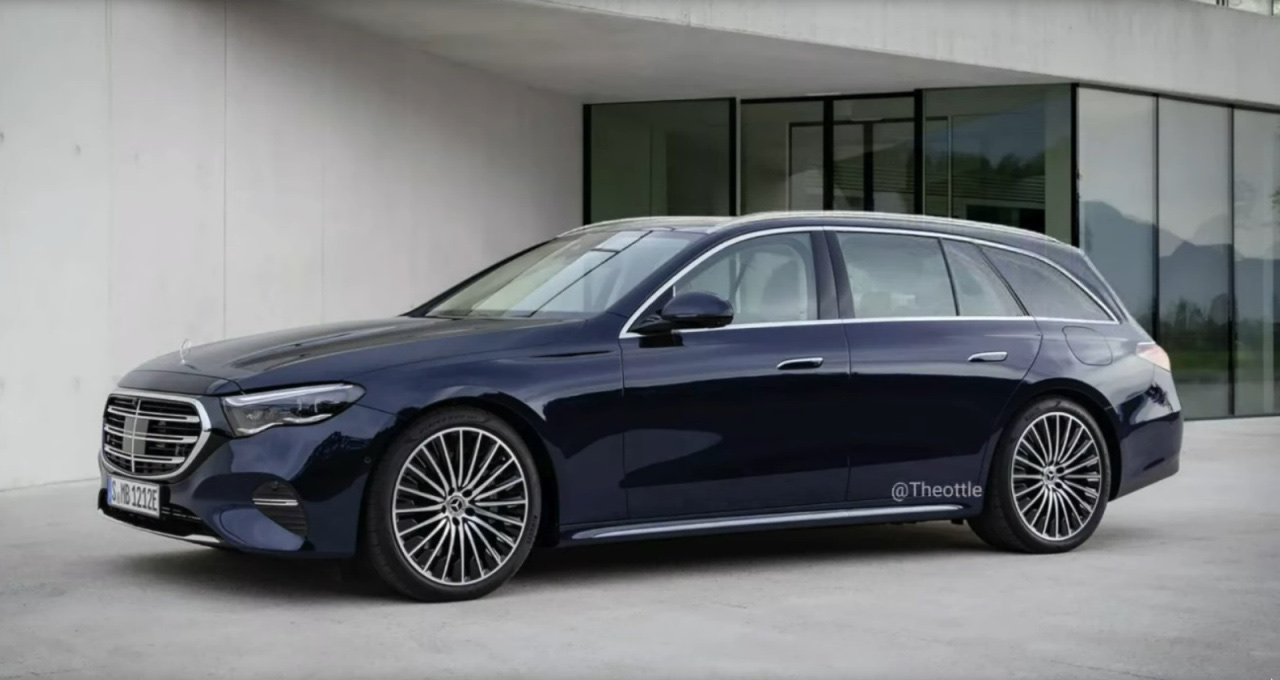

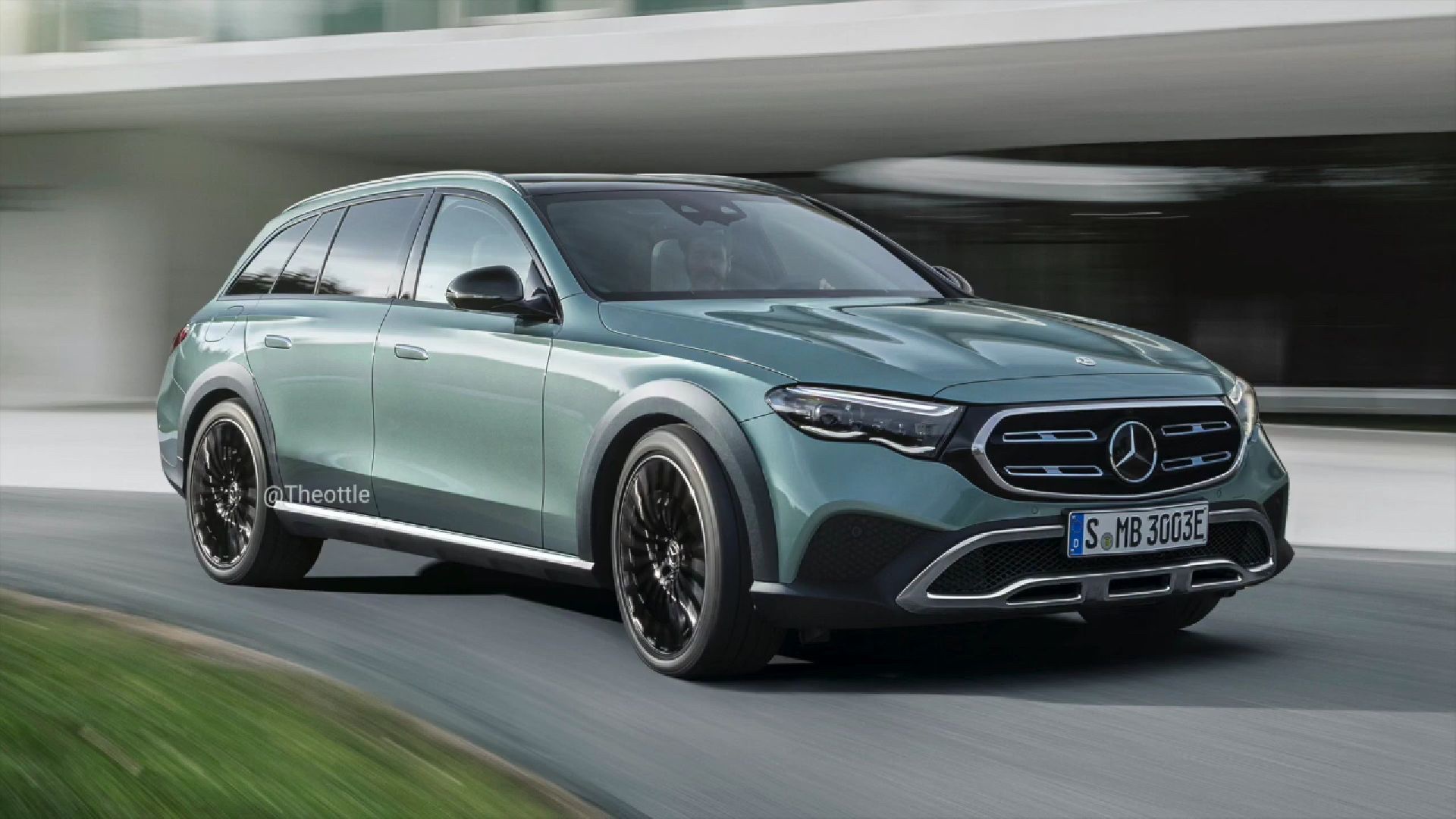

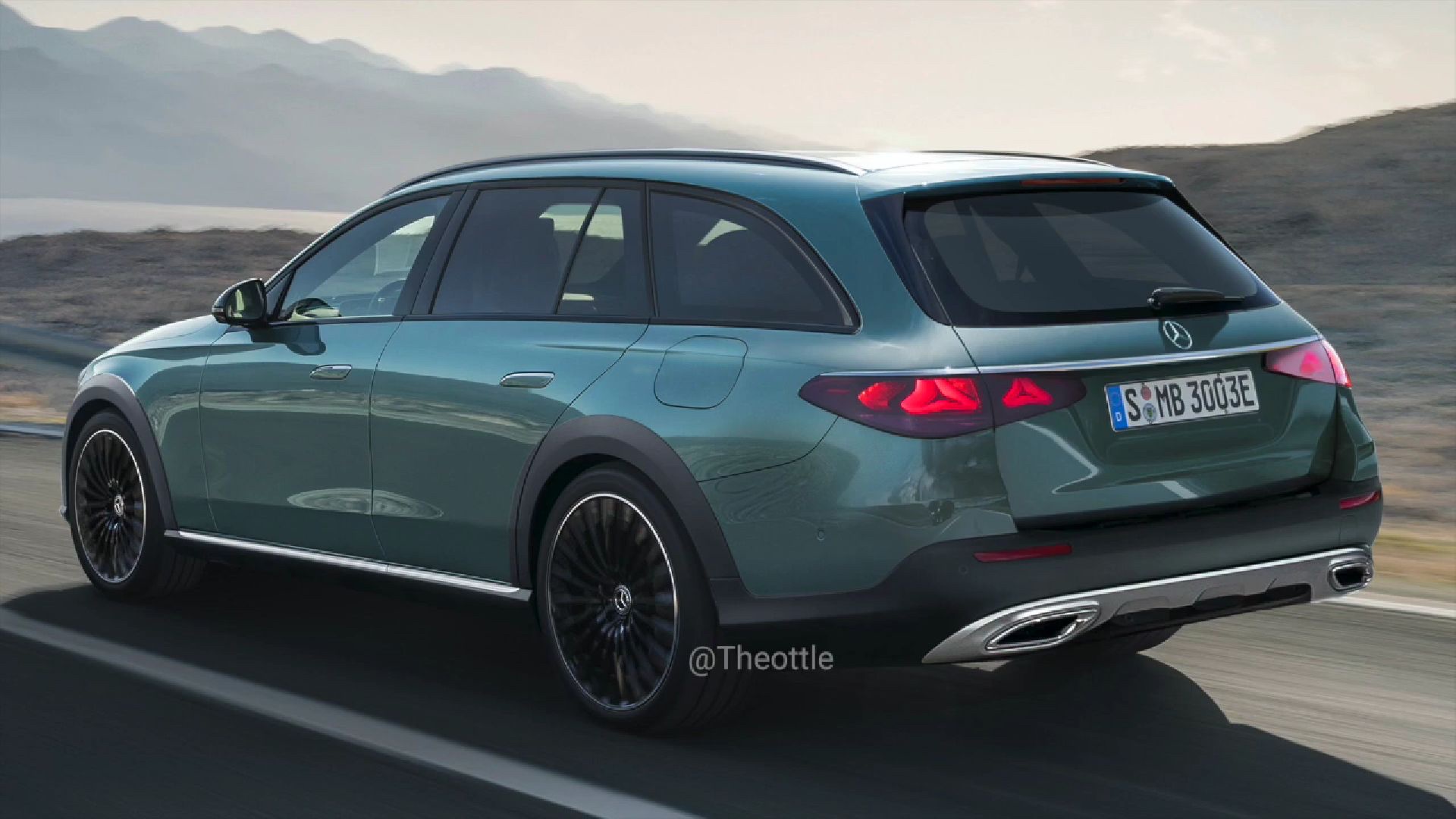

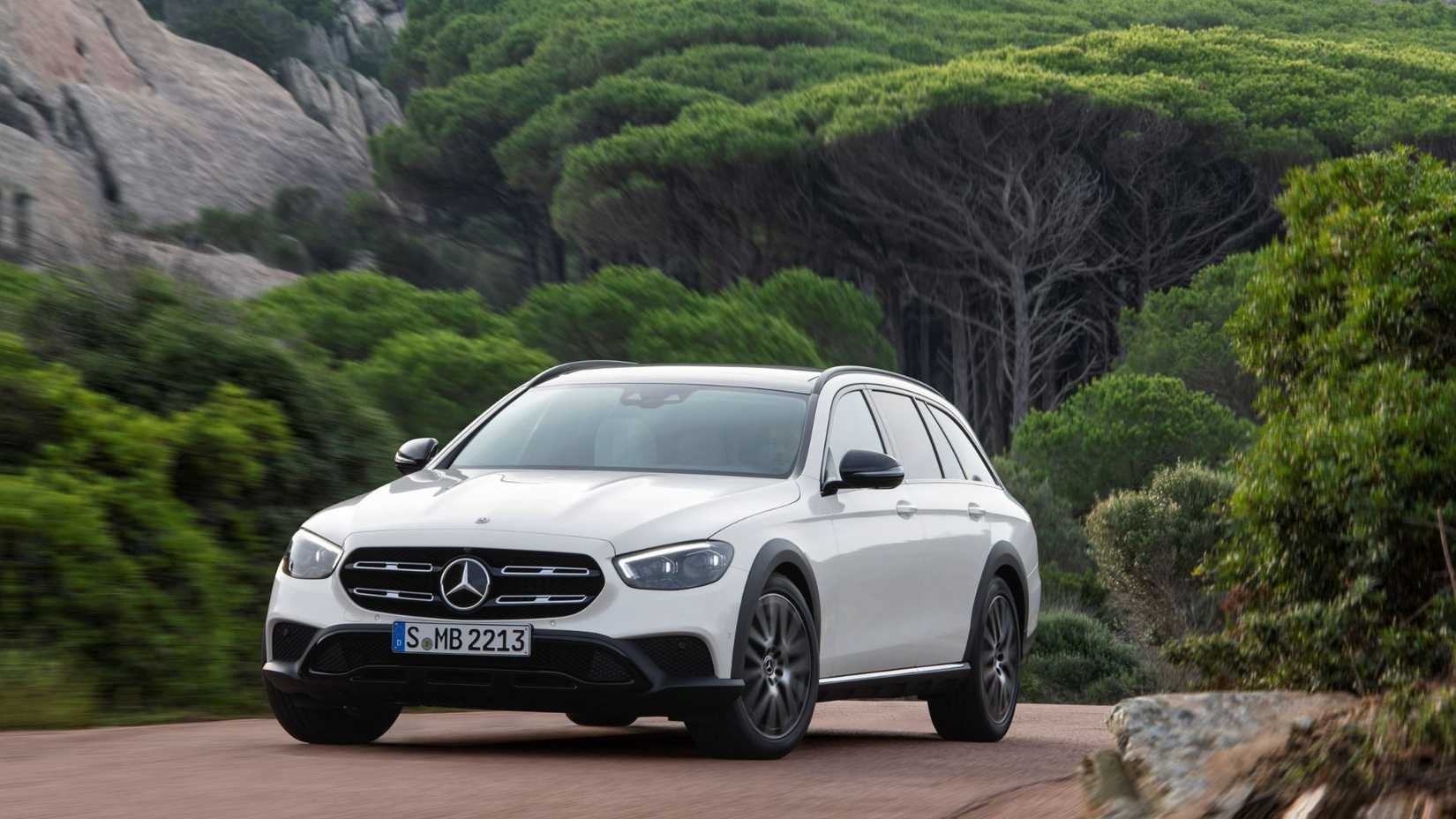

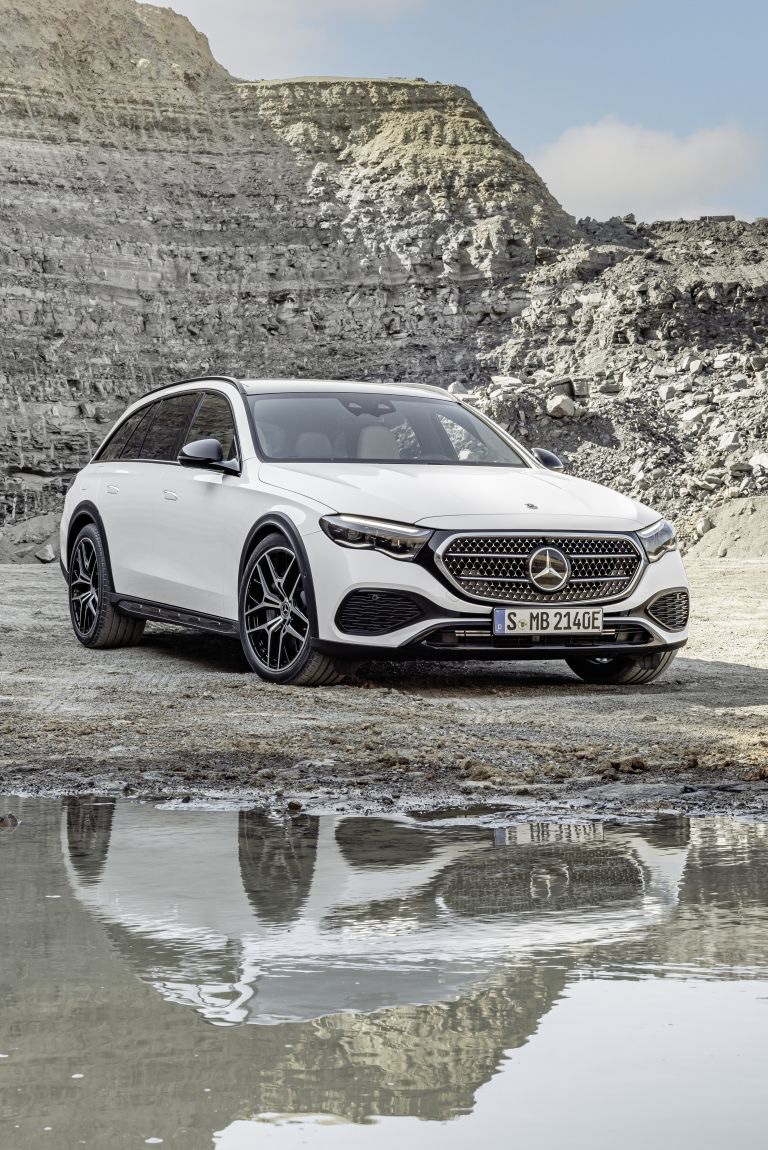

Photo Mercedes E-Class All Terrain (S214)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
220d 4MATIC 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6 |
|---|---|
| Top speed, km/h | 220 |
| Acceleration 0-100 km/h, s | 8.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM654 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 3600 |
| Torque, Nm | 440 |
| RPM at max torque | 1800-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4950 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1626 |
| Rear track, mm | 1641 |
| Kerb weight, kg | 1990 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 12 |
| Width without mirrors, mm | 1889 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
300de 4MATIC 41 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.9 |
|---|---|
| Top speed, km/h | 213 |
| Acceleration 0-100 km/h, s | 6.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi H |
|---|---|
| Engine code | OM654 |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 313 |
| Torque, Nm | 700 |
| Number of electric motors | 1 |
| Electric motor power, hp | 129 |
| Combustion engine power, hp | 197 |
| Combustion engine RPM at max power | 3600 |
| Combustion engine torque, Nm | 440 |
| Combustion engine RPM at max torque | 1800-2800 |
| Electric motor torque, Nm | 440 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4950 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1626 |
| Rear track, mm | 1641 |
| Kerb weight, kg | 1990 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 12 |
| Width without mirrors, mm | 1889 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
450 4MATIC 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.7 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Mild Hybrid |
|---|---|
| Engine code | M 256 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 381 |
| RPM at max power | 5800-6100 |
| Torque, Nm | 500 |
| RPM at max torque | 1800-5000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4950 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1626 |
| Rear track, mm | 1641 |
| Kerb weight, kg | 1990 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 12 |
| Width without mirrors, mm | 1889 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
450d 4MATIC 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.9 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d Mild Hybrid |
|---|---|
| Engine code | OM656 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2989 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 367 |
| RPM at max power | 4000 |
| Torque, Nm | 750 |
| RPM at max torque | 1350-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4950 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1626 |
| Rear track, mm | 1641 |
| Kerb weight, kg | 1990 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 12 |
| Width without mirrors, mm | 1889 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 220d 4MATIC 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6 |
|---|---|
| Top speed, km/h | 220 |
| Acceleration 0-100 km/h, s | 8.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM654 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 3600 |
| Torque, Nm | 440 |
| RPM at max torque | 1800-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4950 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1626 |
| Rear track, mm | 1641 |
| Kerb weight, kg | 1990 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 12 |
| Width without mirrors, mm | 1889 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 450 4MATIC 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.7 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Mild Hybrid |
|---|---|
| Engine code | M 256 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 381 |
| RPM at max power | 5800-6100 |
| Torque, Nm | 500 |
| RPM at max torque | 1800-5000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4950 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1626 |
| Rear track, mm | 1641 |
| Kerb weight, kg | 1990 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 12 |
| Width without mirrors, mm | 1889 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 450d 4MATIC 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.9 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d Mild Hybrid |
|---|---|
| Engine code | OM656 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2989 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 367 |
| RPM at max power | 4000 |
| Torque, Nm | 750 |
| RPM at max torque | 1350-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4950 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1626 |
| Rear track, mm | 1641 |
| Kerb weight, kg | 1990 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 12 |
| Width without mirrors, mm | 1889 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Mercedes E-Class All Terrain (S214) questions
Short answers based on the specifications and photos available in this catalog.
What type of vehicle is the E-Class All-Terrain?
It is a luxury all-wheel-drive station wagon with raised ground clearance and rugged exterior elements.
What generation is the 2023 All-Terrain?
It is part of the sixth generation of the E-Class model family, designated internally as the S214.
Are there hybrid engines available?
Yes, all standard powertrains feature mild-hybrid technology. There is also a plug-in hybrid diesel version (E 300 de) with an electric driving range of up to 100 km.
Does the vehicle have adjustable suspension?
Yes, it comes standard with AIRMATIC adaptive air suspension that can alter the ride height depending on driving conditions.
How large is the trunk?
The standard cargo capacity is 615 liters, providing plenty of space for luggage or family gear.
Continue exploring Mercedes
Return to Mercedes models, browse the gallery, or compare the trims listed above.
