Mercedes E-Class T-Modell (S214) specifications and photos
The 2023 Mercedes-Benz E-Class T-Modell (S214) is the sixth generation of the brand's distinguished midsize luxury wagon. Offering a choice of rear-wheel or all-wheel drive, it delivers advanced electrified powertrains and significant technological updates.
Years
2023
Body type
wagon
Trims
20
Photos
16
Overview
Mercedes E-Class T-Modell (S214) at a glance
Quick model context before comparing photos and trim-level specifications.
Debuting in June 2023, the S214 generation of the E-Class wagon continues a long lineage of premium estate cars while introducing a more forward-looking, progressive aesthetic inspired by the Mercedes-EQ lineup. This generation focuses heavily on electrification, with every internal combustion engine featuring mild-hybrid assistance and several plug-in hybrid variants available. The T-Modell is designed for buyers who need the versatility and cargo capacity of an estate without sacrificing the executive comfort and sophisticated driving dynamics inherent to the E-Class. With its balanced proportions and extensive trim options, ranging from the classic Exclusive line to the more aggressive AMG Line, it caters to a wide variety of premium tastes.
- Power: 197-585 hp
- Engine displacement: 1993-2999 cc
- Transmissions: 9G-Tronic, 9G-AMG SPEEDSHIFT TCT, 9G-AMG SPEEDSHIFT TC
- Seating: 5 seats
Research hub
Photos, trims and specifications for Mercedes E-Class T-Modell (S214)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2023 generation.
Running costs
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Cost per 100 km
-
Monthly cost
-
Yearly cost
-
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
Model guide
Mercedes E-Class T-Modell (S214) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior of the E-Class T-Modell features a dynamic roofline and a powerful stance defined by two character lines along the side profile. The front fascia introduces a black panel connecting the grille to the headlights, a visual cue borrowed from Mercedes' electric models. Depending on the trim, buyers can choose between a classic or progressive grille design, with an optional illuminated surround available for the Avantgarde, Exclusive, and AMG Line. Standard equipment includes High Performance LED headlights with distinctive eyebrow-shaped daytime running lights, while the advanced DIGITAL LIGHT system is available as an option.
Interior
Inside, the S214 cabin is centered around modern digital interfaces and premium comfort. A prominent feature is the latest generation of the MBUX system, which can include a built-in camera for video calls and the optional expansive Superscreen that spans the dashboard. The cabin feels airy and spacious, further enhanced by an available large panoramic glass roof. Despite the sleeker exterior profile, the T-Modell retains its reputation for practicality, offering a generous 615 liters of standard cargo space.
Performance
The powertrain lineup is thoroughly electrified. Mild-hybrid options include the E 200 petrol (204 hp) and E 220 d diesel (197 hp), both utilizing an integrated starter-generator that provides a temporary boost of up to 23 hp. For those seeking more power, the six-cylinder E 450 (381 hp) and E 450 d (367 hp) deliver robust performance. Plug-in hybrid variants like the E 300 e and E 300 de combine a 2.0-liter four-cylinder engine with a 129 hp electric motor, enabling up to 100 km of electric-only driving. The high-performance AMG 53 4MATIC+ PHEV pushes combined output to 585 hp. All models utilize a 9-speed automatic transmission.
Practicality
As an executive wagon, practicality is a core strength of the E-Class T-Modell. The 4949 mm length and 2961 mm wheelbase translate into substantial interior room for five passengers. The cargo area provides 615 liters of volume, making it highly capable for family road trips, bulky luggage, or everyday hauling needs. Available 4Matic all-wheel drive adds all-weather confidence, further increasing its everyday usefulness.
Safety and tech
Technology in the S214 E-Class is heavily focused on connectivity and advanced driver assistance. The standard MBUX infotainment system is highly customizable, and the optional Superscreen transforms the cabin into a digital hub. Illumination is handled by standard LED High Performance headlights, with the optional DIGITAL LIGHT offering precise, adaptable beam patterns for varied driving conditions.
Buyer notes
When comparing trims, buyers should note the significant differences between the standard mild-hybrid engines and the plug-in hybrid options, particularly regarding electric-only range and potential differences in cargo floor layout due to the battery. The choice between rear-wheel drive and 4Matic all-wheel drive will depend on local climate needs. Shoppers should also decide whether they prefer the traditional luxury styling of the Exclusive line or the sportier aesthetics of the AMG Line.
Configurations
Trims and key specifications
Use this table to compare the main differences between available configurations.
Power
197-585 hp
Engine displacement
1993-2999 cc
Seating
5 seats
Transmissions
9G-Tronic, 9G-AMG SPEEDSHIFT TCT, 9G-AMG SPEEDSHIFT TC
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 200 | 1999 cc | 204 hp | 5 | 9G-Tronic |
| 220d 4Matic | 1993 cc | 197 hp | 5 | 9G-Tronic |
| 220d | 1993 cc | 197 hp | 5 | 9G-Tronic |
| 300de 4Matic | 1993 cc | 313 hp | 5 | 9G-Tronic |
| 300de | 1993 cc | 313 hp | 5 | 9G-Tronic |
| 300e | 1999 cc | 313 hp | 5 | 9G-Tronic |
| 200 4Matic | 1999 cc | 204 hp | 5 | 9G-Tronic |
| 450 4Matic | 2999 cc | 381 hp | 5 | 9G-Tronic |
| 450d 4MATIC | 2989 cc | 367 hp | 5 | 9G-Tronic |
| AMG 53 4MATIC+ | 2999 cc | 585 hp | 5 | 9G-AMG SPEEDSHIFT TCT |
| E 200 4Matic | 1999 cc | 204 hp | 5 | 9G-Tronic |
| E 200 | 1999 cc | 204 hp | 5 | 9G-Tronic |
| E 220d 4Matic | 1993 cc | 197 hp | 5 | 9G-Tronic |
| E 220d | 1993 cc | 197 hp | 5 | 9G-Tronic |
| E 300de 4Matic | 1993 cc | 313 hp | 5 | 9G-Tronic |
| E 300de | 1993 cc | 313 hp | 5 | 9G-Tronic |
| E 300e | 1999 cc | 313 hp | 5 | 9G-Tronic |
| E 450 4Matic | 2999 cc | 381 hp | 5 | 9G-Tronic |
| E 450d 4Matic | 2989 cc | 367 hp | 5 | 9G-Tronic |
| E AMG 53 4MATIC+ | 2999 cc | 585 hp | 5 | 9G-AMG SPEEDSHIFT TC |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Gallery
Mercedes E-Class T-Modell (S214) photo gallery
16 images are collected here with the main specifications and trim data for this model.

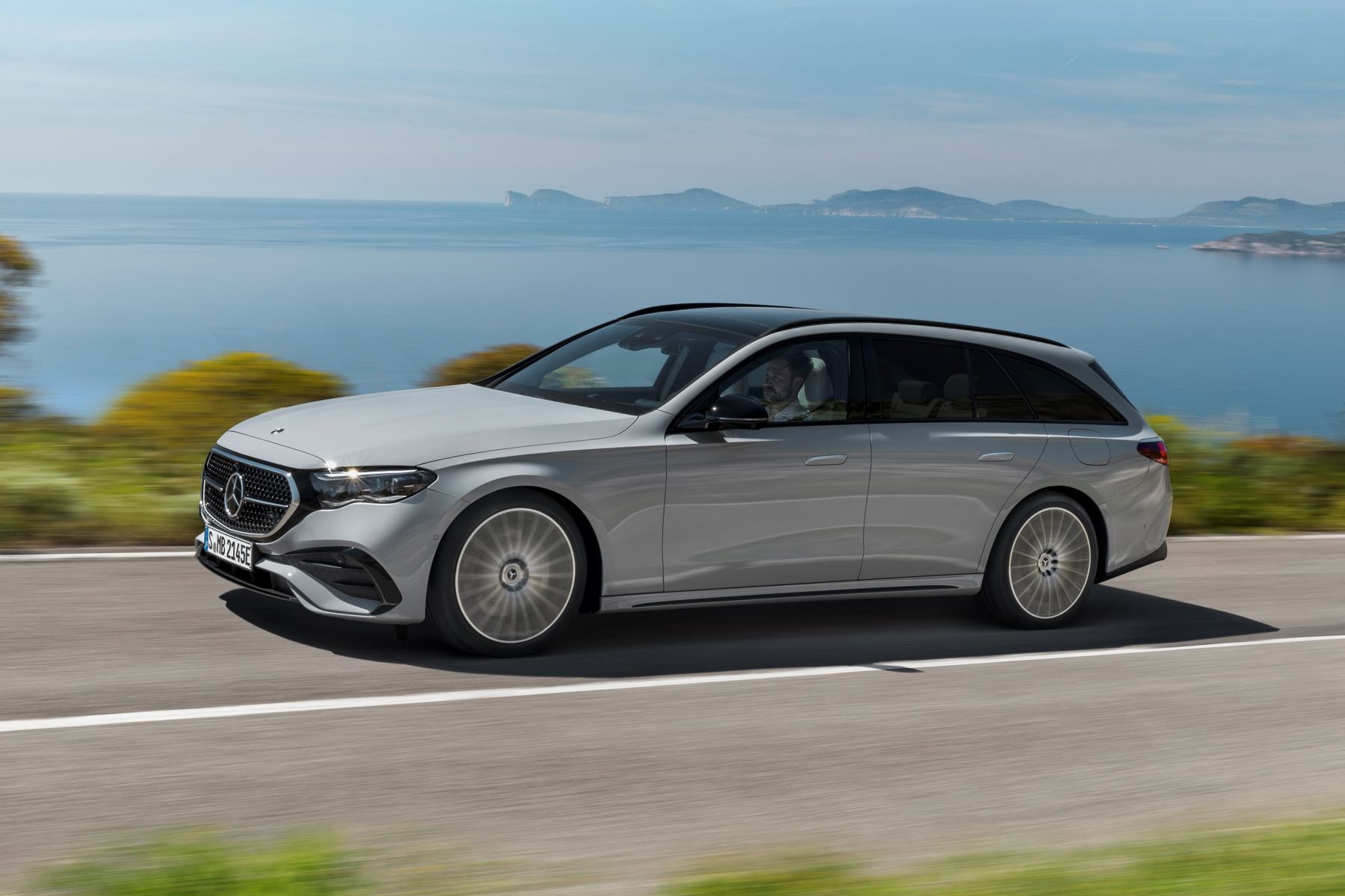

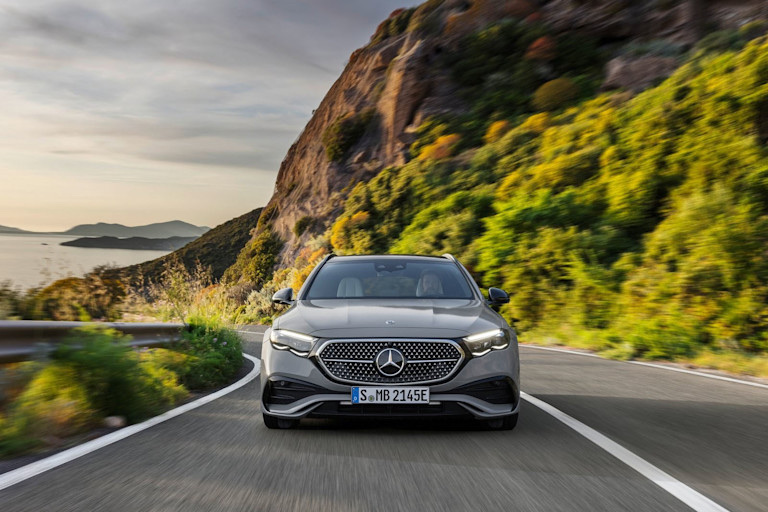

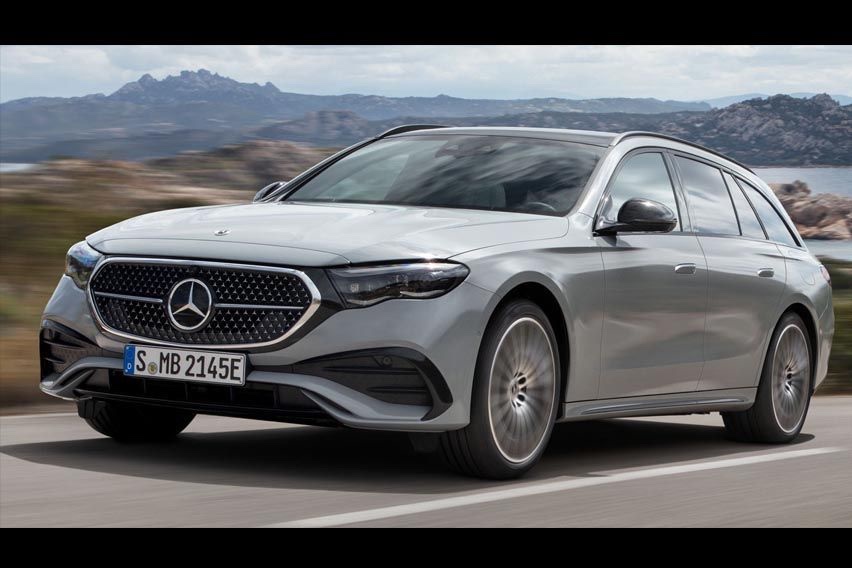

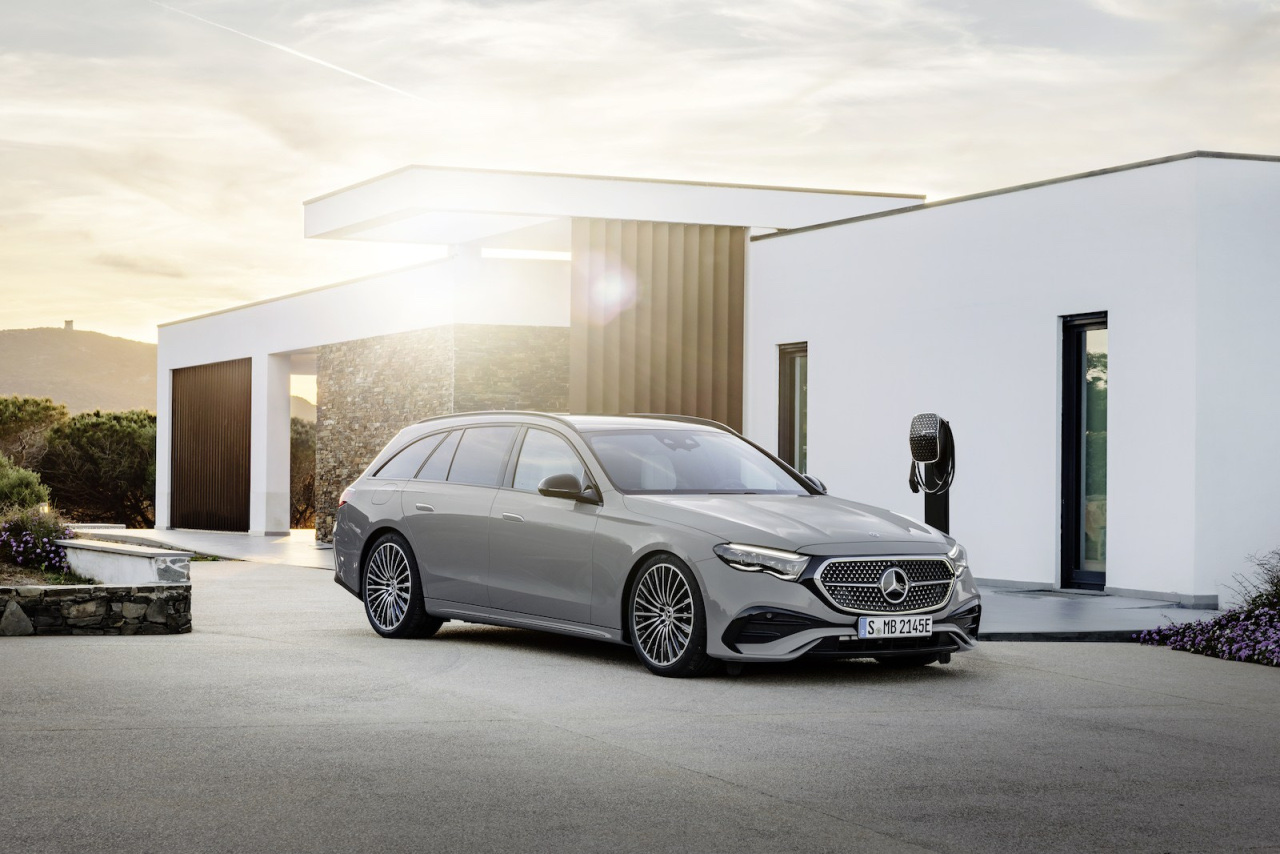

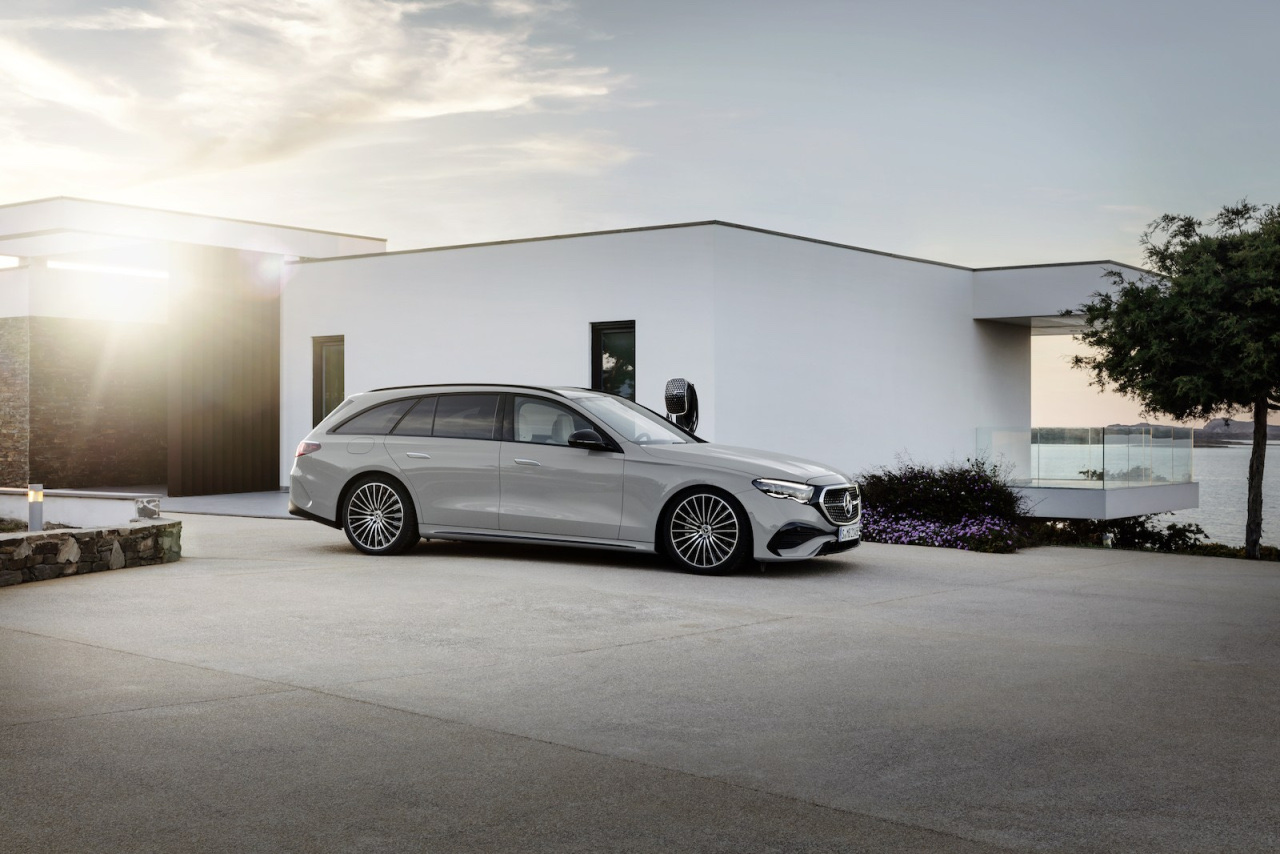

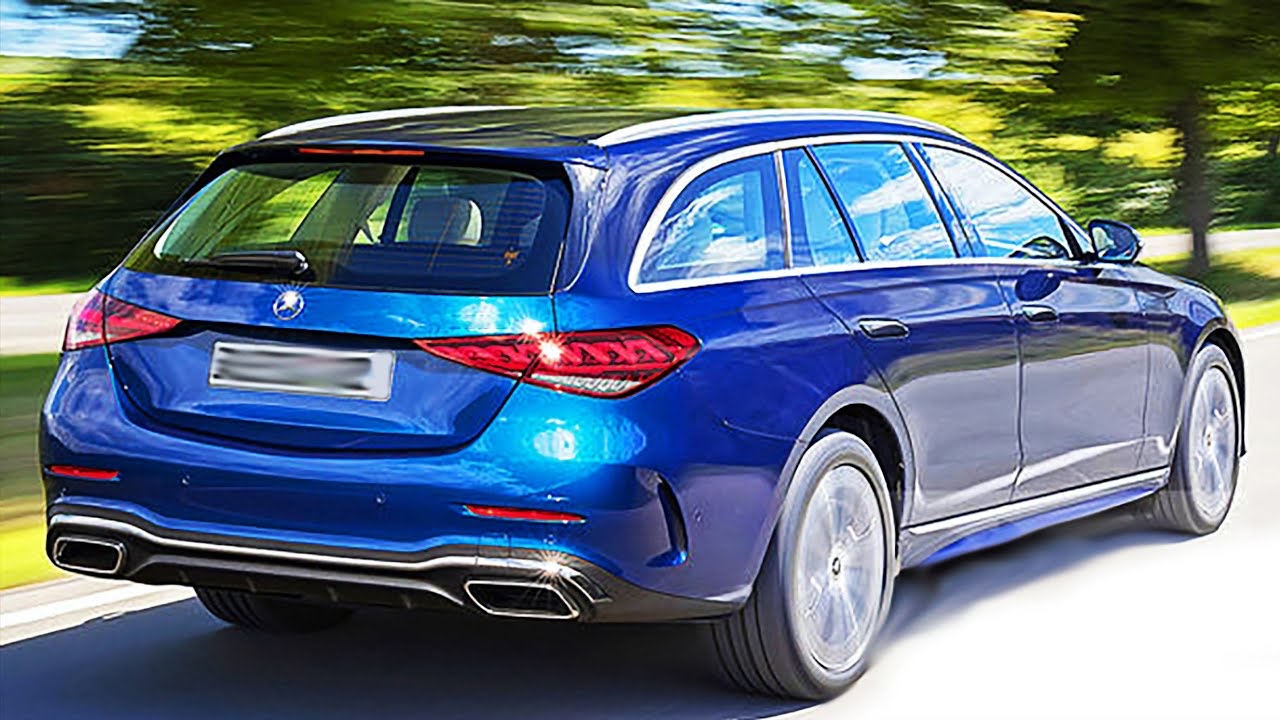

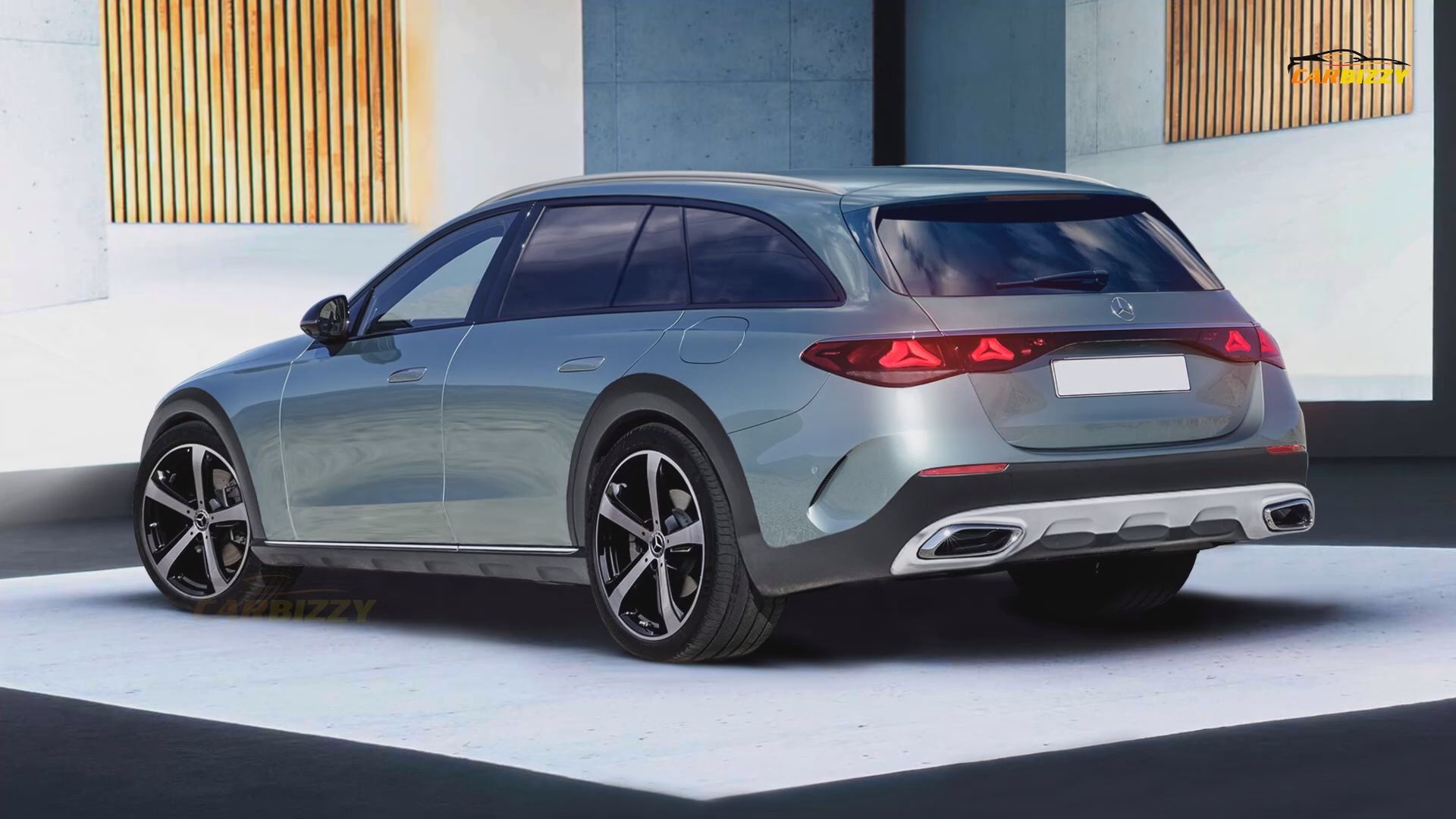

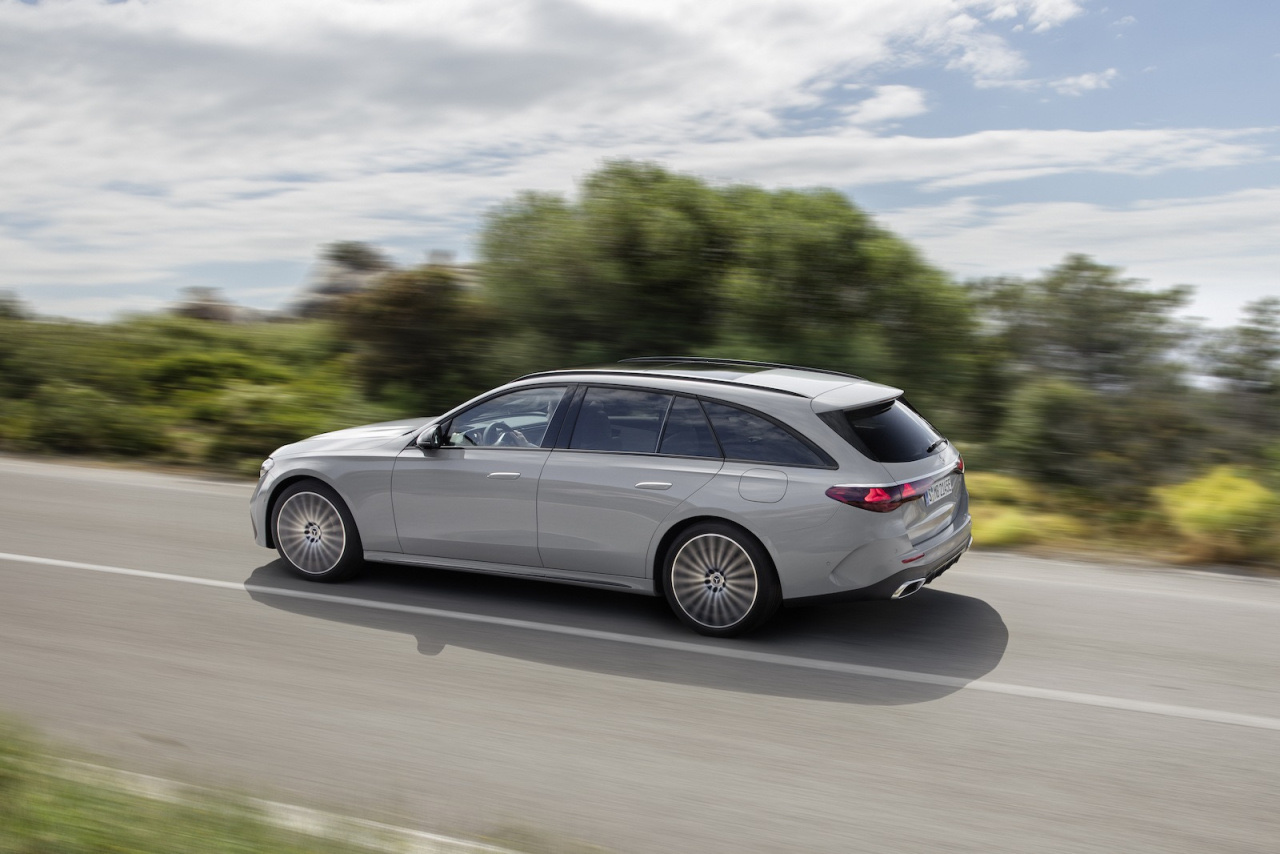

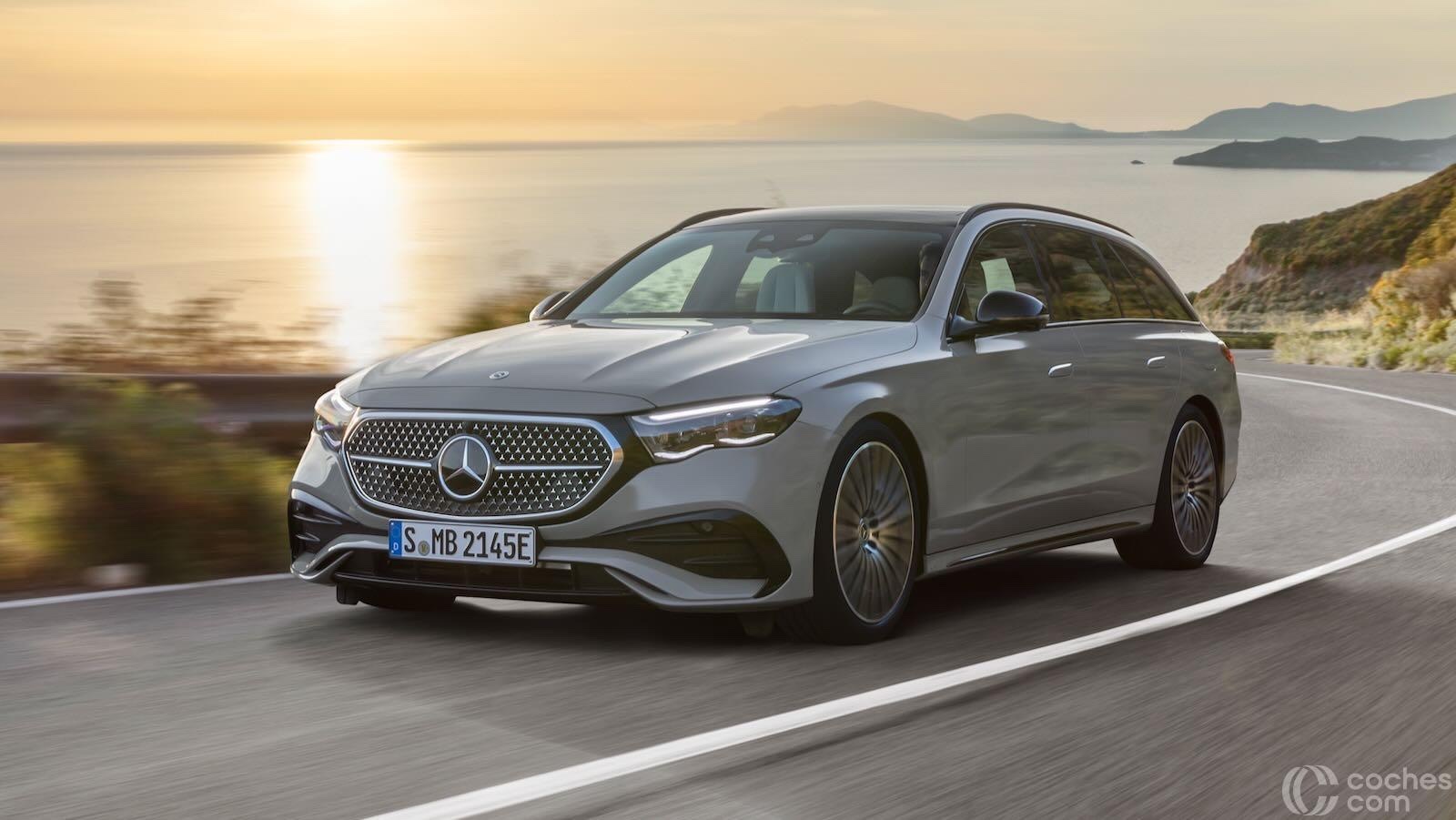

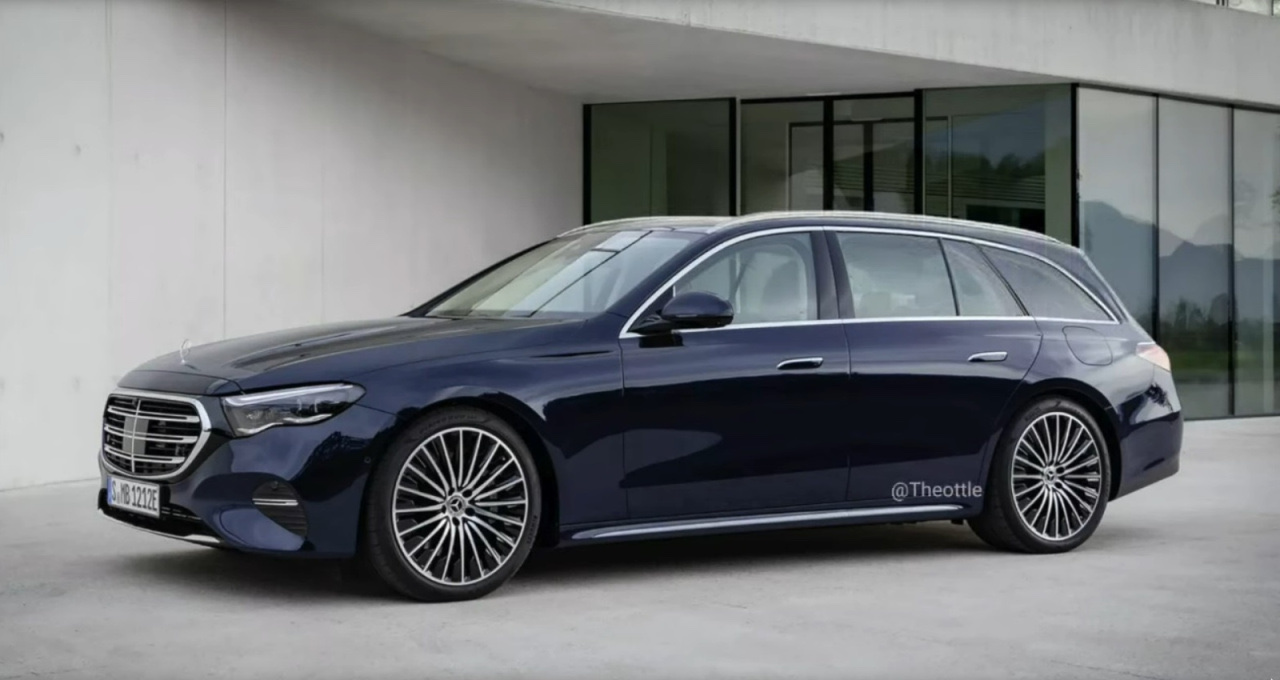

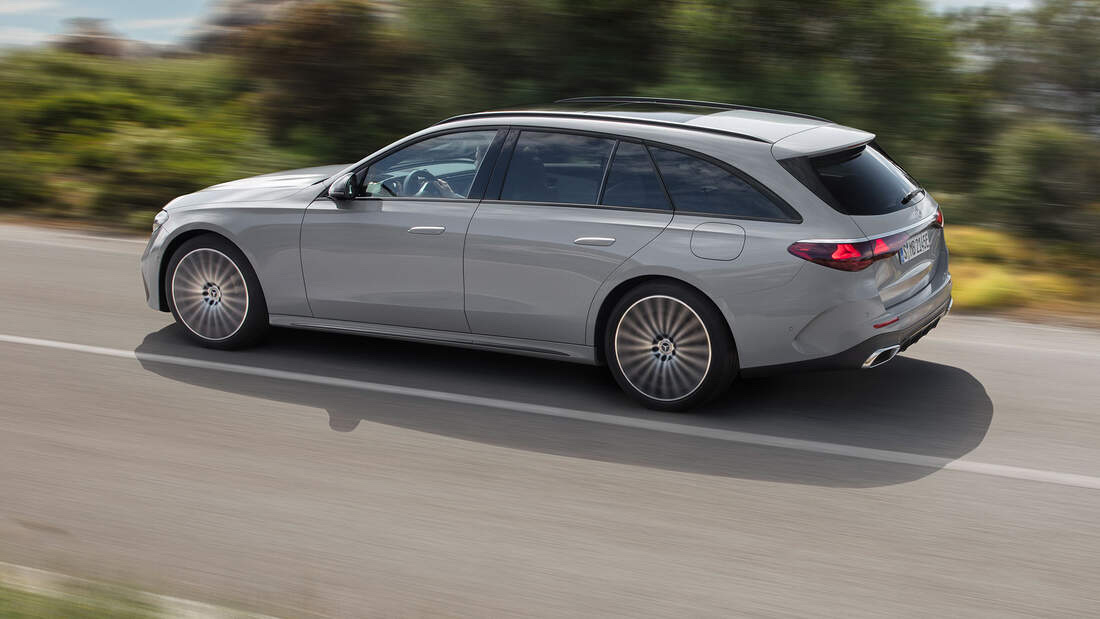

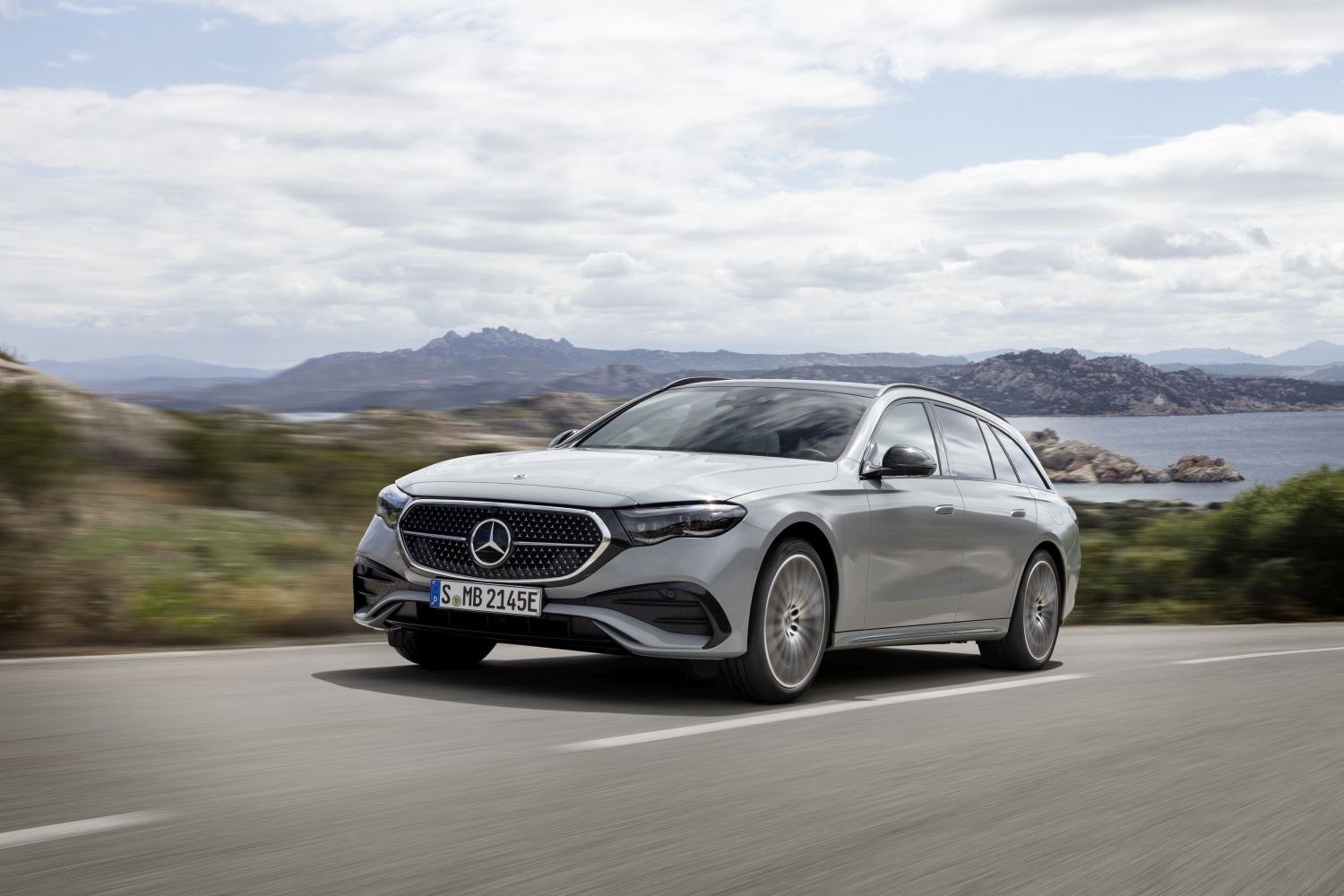

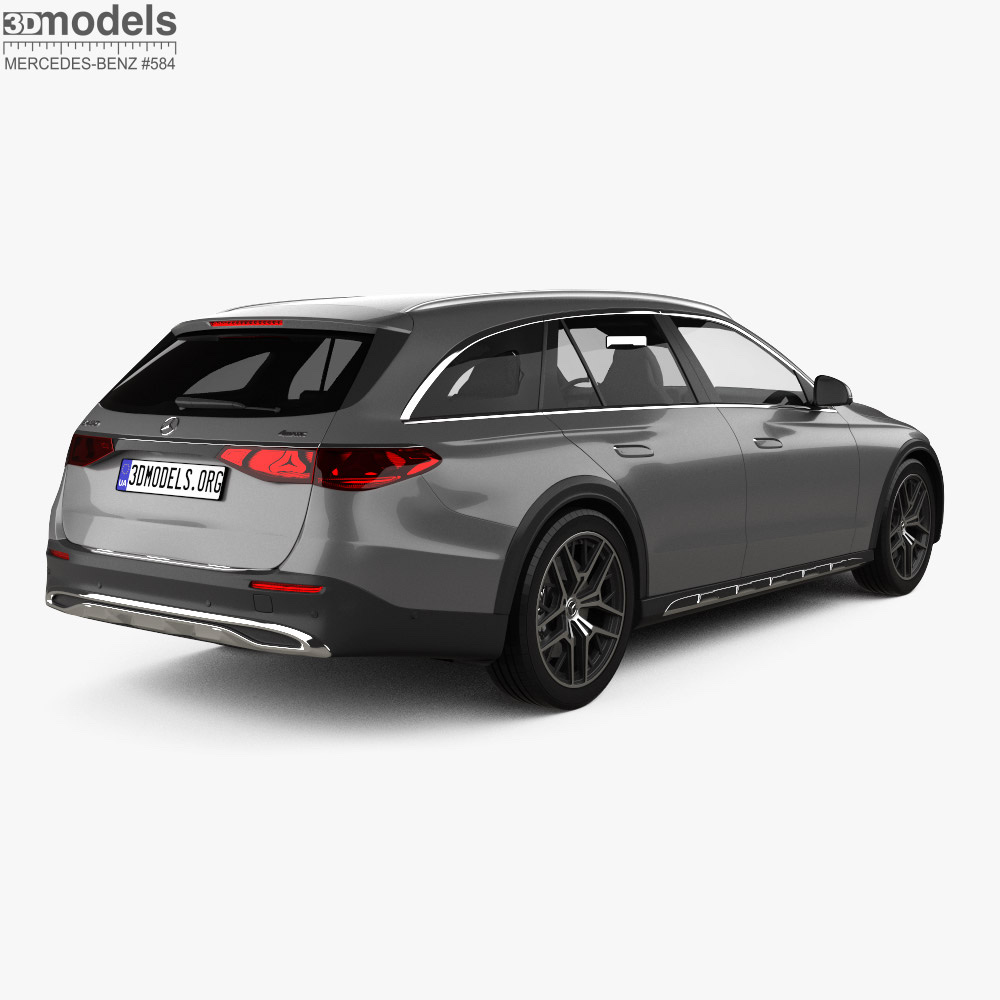

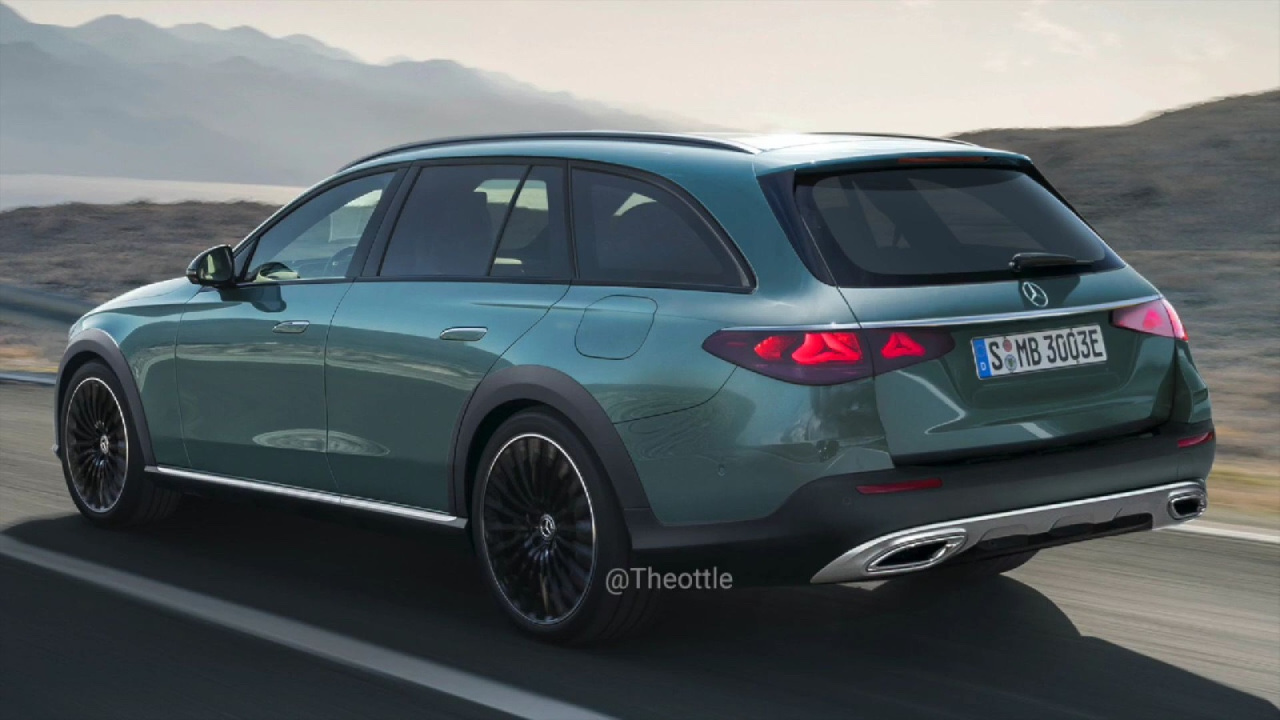

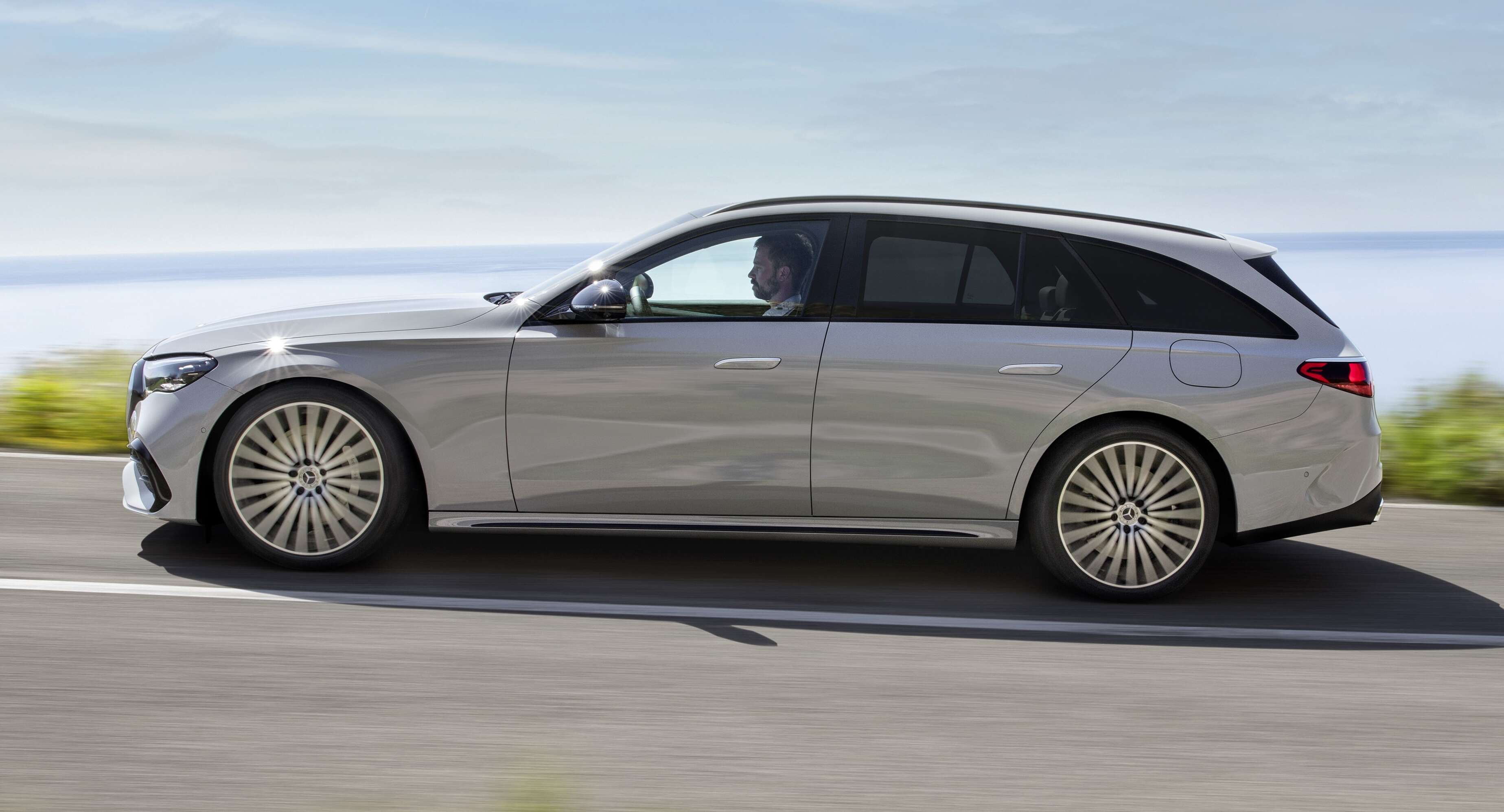

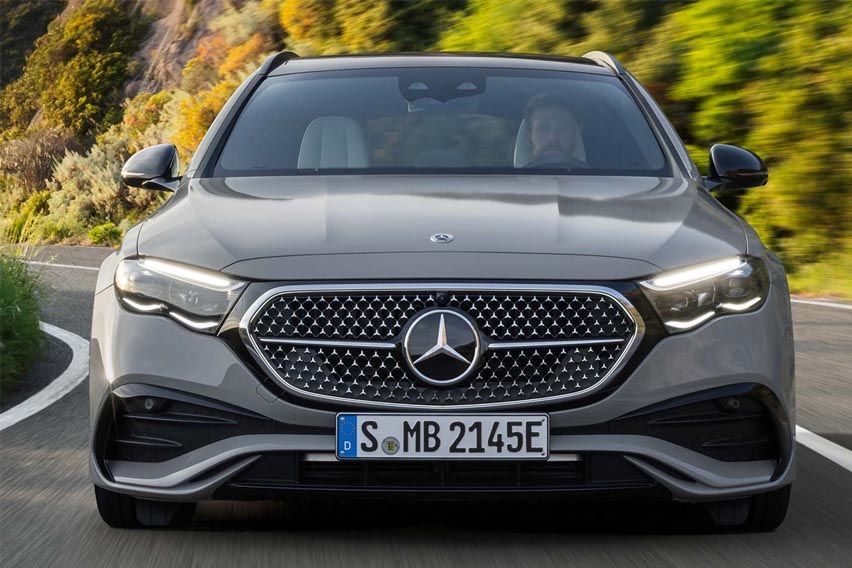

Photo Mercedes E-Class T-Modell (S214)
Detailed specs
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
200
220d 4Matic
220d
300de 4Matic
300de
300e
200 4Matic
450 4Matic
450d 4MATIC
AMG 53 4MATIC+
E 200 4Matic
E 200
E 220d 4Matic
E 220d
E 300de 4Matic
E 300de
E 300e
E 450 4Matic
E 450d 4Matic
E AMG 53 4MATIC+
200 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.6 |
|---|---|
| Top speed, km/h | 231 |
| Acceleration 0-100 km/h, s | 7.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Mild Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 204 |
| RPM at max power | 5800 |
| Torque, Nm | 320 |
| RPM at max torque | 1600-4000 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 205 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
220d 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6 |
|---|---|
| Top speed, km/h | 227 |
| Acceleration 0-100 km/h, s | 8.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM654 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 3600 |
| Torque, Nm | 440 |
| RPM at max torque | 1800-2800 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
220d 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.7 |
|---|---|
| Top speed, km/h | 230 |
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM654 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 3600 |
| Torque, Nm | 440 |
| RPM at max torque | 1800-2800 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
300de 4Matic 40 specifications
Specifications
Performance and consumption
| Top speed, km/h | 223 |
|---|---|
| Acceleration 0-100 km/h, s | 6.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi H |
|---|---|
| Engine code | OM654 |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 313 |
| Torque, Nm | 700 |
| Electric motor power, hp | 129 |
| Combustion engine power, hp | 197 |
| Combustion engine RPM at max power | 3600 |
| Combustion engine torque, Nm | 440 |
| Combustion engine RPM at max torque | 1800-2800 |
| Electric motor torque, Nm | 440 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
300de 40 specifications
Specifications
Performance and consumption
| Top speed, km/h | 225 |
|---|---|
| Acceleration 0-100 km/h, s | 6.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi H |
|---|---|
| Engine code | OM654 |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 313 |
| Torque, Nm | 700 |
| Electric motor power, hp | 129 |
| Combustion engine power, hp | 197 |
| Combustion engine RPM at max power | 3600 |
| Combustion engine torque, Nm | 440 |
| Combustion engine RPM at max torque | 1800-2800 |
| Electric motor torque, Nm | 440 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
300e 42 specifications
Specifications
Performance and consumption
| Top speed, km/h | 227 |
|---|---|
| Acceleration 0-100 km/h, s | 6.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Plug-in Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 10:1 |
| Power, hp | 313 |
| Torque, Nm | 550 |
| Electric motor power, hp | 129 |
| Combustion engine power, hp | 204 |
| Combustion engine RPM at max power | 6100 |
| Combustion engine torque, Nm | 320 |
| Combustion engine RPM at max torque | 2000-4000 |
| Electric motor torque, Nm | 440 |
| Electric motor RPM at max power | 2100 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
200 4Matic 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.1 |
|---|---|
| Top speed, km/h | 226 |
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Mild Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 204 |
| RPM at max power | 5800 |
| Torque, Nm | 320 |
| RPM at max torque | 1600-4000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 205 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
450 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.8 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Mild Hybrid |
|---|---|
| Engine code | M 256 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 381 |
| RPM at max power | 5800-6100 |
| Torque, Nm | 500 |
| RPM at max torque | 1800-5000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
450d 4MATIC 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.9 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d Mild Hybrid |
|---|---|
| Engine code | OM656 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2989 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 367 |
| RPM at max power | 4000 |
| Torque, Nm | 750 |
| RPM at max torque | 1350-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
AMG 53 4MATIC+ 42 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 1.1 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Plug-in Hybrid |
|---|---|
| Engine code | M 256 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 585 |
| Torque, Nm | 750 |
| Number of electric motors | 1 |
| Electric motor power, hp | 163 |
| Combustion engine power, hp | 449 |
| Combustion engine RPM at max power | 5800-6100 |
| Combustion engine torque, Nm | 560 |
| Combustion engine RPM at max torque | 2200-5000 |
| Electric motor torque, Nm | 480 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-AMG SPEEDSHIFT TCT |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 200 4Matic 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.1 |
|---|---|
| Top speed, km/h | 226 |
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Mild Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 204 |
| RPM at max power | 5800 |
| Torque, Nm | 320 |
| RPM at max torque | 1600-4000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 205 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 200 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.6 |
|---|---|
| Top speed, km/h | 231 |
| Acceleration 0-100 km/h, s | 7.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Mild Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 204 |
| RPM at max power | 5800 |
| Torque, Nm | 320 |
| RPM at max torque | 1600-4000 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 205 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 220d 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6 |
|---|---|
| Top speed, km/h | 227 |
| Acceleration 0-100 km/h, s | 8.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM654 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 3600 |
| Torque, Nm | 440 |
| RPM at max torque | 1800-2800 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 220d 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.7 |
|---|---|
| Top speed, km/h | 230 |
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM654 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 3600 |
| Torque, Nm | 440 |
| RPM at max torque | 1800-2800 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 300de 4Matic 40 specifications
Specifications
Performance and consumption
| Top speed, km/h | 223 |
|---|---|
| Acceleration 0-100 km/h, s | 6.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi H |
|---|---|
| Engine code | OM654 |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 313 |
| Torque, Nm | 700 |
| Electric motor power, hp | 129 |
| Combustion engine power, hp | 197 |
| Combustion engine RPM at max power | 3600 |
| Combustion engine torque, Nm | 440 |
| Combustion engine RPM at max torque | 1800-2800 |
| Electric motor torque, Nm | 440 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 300de 40 specifications
Specifications
Performance and consumption
| Top speed, km/h | 225 |
|---|---|
| Acceleration 0-100 km/h, s | 6.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi H |
|---|---|
| Engine code | OM654 |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 313 |
| Torque, Nm | 700 |
| Electric motor power, hp | 129 |
| Combustion engine power, hp | 197 |
| Combustion engine RPM at max power | 3600 |
| Combustion engine torque, Nm | 440 |
| Combustion engine RPM at max torque | 1800-2800 |
| Electric motor torque, Nm | 440 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 300e 42 specifications
Specifications
Performance and consumption
| Top speed, km/h | 227 |
|---|---|
| Acceleration 0-100 km/h, s | 6.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Plug-in Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 10:1 |
| Power, hp | 313 |
| Torque, Nm | 550 |
| Electric motor power, hp | 129 |
| Combustion engine power, hp | 204 |
| Combustion engine RPM at max power | 6100 |
| Combustion engine torque, Nm | 320 |
| Combustion engine RPM at max torque | 2000-4000 |
| Electric motor torque, Nm | 440 |
| Electric motor RPM at max power | 2100 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 450 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.8 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Mild Hybrid |
|---|---|
| Engine code | M 256 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 381 |
| RPM at max power | 5800-6100 |
| Torque, Nm | 500 |
| RPM at max torque | 1800-5000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 450d 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.9 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d Mild Hybrid |
|---|---|
| Engine code | OM656 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2989 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 367 |
| RPM at max power | 4000 |
| Torque, Nm | 750 |
| RPM at max torque | 1350-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E AMG 53 4MATIC+ 42 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 1.1 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Plug-in Hybrid |
|---|---|
| Engine code | M 256 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 585 |
| Torque, Nm | 750 |
| Number of electric motors | 1 |
| Electric motor power, hp | 163 |
| Combustion engine power, hp | 449 |
| Combustion engine RPM at max power | 5800-6100 |
| Combustion engine torque, Nm | 560 |
| Combustion engine RPM at max torque | 2200-5000 |
| Electric motor torque, Nm | 480 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4949 |
| Width, mm | 2065 |
| Height, mm | 1469 |
| Wheelbase, mm | 2961 |
| Front track, mm | 1634 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1750 |
| Gross weight, kg | 2450 |
| Fuel tank capacity, L | 66 |
| Turning circle, m | 11.6 |
| Width without mirrors, mm | 1880 |
| Trunk capacity, L | 615 |
Transmission and drive
| Transmission | 9G-AMG SPEEDSHIFT TC |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
FAQ
Mercedes E-Class T-Modell (S214) questions
Short answers based on the specifications and photos available in this catalog.
What body style is the Mercedes E-Class S214?
It is a midsize luxury estate, often referred to as a wagon or T-Modell.
What engines are available?
The lineup includes mild-hybrid four-cylinder and six-cylinder petrol and diesel engines, as well as plug-in hybrid options (PHEV) for both petrol and diesel.
Does it have all-wheel drive?
Yes, Mercedes' 4Matic all-wheel-drive system is available on many variants, including the E 220 d, E 300 de, and standard on the six-cylinder and AMG models.
How large is the trunk?
The standard cargo capacity is 615 liters, providing ample space for luggage and family gear.
What is the electric range of the plug-in hybrids?
The plug-in hybrid models, such as the E 300 e, can achieve an electric-only driving range of up to 100 kilometers under optimal conditions.
