Opel Insignia Sports Tourer specifications and photos

Opel Insignia Sports Tourer specifications are shown with trim options, key technical data, and a model photo gallery. Compare 19 configurations by engine size, power, seating, and transmission. The gallery includes 9 photos for visual reference.

Years 2017 - 2020
Body type wagon
Trims 19
Photos 9

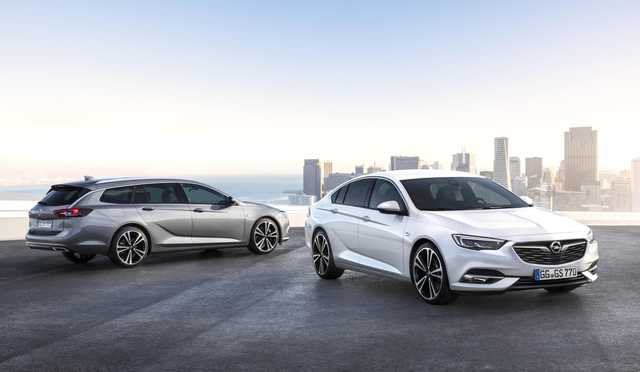

Opel Insignia Sports Tourer 2017 wagon
Overview

Opel Insignia Sports Tourer at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Opel Insignia Sports Tourer page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 110-260 hp and 1490-1998 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 110-260 hp
  • Engine displacement: 1490-1998 cc
  • Transmissions: 6, 8, 6-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Opel Insignia Sports Tourer

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 9 images Compare trims 19 configurations View detailed specs 1490-1998 cc Explore related pages Opel and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 110-260 hp
Engine displacement 1490-1998 cc
Seating 5 seats
Transmissions 6, 8, 6-speed manual
Trim / modification Engine Power Seats Transmission
1.5 ECOTEC 6MT (140) 1490 cc 140 hp 5 6
1.5 6MT (140) 1490 cc 140 hp 5 6
1.5 6MT (165) 1490 cc 165 hp 5 6
1.5 AT (165) 1490 cc 165 hp 5 6
2.0 AT (260) AWD 1998 cc 260 hp 5 8
2.0d 6MT (170) 1956 cc 170 hp 5 6
2.0d 6MT (170) AWD 1956 cc 170 hp 5 6
2.0d AT (170) 1956 cc 170 hp 5 8
1.5i (140 h.p.) 6-speed manual 1490 cc 140 hp 5 6-speed manual
1.5i (165 h.p.) 6-speed manual 1490 cc 165 hp 5 6-speed manual
1.5i (165 HP) 6-car 1490 cc 165 hp 5 6
2.0i (260 hp) 8-speed 4x4 automatic transmission 1998 cc 260 hp 5 8
1.6 CDTi (110 HP) 6-speed manual 1598 cc 110 hp 5 6-speed manual
1.6 CDTi (136 HP) 6-Mech 1598 cc 136 hp 5 6
1.6 CDTi (136 HP) 6-car 1598 cc 136 hp 5 6
2.0 CDTi (170 HP) 6-speed manual 1956 cc 170 hp 5 6-speed manual
2.0 CDTi (170 HP) 6-speed manual 4x4 1956 cc 170 hp 5 6-speed manual
2.0 CDTi (170 HP) 8-speed automatic 1956 cc 170 hp 5 8-speed automatic
2.0 CDTi (210 HP) 8-speed automatic 4x4 1956 cc 210 hp 5 8-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.5 ECOTEC 6MT (140) 1.5 6MT (140) 1.5 6MT (165) 1.5 AT (165) 2.0 AT (260) AWD 2.0d 6MT (170) 2.0d 6MT (170) AWD 2.0d AT (170) 1.5i (140 h.p.) 6-speed manual 1.5i (165 h.p.) 6-speed manual 1.5i (165 HP) 6-car 2.0i (260 hp) 8-speed 4x4 automatic transmission 1.6 CDTi (110 HP) 6-speed manual 1.6 CDTi (136 HP) 6-Mech 1.6 CDTi (136 HP) 6-car 2.0 CDTi (170 HP) 6-speed manual 2.0 CDTi (170 HP) 6-speed manual 4x4 2.0 CDTi (170 HP) 8-speed automatic 2.0 CDTi (210 HP) 8-speed automatic 4x4
1.5 ECOTEC 6MT (140) 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1490
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 250
RPM at max torque 2000-4100
Engine 1.5i
Compression 10.1
RPM at max power 5600
Turbo +
Engine code B15XFL

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Kerb weight, kg 1456
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Gross weight, kg 2000
Width (without mirrors) mm 1863

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Independent, multi-link

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.7
Fuel consumption (urban), l. 100 km 4.9
Fuel consumption (combined), l. 100 km 6
Acceleration (0-100 km/h), s 10.2
The maximum speed, km / h. 207
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer General Motors
Transmission country of origin +
1.5 6MT (140) 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1490
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 250
RPM at max torque 2000-4100
Engine 1.5i
Compression 10.1
RPM at max power 5600
Turbo +
Engine code B15XFL

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Kerb weight, kg 1440
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Gross weight, kg 2015
Width (without mirrors) mm 1863

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Independent, multi-link

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.7
Fuel consumption (urban), l. 100 km 4.9
Fuel consumption (combined), l. 100 km 6
Acceleration (0-100 km/h), s 10.2
The maximum speed, km / h. 207
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer General Motors
Transmission country of origin +
1.5 6MT (165) 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1490
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 165
Torque, Nm 250
RPM at max torque 2000-4500
Engine 1.5i
Compression 10.1
RPM at max power 5600
Turbo +
Engine code B15XFT

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Kerb weight, kg 1440
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Gross weight, kg 2015
Width (without mirrors) mm 1863

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Independent, multi-link

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.6
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6.1
Acceleration (0-100 km/h), s 9.2
The maximum speed, km / h. 218
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer General Motors
Transmission country of origin +
1.5 AT (165) 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1490
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 165
Torque, Nm 250
RPM at max torque 2000-4500
Engine 1.5i
Compression 10.1
RPM at max power 5600
Turbo +
Engine code B15XFT

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Kerb weight, kg 1472
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Gross weight, kg 2040
Width (without mirrors) mm 1863

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Independent, multi-link

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.7
Fuel consumption (urban), l. 100 km 5.3
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 9.6
The maximum speed, km / h. 214
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car
Gearbox Machine
Transmission manufacturer General Motors
2.0 AT (260) AWD 44 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 260
Torque, Nm 400
RPM at max torque 2500-4000
Engine 2.0i
Compression 9.5
RPM at max power 5300
Turbo +
Engine code B20NFT

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Kerb weight, kg 1649
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Gross weight, kg 2245
Width (without mirrors) mm 1863

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Independent, multi-link

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.5
Fuel consumption (urban), l. 100 km 7.1
Fuel consumption (combined), l. 100 km 8.7
Acceleration (0-100 km/h), s 7.5
The maximum speed, km / h. 245
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.0d 6MT (170) 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1956
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 170
Torque, Nm 400
RPM at max torque 1750-2500
Engine 2.0 CDTi
Compression 16.5
RPM at max power 3750
Turbo +
Engine code B20DTH

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Kerb weight, kg 1633
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Gross weight, kg 2240
Width (without mirrors) mm 1863

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Independent, multi-link

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.9
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5.3
Acceleration (0-100 km/h), s 8.9
The maximum speed, km / h. 223
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer General Motors
Transmission country of origin +
2.0d 6MT (170) AWD 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1956
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 170
Torque, Nm 400
RPM at max torque 1750-2500
Engine 2.0 CDTi
Compression 16.5
RPM at max power 3750
Turbo +
Engine code B20DTH

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Kerb weight, kg 1716
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Gross weight, kg 2330
Width (without mirrors) mm 1863

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Independent, multi-link

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.3
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6.3
Acceleration (0-100 km/h), s 9.9
The maximum speed, km / h. 220
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer General Motors
Transmission country of origin +
2.0d AT (170) 44 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1956
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 170
Torque, Nm 400
RPM at max torque 1750-2500
Engine 2.0 CDTi
Compression 16.5
RPM at max power 3750
Turbo +
Engine code B20DTH

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Kerb weight, kg 1666
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Gross weight, kg 2270
Width (without mirrors) mm 1863

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Independent, multi-link

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.5
Fuel consumption (urban), l. 100 km 4.6
Fuel consumption (combined), l. 100 km 5.7
Acceleration (0-100 km/h), s 9.2
The maximum speed, km / h. 220
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
1.5i (140 h.p.) 6-speed manual 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1490
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 250
RPM at max torque 2000-4100
Engine 1.5i
Compression 10.1
RPM at max power 5600
Turbo +
Engine code B15XFL

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Width (without mirrors) mm 1863

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.7
Fuel consumption (urban), l. 100 km 4.9
Fuel consumption (combined), l. 100 km 6
Acceleration (0-100 km/h), s 10.2
The maximum speed, km / h. 207
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer General Motors
Transmission country of origin +
1.5i (165 h.p.) 6-speed manual 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1490
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 165
Torque, Nm 250
RPM at max torque 2000-4500
Engine 1.5i
Compression 10.1
RPM at max power 5600
Turbo +
Engine code B15XFT

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Width (without mirrors) mm 1863

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.6
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6.1
Acceleration (0-100 km/h), s 9.2
The maximum speed, km / h. 218
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer General Motors
Transmission country of origin +
1.5i (165 HP) 6-car 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1490
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 165
Torque, Nm 250
RPM at max torque 2000-4500
Engine 1.5i
Compression 10.1
RPM at max power 5600
Turbo +
Engine code B15XFT

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Width (without mirrors) mm 1863

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.7
Fuel consumption (urban), l. 100 km 5.3
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 9.6
The maximum speed, km / h. 214
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car
Gearbox Machine
Transmission manufacturer General Motors
2.0i (260 hp) 8-speed 4x4 automatic transmission 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 260
Torque, Nm 400
RPM at max torque 2500-4000
Engine 2.0i
Compression 9.5
RPM at max power 5300
Turbo +
Engine code B20NFT

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Width (without mirrors) mm 1863

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.5
Fuel consumption (urban), l. 100 km 7.1
Fuel consumption (combined), l. 100 km 8.7
Acceleration (0-100 km/h), s 7.5
The maximum speed, km / h. 245
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
1.6 CDTi (110 HP) 6-speed manual 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 110
Torque, Nm 300
RPM at max torque 1750-2000
Engine 1.6 CDTi
Compression 16.0
RPM at max power 3500
Turbo +
Engine code B16DTL/B16DTU/B16DTE

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Width (without mirrors) mm 1863

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.3
Acceleration (0-100 km/h), s 11.8
The maximum speed, km / h. 201
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer PSA Group
Transmission country of origin France
1.6 CDTi (136 HP) 6-Mech 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 136
Torque, Nm 320
RPM at max torque 2000-2250
Engine 1.6 CDTi
Compression 16.0
RPM at max power 3500-4000
Turbo +
Engine code B16DTH

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Width (without mirrors) mm 1863

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.3
Fuel consumption (urban), l. 100 km 4
Fuel consumption (combined), l. 100 km 4.5
Acceleration (0-100 km/h), s 10.7
The maximum speed, km / h. 212
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer General Motors
Transmission country of origin +
1.6 CDTi (136 HP) 6-car 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 136
Torque, Nm 320
RPM at max torque 2000-2250
Engine 1.6 CDTi
Compression 16.0
RPM at max power 3500-4000
Turbo +
Engine code B16DTH

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Width (without mirrors) mm 1863

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.2
Fuel consumption (urban), l. 100 km 4.6
Fuel consumption (combined), l. 100 km 5.2
Acceleration (0-100 km/h), s 11.2
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car
Gearbox Machine
Transmission manufacturer General Motors
2.0 CDTi (170 HP) 6-speed manual 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1956
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 170
Torque, Nm 400
RPM at max torque 1750-2500
Engine 2.0 CDTi
Compression 16.5
RPM at max power 3750
Turbo +
Engine code B20DTH

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Width (without mirrors) mm 1863

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.9
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5.3
Acceleration (0-100 km/h), s 8.9
The maximum speed, km / h. 223
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer General Motors
Transmission country of origin +
2.0 CDTi (170 HP) 6-speed manual 4x4 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1956
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 170
Torque, Nm 400
RPM at max torque 1750-2500
Engine 2.0 CDTi
Compression 16.5
RPM at max power 3750
Turbo +
Engine code B20DTH

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Width (without mirrors) mm 1863

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.3
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6.3
Acceleration (0-100 km/h), s 9.9
The maximum speed, km / h. 220
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer General Motors
Transmission country of origin +
2.0 CDTi (170 HP) 8-speed automatic 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1956
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 170
Torque, Nm 400
RPM at max torque 1750-2500
Engine 2.0 CDTi
Compression 16.5
RPM at max power 3750
Turbo +
Engine code B20DTH

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Width (without mirrors) mm 1863

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.5
Fuel consumption (urban), l. 100 km 4.6
Fuel consumption (combined), l. 100 km 5.7
Acceleration (0-100 km/h), s 9.2
The maximum speed, km / h. 220
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.0 CDTi (210 HP) 8-speed automatic 4x4 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1956
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 210
Torque, Nm 480
RPM at max torque 1500
Engine 2.0 CDTi
Compression 16.5
RPM at max power 4000
Engine code B20DTR

Dimensions

Seats 5
Length mm 4986
Width 2093
Height mm 1500
Wheelbase mm 2829
Front track, mm 1607
Rear track, mm 1610
Trunk capacity, L 560
Fuel tank, l 62
Turning circle, m 11.7
Width (without mirrors) mm 1863

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.8
Fuel consumption (urban), l. 100 km 5.9
Fuel consumption (combined), l. 100 km 7
Acceleration (0-100 km/h), s 8
The maximum speed, km / h. 231
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
FAQ

Opel Insignia Sports Tourer questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Opel Insignia Sports Tourer?

This page lists 19 trims for the Opel Insignia Sports Tourer, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Opel Insignia Sports Tourer?

The listed configurations show a power range of 110-260 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Opel Insignia Sports Tourer?

The available specification data shows engine displacement from 1490-1998 cc across the trims listed on this page.

Which transmissions are listed for the Opel Insignia Sports Tourer?

The transmission options currently shown for this model are: 6, 8, 6-speed manual. Open a trim section to see the full data for a specific configuration.

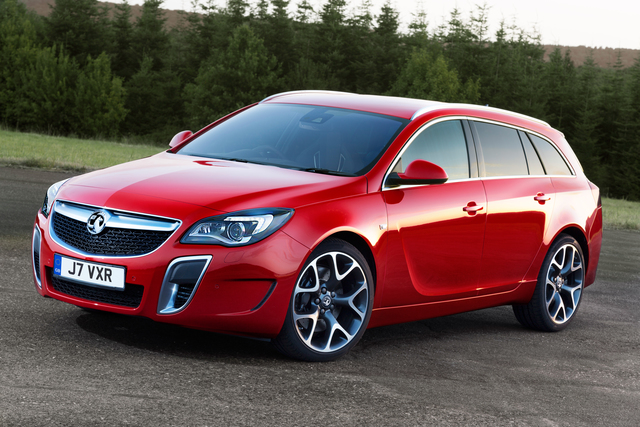

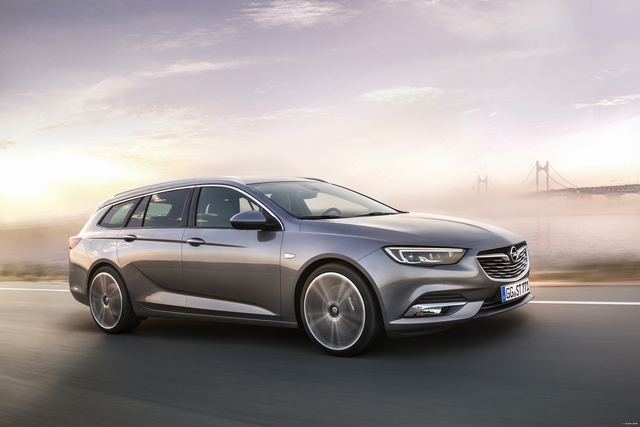

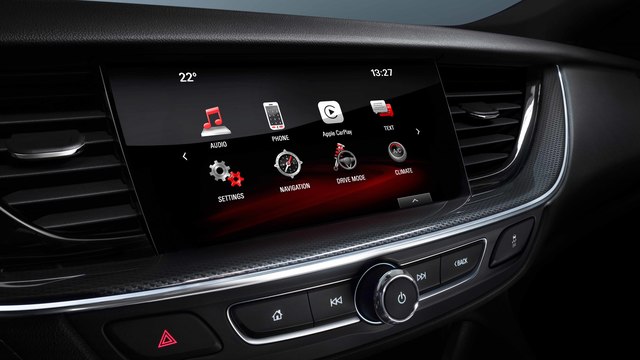

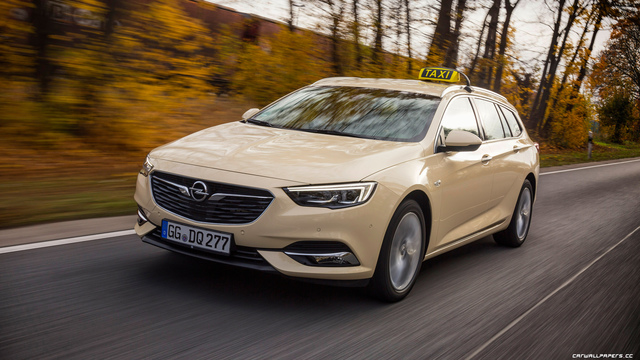

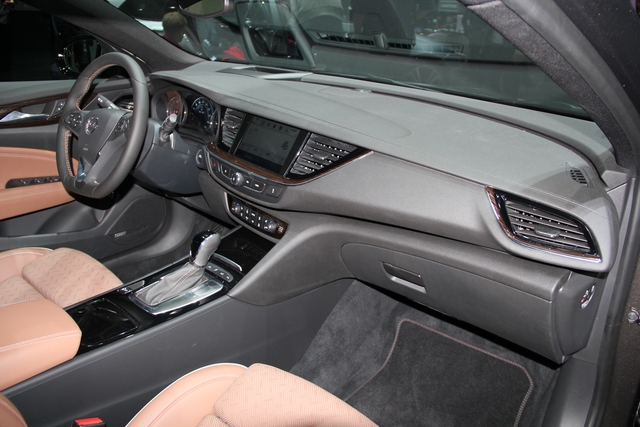

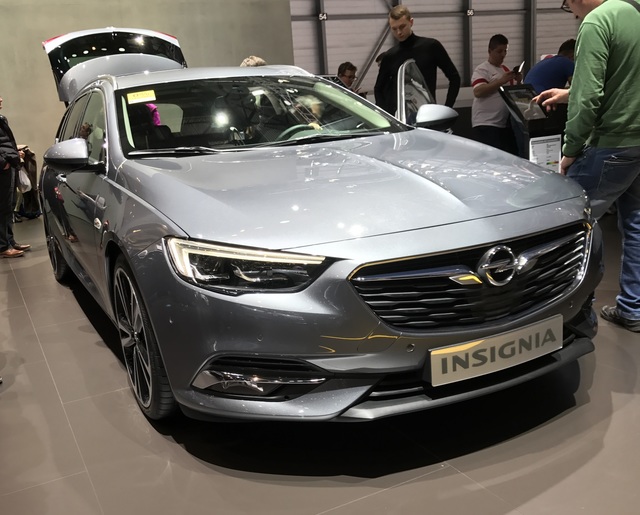

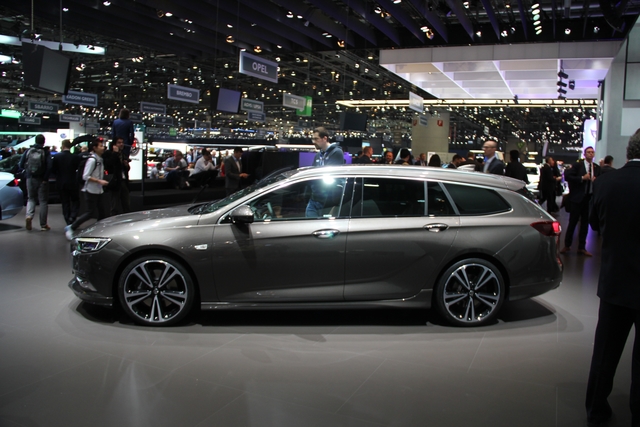

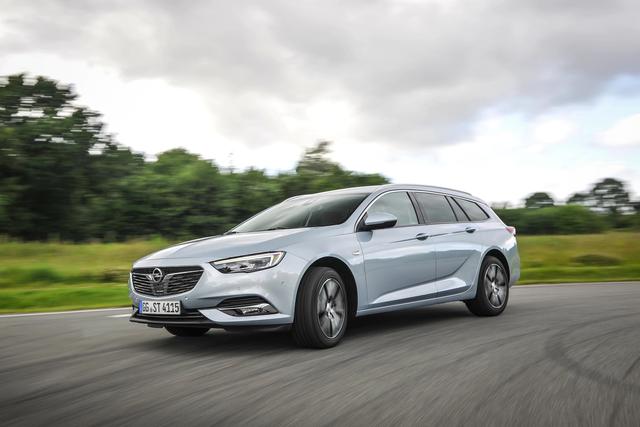

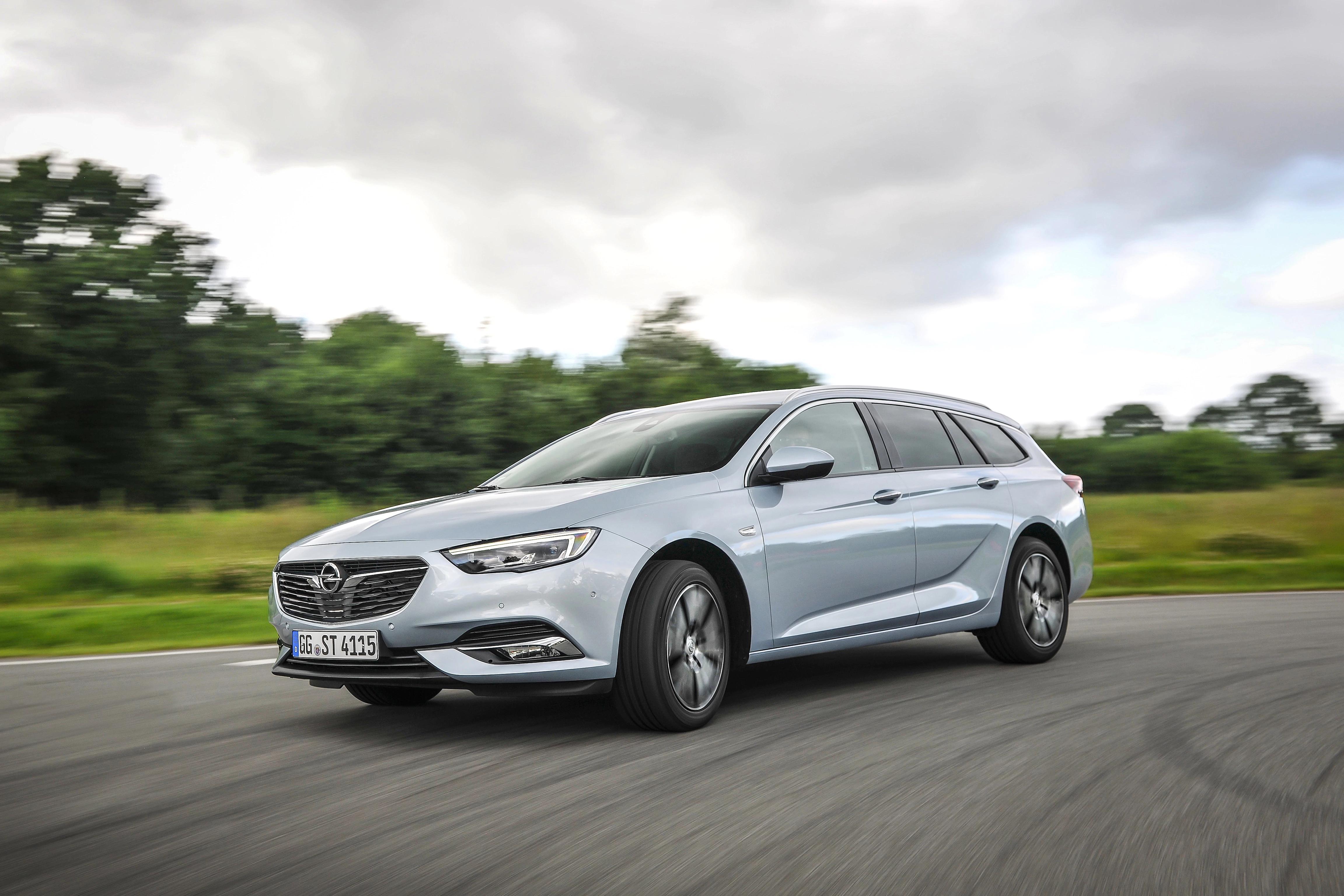

Are there photos for the Opel Insignia Sports Tourer?

Yes. The gallery includes 9 photos for the Opel Insignia Sports Tourer, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
