Peugeot 508 SW specifications and photos
The 2023 Peugeot 508 SW is a front-wheel-drive D-segment wagon that received a mid-cycle refresh to update its exterior styling and interior technology. Available in both traditional combustion and plug-in hybrid options, this family vehicle prioritizes modern aesthetics alongside daily usability.
Peugeot 508 SW at a glance
Quick model context before comparing photos and trim-level specifications.
Presented in February 2023, this facelifted model marks an evolutionary update for the second-generation Peugeot 508 SW. It targets buyers seeking a stylish alternative to mid-size crossovers, offering a low-slung wagon profile with a revised front fascia featuring claw-like daytime running lights. Underneath, the 508 SW maintains its front-wheel-drive platform and introduces updated tech systems, including Peugeot's updated i-Cockpit. The model comes with a selection of engines ranging from a compact three-cylinder petrol unit and a four-cylinder turbodiesel to two plug-in hybrid variations, all routing power through an eight-speed automatic transmission.
- Power: 130-225 hp
- Engine displacement: 1199-1598 cc
- Transmissions: 8-speed automatic
- Seating: 5 seats
Photos, trims and specifications for Peugeot 508 SW
This model page brings gallery images, trim comparison, and detailed technical data together for the 2023 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
Peugeot 508 SW overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

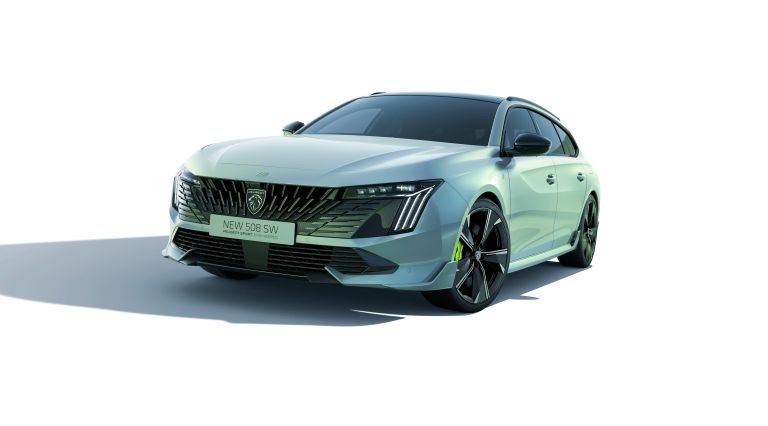

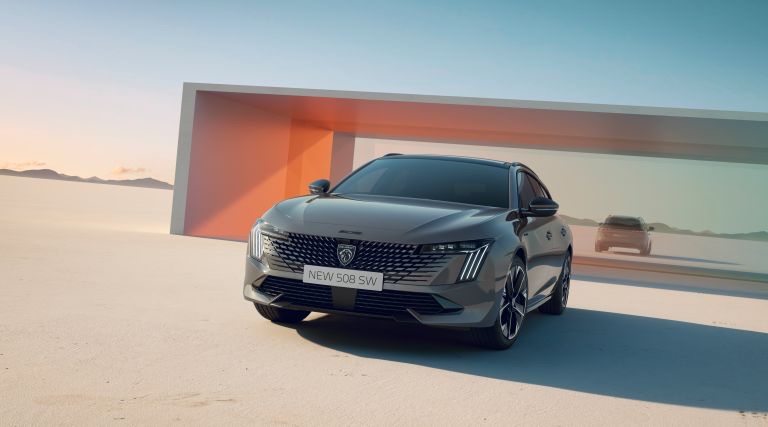

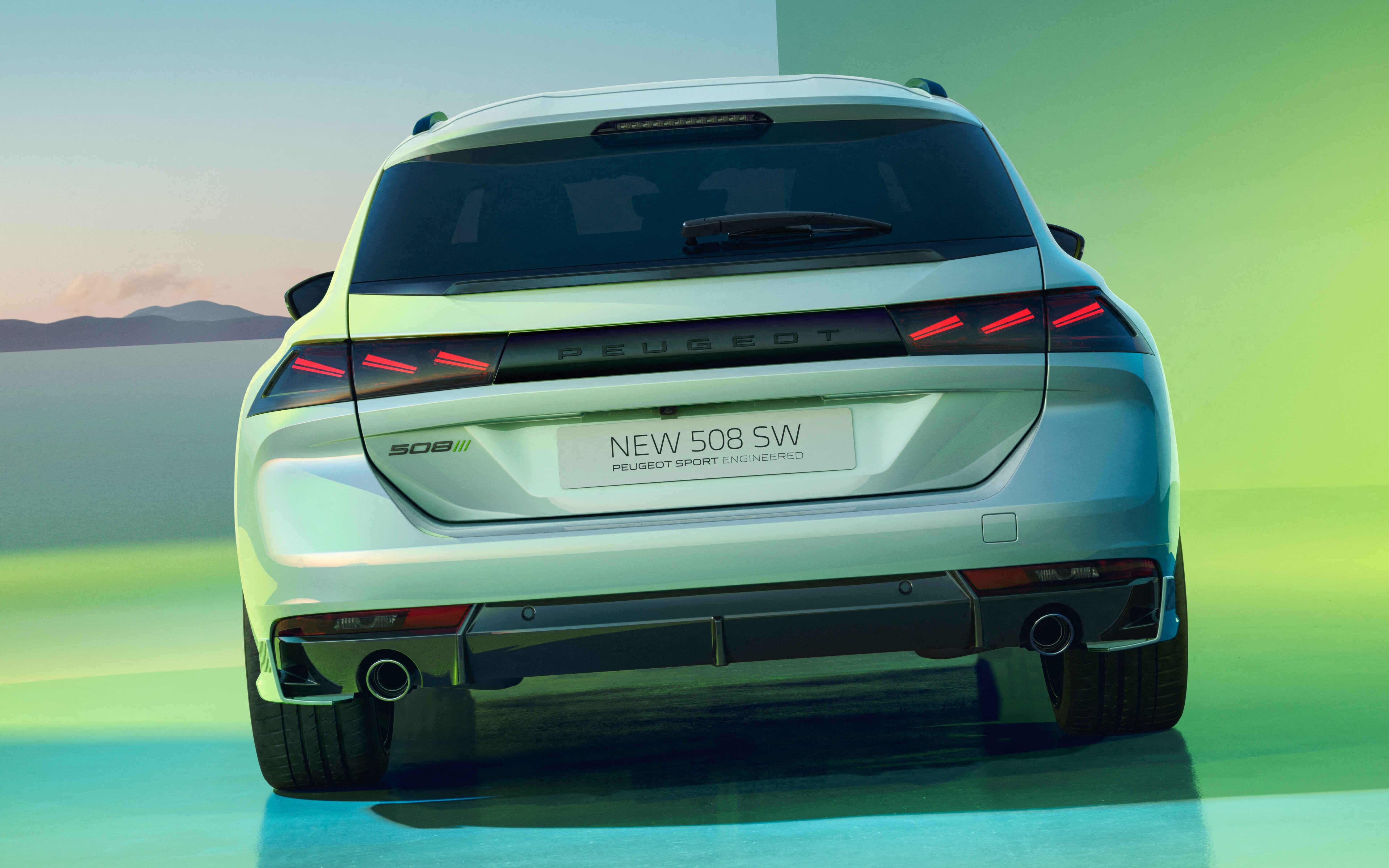

The exterior refresh centers on a redesigned front section featuring an aggressive black grille and new matrix LED headlights with Peugeot's signature three-claw daytime running light signature. The rear highlights revised lighting elements and standard 18-inch Epherra alloy wheels optimized for aerodynamic efficiency. Peugeot has also updated its brand badges with a basalt grey color finish. Buyers can select from seven paint options, which include three newly introduced shades: Okenite White, Eclipse Blue, and Titanium Grey.
Interior
Inside the cabin, the updated i-Cockpit layout includes refreshed digital instrument graphics and a central 10-inch touchscreen. This screen hosts the Peugeot i-Connect Advanced infotainment system, which features TomTom navigation, voice command capabilities, and over-the-air software updates. While standard models maintain a 530-liter cargo capacity to support everyday utility, the layout remains focused on driver ergonomics and a low-slung, premium-feeling cabin layout.
Performance
The engine lineup offers traditional internal combustion and plug-in hybrid drivetrains, all paired with an eight-speed automatic transmission. The petrol range features a 1.2-liter PureTech three-cylinder engine producing 130 horsepower and 230 Nm of torque, while the diesel alternative is a 1.5-liter BlueHDi four-cylinder engine generating 130 horsepower and 300 Nm of torque. Two plug-in hybrid variants are available, producing combined outputs of 180 horsepower and 225 horsepower respectively. Both hybrids utilize a 12.4 kWh battery pack to enable short-distance electric-only driving.
Practicality
As a D-segment wagon, the 508 SW is designed with daily utility in mind, providing seating for five passengers and a 530-liter trunk space. The low loading lip of the wagon body style makes loading cargo easier compared to standard SUVs, while its 4,778 mm length ensures stable highway cruising and ample passenger space. The vehicle maintains a fuel-efficient character, with the diesel variant averaging 5.2 liters per 100 kilometers on a mixed cycle.
Safety and tech
The 508 SW includes a comprehensive suite of driver assist features. Key technologies include adaptive cruise control with a Stop&Go function for highway traffic, active emergency braking functional up to 140 km/h, and a night vision system designed to detect pedestrians and animals in low-light conditions. A 360-degree camera setup assists with low-speed maneuvering and parking, while blind-spot monitoring helps maintain highway safety.
Buyer notes
When deciding between configurations, buyers should weigh the efficiency of the hybrid models against the simplicity of the standard combustion engines. The plug-in hybrid options provide zero-emission city driving capabilities but require regular charging to maximize their economic benefits. Standard models like the 1.5-liter diesel remain highly efficient highway cruisers for long-distance drivers. Equipment availability, safety package inclusions, and specific trim levels may vary depending on the local market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.2 PureTech (130 hp) 8-speed automatic | 1199 cc | 130 hp | 5 | 8-speed automatic |
| 1.6 Plug-in Hybrid (180 hp) 8-speed automatic | 1598 cc | 180 hp | 5 | 8-speed automatic |
| 1.6 Plug-in Hybrid (225 hp) 8-speed automatic | 1598 cc | 225 hp | 5 | 8-speed automatic |
| 1.5 BlueHDi (130 hp) 8-speed automatic | 1499 cc | 130 hp | 5 | 8-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

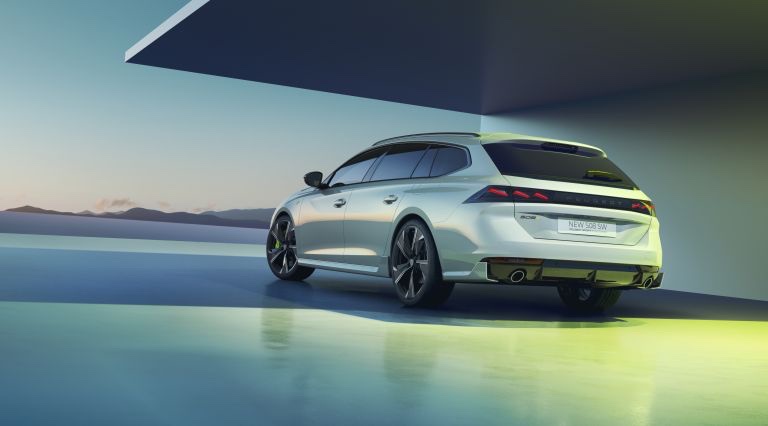

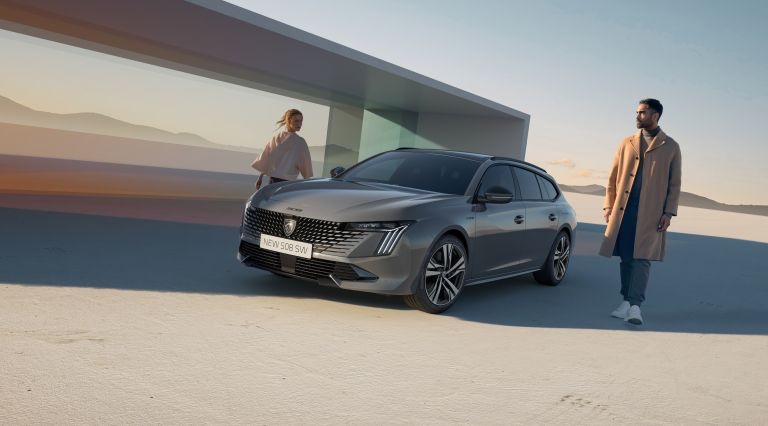

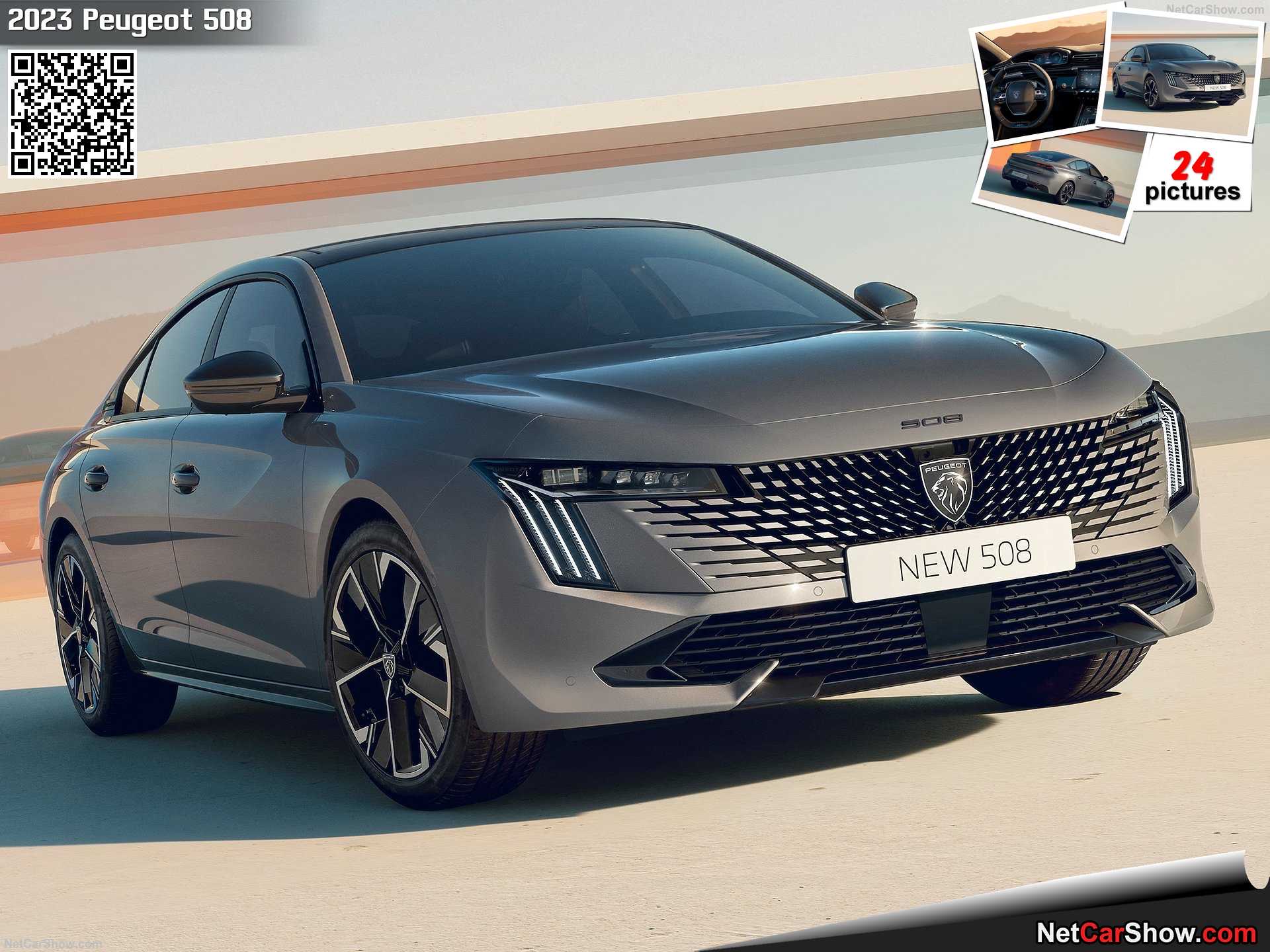

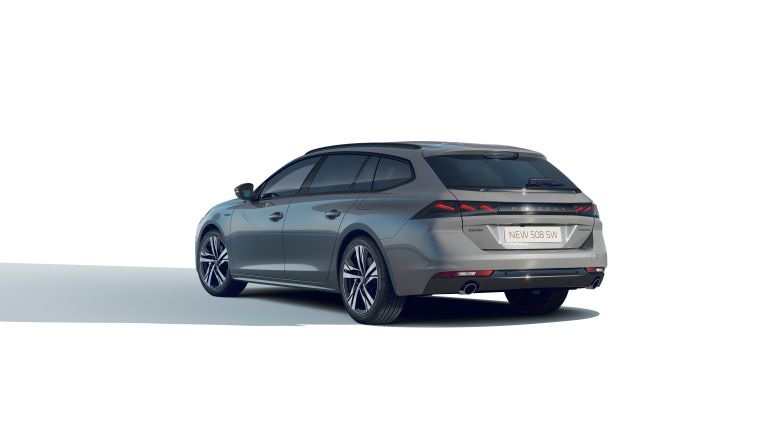

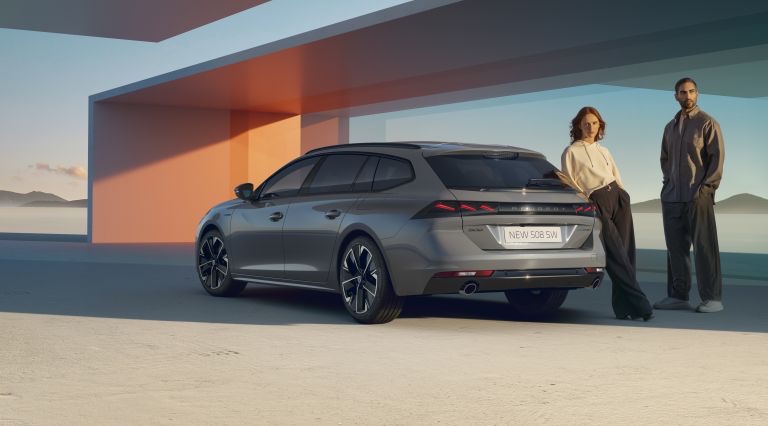

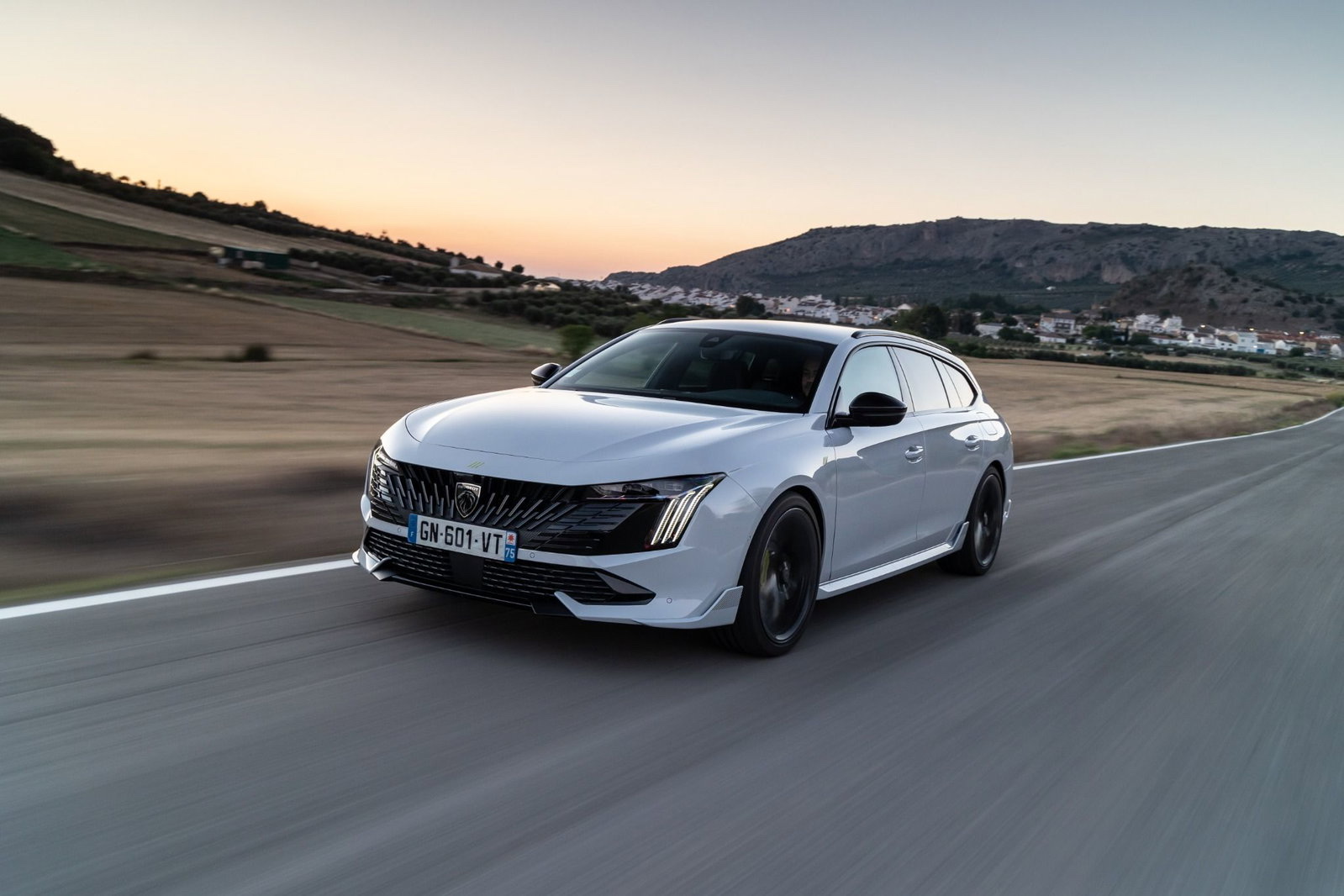

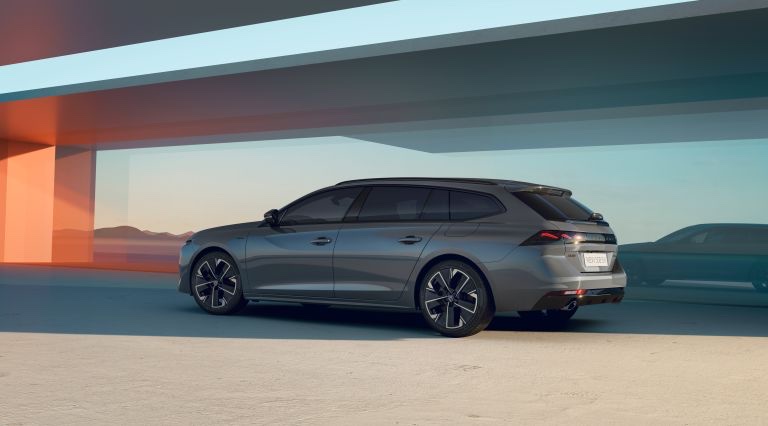

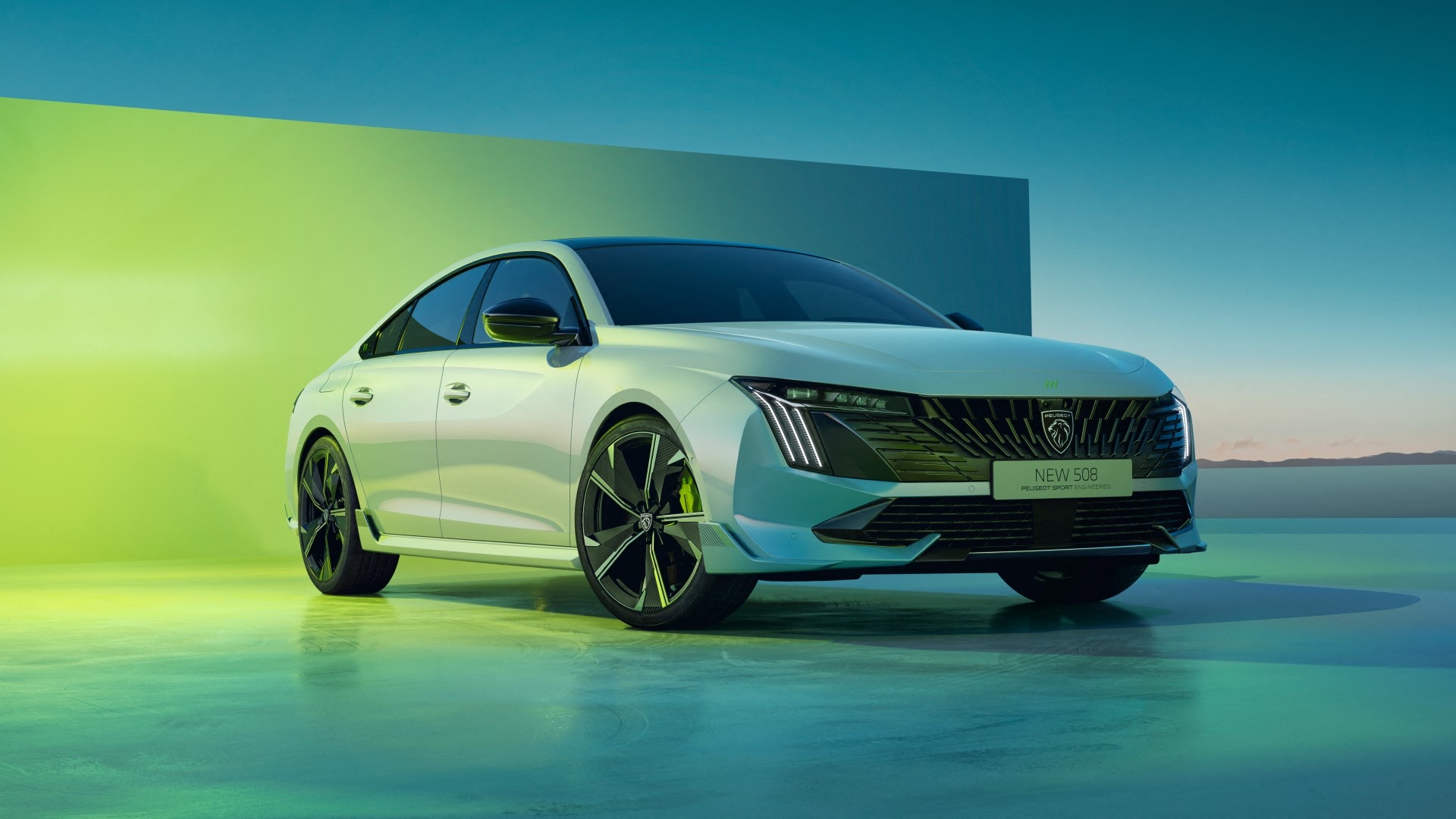

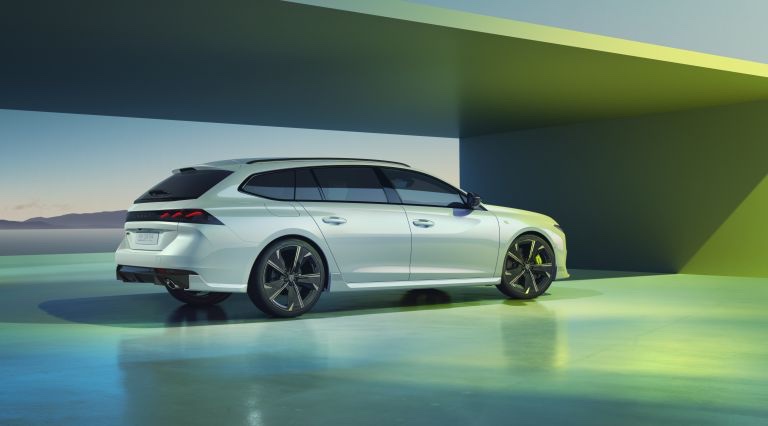

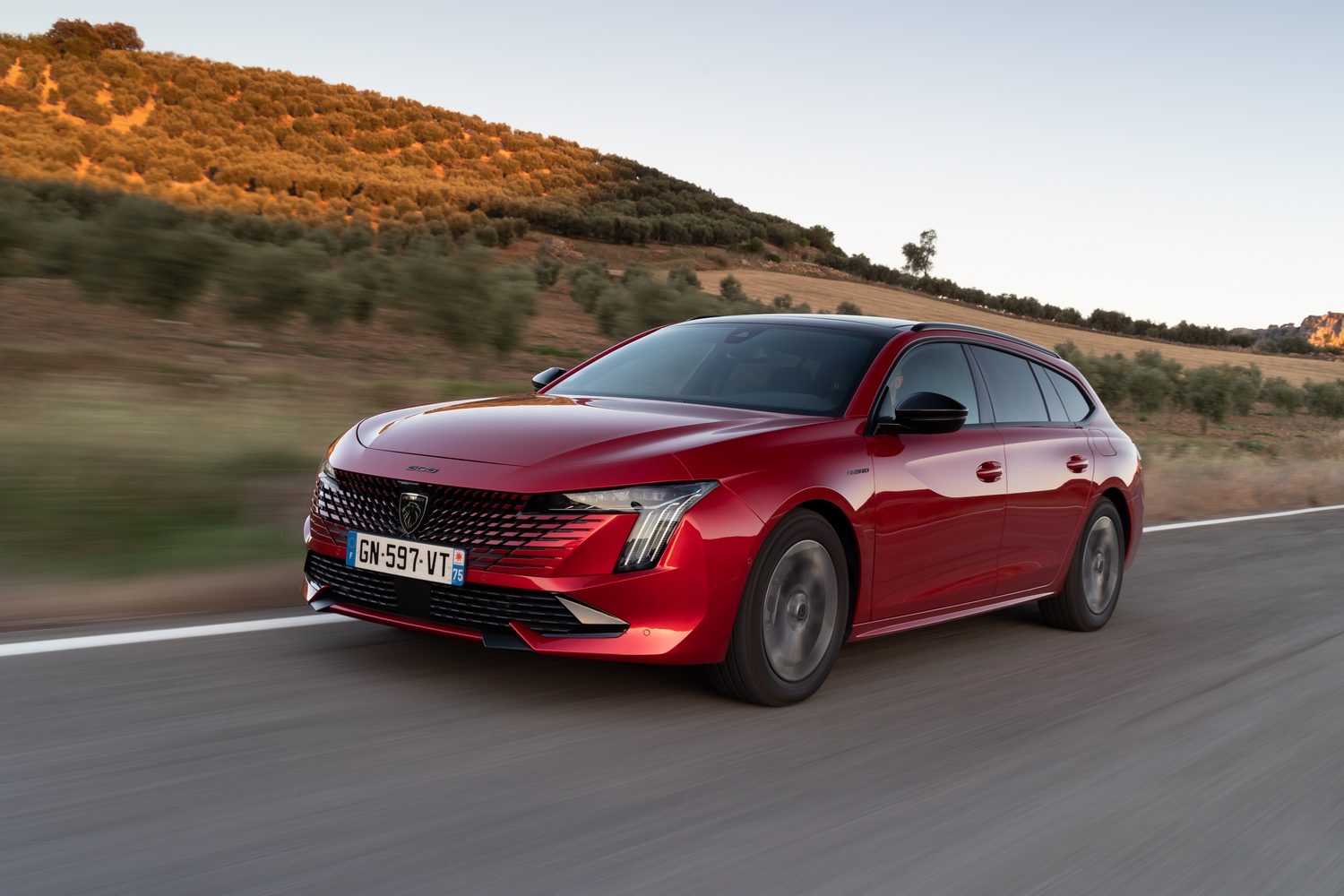

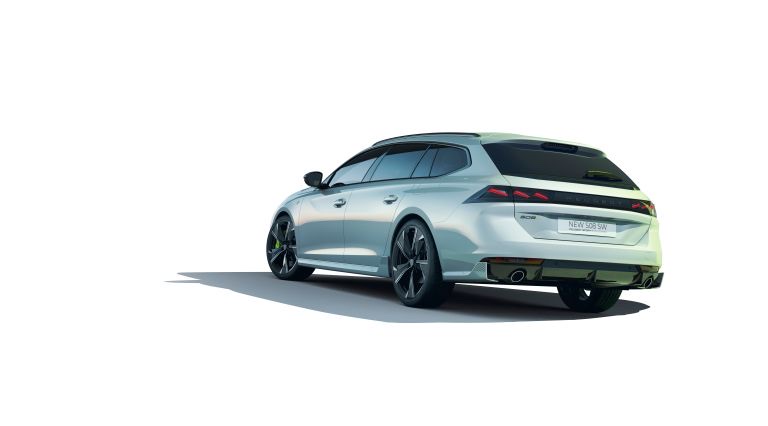

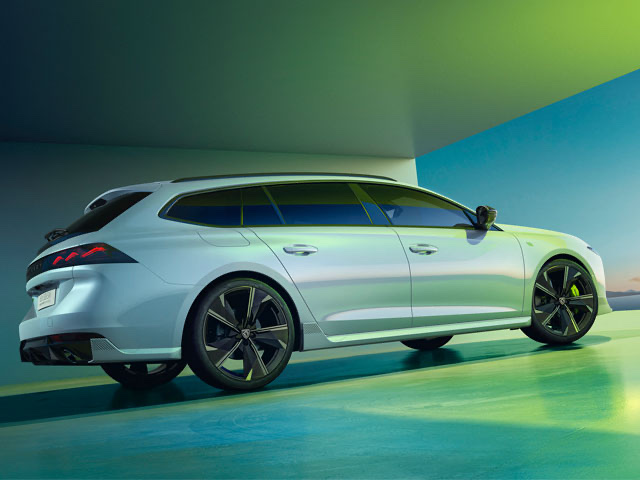

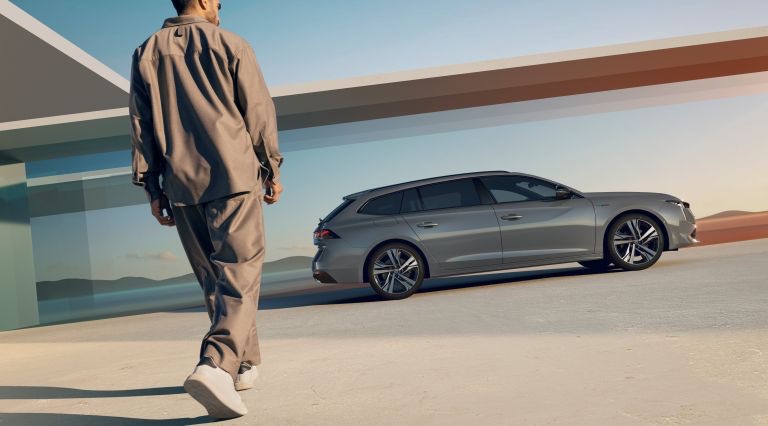

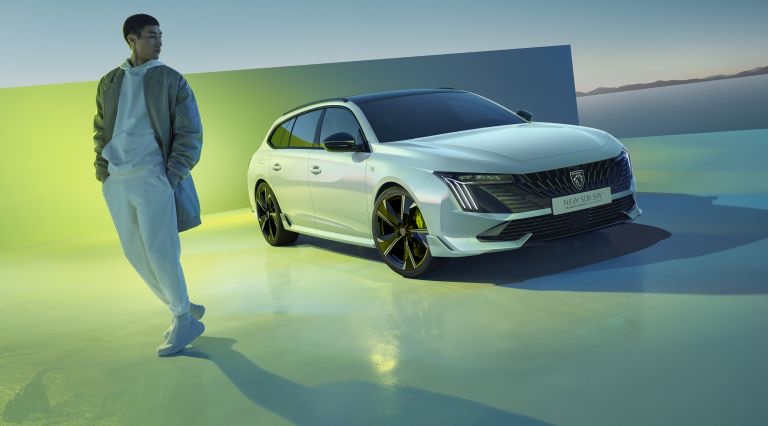

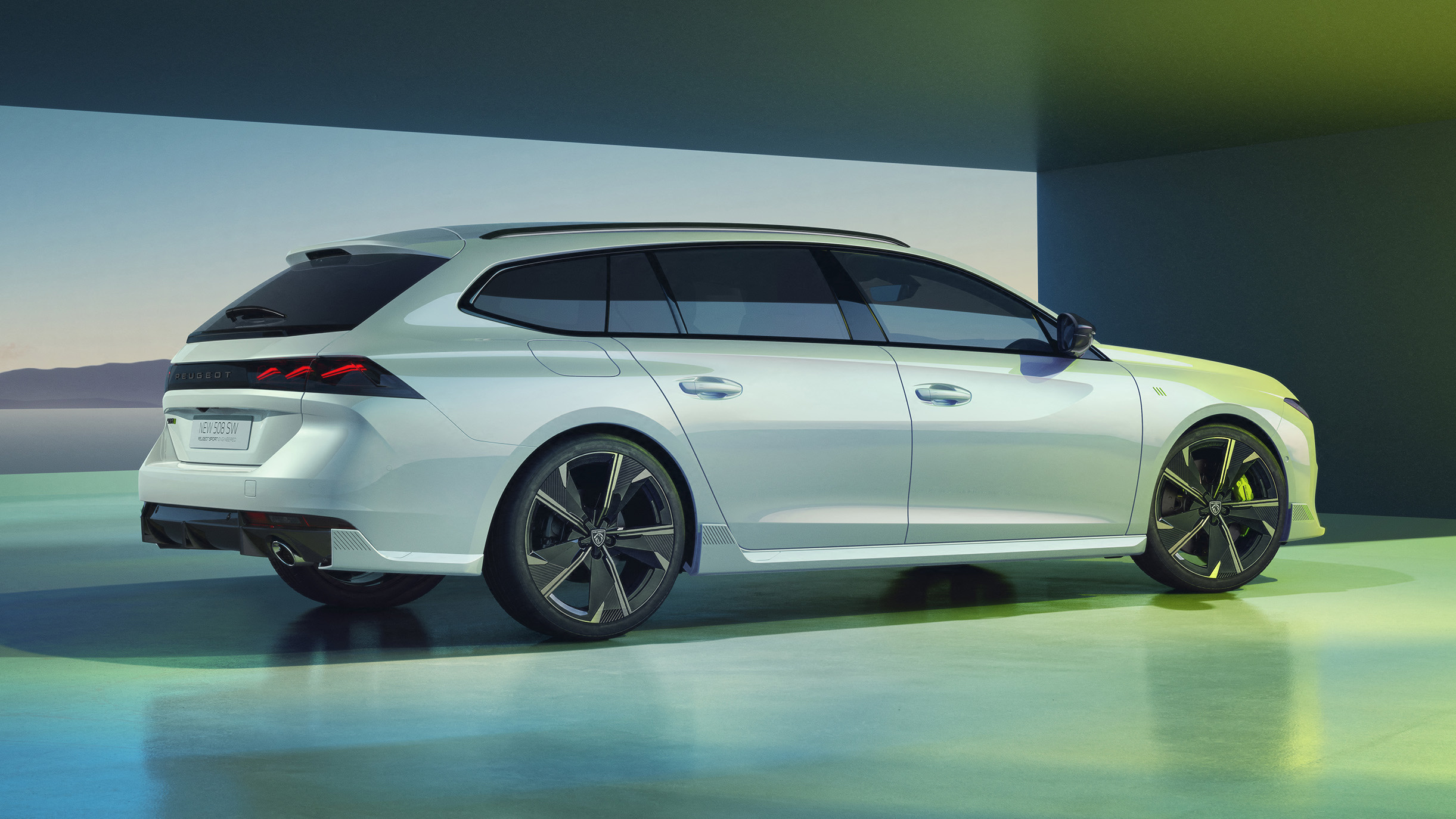

Peugeot 508 SW photo gallery
20 images are collected here with the main specifications and trim data for this model.

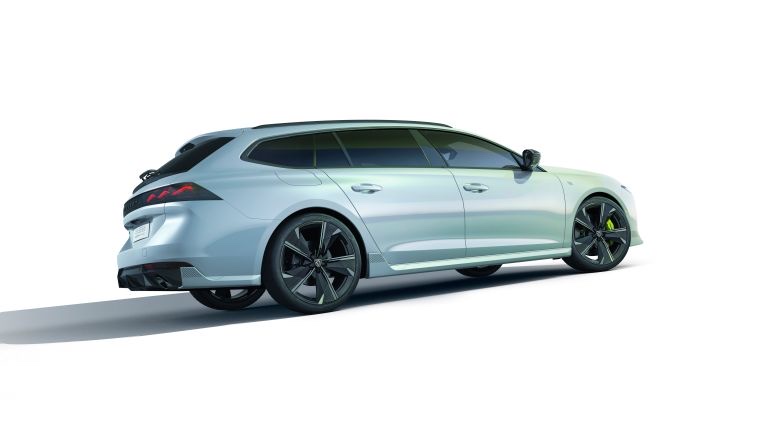

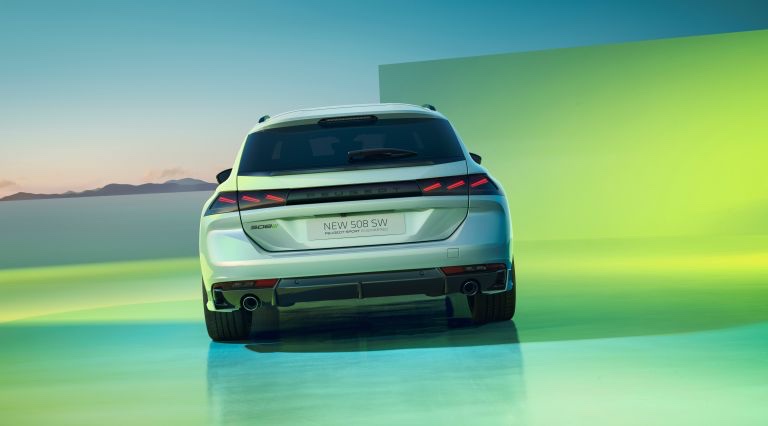

Photo Peugeot 508 SW
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.2 PureTech (130 hp) 8-speed automatic 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6 |
|---|---|
| Top speed, km/h | 280 |
| Acceleration 0-100 km/h, s | 10.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.2 PureTech |
|---|---|
| Engine code | EB2DTS |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1199 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Turbocharger | + |
| Power, hp | 130 |
| RPM at max power | 5500 |
| Torque, Nm | 230 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4778 |
| Width, mm | 2079 |
| Height, mm | 1420 |
| Wheelbase, mm | 2793 |
| Kerb weight, kg | 1530 |
| Gross weight, kg | 1970 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 10.8 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 530 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
1.6 Plug-in Hybrid (180 hp) 8-speed automatic 39 specifications
Specifications
Performance and consumption
| Top speed, km/h | 230 |
|---|---|
| Acceleration 0-100 km/h, s | 8.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.6 Plug-in Hybrid |
|---|---|
| Engine code | 5G06 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 180 |
| Torque, Nm | 360 |
| Electric motor power, hp | 100 |
| Combustion engine power, hp | 150 |
| Combustion engine RPM at max power | 6000 |
| Combustion engine torque, Nm | 300 |
| Combustion engine RPM at max torque | 3000 |
| Electric motor torque, Nm | 320 |
| Electric motor RPM at max torque | 500-2500 |
| Electric motor RPM at max power | 2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4778 |
| Width, mm | 2079 |
| Height, mm | 1420 |
| Wheelbase, mm | 2793 |
| Kerb weight, kg | 1530 |
| Gross weight, kg | 1970 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 10.8 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 530 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
1.6 Plug-in Hybrid (225 hp) 8-speed automatic 39 specifications
Specifications
Performance and consumption
| Top speed, km/h | 240 |
|---|---|
| Acceleration 0-100 km/h, s | 8 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.6 Plug-in Hybrid |
|---|---|
| Engine code | 5G06 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 225 |
| Torque, Nm | 360 |
| Electric motor power, hp | 180 |
| Combustion engine power, hp | 110 |
| Combustion engine RPM at max power | 2500 |
| Combustion engine torque, Nm | 320 |
| Combustion engine RPM at max torque | 500-2500 |
| Electric motor torque, Nm | 300 |
| Electric motor RPM at max torque | 3000 |
| Electric motor RPM at max power | 6000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4778 |
| Width, mm | 2079 |
| Height, mm | 1420 |
| Wheelbase, mm | 2793 |
| Kerb weight, kg | 1530 |
| Gross weight, kg | 1970 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 10.8 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 530 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
1.5 BlueHDi (130 hp) 8-speed automatic 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.2 |
|---|---|
| Top speed, km/h | 208 |
| Acceleration 0-100 km/h, s | 11.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 BlueHDi |
|---|---|
| Engine code | DV5RC |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1499 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 130 |
| RPM at max power | 3750 |
| Torque, Nm | 300 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4778 |
| Width, mm | 2079 |
| Height, mm | 1420 |
| Wheelbase, mm | 2793 |
| Kerb weight, kg | 1530 |
| Gross weight, kg | 1970 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 10.8 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 530 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
Peugeot 508 SW questions
Short answers based on the specifications and photos available in this catalog.
What body style is the Peugeot 508 SW?
The Peugeot 508 SW is a D-segment, front-wheel-drive station wagon designed for family utility and highway cruising.
What is the cargo capacity of the 2023 Peugeot 508 SW?
The vehicle offers a trunk space capacity of 530 liters, which can be expanded to accommodate larger items.
What hybrid engine options are available for the 508 SW?
The 2023 model offers two plug-in hybrid drivetrains with total system outputs of 180 horsepower and 225 horsepower, both utilizing a 12.4 kWh battery.
Does the 508 SW come with an automatic transmission?
Yes, all engine variants, including the petrol, diesel, and plug-in hybrids, are paired with an eight-speed automatic gearbox.
What safety features are included in the 2023 model?
Safety systems include adaptive cruise control with Stop&Go, active emergency braking, a 360-degree camera, blind-spot monitoring, and a night vision camera for detecting pedestrians and wildlife.
