Overview
Toyota C-HR at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Toyota C-HR page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 116-184 hp and 1197-1987 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
Power: 116-184 hpEngine displacement: 1197-1987 ccTransmissions: 6-speed manualSeating: 5 seats
Configurations
Trims and key specifications
Use this table to compare the main differences between available configurations.
Power
116-184 hp
Engine displacement
1197-1987 cc
Seating
5 seats
Transmissions
6-speed manual
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Gallery

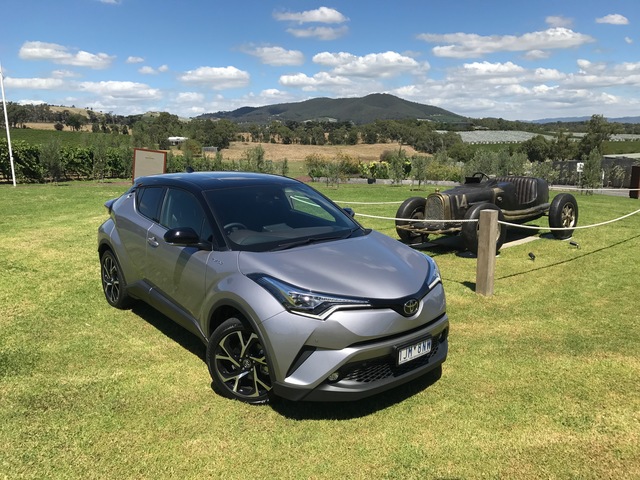

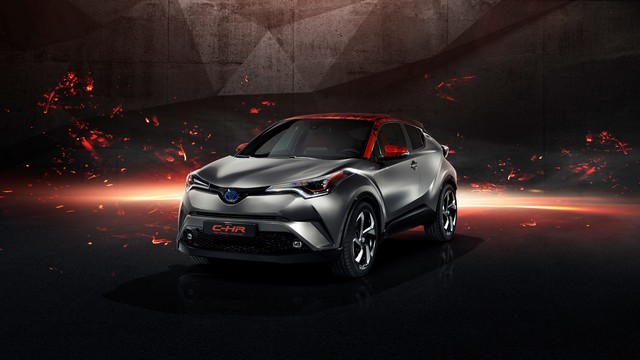

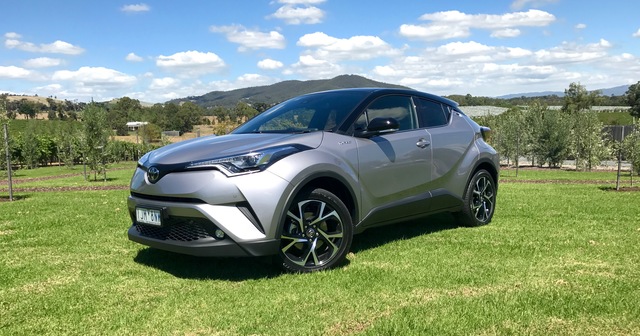

Toyota C-HR photo gallery
42 images are collected here with the main specifications and trim data for this model.

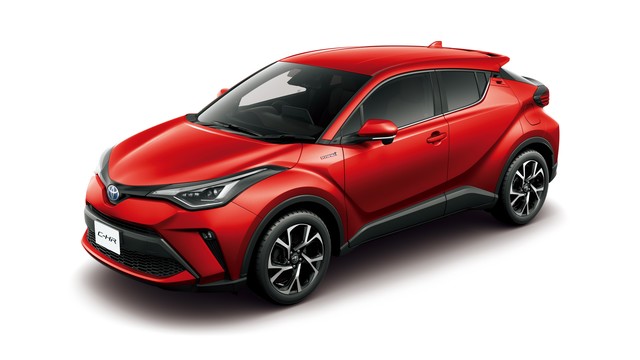

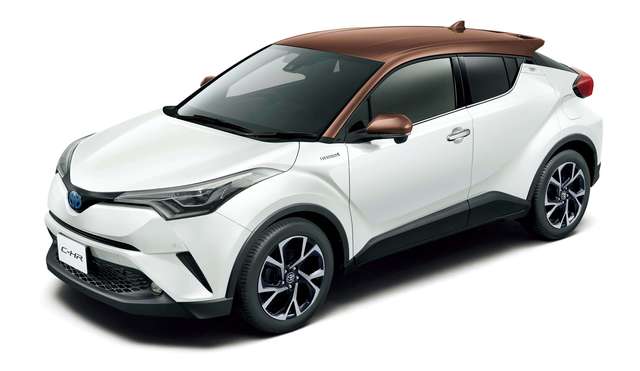

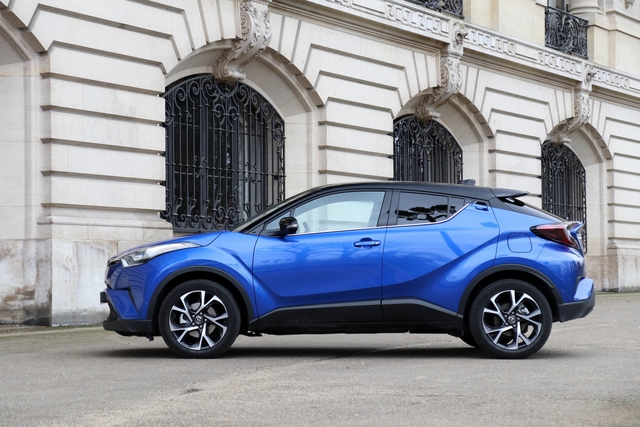

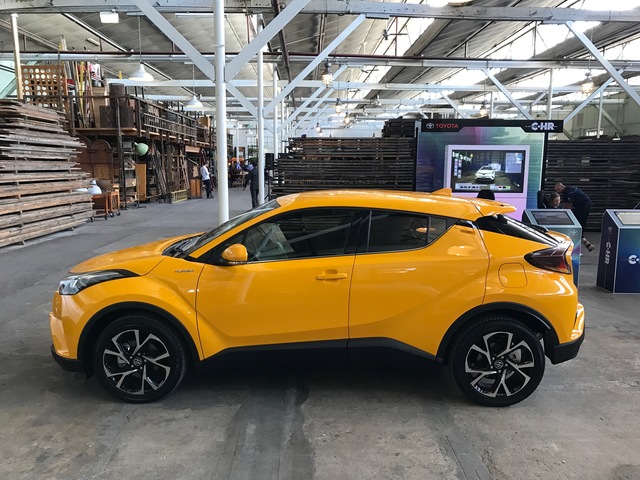

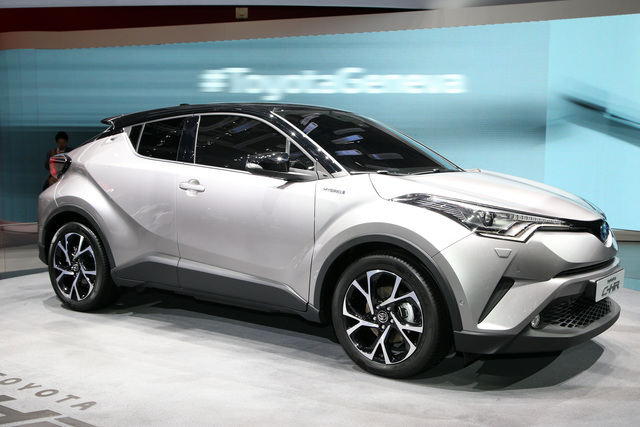

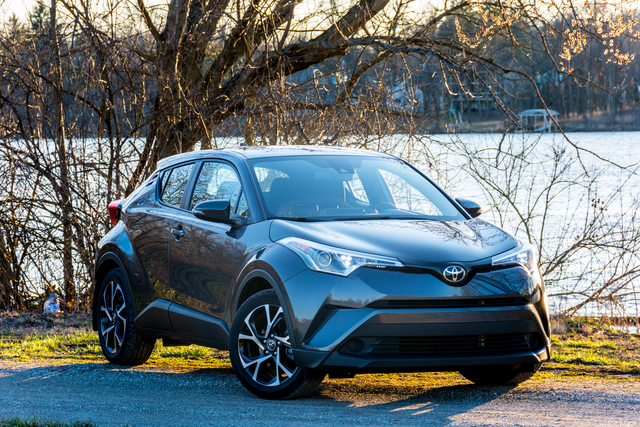

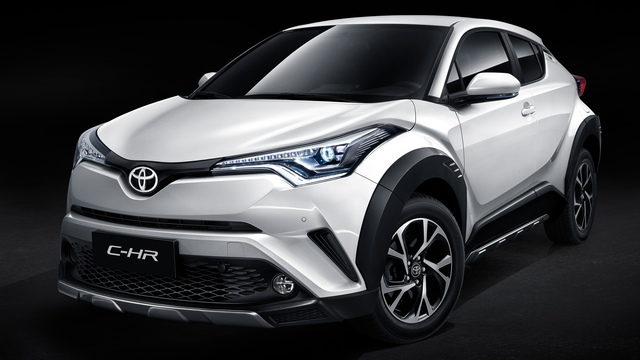

Photo Toyota C-HR
×
‹
›
Detailed specs
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.2i AT Active
101 specifications
Specifications
Engine
Type of engine
ICE
Type of fuel
Gasoline
Displacement, cc
1197
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
116
Torque, Nm
185
RPM at max torque
1500-4000
Engine
1.2 D-4T
RPM at max power
5200-5600
Turbo
+
Engine code
8NR-FTS
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Kerb weight, kg
1510
Trunk capacity, L
297
Fuel tank, l
50
Turning circle, m
11
Ground clearance, mm
154
Gross weight, kg
1865
Width (without mirrors) mm
1795
Suspension
Type of front suspension
Independent, spring with MacPherson struts and anti-roll bar
Rear suspension
Independent, spring with two double wishbones and anti-roll bar
Brake system
The front brakes
Ventilated disc
Rear brakes
Disk
Steering
Power steering
Electric power
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
8
Fuel consumption (urban), l. 100 km
5.7
Fuel consumption (combined), l. 100 km
6.6
Acceleration (0-100 km/h), s
11.1
The maximum speed, km / h.
185
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
Multidrive S
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
Equipment
Comfort
Tyre pressure monitoring
+
Active Cruise Control (ACC)
+
Multi-function steering wheel
+
Adjustable steering column
+
Electromechanical parking brake
+
Interior
Multi-information display in the instrument panel
+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)
+
Wheels
Disc diameter
17
Rim type
Alloy
Tires
215/60R17
Cabin climate and noise insulation
2-zone automatic climate control
+
Heated steering wheel
+
Glass, mirrors and sunroof
Front power windows
+
The rain sensor
+
Heated side mirrors
+
Power mirrors
+
Rear electric windows
+
heating zone brushes windshield
+
Multimedia and instruments
Radio
+
Audio
Toyota Touch 2;
Touch Screen
+
Bluetooth hands free
+
USB
+
Number of speakers
6
MP3
+
Apple CarPlay / Android Auto
+
Headlights and lighting
Washers
+
Front fog lights
+
LED headlights
+
Light sensor
+
LED lights daylight
+
System of automatic inclusion / switching off of a high beam (HBC, HBA)
+
Seats
Power lumbar support for the driver's seat
+
Armrest front
+
height-adjustable driver's seat
+
Isofix child seat (LATCH, Isofix)
+
Passenger seat height adjustable
+
The back of the rear seat folds 60/40
+
Visibility and parking
Rear Parking Sensors
+
Parking aid front
+
Rearview Camera + display with dynamic projection
+
Off-road
aid climbing the hill (HAC; HSA; Hill Holder; HLA)
+
Security
Electronic systems
Anti-lock braking system (ABS)
+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)
+
Traction Control System (Traction control, ASR)
+
The emergency braking (Brake Assist)
+
Vehicle Stability Control (ESP, DSC, ESC, VSC)
+
Children's locks
+
Warning System Lane Departure (LDW; LDWS)
+
Pre-alarm system (PCS)
+
The recognition of driver fatigue
+
Lane Assist
+
Anti-theft systems
alarm
+
Central locking with remote control
+
Airbags
Driver's airbag
+
Passenger Airbag
+
Side airbags
+
Curtain airbags
+
1.2i AT Style
106 specifications
Specifications
Engine
Type of engine
ICE
Type of fuel
Gasoline
Displacement, cc
1197
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
116
Torque, Nm
185
RPM at max torque
1500-4000
Engine
1.2 D-4T
RPM at max power
5200-5600
Turbo
+
Engine code
8NR-FTS
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Kerb weight, kg
1510
Trunk capacity, L
297
Fuel tank, l
50
Turning circle, m
11
Ground clearance, mm
154
Gross weight, kg
1865
Width (without mirrors) mm
1795
Suspension
Type of front suspension
Independent, spring with MacPherson struts and anti-roll bar
Rear suspension
Independent, spring with two double wishbones and anti-roll bar
Brake system
The front brakes
Ventilated disc
Rear brakes
Disk
Steering
Power steering
Electric power
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
8
Fuel consumption (urban), l. 100 km
5.7
Fuel consumption (combined), l. 100 km
6.6
Acceleration (0-100 km/h), s
11.1
The maximum speed, km / h.
185
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
Multidrive S
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
Equipment
Comfort
Tyre pressure monitoring
+
Start / Stop button for starting and stopping the engine
+
Active Cruise Control (ACC)
+
Multi-function steering wheel
+
Adjustable steering column
+
System access and keyless start (Smart Entry)
+
Electromechanical parking brake
+
Interior
Multi-information display in the instrument panel
+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)
+
Wheels
Disc diameter
17
Rim type
Alloy
Tires
215/60R17
Cabin climate and noise insulation
2-zone automatic climate control
+
Heated steering wheel
+
Glass, mirrors and sunroof
Front power windows
+
The rain sensor
+
Heated side mirrors
+
Power mirrors
+
Rear electric windows
+
Electric folding mirrors
+
heating zone brushes windshield
+
Tinted glass
+
Multimedia and instruments
Radio
+
Audio
Toyota Touch 2;
Touch Screen
+
Bluetooth hands free
+
USB
+
Number of speakers
6
MP3
+
Apple CarPlay / Android Auto
+
Headlights and lighting
Washers
+
Front fog lights
+
LED headlights
+
Light sensor
+
Rear LED lights
+
LED lights daylight
+
System of automatic inclusion / switching off of a high beam (HBC, HBA)
+
Seats
Power lumbar support for the driver's seat
+
Armrest front
+
height-adjustable driver's seat
+
Isofix child seat (LATCH, Isofix)
+
Passenger seat height adjustable
+
The back of the rear seat folds 60/40
+
Visibility and parking
Rear Parking Sensors
+
Parking aid front
+
Rearview Camera + display with dynamic projection
+
Off-road
aid climbing the hill (HAC; HSA; Hill Holder; HLA)
+
Security
Electronic systems
Anti-lock braking system (ABS)
+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)
+
Traction Control System (Traction control, ASR)
+
The emergency braking (Brake Assist)
+
Vehicle Stability Control (ESP, DSC, ESC, VSC)
+
Children's locks
+
Warning System Lane Departure (LDW; LDWS)
+
Pre-alarm system (PCS)
+
The recognition of driver fatigue
+
Lane Assist
+
Anti-theft systems
alarm
+
Central locking with remote control
+
Airbags
Driver's airbag
+
Passenger Airbag
+
Side airbags
+
Curtain airbags
+
1.2i AT Premium
111 specifications
Specifications
Engine
Type of engine
ICE
Type of fuel
Gasoline
Displacement, cc
1197
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
116
Torque, Nm
185
RPM at max torque
1500-4000
Engine
1.2 D-4T
RPM at max power
5200-5600
Turbo
+
Engine code
8NR-FTS
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Kerb weight, kg
1510
Trunk capacity, L
297
Fuel tank, l
50
Turning circle, m
11
Ground clearance, mm
154
Gross weight, kg
1865
Width (without mirrors) mm
1795
Suspension
Type of front suspension
Independent, spring with MacPherson struts and anti-roll bar
Rear suspension
Independent, spring with two double wishbones and anti-roll bar
Brake system
The front brakes
Ventilated disc
Rear brakes
Disk
Steering
Power steering
Electric power
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
8
Fuel consumption (urban), l. 100 km
5.7
Fuel consumption (combined), l. 100 km
6.6
Acceleration (0-100 km/h), s
11.1
The maximum speed, km / h.
185
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
Multidrive S
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
Equipment
Comfort
Tyre pressure monitoring
+
Start / Stop button for starting and stopping the engine
+
Active Cruise Control (ACC)
+
Multi-function steering wheel
+
Adjustable steering column
+
System access and keyless start (Smart Entry)
+
Electromechanical parking brake
+
Interior
Multi-information display in the instrument panel
+
Perforated leather interior
+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)
+
Wheels
Disc diameter
17
Rim type
Alloy
Tires
215/60R17
Cabin climate and noise insulation
2-zone automatic climate control
+
Heated steering wheel
+
Glass, mirrors and sunroof
Front power windows
+
The rain sensor
+
Heated side mirrors
+
Power mirrors
+
Rear electric windows
+
Electric folding mirrors
+
heating zone brushes windshield
+
Tinted glass
+
Multimedia and instruments
Radio
+
Audio
Toyota Touch 2;
Touch Screen
+
Bluetooth hands free
+
USB
+
Number of speakers
6
MP3
+
Apple CarPlay / Android Auto
+
Headlights and lighting
Washers
+
corrector of headlights
+
Front fog lights
+
LED headlights
+
Light sensor
+
Rear LED lights
+
LED lights daylight
+
System of automatic inclusion / switching off of a high beam (HBC, HBA)
+
Seats
Power lumbar support for the driver's seat
+
Armrest front
+
Power driver's seat
+
height-adjustable driver's seat
+
Isofix child seat (LATCH, Isofix)
+
Passenger seat height adjustable
+
The back of the rear seat folds 60/40
+
Visibility and parking
Rear Parking Sensors
+
Parking aid front
+
Rearview Camera + display with dynamic projection
+
Off-road
aid climbing the hill (HAC; HSA; Hill Holder; HLA)
+
Security
Electronic systems
Anti-lock braking system (ABS)
+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)
+
Traction Control System (Traction control, ASR)
+
The emergency braking (Brake Assist)
+
Vehicle Stability Control (ESP, DSC, ESC, VSC)
+
Children's locks
+
Warning System Lane Departure (LDW; LDWS)
+
Pre-alarm system (PCS)
+
control system "blind zones" (RVM, BSM)
+
The recognition of driver fatigue
+
Lane Assist
+
Adaptive Road Lighting System (AFS, SRH)
+
Anti-theft systems
alarm
+
Central locking with remote control
+
Airbags
Driver's airbag
+
Passenger Airbag
+
Side airbags
+
Curtain airbags
+
1.8 AT Active
106 specifications
Specifications
Engine
Type of engine
Hybrid
Type of fuel
Gasoline
Displacement, cc
1798
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
122
Engine
1.8 Hybrid
Compression
13.0
Power electric motor HP
72
the motor torque Nm
163
Engine power, hp
98
Revolutions max. Engine power, vol. / min.
5200
the engine torque, Nm
142
Revolutions max. engine torque, vol. / min.
3600
Engine code
2ZR-FXE
EV-mode
+
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Kerb weight, kg
1535
Trunk capacity, L
297
Fuel tank, l
43
Turning circle, m
11
Ground clearance, mm
142
Gross weight, kg
1860
Width (without mirrors) mm
1795
Suspension
Type of front suspension
Independent, spring with MacPherson struts and anti-roll bar
Rear suspension
Independent, spring with two double wishbones and anti-roll bar
Brake system
The front brakes
Ventilated disc
Rear brakes
Disk
Steering
Power steering
Electric power
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
3.8
Fuel consumption (urban), l. 100 km
4.5
Fuel consumption (combined), l. 100 km
4.2
Acceleration (0-100 km/h), s
11
The maximum speed, km / h.
170
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
CVT
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
Equipment
Comfort
Tyre pressure monitoring
+
Start / Stop button for starting and stopping the engine
+
Active Cruise Control (ACC)
+
Multi-function steering wheel
+
Adjustable steering column
+
Electromechanical parking brake
+
Interior
Multi-information display in the instrument panel
+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)
+
Wheels
Disc diameter
17
Rim type
Alloy
Tires
215/60R17
Cabin climate and noise insulation
2-zone automatic climate control
+
Heated steering wheel
+
Glass, mirrors and sunroof
Front power windows
+
The rain sensor
+
Heated side mirrors
+
Power mirrors
+
Rear electric windows
+
heating zone brushes windshield
+
Multimedia and instruments
Radio
+
Audio
Toyota Touch 2;
Touch Screen
+
Bluetooth hands free
+
USB
+
Number of speakers
6
MP3
+
Apple CarPlay / Android Auto
+
Headlights and lighting
Washers
+
Front fog lights
+
LED headlights
+
Light sensor
+
LED lights daylight
+
System of automatic inclusion / switching off of a high beam (HBC, HBA)
+
Seats
Power lumbar support for the driver's seat
+
Armrest front
+
height-adjustable driver's seat
+
Isofix child seat (LATCH, Isofix)
+
Passenger seat height adjustable
+
The back of the rear seat folds 60/40
+
Visibility and parking
Rear Parking Sensors
+
Parking aid front
+
Rearview Camera + display with dynamic projection
+
Off-road
aid climbing the hill (HAC; HSA; Hill Holder; HLA)
+
Security
Electronic systems
Anti-lock braking system (ABS)
+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)
+
Traction Control System (Traction control, ASR)
+
The emergency braking (Brake Assist)
+
Vehicle Stability Control (ESP, DSC, ESC, VSC)
+
Children's locks
+
Warning System Lane Departure (LDW; LDWS)
+
Pre-alarm system (PCS)
+
The recognition of driver fatigue
+
Lane Assist
+
Anti-theft systems
alarm
+
Central locking with remote control
+
Airbags
Driver's airbag
+
Passenger Airbag
+
Side airbags
+
Curtain airbags
+
1.8 AT Style
110 specifications
Specifications
Engine
Type of engine
Hybrid
Type of fuel
Gasoline
Displacement, cc
1798
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
122
Engine
1.8 Hybrid
Compression
13.0
Power electric motor HP
72
the motor torque Nm
163
Engine power, hp
98
Revolutions max. Engine power, vol. / min.
5200
the engine torque, Nm
142
Revolutions max. engine torque, vol. / min.
3600
Engine code
2ZR-FXE
EV-mode
+
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Kerb weight, kg
1535
Trunk capacity, L
297
Fuel tank, l
43
Turning circle, m
11
Ground clearance, mm
142
Gross weight, kg
1860
Width (without mirrors) mm
1795
Suspension
Type of front suspension
Independent, spring with MacPherson struts and anti-roll bar
Rear suspension
Independent, spring with two double wishbones and anti-roll bar
Brake system
The front brakes
Ventilated disc
Rear brakes
Disk
Steering
Power steering
Electric power
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
3.8
Fuel consumption (urban), l. 100 km
4.5
Fuel consumption (combined), l. 100 km
4.2
Acceleration (0-100 km/h), s
11
The maximum speed, km / h.
170
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
CVT
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
Equipment
Comfort
Tyre pressure monitoring
+
Start / Stop button for starting and stopping the engine
+
Active Cruise Control (ACC)
+
Multi-function steering wheel
+
Adjustable steering column
+
System access and keyless start (Smart Entry)
+
Electromechanical parking brake
+
Interior
Multi-information display in the instrument panel
+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)
+
Wheels
Disc diameter
17
Rim type
Alloy
Tires
215/60R17
Cabin climate and noise insulation
2-zone automatic climate control
+
Heated steering wheel
+
Glass, mirrors and sunroof
Front power windows
+
The rain sensor
+
Heated side mirrors
+
Power mirrors
+
Rear electric windows
+
Electric folding mirrors
+
heating zone brushes windshield
+
Tinted glass
+
Multimedia and instruments
Radio
+
Audio
Toyota Touch 2;
Touch Screen
+
Bluetooth hands free
+
USB
+
Number of speakers
6
MP3
+
Apple CarPlay / Android Auto
+
Headlights and lighting
Washers
+
Front fog lights
+
LED headlights
+
Light sensor
+
Rear LED lights
+
LED lights daylight
+
System of automatic inclusion / switching off of a high beam (HBC, HBA)
+
Seats
Power lumbar support for the driver's seat
+
Armrest front
+
height-adjustable driver's seat
+
Isofix child seat (LATCH, Isofix)
+
Passenger seat height adjustable
+
The back of the rear seat folds 60/40
+
Visibility and parking
Rear Parking Sensors
+
Parking aid front
+
Rearview Camera + display with dynamic projection
+
Off-road
aid climbing the hill (HAC; HSA; Hill Holder; HLA)
+
Security
Electronic systems
Anti-lock braking system (ABS)
+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)
+
Traction Control System (Traction control, ASR)
+
The emergency braking (Brake Assist)
+
Vehicle Stability Control (ESP, DSC, ESC, VSC)
+
Children's locks
+
Warning System Lane Departure (LDW; LDWS)
+
Pre-alarm system (PCS)
+
The recognition of driver fatigue
+
Lane Assist
+
Anti-theft systems
alarm
+
Central locking with remote control
+
Airbags
Driver's airbag
+
Passenger Airbag
+
Side airbags
+
Curtain airbags
+
1.8 AT Premium
115 specifications
Specifications
Engine
Type of engine
Hybrid
Type of fuel
Gasoline
Displacement, cc
1798
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
122
Engine
1.8 Hybrid
Compression
13.0
Power electric motor HP
72
the motor torque Nm
163
Engine power, hp
98
Revolutions max. Engine power, vol. / min.
5200
the engine torque, Nm
142
Revolutions max. engine torque, vol. / min.
3600
Engine code
2ZR-FXE
EV-mode
+
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Kerb weight, kg
1535
Trunk capacity, L
297
Fuel tank, l
43
Turning circle, m
11
Ground clearance, mm
142
Gross weight, kg
1860
Width (without mirrors) mm
1795
Suspension
Type of front suspension
Independent, spring with MacPherson struts and anti-roll bar
Rear suspension
Independent, spring with two double wishbones and anti-roll bar
Brake system
The front brakes
Ventilated disc
Rear brakes
Disk
Steering
Power steering
Electric power
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
3.8
Fuel consumption (urban), l. 100 km
4.5
Fuel consumption (combined), l. 100 km
4.2
Acceleration (0-100 km/h), s
11
The maximum speed, km / h.
170
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
CVT
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
Equipment
Comfort
Tyre pressure monitoring
+
Start / Stop button for starting and stopping the engine
+
Active Cruise Control (ACC)
+
Multi-function steering wheel
+
Adjustable steering column
+
System access and keyless start (Smart Entry)
+
Electromechanical parking brake
+
Interior
Multi-information display in the instrument panel
+
Perforated leather interior
+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)
+
Wheels
Disc diameter
17
Rim type
Alloy
Tires
215/60R17
Cabin climate and noise insulation
2-zone automatic climate control
+
Heated steering wheel
+
Glass, mirrors and sunroof
Front power windows
+
The rain sensor
+
Heated side mirrors
+
Power mirrors
+
Rear electric windows
+
Electric folding mirrors
+
heating zone brushes windshield
+
Tinted glass
+
Multimedia and instruments
Radio
+
Audio
Toyota Touch 2;
Touch Screen
+
Bluetooth hands free
+
USB
+
Number of speakers
6
MP3
+
Apple CarPlay / Android Auto
+
Headlights and lighting
Washers
+
corrector of headlights
+
Front fog lights
+
LED headlights
+
Light sensor
+
Rear LED lights
+
LED lights daylight
+
System of automatic inclusion / switching off of a high beam (HBC, HBA)
+
Seats
Power lumbar support for the driver's seat
+
Armrest front
+
Power driver's seat
+
height-adjustable driver's seat
+
Isofix child seat (LATCH, Isofix)
+
Passenger seat height adjustable
+
The back of the rear seat folds 60/40
+
Visibility and parking
Rear Parking Sensors
+
Parking aid front
+
Rearview Camera + display with dynamic projection
+
Off-road
aid climbing the hill (HAC; HSA; Hill Holder; HLA)
+
Security
Electronic systems
Anti-lock braking system (ABS)
+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)
+
Traction Control System (Traction control, ASR)
+
The emergency braking (Brake Assist)
+
Vehicle Stability Control (ESP, DSC, ESC, VSC)
+
Children's locks
+
Warning System Lane Departure (LDW; LDWS)
+
Pre-alarm system (PCS)
+
control system "blind zones" (RVM, BSM)
+
The recognition of driver fatigue
+
Lane Assist
+
Adaptive Road Lighting System (AFS, SRH)
+
Anti-theft systems
alarm
+
Central locking with remote control
+
Airbags
Driver's airbag
+
Passenger Airbag
+
Side airbags
+
Curtain airbags
+
2.0 AT Style
108 specifications
Specifications
Engine
Type of engine
Hybrid
Type of fuel
Gasoline
Displacement, cc
1987
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
184
Engine
2.0 Hybrid
Compression
14,0
Power electric motor HP
109
the motor torque Nm
202
Engine power, hp
152
the engine torque, Nm
190
Engine code
M20A-FXS
EV-mode
+
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Kerb weight, kg
1600
Trunk capacity, L
290
Fuel tank, l
43
Turning circle, m
11
Ground clearance, mm
142
Gross weight, kg
1930
Width (without mirrors) mm
1795
Suspension
Type of front suspension
Independent, spring with MacPherson struts and anti-roll bar
Rear suspension
Independent, spring with two double wishbones and anti-roll bar
Brake system
The front brakes
Ventilated disc
Rear brakes
Disk
Steering
Power steering
Electric power
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
4
Fuel consumption (urban), l. 100 km
4.5
Fuel consumption (combined), l. 100 km
4.3
Acceleration (0-100 km/h), s
8.2
The maximum speed, km / h.
180
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
CVT
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
Equipment
Comfort
Tyre pressure monitoring
+
Start / Stop button for starting and stopping the engine
+
Active Cruise Control (ACC)
+
Multi-function steering wheel
+
Adjustable steering column
+
System access and keyless start (Smart Entry)
+
Electromechanical parking brake
+
Interior
Multi-information display in the instrument panel
+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)
+
Wheels
Disc diameter
17
Rim type
Alloy
Tires
215/60R17
Cabin climate and noise insulation
2-zone automatic climate control
+
Heated steering wheel
+
Glass, mirrors and sunroof
Front power windows
+
The rain sensor
+
Heated side mirrors
+
Power mirrors
+
Rear electric windows
+
Electric folding mirrors
+
heating zone brushes windshield
+
Tinted glass
+
Multimedia and instruments
Radio
+
Audio
Toyota Touch 2;
Touch Screen
+
Bluetooth hands free
+
USB
+
Number of speakers
6
MP3
+
Apple CarPlay / Android Auto
+
Headlights and lighting
Washers
+
Front fog lights
+
LED headlights
+
Light sensor
+
Rear LED lights
+
LED lights daylight
+
System of automatic inclusion / switching off of a high beam (HBC, HBA)
+
Seats
Power lumbar support for the driver's seat
+
Armrest front
+
height-adjustable driver's seat
+
Isofix child seat (LATCH, Isofix)
+
Passenger seat height adjustable
+
The back of the rear seat folds 60/40
+
Visibility and parking
Rear Parking Sensors
+
Parking aid front
+
Rearview Camera + display with dynamic projection
+
Off-road
aid climbing the hill (HAC; HSA; Hill Holder; HLA)
+
Security
Electronic systems
Anti-lock braking system (ABS)
+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)
+
Traction Control System (Traction control, ASR)
+
The emergency braking (Brake Assist)
+
Vehicle Stability Control (ESP, DSC, ESC, VSC)
+
Children's locks
+
Warning System Lane Departure (LDW; LDWS)
+
Pre-alarm system (PCS)
+
The recognition of driver fatigue
+
Lane Assist
+
Anti-theft systems
alarm
+
Central locking with remote control
+
Airbags
Driver's airbag
+
Passenger Airbag
+
Side airbags
+
Curtain airbags
+
2.0 AT Premium
113 specifications
Specifications
Engine
Type of engine
Hybrid
Type of fuel
Gasoline
Displacement, cc
1987
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
184
Engine
2.0 Hybrid
Compression
14,0
Power electric motor HP
109
the motor torque Nm
202
Engine power, hp
152
the engine torque, Nm
190
Engine code
M20A-FXS
EV-mode
+
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Kerb weight, kg
1600
Trunk capacity, L
290
Fuel tank, l
43
Turning circle, m
11
Ground clearance, mm
142
Gross weight, kg
1930
Width (without mirrors) mm
1795
Suspension
Type of front suspension
Independent, spring with MacPherson struts and anti-roll bar
Rear suspension
Independent, spring with two double wishbones and anti-roll bar
Brake system
The front brakes
Ventilated disc
Rear brakes
Disk
Steering
Power steering
Electric power
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
4
Fuel consumption (urban), l. 100 km
4.5
Fuel consumption (combined), l. 100 km
4.3
Acceleration (0-100 km/h), s
8.2
The maximum speed, km / h.
180
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
CVT
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
Equipment
Comfort
Tyre pressure monitoring
+
Start / Stop button for starting and stopping the engine
+
Active Cruise Control (ACC)
+
Multi-function steering wheel
+
Adjustable steering column
+
System access and keyless start (Smart Entry)
+
Electromechanical parking brake
+
Interior
Multi-information display in the instrument panel
+
Perforated leather interior
+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)
+
Wheels
Disc diameter
17
Rim type
Alloy
Tires
215/60R17
Cabin climate and noise insulation
2-zone automatic climate control
+
Heated steering wheel
+
Glass, mirrors and sunroof
Front power windows
+
The rain sensor
+
Heated side mirrors
+
Power mirrors
+
Rear electric windows
+
Electric folding mirrors
+
heating zone brushes windshield
+
Tinted glass
+
Multimedia and instruments
Radio
+
Audio
Toyota Touch 2;
Touch Screen
+
Bluetooth hands free
+
USB
+
Number of speakers
6
MP3
+
Apple CarPlay / Android Auto
+
Headlights and lighting
Washers
+
corrector of headlights
+
Front fog lights
+
LED headlights
+
Light sensor
+
Rear LED lights
+
LED lights daylight
+
System of automatic inclusion / switching off of a high beam (HBC, HBA)
+
Seats
Power lumbar support for the driver's seat
+
Armrest front
+
Power driver's seat
+
height-adjustable driver's seat
+
Isofix child seat (LATCH, Isofix)
+
Passenger seat height adjustable
+
The back of the rear seat folds 60/40
+
Visibility and parking
Rear Parking Sensors
+
Parking aid front
+
Rearview Camera + display with dynamic projection
+
Off-road
aid climbing the hill (HAC; HSA; Hill Holder; HLA)
+
Security
Electronic systems
Anti-lock braking system (ABS)
+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)
+
Traction Control System (Traction control, ASR)
+
The emergency braking (Brake Assist)
+
Vehicle Stability Control (ESP, DSC, ESC, VSC)
+
Children's locks
+
Warning System Lane Departure (LDW; LDWS)
+
Pre-alarm system (PCS)
+
control system "blind zones" (RVM, BSM)
+
The recognition of driver fatigue
+
Lane Assist
+
Adaptive Road Lighting System (AFS, SRH)
+
Anti-theft systems
alarm
+
Central locking with remote control
+
Airbags
Driver's airbag
+
Passenger Airbag
+
Side airbags
+
Curtain airbags
+
1.2 D-4T (116 HP) 6-speed manual
33 specifications
Specifications
Engine
Type of engine
ICE
Type of fuel
Gasoline
Displacement, cc
1197
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
116
Torque, Nm
185
RPM at max torque
1500-4000
Engine
1.2 D-4T
RPM at max power
5200-5600
Turbo
+
Engine code
8NR-FTS
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Trunk capacity, L
297
Fuel tank, l
50
Turning circle, m
11
Ground clearance, mm
154
Width (without mirrors) mm
1795
Performance and fuel consumption
Fuel consumption (combined), l. 100 km
7.1
Acceleration (0-100 km/h), s
10.9
The rate of toxicity
Euro VI
Transmission and drive
Number of gears
6
Drive
Front
Transmission
6-speed manual
Gearbox
Mechanics
Transmission manufacturer
Toyota
Transmission country of origin
Japan
1.2 D-4T (116 HP) Multidrive S
36 specifications
Specifications
Engine
Type of engine
ICE
Type of fuel
Gasoline
Displacement, cc
1197
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
116
Torque, Nm
185
RPM at max torque
1500-4000
Engine
1.2 D-4T
RPM at max power
5200-5600
Turbo
+
Engine code
8NR-FTS
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Trunk capacity, L
297
Fuel tank, l
50
Turning circle, m
11
Ground clearance, mm
154
Width (without mirrors) mm
1795
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
8
Fuel consumption (urban), l. 100 km
5.7
Fuel consumption (combined), l. 100 km
6.6
Acceleration (0-100 km/h), s
11.1
The maximum speed, km / h.
185
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
Multidrive S
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
1.2 D-4T (116 HP) Multidrive S 4x4
36 specifications
Specifications
Engine
Type of engine
ICE
Type of fuel
Gasoline
Displacement, cc
1197
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
116
Torque, Nm
185
RPM at max torque
1500-4000
Engine
1.2 D-4T
RPM at max power
5200-5600
Turbo
+
Engine code
8NR-FTS
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Trunk capacity, L
297
Fuel tank, l
50
Turning circle, m
11
Ground clearance, mm
154
Width (without mirrors) mm
1795
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
8.4
Fuel consumption (urban), l. 100 km
6
Fuel consumption (combined), l. 100 km
6.9
Acceleration (0-100 km/h), s
11.4
The maximum speed, km / h.
180
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Full
Transmission
Multidrive S
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
2.0 Valvematic (148 HP) CVT
29 specifications
Specifications
Engine
Type of engine
ICE
Type of fuel
Gasoline
Displacement, cc
1987
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
148
Torque, Nm
189
RPM at max torque
3800-3900
Engine
2.0 Valvematic
RPM at max power
6000-6100
Engine code
3ZR-FAE
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Trunk capacity, L
297
Fuel tank, l
50
Turning circle, m
11
Ground clearance, mm
154
Width (without mirrors) mm
1795
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
CVT
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
1.8 Hybrid (122 HP) e-CVT
40 specifications
Specifications
Engine
Type of engine
Hybrid
Type of fuel
Gasoline
Displacement, cc
1798
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
122
Engine
1.8 Hybrid
Compression
13.0
Power electric motor HP
72
the motor torque Nm
163
Engine power, hp
98
Revolutions max. Engine power, vol. / min.
5200
the engine torque, Nm
142
Revolutions max. engine torque, vol. / min.
3600
Engine code
2ZR-FXE
EV-mode
+
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Trunk capacity, L
297
Fuel tank, l
50
Turning circle, m
11
Ground clearance, mm
154
Width (without mirrors) mm
1795
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
3.8
Fuel consumption (urban), l. 100 km
4.5
Fuel consumption (combined), l. 100 km
4.2
Acceleration (0-100 km/h), s
11
The maximum speed, km / h.
170
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
CVT
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
2.0 Hybrid (184 HP) e-CVT
38 specifications
Specifications
Engine
Type of engine
Hybrid
Type of fuel
Gasoline
Displacement, cc
1987
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
184
Engine
2.0 Hybrid
Compression
14,0
Power electric motor HP
109
the motor torque Nm
202
Engine power, hp
152
the engine torque, Nm
190
Engine code
M20A-FXS
EV-mode
+
Dimensions
Seats
5
Length mm
4395
Height mm
1565
Wheelbase mm
2640
Front track, mm
1550
Rear track, mm
1570
Trunk capacity, L
297
Fuel tank, l
50
Turning circle, m
11
Ground clearance, mm
154
Width (without mirrors) mm
1795
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
4
Fuel consumption (urban), l. 100 km
4.5
Fuel consumption (combined), l. 100 km
4.3
Acceleration (0-100 km/h), s
8.2
The maximum speed, km / h.
180
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Drive
Front
Transmission
CVT
Gearbox
Variable speed drive
Transmission manufacturer
Aisin
Transmission country of origin
Japan
FAQ
Toyota C-HR questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Toyota C-HR?
This page lists 14 trims for the Toyota C-HR, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Toyota C-HR?
The listed configurations show a power range of 116-184 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Toyota C-HR?
The available specification data shows engine displacement from 1197-1987 cc across the trims listed on this page.
Which transmissions are listed for the Toyota C-HR?
The transmission options currently shown for this model are: 6-speed manual. Open a trim section to see the full data for a specific configuration.
Are there photos for the Toyota C-HR?
Yes. The gallery includes 42 photos for the Toyota C-HR, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
Explore more
Continue exploring Toyota
Return to Toyota models, browse the gallery, or compare the trims listed above.
