Volvo S60 specifications and photos

Volvo S60 specifications are shown with trim options, key technical data, and a model photo gallery. Compare 9 configurations by engine size, power, seating, and transmission. The gallery includes 45 photos for visual reference.

Years 2018
Body type sedan
Trims 9
Photos 45
Volvo S60 2018 sedan
Overview

Volvo S60 at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Volvo S60 page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 190-405 hp and 1969 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 190-405 hp
  • Engine displacement: 1969 cc
  • Transmissions: 8
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Volvo S60

This model page brings gallery images, trim comparison, and detailed technical data together for the 2018 generation.

Open photo gallery 45 images Compare trims 9 configurations View detailed specs 1969 cc Explore related pages Volvo and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 190-405 hp
Engine displacement 1969 cc
Seating 5 seats
Transmissions 8
Trim / modification Engine Power Seats Transmission
2.0T5 AT R-Design 1969 cc 250 hp 5 8
2.0 T4 (190 HP) 8-speed Geartronic 1969 cc 190 hp 5 8
2.0 T5 (250 HP) 8-speed Geartronic 1969 cc 250 hp 5 8
2.0 T5 (250 HP) 8-speed Geartronic 4x4 1969 cc 250 hp 5 8
2.0 T6 (310 HP) 8-speed Geartronic 4x4 1969 cc 310 hp 5 8
2.0 T6 (320 HP) 8-speed Geartronic 4x4 1969 cc 320 hp 5 8
2.0 T6 (340 HP) 8-speed Geartronic 4x4 1969 cc 340 hp 5 8
2.0 T8 (390 hp) 8-speed Geartronic 4x4 1969 cc 390 hp 5 8
2.0 T8 (405 HP) 8-speed Geartronic 4x4 1969 cc 405 hp 5 8

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.0T5 AT R-Design 2.0 T4 (190 HP) 8-speed Geartronic 2.0 T5 (250 HP) 8-speed Geartronic 2.0 T5 (250 HP) 8-speed Geartronic 4x4 2.0 T6 (310 HP) 8-speed Geartronic 4x4 2.0 T6 (320 HP) 8-speed Geartronic 4x4 2.0 T6 (340 HP) 8-speed Geartronic 4x4 2.0 T8 (390 hp) 8-speed Geartronic 4x4 2.0 T8 (405 HP) 8-speed Geartronic 4x4
2.0T5 AT R-Design 84 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1969
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 250
Torque, Nm 350
RPM at max torque 1800-4800
Engine 2.0 T5
RPM at max power 5500
Turbo +
Engine code B4204T26

Dimensions

Seats 5
Length mm 4759
Width 2040
Height mm 1438
Wheelbase mm 2873
Kerb weight, kg 1659
Trunk capacity, L 329
Fuel tank, l 55
Ground clearance, mm 142

Brake system

The front brakes Disk
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9
Fuel consumption (urban), l. 100 km 5.5
Fuel consumption (combined), l. 100 km 6.8
Acceleration (0-100 km/h), s 6.5
The maximum speed, km / h. 240
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan

Equipment

Comfort

Active Cruise Control (ACC) +
Multi-function steering wheel +
Rear engine +

Interior

Sports steering wheel +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +
Inlays of metal +

Wheels

Disc diameter 19
Rim type Alloy
Spare wheel Dokatka

Cabin climate and noise insulation

Heated rear seats +
4-zone climate control +

Glass, mirrors and sunroof

The rain sensor +
Heated side mirrors +
Power mirrors +
Electric folding mirrors +
Sun Roof +
The heating of water for washing of windshield Heating and purifiers range +

Multimedia and instruments

Audio "Premium Sound" by Bowers & Wilkins
AUX +
Bluetooth hands free +
USB +
Number of speakers 10
Head-up display +

Headlights and lighting

Front fog lights +
LED headlights +
Light sensor +
System of automatic inclusion / switching off of a high beam (HBC, HBA) +

Seats

Power front seats +
Isofix child seat (LATCH, Isofix) +
Memory seat adjustment +

Visibility and parking

Rear Parking Sensors +
Parking aid front +

Off-road

The help system at start on the slope (Hill Start Assist; GRC) +
aid downhill (DAC, DBC) +

Security

Electronic systems

System roll control (RSC) +
control system "blind zones" (RVM, BSM) +
Controlling crossing road markings +
Intelligent Driver Information System (IDIS) +
Collision Warning System +
Electronic Brake Assist (EBA, FEB) +

Anti-theft systems

Alarm +
Cabin motion sensor (IMS) +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Cushion for driver's knee +
2.0 T4 (190 HP) 8-speed Geartronic 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1969
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 190
Torque, Nm 300
RPM at max torque 1300-4000
Engine 2.0 T4
RPM at max power 4700
Turbo +
Engine code B4204T7/B4204T31

Dimensions

Seats 5
Length mm 4761
Width 2040
Height mm 1431
Wheelbase mm 2872
Front track, mm 1603
Rear track, mm 1603
Kerb weight, kg 1677
Trunk capacity, L 442
Fuel tank, l 60
Turning circle, m 11.3
Ground clearance, mm 142
Gross weight, kg 2190
Width (without mirrors) mm 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.9
Fuel consumption (urban), l. 100 km 5.6
Fuel consumption (combined), l. 100 km 6.8
Acceleration (0-100 km/h), s 7.1
The maximum speed, km / h. 220
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.0 T5 (250 HP) 8-speed Geartronic 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1969
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 250
Torque, Nm 350
RPM at max torque 1800-4800
Engine 2.0 T5
RPM at max power 5500
Turbo +
Engine code B4204T26

Dimensions

Seats 5
Length mm 4761
Width 2040
Height mm 1431
Wheelbase mm 2872
Front track, mm 1603
Rear track, mm 1603
Kerb weight, kg 1677
Trunk capacity, L 442
Fuel tank, l 60
Turning circle, m 11.3
Ground clearance, mm 142
Gross weight, kg 2190
Width (without mirrors) mm 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9
Fuel consumption (urban), l. 100 km 5.5
Fuel consumption (combined), l. 100 km 6.8
Acceleration (0-100 km/h), s 6.5
The maximum speed, km / h. 240
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.0 T5 (250 HP) 8-speed Geartronic 4x4 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1969
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 250
Torque, Nm 350
RPM at max torque 1800-4800
Engine 2.0 T5
RPM at max power 5500
Turbo +
Engine code B4204T26

Dimensions

Seats 5
Length mm 4761
Width 2040
Height mm 1431
Wheelbase mm 2872
Front track, mm 1603
Rear track, mm 1603
Kerb weight, kg 1677
Trunk capacity, L 442
Fuel tank, l 60
Turning circle, m 11.3
Ground clearance, mm 142
Gross weight, kg 2190
Width (without mirrors) mm 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 12.3
Fuel consumption (urban), l. 100 km 7.4
Fuel consumption (combined), l. 100 km 8.7
Acceleration (0-100 km/h), s 6.4
The maximum speed, km / h. 240
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.0 T6 (310 HP) 8-speed Geartronic 4x4 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1969
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 310
Torque, Nm 400
RPM at max torque 2200-5100
Engine 2.0 T6
RPM at max power 5700
Engine code B4204T29
Compressor +

Dimensions

Seats 5
Length mm 4761
Width 2040
Height mm 1431
Wheelbase mm 2872
Front track, mm 1603
Rear track, mm 1603
Kerb weight, kg 1677
Trunk capacity, L 442
Fuel tank, l 60
Turning circle, m 11.3
Ground clearance, mm 142
Gross weight, kg 2190
Width (without mirrors) mm 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 12.2
Fuel consumption (urban), l. 100 km 7.6
Fuel consumption (combined), l. 100 km 9
Acceleration (0-100 km/h), s 5.5
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.0 T6 (320 HP) 8-speed Geartronic 4x4 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1969
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 320
Torque, Nm 400
RPM at max torque 2200-4500
Engine 2.0 T6
Compression 10.3
RPM at max power 5700
Turbo +
Engine code B4204T27
Compressor +

Dimensions

Seats 5
Length mm 4761
Width 2040
Height mm 1431
Wheelbase mm 2872
Front track, mm 1603
Rear track, mm 1603
Kerb weight, kg 1677
Trunk capacity, L 442
Fuel tank, l 60
Turning circle, m 11.3
Ground clearance, mm 142
Gross weight, kg 2190
Width (without mirrors) mm 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.2
Fuel consumption (urban), l. 100 km 7.4
Fuel consumption (combined), l. 100 km 9.4
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.0 T6 (340 HP) 8-speed Geartronic 4x4 49 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1969
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 340
Torque, Nm 590
RPM at max torque 1700-5000
Engine 2.0 T6
Compression 10,3
RPM at max power 5500
Turbo +
Number of motors 1
Power electric motor HP 87
the motor torque Nm 240
Engine power, hp 253
Revolutions max. Engine power, vol. / min. 6000
the engine torque, Nm 350
Revolutions max. engine torque, vol. / min. 1800-4800
Engine code B4204T46
Compressor +
EV-mode +
The possibility of charging from the network +

Dimensions

Seats 5
Length mm 4761
Width 2040
Height mm 1431
Wheelbase mm 2872
Front track, mm 1603
Rear track, mm 1603
Kerb weight, kg 1677
Trunk capacity, L 442
Fuel tank, l 60
Turning circle, m 11.3
Ground clearance, mm 142
Gross weight, kg 2190
Width (without mirrors) mm 1850

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 2.3
Acceleration (0-100 km/h), s 5.2
The maximum speed, km / h. 230
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.0 T8 (390 hp) 8-speed Geartronic 4x4 48 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1969
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 390
Torque, Nm 640
RPM at max torque 2200-4800
Engine 2.0 T8
Compression 10,3
RPM at max power 6000
Number of motors 1
Power electric motor HP 87
the motor torque Nm 240
Engine power, hp 303
Revolutions max. Engine power, vol. / min. 6000
the engine torque, Nm 400
Revolutions max. engine torque, vol. / min. 2200-4800
Engine code B4204T34
Compressor +
EV-mode +
The possibility of charging from the network +

Dimensions

Seats 5
Length mm 4761
Width 2040
Height mm 1431
Wheelbase mm 2872
Front track, mm 1603
Rear track, mm 1603
Kerb weight, kg 1677
Trunk capacity, L 442
Fuel tank, l 60
Turning circle, m 11.3
Ground clearance, mm 142
Gross weight, kg 2190
Width (without mirrors) mm 1850

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 2.3
Acceleration (0-100 km/h), s 4.6
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.0 T8 (405 HP) 8-speed Geartronic 4x4 46 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1969
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 405
Torque, Nm 670
Engine 2.0 T8
Compression 10,3
Number of motors 1
Power electric motor HP 87
the motor torque Nm 240
Engine power, hp 318
Revolutions max. Engine power, vol. / min. 6000
the engine torque, Nm 430
Revolutions max. engine torque, vol. / min. 4500
Engine code B4204T48
Compressor +
EV-mode +
The possibility of charging from the network +

Dimensions

Seats 5
Length mm 4761
Width 2040
Height mm 1431
Wheelbase mm 2872
Front track, mm 1603
Rear track, mm 1603
Kerb weight, kg 1677
Trunk capacity, L 442
Fuel tank, l 60
Turning circle, m 11.3
Ground clearance, mm 142
Gross weight, kg 2190
Width (without mirrors) mm 1850

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 2.4
Acceleration (0-100 km/h), s 4.4
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
FAQ

Volvo S60 questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Volvo S60?

This page lists 9 trims for the Volvo S60, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Volvo S60?

The listed configurations show a power range of 190-405 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Volvo S60?

The available specification data shows engine displacement from 1969 cc across the trims listed on this page.

Which transmissions are listed for the Volvo S60?

The transmission options currently shown for this model are: 8. Open a trim section to see the full data for a specific configuration.

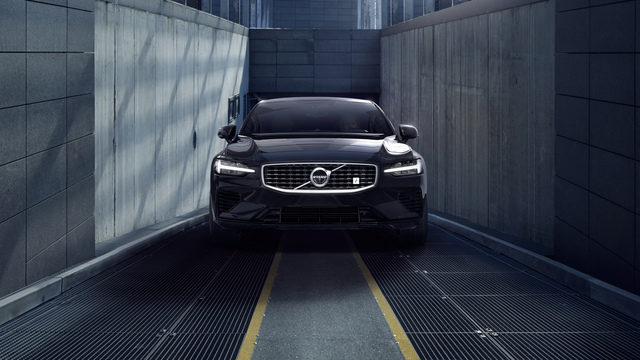

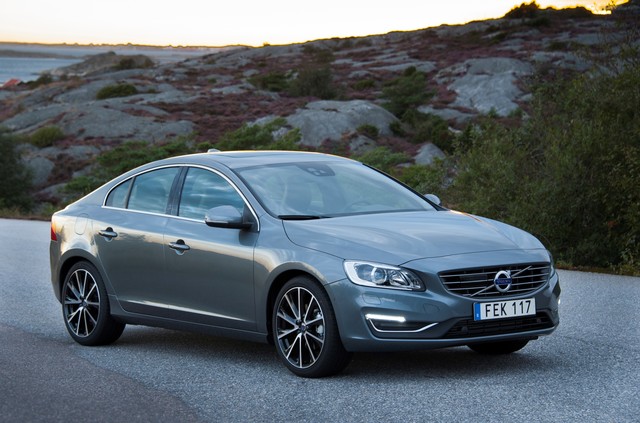

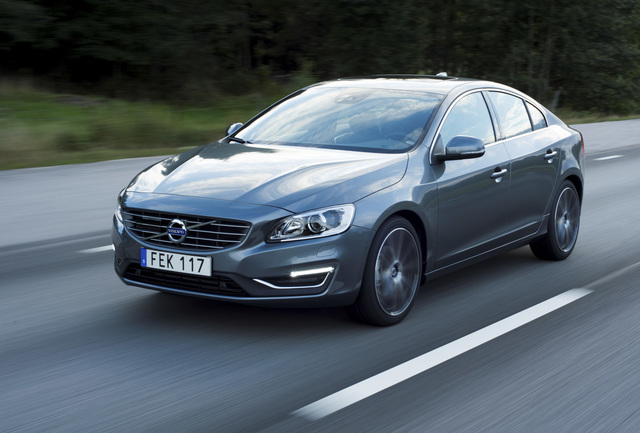

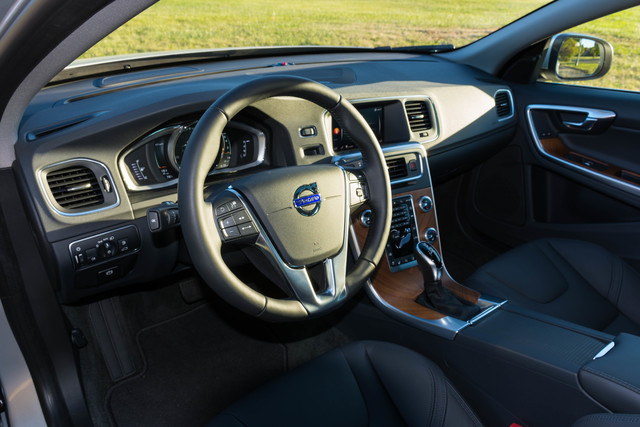

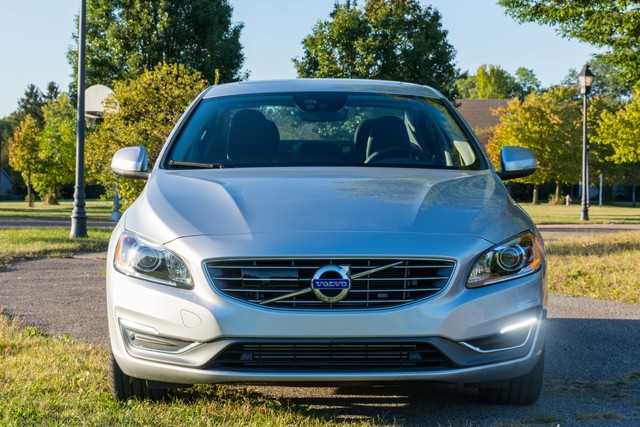

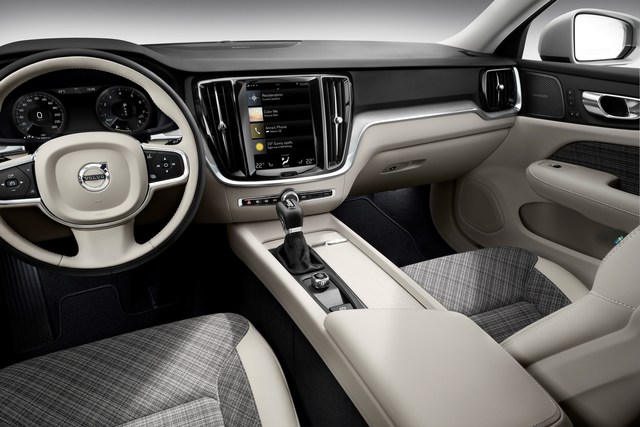

Are there photos for the Volvo S60?

Yes. The gallery includes 45 photos for the Volvo S60, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
