Acura RLX specifications and photos
Acura RLX specifications are shown with trim options, key technical data, and a model photo gallery. Compare 2 configurations by engine size, power, seating, and transmission. The gallery includes 20 photos for visual reference.
Acura RLX at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Acura RLX page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 310-377 hp and 3476-3500 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 310-377 hp
- Engine displacement: 3476-3500 cc
- Transmissions: 10-speed automatic, 7
- Seating: 5 seats
Photos, trims and specifications for Acura RLX
This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.5i SOHC i-VTEC (310 HP) 10-speed automatic | 3476 cc | 310 hp | 5 | 10-speed automatic |
| 3.5h DOHC VTEC (377 HP) 7-DCT 4x4 | 3500 cc | 377 hp | 5 | 7 |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

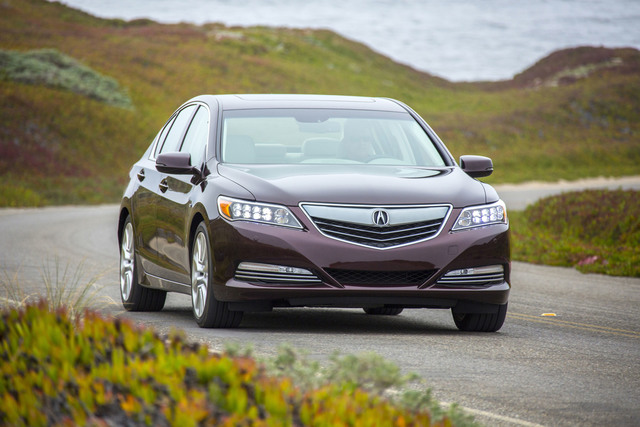

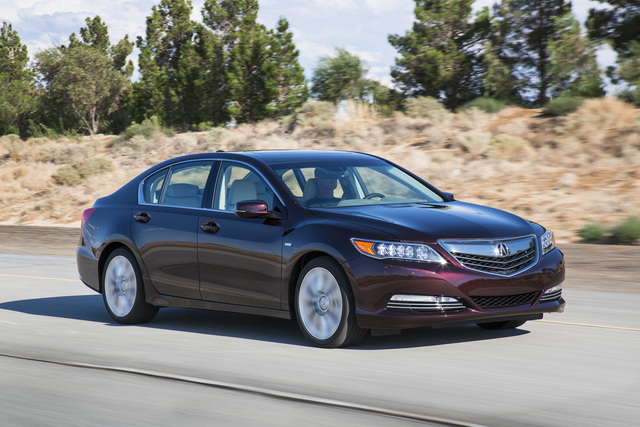

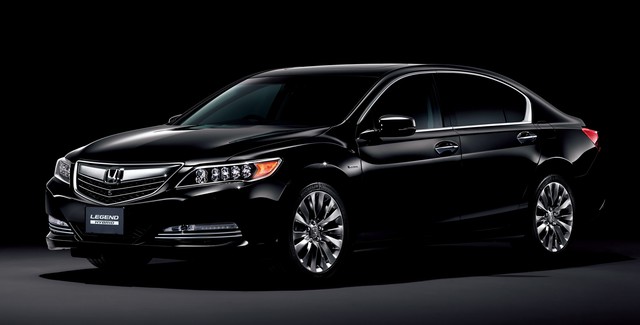

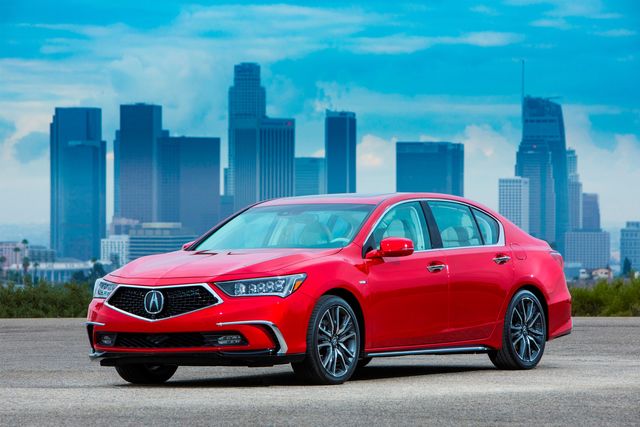

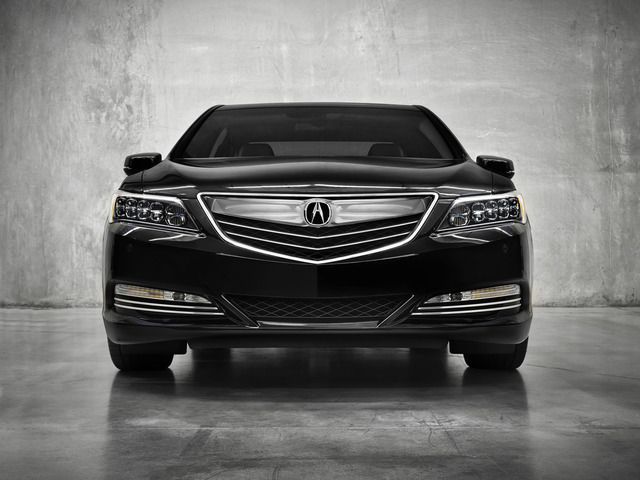

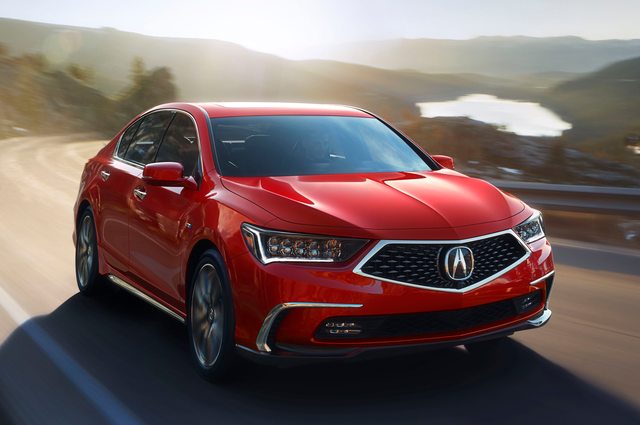

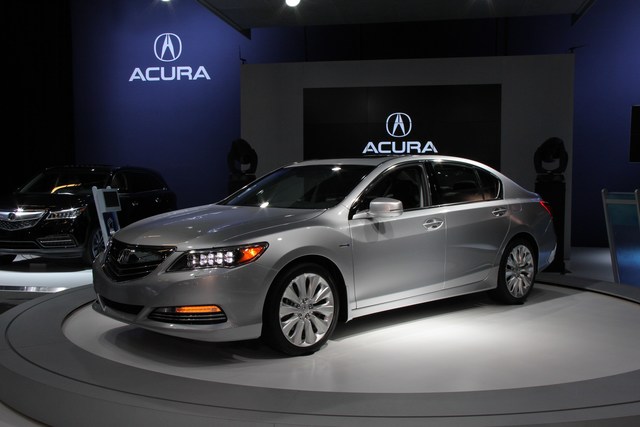

Acura RLX photo gallery
20 images are collected here with the main specifications and trim data for this model.
Photo Acura RLX
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.5i SOHC i-VTEC (310 HP) 10-speed automatic 34 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3476 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 310 |
| Torque, Nm | 369 |
| RPM at max torque | 4500 |
| Engine | 3.5i SOHC i-VTEC |
| Compression | 11.5 |
| RPM at max power | 6500 |
| Engine code | J35Y4 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5023 |
| Height mm | 1465 |
| Wheelbase mm | 2850 |
| Front track, mm | 1632 |
| Rear track, mm | 1630 |
| Kerb weight, kg | 1804 |
| Trunk capacity, L | 405 |
| Fuel tank, l | 70 |
| Ground clearance, mm | 115 |
| Width (without mirrors) mm | 1890 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 11.8 |
|---|---|
| Fuel consumption (urban), l. 100 km | 8.1 |
| Fuel consumption (combined), l. 100 km | 10.2 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 10 |
| Drive | Front |
| Transmission | 10-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Honda |
| Transmission country of origin | Japan |
3.5h DOHC VTEC (377 HP) 7-DCT 4x4 43 specifications
Specifications
Engine
| Type of engine | Hybrid |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3500 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 377 |
| Torque, Nm | 470 |
| RPM at max torque | 4700 |
| Engine | 3.5h DOHC VTEC |
| Compression | 11.5 |
| RPM at max power | 6500 |
| Power electric motor HP | 119 |
| Revolutions max. electric power, rev / min | 3000 |
| the motor torque Nm | 294 |
| Revolutions max. motor torque, rev / min | 500-2000 |
| Engine power, hp | 310 |
| Revolutions max. Engine power, vol. / min. | 6500 |
| the engine torque, Nm | 369 |
| Revolutions max. engine torque, vol. / min. | 4500 |
| EV-mode | + |
| The possibility of charging from the network | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5023 |
| Height mm | 1465 |
| Wheelbase mm | 2850 |
| Front track, mm | 1632 |
| Rear track, mm | 1630 |
| Kerb weight, kg | 1804 |
| Trunk capacity, L | 405 |
| Fuel tank, l | 70 |
| Ground clearance, mm | 115 |
| Width (without mirrors) mm | 1890 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 8.1 |
|---|---|
| Fuel consumption (urban), l. 100 km | 7.8 |
| Fuel consumption (combined), l. 100 km | 8.1 |
| Acceleration (0-100 km/h), s | 5.2 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 7 |
| Drive | Full |
| Transmission | 7-speed dual-clutch |
| Gearbox | 2 clutch robot |
| Transmission manufacturer | Honda |
Acura RLX questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Acura RLX?
This page lists 2 trims for the Acura RLX, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Acura RLX?
The listed configurations show a power range of 310-377 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Acura RLX?
The available specification data shows engine displacement from 3476-3500 cc across the trims listed on this page.
Which transmissions are listed for the Acura RLX?
The transmission options currently shown for this model are: 10-speed automatic, 7. Open a trim section to see the full data for a specific configuration.
Are there photos for the Acura RLX?
Yes. The gallery includes 20 photos for the Acura RLX, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
