Acura TLX specifications and photos
Acura TLX specifications are shown with trim options, key technical data, and a model photo gallery. Compare 3 configurations by engine size, power, seating, and transmission. The gallery includes 24 photos for visual reference.
Acura TLX at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Acura TLX page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 206-290 hp and 2356-3471 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 206-290 hp
- Engine displacement: 2356-3471 cc
- Transmissions: 8, 9-speed automatic
- Seating: 5 seats
Photos, trims and specifications for Acura TLX
This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.4i DOHC i-VTEC (206 HP) 8-DCT | 2356 cc | 206 hp | 5 | 8 |
| 3.5i i-VTEC (290 HP) 9-speed automatic | 3471 cc | 290 hp | 5 | 9-speed automatic |
| 3.5i i-VTEC (290 HP) 9-speed automatic 4x4 | 3471 cc | 290 hp | 5 | 9-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

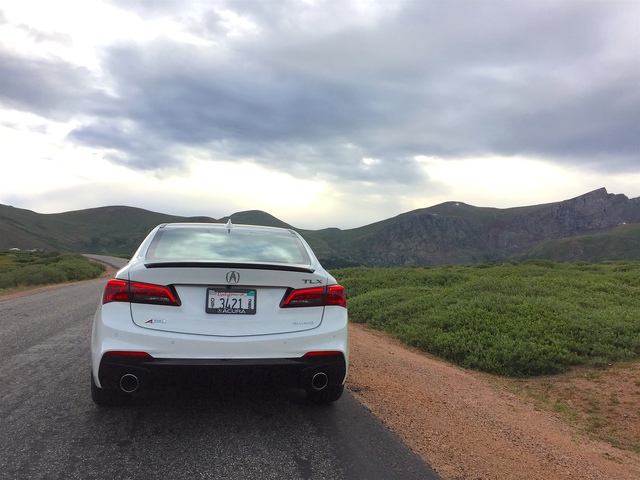

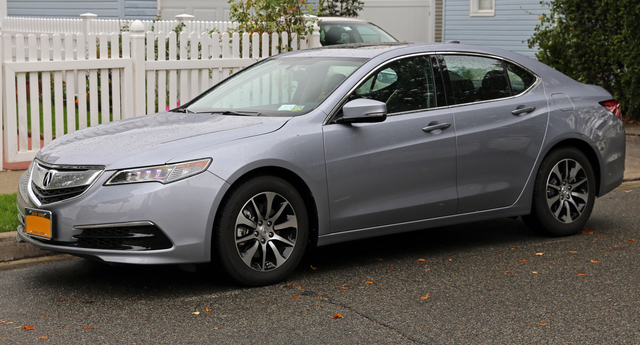

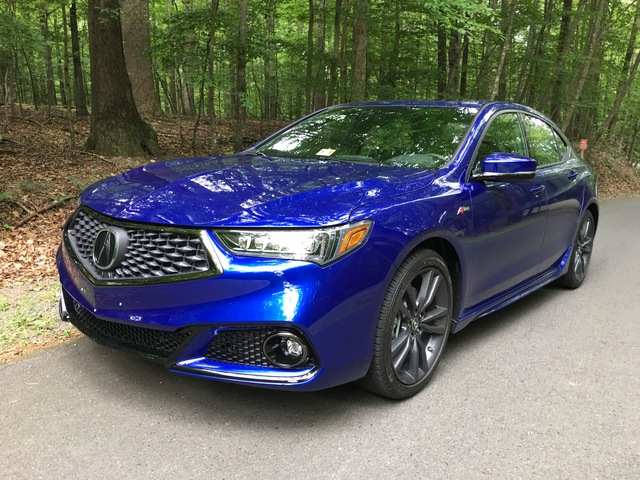

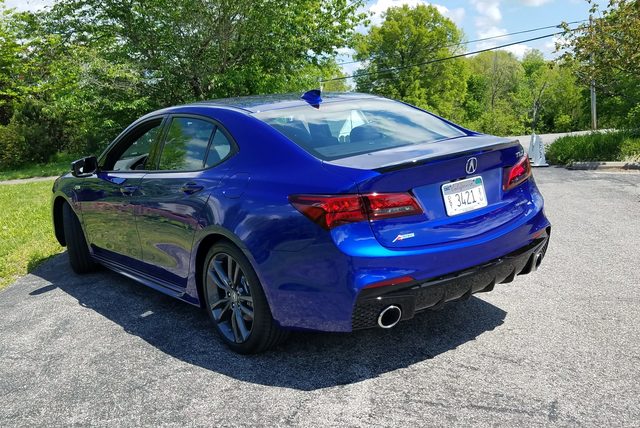

Acura TLX photo gallery
24 images are collected here with the main specifications and trim data for this model.

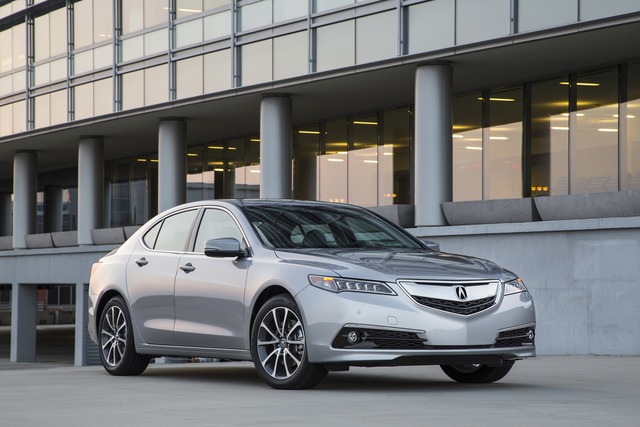

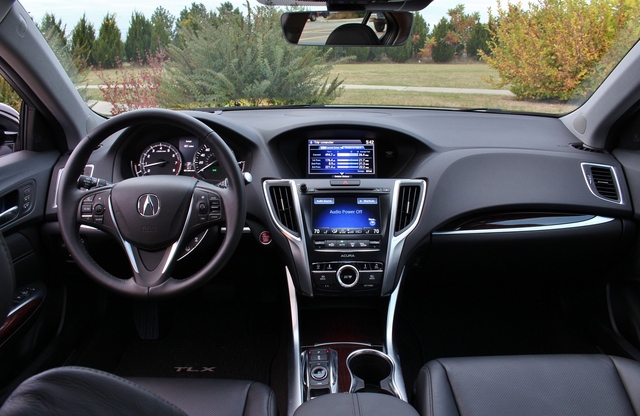

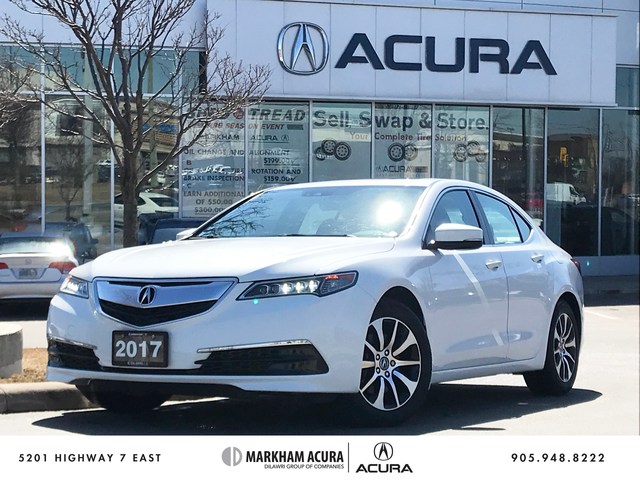

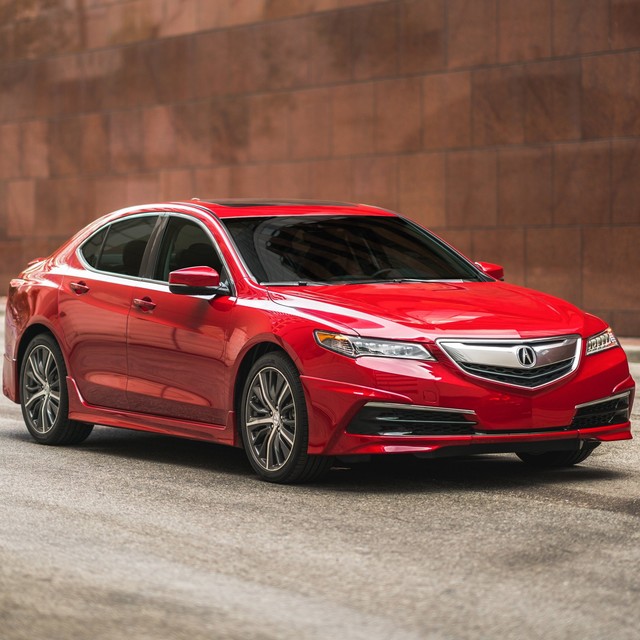

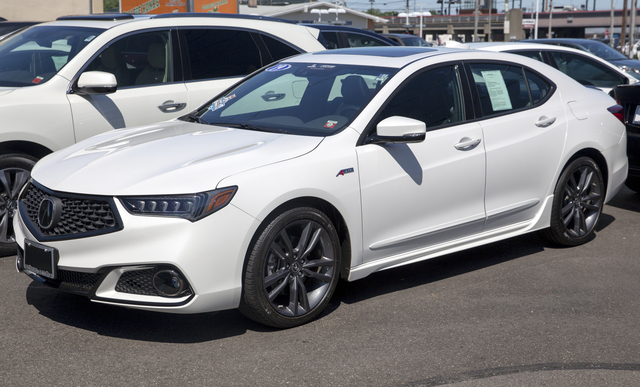

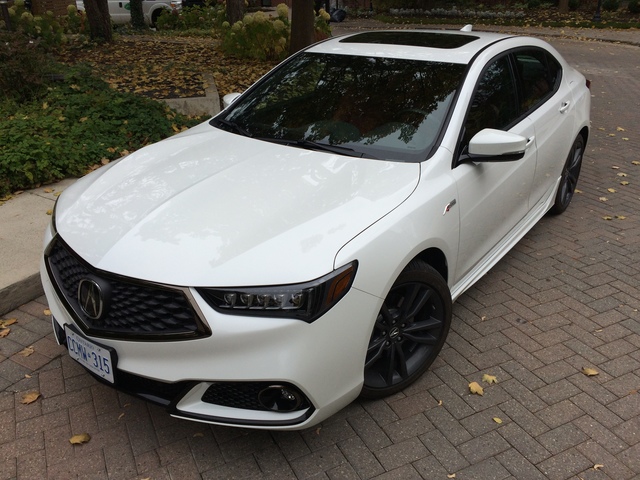

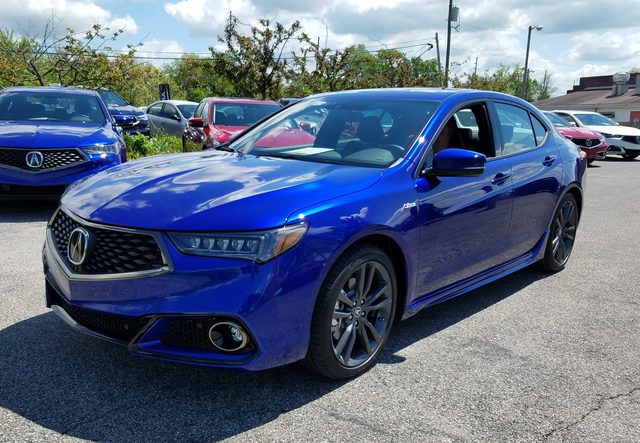

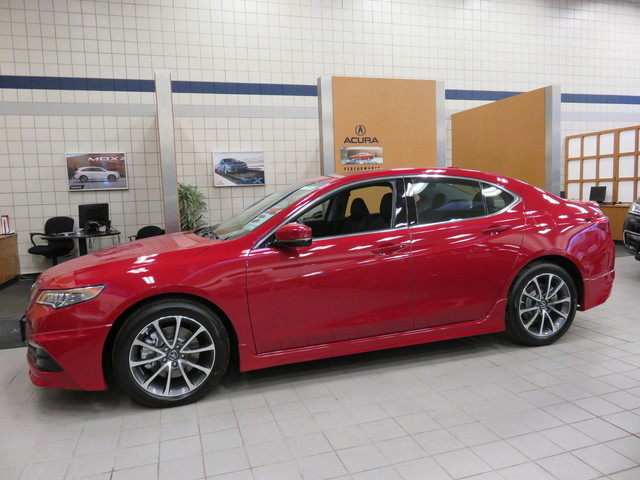

Photo Acura TLX
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.4i DOHC i-VTEC (206 HP) 8-DCT 32 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 2356 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 206 |
| Torque, Nm | 247 |
| RPM at max torque | 4500 |
| Engine | 2.4i DOHC i-VTEC |
| Compression | 11.6 |
| RPM at max power | 6800 |
| Engine code | K24W7 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4844 |
| Height mm | 1447 |
| Wheelbase mm | 2775 |
| Front track, mm | 1596 |
| Rear track, mm | 1600 |
| Trunk capacity, L | 368 |
| Fuel tank, l | 65 |
| Ground clearance, mm | 147 |
| Width (without mirrors) mm | 1854 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 10.2 |
|---|---|
| Fuel consumption (urban), l. 100 km | 7.1 |
| Fuel consumption (combined), l. 100 km | 8.7 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Front |
| Transmission | 8-speed dual-clutch |
| Gearbox | 2 clutch robot |
| Transmission manufacturer | Honda |
3.5i i-VTEC (290 HP) 9-speed automatic 33 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3471 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 290 |
| Torque, Nm | 355 |
| RPM at max torque | 4500 |
| Engine | 3.5i i-VTEC |
| Compression | 11.5 |
| RPM at max power | 6200 |
| Engine code | J35Y5/J35Y6 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4844 |
| Height mm | 1447 |
| Wheelbase mm | 2775 |
| Front track, mm | 1596 |
| Rear track, mm | 1600 |
| Trunk capacity, L | 368 |
| Fuel tank, l | 65 |
| Ground clearance, mm | 147 |
| Width (without mirrors) mm | 1854 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 11.7 |
|---|---|
| Fuel consumption (urban), l. 100 km | 7.3 |
| Fuel consumption (combined), l. 100 km | 9.8 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 9 |
| Drive | Front |
| Transmission | 9-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
3.5i i-VTEC (290 HP) 9-speed automatic 4x4 33 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3471 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 290 |
| Torque, Nm | 355 |
| RPM at max torque | 4500 |
| Engine | 3.5i i-VTEC |
| Compression | 11.5 |
| RPM at max power | 6200 |
| Engine code | J35Y5/J35Y6 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4844 |
| Height mm | 1447 |
| Wheelbase mm | 2775 |
| Front track, mm | 1596 |
| Rear track, mm | 1600 |
| Trunk capacity, L | 368 |
| Fuel tank, l | 65 |
| Ground clearance, mm | 147 |
| Width (without mirrors) mm | 1854 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 11.2 |
|---|---|
| Fuel consumption (urban), l. 100 km | 7.8 |
| Fuel consumption (combined), l. 100 km | 9.8 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 9 |
| Drive | Full |
| Transmission | 9-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
Acura TLX questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Acura TLX?
This page lists 3 trims for the Acura TLX, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Acura TLX?
The listed configurations show a power range of 206-290 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Acura TLX?
The available specification data shows engine displacement from 2356-3471 cc across the trims listed on this page.
Which transmissions are listed for the Acura TLX?
The transmission options currently shown for this model are: 8, 9-speed automatic. Open a trim section to see the full data for a specific configuration.
Are there photos for the Acura TLX?
Yes. The gallery includes 24 photos for the Acura TLX, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
