Audi S5 Sportback specifications and photos
Audi S5 Sportback specifications are shown with trim options, key technical data, and a model photo gallery. Compare 2 configurations by engine size, power, seating, and transmission. The gallery includes 7 photos for visual reference.
Audi S5 Sportback at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Audi S5 Sportback page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 354 hp and 2995 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 354 hp
- Engine displacement: 2995 cc
- Transmissions: 8
- Seating: 5 seats
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.0 AT AWD (354) | 2995 cc | 354 hp | 5 | 8 |
| 3.0 TFSI (354 hp) 8-Tiptronic 4x4 | 2995 cc | 354 hp | 5 | 8 |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Audi S5 Sportback photo gallery
7 images are collected here with the main specifications and trim data for this model.

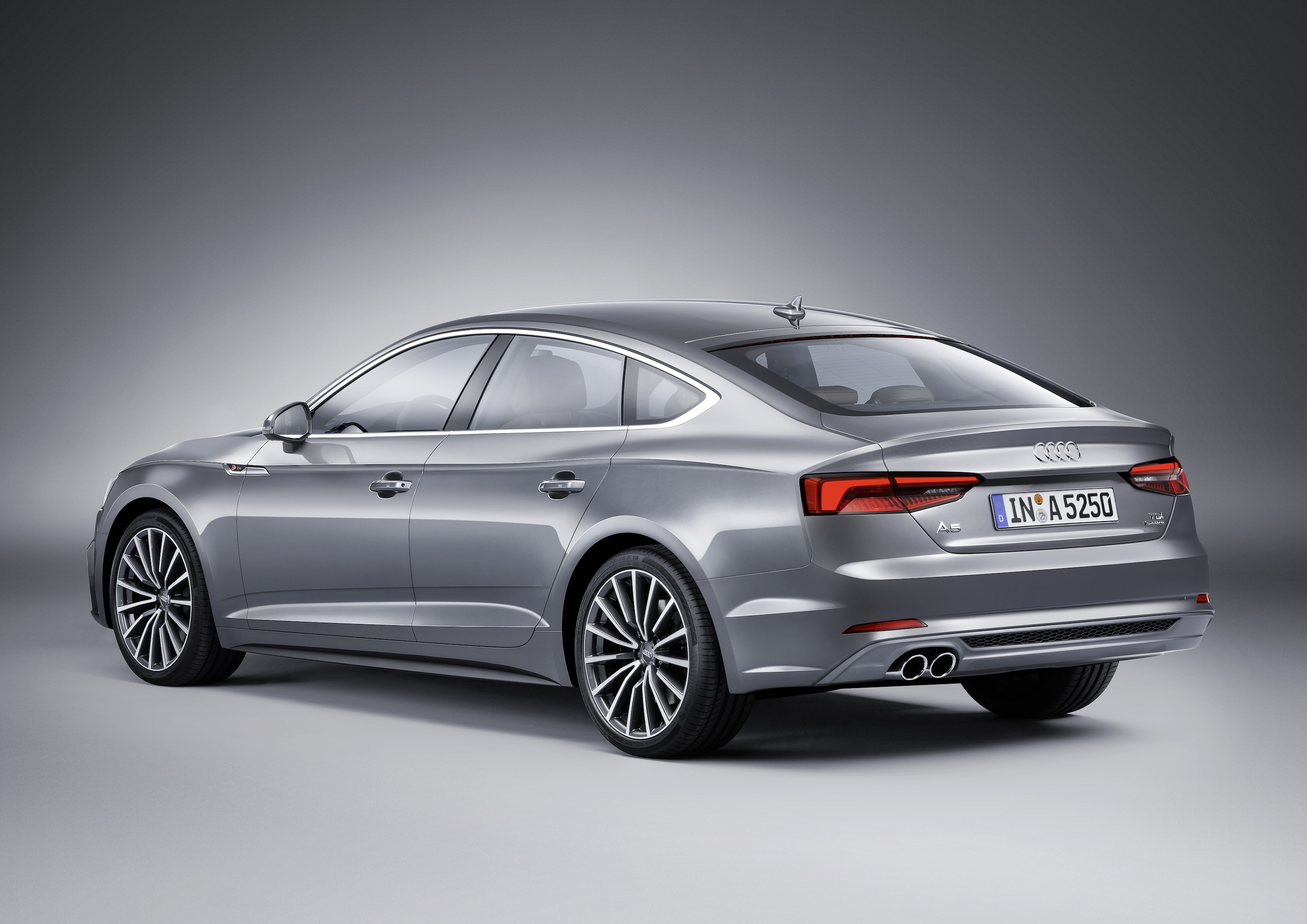

Photo Audi S5 Sportback
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.0 AT AWD (354) 44 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 2995 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 354 |
| Torque, Nm | 500 |
| RPM at max torque | 1370-4500 |
| Engine | 3.0 TFSI |
| RPM at max power | 5400-6400 |
| Turbo | + |
| Engine code | CWGD (EA839) |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4752 |
| Width | 2029 |
| Height mm | 1384 |
| Wheelbase mm | 2825 |
| Front track, mm | 1587 |
| Rear track, mm | 1565 |
| Kerb weight, kg | 1735 |
| Trunk capacity, L | 480 |
| Fuel tank, l | 58 |
| Turning circle, m | 11.7 |
| Gross weight, kg | 2230 |
| Width (without mirrors) mm | 1843 |
Suspension
| Type of front suspension | Independent with anti-roll bar |
|---|---|
| Rear suspension | Independent with anti-roll bar |
Brake system
| The front brakes | Ventilated disc |
|---|---|
| Rear brakes | Ventilated disc |
Steering
| Power steering | Electromechanical |
|---|
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 9.8 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.9 |
| Fuel consumption (combined), l. 100 km | 7.3 |
| Acceleration (0-100 km/h), s | 4.7 |
| The maximum speed, km / h. | 250 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Full |
| Transmission | 8-Tiptronic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
3.0 TFSI (354 hp) 8-Tiptronic 4x4 39 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 2995 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 354 |
| Torque, Nm | 500 |
| RPM at max torque | 1370-4500 |
| Engine | 3.0 TFSI |
| RPM at max power | 5400-6400 |
| Turbo | + |
| Engine code | CWGD (EA839) |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4752 |
| Width | 2029 |
| Height mm | 1384 |
| Wheelbase mm | 2824 |
| Front track, mm | 1587 |
| Rear track, mm | 1565 |
| Kerb weight, kg | 1735 |
| Trunk capacity, L | 480 |
| Fuel tank, l | 58 |
| Turning circle, m | 11.7 |
| Gross weight, kg | 2230 |
| Width (without mirrors) mm | 1843 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 9.8 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.9 |
| Fuel consumption (combined), l. 100 km | 7.3 |
| Acceleration (0-100 km/h), s | 4.7 |
| The maximum speed, km / h. | 250 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Full |
| Transmission | 8-Tiptronic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
Audi S5 Sportback questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Audi S5 Sportback?
This page lists 2 trims for the Audi S5 Sportback, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Audi S5 Sportback?
The listed configurations show a power range of 354 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Audi S5 Sportback?
The available specification data shows engine displacement from 2995 cc across the trims listed on this page.
Which transmissions are listed for the Audi S5 Sportback?
The transmission options currently shown for this model are: 8. Open a trim section to see the full data for a specific configuration.
Are there photos for the Audi S5 Sportback?
Yes. The gallery includes 7 photos for the Audi S5 Sportback, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
