Audi A5 Sportback specifications and photos

Audi A5 Sportback specifications are shown with trim options, key technical data, and a model photo gallery. Compare 28 configurations by engine size, power, seating, and transmission. The gallery includes 16 photos for visual reference.

Years 2017 - 2019

Body type liftback

Trims 28

Photos 16

Overview

Audi A5 Sportback at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Audi A5 Sportback page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 150-286 hp and 1968-2967 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 150-286 hp
Engine displacement: 1968-2967 cc
Transmissions: 7, 6, 6-speed manual
Seating: 5 seats

Research hub

Photos, trims and specifications for Audi A5 Sportback

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 16 images Compare trims 28 configurations View detailed specs 1968-2967 cc Explore related pages Audi and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 150-286 hp

Engine displacement 1968-2967 cc

Seating 5 seats

Transmissions 7, 6, 6-speed manual

Trim / modification	Engine	Power	Seats	Transmission
2.0 TDI AT Basis (190)	1968 cc	190 hp	5	7
2.0 TFSI AT S line (190)	1984 cc	190 hp	5	7
2.0 TDI AT Sport (190)	1968 cc	190 hp	5	7
2.0 TFSI AT Basis quattro (252)	1984 cc	252 hp	5	7
2.0 TFSI AT Design quattro (252)	1984 cc	252 hp	5	7
2.0 TFSI AT S line quattro (252)	1984 cc	252 hp	5	7
2.0 TFSI AT Sport quattro (252)	1984 cc	252 hp	5	7
2.0 TDI AT Design (190)	1968 cc	190 hp	5	7
2.0 TDI AT S line (190)	1968 cc	190 hp	5	7
2.0 TDI AT Basis quattro (190)	1968 cc	190 hp	5	7
2.0 TDI AT Design quattro (190)	1968 cc	190 hp	5	7
2.0 TDI AT S line quattro (190)	1968 cc	190 hp	5	7
2.0 TDI AT Sport quattro (190)	1968 cc	190 hp	5	7
40 TFSI	1984 cc	190 hp	5	6
2.0 TFSI (190 HP) 7 S-tronic	1984 cc	190 hp	5	7
2.0 TFSI (252 HP) 6-speed manual 4x4	1984 cc	252 hp	5	6-speed manual
2.0 TFSI (252 HP) 7 S-tronic	1984 cc	252 hp	5	7
2.0 TFSI (252 HP) 7 S-tronic 4x4	1984 cc	252 hp	5	7
2.0 TDI (150 h.p.) 6-speed manual	1968 cc	150 hp	5	6-speed manual
2.0 TDI (150 HP) 6-speed manual 4x4	1968 cc	150 hp	5	6-speed manual
35 TDI	1968 cc	150 hp	5	7
2.0 TDI (190 hp) 6-speed	1968 cc	190 hp	5	6
2.0 TDI (190 HP) 6-speed manual 4x4	1968 cc	190 hp	5	6-speed manual
40 TDI	1968 cc	190 hp	5	7
40 TDI quattro	1968 cc	190 hp	5	7
3.0 TDI (218 HP) 7 S-tronic	2967 cc	218 hp	5	7
3.0 TDI (218 HP) 7 S-tronic 4x4	2967 cc	218 hp	5	7
3.0 TDI (286 hp) 8-Tiptronic 4x4	2967 cc	286 hp	5	8

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Audi A5 Sportback photo gallery

16 images are collected here with the main specifications and trim data for this model.

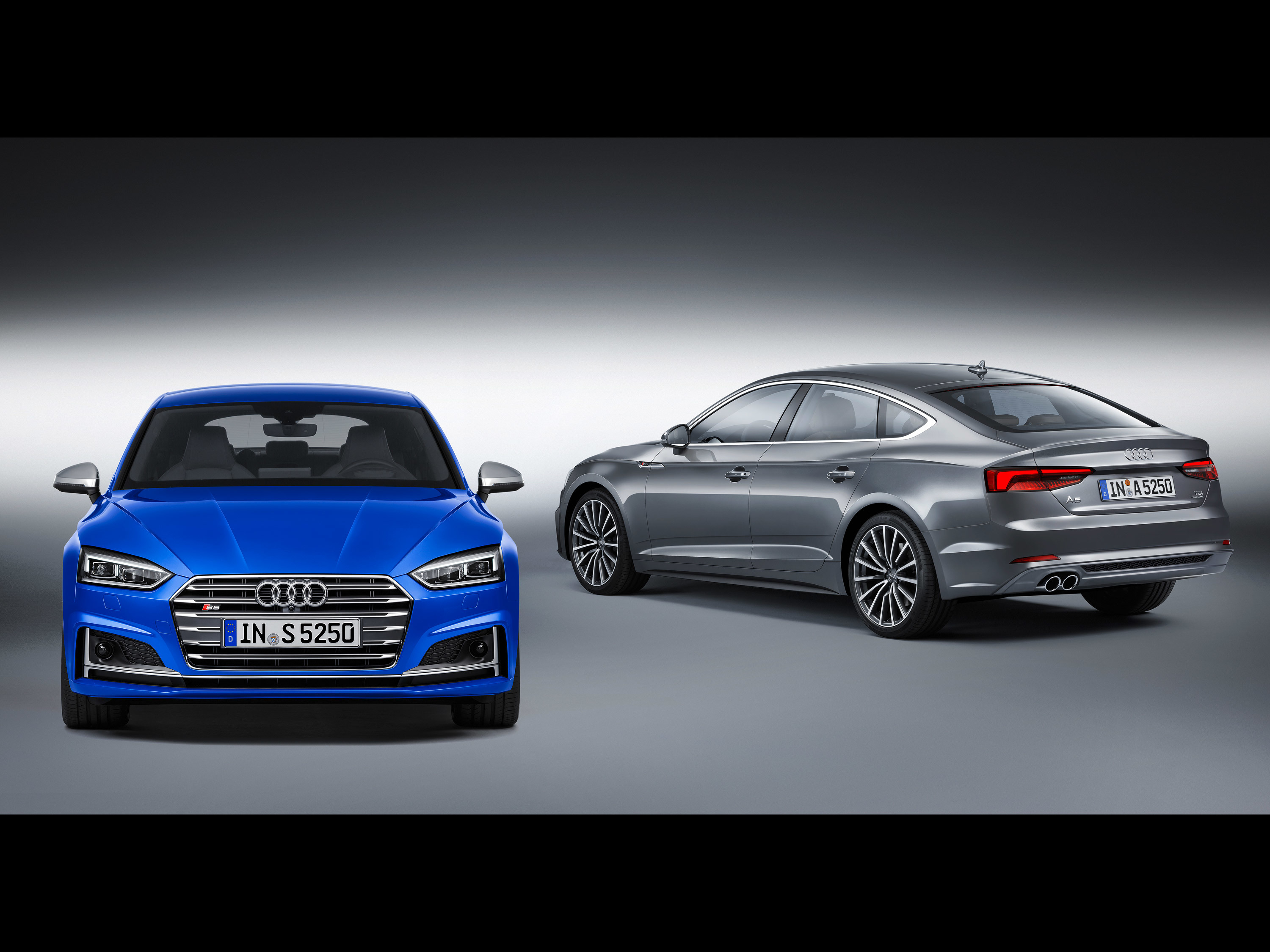

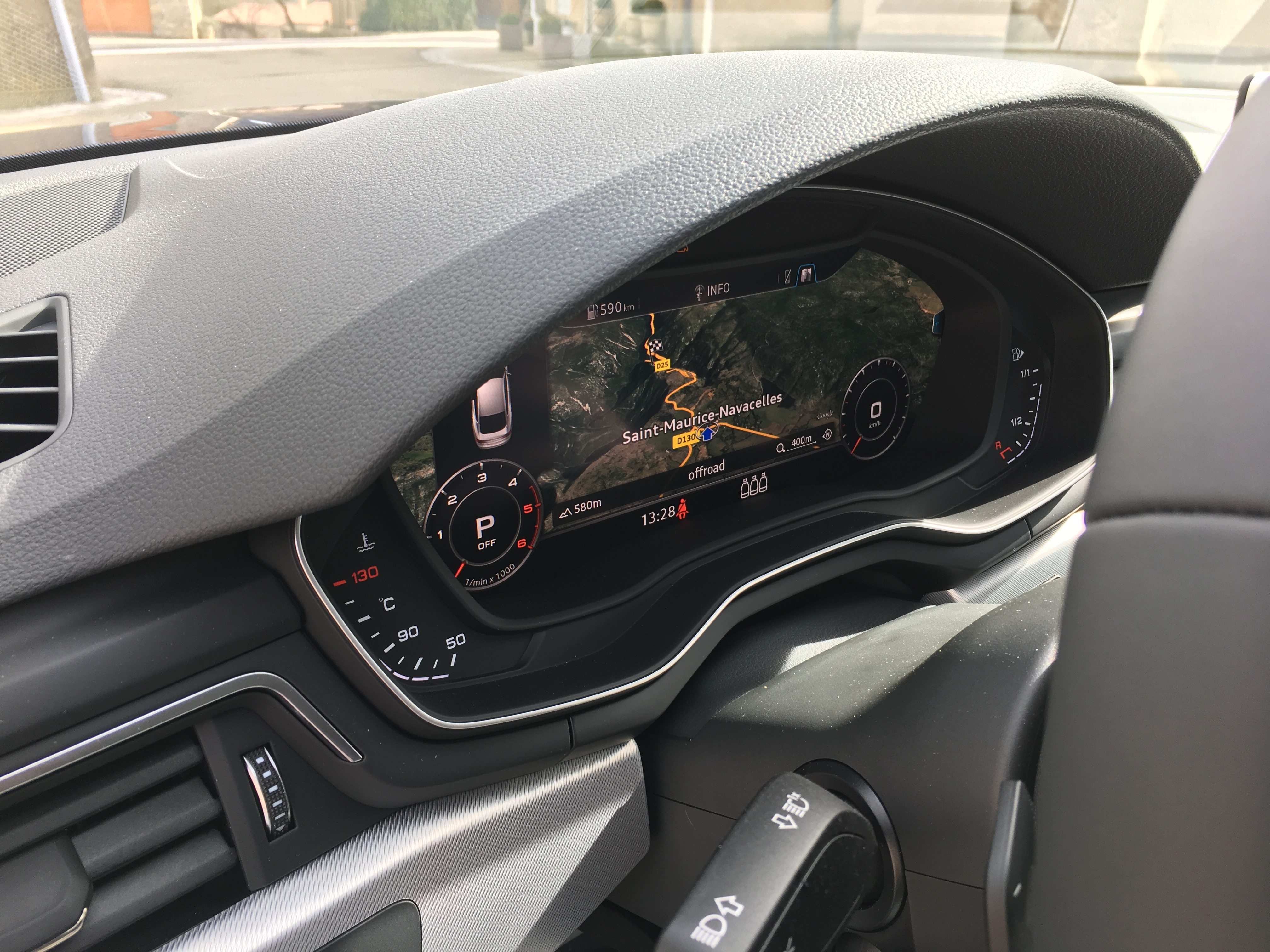

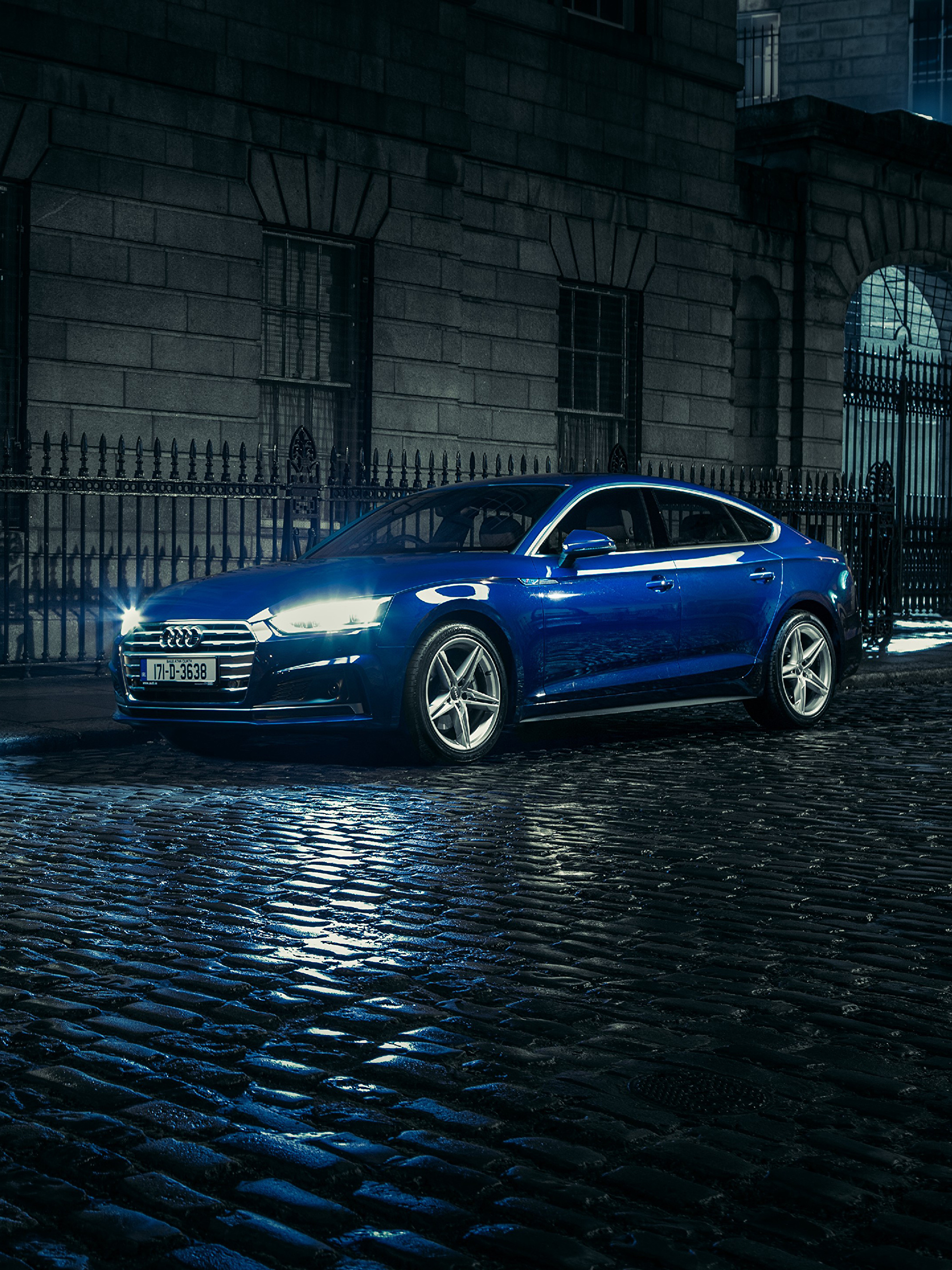

Photo Audi A5 Sportback

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.0 TDI AT Basis (190) 2.0 TFSI AT S line (190) 2.0 TDI AT Sport (190) 2.0 TFSI AT Basis quattro (252) 2.0 TFSI AT Design quattro (252) 2.0 TFSI AT S line quattro (252) 2.0 TFSI AT Sport quattro (252) 2.0 TDI AT Design (190) 2.0 TDI AT S line (190) 2.0 TDI AT Basis quattro (190) 2.0 TDI AT Design quattro (190) 2.0 TDI AT S line quattro (190) 2.0 TDI AT Sport quattro (190) 40 TFSI 2.0 TFSI (190 HP) 7 S-tronic 2.0 TFSI (252 HP) 6-speed manual 4x4 2.0 TFSI (252 HP) 7 S-tronic 2.0 TFSI (252 HP) 7 S-tronic 4x4 2.0 TDI (150 h.p.) 6-speed manual 2.0 TDI (150 HP) 6-speed manual 4x4 35 TDI 2.0 TDI (190 hp) 6-speed 2.0 TDI (190 HP) 6-speed manual 4x4 40 TDI 40 TDI quattro 3.0 TDI (218 HP) 7 S-tronic 3.0 TDI (218 HP) 7 S-tronic 4x4 3.0 TDI (286 hp) 8-Tiptronic 4x4

2.0 TDI AT Basis (190) 84 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1595
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2155
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.9
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.4
Acceleration (0-100 km/h), s	7.9
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/50R17
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TFSI AT S line (190) 86 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	320
RPM at max torque	1500-4180
Engine	2.0 TFSI
RPM at max power	4200-6000
Turbo	+
Engine code	CZPB/CVKB (EA888)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1595
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2155
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.8
Fuel consumption (urban), l. 100 km	4.8
Fuel consumption (combined), l. 100 km	5.5
Acceleration (0-100 km/h), s	7.5
The maximum speed, km / h.	239
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Sports steering wheel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Combination trim leather / fabric	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/40R18
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Sports seats	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TDI AT Sport (190) 86 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1595
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2155
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.9
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.4
Acceleration (0-100 km/h), s	7.9
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Inlays of metal	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/40R18
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Sports seats	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TFSI AT Basis quattro (252) 83 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	370
RPM at max torque	1600-4500
Engine	2.0 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	CYRB/DAXB (EA888)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1610
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2105
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.9
Fuel consumption (urban), l. 100 km	5.4
Fuel consumption (combined), l. 100 km	6.3
Acceleration (0-100 km/h), s	6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/50R17
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TFSI AT Design quattro (252) 84 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	370
RPM at max torque	1600-4500
Engine	2.0 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	CYRB/DAXB (EA888)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1595
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2155
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.9
Fuel consumption (urban), l. 100 km	5.4
Fuel consumption (combined), l. 100 km	6.3
Acceleration (0-100 km/h), s	6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Inlays of metal	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/40R18
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TFSI AT S line quattro (252) 86 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	370
RPM at max torque	1600-4500
Engine	2.0 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	CYRB/DAXB (EA888)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1610
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2105
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.9
Fuel consumption (urban), l. 100 km	5.4
Fuel consumption (combined), l. 100 km	6.3
Acceleration (0-100 km/h), s	6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Sports steering wheel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Combination trim leather / fabric	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/40R18
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Sports seats	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TFSI AT Sport quattro (252) 85 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	370
RPM at max torque	1600-4500
Engine	2.0 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	CYRB/DAXB (EA888)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1610
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2105
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.9
Fuel consumption (urban), l. 100 km	5.4
Fuel consumption (combined), l. 100 km	6.3
Acceleration (0-100 km/h), s	6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Inlays of metal	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/40R18
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Sports seats	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TDI AT Design (190) 85 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1595
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2155
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.9
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.4
Acceleration (0-100 km/h), s	7.9
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Inlays of metal	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/40R18
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TDI AT S line (190) 87 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1595
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2155
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.9
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.4
Acceleration (0-100 km/h), s	7.9
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Sports steering wheel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Combination trim leather / fabric	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/40R18
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Sports seats	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TDI AT Basis quattro (190) 84 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1675
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2185
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.3
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.7
Acceleration (0-100 km/h), s	7.4
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/50R17
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TDI AT Design quattro (190) 85 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1595
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2155
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.3
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.7
Acceleration (0-100 km/h), s	7.4
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Inlays of metal	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/40R18
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TDI AT S line quattro (190) 87 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1675
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2185
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.3
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.7
Acceleration (0-100 km/h), s	7.4
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Sports steering wheel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Combination trim leather / fabric	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/40R18
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Sports seats	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

2.0 TDI AT Sport quattro (190) 86 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1675
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2185
Width (without mirrors) mm	1843

Suspension

Type of front suspension	Independent, multi-link
Rear suspension	Independent, multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.3
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.7
Acceleration (0-100 km/h), s	7.4
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+
The opening of the doors and start without a key	+

Interior

Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Inlays of metal	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/40R18
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
ventilated front seats	+
Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Tinted glass	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	8

Headlights and lighting

Xenon headlights	+
Washers	+
corrector of headlights	+
Rear LED lights	+
Daylight (halogen headlights)	+

Seats

Armrest front	+
Sports seats	+
Isofix child seat (LATCH, Isofix)	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+
Highlighting the trunk	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Anti-theft systems

Locking	+
alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

40 TFSI 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	320
RPM at max torque	1500-4180
Engine	2.0 TFSI
RPM at max power	4200-6000
Turbo	+
Engine code	CZPB/CVKB (EA888)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.5
Fuel consumption (urban), l. 100 km	4.9
Fuel consumption (combined), l. 100 km	5.9
Acceleration (0-100 km/h), s	7.5
The maximum speed, km / h.	240
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics

2.0 TFSI (190 HP) 7 S-tronic 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	320
RPM at max torque	1500-4180
Engine	2.0 TFSI
RPM at max power	4200-6000
Turbo	+
Engine code	CZPB/CVKB (EA888)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.8
Fuel consumption (urban), l. 100 km	4.8
Fuel consumption (combined), l. 100 km	5.5
Acceleration (0-100 km/h), s	7.5
The maximum speed, km / h.	239
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

2.0 TFSI (252 HP) 6-speed manual 4x4 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	370
RPM at max torque	1600-4500
Engine	2.0 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	CYRB/DAXB (EA888)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.3
Fuel consumption (urban), l. 100 km	5.5
Fuel consumption (combined), l. 100 km	6.5
Acceleration (0-100 km/h), s	6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Full
Transmission	6-speed manual
Gearbox	Mechanics

2.0 TFSI (252 HP) 7 S-tronic 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	370
RPM at max torque	1600-4500
Engine	2.0 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	CYRB/DAXB (EA888)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.7
Fuel consumption (urban), l. 100 km	5.1
Fuel consumption (combined), l. 100 km	6.1
Acceleration (0-100 km/h), s	6.5
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

2.0 TFSI (252 HP) 7 S-tronic 4x4 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	370
RPM at max torque	1600-4500
Engine	2.0 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	CYRB/DAXB (EA888)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.9
Fuel consumption (urban), l. 100 km	5.4
Fuel consumption (combined), l. 100 km	6.3
Acceleration (0-100 km/h), s	6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

2.0 TDI (150 h.p.) 6-speed manual 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	320
RPM at max torque	1750-3000
Engine	2.0 TDI
Compression	16.2
RPM at max power	3500-4000
Turbo	+
Engine code	CRBC/CRLB/DEUA

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5
Fuel consumption (urban), l. 100 km	3.9
Fuel consumption (combined), l. 100 km	4.3
Acceleration (0-100 km/h), s	9
The maximum speed, km / h.	219
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics

2.0 TDI (150 HP) 6-speed manual 4x4 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	320
RPM at max torque	1750-3000
Engine	2.0 TDI
Compression	16.2
RPM at max power	3500-4000
Turbo	+
Engine code	CRBC/CRLB/DEUA

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.3
Fuel consumption (urban), l. 100 km	4.2
Fuel consumption (combined), l. 100 km	4.6
Acceleration (0-100 km/h), s	8.9
The maximum speed, km / h.	217
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Full
Transmission	6-speed manual
Gearbox	Mechanics

35 TDI 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	320
RPM at max torque	1750-3000
Engine	2.0 TDI
Compression	16.2
RPM at max power	3500-4000
Turbo	+
Engine code	CRBC/CRLB/DEUA

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5
Fuel consumption (urban), l. 100 km	4
Fuel consumption (combined), l. 100 km	4.4
Acceleration (0-100 km/h), s	8.9
The maximum speed, km / h.	217
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

2.0 TDI (190 hp) 6-speed 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.4
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.6
Acceleration (0-100 km/h), s	7.9
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics

2.0 TDI (190 HP) 6-speed manual 4x4 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.5
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.8
Acceleration (0-100 km/h), s	7.4
The maximum speed, km / h.	234
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Full
Transmission	6-speed manual
Gearbox	Mechanics

40 TDI 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.9
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.4
Acceleration (0-100 km/h), s	7.9
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

40 TDI quattro 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.3
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.7
Acceleration (0-100 km/h), s	7.4
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

3.0 TDI (218 HP) 7 S-tronic 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2967
Cylinders location	V-shaped
Number of cylinders	6
Valves	24
Power, hp	218
Torque, Nm	400
RPM at max torque	1250-3750
Engine	3.0 TDI
RPM at max power	4000-4750
Turbo	+
Engine code	CSWB (EA897)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5
Fuel consumption (urban), l. 100 km	4.3
Fuel consumption (combined), l. 100 km	4.5
Acceleration (0-100 km/h), s	6.6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

3.0 TDI (218 HP) 7 S-tronic 4x4 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2967
Cylinders location	V-shaped
Number of cylinders	6
Valves	24
Power, hp	218
Torque, Nm	400
RPM at max torque	1250-3750
Engine	3.0 TDI
RPM at max power	4000-4750
Turbo	+
Engine code	CSWB (EA897)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.1
Fuel consumption (urban), l. 100 km	4.7
Fuel consumption (combined), l. 100 km	4.8
Acceleration (0-100 km/h), s	6.4
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

3.0 TDI (286 hp) 8-Tiptronic 4x4 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2967
Cylinders location	V-shaped
Number of cylinders	6
Valves	32
Power, hp	286
Torque, Nm	620
RPM at max torque	1500-3000
Engine	3.0 TDI
RPM at max power	3750-4000
Turbo	+
Engine code	DCPC (EA897)

Dimensions

Seats	5
Length mm	4733
Width	2029
Height mm	1386
Wheelbase mm	2824
Front track, mm	1587
Rear track, mm	1568
Kerb weight, kg	1575
Trunk capacity, L	480
Fuel tank, l	40
Turning circle, m	11.7
Gross weight, kg	2095
Width (without mirrors) mm	1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.5
Fuel consumption (urban), l. 100 km	5.2
Fuel consumption (combined), l. 100 km	5.7
Acceleration (0-100 km/h), s	5.3
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Tiptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

FAQ

Audi A5 Sportback questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Audi A5 Sportback?

This page lists 28 trims for the Audi A5 Sportback, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Audi A5 Sportback?

The listed configurations show a power range of 150-286 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Audi A5 Sportback?

The available specification data shows engine displacement from 1968-2967 cc across the trims listed on this page.

Which transmissions are listed for the Audi A5 Sportback?

The transmission options currently shown for this model are: 7, 6, 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Audi A5 Sportback?

Yes. The gallery includes 16 photos for the Audi A5 Sportback, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
