Dacia Logan MCV specifications and photos
The 2016 Dacia Logan MCV is a budget-friendly five-door estate car designed for buyers who prioritize cargo capacity and utility. Released as a refreshed version of the second-generation model, it combines low running costs with a highly spacious interior.
Dacia Logan MCV at a glance
Quick model context before comparing photos and trim-level specifications.
Unveiled at the 2016 Paris Motor Show, the updated Dacia Logan MCV brought minor styling and mechanical improvements to the Romanian brand's popular B-segment wagon. Positioned as one of the most affordable estate cars on the market, it targets families and buyers needing maximum load-carrying capability without a premium price tag. The update introduced refreshed front and rear styling, minor interior material upgrades, and a more efficient three-cylinder engine to replace the aging entry-level powerplants. While keeping its utilitarian focus, the refreshed Logan MCV remains a highly sensible option for daily driving and cargo hauling.
- Power: 73-90 hp
- Engine displacement: 898-1461 cc
- Transmissions: 5-speed manual, 5-speed automated manual
- Seating: 5 seats
Dacia Logan MCV overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The 2016 facelift gave the Logan MCV a more modern appearance. The updated exterior features a redesigned front grille with a honeycomb pattern, flanked by updated headlights containing dual-optic lenses and integrated LED daytime running lights. Both the front and rear bumpers were reshaped to display sharper, more defined lines. Despite these cosmetic updates, the wagon retains its traditional boxy silhouette, which optimizes internal space and allows for the fitment of roof rails capable of carrying long loads up to 1,680 mm.
Interior
Interior comfort and packaging remain the main highlights of the Logan MCV. The cabin accommodates five passengers, offering simple controls and hard-wearing materials suitable for families. The rear bench seat can be folded down to expand the cargo area, allowing owners to transport bulkier items. Storage cubbies are distributed throughout the cabin for daily convenience, though the overall design remains focused on durability and functional simplicity rather than premium aesthetics.
Performance
Under the hood, the updated model introduced a 1.0-liter three-cylinder SCe gasoline engine producing 73 horsepower, replacing the older 1.2-liter engine. Buyers looking for more performance can opt for the 0.9-liter turbocharged H4Bt three-cylinder engine generating 90 horsepower. For high-mileage drivers, the 1.5-liter dCi diesel engine is available, offering excellent fuel efficiency and up to 220 Nm of torque. Transmission options include a five-speed manual gearbox and a five-speed automated manual transmission, driving the front wheels.
Practicality
With a standard boot volume of 573 liters, the Logan MCV offers exceptional cargo capacity for its class. Folding the rear seats increases this volume significantly, making it ideal for hauling large items. The low loading lip and wide tailgate aperture simplify the process of loading heavy luggage, while the roof-mounted rails support additional external transport needs.
Safety and tech
The 2016 update brought standard LED daytime running lights to improve daytime visibility. The safety equipment includes basic stability control, anti-lock brakes, and multiple airbags. Technical features are modest, focusing on essential functions like standard instrument readouts, simple audio systems, and optional parking sensors or basic infotainment options depending on the chosen market trim.
Buyer notes
When shopping for a used Dacia Logan MCV, buyers should carefully evaluate the engine choices. The entry-level naturally aspirated engine is well suited for city driving, whereas the turbocharged gasoline and diesel engines offer better highway usability, especially when fully loaded. Gearbox preferences are also worth noting, as the automated manual transmission shifts differently than a conventional automatic. Exact standard equipment and safety features vary depending on regional markets.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 0.9i 5AT | 898 cc | 90 hp | 5 | 5-speed manual |
| 0.9i 5MT | 898 cc | 90 hp | 5 | 5-speed manual |
| 1.0i 5MT | 999 cc | 73 hp | 5 | 5-speed manual |
| 1.5d 5AT (90) | 898 cc | 90 hp | 5 | 5-speed automated manual |
| 1.5d 5MT (75) | 1461 cc | 90 hp | 5 | 5-speed manual |
| 1.5d 5MT (90) | 1461 cc | 90 hp | 5 | 5-speed automated manual |
| 1.0i (73 hp) 5-speed manual | 999 cc | 73 hp | 5 | 5-speed manual |
| 0.9i (90 hp) 5-speed manual | 898 cc | 90 hp | 5 | 5-speed manual |
| 0.9i (90 hp) 5-speed automated manual | 898 cc | 90 hp | 5 | 5-speed automated manual |
| 1.5 dCi (90 hp) 5-speed manual | 1461 cc | 90 hp | 5 | 5-speed manual |
| 1.5 dCi (90 hp) 5-speed automated manual | 1461 cc | 90 hp | 5 | 5-speed automated manual |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

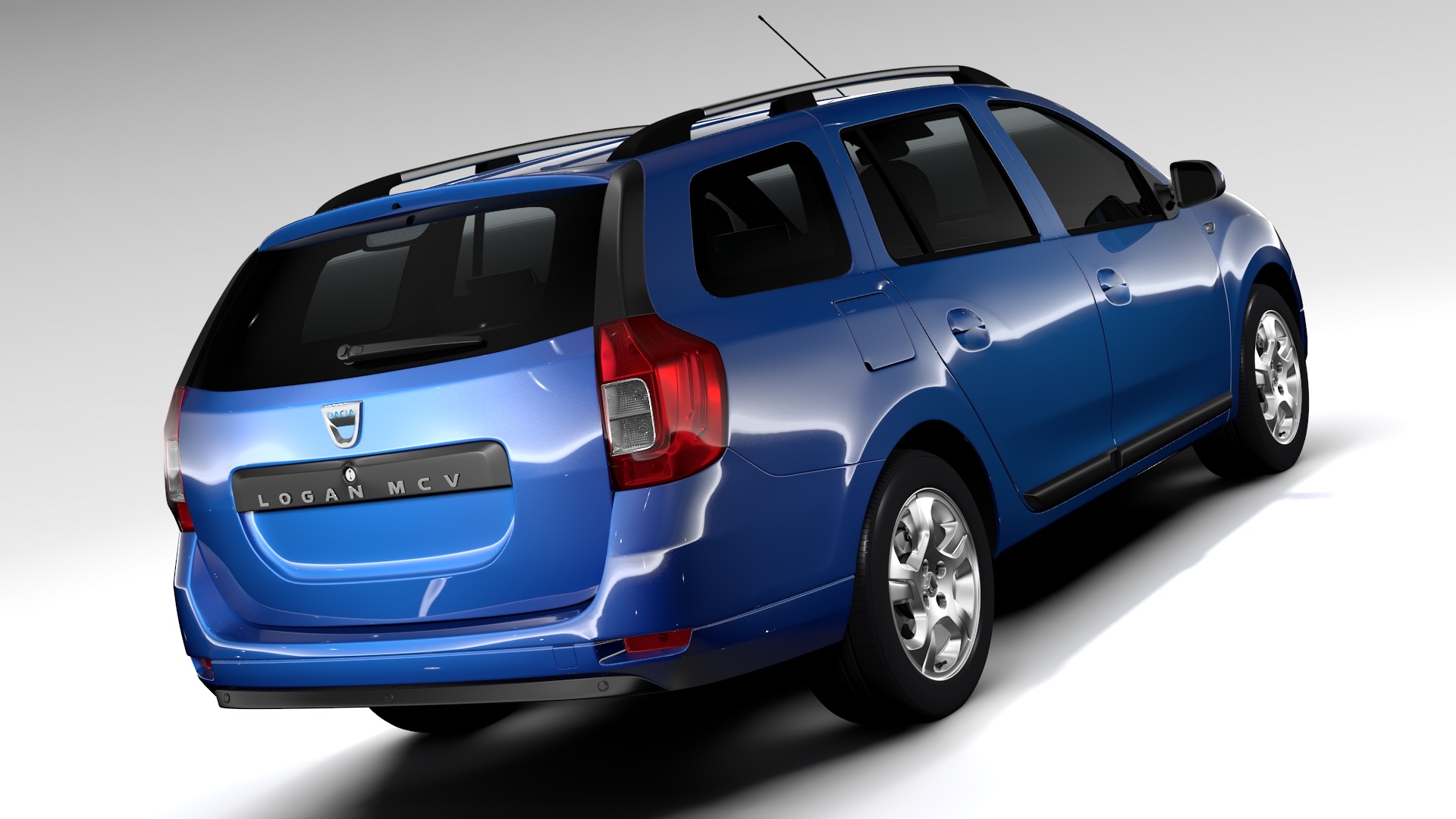

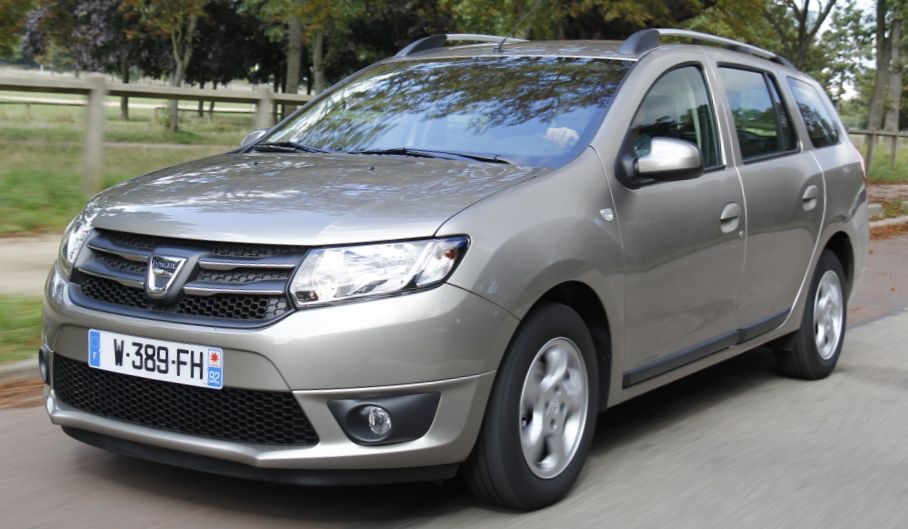

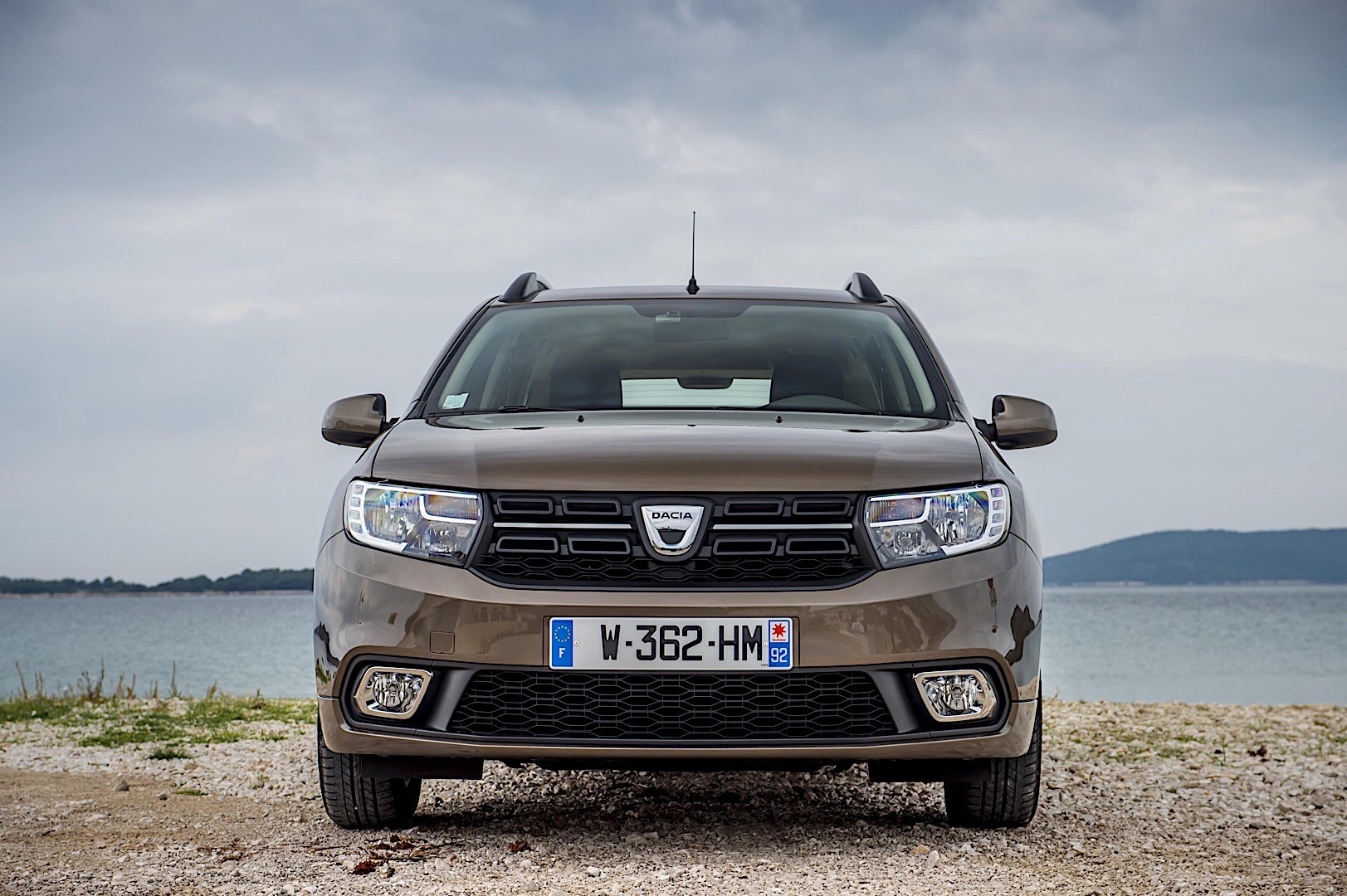

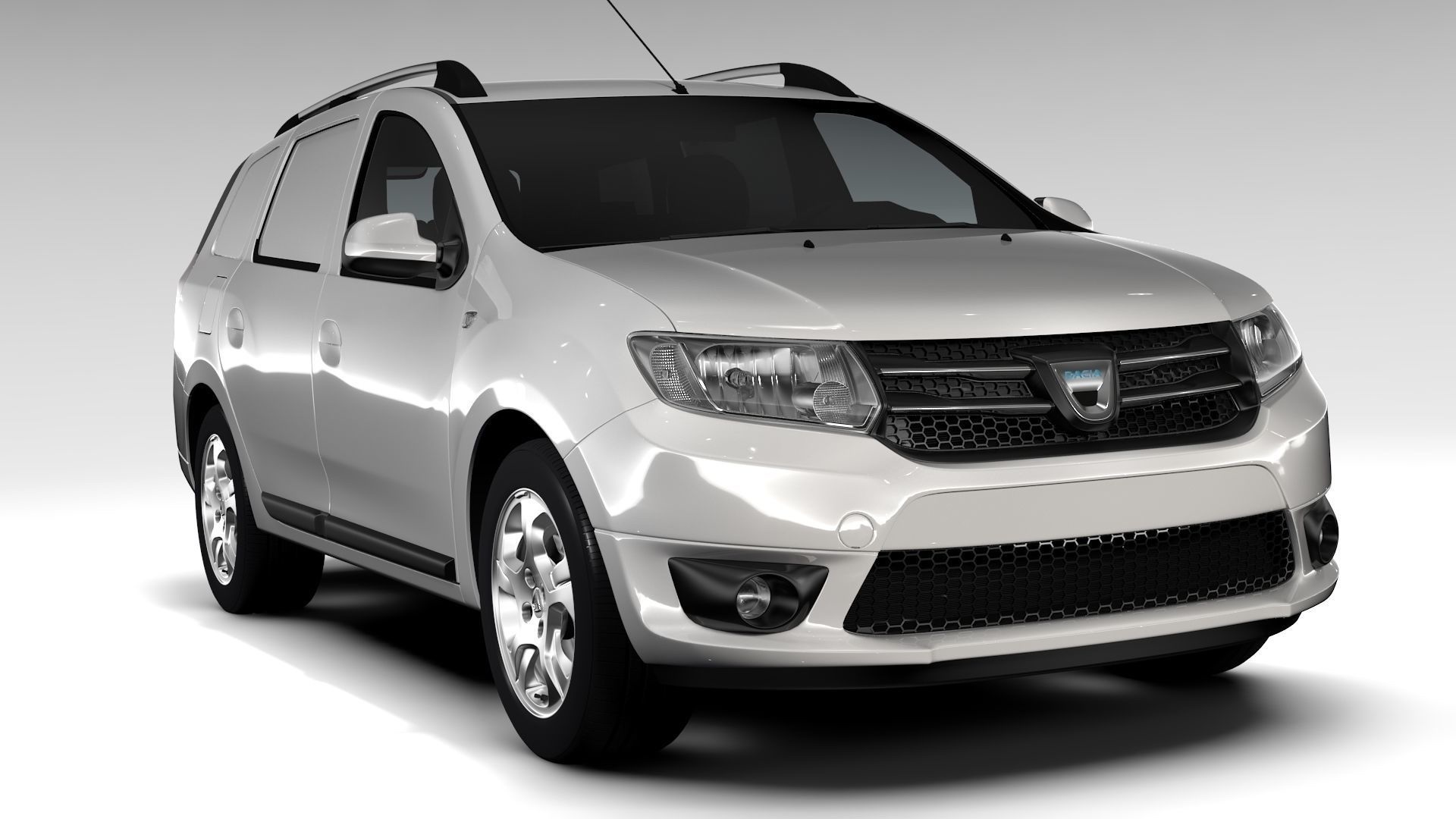

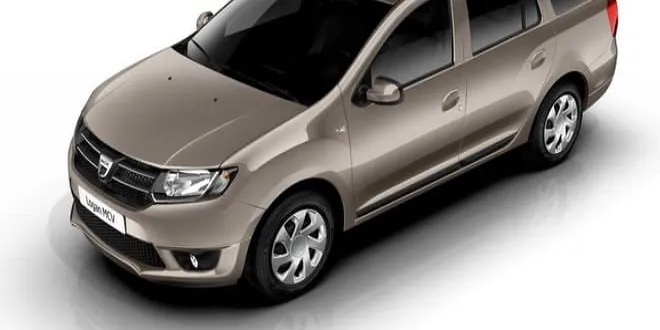

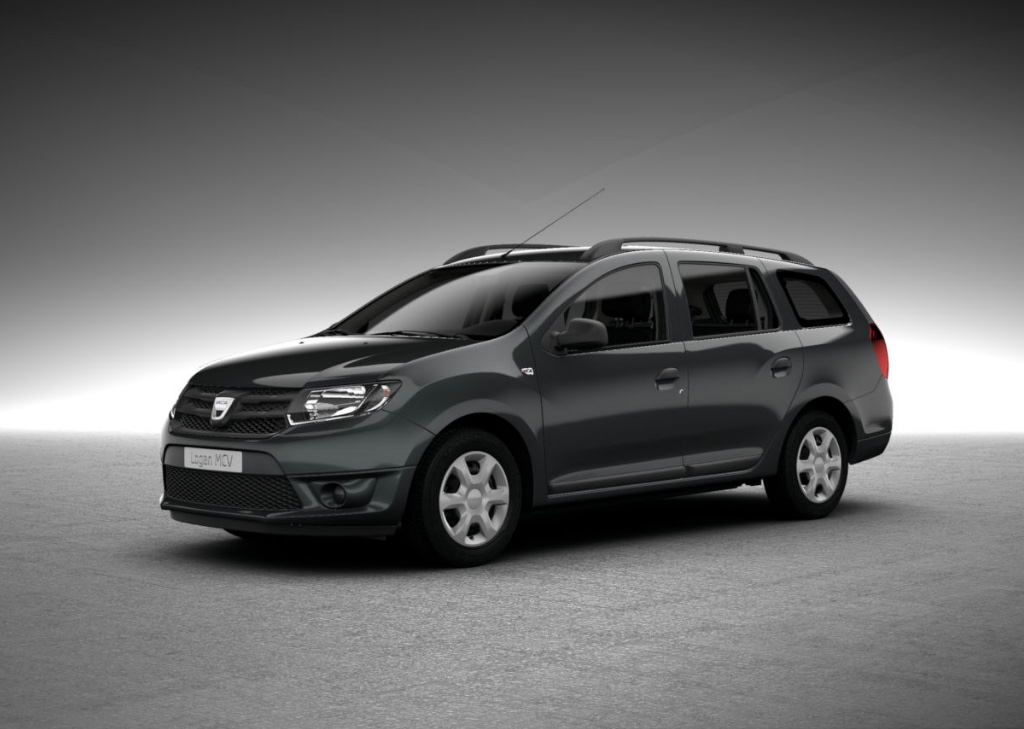

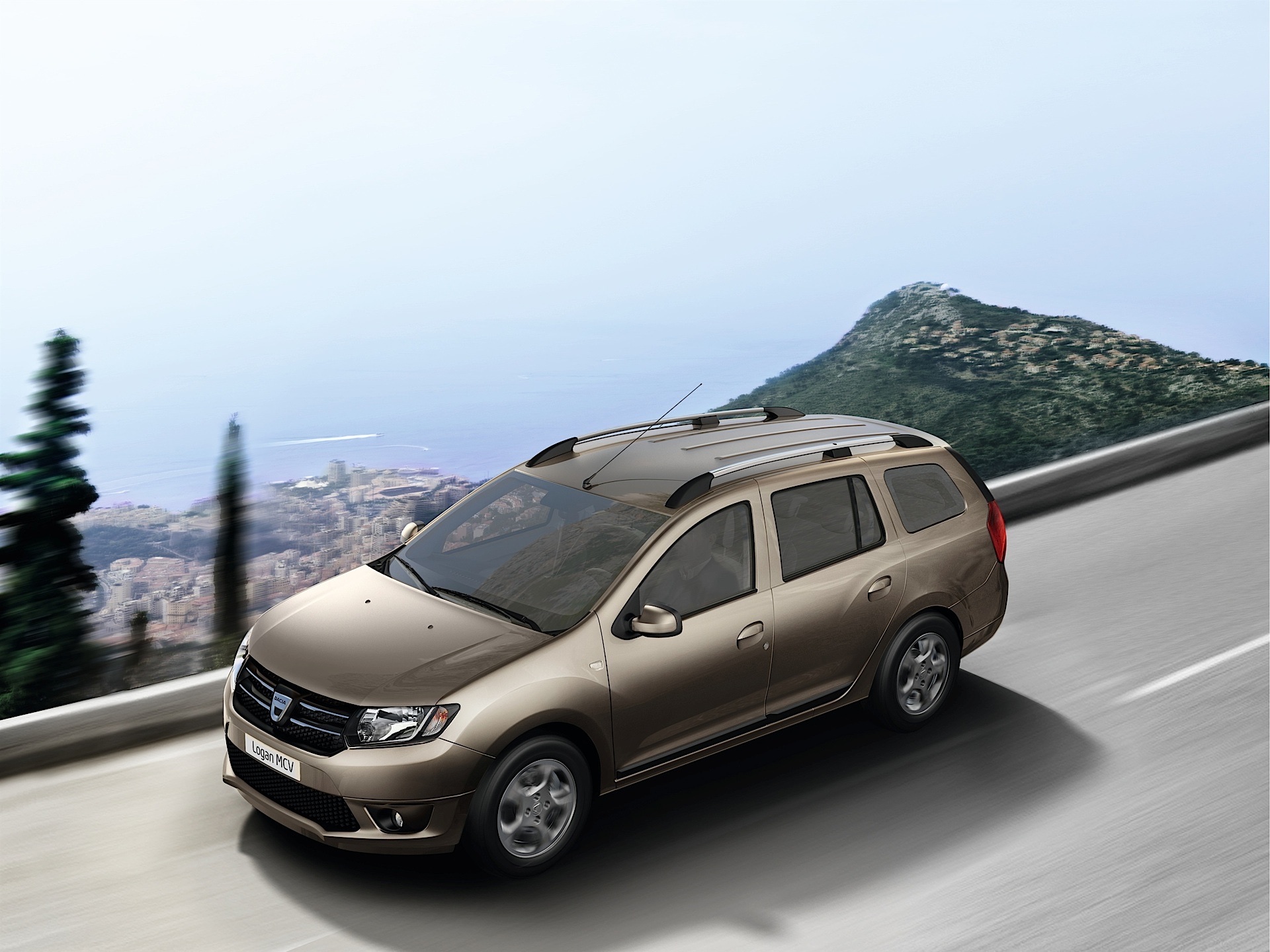

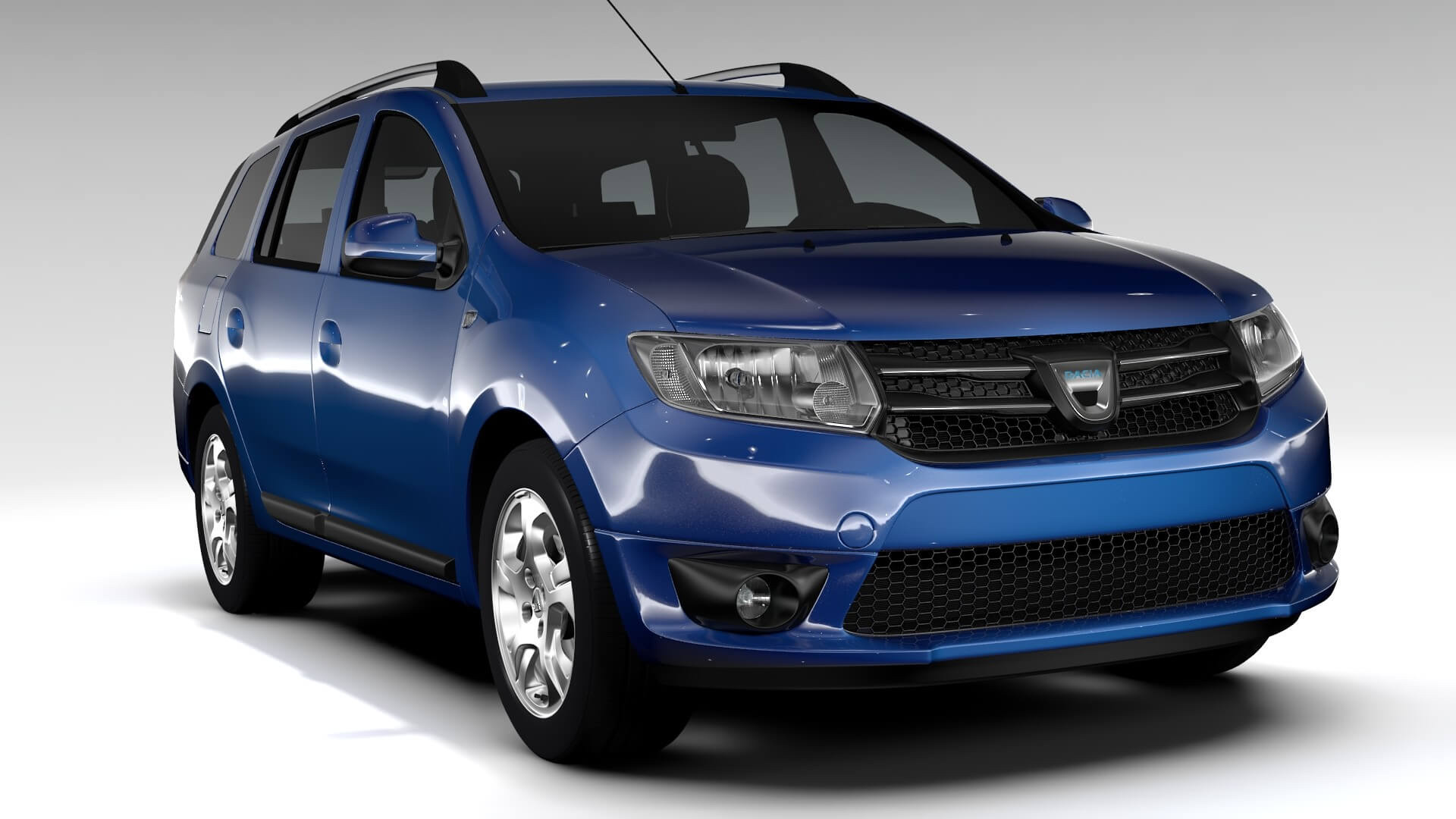

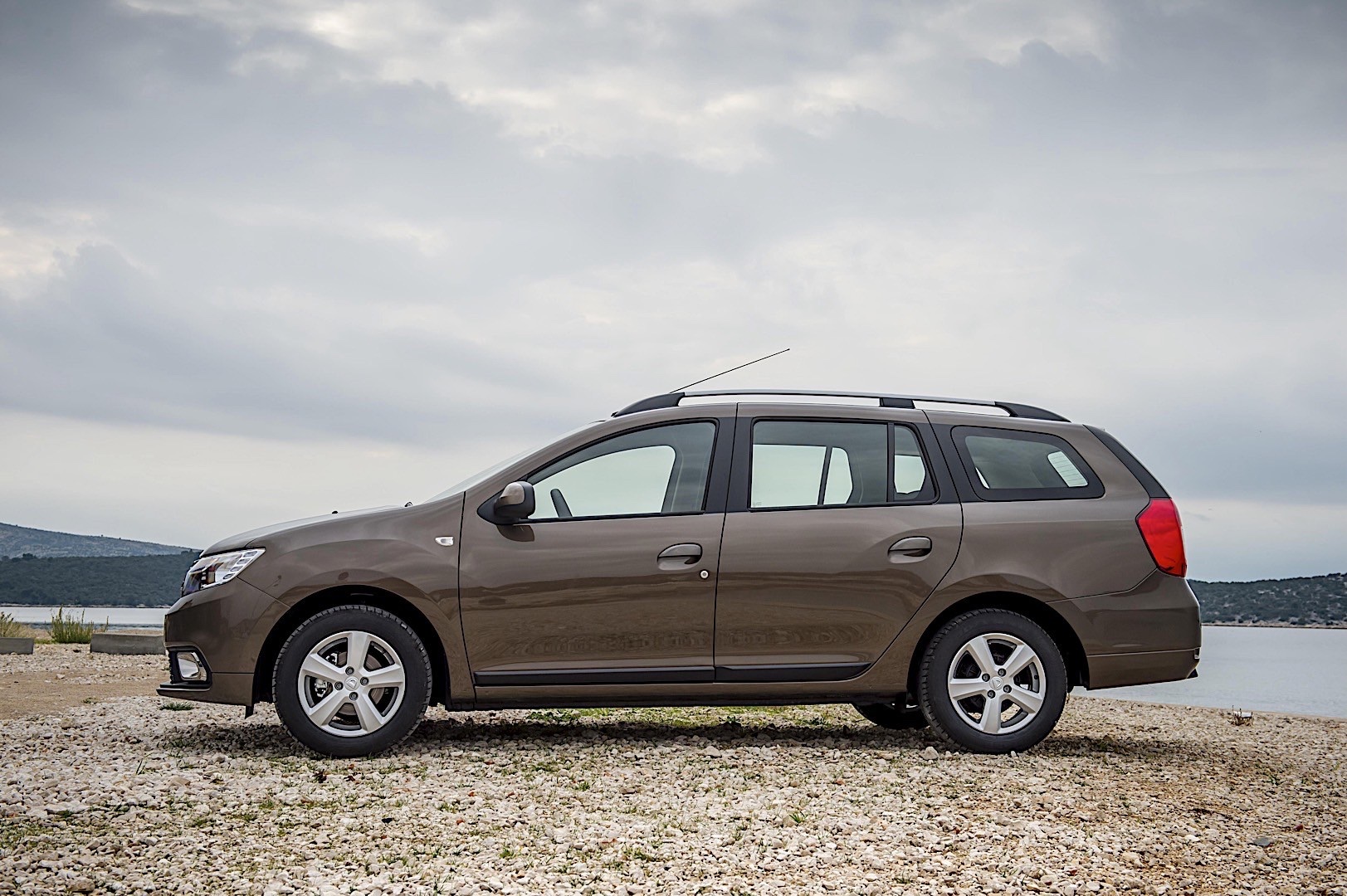

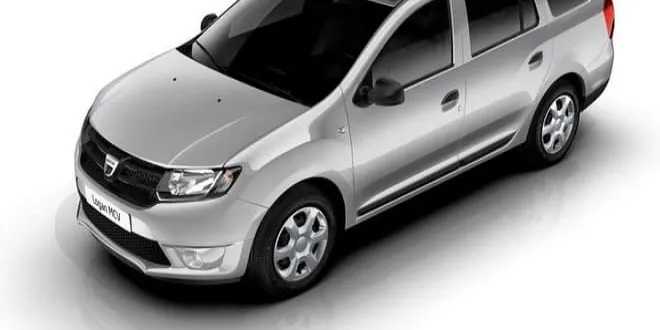

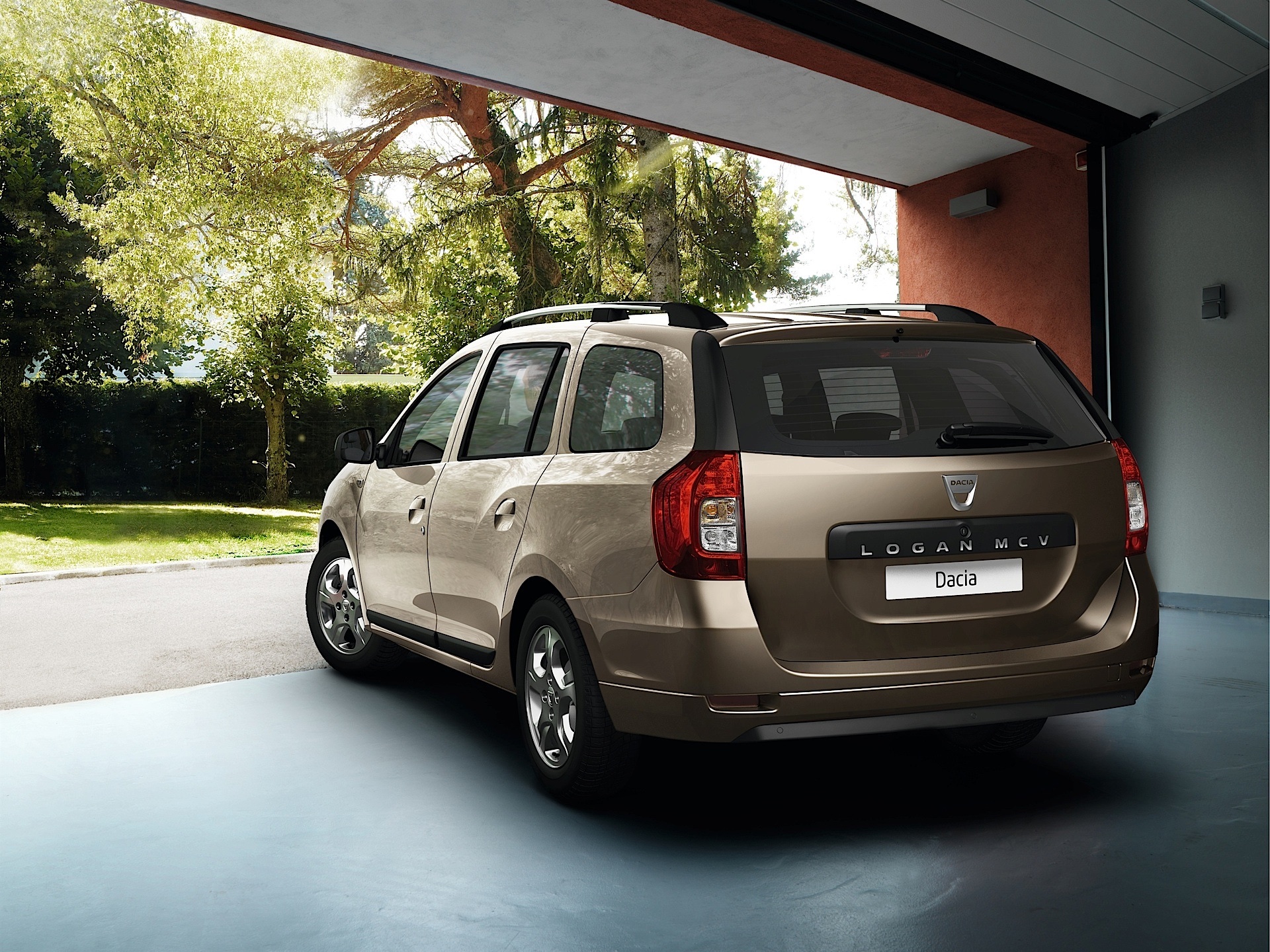

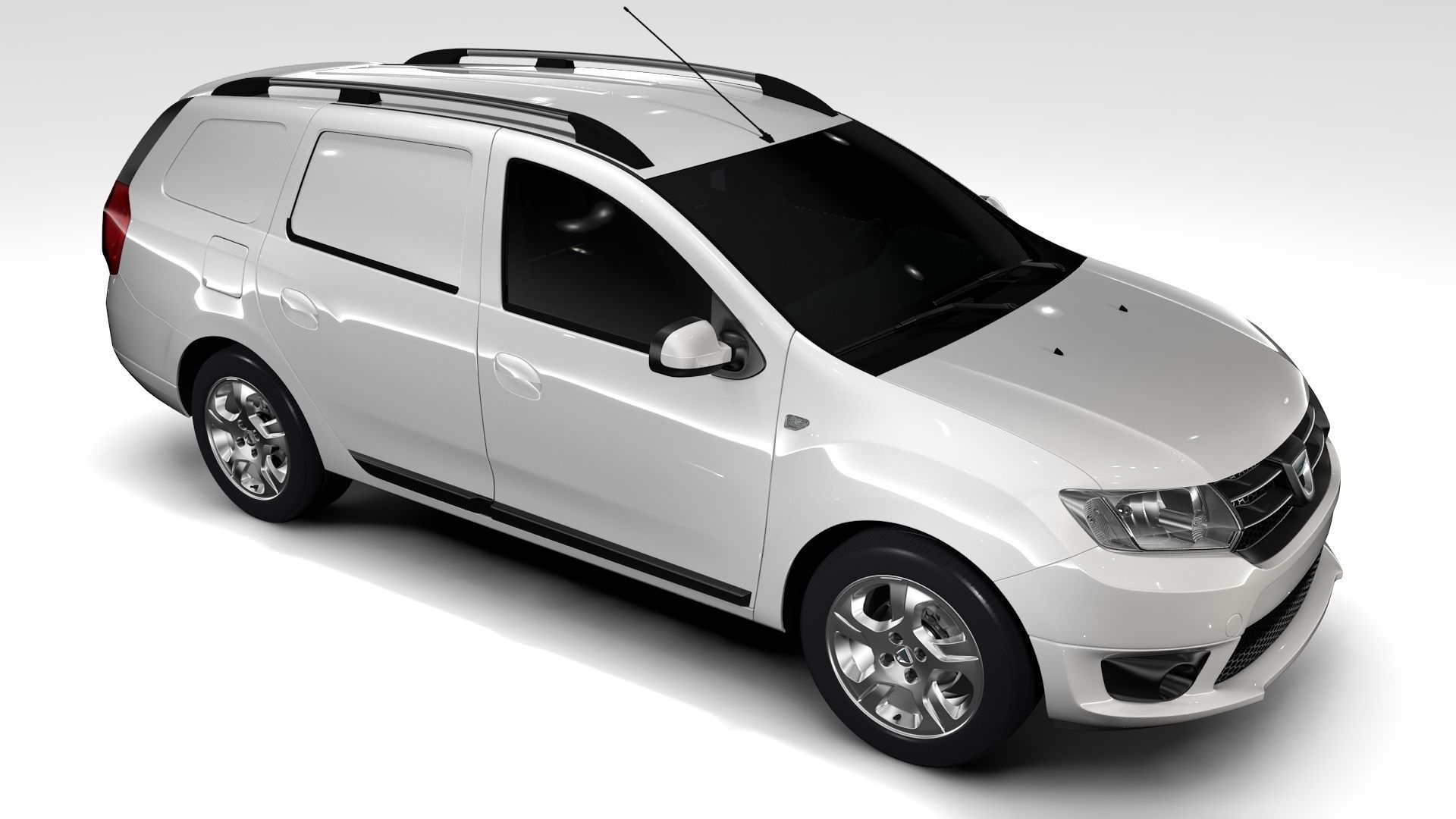

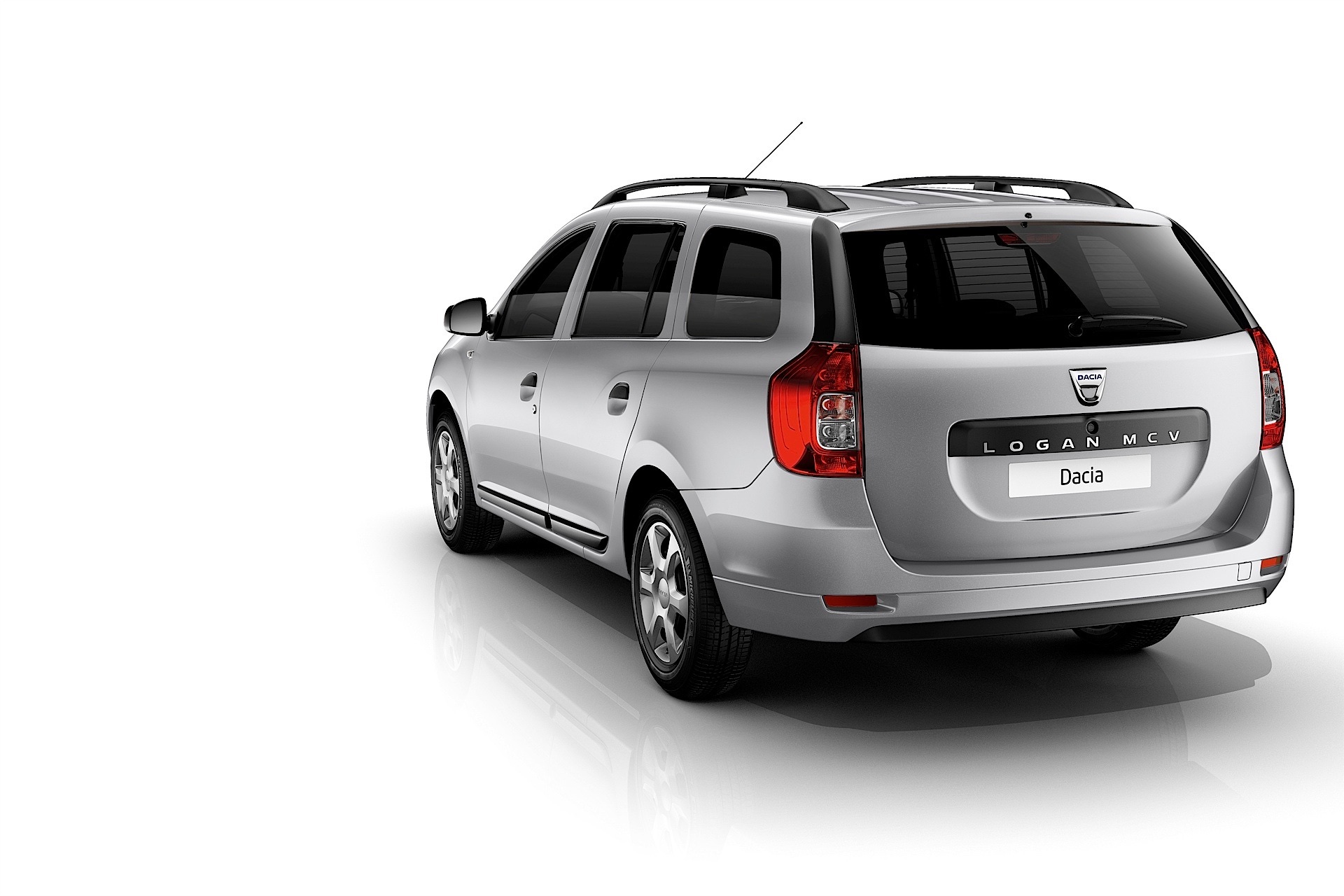

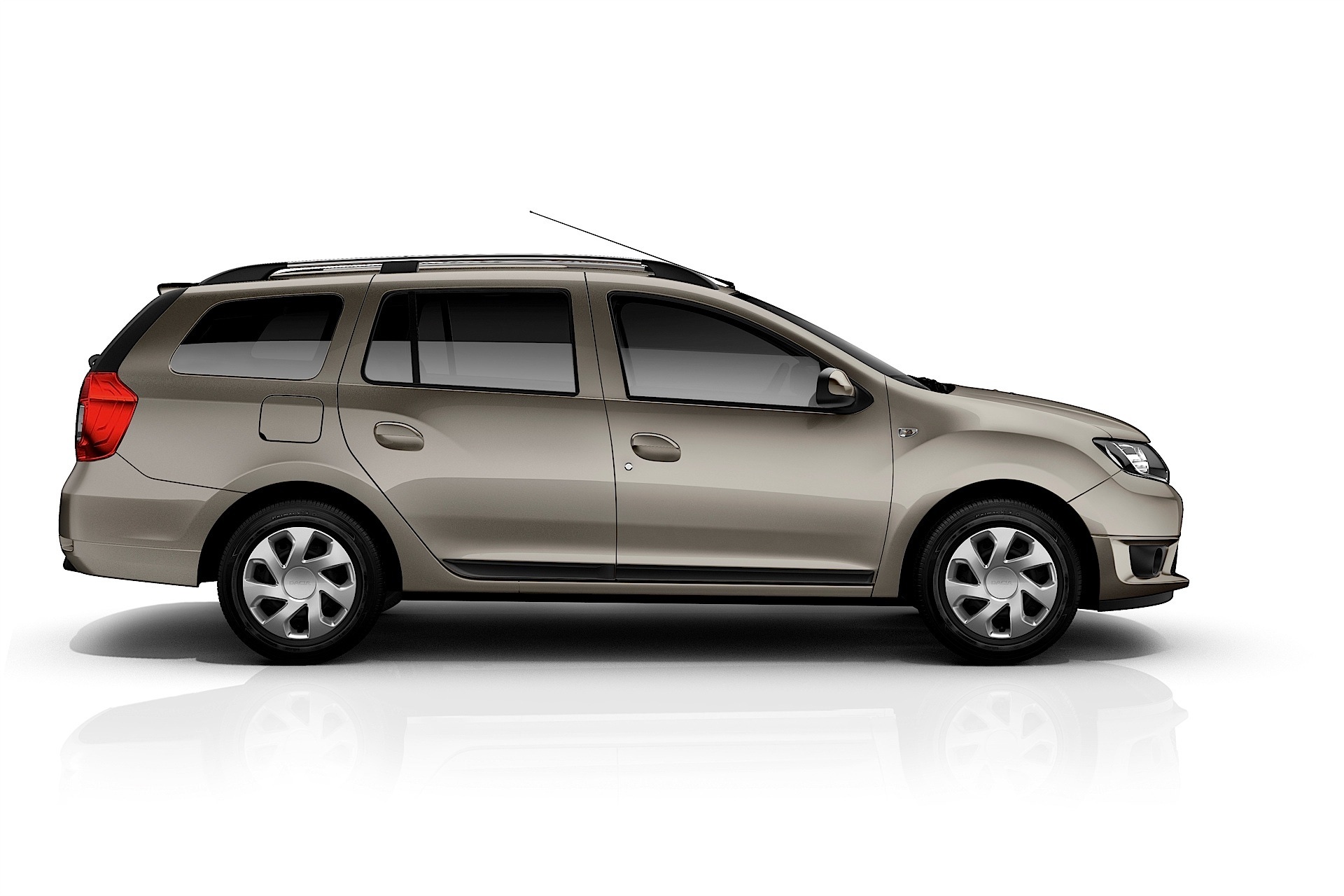

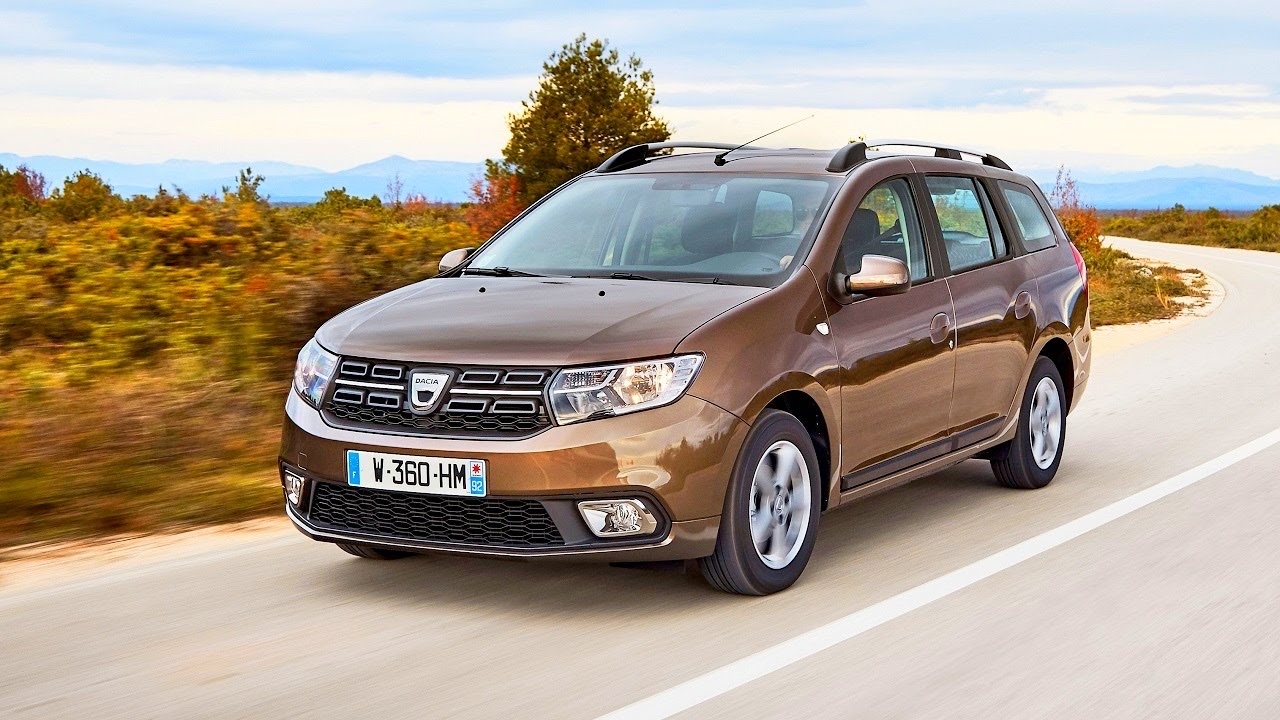

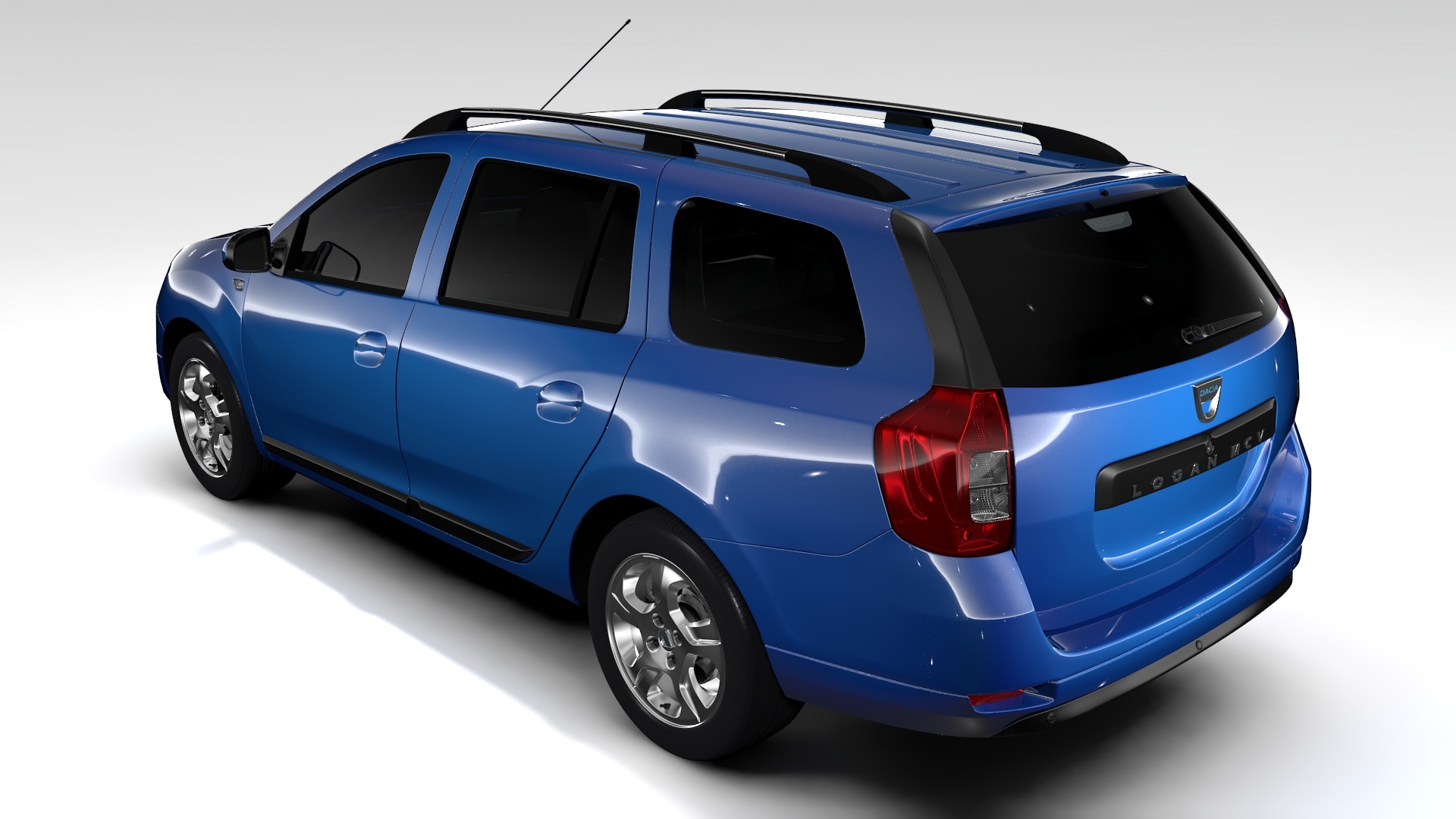

Dacia Logan MCV photo gallery
17 images are collected here with the main specifications and trim data for this model.

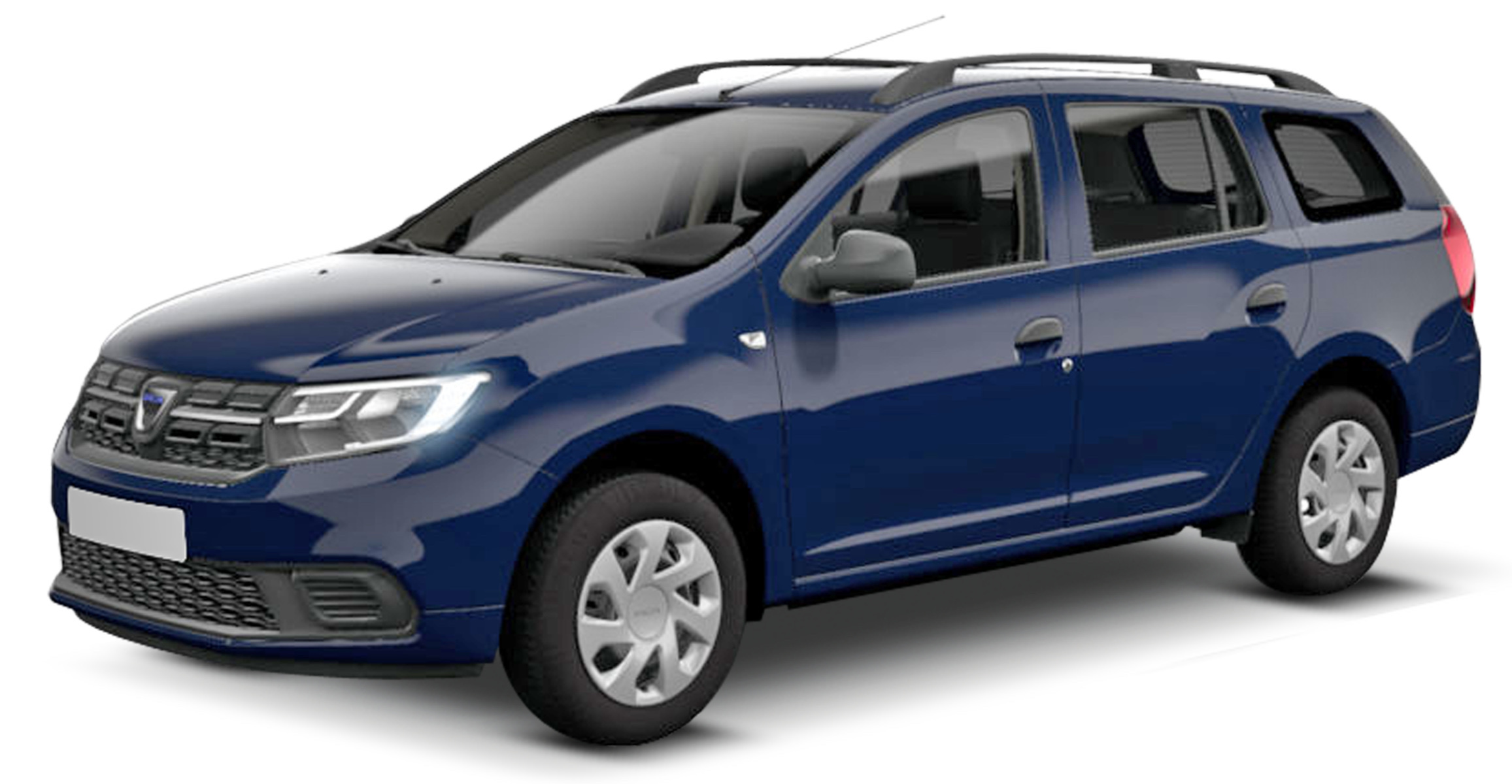

Photo Dacia Logan MCV
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
0.9i 5AT 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 5.8 |
|---|---|
| Fuel consumption highway, L/100 km | 4.7 |
| Fuel consumption combined, L/100 km | 5 |
| Top speed, km/h | 175 |
| Acceleration 0-100 km/h, s | 11.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 0.9i |
|---|---|
| Engine code | H4Bt |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 898 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Turbocharger | + |
| Compression ratio | 9.5:1 |
| Power, hp | 90 |
| RPM at max power | 5500 |
| Torque, Nm | 140 |
| RPM at max torque | 2250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4494 |
| Width, mm | 1994 |
| Height, mm | 1550 |
| Wheelbase, mm | 2634 |
| Front track, mm | 1497 |
| Rear track, mm | 1486 |
| Kerb weight, kg | 1150 |
| Gross weight, kg | 2400 |
| Fuel tank capacity, L | 50 |
| Ground clearance, mm | 145 |
| Width without mirrors, mm | 1733 |
| Trunk capacity, L | 573 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
0.9i 5MT 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 5.8 |
|---|---|
| Fuel consumption highway, L/100 km | 4.7 |
| Fuel consumption combined, L/100 km | 5 |
| Top speed, km/h | 175 |
| Acceleration 0-100 km/h, s | 11.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 0.9i |
|---|---|
| Engine code | H4Bt |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 898 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Turbocharger | + |
| Compression ratio | 9.5:1 |
| Power, hp | 90 |
| RPM at max power | 5500 |
| Torque, Nm | 140 |
| RPM at max torque | 2250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4494 |
| Width, mm | 1994 |
| Height, mm | 1550 |
| Wheelbase, mm | 2634 |
| Front track, mm | 1497 |
| Rear track, mm | 1486 |
| Kerb weight, kg | 1146 |
| Gross weight, kg | 2430 |
| Fuel tank capacity, L | 50 |
| Ground clearance, mm | 145 |
| Width without mirrors, mm | 1733 |
| Trunk capacity, L | 573 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
1.0i 5MT 37 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.6 |
|---|---|
| Fuel consumption highway, L/100 km | 4.6 |
| Fuel consumption combined, L/100 km | 5.4 |
| Top speed, km/h | 158 |
| Acceleration 0-100 km/h, s | 14.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.0i |
|---|---|
| Engine code | H4D |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 999 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Power, hp | 73 |
| RPM at max power | 6300 |
| Torque, Nm | 97 |
| RPM at max torque | 3500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4494 |
| Width, mm | 1994 |
| Height, mm | 1550 |
| Wheelbase, mm | 2634 |
| Front track, mm | 1497 |
| Rear track, mm | 1486 |
| Kerb weight, kg | 1055 |
| Gross weight, kg | 2365 |
| Fuel tank capacity, L | 50 |
| Ground clearance, mm | 145 |
| Width without mirrors, mm | 1733 |
| Trunk capacity, L | 573 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
1.5d 5AT (90) 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 5.7 |
|---|---|
| Fuel consumption highway, L/100 km | 4.5 |
| Fuel consumption combined, L/100 km | 4.9 |
| Top speed, km/h | 170 |
| Acceleration 0-100 km/h, s | 11 |
| Emissions standard | Euro VI |
Engine
| Engine | 0.9i |
|---|---|
| Engine code | H4Bt |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 898 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Turbocharger | + |
| Compression ratio | 9.5:1 |
| Power, hp | 90 |
| RPM at max power | 5500 |
| Torque, Nm | 140 |
| RPM at max torque | 2250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4494 |
| Width, mm | 1994 |
| Height, mm | 1550 |
| Wheelbase, mm | 2634 |
| Front track, mm | 1497 |
| Rear track, mm | 1486 |
| Kerb weight, kg | 1165 |
| Gross weight, kg | 2485 |
| Fuel tank capacity, L | 50 |
| Ground clearance, mm | 145 |
| Width without mirrors, mm | 1733 |
| Trunk capacity, L | 573 |
Transmission and drive
| Transmission | 5-speed automated manual |
|---|---|
| Transmission type | 1-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Automatic transmission | + |
1.5d 5MT (75) 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 3.7 |
|---|---|
| Fuel consumption highway, L/100 km | 3.4 |
| Fuel consumption combined, L/100 km | 3.5 |
| Top speed, km/h | 173 |
| Acceleration 0-100 km/h, s | 11.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 dCi |
|---|---|
| Engine code | K9K 608/609/612 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Turbocharger | + |
| Compression ratio | 15.5:1 |
| Power, hp | 90 |
| RPM at max power | 4000 |
| Torque, Nm | 220 |
| RPM at max torque | 2000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4494 |
| Width, mm | 1994 |
| Height, mm | 1550 |
| Wheelbase, mm | 2634 |
| Front track, mm | 1497 |
| Rear track, mm | 1486 |
| Kerb weight, kg | 1165 |
| Gross weight, kg | 2480 |
| Fuel tank capacity, L | 50 |
| Ground clearance, mm | 145 |
| Width without mirrors, mm | 1733 |
| Trunk capacity, L | 573 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
1.5d 5MT (90) 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 3.8 |
|---|---|
| Fuel consumption highway, L/100 km | 3.5 |
| Fuel consumption combined, L/100 km | 3.6 |
| Top speed, km/h | 172 |
| Acceleration 0-100 km/h, s | 12 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 dCi |
|---|---|
| Engine code | K9K 608/609/612 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Turbocharger | + |
| Compression ratio | 15.5:1 |
| Power, hp | 90 |
| RPM at max power | 4000 |
| Torque, Nm | 220 |
| RPM at max torque | 2000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4494 |
| Width, mm | 1994 |
| Height, mm | 1550 |
| Wheelbase, mm | 2634 |
| Front track, mm | 1497 |
| Rear track, mm | 1486 |
| Kerb weight, kg | 1165 |
| Gross weight, kg | 2480 |
| Fuel tank capacity, L | 50 |
| Ground clearance, mm | 145 |
| Width without mirrors, mm | 1733 |
| Trunk capacity, L | 573 |
Transmission and drive
| Transmission | 5-speed automated manual |
|---|---|
| Transmission type | 1-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Automatic transmission | + |
1.0i (73 hp) 5-speed manual 37 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.6 |
|---|---|
| Fuel consumption highway, L/100 km | 4.6 |
| Fuel consumption combined, L/100 km | 5.4 |
| Top speed, km/h | 158 |
| Acceleration 0-100 km/h, s | 14.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.0i |
|---|---|
| Engine code | H4D |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 999 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Power, hp | 73 |
| RPM at max power | 6300 |
| Torque, Nm | 97 |
| RPM at max torque | 3500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4494 |
| Width, mm | 1994 |
| Height, mm | 1550 |
| Wheelbase, mm | 2634 |
| Front track, mm | 1497 |
| Rear track, mm | 1486 |
| Kerb weight, kg | 1055 |
| Gross weight, kg | 2365 |
| Fuel tank capacity, L | 50 |
| Ground clearance, mm | 145 |
| Width without mirrors, mm | 1733 |
| Trunk capacity, L | 573 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
0.9i (90 hp) 5-speed manual 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 5.8 |
|---|---|
| Fuel consumption highway, L/100 km | 4.7 |
| Fuel consumption combined, L/100 km | 5 |
| Top speed, km/h | 175 |
| Acceleration 0-100 km/h, s | 11.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 0.9i |
|---|---|
| Engine code | H4Bt |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 898 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Turbocharger | + |
| Compression ratio | 9.5:1 |
| Power, hp | 90 |
| RPM at max power | 5500 |
| Torque, Nm | 140 |
| RPM at max torque | 2250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4494 |
| Width, mm | 1994 |
| Height, mm | 1550 |
| Wheelbase, mm | 2634 |
| Front track, mm | 1497 |
| Rear track, mm | 1486 |
| Kerb weight, kg | 1055 |
| Gross weight, kg | 2365 |
| Fuel tank capacity, L | 50 |
| Ground clearance, mm | 145 |
| Width without mirrors, mm | 1733 |
| Trunk capacity, L | 573 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
0.9i (90 hp) 5-speed automated manual 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 5.7 |
|---|---|
| Fuel consumption highway, L/100 km | 4.5 |
| Fuel consumption combined, L/100 km | 4.9 |
| Top speed, km/h | 170 |
| Acceleration 0-100 km/h, s | 11 |
| Emissions standard | Euro VI |
Engine
| Engine | 0.9i |
|---|---|
| Engine code | H4Bt |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 898 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Turbocharger | + |
| Compression ratio | 9.5:1 |
| Power, hp | 90 |
| RPM at max power | 5500 |
| Torque, Nm | 140 |
| RPM at max torque | 2250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4494 |
| Width, mm | 1994 |
| Height, mm | 1550 |
| Wheelbase, mm | 2634 |
| Front track, mm | 1497 |
| Rear track, mm | 1486 |
| Kerb weight, kg | 1055 |
| Gross weight, kg | 2365 |
| Fuel tank capacity, L | 50 |
| Ground clearance, mm | 145 |
| Width without mirrors, mm | 1733 |
| Trunk capacity, L | 573 |
Transmission and drive
| Transmission | 5-speed automated manual |
|---|---|
| Transmission type | 1-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Automatic transmission | + |
1.5 dCi (90 hp) 5-speed manual 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 3.7 |
|---|---|
| Fuel consumption highway, L/100 km | 3.4 |
| Fuel consumption combined, L/100 km | 3.5 |
| Top speed, km/h | 173 |
| Acceleration 0-100 km/h, s | 11.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 dCi |
|---|---|
| Engine code | K9K 608/609/612 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Turbocharger | + |
| Compression ratio | 15.5:1 |
| Power, hp | 90 |
| RPM at max power | 4000 |
| Torque, Nm | 220 |
| RPM at max torque | 2000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4494 |
| Width, mm | 1994 |
| Height, mm | 1550 |
| Wheelbase, mm | 2634 |
| Front track, mm | 1497 |
| Rear track, mm | 1486 |
| Kerb weight, kg | 1055 |
| Gross weight, kg | 2365 |
| Fuel tank capacity, L | 50 |
| Ground clearance, mm | 145 |
| Width without mirrors, mm | 1733 |
| Trunk capacity, L | 573 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
1.5 dCi (90 hp) 5-speed automated manual 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 3.8 |
|---|---|
| Fuel consumption highway, L/100 km | 3.5 |
| Fuel consumption combined, L/100 km | 3.6 |
| Top speed, km/h | 172 |
| Acceleration 0-100 km/h, s | 12 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 dCi |
|---|---|
| Engine code | K9K 608/609/612 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Turbocharger | + |
| Compression ratio | 15.5:1 |
| Power, hp | 90 |
| RPM at max power | 4000 |
| Torque, Nm | 220 |
| RPM at max torque | 2000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4494 |
| Width, mm | 1994 |
| Height, mm | 1550 |
| Wheelbase, mm | 2634 |
| Front track, mm | 1497 |
| Rear track, mm | 1486 |
| Kerb weight, kg | 1055 |
| Gross weight, kg | 2365 |
| Fuel tank capacity, L | 50 |
| Ground clearance, mm | 145 |
| Width without mirrors, mm | 1733 |
| Trunk capacity, L | 573 |
Transmission and drive
| Transmission | 5-speed automated manual |
|---|---|
| Transmission type | 1-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Automatic transmission | + |
Dacia Logan MCV questions
Short answers based on the specifications and photos available in this catalog.
What is the cargo capacity of the 2016 Dacia Logan MCV?
The Dacia Logan MCV offers a boot capacity of 573 liters with the rear seats in their standard position. This space can be expanded significantly by folding down the rear passenger seats to accommodate larger items.
What engine options are available for the 2016 Dacia Logan MCV?
The model features a 1.0-liter naturally aspirated three-cylinder gasoline engine, a 0.9-liter turbocharged three-cylinder gasoline engine, and a 1.5-liter dCi diesel engine. Power outputs range from 73 to 90 horsepower depending on the selected engine.
What body style is the Dacia Logan MCV?
The Dacia Logan MCV is a B-segment five-door wagon (estate) that focuses on providing maximum interior space and practicality at an affordable price point.
What transmission types does this vehicle use?
Depending on the engine and trim level, the Logan MCV is equipped with either a five-speed manual transmission or a five-speed automated manual gearbox driving the front wheels.
Where was the 2016 Dacia Logan MCV first presented?
The refreshed second-generation Dacia Logan MCV made its official public debut at the Paris Motor Show in 2016.
Continue exploring Dacia
Return to Dacia models, browse the gallery, or compare the trims listed above.
