Dacia Logan MCV specifications and photos
The 2006 Dacia Logan MCV is a budget-friendly B-segment station wagon offered in both five- and seven-seat configurations. Debuting at the 2006 Paris Motor Show, this versatile vehicle focuses on maximum interior volume and simple mechanical layouts.
Dacia Logan MCV at a glance
Quick model context before comparing photos and trim-level specifications.
Introduced in late 2006, the first-generation Dacia Logan MCV (Multi Convivial Vehicle) expanded the Logan family with an emphasis on utility and affordability. Built on a stretched wheelbase of 2,905 mm, this wagon is significantly larger than the standard sedan version. It targets budget-conscious buyers, large families, and small business owners who require extensive cargo space without the premium price tag of a traditional minivan. Dacia prioritized durability and low maintenance costs, sharing well-proven engines and components from parent company Renault. The model is available in several basic trims, including Base, Ambiance, and Laureate, catering to simple transport needs or offering basic modern comforts.
- Power: 70-105 hp
- Engine displacement: 1390-1598 cc
- Transmissions: 5-speed manual
- Seating: 5-7 seats
Dacia Logan MCV overview
Editorial context for design, cabin, performance, practicality, and buyer notes.

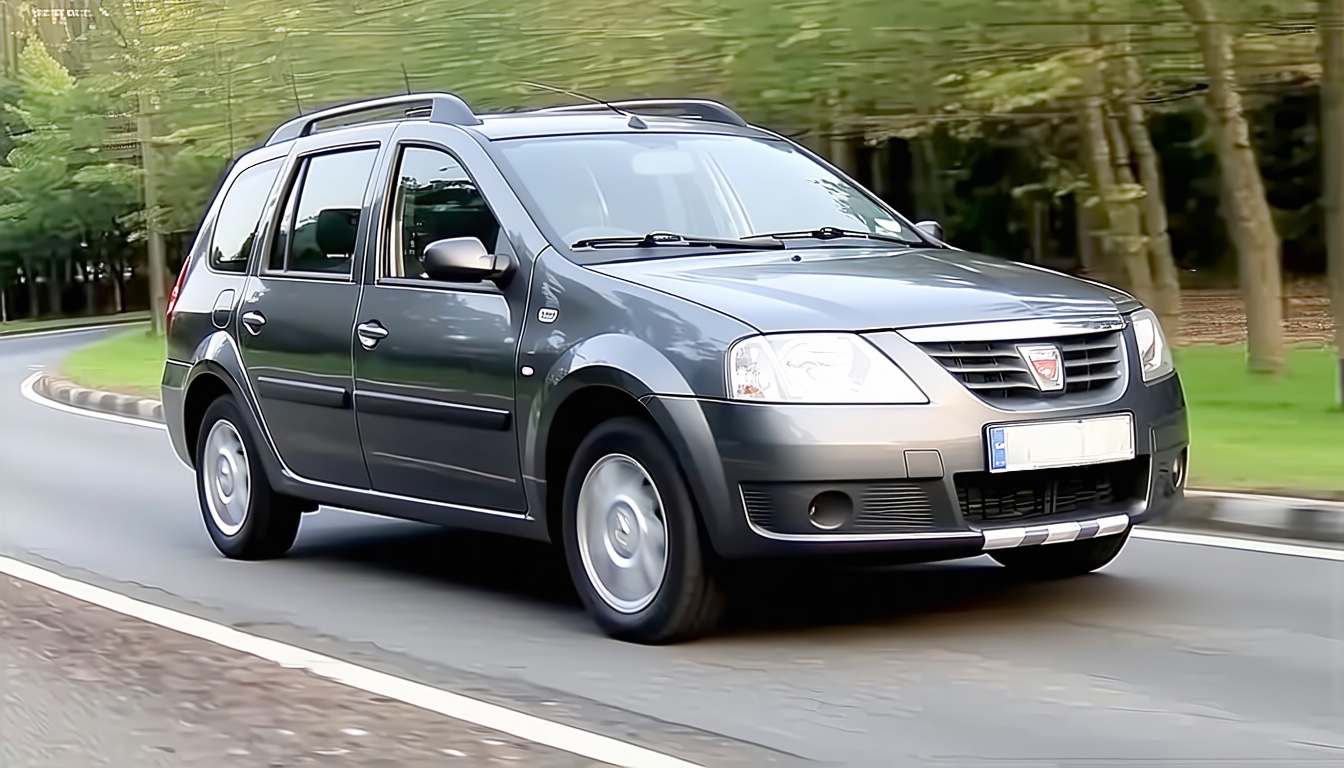

Design
The design of the 2006 Logan MCV is purely functional, featuring a boxy rear end, dual side-hinged rear doors, and a high roofline. Measuring 4,450 mm in length and 1,993 mm in width (including mirrors), its height varies between 1,640 mm and 1,674 mm depending on the installation of roof rails. Higher Laureate trims feature body-colored bumpers, roof rails, and front fog lights, while the basic trims use unpainted plastic parts. Depending on the engine and trim package, the vehicle rides on either 14-inch steel wheels with 165/80 tires or 15-inch steel wheels with 185/65 tires.
Interior
Inside, the Logan MCV offers a highly configurable cabin designed for up to seven passengers. The second-row and optional third-row seats provide adequate headroom and legroom for adult passengers, although amenities are minimal. The dashboard layout is straightforward and focuses on usability. Lower trims are extremely basic, while the Laureate trim adds essential features such as a trip computer, air conditioning, a CD player, front power windows, and a height-adjustable driver's seat. Noise insulation and cabin materials are simple, reflecting the car's budget positioning.
Performance
The engine lineup consists of several reliable Renault-sourced powertrains paired with a five-speed manual transmission driving the front wheels. Diesel options include the 1.5-liter dCi unit producing 70 horsepower and 160 Nm of torque, which offers excellent fuel economy but modest acceleration. Gasoline engines range from a basic 1.4-liter unit with 75 horsepower to a 1.6-liter MPI engine producing 90 horsepower. The top-performing engine is a 1.6-liter 16-valve unit delivering 105 horsepower and 148 Nm of torque. The chassis features a standard front pseudo-McPherson suspension and a semi-independent rear axle, tuned to handle rough roads and heavy loads.
Practicality
Practicality is the defining feature of the Logan MCV. The cargo compartment ranges from a modest 200 liters when all seven seats are in place, to 700 liters in the five-seat configuration. With the rear seats folded or removed, the total cargo volume expands to an impressive 2,350 liters, transforming the wagon into a highly capable cargo carrier. Access to the luggage area is simplified by asymmetrical rear doors that open wide, allowing easy loading of bulky items.
Safety and tech
Safety equipment is basic and depends heavily on the chosen trim level. While the Laureate trim includes a driver's airbag, central locking, and an engine immobilizer, the base model lacks standard features like power steering. Electronic driver assists are minimal, and the overall construction focuses on passive safety structures to meet European regulations of its era. Headlight adjustment and basic audio preparation with an antenna are standard across the range.
Buyer notes
When shopping for a used 2006 Dacia Logan MCV, buyers should pay close attention to the trim level. The Base E0 trim is exceptionally Spartan, lacking even power steering, and is well suited for purely commercial or utilitarian tasks. The Laureate E2 represents the most livable option, offering air conditioning, power windows, and better safety features. Potential buyers should inspect the suspension and cargo area for signs of heavy commercial use, as many of these vehicles served as work vans. Engine choice is also key: the 1.5 dCi is highly economical, while the 1.6 16V provides the suitable highway performance.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.5 dCi MT Ambiance E1 7s | 1461 cc | 70 hp | 7 | 5-speed manual |
| 1.5 dCi MT Base E0 5s | 1461 cc | 70 hp | 5 | 5-speed manual |
| 1.5 dCi MT Laureate E2 7s | 1461 cc | 70 hp | 7 | 5-speed manual |
| 1.6-speed manual Ambiance E1 5s | 1598 cc | 90 hp | 5 | 5-speed manual |
| 1.6-speed manual Ambiance E1 7s | 1598 cc | 105 hp | 7 | 5-speed manual |
| 1.6-speed manual Base E0 5s | 1598 cc | 90 hp | 5 | 5-speed manual |
| 1.6-speed manual Laureate E2 5s | 1598 cc | 90 hp | 5 | 5-speed manual |
| 1.6-speed manual Laureate E2 7s | 1598 cc | 105 hp | 7 | 5-speed manual |
| 1.6 MPI (90 hp) 5-speed manual | 1598 cc | 90 hp | 5/7 | 5-speed manual |
| 1.5 DCI (70 hp) 5-speed manual | 1461 cc | 70 hp | 5/7 | 5-speed manual |
| 1.4i (75 hp) 5-speed manual | 1390 cc | 75 hp | 5/7 | 5-speed manual |
| 1.6 16V (105 hp) 5-speed manual | 1598 cc | 105 hp | 5/7 | 5-speed manual |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

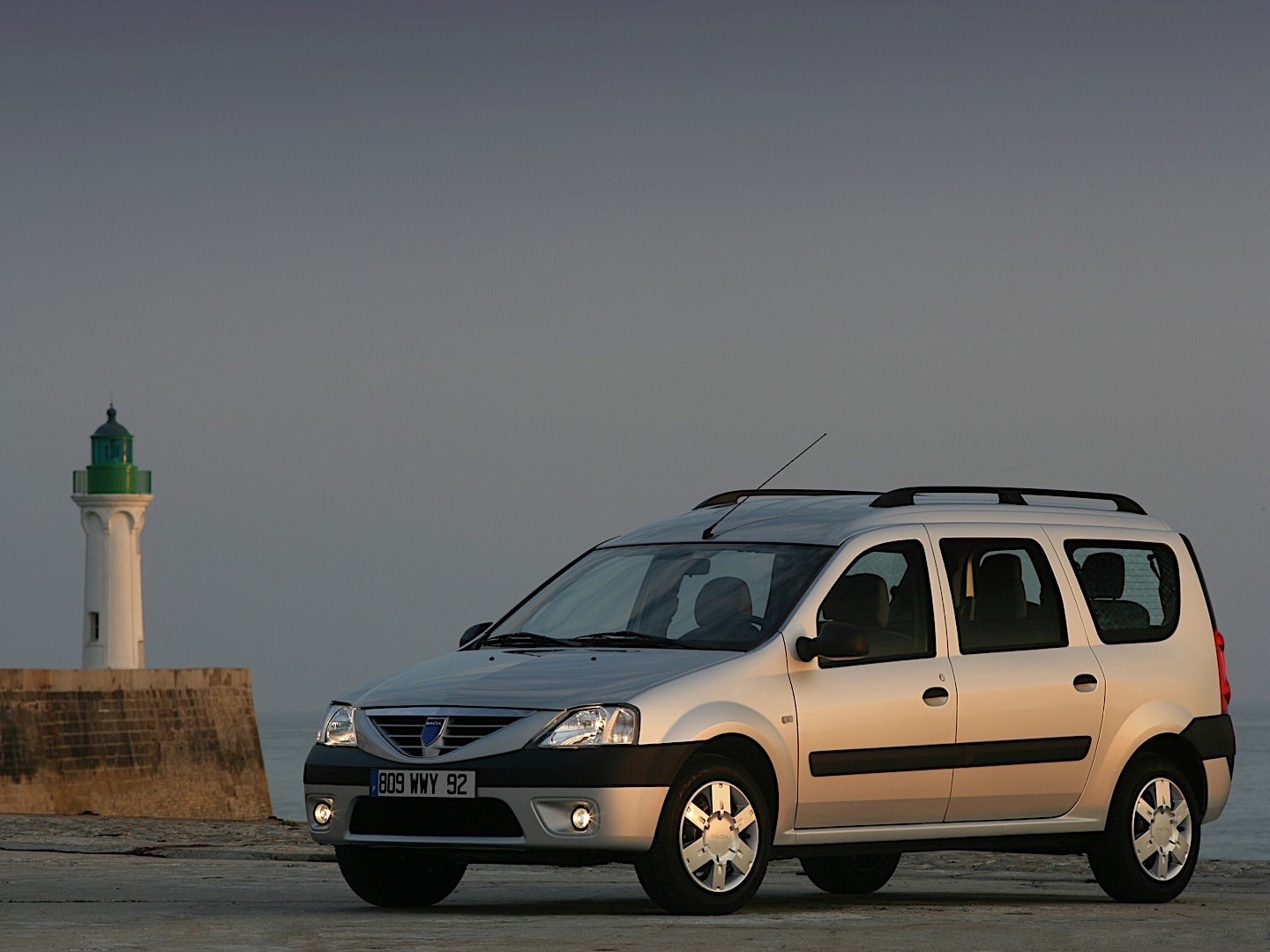

Dacia Logan MCV photo gallery
19 images are collected here with the main specifications and trim data for this model.

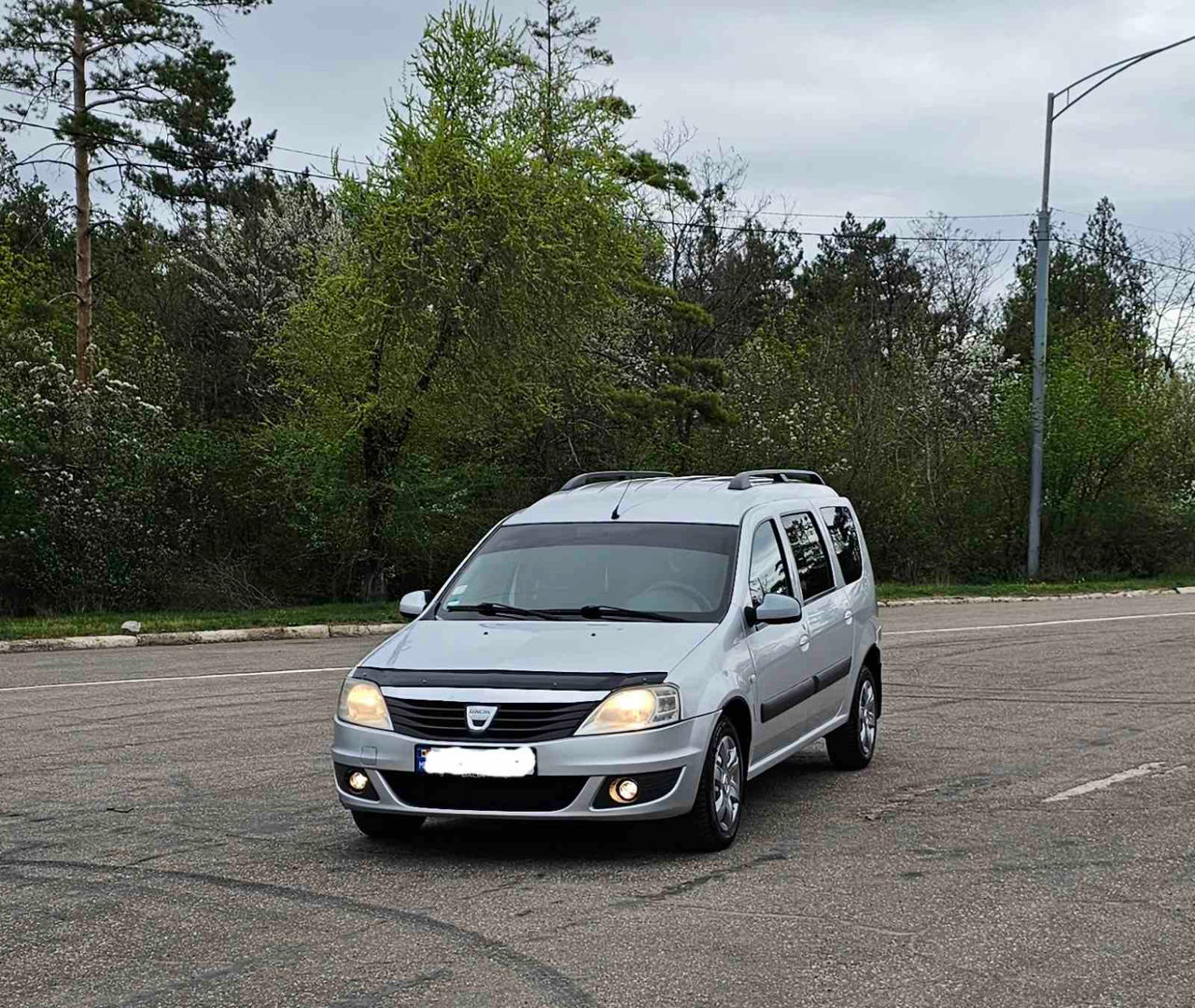

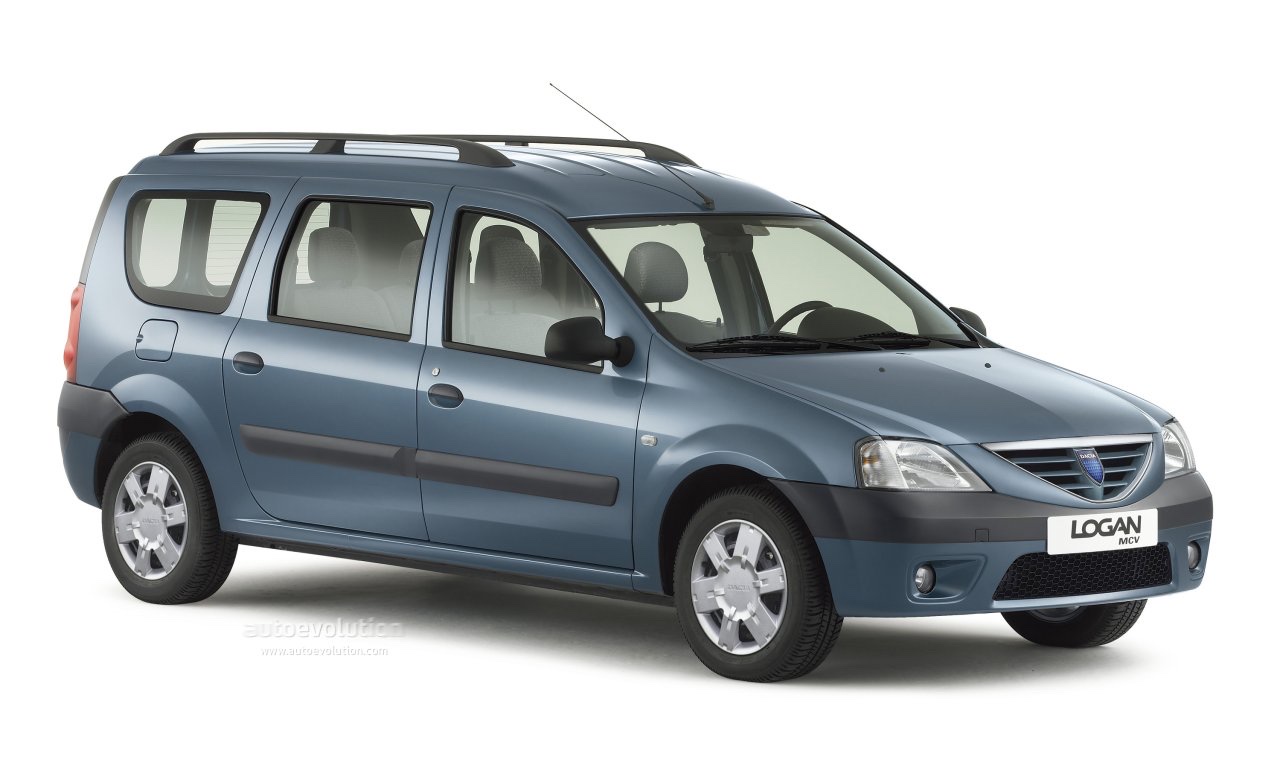

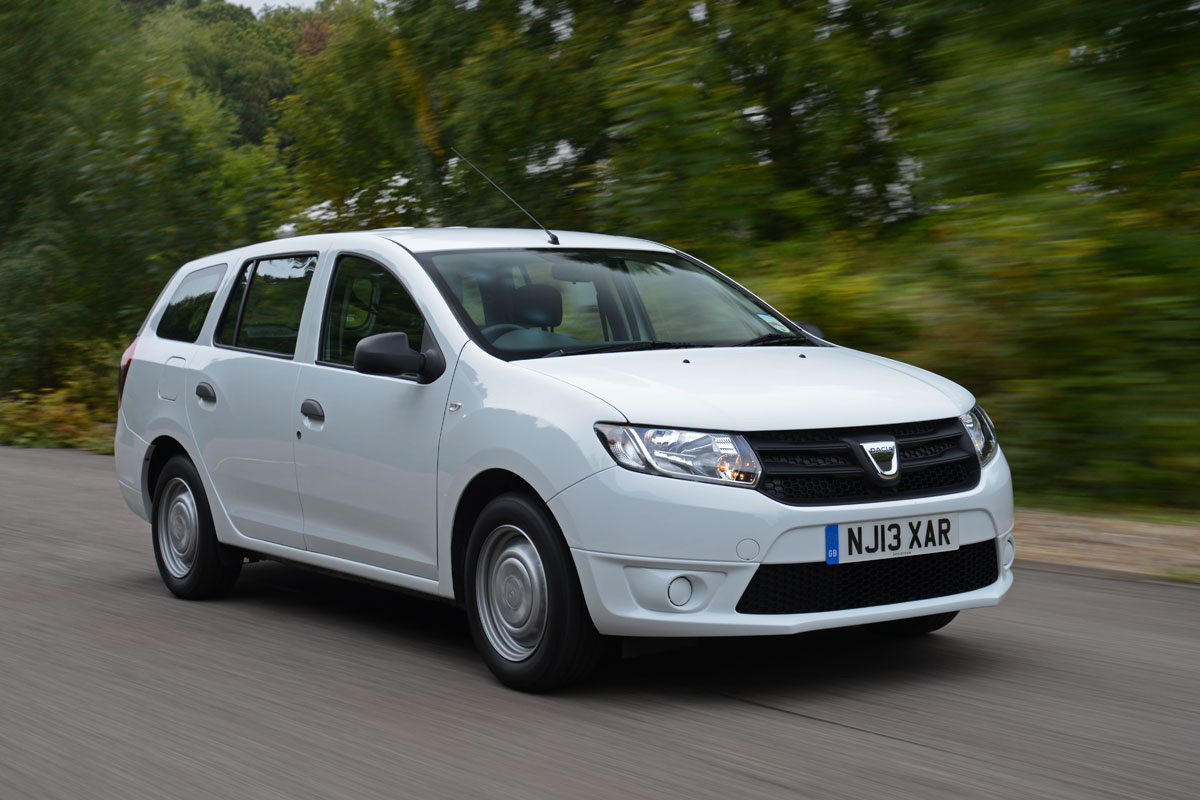

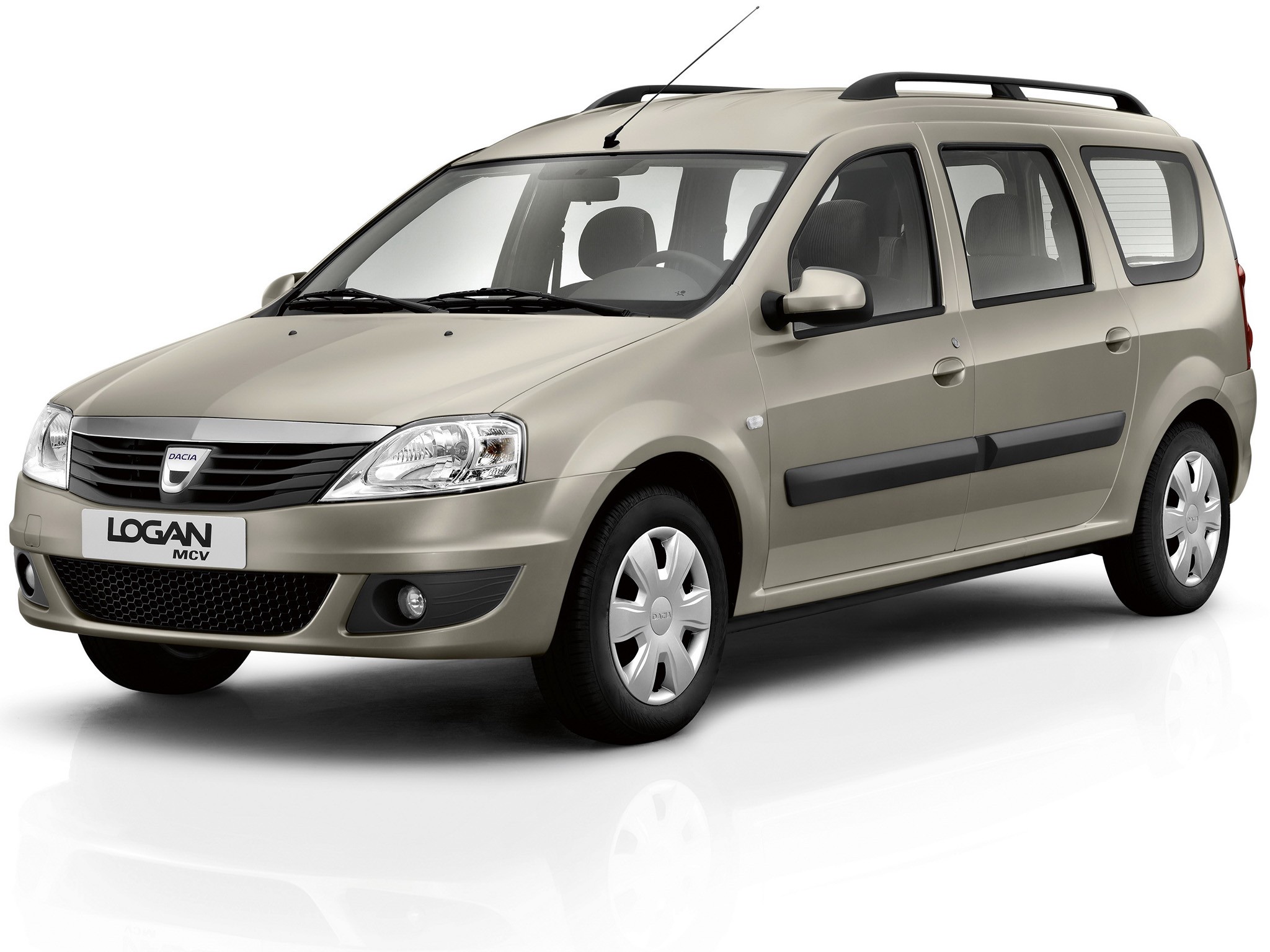

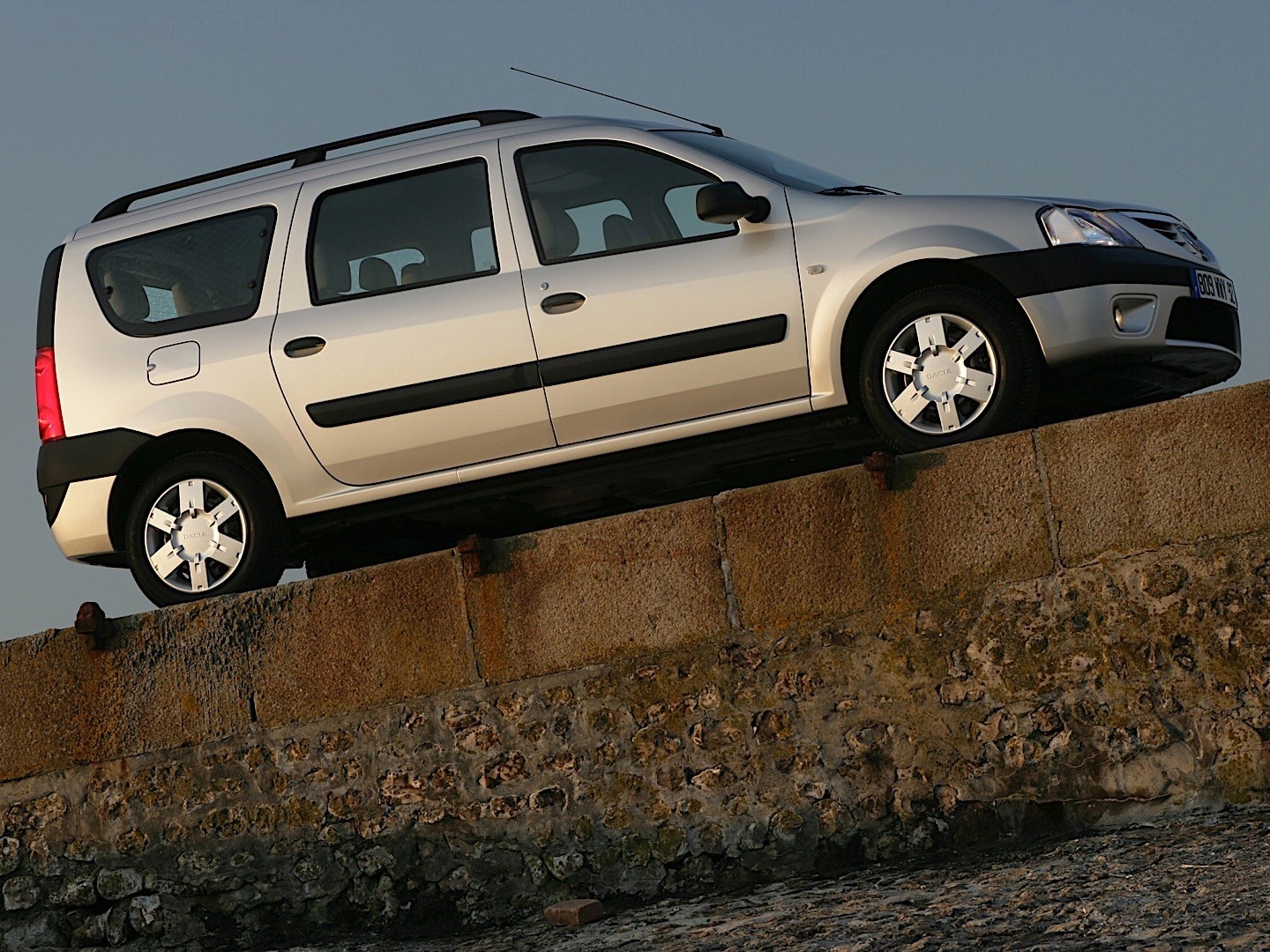

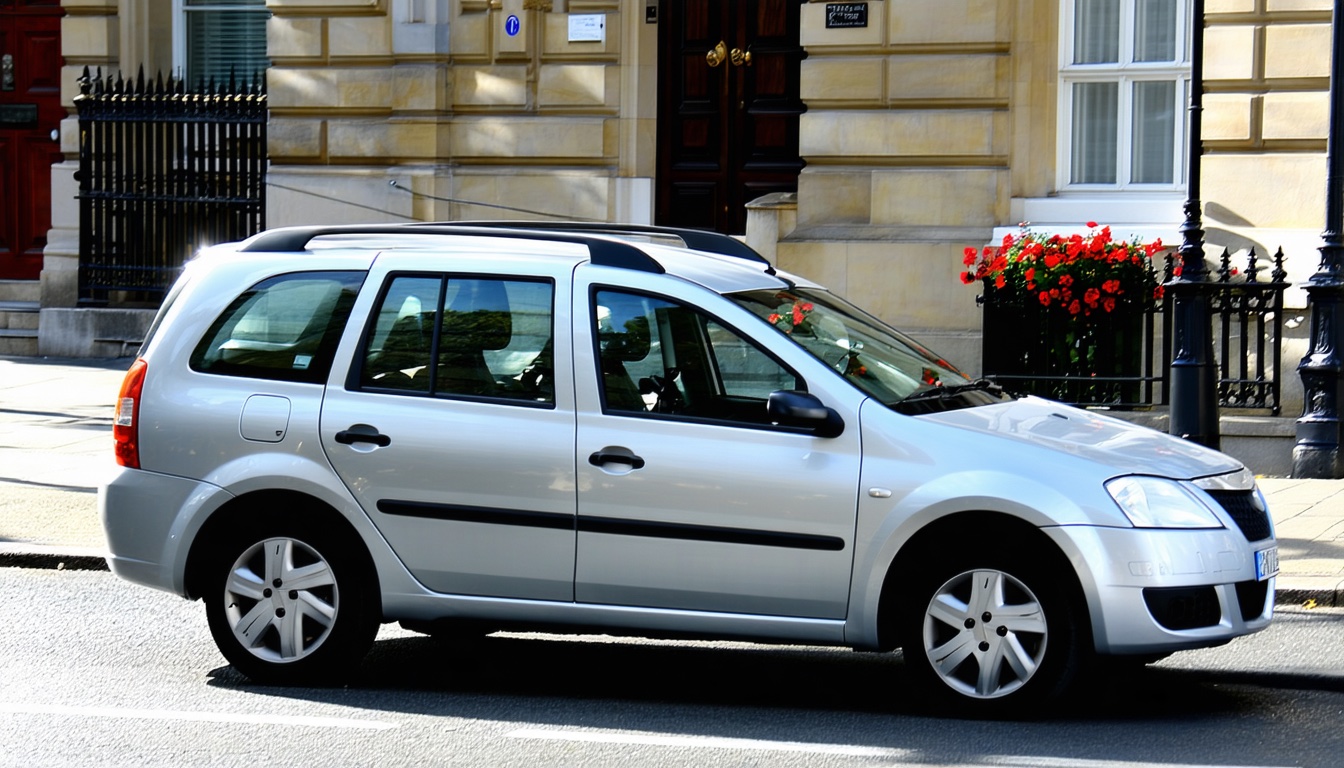

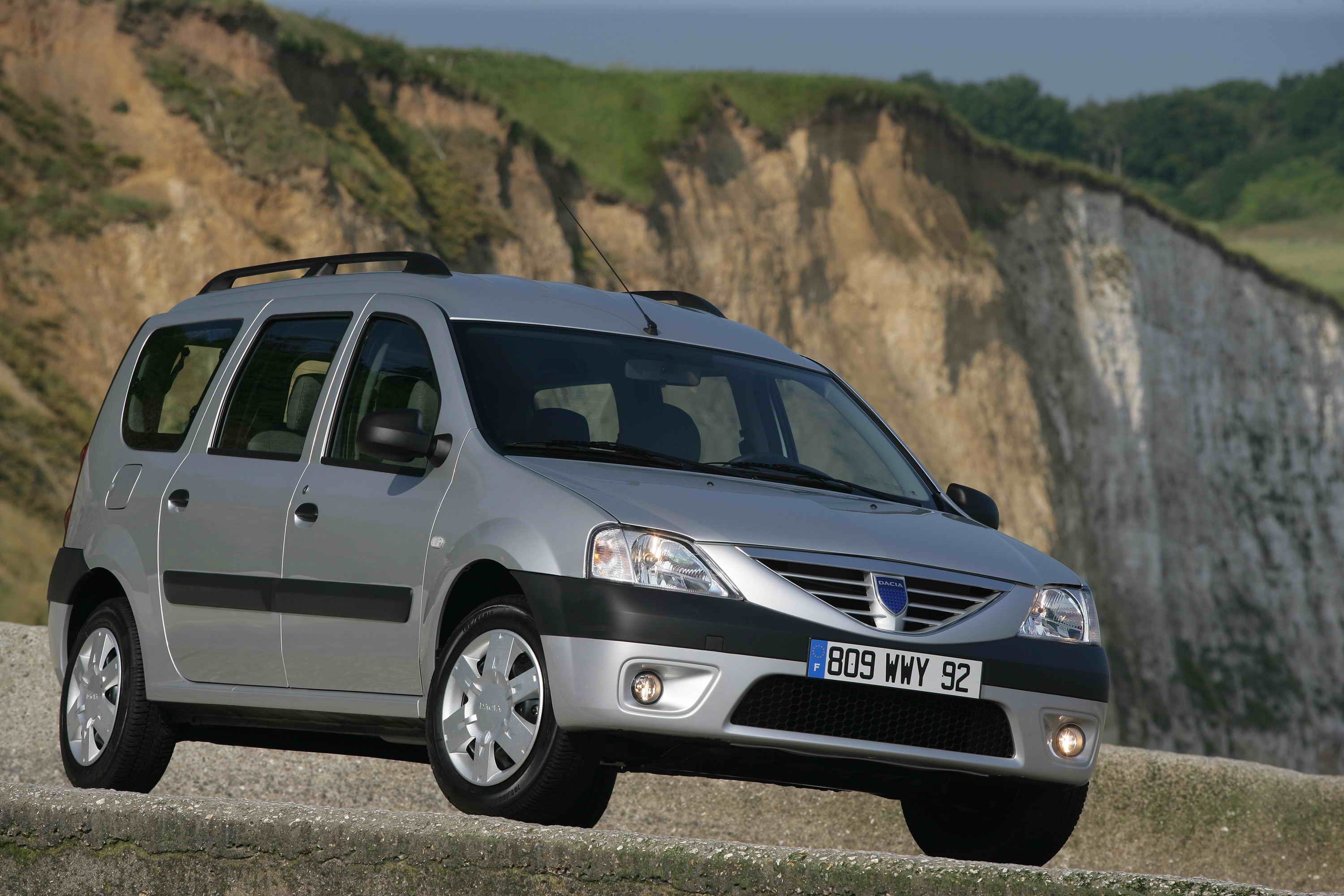

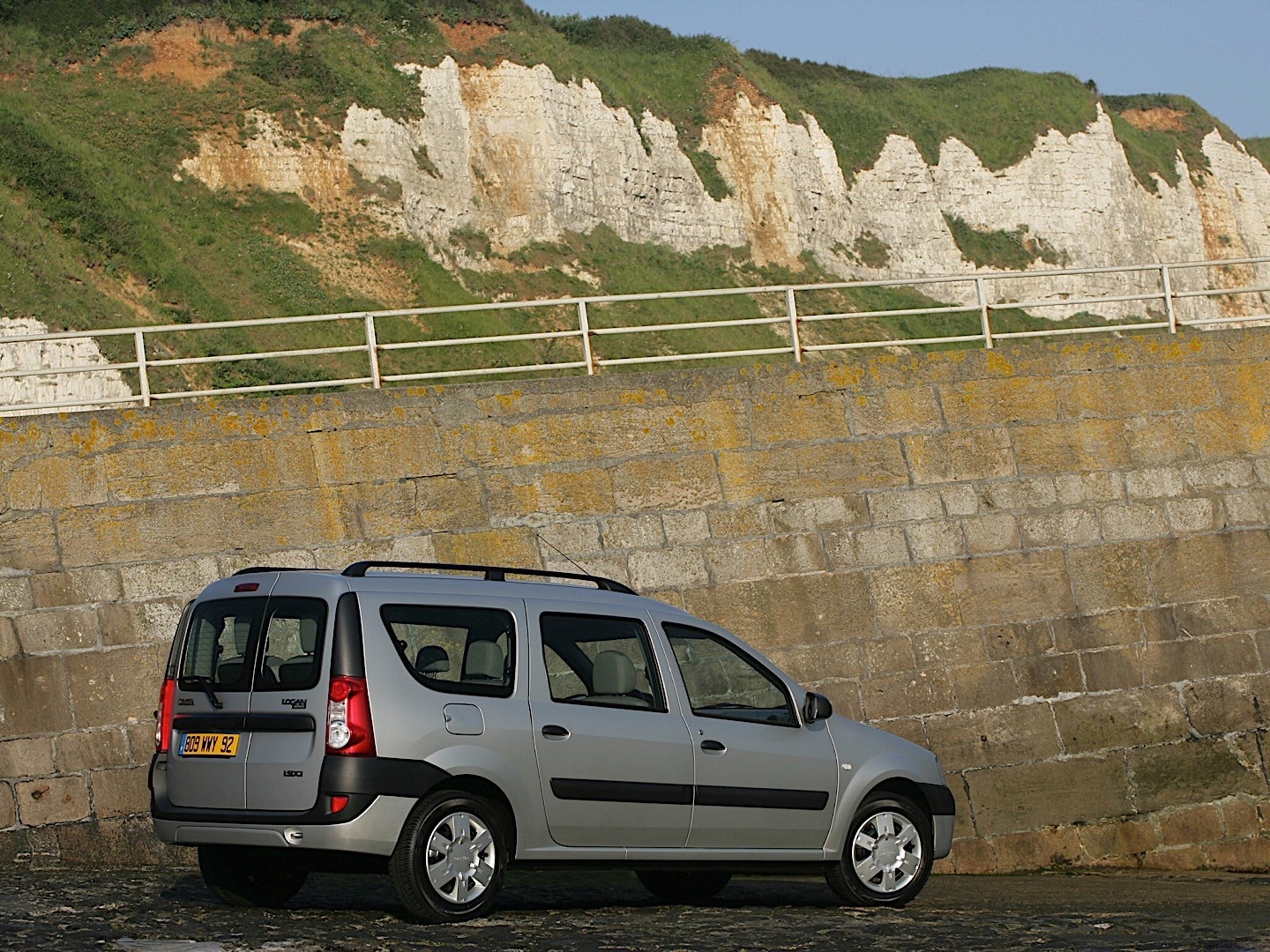

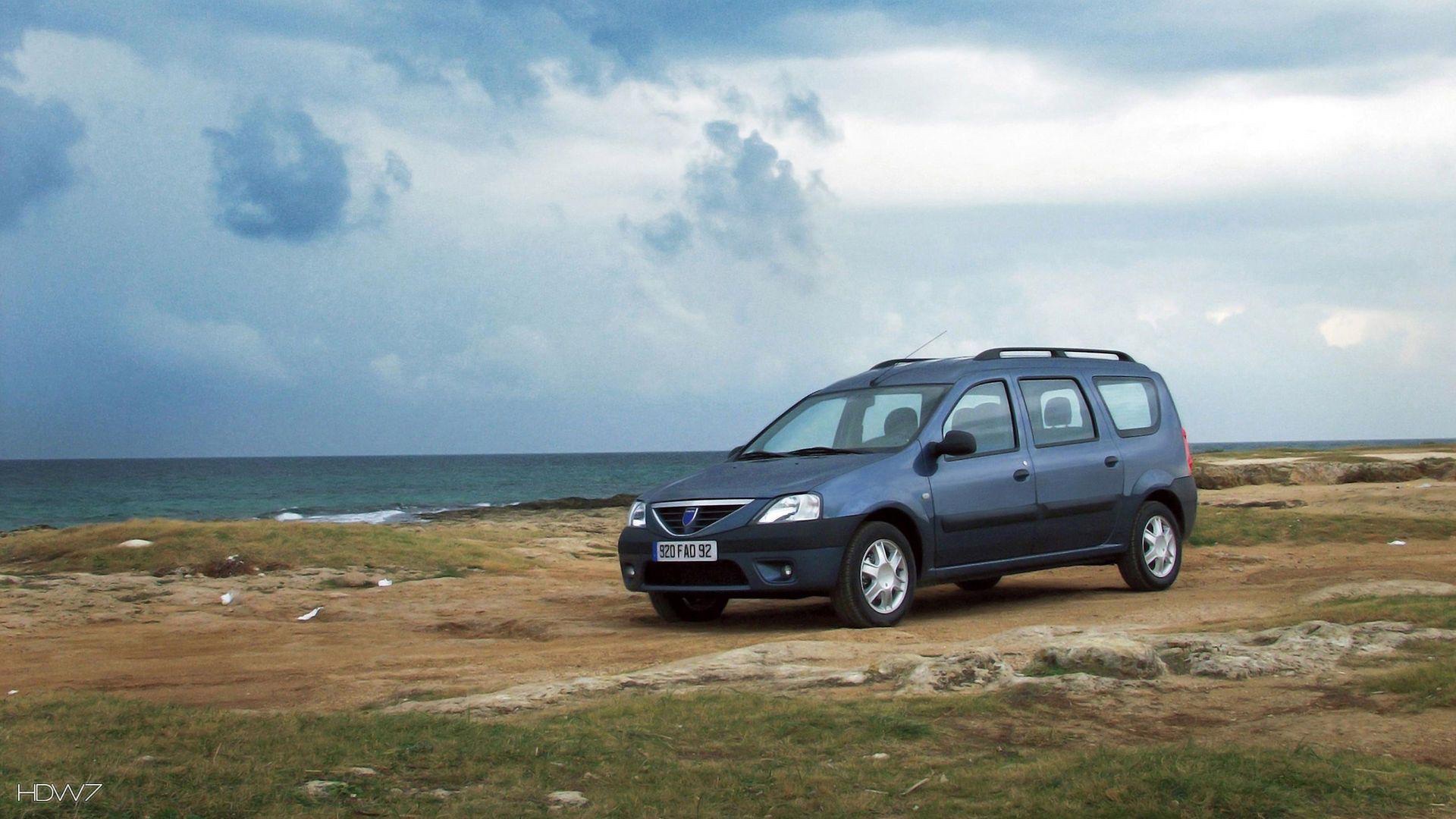

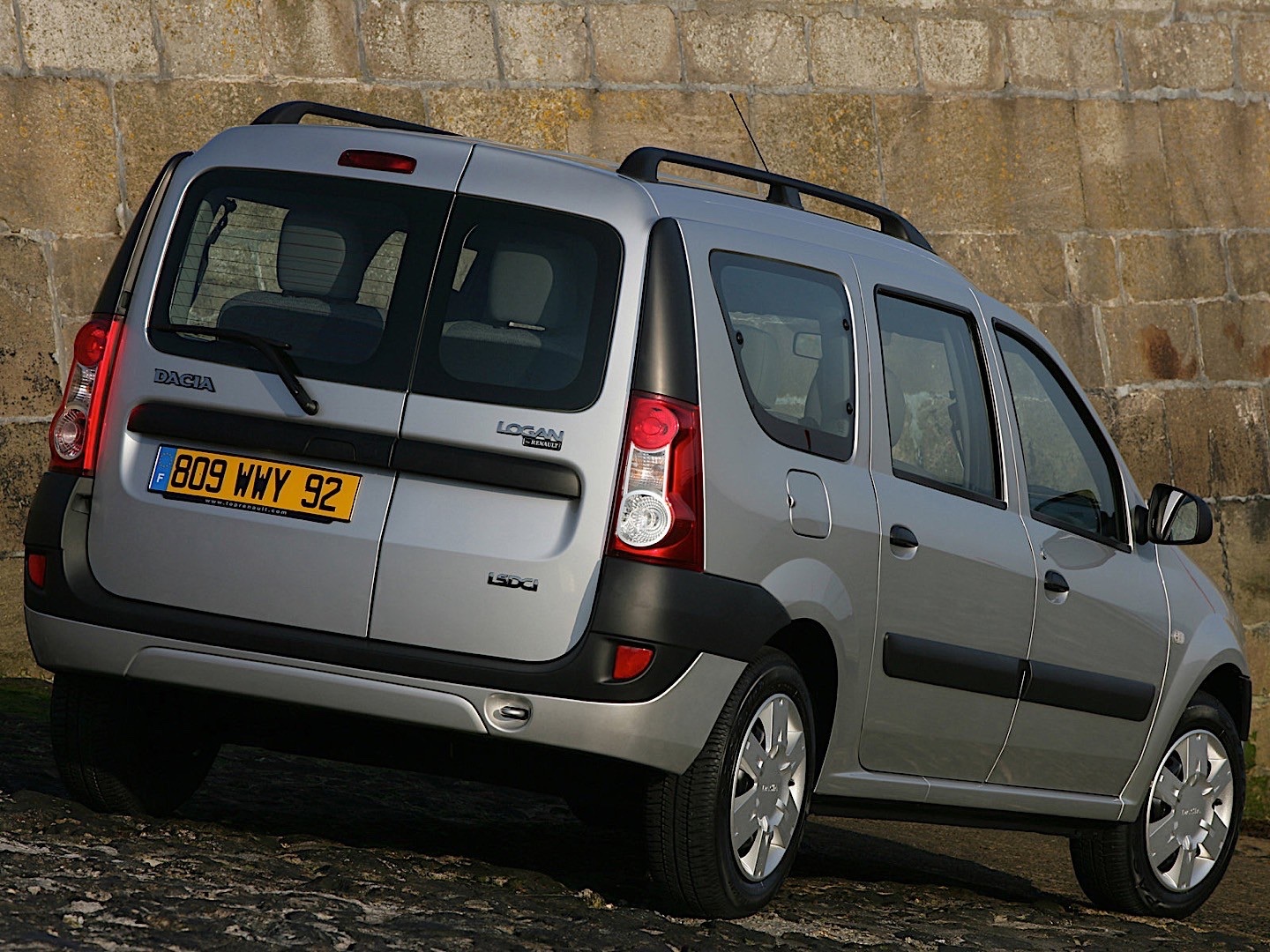

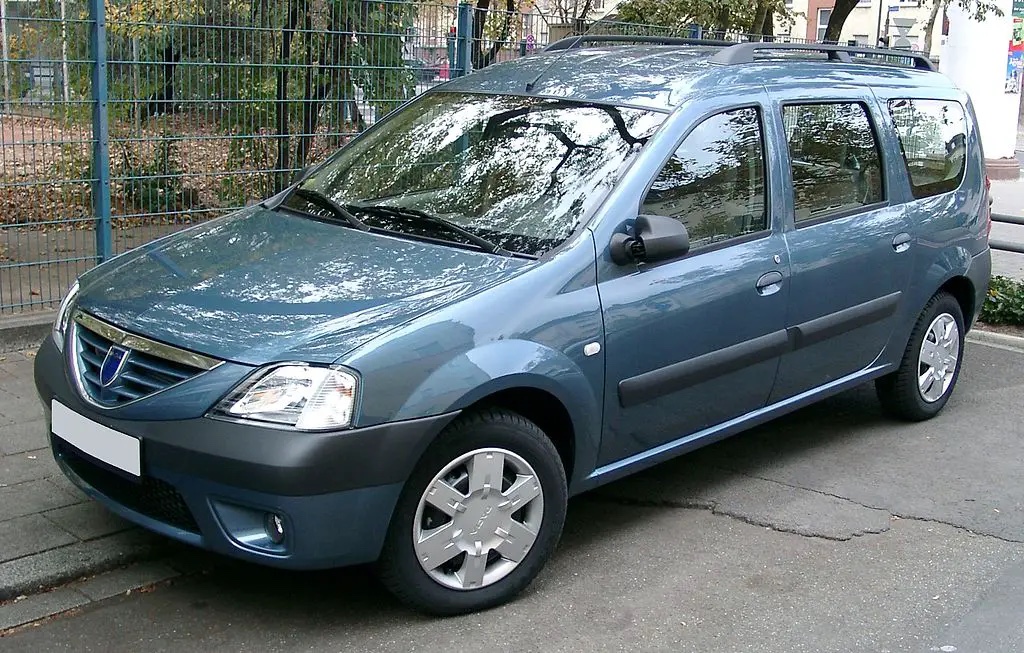

Photo Dacia Logan MCV
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.5 dCi MT Ambiance E1 7s 56 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.2 |
|---|---|
| Fuel consumption highway, L/100 km | 4.8 |
| Fuel consumption combined, L/100 km | 5.3 |
| Top speed, km/h | 150 |
| Acceleration 0-100 km/h, s | 17.7 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.5 DCI |
|---|---|
| Engine code | K9K 792 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Compression ratio | 17.9:1 |
| Power, hp | 70 |
| RPM at max power | 3750 |
| Torque, Nm | 160 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1640 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1195 |
| Gross weight, kg | 1810 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 200 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
Suspension
| Front suspension type | Pseudo-MacPherson with triangular control arm |
|---|---|
| Rear suspension type | H-shaped deformable axle with coil springs and vertical shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Hydraulic power steering |
|---|
Equipment
Comfort
| Adjustable headrests | + |
|---|
Wheels
| Rim diameter | 15 |
|---|---|
| Rim type | Steel |
| Spare wheel | Full-size spare wheel |
| Tires | 185/65R15 |
Headlights and lighting
| Headlight leveling | + |
|---|
Multimedia and instruments
| Antenna | + |
|---|---|
| Audio pre-wiring | + |
Glass, mirrors and sunroof
| Heated rear window | + |
|---|---|
| Tinted glass | + |
Body paint and exterior parts
| Body-colored bumpers | + |
|---|
Security
Anti-theft systems
| Immobilizer | + |
|---|---|
| Central locking | + |
1.5 dCi MT Base E0 5s 53 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.2 |
|---|---|
| Fuel consumption highway, L/100 km | 4.8 |
| Fuel consumption combined, L/100 km | 5.3 |
| Top speed, km/h | 150 |
| Acceleration 0-100 km/h, s | 17.7 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.5 DCI |
|---|---|
| Engine code | K9K 792 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Compression ratio | 17.9:1 |
| Power, hp | 70 |
| RPM at max power | 3750 |
| Torque, Nm | 160 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1640 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1165 |
| Gross weight, kg | 1740 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 700 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
Suspension
| Front suspension type | Pseudo-MacPherson with triangular control arm |
|---|---|
| Rear suspension type | H-shaped deformable axle with coil springs and vertical shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Not available |
|---|
Equipment
Comfort
| Adjustable headrests | + |
|---|
Wheels
| Rim diameter | 14 |
|---|---|
| Rim type | Steel |
| Spare wheel | Full-size spare wheel |
| Tires | 165/80R14 |
Headlights and lighting
| Headlight leveling | + |
|---|
Multimedia and instruments
| Antenna | + |
|---|---|
| Audio pre-wiring | + |
Glass, mirrors and sunroof
| Heated rear window | + |
|---|
Security
Anti-theft systems
| Immobilizer | + |
|---|
1.5 dCi MT Laureate E2 7s 65 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.2 |
|---|---|
| Fuel consumption highway, L/100 km | 4.8 |
| Fuel consumption combined, L/100 km | 5.3 |
| Top speed, km/h | 150 |
| Acceleration 0-100 km/h, s | 17.7 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.5 DCI |
|---|---|
| Engine code | K9K 792 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Compression ratio | 17.9:1 |
| Power, hp | 70 |
| RPM at max power | 3750 |
| Torque, Nm | 160 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1674 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1195 |
| Gross weight, kg | 1810 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 200 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
Suspension
| Front suspension type | Pseudo-MacPherson with triangular control arm |
|---|---|
| Rear suspension type | H-shaped deformable axle with coil springs and vertical shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Hydraulic power steering |
|---|
Equipment
Exterior
| Roof rails | + |
|---|
Comfort
| Adjustable headrests | + |
|---|
Interior
| Trip computer | + |
|---|
Wheels
| Rim diameter | 15 |
|---|---|
| Rim type | Steel |
| Spare wheel | Full-size spare wheel |
| Tires | 185/65R15 |
Climate and sound insulation
| Air conditioning | + |
|---|
Headlights and lighting
| Front fog lights | + |
|---|---|
| Headlight leveling | + |
Multimedia and instruments
| CD player | + |
|---|---|
| Antenna | + |
| Audio pre-wiring | + |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Heated rear window | + |
| Front power windows | + |
| Power-adjustable side mirrors | + |
| Tinted glass | + |
Body paint and exterior parts
| Body-colored bumpers | + |
|---|
Security
Anti-theft systems
| Immobilizer | + |
|---|---|
| Central locking | + |
Airbags
| Driver airbag | + |
|---|
1.6-speed manual Ambiance E1 5s 56 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 10.4 |
|---|---|
| Fuel consumption highway, L/100 km | 6.3 |
| Fuel consumption combined, L/100 km | 7.8 |
| Top speed, km/h | 167 |
| Acceleration 0-100 km/h, s | 13.4 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.6 MPI |
|---|---|
| Engine code | K7M 718 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Compression ratio | 9.5:1 |
| Power, hp | 90 |
| RPM at max power | 5500 |
| Torque, Nm | 128 |
| RPM at max torque | 3000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1640 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1165 |
| Gross weight, kg | 1740 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 700 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
Suspension
| Front suspension type | Pseudo-MacPherson with triangular control arm |
|---|---|
| Rear suspension type | H-shaped deformable axle with coil springs and vertical shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Hydraulic power steering |
|---|
Equipment
Comfort
| Adjustable headrests | + |
|---|
Wheels
| Rim diameter | 15 |
|---|---|
| Rim type | Steel |
| Spare wheel | Full-size spare wheel |
| Tires | 185/65R15 |
Headlights and lighting
| Headlight leveling | + |
|---|
Multimedia and instruments
| Antenna | + |
|---|---|
| Audio pre-wiring | + |
Glass, mirrors and sunroof
| Heated rear window | + |
|---|---|
| Tinted glass | + |
Body paint and exterior parts
| Body-colored bumpers | + |
|---|
Security
Anti-theft systems
| Immobilizer | + |
|---|---|
| Central locking | + |
1.6-speed manual Ambiance E1 7s 56 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.8 |
|---|---|
| Fuel consumption highway, L/100 km | 6.3 |
| Fuel consumption combined, L/100 km | 7.5 |
| Top speed, km/h | 174 |
| Acceleration 0-100 km/h, s | 11.8 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.6 16V |
|---|---|
| Engine code | K4M |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 9.8:1 |
| Power, hp | 105 |
| RPM at max power | 5750 |
| Torque, Nm | 148 |
| RPM at max torque | 3750 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1640 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1195 |
| Gross weight, kg | 1810 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 200 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
Suspension
| Front suspension type | Pseudo-MacPherson with triangular control arm |
|---|---|
| Rear suspension type | H-shaped deformable axle with coil springs and vertical shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Hydraulic power steering |
|---|
Equipment
Comfort
| Adjustable headrests | + |
|---|
Wheels
| Rim diameter | 15 |
|---|---|
| Rim type | Steel |
| Spare wheel | Full-size spare wheel |
| Tires | 185/65R15 |
Headlights and lighting
| Headlight leveling | + |
|---|
Multimedia and instruments
| Antenna | + |
|---|---|
| Audio pre-wiring | + |
Glass, mirrors and sunroof
| Heated rear window | + |
|---|---|
| Tinted glass | + |
Body paint and exterior parts
| Body-colored bumpers | + |
|---|
Security
Anti-theft systems
| Immobilizer | + |
|---|---|
| Central locking | + |
1.6-speed manual Base E0 5s 53 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 10.4 |
|---|---|
| Fuel consumption highway, L/100 km | 6.3 |
| Fuel consumption combined, L/100 km | 7.8 |
| Top speed, km/h | 167 |
| Acceleration 0-100 km/h, s | 13.4 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.6 MPI |
|---|---|
| Engine code | K7M 718 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Compression ratio | 9.5:1 |
| Power, hp | 90 |
| RPM at max power | 5500 |
| Torque, Nm | 128 |
| RPM at max torque | 3000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1640 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1165 |
| Gross weight, kg | 1740 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 700 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
Suspension
| Front suspension type | Pseudo-MacPherson with triangular control arm |
|---|---|
| Rear suspension type | H-shaped deformable axle with coil springs and vertical shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Not available |
|---|
Equipment
Comfort
| Adjustable headrests | + |
|---|
Wheels
| Rim diameter | 14 |
|---|---|
| Rim type | Steel |
| Spare wheel | Full-size spare wheel |
| Tires | 165/80R14 |
Headlights and lighting
| Headlight leveling | + |
|---|
Multimedia and instruments
| Antenna | + |
|---|---|
| Audio pre-wiring | + |
Glass, mirrors and sunroof
| Heated rear window | + |
|---|
Security
Anti-theft systems
| Immobilizer | + |
|---|
1.6-speed manual Laureate E2 5s 66 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 10.4 |
|---|---|
| Fuel consumption highway, L/100 km | 6.3 |
| Fuel consumption combined, L/100 km | 7.8 |
| Top speed, km/h | 167 |
| Acceleration 0-100 km/h, s | 13.4 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.6 MPI |
|---|---|
| Engine code | K7M 718 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Compression ratio | 9.5:1 |
| Power, hp | 90 |
| RPM at max power | 5500 |
| Torque, Nm | 128 |
| RPM at max torque | 3000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1674 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1165 |
| Gross weight, kg | 1740 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 700 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
Suspension
| Front suspension type | Pseudo-MacPherson with triangular control arm |
|---|---|
| Rear suspension type | H-shaped deformable axle with coil springs and vertical shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Hydraulic power steering |
|---|
Equipment
Exterior
| Roof rails | + |
|---|
Comfort
| Adjustable headrests | + |
|---|
Interior
| Trip computer | + |
|---|
Wheels
| Rim diameter | 15 |
|---|---|
| Rim type | Steel |
| Spare wheel | Full-size spare wheel |
| Tires | 185/65R15 |
Climate and sound insulation
| Air conditioning | + |
|---|
Seats
| Height-adjustable driver's seat | + |
|---|
Headlights and lighting
| Front fog lights | + |
|---|---|
| Headlight leveling | + |
Multimedia and instruments
| CD player | + |
|---|---|
| Antenna | + |
| Audio pre-wiring | + |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Heated rear window | + |
| Front power windows | + |
| Power-adjustable side mirrors | + |
| Tinted glass | + |
Body paint and exterior parts
| Body-colored bumpers | + |
|---|
Security
Anti-theft systems
| Immobilizer | + |
|---|---|
| Central locking | + |
Airbags
| Driver airbag | + |
|---|
1.6-speed manual Laureate E2 7s 65 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.8 |
|---|---|
| Fuel consumption highway, L/100 km | 6.3 |
| Fuel consumption combined, L/100 km | 7.5 |
| Top speed, km/h | 174 |
| Acceleration 0-100 km/h, s | 11.8 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.6 16V |
|---|---|
| Engine code | K4M |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 9.8:1 |
| Power, hp | 105 |
| RPM at max power | 5750 |
| Torque, Nm | 148 |
| RPM at max torque | 3750 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1674 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1195 |
| Gross weight, kg | 1810 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 200 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
Suspension
| Front suspension type | Pseudo-MacPherson with triangular control arm |
|---|---|
| Rear suspension type | H-shaped deformable axle with coil springs and vertical shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Hydraulic power steering |
|---|
Equipment
Exterior
| Roof rails | + |
|---|
Comfort
| Adjustable headrests | + |
|---|
Interior
| Trip computer | + |
|---|
Wheels
| Rim diameter | 15 |
|---|---|
| Rim type | Steel |
| Spare wheel | Full-size spare wheel |
| Tires | 185/65R15 |
Climate and sound insulation
| Air conditioning | + |
|---|
Headlights and lighting
| Front fog lights | + |
|---|---|
| Headlight leveling | + |
Multimedia and instruments
| CD player | + |
|---|---|
| Antenna | + |
| Audio pre-wiring | + |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Heated rear window | + |
| Front power windows | + |
| Power-adjustable side mirrors | + |
| Tinted glass | + |
Body paint and exterior parts
| Body-colored bumpers | + |
|---|
Security
Anti-theft systems
| Immobilizer | + |
|---|---|
| Central locking | + |
Airbags
| Driver airbag | + |
|---|
1.6 MPI (90 hp) 5-speed manual 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 10.4 |
|---|---|
| Fuel consumption highway, L/100 km | 6.3 |
| Fuel consumption combined, L/100 km | 7.8 |
| Top speed, km/h | 167 |
| Acceleration 0-100 km/h, s | 13.4 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.6 MPI |
|---|---|
| Engine code | K7M 718 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Compression ratio | 9.5:1 |
| Power, hp | 90 |
| RPM at max power | 5500 |
| Torque, Nm | 128 |
| RPM at max torque | 3000 |
Dimensions
| Seats | 5/7 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1640 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1165 |
| Gross weight, kg | 1740 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 200 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
1.5 DCI (70 hp) 5-speed manual 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.2 |
|---|---|
| Fuel consumption highway, L/100 km | 4.8 |
| Fuel consumption combined, L/100 km | 5.3 |
| Top speed, km/h | 150 |
| Acceleration 0-100 km/h, s | 17.7 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.5 DCI |
|---|---|
| Engine code | K9K 792 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Compression ratio | 17.9:1 |
| Power, hp | 70 |
| RPM at max power | 3750 |
| Torque, Nm | 160 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 5/7 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1640 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1165 |
| Gross weight, kg | 1740 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 200 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
1.4i (75 hp) 5-speed manual 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 10.4 |
|---|---|
| Fuel consumption highway, L/100 km | 6.3 |
| Fuel consumption combined, L/100 km | 7.8 |
| Top speed, km/h | 162 |
| Acceleration 0-100 km/h, s | 13 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.4i |
|---|---|
| Engine code | K7J 714 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1390 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Compression ratio | 9.5:1 |
| Power, hp | 75 |
| RPM at max power | 5500 |
| Torque, Nm | 112 |
| RPM at max torque | 3000 |
Dimensions
| Seats | 5/7 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1640 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1165 |
| Gross weight, kg | 1740 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 200 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
1.6 16V (105 hp) 5-speed manual 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.8 |
|---|---|
| Fuel consumption highway, L/100 km | 6.3 |
| Fuel consumption combined, L/100 km | 7.5 |
| Top speed, km/h | 174 |
| Acceleration 0-100 km/h, s | 11.8 |
| Emissions standard | Euro IV |
Engine
| Engine | 1.6 16V |
|---|---|
| Engine code | K4M |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 9.8:1 |
| Power, hp | 105 |
| RPM at max power | 5750 |
| Torque, Nm | 148 |
| RPM at max torque | 3750 |
Dimensions
| Seats | 5/7 |
|---|---|
| Length, mm | 4450 |
| Width, mm | 1993 |
| Height, mm | 1640 |
| Wheelbase, mm | 2905 |
| Front track, mm | 1481 |
| Rear track, mm | 1458 |
| Kerb weight, kg | 1165 |
| Gross weight, kg | 1740 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.25 |
| Ground clearance, mm | 155 |
| Trunk capacity, L | 200 |
Transmission and drive
| Transmission | 5-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 5 |
| Transmission manufacturer | RMR |
| Transmission country | Romania |
Dacia Logan MCV questions
Short answers based on the specifications and photos available in this catalog.
What seating configurations are available for the 2006 Dacia Logan MCV?
The vehicle is available in both five-seat and seven-seat configurations. The seven-seat model features a third row of seats that can comfortably accommodate adult passengers.
What is the cargo capacity of the Logan MCV wagon?
Cargo volume is 200 liters in the seven-seat configuration, 700 liters with five seats, and expands up to 2,350 liters when the rear seats are folded or removed in a two-seat setup.
What engines are available for this generation of the Logan MCV?
Buyers could choose between a 1.5-liter dCi diesel engine (70 hp) and three gasoline options: a 1.4-liter (75 hp), a 1.6-liter MPI (90 hp), and a 1.6-liter 16V (105 hp).
Does the base trim of the 2006 Dacia Logan MCV have power steering?
No, the Base E0 trim does not come with power steering. Upgrading to the Ambiance or Laureate trims is required to get hydraulic power steering.
How does the Laureate trim differ from the base models?
The Laureate trim adds roof rails, air conditioning, a trip computer, front power windows, fog lights, heated and electric side mirrors, a CD player, and a driver's airbag.
Continue exploring Dacia
Return to Dacia models, browse the gallery, or compare the trims listed above.
