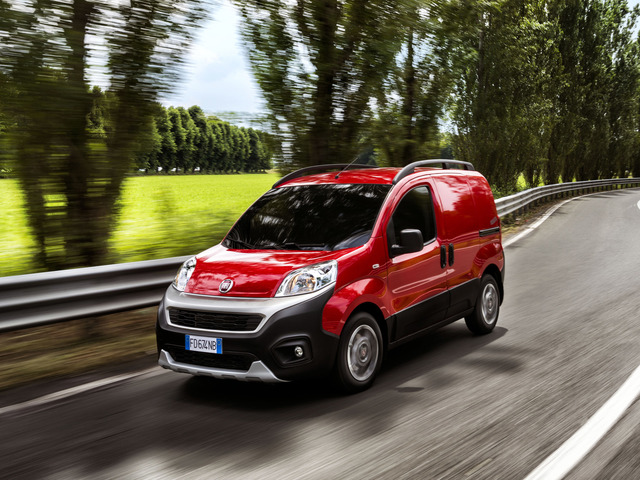

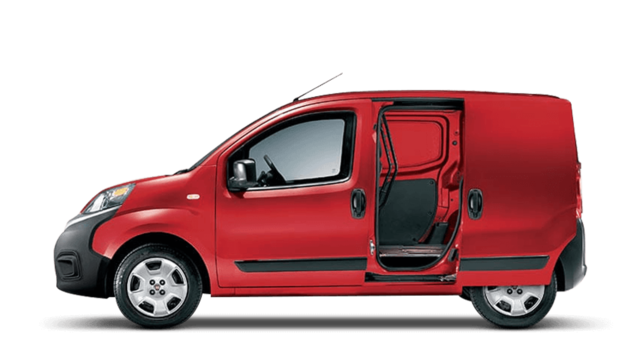

Fiat Fiorino Cargo specifications and photos

Fiat Fiorino Cargo specifications are shown with trim options, key technical data, and a model photo gallery. Compare 6 configurations by engine size, power, seating, and transmission. The gallery includes 21 photos for visual reference.

Years 2016
Body type van
Trims 6
Photos 21

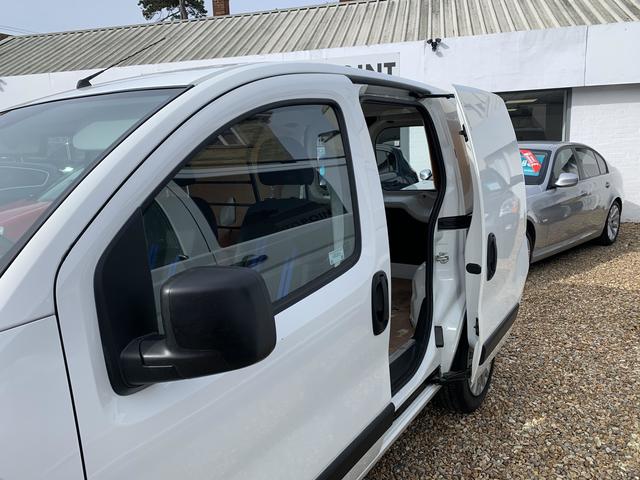

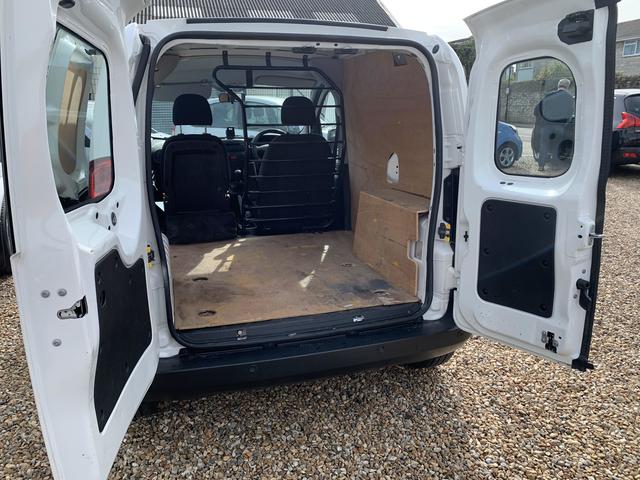

Cargo space of Fiat Fiorino Cargo van
Overview

Fiat Fiorino Cargo at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Fiat Fiorino Cargo page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 70-95 hp and 1248-1368 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 70-95 hp
  • Engine displacement: 1248-1368 cc
  • Transmissions: 5, 5-speed manual
  • Seating: 2 seats
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 70-95 hp
Engine displacement 1248-1368 cc
Seating 2 seats
Transmissions 5, 5-speed manual
Trim / modification Engine Power Seats Transmission
1.4i MT Cargo Base (77) 1368 cc 77 hp 2 5
1.3d Multijet MT Cargo Base (75) 1248 cc 75 hp 2 5
1.4i (77 h.p.) 5-speed manual 1368 cc 77 hp 2 5-speed manual
1.3d Multijet (75 h.p.) 5-speed manual 1248 cc 75 hp 2 5-speed manual
1.3d Multijet (95 h.p.) 5-speed manual 1248 cc 95 hp 2 5-speed manual
1.4i CNG (70 hp) 5-speed manual 1368 cc 70 hp 2 5-speed manual

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.4i MT Cargo Base (77) 1.3d Multijet MT Cargo Base (75) 1.4i (77 h.p.) 5-speed manual 1.3d Multijet (75 h.p.) 5-speed manual 1.3d Multijet (95 h.p.) 5-speed manual 1.4i CNG (70 hp) 5-speed manual
1.4i MT Cargo Base (77) 48 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 77
Torque, Nm 115
RPM at max torque 3000
Engine 1.4i
Compression 11.0
RPM at max power 6000

Dimensions

Seats 2
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Kerb weight, kg 1070
Fuel tank, l 45
Turning circle, m 10
Gross weight, kg 1680
Width (without mirrors) mm 1716
The volume of the cargo compartment, m3 2.5

Suspension

Type of front suspension MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Disk
Rear brakes Drum

Steering

Power steering Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.9
Fuel consumption (urban), l. 100 km 5.8
Fuel consumption (combined), l. 100 km 6.9
The maximum speed, km / h. 157
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics

Equipment

Interior

Trip Computer +

Wheels

Disc diameter 14
Rim type Steel
Tires 175/70R14

Cabin climate and noise insulation

Heated front seats +

Headlights and lighting

corrector of headlights +

Exterior

Moldings +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +

Airbags

Driver's airbag +
1.3d Multijet MT Cargo Base (75) 51 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1248
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 75
Torque, Nm 190
RPM at max torque 1750
Engine 1.3d Multijet
Compression 17.6
RPM at max power 4000
Turbo +

Dimensions

Seats 2
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Kerb weight, kg 1070
Fuel tank, l 45
Turning circle, m 10
Gross weight, kg 1680
Width (without mirrors) mm 1716
The volume of the cargo compartment, m3 2.5

Suspension

Type of front suspension MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Disk
Rear brakes Drum

Steering

Power steering Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.7
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.5
The maximum speed, km / h. 162
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics

Equipment

Interior

Trip Computer +

Wheels

Disc diameter 14
Rim type Steel
Tires 175/70R14

Cabin climate and noise insulation

Heated front seats +

Glass, mirrors and sunroof

Heated rear window +
Power mirrors +

Headlights and lighting

corrector of headlights +

Exterior

Moldings +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +

Airbags

Driver's airbag +
1.4i (77 h.p.) 5-speed manual 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 77
Torque, Nm 115
RPM at max torque 3000
Engine 1.4i
Compression 11.0
RPM at max power 6000

Dimensions

Seats 2
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Fuel tank, l 45
Turning circle, m 10
Width (without mirrors) mm 1716
The volume of the cargo compartment, m3 2.5

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.9
Fuel consumption (urban), l. 100 km 5.8
Fuel consumption (combined), l. 100 km 6.9
The maximum speed, km / h. 157
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.3d Multijet (75 h.p.) 5-speed manual 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1248
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 75
Torque, Nm 190
RPM at max torque 1750
Engine 1.3d Multijet
Compression 17.6
RPM at max power 4000
Turbo +

Dimensions

Seats 2
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Fuel tank, l 45
Turning circle, m 10
Width (without mirrors) mm 1716
The volume of the cargo compartment, m3 2.5

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.7
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.5
The maximum speed, km / h. 162
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.3d Multijet (95 h.p.) 5-speed manual 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1248
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 95
Torque, Nm 200
RPM at max torque 1500
Engine 1.3d Multijet
Compression 16.8
RPM at max power 4000
Turbo +

Dimensions

Seats 2
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Fuel tank, l 45
Turning circle, m 10
Width (without mirrors) mm 1716
The volume of the cargo compartment, m3 2.5

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.6
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4.4
The maximum speed, km / h. 157
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.4i CNG (70 hp) 5-speed manual 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gas
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 70
Torque, Nm 104
RPM at max torque 3000
Engine 1.4i CNG
Compression 11.0
RPM at max power 6000

Dimensions

Seats 2
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Fuel tank, l 45
Turning circle, m 10
Width (without mirrors) mm 1716
The volume of the cargo compartment, m3 2.5

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.6
Fuel consumption (urban), l. 100 km 3.6
Fuel consumption (combined), l. 100 km 4.4
The maximum speed, km / h. 149
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
FAQ

Fiat Fiorino Cargo questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Fiat Fiorino Cargo?

This page lists 6 trims for the Fiat Fiorino Cargo, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Fiat Fiorino Cargo?

The listed configurations show a power range of 70-95 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Fiat Fiorino Cargo?

The available specification data shows engine displacement from 1248-1368 cc across the trims listed on this page.

Which transmissions are listed for the Fiat Fiorino Cargo?

The transmission options currently shown for this model are: 5, 5-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Fiat Fiorino Cargo?

Yes. The gallery includes 21 photos for the Fiat Fiorino Cargo, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
