Fiat Fiorino Combi specifications and photos

Fiat Fiorino Combi specifications are shown with trim options, key technical data, and a model photo gallery. Compare 6 configurations by engine size, power, seating, and transmission. The gallery includes 16 photos for visual reference.

Years 2016
Body type minivan
Trims 6
Photos 16

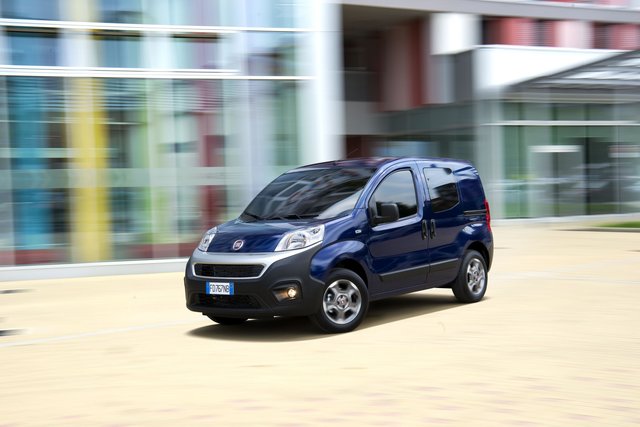

Fiat Fiorino Combi 2016 photo
Overview

Fiat Fiorino Combi at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Fiat Fiorino Combi page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 70-95 hp and 1248-1368 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 70-95 hp
  • Engine displacement: 1248-1368 cc
  • Transmissions: 5, 5-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Fiat Fiorino Combi

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 16 images Compare trims 6 configurations View detailed specs 1248-1368 cc Explore related pages Fiat and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 70-95 hp
Engine displacement 1248-1368 cc
Seating 5 seats
Transmissions 5, 5-speed manual
Trim / modification Engine Power Seats Transmission
1.4i MT Combi Elegant (77) 1368 cc 77 hp 5 5
1.3d Multijet MT Combi Elegant (75) 1248 cc 75 hp 5 5
1.4i (77 h.p.) 5-speed manual 1368 cc 77 hp 5 5-speed manual
1.3d Multijet (75 h.p.) 5-speed manual 1248 cc 75 hp 5 5-speed manual
1.3d Multijet (95 h.p.) 5-speed manual 1248 cc 95 hp 5 5-speed manual
1.4i CNG (70 hp) 5-speed manual 1368 cc 70 hp 5 5-speed manual

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.4i MT Combi Elegant (77) 1.3d Multijet MT Combi Elegant (75) 1.4i (77 h.p.) 5-speed manual 1.3d Multijet (75 h.p.) 5-speed manual 1.3d Multijet (95 h.p.) 5-speed manual 1.4i CNG (70 hp) 5-speed manual
1.4i MT Combi Elegant (77) 60 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 77
Torque, Nm 115
RPM at max torque 3000
Engine 1.4i
Compression 11.0
RPM at max power 6000

Dimensions

Seats 5
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Kerb weight, kg 1165
Fuel tank, l 45
Gross weight, kg 1680
Width (without mirrors) mm 1716

Suspension

Type of front suspension MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Disk
Rear brakes Drum

Steering

Power steering Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.9
Fuel consumption (urban), l. 100 km 5.8
Fuel consumption (combined), l. 100 km 6.9
The maximum speed, km / h. 155
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics

Equipment

Comfort

Adjustable steering column +

Interior

Trip Computer +

Wheels

Disc diameter 15
Rim type Steel
Tires 185/65R15
Spare wheel Full size

Cabin climate and noise insulation

Air Conditioning +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Heated rear window +
Power mirrors +

Multimedia and instruments

radio equipment +

Headlights and lighting

corrector of headlights +

Seats

Armrest front +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Lumbar support for the driver's seat +

Exterior

Moldings +
Right sliding door window +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
The system of dynamic stabilization (VDC) +

Anti-theft systems

Central locking with remote control +

Airbags

Driver's airbag +
1.3d Multijet MT Combi Elegant (75) 61 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1248
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 75
Torque, Nm 190
RPM at max torque 1750
Engine 1.3d Multijet
Compression 17.6
RPM at max power 4000
Turbo +

Dimensions

Seats 5
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Kerb weight, kg 1165
Fuel tank, l 45
Gross weight, kg 1680
Width (without mirrors) mm 1716

Suspension

Type of front suspension MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Disk
Rear brakes Drum

Steering

Power steering Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.1
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.3
The maximum speed, km / h. 161
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics

Equipment

Comfort

Adjustable steering column +

Interior

Trip Computer +

Wheels

Disc diameter 15
Rim type Steel
Tires 185/65R15
Spare wheel Full size

Cabin climate and noise insulation

Air Conditioning +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Heated rear window +
Power mirrors +

Multimedia and instruments

radio equipment +

Headlights and lighting

corrector of headlights +

Seats

Armrest front +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Lumbar support for the driver's seat +

Exterior

Moldings +
Right sliding door window +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
The system of dynamic stabilization (VDC) +

Anti-theft systems

Central locking with remote control +

Airbags

Driver's airbag +
1.4i (77 h.p.) 5-speed manual 29 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 77
Torque, Nm 115
RPM at max torque 3000
Engine 1.4i
Compression 11.0
RPM at max power 6000

Dimensions

Seats 5
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Fuel tank, l 45
Width (without mirrors) mm 1716

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.9
Fuel consumption (urban), l. 100 km 5.8
Fuel consumption (combined), l. 100 km 6.9
The maximum speed, km / h. 155
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.3d Multijet (75 h.p.) 5-speed manual 30 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1248
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 75
Torque, Nm 190
RPM at max torque 1750
Engine 1.3d Multijet
Compression 17.6
RPM at max power 4000
Turbo +

Dimensions

Seats 5
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Fuel tank, l 45
Width (without mirrors) mm 1716

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.1
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.3
The maximum speed, km / h. 161
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.3d Multijet (95 h.p.) 5-speed manual 30 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1248
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 95
Torque, Nm 200
RPM at max torque 1500
Engine 1.3d Multijet
Compression 16.8
RPM at max power 4000
Turbo +

Dimensions

Seats 5
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Fuel tank, l 45
Width (without mirrors) mm 1716

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.7
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.5
The maximum speed, km / h. 167
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.4i CNG (70 hp) 5-speed manual 29 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gas
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 70
Torque, Nm 104
RPM at max torque 3000
Engine 1.4i CNG
Compression 11.0
RPM at max power 6000

Dimensions

Seats 5
Length mm 3957
Height mm 1721
Wheelbase mm 2513
Front track, mm 1469
Rear track, mm 1465
Fuel tank, l 45
Width (without mirrors) mm 1716

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.6
Fuel consumption (urban), l. 100 km 3.6
Fuel consumption (combined), l. 100 km 4.4
The maximum speed, km / h. 149
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
FAQ

Fiat Fiorino Combi questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Fiat Fiorino Combi?

This page lists 6 trims for the Fiat Fiorino Combi, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Fiat Fiorino Combi?

The listed configurations show a power range of 70-95 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Fiat Fiorino Combi?

The available specification data shows engine displacement from 1248-1368 cc across the trims listed on this page.

Which transmissions are listed for the Fiat Fiorino Combi?

The transmission options currently shown for this model are: 5, 5-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Fiat Fiorino Combi?

Yes. The gallery includes 16 photos for the Fiat Fiorino Combi, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
