Ford F-150 specifications and photos
The 14th generation of the Ford F-150 continues its role as a highly capable full-size pickup. Built with an aluminum-alloy body over a high-strength steel frame, it introduces modernized powertrains and advanced interior functionality.
Ford F-150 at a glance
Quick model context before comparing photos and trim-level specifications.
Introduced as the 14th iteration of the long-running truck series, the 2020 Ford F-150 balances traditional utility with substantial technological upgrades. While it retains its recognizable silhouette and essential architecture, Ford has heavily revised the electronics and powertrain lineup. The truck is offered in multiple cab styles, including Regular, SuperCab, and SuperCrew, accommodating up to six passengers. Buyers can tailor the F-150 to specific needs, whether as a basic work vehicle or a well-equipped family hauler, utilizing a wide array of bed lengths and chassis configurations.
- Power: 260-436 hp
- Engine displacement: 2688-5038 cc
- Transmissions: 10-speed automatic
- Seating: 6 seats
Photos, trims and specifications for Ford F-150
This model page brings gallery images, trim comparison, and detailed technical data together for the 2020 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
Ford F-150 overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior of the F-150 evolves its rugged styling while integrating new lighting elements and grille designs that vary significantly by trim level. Distinctive C-shaped LED daytime running lights frame the front fascia on equipped models. The truck maintains its utilitarian roots by offering three bed lengths: 5.5-foot (1676 mm), 6.5-foot (1981 mm), and 8-foot (2438 mm) options. The extensive use of aluminum alloy for the body panels helps manage overall weight without sacrificing the structural integrity required for heavy payload and towing tasks.
Interior
Inside, the F-150 features a redesigned dashboard architecture that houses standard physical climate controls beneath the infotainment screen. Depending on the trim, the truck includes an 8-inch or a larger 12-inch SYNC 4 touchscreen, complemented by an available fully digital instrument cluster. Ford also introduced unique productivity features, such as the Interior Work Surface, which provides a flat area for a laptop or paperwork, and available Max Recline Seats that fold almost 180 degrees.
Performance
The powertrain lineup for the F-150 is extensive, with all engines paired to a 10-speed automatic transmission. Traditional options include a 294-hp 3.3L V6, a 406-hp 5.0L V8, and two EcoBoost V6 engines (2.7L and 3.5L). A 3.0L diesel V6 is also available. A major addition to this generation is the 3.5L PowerBoost Full Hybrid V6, which combines the EcoBoost engine with a 48-hp electric motor and a 1.5-kWh battery to deliver 436 horsepower and 773 Nm of torque, offering a maximum towing capacity of up to 5,440 kg.
Practicality
Versatility remains the core focus of the F-150. With multiple cab configurations, it transitions from a single-cab work truck to a spacious SuperCrew model suitable for family use. The availability of three distinct cargo bed lengths ensures that buyers can match the truck to their specific hauling requirements. The pickup is available with both rear-wheel drive and four-wheel drive systems, including optional electronic locking differentials or a Torsen differential on the Tremor version for enhanced off-road capability.
Safety and tech
The F-150 is equipped with the Ford Co-Pilot360 2.0 suite of driver-assistance technologies. This includes features such as adaptive cruise control, lane-centering assist, and intersection collision avoidance. Maneuvering the large pickup is supported by available 360-degree surround-view cameras and advanced trailer backup assistance systems, providing better visibility when towing or navigating tight spaces.
Buyer notes
When comparing Ford F-150 trims, the sheer number of configurations requires careful consideration. Buyers should match their engine choice to anticipated payload and towing needs, with the PowerBoost hybrid offering a strong mix of efficiency and output. Pay attention to cab sizes and bed lengths, as not all combinations are available together. Equipment levels vary widely, from basic work-spec interiors to premium cabins, so review local availability carefully.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.3i (294 hp) 10-speed automatic | 3296 cc | 294 hp | 6 | 10-speed automatic |
| 3.3i (294 hp) 10-speed automatic 4x4 | 3296 cc | 294 hp | 6 | 10-speed automatic |
| 2.7i EcoBoost (330 hp) 10-speed automatic | 2688 cc | 330 hp | 6 | 10-speed automatic |
| 2.7i EcoBoost (330 hp) 10-speed automatic 4x4 | 2688 cc | 330 hp | 6 | 10-speed automatic |
| 5.0i (406 hp) 10-speed automatic | 5038 cc | 406 hp | 6 | 10-speed automatic |
| 5.0i (406 hp) 10-speed automatic 4x4 | 5038 cc | 406 hp | 6 | 10-speed automatic |
| 3.5i EcoBoost (406 hp) 10-speed automatic | 3497 cc | 406 hp | 6 | 10-speed automatic |
| 3.0 Duratorq (260 hp) 10-speed automatic 4x4 | 2993 cc | 260 hp | 6 | 10-speed automatic |
| 3.5i PowerBoost (436 hp) 10-Speed Automatic Modular Hybrid | 3497 cc | 436 hp | 6 | 10-speed automatic |
| 3.5i PowerBoost (436 hp) 10-Speed Automatic Modular Hybrid 4x4 | 3497 cc | 436 hp | 6 | 10-speed automatic |
| 3.5i EcoBoost (406 hp) 10-speed automatic 4x4 | 3497 cc | 406 hp | 6 | 10-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

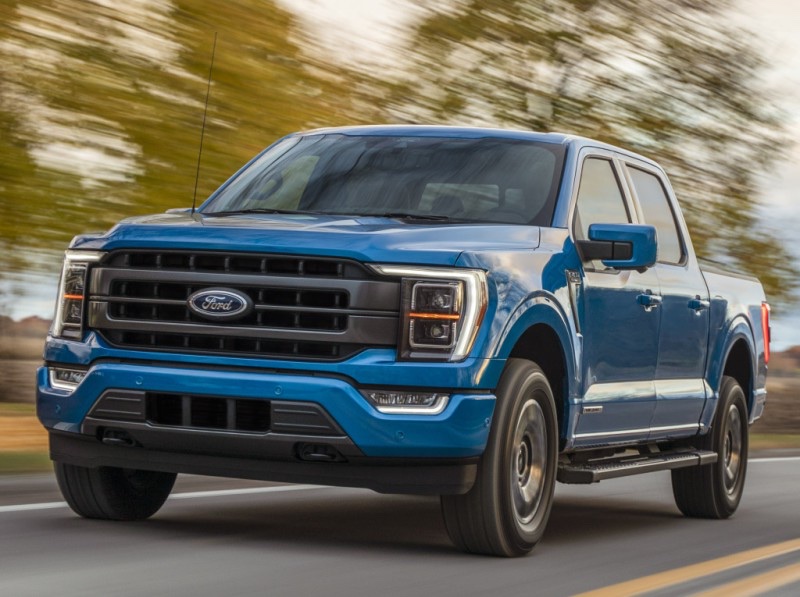

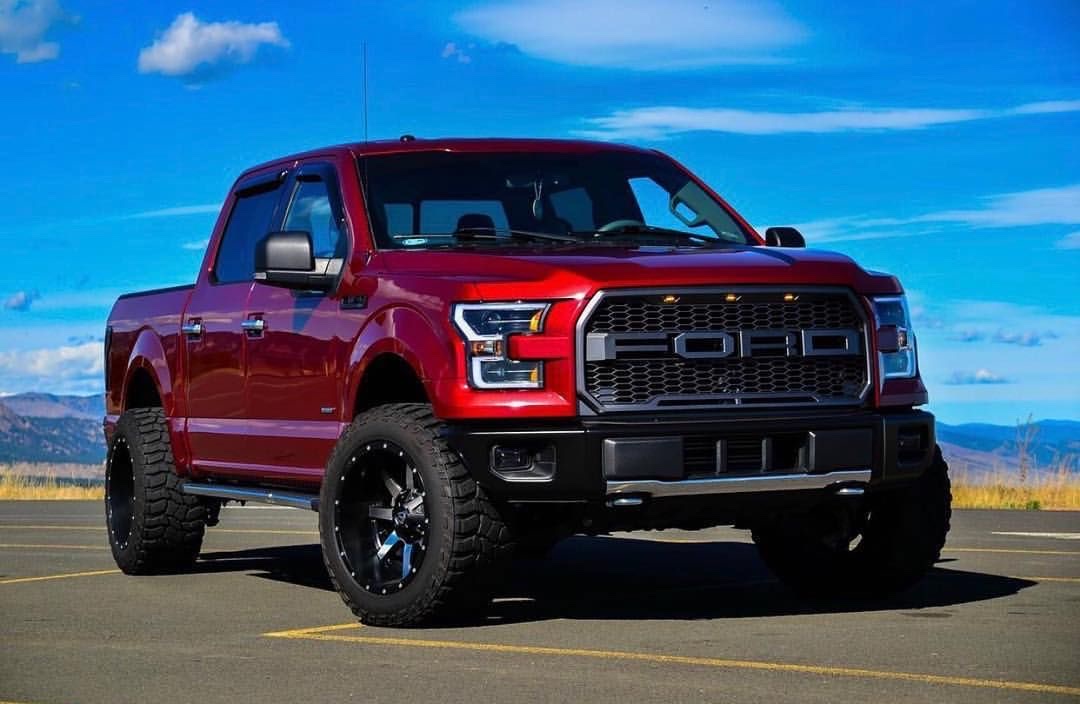

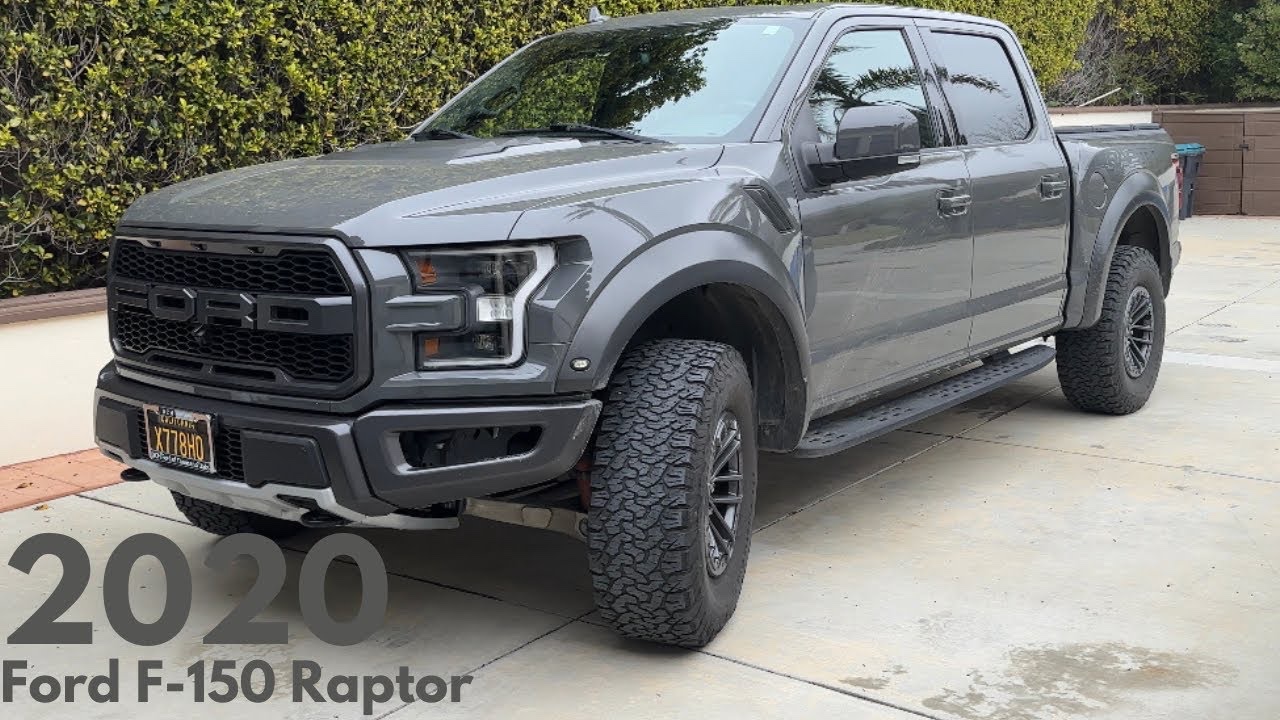

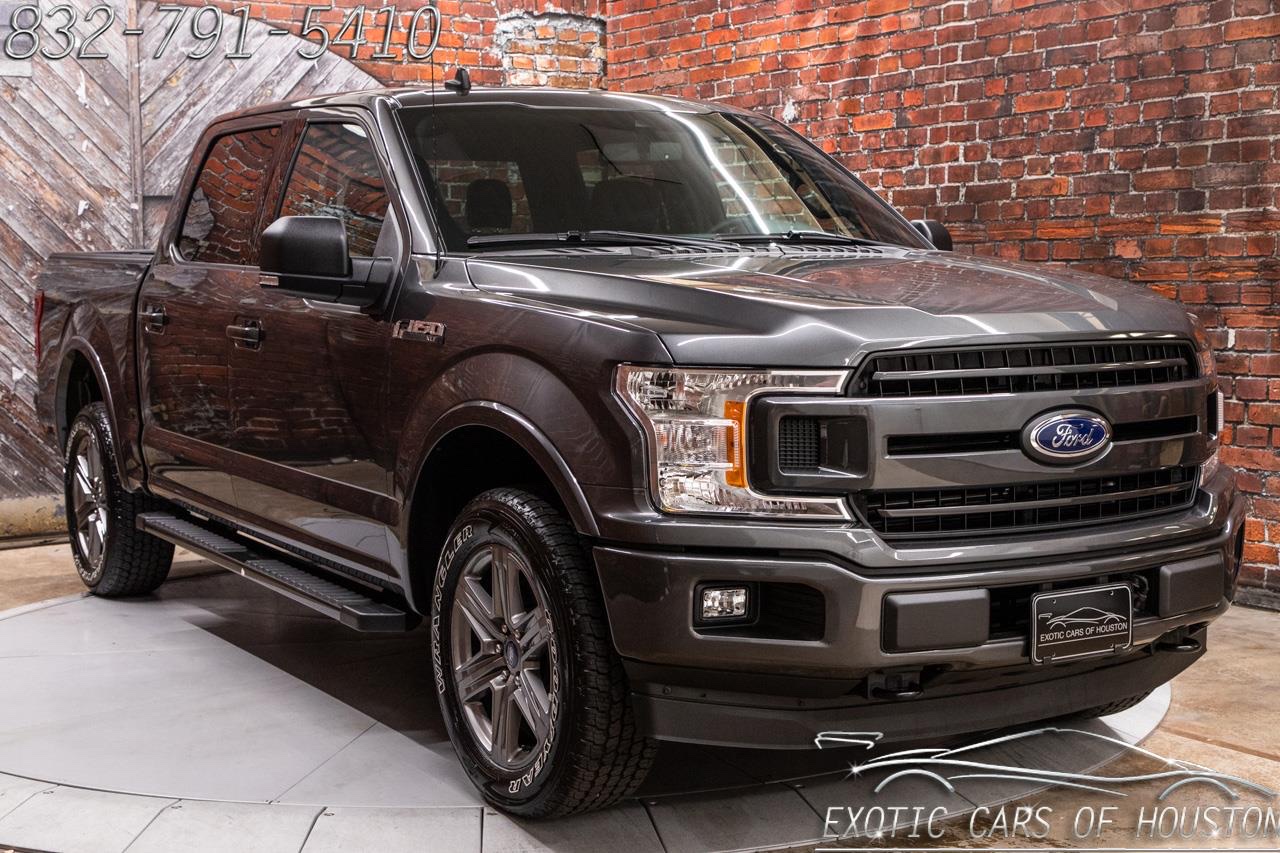

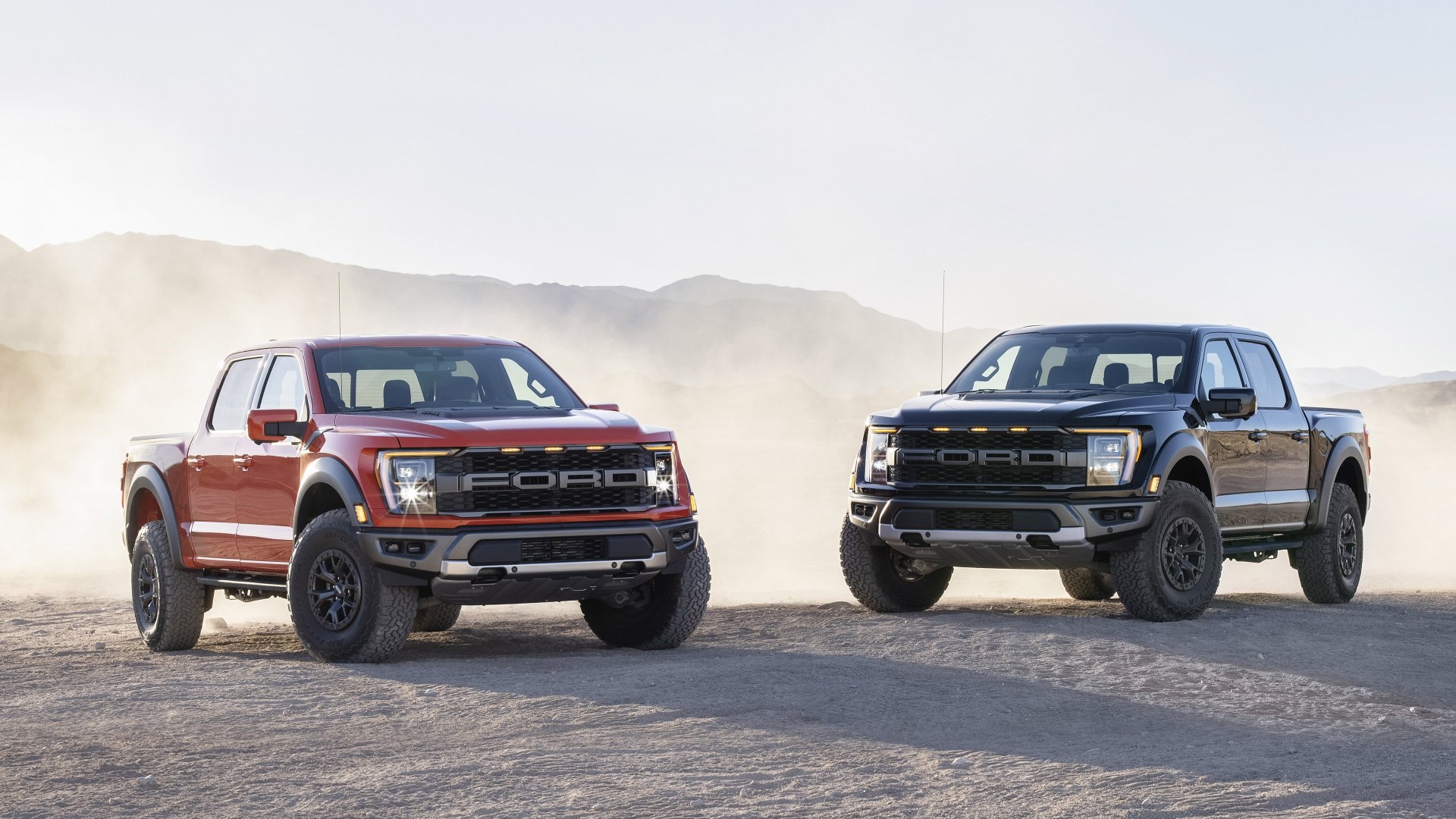

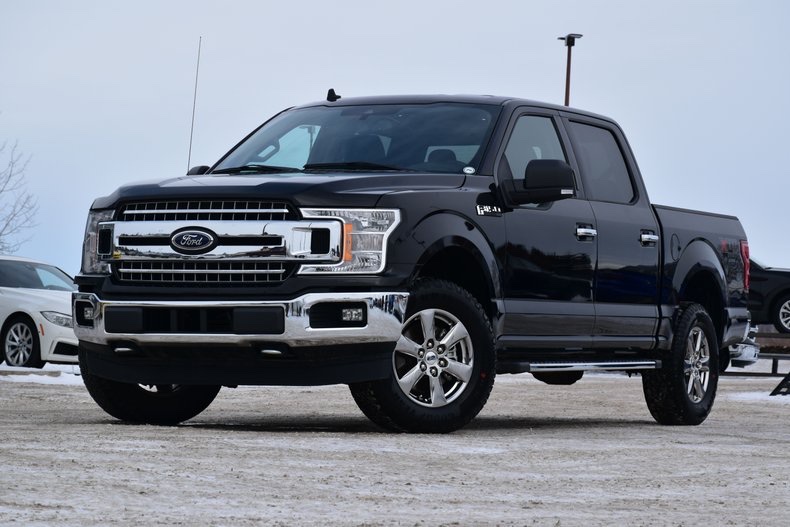

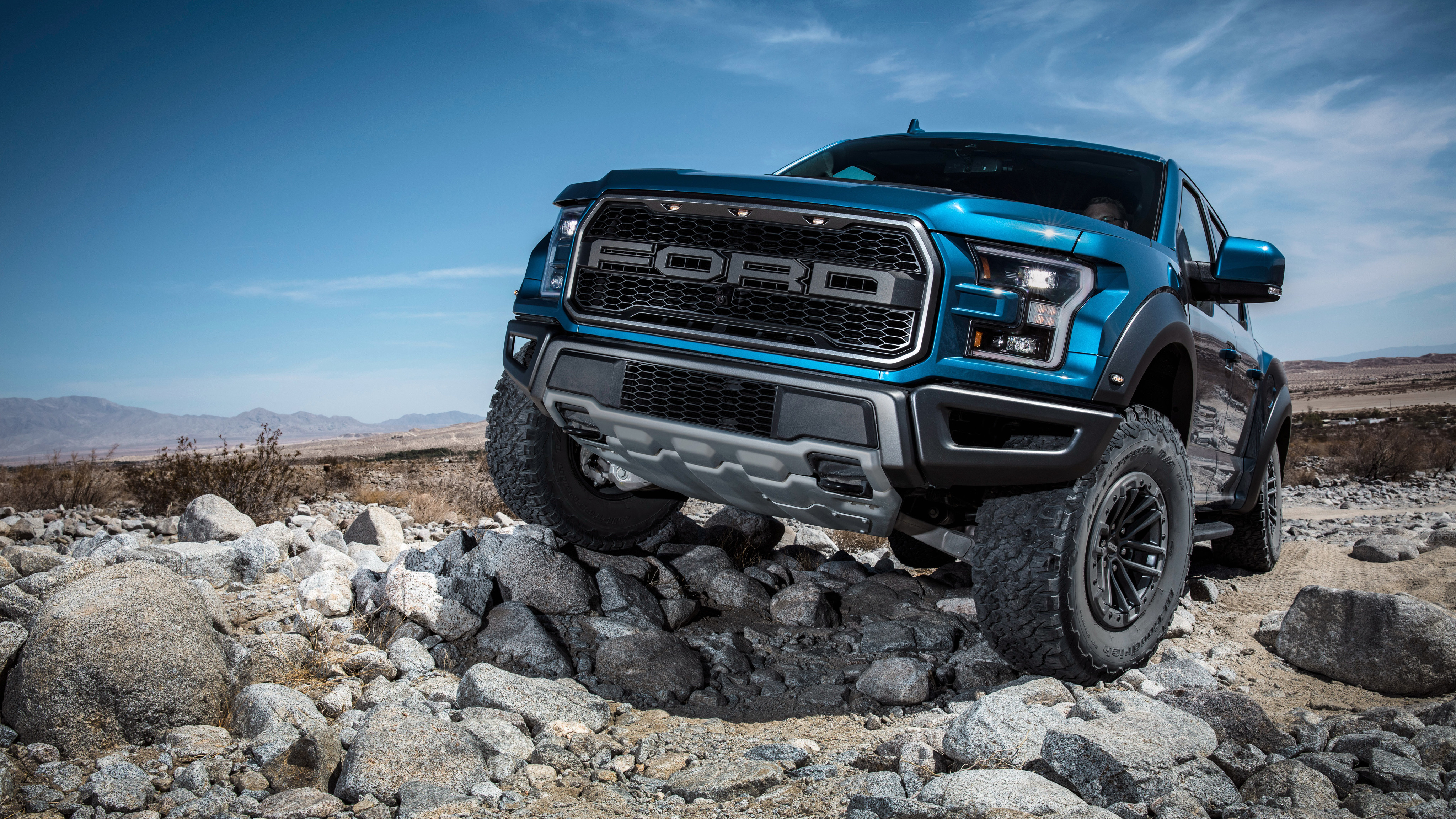

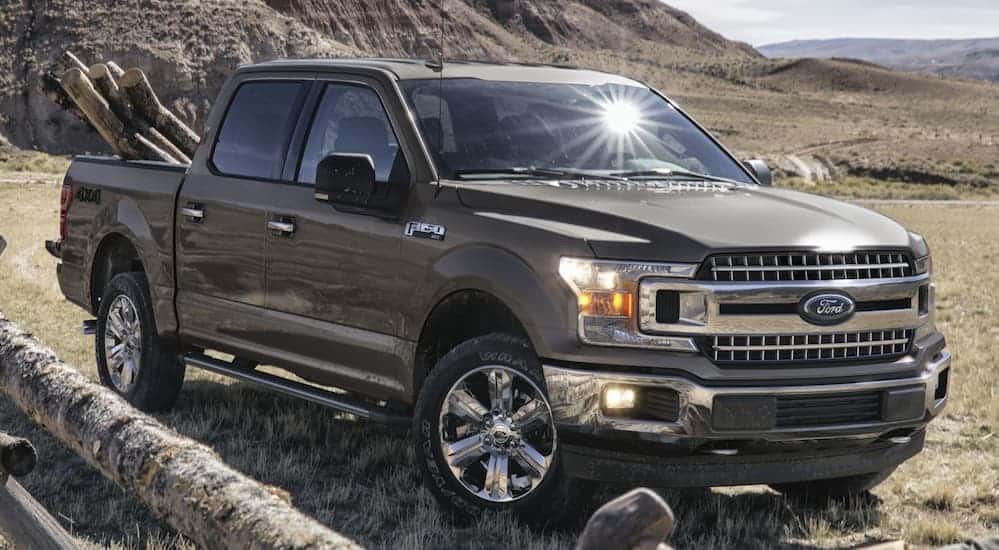

Ford F-150 photo gallery
21 images are collected here with the main specifications and trim data for this model.

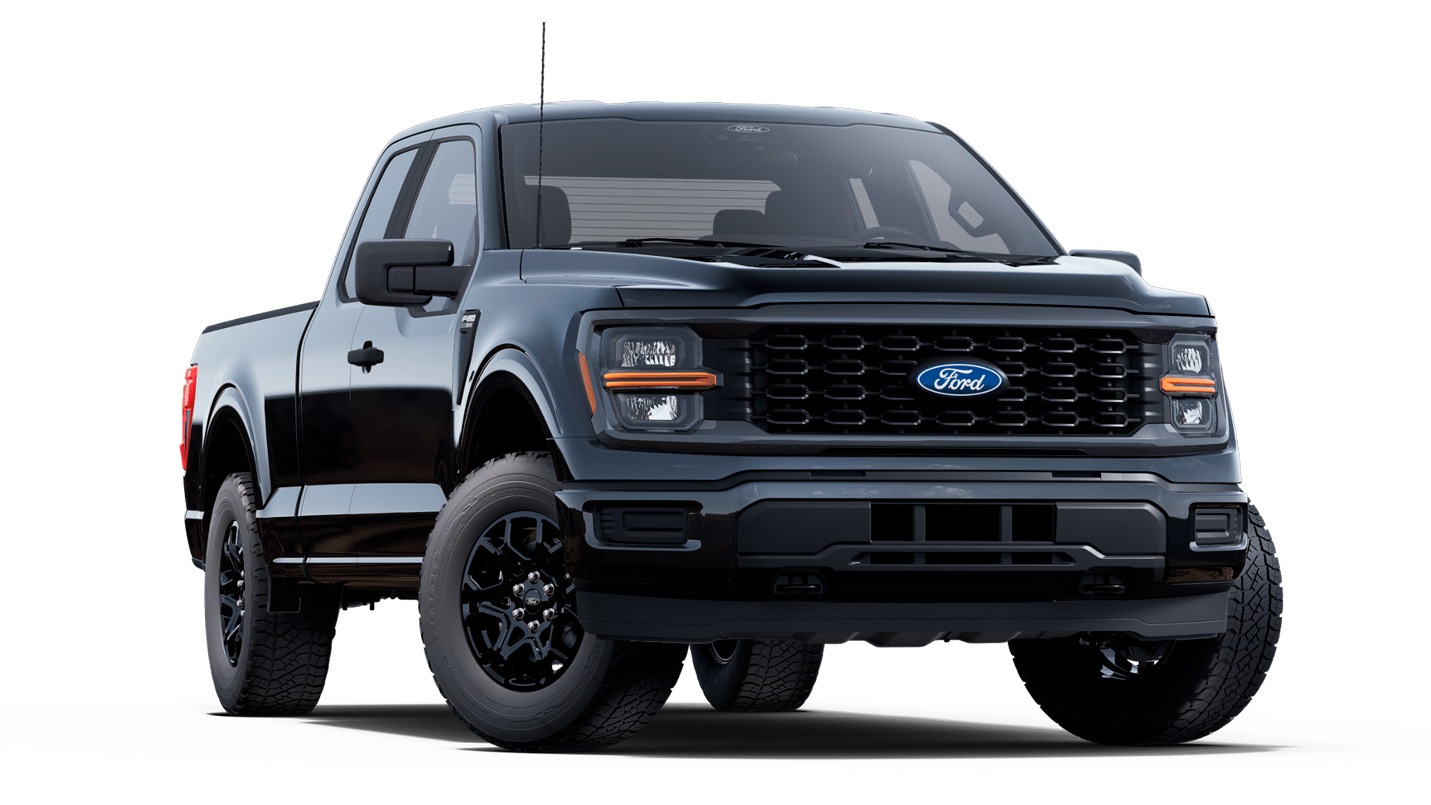

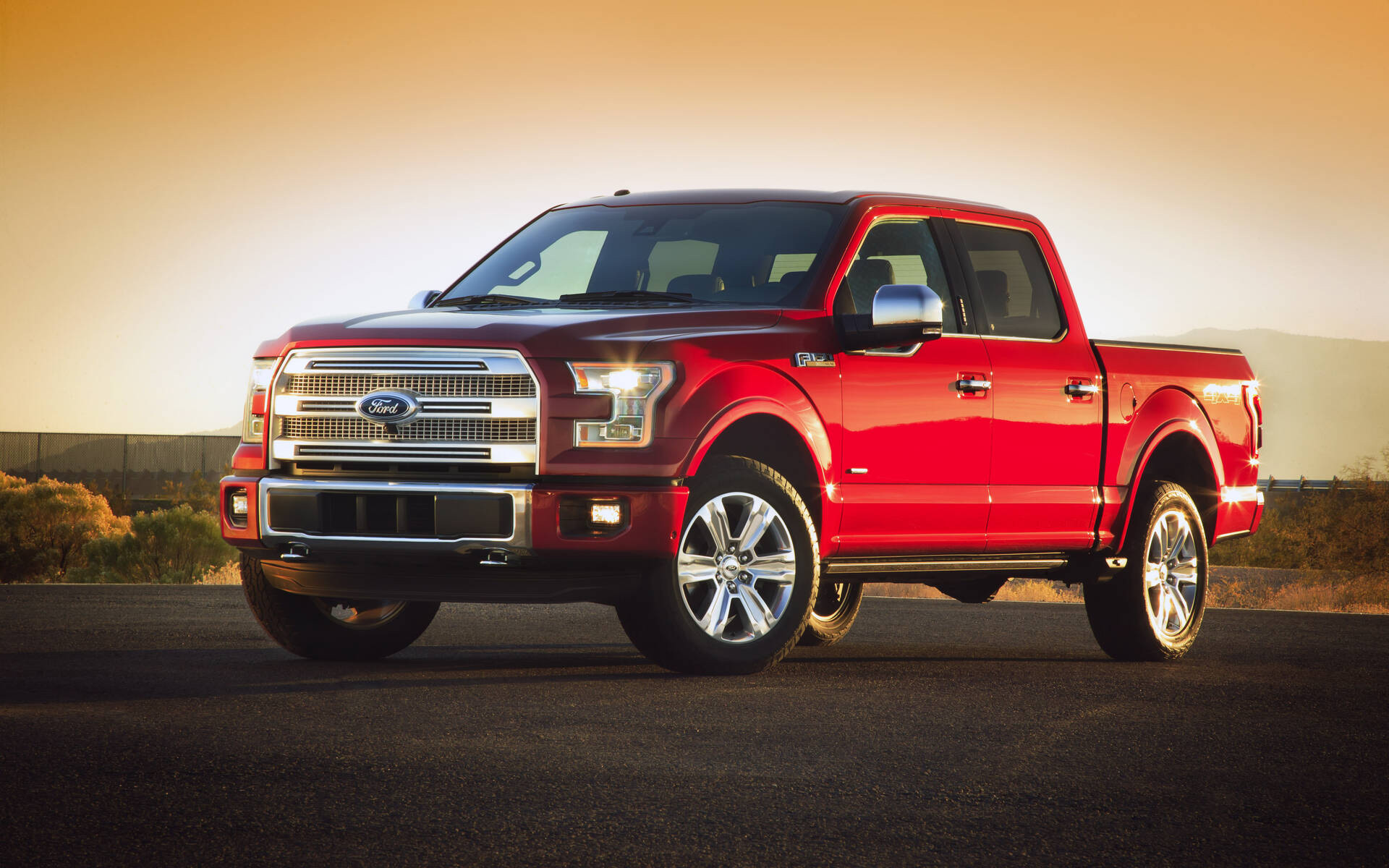

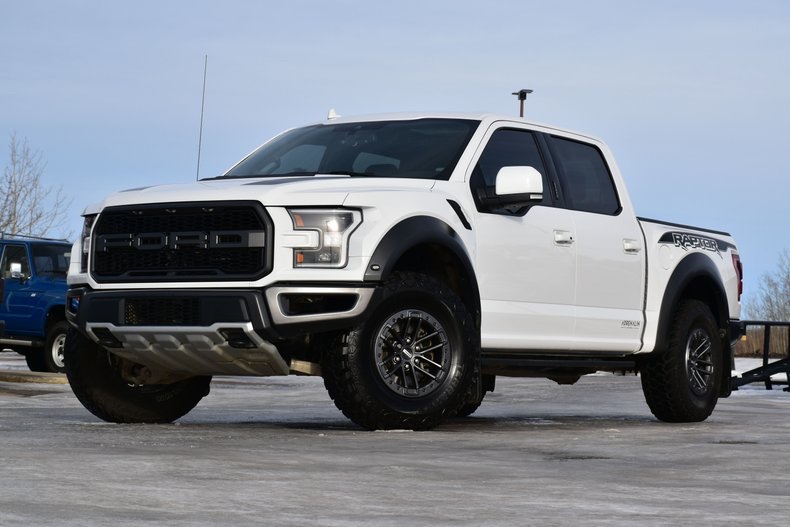

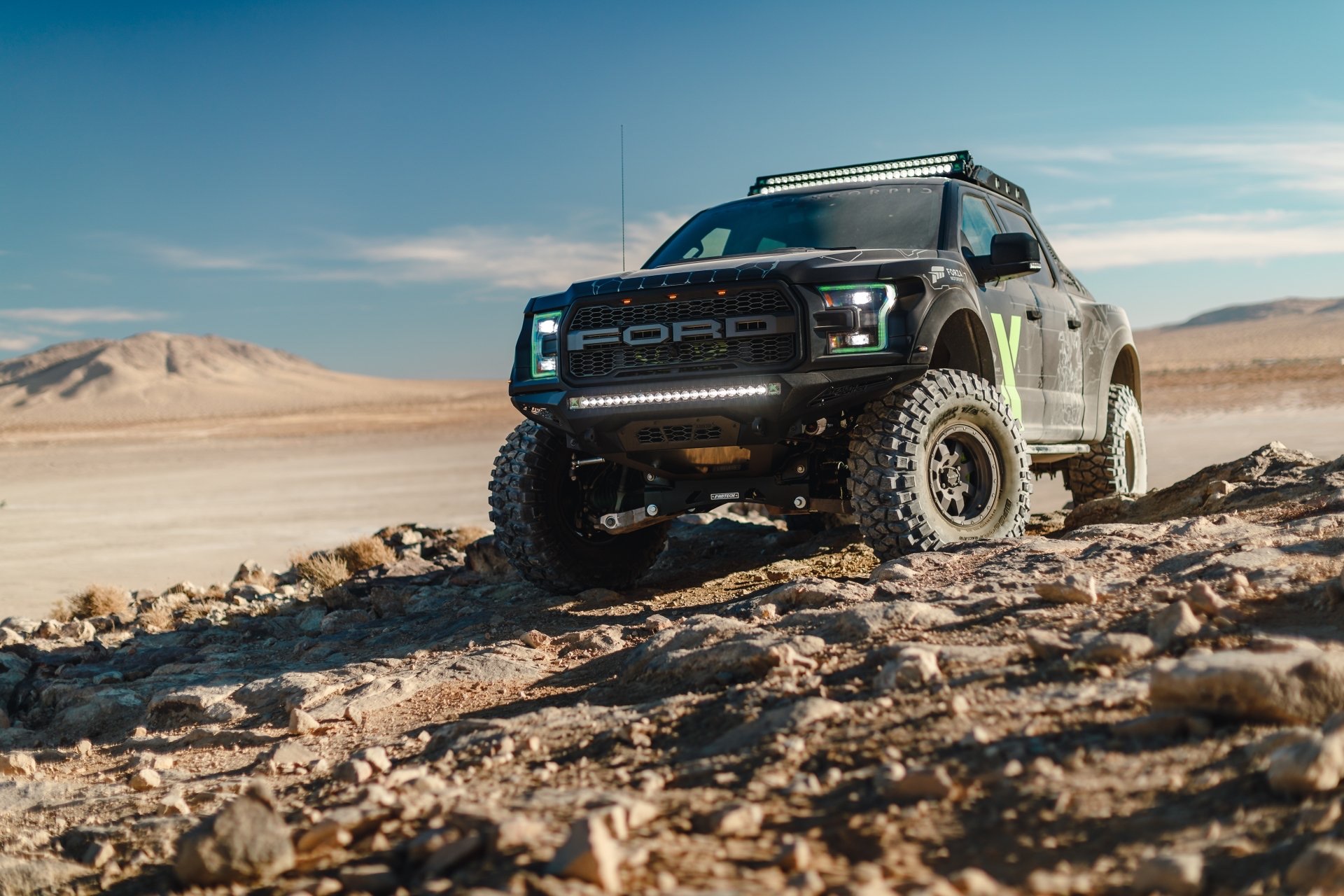

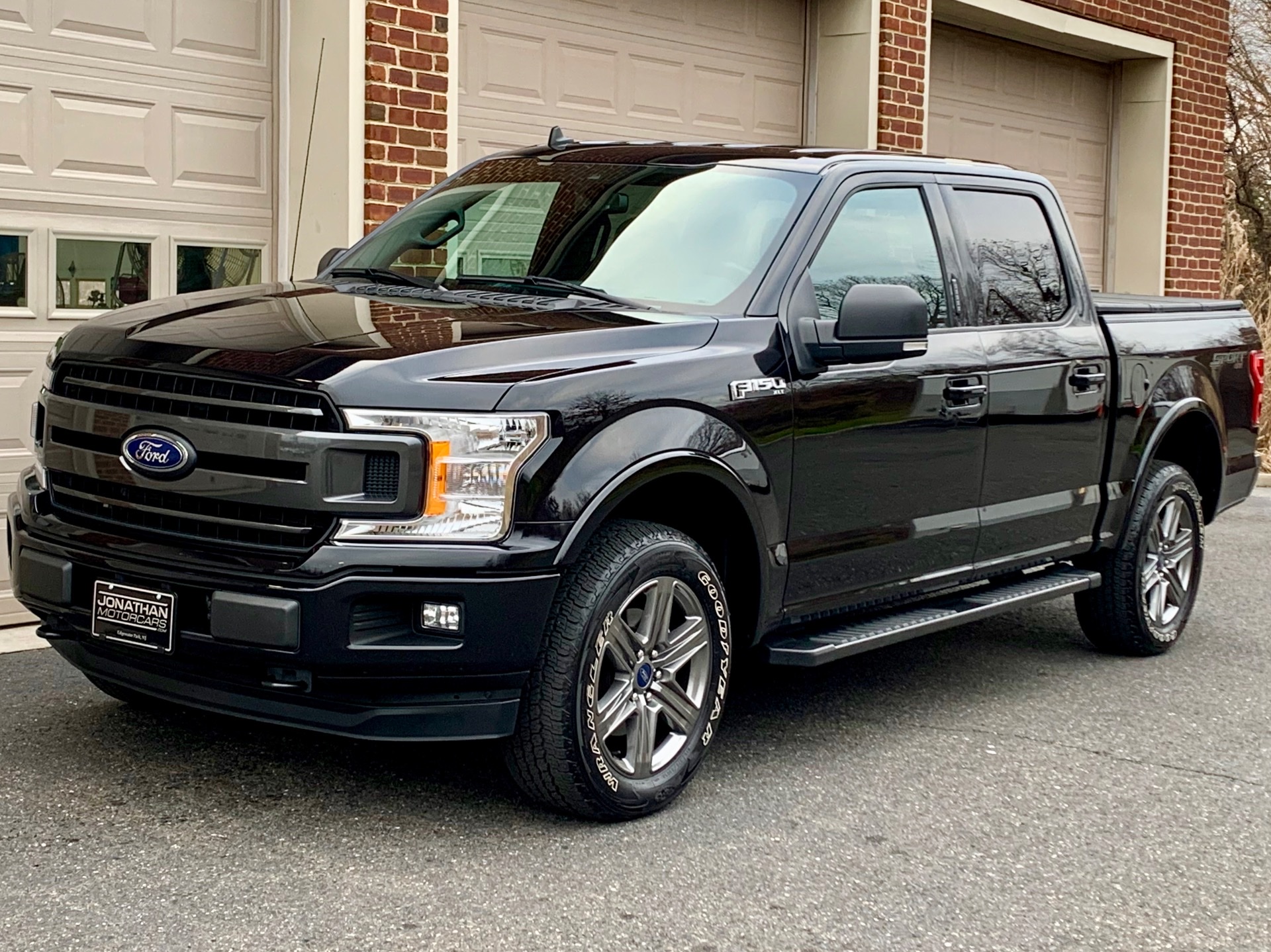

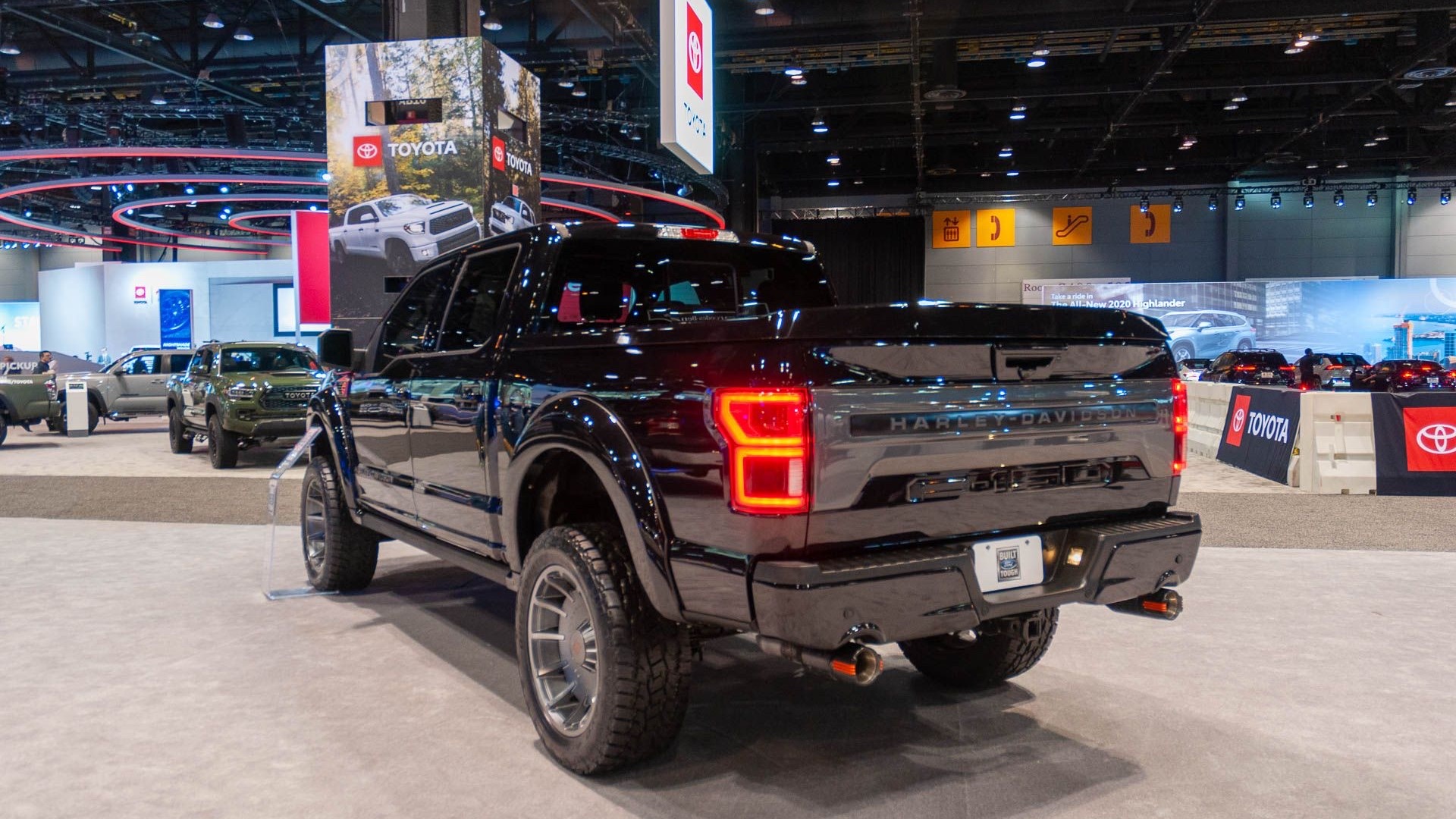

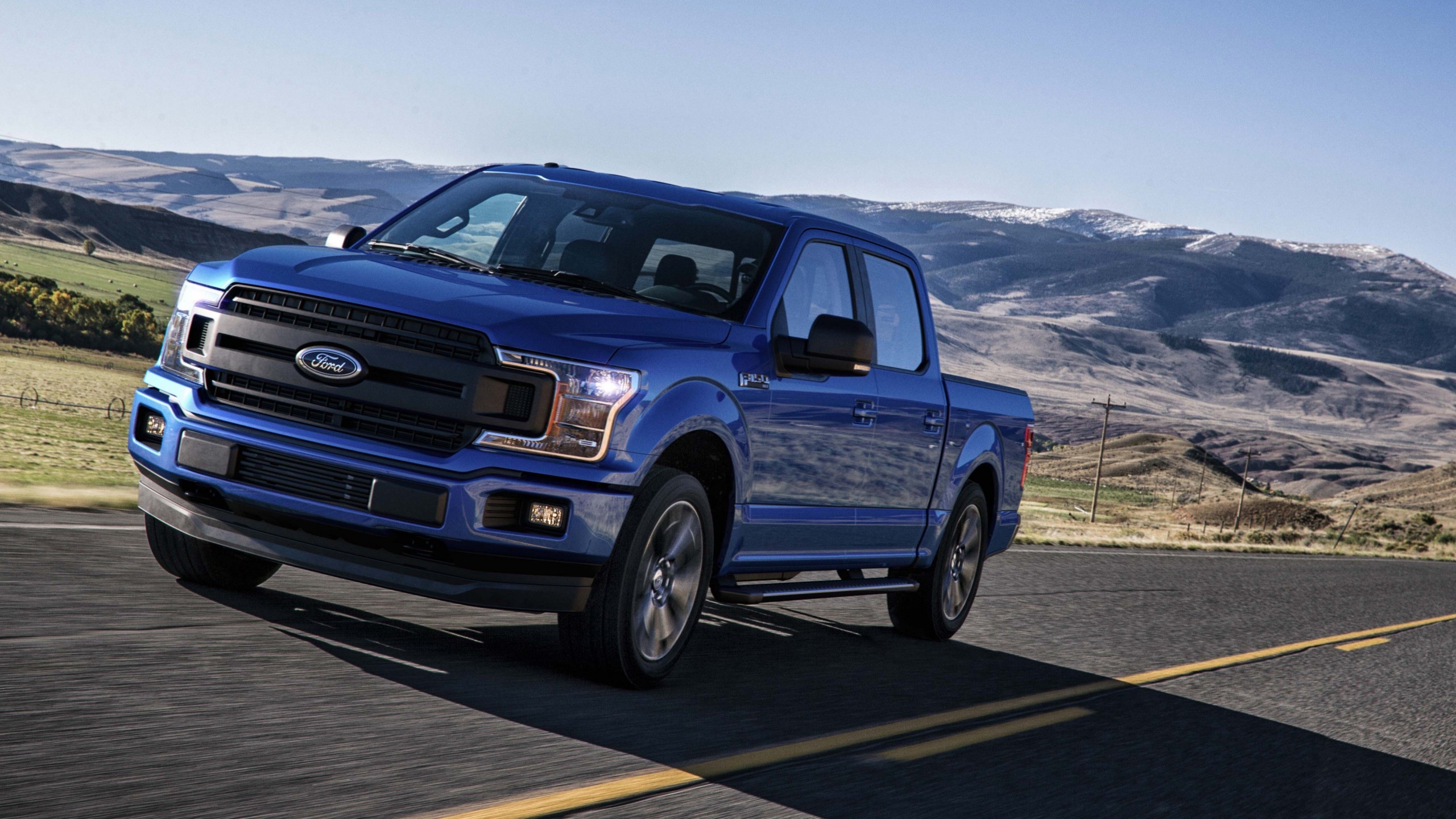

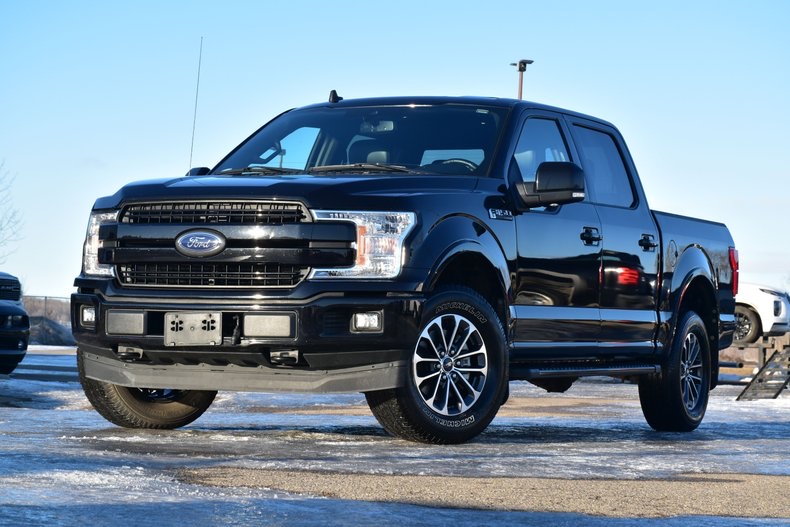

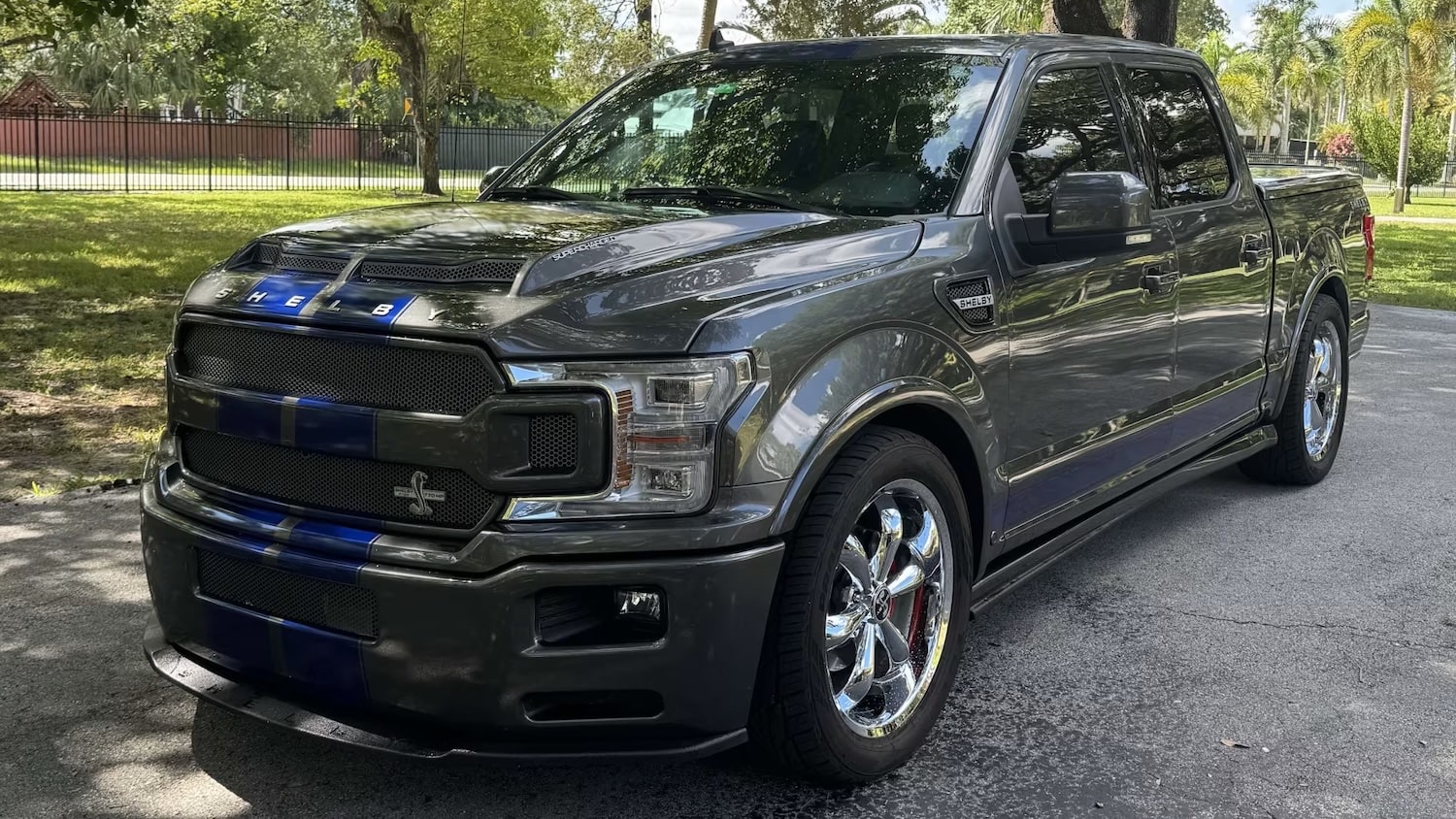

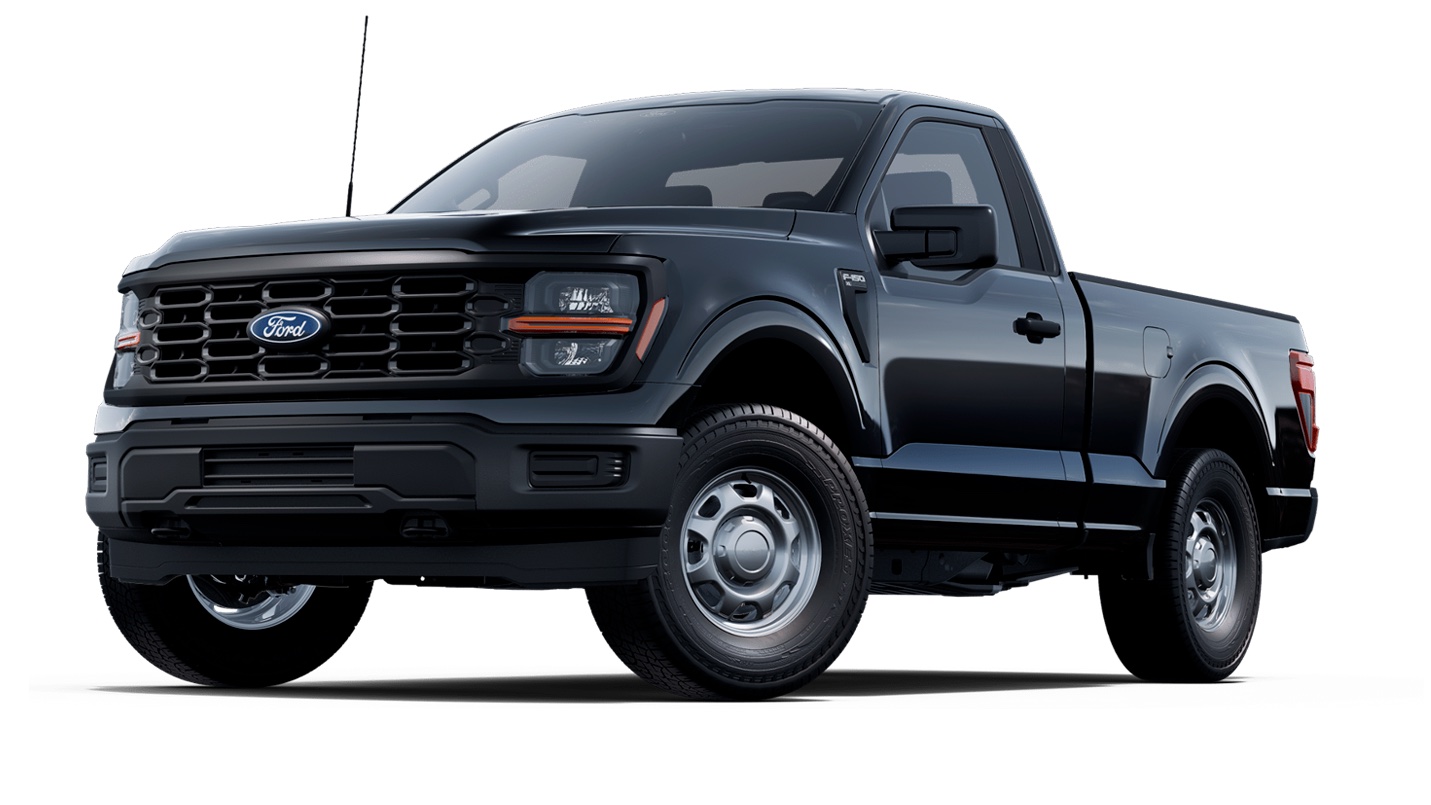

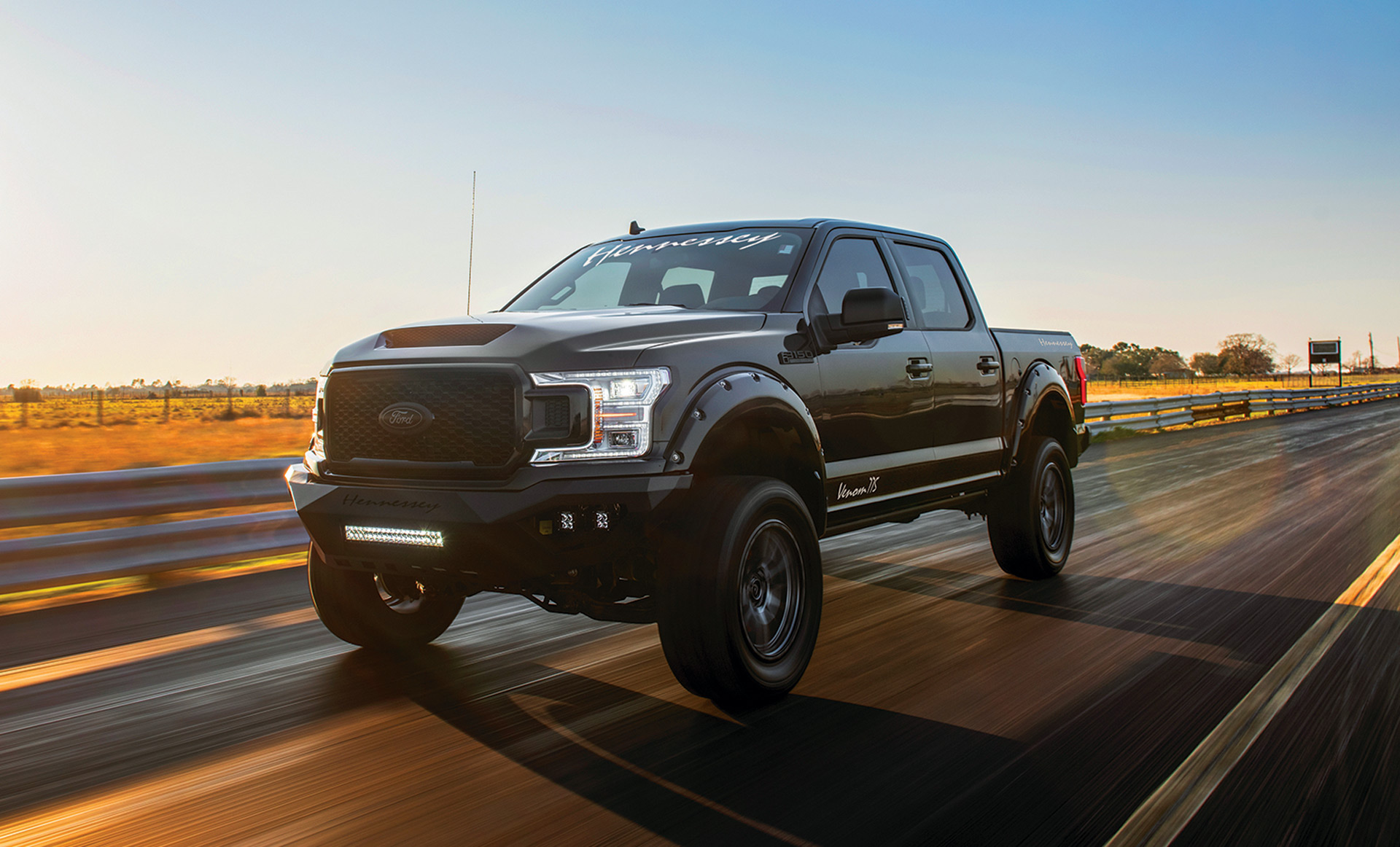

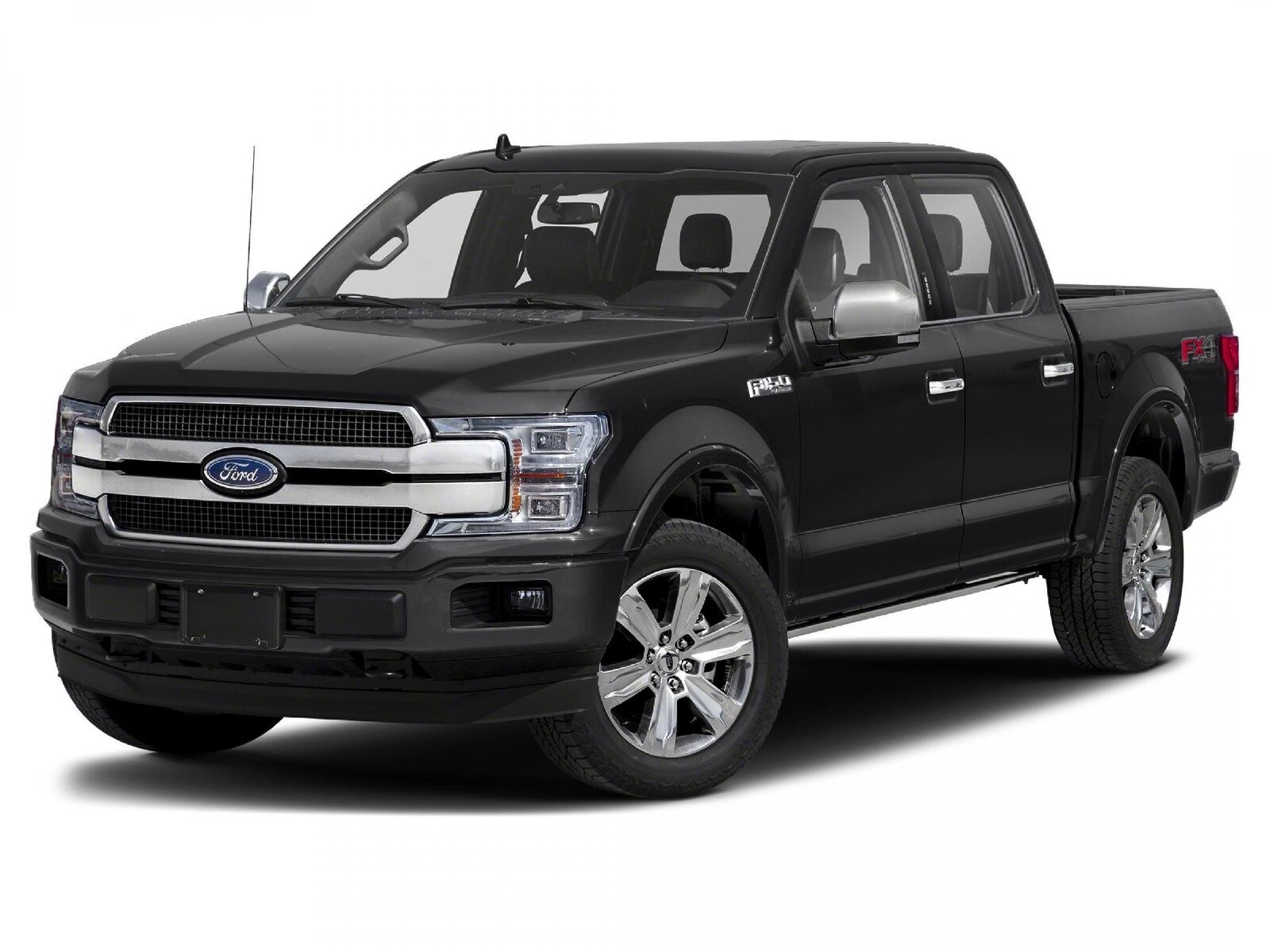

Photo Ford F-150
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.3i (294 hp) 10-speed automatic 36 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11.8 |
|---|---|
| Fuel consumption highway, L/100 km | 9.8 |
| Fuel consumption combined, L/100 km | 11.2 |
Engine
| Engine | 3.3i |
|---|---|
| Engine code | Ti-VCT V6 FFV |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3296 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 12:1 |
| Power, hp | 294 |
| RPM at max power | 6500 |
| Torque, Nm | 359 |
| RPM at max torque | 4000 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5885 |
| Width, mm | 2431 |
| Height, mm | 1920 |
| Wheelbase, mm | 3693 |
| Front track, mm | 1724 |
| Rear track, mm | 1734 |
| Kerb weight, kg | 1824 |
| Gross weight, kg | 2726 |
| Fuel tank capacity, L | 87 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 216 |
| Width without mirrors, mm | 2029 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
3.3i (294 hp) 10-speed automatic 4x4 36 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 12.4 |
|---|---|
| Fuel consumption highway, L/100 km | 10.7 |
| Fuel consumption combined, L/100 km | 11.8 |
Engine
| Engine | 3.3i |
|---|---|
| Engine code | Ti-VCT V6 FFV |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3296 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 12:1 |
| Power, hp | 294 |
| RPM at max power | 6500 |
| Torque, Nm | 359 |
| RPM at max torque | 4000 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5885 |
| Width, mm | 2431 |
| Height, mm | 1920 |
| Wheelbase, mm | 3693 |
| Front track, mm | 1724 |
| Rear track, mm | 1734 |
| Kerb weight, kg | 1824 |
| Gross weight, kg | 2726 |
| Fuel tank capacity, L | 87 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 216 |
| Width without mirrors, mm | 2029 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
2.7i EcoBoost (330 hp) 10-speed automatic 35 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11.8 |
|---|---|
| Fuel consumption highway, L/100 km | 9 |
| Fuel consumption combined, L/100 km | 10.7 |
Engine
| Engine | 2.7i EcoBoost |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2688 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10:1 |
| Power, hp | 330 |
| RPM at max power | 5000 |
| Torque, Nm | 542 |
| RPM at max torque | 2750 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5885 |
| Width, mm | 2431 |
| Height, mm | 1920 |
| Wheelbase, mm | 3693 |
| Front track, mm | 1724 |
| Rear track, mm | 1734 |
| Kerb weight, kg | 1824 |
| Gross weight, kg | 2726 |
| Fuel tank capacity, L | 87 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 216 |
| Width without mirrors, mm | 2029 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
2.7i EcoBoost (330 hp) 10-speed automatic 4x4 35 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 12.4 |
|---|---|
| Fuel consumption highway, L/100 km | 9.8 |
| Fuel consumption combined, L/100 km | 11.2 |
Engine
| Engine | 2.7i EcoBoost |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2688 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10:1 |
| Power, hp | 330 |
| RPM at max power | 5000 |
| Torque, Nm | 542 |
| RPM at max torque | 2750 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5885 |
| Width, mm | 2431 |
| Height, mm | 1920 |
| Wheelbase, mm | 3693 |
| Front track, mm | 1724 |
| Rear track, mm | 1734 |
| Kerb weight, kg | 1824 |
| Gross weight, kg | 2726 |
| Fuel tank capacity, L | 87 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 216 |
| Width without mirrors, mm | 2029 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
5.0i (406 hp) 10-speed automatic 36 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 13.8 |
|---|---|
| Fuel consumption highway, L/100 km | 9.8 |
| Fuel consumption combined, L/100 km | 11.8 |
Engine
| Engine | 5.0i |
|---|---|
| Engine code | Ti-VCT V8 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 5038 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 32 |
| Compression ratio | 12:1 |
| Power, hp | 406 |
| RPM at max power | 6000 |
| Torque, Nm | 556 |
| RPM at max torque | 4250 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5885 |
| Width, mm | 2431 |
| Height, mm | 1920 |
| Wheelbase, mm | 3693 |
| Front track, mm | 1724 |
| Rear track, mm | 1734 |
| Kerb weight, kg | 1824 |
| Gross weight, kg | 2726 |
| Fuel tank capacity, L | 87 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 216 |
| Width without mirrors, mm | 2029 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
5.0i (406 hp) 10-speed automatic 4x4 36 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 14.7 |
|---|---|
| Fuel consumption highway, L/100 km | 10.7 |
| Fuel consumption combined, L/100 km | 12.4 |
Engine
| Engine | 5.0i |
|---|---|
| Engine code | Ti-VCT V8 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 5038 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 32 |
| Compression ratio | 12:1 |
| Power, hp | 406 |
| RPM at max power | 6000 |
| Torque, Nm | 556 |
| RPM at max torque | 4250 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5885 |
| Width, mm | 2431 |
| Height, mm | 1920 |
| Wheelbase, mm | 3693 |
| Front track, mm | 1724 |
| Rear track, mm | 1734 |
| Kerb weight, kg | 1824 |
| Gross weight, kg | 2726 |
| Fuel tank capacity, L | 87 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 216 |
| Width without mirrors, mm | 2029 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
3.5i EcoBoost (406 hp) 10-speed automatic 36 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 13.1 |
|---|---|
| Fuel consumption highway, L/100 km | 9.8 |
| Fuel consumption combined, L/100 km | 11.8 |
Engine
| Engine | 3.5i EcoBoost |
|---|---|
| Engine code | V6 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3497 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 406 |
| RPM at max power | 6000 |
| Torque, Nm | 678 |
| RPM at max torque | 3100 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5885 |
| Width, mm | 2431 |
| Height, mm | 1920 |
| Wheelbase, mm | 3693 |
| Front track, mm | 1724 |
| Rear track, mm | 1734 |
| Kerb weight, kg | 1824 |
| Gross weight, kg | 2726 |
| Fuel tank capacity, L | 87 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 216 |
| Width without mirrors, mm | 2029 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
3.0 Duratorq (260 hp) 10-speed automatic 4x4 35 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11.8 |
|---|---|
| Fuel consumption highway, L/100 km | 8.7 |
| Fuel consumption combined, L/100 km | 10.2 |
Engine
| Engine | 3.0 Duratorq |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2993 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 16:1 |
| Power, hp | 260 |
| RPM at max power | 3250 |
| Torque, Nm | 600 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5885 |
| Width, mm | 2431 |
| Height, mm | 1920 |
| Wheelbase, mm | 3693 |
| Front track, mm | 1724 |
| Rear track, mm | 1734 |
| Kerb weight, kg | 1824 |
| Gross weight, kg | 2726 |
| Fuel tank capacity, L | 87 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 216 |
| Width without mirrors, mm | 2029 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
3.5i PowerBoost (436 hp) 10-Speed Automatic Modular Hybrid 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.4 |
|---|---|
| Fuel consumption highway, L/100 km | 9 |
| Fuel consumption combined, L/100 km | 9.4 |
Engine
| Engine | 3.5i PowerBoost |
|---|---|
| Engine code | Full Hybrid V6 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 3497 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 436 |
| RPM at max power | 6000 |
| Torque, Nm | 773 |
| RPM at max torque | 3000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 48 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5885 |
| Width, mm | 2431 |
| Height, mm | 1920 |
| Wheelbase, mm | 3693 |
| Front track, mm | 1724 |
| Rear track, mm | 1734 |
| Kerb weight, kg | 1824 |
| Gross weight, kg | 2726 |
| Fuel tank capacity, L | 87 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 216 |
| Width without mirrors, mm | 2029 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
3.5i PowerBoost (436 hp) 10-Speed Automatic Modular Hybrid 4x4 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.8 |
|---|---|
| Fuel consumption highway, L/100 km | 9.8 |
| Fuel consumption combined, L/100 km | 9.8 |
Engine
| Engine | 3.5i PowerBoost |
|---|---|
| Engine code | Full Hybrid V6 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 3497 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 436 |
| RPM at max power | 6000 |
| Torque, Nm | 773 |
| RPM at max torque | 3000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 48 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5885 |
| Width, mm | 2431 |
| Height, mm | 1920 |
| Wheelbase, mm | 3693 |
| Front track, mm | 1724 |
| Rear track, mm | 1734 |
| Kerb weight, kg | 1824 |
| Gross weight, kg | 2726 |
| Fuel tank capacity, L | 87 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 216 |
| Width without mirrors, mm | 2029 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
3.5i EcoBoost (406 hp) 10-speed automatic 4x4 35 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 13.1 |
|---|---|
| Fuel consumption highway, L/100 km | 10.2 |
| Fuel consumption combined, L/100 km | 11.8 |
Engine
| Engine | 3.5i EcoBoost |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3497 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 406 |
| RPM at max power | 6000 |
| Torque, Nm | 678 |
| RPM at max torque | 4250 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5885 |
| Width, mm | 2431 |
| Height, mm | 1920 |
| Wheelbase, mm | 3693 |
| Front track, mm | 1724 |
| Rear track, mm | 1734 |
| Kerb weight, kg | 1824 |
| Gross weight, kg | 2726 |
| Fuel tank capacity, L | 87 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 216 |
| Width without mirrors, mm | 2029 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
Ford F-150 questions
Short answers based on the specifications and photos available in this catalog.
What cab styles are available for the Ford F-150?
The F-150 is offered in three cab styles: a single-row Regular cab, a two-row SuperCab with rear-hinged doors, and a larger four-door SuperCrew cab that can seat up to six people.
Are there hybrid engine options?
Yes, this generation introduces the 3.5L PowerBoost Full Hybrid V6, which integrates an electric motor and battery to produce 436 horsepower and 773 Nm of torque.
What are the cargo bed length options?
Buyers can choose from three bed lengths depending on the cab configuration: 5.5 feet (1676 mm), 6.5 feet (1981 mm), and 8 feet (2438 mm).
What transmission comes with the F-150?
All engine options in the F-150 lineup are mated to a 10-speed automatic transmission, available with either rear-wheel drive or four-wheel drive configurations.
What safety technology is included?
The F-150 features Ford Co-Pilot360 2.0, which includes advanced driver aids like adaptive cruise control, lane-centering assist, and trailer backup cameras.
