Ford Bronco 3D specifications and photos
The 2020 Ford Bronco 3D marks the return of the iconic three-door off-road SUV in its sixth generation. Unveiled in July 2020, it combines a retro-inspired design with modern body-on-frame architecture and advanced four-wheel-drive systems.
Ford Bronco 3D at a glance
Quick model context before comparing photos and trim-level specifications.
As a true body-on-frame SUV, the sixth-generation Ford Bronco 3D is aimed directly at off-road enthusiasts who value mechanical capability and heritage design. The short-wheelbase, three-door layout with a 2550 mm wheelbase prioritizes maneuverability on the trail over maximum interior volume. Ford engineered this generation to reference the original 1966 model while introducing modern engineering, including independent front suspension and advanced four-wheel-drive transfer cases. Available with either a traditional part-time 4WD system with a 2.72:1 low range or an advanced automatic 4WD setup with a 3.06:1 ratio, the Bronco provides options for both casual adventurers and serious trail drivers. The inclusion of specialized equipment packages and comprehensive underbody steel protection ensures it remains highly competitive in the dedicated off-roader segment.
- Power: 274-314 hp
- Engine displacement: 2261 cc
- Transmissions: 7-speed manual, 10-speed automatic
- Seating: 4 seats
Ford Bronco 3D overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

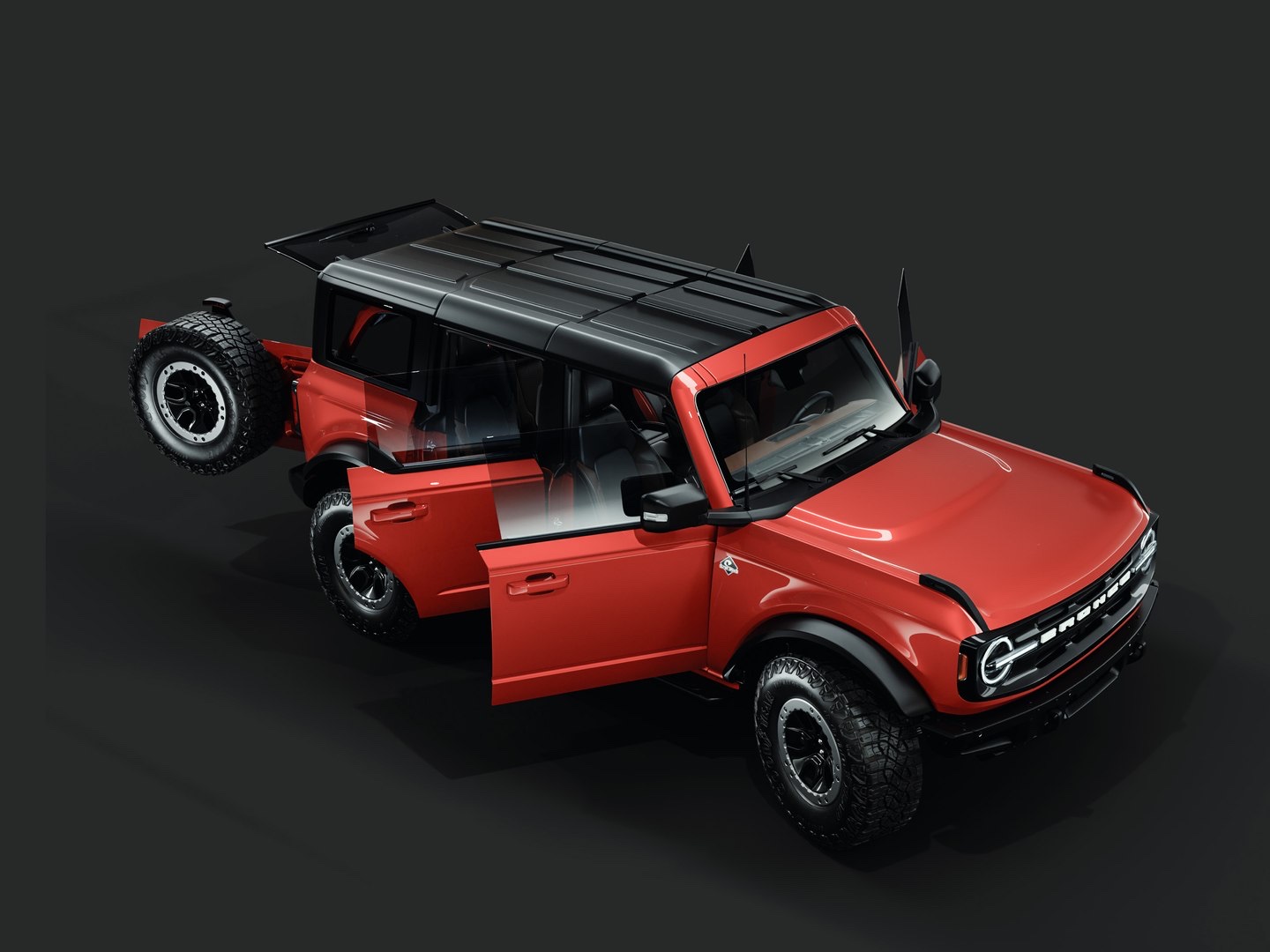

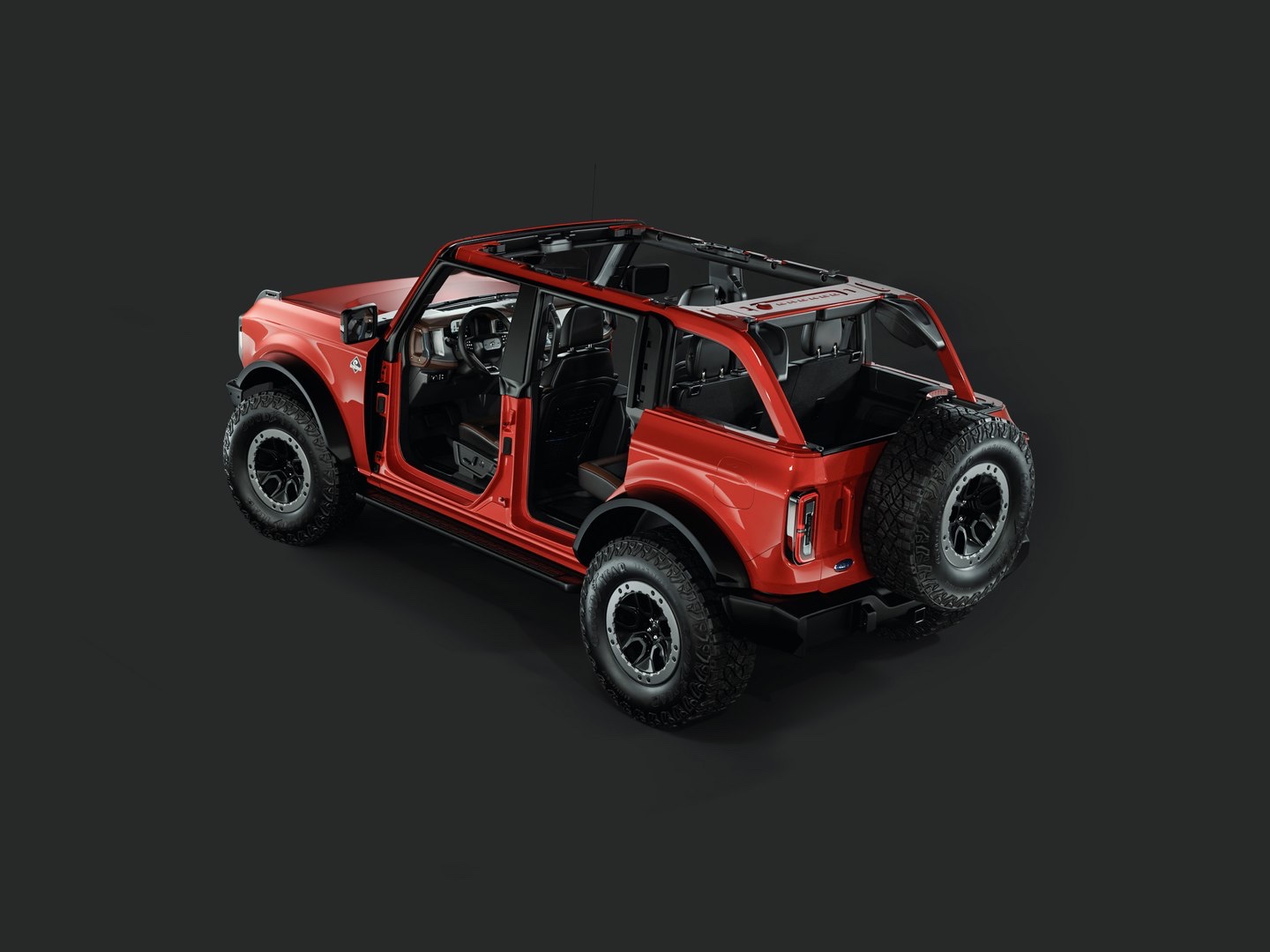

The exterior of the Bronco 3D relies heavily on functional, boxy proportions that recall early generations. Key styling elements include round headlights set within a rectangular grille, short overhangs, and flat body panels. A major functional design feature is the modular body system: the roof panels, rear sections, and doors can all be completely removed for open-air driving, paying homage to the classic Bronco Roadster. The stance can be further enhanced with factory 35-inch mud-terrain tires, which significantly improve ground clearance up to 295 mm and water fording capabilities.
Interior
Inside, the Bronco 3D is strictly a four-seater with a cabin designed for durability and outdoor use. Depending on the specification, the interior can feature marine-grade vinyl upholstery that resists mildew, paired with rubberized flooring and active drain plugs, allowing the cabin to be washed out with water. The dashboard incorporates a mounting rail with 12-volt power outlets for securing devices like phones and action cameras. Essential off-road switches are rubberized and positioned on the center console. Technology is handled by the Ford SYNC 4 system, operating through either an 8-inch or 12-inch touchscreen.
Performance
Power comes from a choice of two turbocharged gasoline engines. The standard unit is a 2.3-liter four-cylinder EcoBoost producing 274 horsepower and 420 Nm of torque. This engine can be paired with either a 10-speed automatic or a 7-speed Getrag manual transmission, which includes a dedicated low-speed crawler gear. For more power, a 2.7-liter EcoBoost V6 is available, delivering 314 horsepower and 542 Nm of torque, matched exclusively to the 10-speed automatic. The chassis utilizes a double-wishbone front setup with a Dana differential, while the rear uses a solid Dana 44 axle with a five-link design.
Practicality
While highly capable off-road, the three-door Bronco makes compromises in everyday practicality compared to its larger five-door sibling. Seating is limited to four passengers, and the shorter wheelbase naturally reduces rear legroom. The trunk provides a capacity of 668 liters. However, its compact dimensions, measuring 4412 mm in length, make it easy to maneuver in both tight city environments and narrow forest trails. The washable interior materials add a layer of everyday convenience for owners who frequently deal with mud, sand, or snow.
Safety and tech
The Bronco is equipped with a suite of modern driving aids and safety technologies. Off-road specific tech includes the Trail Toolbox, featuring low-speed trail cruise control, a 1-pedal driving mode, and a system that brakes the inside rear wheel to tighten the turning radius. Standard and available on-road safety features include adaptive cruise control, lane-keeping assist, and blind-spot monitoring. Drivers can also utilize a 360-degree camera system, which is particularly useful for spotting obstacles on tight trails. Convenience options include a wireless smartphone charging pad and a 10-speaker Bang & Olufsen audio system.
Buyer notes
When shopping for a 2020 Bronco 3D, buyers should pay close attention to the drivetrain and suspension packages. The choice between the 2.3L four-cylinder and the 2.7L V6 largely depends on whether you prefer the engagement of a manual transmission, which is only available on the smaller engine. For serious off-roading, looking for models equipped with the Sasquatch package or front and rear locking differentials is highly recommended. Note that trim availability, specific off-road hardware, and interior features like the washable floors may vary depending on the chosen configuration.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.3 EcoBoost (274 hp) 7-speed manual 4x4 | 2261 cc | 274 hp | 4 | 7-speed manual |
| 2.3 EcoBoost (274 hp) 10-speed automatic 4x4 | 2261 cc | 274 hp | 4 | 10-speed automatic |
| 2.7 EcoBoost V6 (314 hp) 10-speed automatic 4x4 | - | 314 hp | 4 | 10-speed automatic |
| 2.3 AT10 Base | 2261 cc | 274 hp | 4 | 10-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

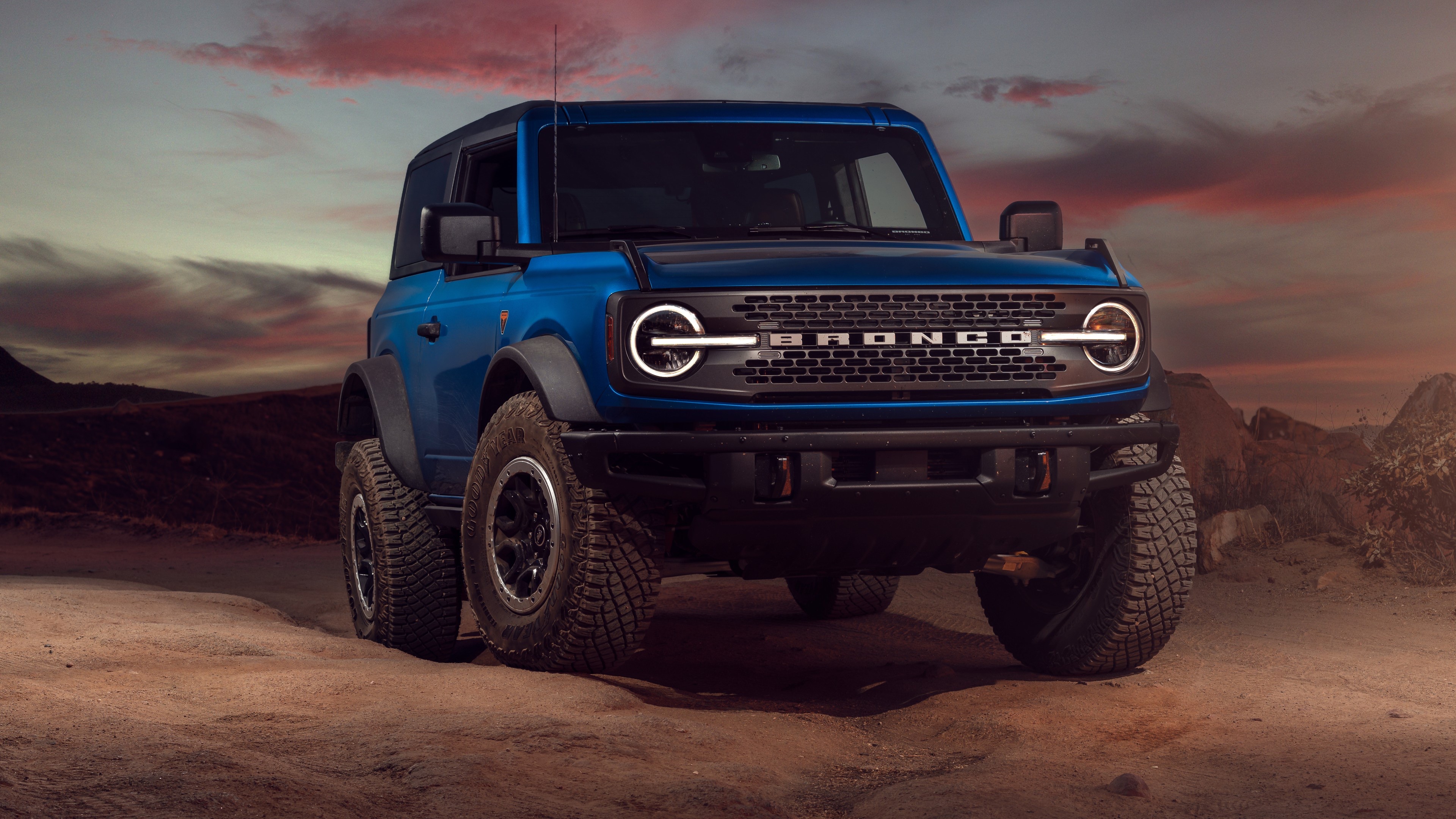

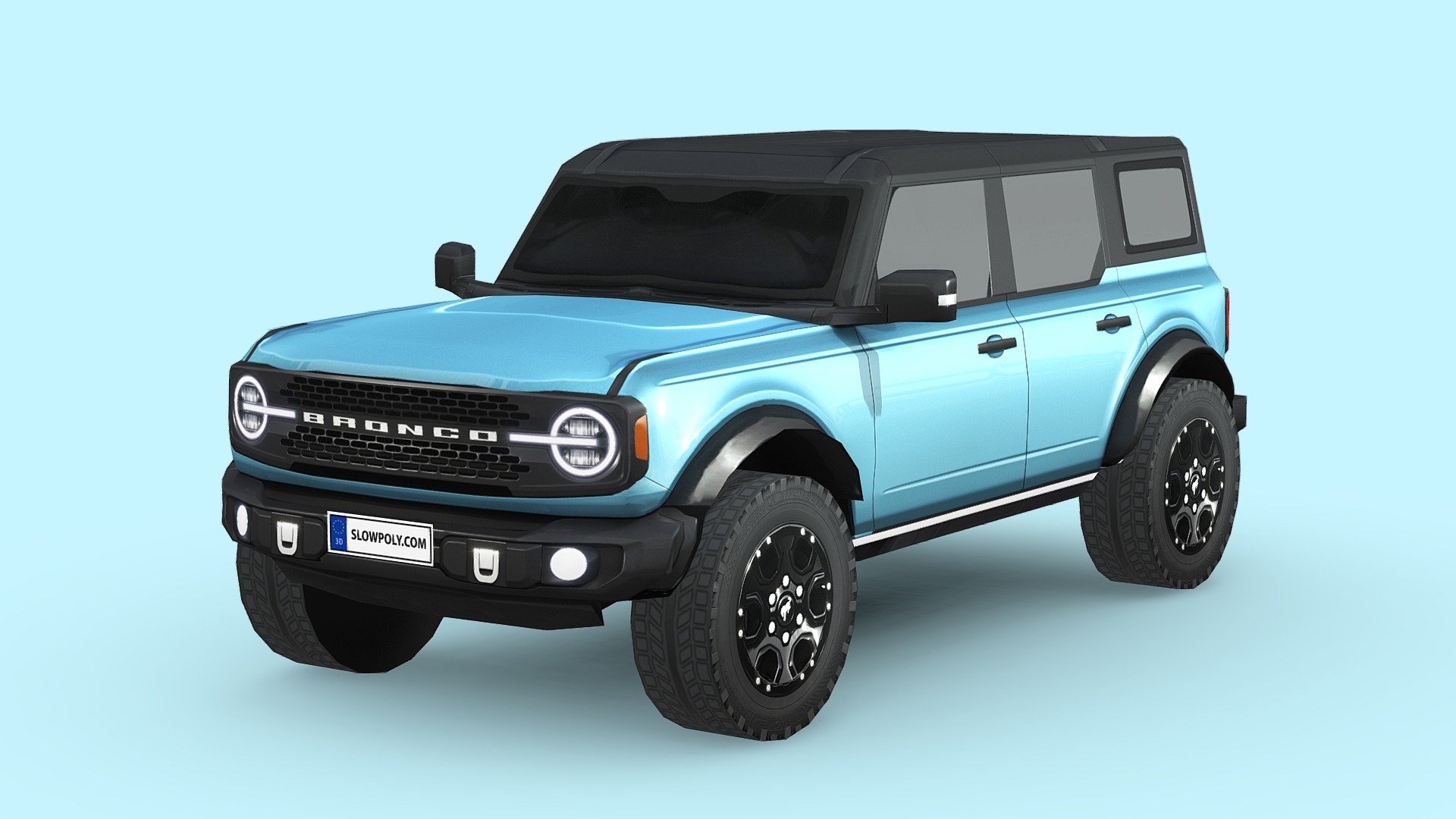

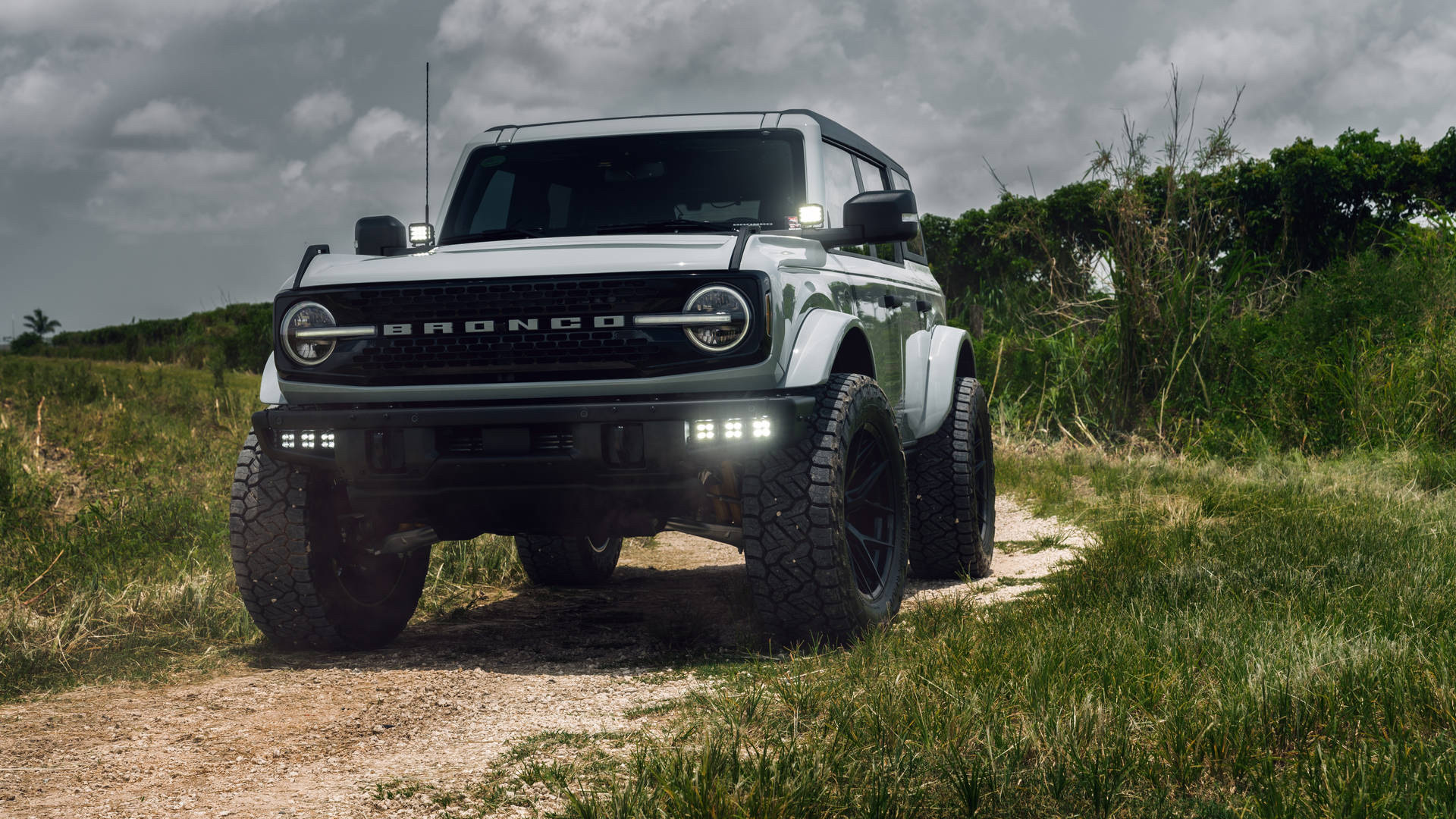

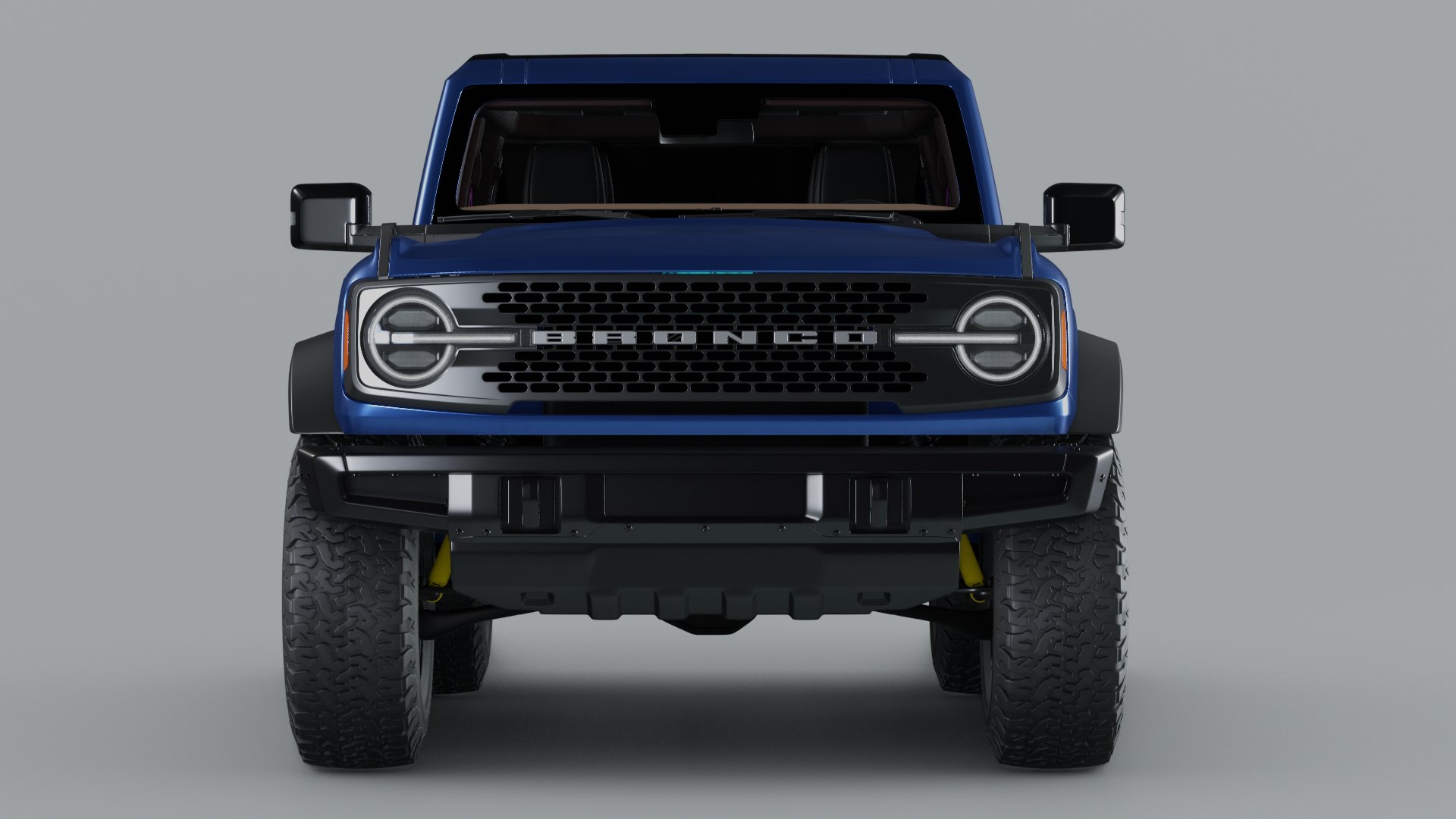

Ford Bronco 3D photo gallery
10 images are collected here with the main specifications and trim data for this model.

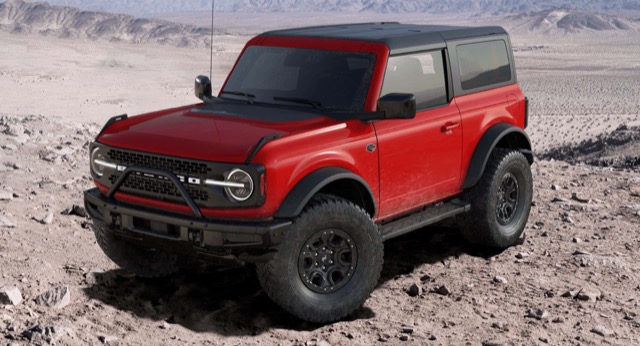

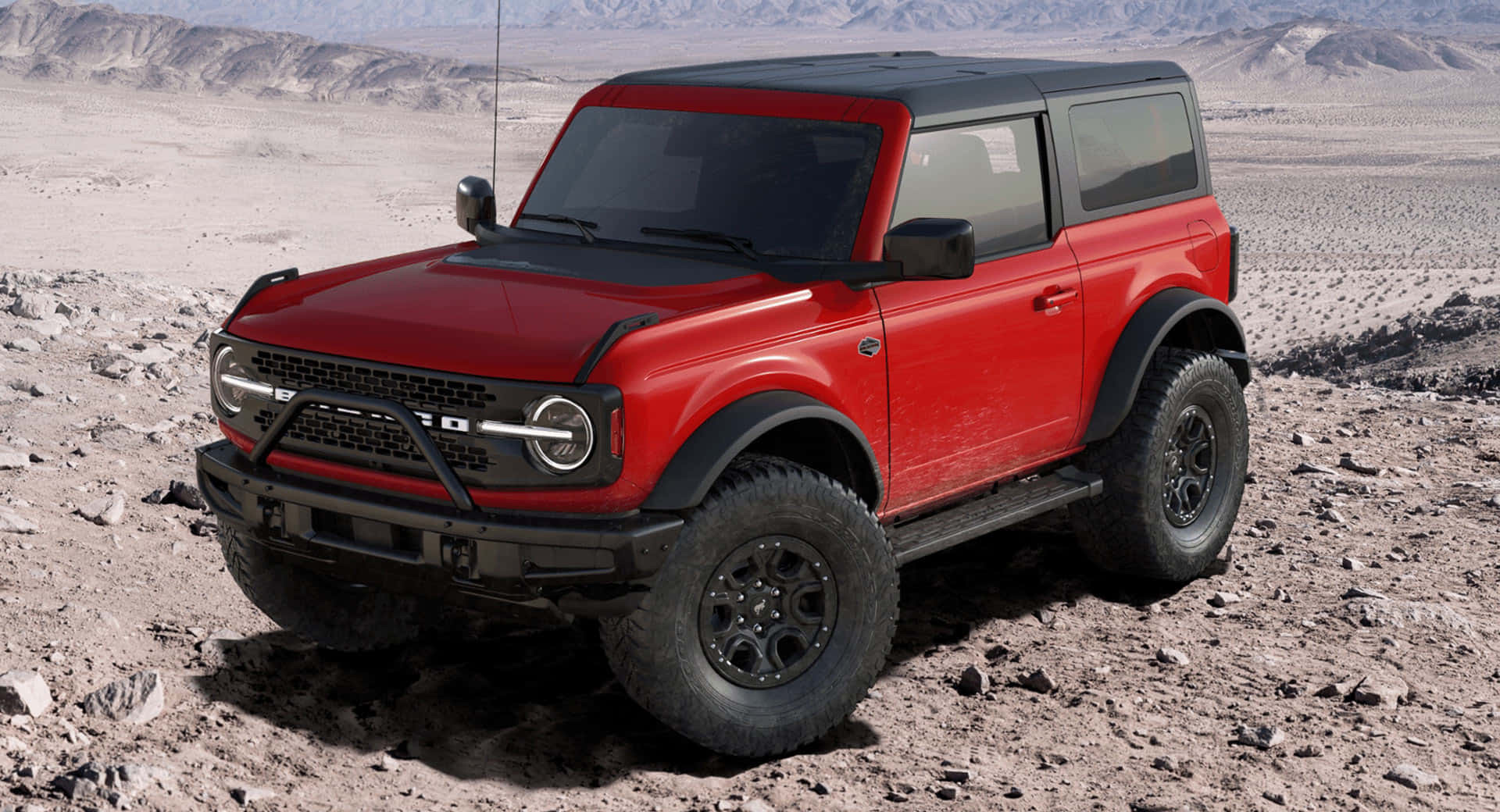

Photo Ford Bronco 3D
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.3 EcoBoost (274 hp) 7-speed manual 4x4 29 specifications
Specifications
Engine
| Engine | 2.3 EcoBoost |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2261 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 274 |
| RPM at max power | 5500 |
| Torque, Nm | 420 |
| RPM at max torque | 2750 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4412 |
| Width, mm | 2189 |
| Height, mm | 1826 |
| Wheelbase, mm | 2550 |
| Front track, mm | 1651 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1877 |
| Fuel tank capacity, L | 64 |
| Ground clearance, mm | 213 |
| Width without mirrors, mm | 1928 |
| Trunk capacity, L | 668 |
Transmission and drive
| Transmission | 7-speed manual |
|---|---|
| Transmission type | manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Getrag |
2.3 EcoBoost (274 hp) 10-speed automatic 4x4 31 specifications
Specifications
Engine
| Engine | 2.3 EcoBoost |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2261 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 274 |
| RPM at max power | 5500 |
| Torque, Nm | 420 |
| RPM at max torque | 2750 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4412 |
| Width, mm | 2189 |
| Height, mm | 1826 |
| Wheelbase, mm | 2550 |
| Front track, mm | 1651 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1877 |
| Fuel tank capacity, L | 64 |
| Ground clearance, mm | 213 |
| Width without mirrors, mm | 1928 |
| Trunk capacity, L | 668 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
2.7 EcoBoost V6 (314 hp) 10-speed automatic 4x4 28 specifications
Specifications
Engine
| Engine | 2.7 EcoBoost V6 |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10:1 |
| Power, hp | 314 |
| Torque, Nm | 542 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4412 |
| Width, mm | 2189 |
| Height, mm | 1826 |
| Wheelbase, mm | 2550 |
| Front track, mm | 1651 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1877 |
| Fuel tank capacity, L | 64 |
| Ground clearance, mm | 213 |
| Width without mirrors, mm | 1928 |
| Trunk capacity, L | 668 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
2.3 AT10 Base 84 specifications
Specifications
Engine
| Engine | 2.3 EcoBoost |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2261 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 274 |
| RPM at max power | 5500 |
| Torque, Nm | 420 |
| RPM at max torque | 2750 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4412 |
| Width, mm | 2189 |
| Height, mm | 1826 |
| Wheelbase, mm | 2550 |
| Front track, mm | 1651 |
| Rear track, mm | 1651 |
| Kerb weight, kg | 1877 |
| Fuel tank capacity, L | 64 |
| Ground clearance, mm | 213 |
| Width without mirrors, mm | 1928 |
| Trunk capacity, L | 668 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
Brake system
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Disc |
Steering
| Power steering | Electro-hydraulic power steering |
|---|
Equipment
Comfort
| Cruise control | + |
|---|---|
| Paddle shifters | + |
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Multifunction steering wheel | + |
| Remote engine start | + |
| Adjustable steering column | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
Wheels
| Rim diameter | 17 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Full-size spare wheel |
| Tires | 245/75R17 |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Dual-zone climate control | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
Seats
| Child seat anchors (LATCH/Isofix) | + |
|---|
Headlights and lighting
| Xenon headlights | + |
|---|---|
| Front fog lights | + |
| Light sensor | + |
| Headlight leveling | + |
| LED headlights | + |
| LED daytime running lights | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| Subwoofer | + |
| Navigation system | + |
| Audio system | SONY Premium; |
| Radio | + |
| AUX input | + |
| USB | + |
| Number of speakers | 8 |
| Apple CarPlay / Android Auto | + |
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Power-adjustable side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Electronic differential lock simulation | + |
Anti-theft systems
| Immobilizer | + |
|---|---|
| Alarm system | + |
| Central locking | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
Ford Bronco 3D questions
Short answers based on the specifications and photos available in this catalog.
What engines are available in the 2020 Ford Bronco 3D?
It offers two turbocharged gasoline engines: a 2.3-liter four-cylinder EcoBoost with 274 hp, and a larger 2.7-liter EcoBoost V6 producing 314 hp.
Can you get a manual transmission on the Bronco 3D?
Yes, a 7-speed manual transmission with a dedicated crawler gear is available, but it can only be paired with the 2.3-liter engine. The V6 comes exclusively with a 10-speed automatic.
Are the doors and roof removable?
Yes, the Bronco 3D features a modular design where the roof sections and doors can be removed for an open-air driving experience.
How capable is it off-road?
Highly capable. With available factory upgrades like 35-inch tires, it offers up to 295 mm of ground clearance, an 850 mm wading depth, and an approach angle of 43.2 degrees.
How many seats does the three-door Bronco have?
The three-door Ford Bronco has a four-seat interior layout.
