Ford Fusion specifications and photos

Ford Fusion specifications are shown with trim options, key technical data, and a model photo gallery. Compare 7 configurations by engine size, power, seating, and transmission. The gallery includes 16 photos for visual reference.

Years 2018
Body type sedan
Trims 7
Photos 16

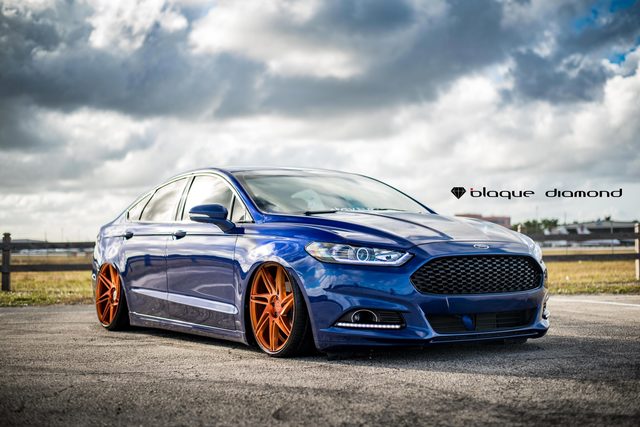

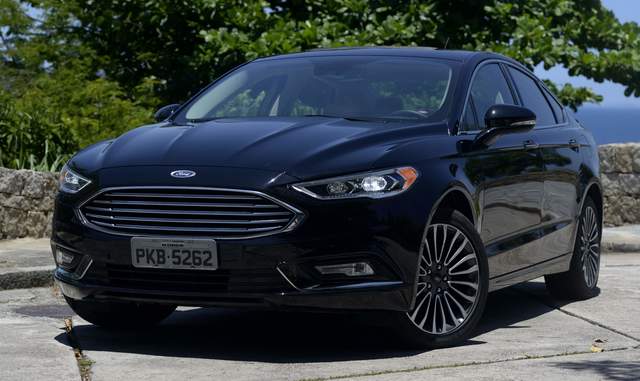

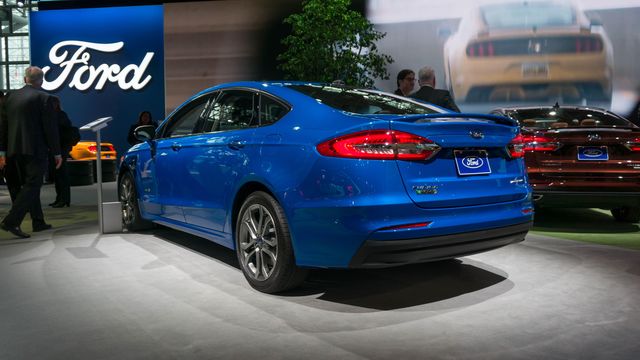

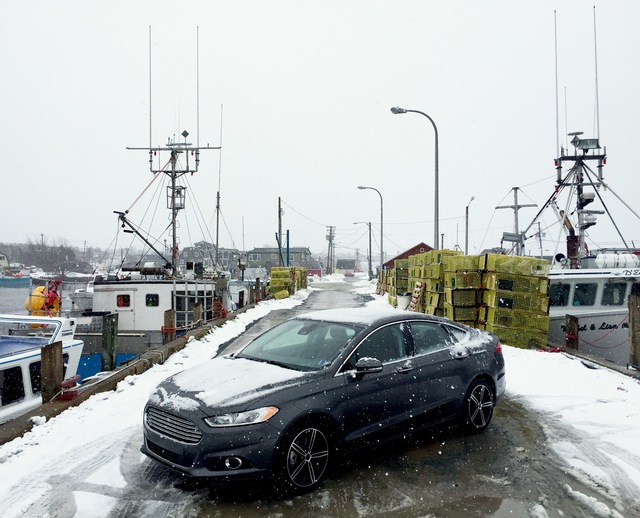

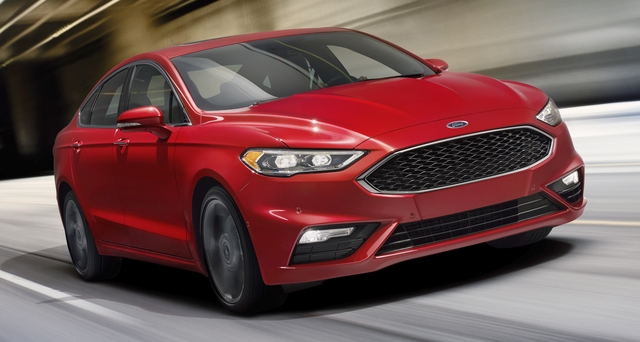

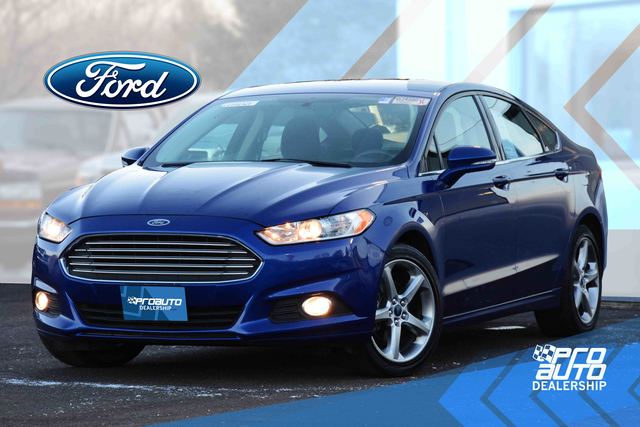

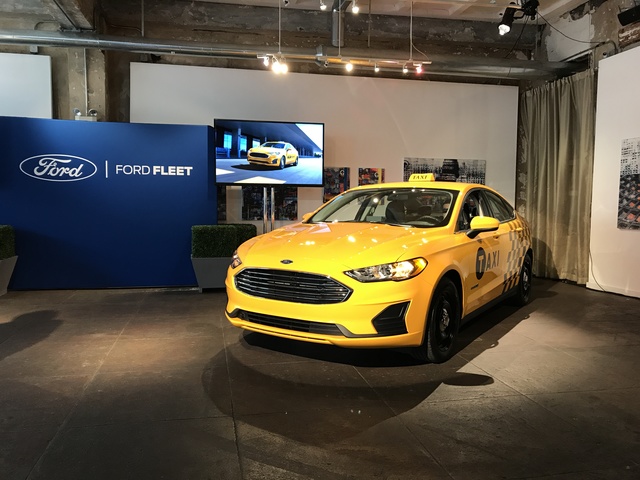

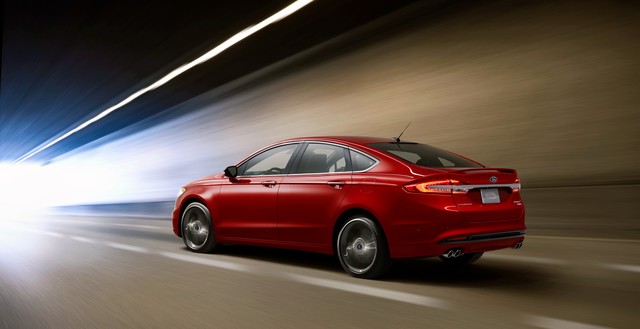

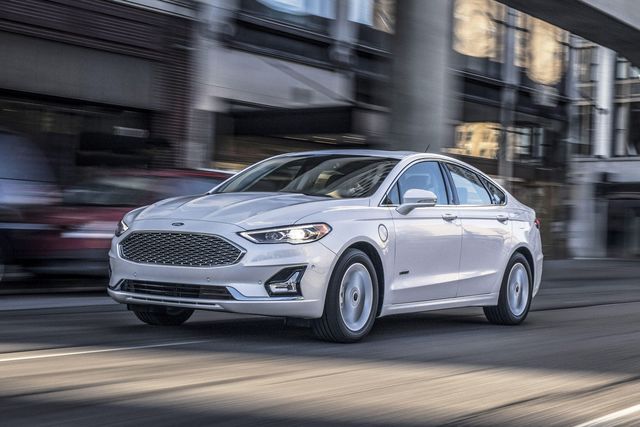

Ford Fusion 2018 photo
Overview

Ford Fusion at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Ford Fusion page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 175-325 hp and 1498-2688 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 175-325 hp
  • Engine displacement: 1498-2688 cc
  • Transmissions: 6
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Ford Fusion

This model page brings gallery images, trim comparison, and detailed technical data together for the 2018 generation.

Open photo gallery 16 images Compare trims 7 configurations View detailed specs 1498-2688 cc Explore related pages Ford and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 175-325 hp
Engine displacement 1498-2688 cc
Seating 5 seats
Transmissions 6
Trim / modification Engine Power Seats Transmission
2.5 Duratec (175 HP) 6-car SelectShift 2488 cc 175 hp 5 6
1.5 EcoBoost (181 hp) 6-car SelectShift 1498 cc 181 hp 5 6
2.0i EcoBoost (245 hp) 6-car SelectShift 1998 cc 245 hp 5 6
2.0i EcoBoost (245 hp) 6-car SelectShift 4x4 1998 cc 245 hp 5 6
2.7 EcoBoost (325 HP) 6-car SelectShift 4x4 2688 cc 325 hp 5 6
2.0 PHEV (188 HP) eCVT 1998 cc 188 hp 5 -
2.0 HEV (188 l.c.) eCVT 1998 cc 188 hp 5 -

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.5 Duratec (175 HP) 6-car SelectShift 1.5 EcoBoost (181 hp) 6-car SelectShift 2.0i EcoBoost (245 hp) 6-car SelectShift 2.0i EcoBoost (245 hp) 6-car SelectShift 4x4 2.7 EcoBoost (325 HP) 6-car SelectShift 4x4 2.0 PHEV (188 HP) eCVT 2.0 HEV (188 l.c.) eCVT
2.5 Duratec (175 HP) 6-car SelectShift 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2488
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 175
Torque, Nm 237
RPM at max torque 4500
Engine 2.5 Duratec
Compression 9.7
RPM at max power 6000

Dimensions

Seats 5
Length mm 4872
Width 2121
Height mm 1473
Wheelbase mm 2850
Front track, mm 1582
Rear track, mm 1575
Kerb weight, kg 1575
Trunk capacity, L 453
Fuel tank, l 53
Width (without mirrors) mm 1910

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.2
Fuel consumption (urban), l. 100 km 7.6
Fuel consumption (combined), l. 100 km 9.4

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Ford
1.5 EcoBoost (181 hp) 6-car SelectShift 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1498
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 181
Torque, Nm 250
RPM at max torque 4320
Engine 1.5 EcoBoost
Compression 10
RPM at max power 6000
Turbo +

Dimensions

Seats 5
Length mm 4872
Width 2121
Height mm 1473
Wheelbase mm 2850
Front track, mm 1582
Rear track, mm 1575
Kerb weight, kg 1575
Trunk capacity, L 453
Fuel tank, l 53
Width (without mirrors) mm 1910

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.2
Fuel consumption (urban), l. 100 km 6.9
Fuel consumption (combined), l. 100 km 8.7

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Ford
2.0i EcoBoost (245 hp) 6-car SelectShift 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 245
Torque, Nm 373
RPM at max torque 3000
Engine 2.0i EcoBoost
Compression 9.3
RPM at max power 5500
Turbo +

Dimensions

Seats 5
Length mm 4872
Width 2121
Height mm 1473
Wheelbase mm 2850
Front track, mm 1582
Rear track, mm 1575
Kerb weight, kg 1575
Trunk capacity, L 453
Fuel tank, l 53
Width (without mirrors) mm 1910

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.2
Fuel consumption (urban), l. 100 km 7.6
Fuel consumption (combined), l. 100 km 9.4

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Ford
2.0i EcoBoost (245 hp) 6-car SelectShift 4x4 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 245
Torque, Nm 373
RPM at max torque 3000
Engine 2.0i EcoBoost
Compression 9.3
RPM at max power 5500
Turbo +

Dimensions

Seats 5
Length mm 4872
Width 2121
Height mm 1473
Wheelbase mm 2850
Front track, mm 1582
Rear track, mm 1575
Kerb weight, kg 1575
Trunk capacity, L 453
Fuel tank, l 53
Width (without mirrors) mm 1910

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.8
Fuel consumption (urban), l. 100 km 8.1
Fuel consumption (combined), l. 100 km 10.2

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Ford
2.7 EcoBoost (325 HP) 6-car SelectShift 4x4 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2688
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 325
Torque, Nm 515
RPM at max torque 3000
Engine 2.7 EcoBoost
Compression 10
RPM at max power 5500
Turbo +

Dimensions

Seats 5
Length mm 4872
Width 2121
Height mm 1473
Wheelbase mm 2850
Front track, mm 1582
Rear track, mm 1575
Kerb weight, kg 1575
Trunk capacity, L 453
Fuel tank, l 53
Width (without mirrors) mm 1910

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13.8
Fuel consumption (urban), l. 100 km 9
Fuel consumption (combined), l. 100 km 11.8

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Ford
2.0 PHEV (188 HP) eCVT 34 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 188
Torque, Nm 175
Engine 2.0 PHEV
Compression 12.3
Number of motors 1
Engine power, hp 141
the engine torque, Nm 176
EV-mode +
The possibility of charging from the network +

Dimensions

Seats 5
Length mm 4872
Width 2121
Height mm 1473
Wheelbase mm 2850
Front track, mm 1582
Rear track, mm 1575
Kerb weight, kg 1575
Trunk capacity, L 453
Fuel tank, l 53
Width (without mirrors) mm 1910

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.5
Fuel consumption (urban), l. 100 km 5.7
Fuel consumption (combined), l. 100 km 5.6

Transmission and drive

Automatic transmission +
Drive Front
Transmission eCVT
Gearbox Variable speed drive
Transmission manufacturer Ford
2.0 HEV (188 l.c.) eCVT 33 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 188
Torque, Nm 175
Engine 2.0 HEV
Compression 12.3
Number of motors 1
Engine power, hp 141
the engine torque, Nm 176
EV-mode +

Dimensions

Seats 5
Length mm 4872
Width 2121
Height mm 1473
Wheelbase mm 2850
Front track, mm 1582
Rear track, mm 1575
Kerb weight, kg 1575
Trunk capacity, L 453
Fuel tank, l 53
Width (without mirrors) mm 1910

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.4
Fuel consumption (urban), l. 100 km 5.7
Fuel consumption (combined), l. 100 km 5.6

Transmission and drive

Automatic transmission +
Drive Front
Transmission eCVT
Gearbox Variable speed drive
Transmission manufacturer Ford
FAQ

Ford Fusion questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Ford Fusion?

This page lists 7 trims for the Ford Fusion, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Ford Fusion?

The listed configurations show a power range of 175-325 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Ford Fusion?

The available specification data shows engine displacement from 1498-2688 cc across the trims listed on this page.

Which transmissions are listed for the Ford Fusion?

The transmission options currently shown for this model are: 6. Open a trim section to see the full data for a specific configuration.

Are there photos for the Ford Fusion?

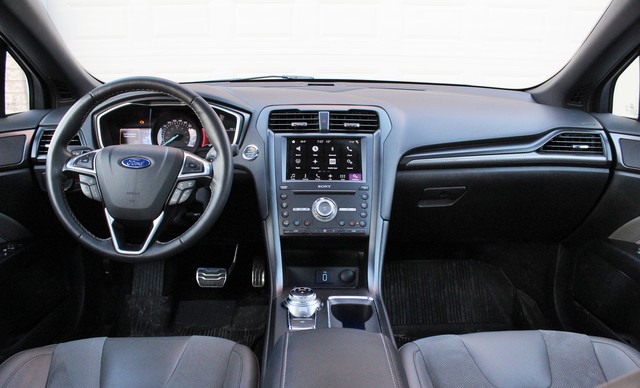

Yes. The gallery includes 16 photos for the Ford Fusion, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
