Ford Transit Courier specifications and photos
Ford Transit Courier specifications are shown with trim options, key technical data, and a model photo gallery. Compare 3 configurations by engine size, power, seating, and transmission. The gallery includes 14 photos for visual reference.
Ford Transit Courier at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Ford Transit Courier page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 75-100 hp and 998-1500 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 75-100 hp
- Engine displacement: 998-1500 cc
- Transmissions: 6, 6-speed manual
- Seating: 2 seats
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.0 EcoBoost (100 HP) 6-Mech | 998 cc | 100 hp | 2 | 6 |
| 1.5 Duratorq TDCi (75 HP) 6-speed manual | 1499 cc | 75 hp | 2 | 6-speed manual |
| 1.5 Duratorq TDCi (100 HP) 6-speed manual | 1500 cc | 100 hp | 2 | 6-speed manual |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

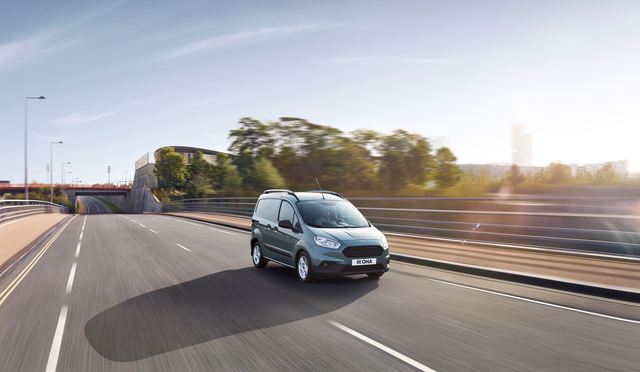

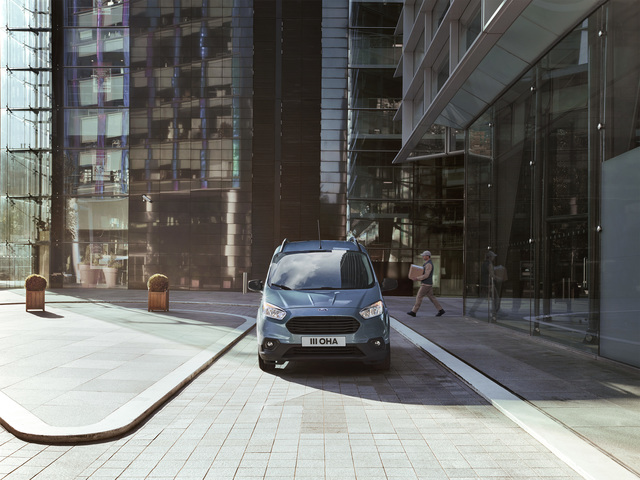

Ford Transit Courier photo gallery
14 images are collected here with the main specifications and trim data for this model.

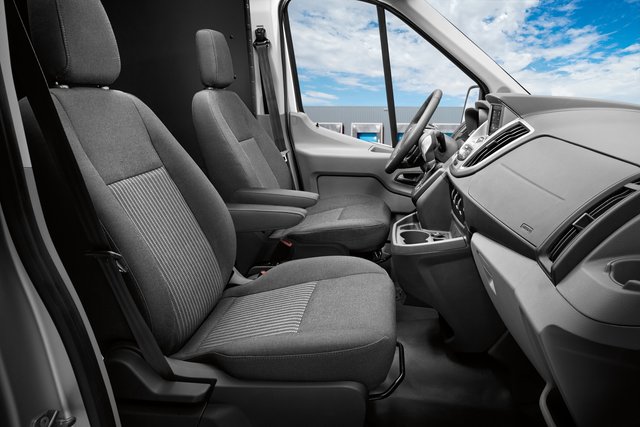

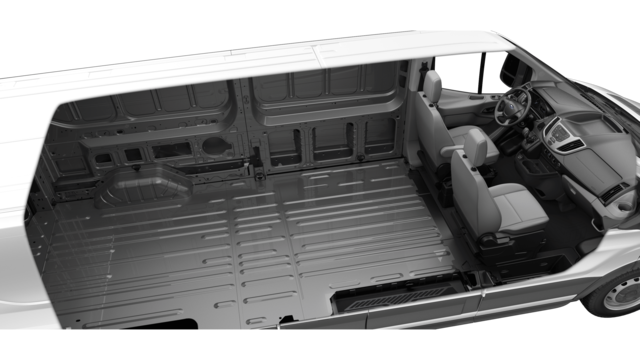

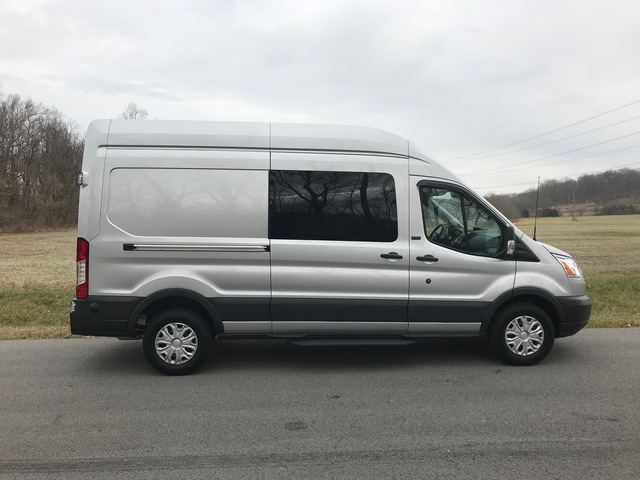

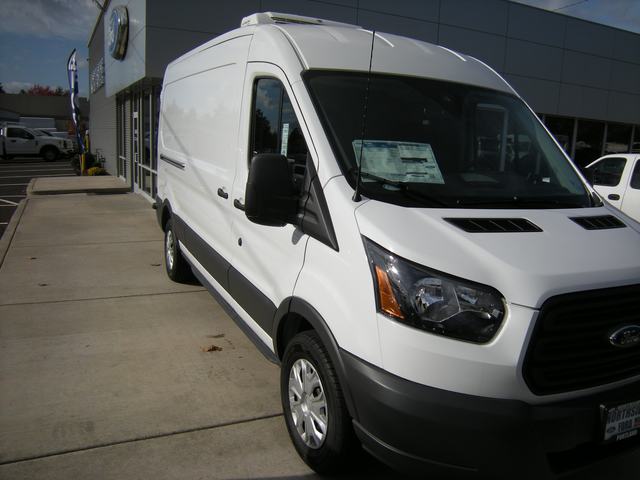

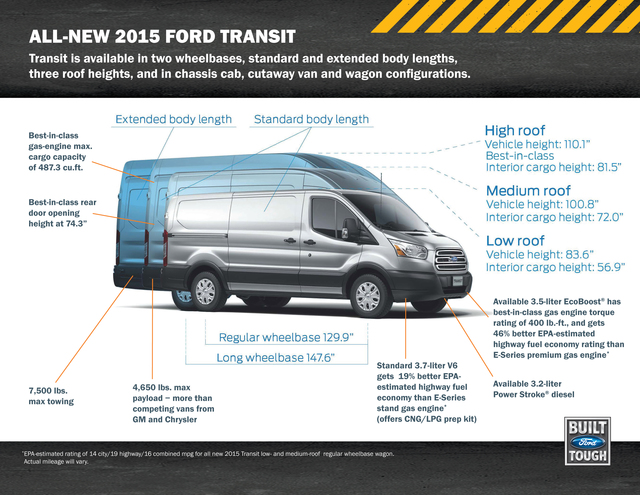

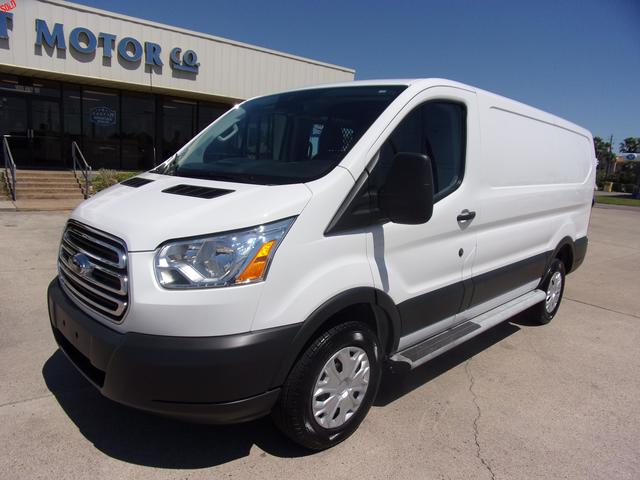

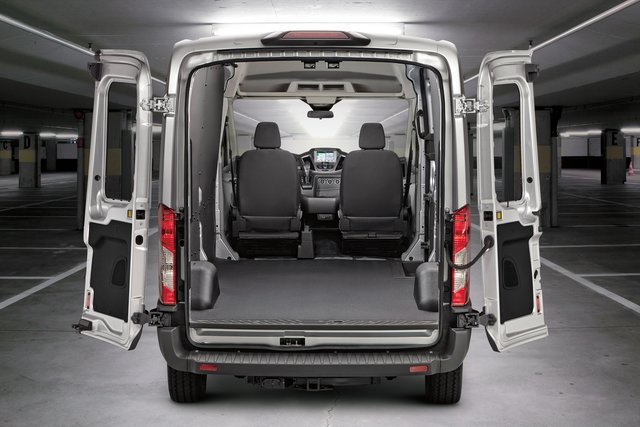

Photo Ford Transit Courier
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.0 EcoBoost (100 HP) 6-Mech 33 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 998 |
| Cylinders location | In-line |
| Number of cylinders | 3 |
| Valves | 12 |
| Power, hp | 100 |
| Torque, Nm | 170 |
| RPM at max torque | 1400 |
| Engine | 1.0 EcoBoost |
| Compression | 10 |
| RPM at max power | 6000 |
| Turbo | + |
Dimensions
| Seats | 2 |
|---|---|
| Length mm | 4157 |
| Width | 2112 |
| Height mm | 1770 |
| Wheelbase mm | 2489 |
| Front track, mm | 1494 |
| Rear track, mm | 1482 |
| Fuel tank, l | 47 |
| Turning circle, m | 10 |
| Width (without mirrors) mm | 1764 |
| The volume of the cargo compartment, m3 | 2 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 7.2 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5 |
| Fuel consumption (combined), l. 100 km | 5.8 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Front |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
| Transmission manufacturer | Ford |
1.5 Duratorq TDCi (75 HP) 6-speed manual 31 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1499 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 75 |
| Torque, Nm | 190 |
| Engine | 1.5 Duratorq TDCi |
| RPM at max power | 4000 |
| Turbo | + |
Dimensions
| Seats | 2 |
|---|---|
| Length mm | 4157 |
| Width | 2112 |
| Height mm | 1770 |
| Wheelbase mm | 2489 |
| Front track, mm | 1494 |
| Rear track, mm | 1482 |
| Fuel tank, l | 47 |
| Turning circle, m | 10 |
| Width (without mirrors) mm | 1764 |
| The volume of the cargo compartment, m3 | 2 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 5.1 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.1 |
| Fuel consumption (combined), l. 100 km | 4.5 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Front |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
| Transmission manufacturer | Ford |
1.5 Duratorq TDCi (100 HP) 6-speed manual 32 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1500 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 100 |
| Torque, Nm | 215 |
| RPM at max torque | 1750-3000 |
| Engine | 1.5 Duratorq TDCi |
| RPM at max power | 3750 |
| Turbo | + |
Dimensions
| Seats | 2 |
|---|---|
| Length mm | 4157 |
| Width | 2112 |
| Height mm | 1770 |
| Wheelbase mm | 2489 |
| Front track, mm | 1494 |
| Rear track, mm | 1482 |
| Fuel tank, l | 47 |
| Turning circle, m | 10 |
| Width (without mirrors) mm | 1764 |
| The volume of the cargo compartment, m3 | 2 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 5.1 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.1 |
| Fuel consumption (combined), l. 100 km | 4.5 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Front |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
| Transmission manufacturer | Ford |
Ford Transit Courier questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Ford Transit Courier?
This page lists 3 trims for the Ford Transit Courier, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Ford Transit Courier?
The listed configurations show a power range of 75-100 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Ford Transit Courier?
The available specification data shows engine displacement from 998-1500 cc across the trims listed on this page.
Which transmissions are listed for the Ford Transit Courier?
The transmission options currently shown for this model are: 6, 6-speed manual. Open a trim section to see the full data for a specific configuration.
Are there photos for the Ford Transit Courier?
Yes. The gallery includes 14 photos for the Ford Transit Courier, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
