Hyundai Sonata specifications and photos

Hyundai Sonata specifications are shown with trim options, key technical data, and a model photo gallery. Compare 10 configurations by engine size, power, seating, and transmission. The gallery includes 21 photos for visual reference.

Years 2017
Body type sedan
Trims 10
Photos 21

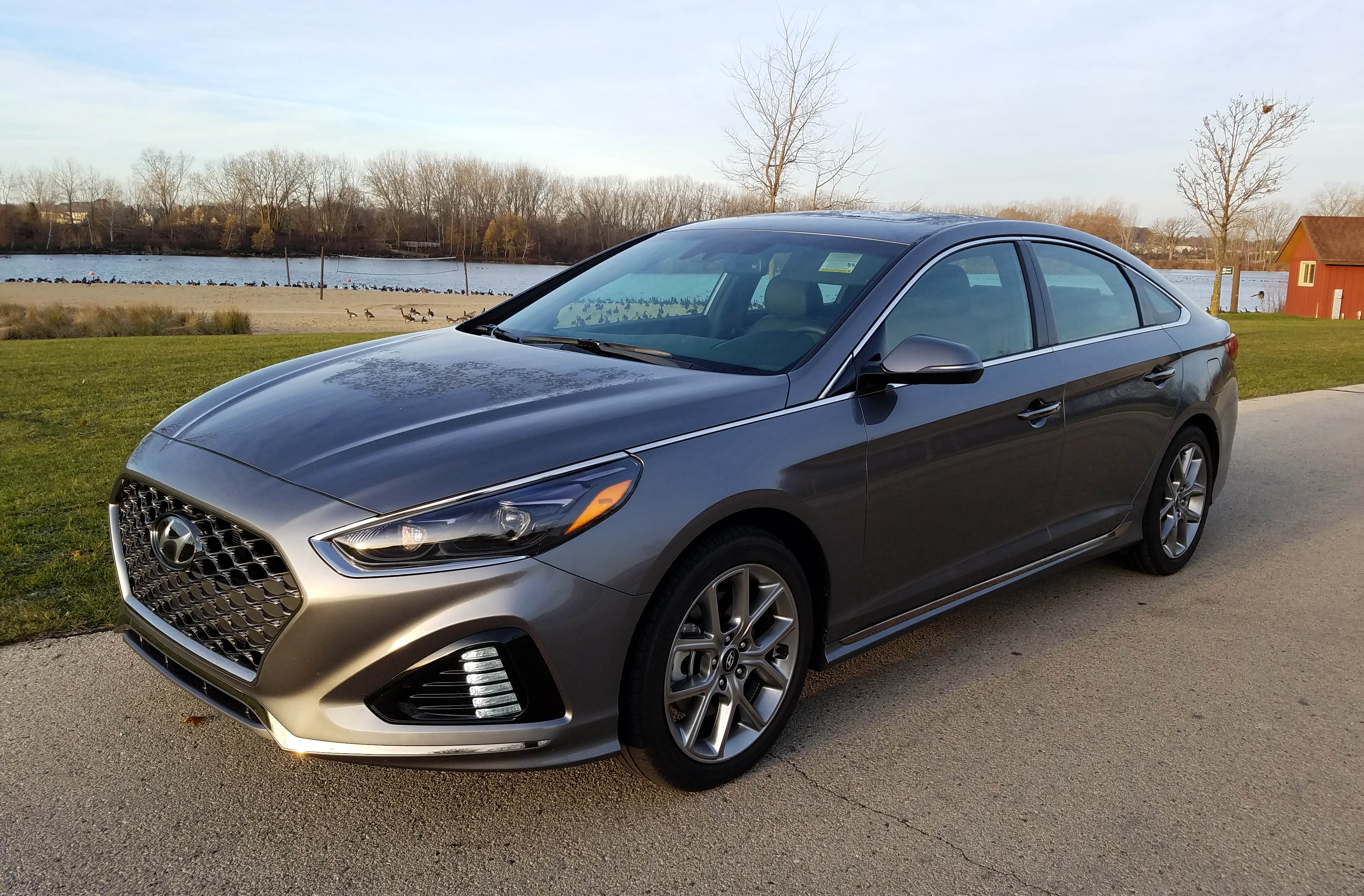

Hyundai Sonata 2017 photo
Overview

Hyundai Sonata at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Hyundai Sonata page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 141-245 hp and 1591-1999 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 141-245 hp
  • Engine displacement: 1591-1999 cc
  • Transmissions: 6, 7, 8
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Hyundai Sonata

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 21 images Compare trims 10 configurations View detailed specs 1591-1999 cc Explore related pages Hyundai and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 141-245 hp
Engine displacement 1591-1999 cc
Seating 5 seats
Transmissions 6, 7, 8
Trim / modification Engine Power Seats Transmission
2.0 AT (163) 1998 cc 165 hp 5 6
1.6 AT (180) 1591 cc 180 hp 5 7
2.0 AT (245) 1998 cc 245 hp 5 8
1.7d AT (141) 1685 cc 141 hp 5 7
2.0 AT (151) 1685 cc 141 hp 5 7
2.0 MPi (152 hp) 6-speed automatic 1999 cc 152 hp 5 6-speed automatic
2.0 MPi (165 hp) 6-speed automatic 1998 cc 165 hp 5 6-speed automatic
1.6 T-GDi (180 hp) 7-DCT 1591 cc 180 hp 5 7
2.0 T-GDi (245 HP) 8-speed automatic 1998 cc 245 hp 5 8-speed automatic
1.7 CRDI (141 hp) 7-DCT 1685 cc 141 hp 5 7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.0 AT (163) 1.6 AT (180) 2.0 AT (245) 1.7d AT (141) 2.0 AT (151) 2.0 MPi (152 hp) 6-speed automatic 2.0 MPi (165 hp) 6-speed automatic 1.6 T-GDi (180 hp) 7-DCT 2.0 T-GDi (245 HP) 8-speed automatic 1.7 CRDI (141 hp) 7-DCT
2.0 AT (163) 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 165
Torque, Nm 198
RPM at max torque 4250
Engine 2.0 MPi
Compression 10.5
RPM at max power 6200
Engine code G4KD

Dimensions

Seats 5
Length mm 4855
Width 1865
Height mm 1475
Wheelbase mm 2805
Front track, mm 1597
Rear track, mm 1604
Kerb weight, kg 1460
Trunk capacity, L 510
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.5
Fuel consumption (urban), l. 100 km 6.8
Fuel consumption (combined), l. 100 km 8.3

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai
1.6 AT (180) 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1591
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 180
Torque, Nm 265
RPM at max torque 1500-4500
Engine 1.6 T-GDi
RPM at max power 5500
Turbo +
Engine code G4FJ

Dimensions

Seats 5
Length mm 4855
Width 1865
Height mm 1475
Wheelbase mm 2805
Front track, mm 1597
Rear track, mm 1604
Kerb weight, kg 1475
Trunk capacity, L 510
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.9
Fuel consumption (urban), l. 100 km 6.7
Fuel consumption (combined), l. 100 km 7.8

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
2.0 AT (245) 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 245
Torque, Nm 353
RPM at max torque 1350-4000
Engine 2.0 T-GDi
RPM at max power 6000
Turbo +

Dimensions

Seats 5
Length mm 4855
Width 1865
Height mm 1475
Wheelbase mm 2805
Front track, mm 1597
Rear track, mm 1604
Kerb weight, kg 1565
Trunk capacity, L 510
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.9
Fuel consumption (urban), l. 100 km 7.6
Fuel consumption (combined), l. 100 km 9.3

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai
1.7d AT (141) 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1685
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 141
Torque, Nm 340
RPM at max torque 1750-2500
Engine 1.7 CRDI
Compression 15.7
RPM at max power 4000
Turbo +
Engine code D4FD

Dimensions

Seats 5
Length mm 4855
Width 1865
Height mm 1475
Wheelbase mm 2805
Front track, mm 1597
Rear track, mm 1604
Kerb weight, kg 1525
Trunk capacity, L 510
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.8
Fuel consumption (urban), l. 100 km 5.7
Fuel consumption (combined), l. 100 km 6.3

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
2.0 AT (151) 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1685
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 141
Torque, Nm 340
RPM at max torque 1750-2500
Engine 1.7 CRDI
Compression 15.7
RPM at max power 4000
Turbo +
Engine code D4FD

Dimensions

Seats 5
Length mm 4855
Width 1865
Height mm 1475
Wheelbase mm 2805
Front track, mm 1597
Rear track, mm 1604
Kerb weight, kg 1465
Trunk capacity, L 510
Fuel tank, l 72

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.8
Fuel consumption (urban), l. 100 km 5.7
Fuel consumption (combined), l. 100 km 6.3

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
2.0 MPi (152 hp) 6-speed automatic 30 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1999
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 152
Torque, Nm 192
RPM at max torque 4500
Engine 2.0 MPi
Compression 10.3
RPM at max power 6200

Dimensions

Seats 5
Length mm 4855
Width 1865
Height mm 1475
Wheelbase mm 2805
Front track, mm 1597
Rear track, mm 1604
Trunk capacity, L 510
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 12
Fuel consumption (urban), l. 100 km 8.8
Fuel consumption (combined), l. 100 km 10.5

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai
2.0 MPi (165 hp) 6-speed automatic 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 165
Torque, Nm 198
RPM at max torque 4250
Engine 2.0 MPi
Compression 10.5
RPM at max power 6200
Engine code G4KD

Dimensions

Seats 5
Length mm 4855
Width 1865
Height mm 1475
Wheelbase mm 2805
Front track, mm 1597
Rear track, mm 1604
Trunk capacity, L 510
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.5
Fuel consumption (urban), l. 100 km 6.8
Fuel consumption (combined), l. 100 km 8.3

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai
1.6 T-GDi (180 hp) 7-DCT 30 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1591
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 180
Torque, Nm 265
RPM at max torque 1500-4500
Engine 1.6 T-GDi
RPM at max power 5500
Turbo +
Engine code G4FJ

Dimensions

Seats 5
Length mm 4855
Width 1865
Height mm 1475
Wheelbase mm 2805
Front track, mm 1597
Rear track, mm 1604
Trunk capacity, L 510
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.9
Fuel consumption (urban), l. 100 km 6.7
Fuel consumption (combined), l. 100 km 7.8

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
2.0 T-GDi (245 HP) 8-speed automatic 30 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 245
Torque, Nm 353
RPM at max torque 1350-4000
Engine 2.0 T-GDi
RPM at max power 6000
Turbo +

Dimensions

Seats 5
Length mm 4855
Width 1865
Height mm 1475
Wheelbase mm 2805
Front track, mm 1597
Rear track, mm 1604
Trunk capacity, L 510
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.9
Fuel consumption (urban), l. 100 km 7.6
Fuel consumption (combined), l. 100 km 9.3

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai
1.7 CRDI (141 hp) 7-DCT 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1685
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 141
Torque, Nm 340
RPM at max torque 1750-2500
Engine 1.7 CRDI
Compression 15.7
RPM at max power 4000
Turbo +
Engine code D4FD

Dimensions

Seats 5
Length mm 4855
Width 1865
Height mm 1475
Wheelbase mm 2805
Front track, mm 1597
Rear track, mm 1604
Trunk capacity, L 510
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.8
Fuel consumption (urban), l. 100 km 5.7
Fuel consumption (combined), l. 100 km 6.3

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
FAQ

Hyundai Sonata questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Hyundai Sonata?

This page lists 10 trims for the Hyundai Sonata, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Hyundai Sonata?

The listed configurations show a power range of 141-245 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Hyundai Sonata?

The available specification data shows engine displacement from 1591-1999 cc across the trims listed on this page.

Which transmissions are listed for the Hyundai Sonata?

The transmission options currently shown for this model are: 6, 7, 8. Open a trim section to see the full data for a specific configuration.

Are there photos for the Hyundai Sonata?

Yes. The gallery includes 21 photos for the Hyundai Sonata, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
