Hyundai Grandeur specifications and photos

Hyundai Grandeur specifications are shown with trim options, key technical data, and a model photo gallery. Compare 8 configurations by engine size, power, seating, and transmission. The gallery includes 23 photos for visual reference.

Years 2017
Body type sedan
Trims 8
Photos 23

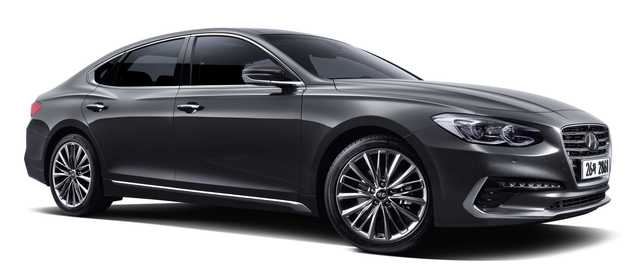

Hyundai Grandeur 2017 photo
Overview

Hyundai Grandeur at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Hyundai Grandeur page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 190-290 hp and 2199-3470 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 190-290 hp
  • Engine displacement: 2199-3470 cc
  • Transmissions: 8, 6, 8-speed automatic
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Hyundai Grandeur

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 23 images Compare trims 8 configurations View detailed specs 2199-3470 cc Explore related pages Hyundai and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 190-290 hp
Engine displacement 2199-3470 cc
Seating 5 seats
Transmissions 8, 6, 8-speed automatic
Trim / modification Engine Power Seats Transmission
3.0 8AT Top 2999 cc 260 hp 5 8
3.0 8AT Top Panorama 2999 cc 260 hp 5 8
2.4 GDi (190 HP) 6-car 2359 cc 190 hp 5 6
3.0 GDi (260 HP) 8-speed automatic 2999 cc 260 hp 5 8-speed automatic
3.0 GDi (270 h.p.) 8-speed automatic 2999 cc 270 hp 5 8-speed automatic
3.3 GDi (290 HP) 8-speed automatic 3342 cc 290 hp 5 8-speed automatic
3.5 MPi (290 hp) 8-speed automatic 3470 cc 290 hp 5 8-speed automatic
2.2 CRDi (202 hp) 8-speed automatic 2199 cc 202 hp 5 8-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

3.0 8AT Top 3.0 8AT Top Panorama 2.4 GDi (190 HP) 6-car 3.0 GDi (260 HP) 8-speed automatic 3.0 GDi (270 h.p.) 8-speed automatic 3.3 GDi (290 HP) 8-speed automatic 3.5 MPi (290 hp) 8-speed automatic 2.2 CRDi (202 hp) 8-speed automatic
3.0 8AT Top 74 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2999
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 260
Torque, Nm 304
RPM at max torque 5300
Engine 3.0 GDi
RPM at max power 6400

Dimensions

Seats 5
Length mm 4930
Width 1865
Height mm 1470
Wheelbase mm 2845
Front track, mm 1602
Rear track, mm 1610
Kerb weight, kg 1630
Fuel tank, l 70

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13
Fuel consumption (urban), l. 100 km 6.8
Fuel consumption (combined), l. 100 km 9.1
Acceleration (0-100 km/h), s 7.9
The maximum speed, km / h. 230
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai

Equipment

Comfort

Tyre pressure monitoring +
Start / Stop button for starting and stopping the engine +
Active Cruise Control (ACC) +
The electronic parking lever +

Interior

Leather interior +

Wheels

Disc diameter 18
Rim type Alloy

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +
ventilated front seats +
Heated rear seats +
Heated steering wheel +

Glass, mirrors and sunroof

The rain sensor +
Heated side mirrors +
Power mirrors +
Electric folding mirrors +

Multimedia and instruments

Steering wheel controls +
Radio +
Touch Screen +
Bluetooth hands free +
CD player +
USB +
Number of speakers 12

Headlights and lighting

LED headlights +
Rear LED lights +
LED lights daylight +

Seats

Power front seats +
Memory seat adjustment +

Visibility and parking

Rear Parking Sensors +
Parking aid front +
System AVM (4 Camera Review projecting volume 360 ​​picture car parking) +

Trunk

contactless tailgate opening +

Security

Electronic systems

control system "blind zones" (RVM, BSM) +
Lane Assist +

Anti-theft systems

The electronic key (Smart key) +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Cushion for driver's knee +
3.0 8AT Top Panorama 75 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2999
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 260
Torque, Nm 304
RPM at max torque 5300
Engine 3.0 GDi
RPM at max power 6400

Dimensions

Seats 5
Length mm 4930
Width 1865
Height mm 1470
Wheelbase mm 2845
Front track, mm 1602
Rear track, mm 1610
Kerb weight, kg 1630
Fuel tank, l 70

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13
Fuel consumption (urban), l. 100 km 6.8
Fuel consumption (combined), l. 100 km 9.1
Acceleration (0-100 km/h), s 7.9
The maximum speed, km / h. 230
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai

Equipment

Comfort

Tyre pressure monitoring +
Start / Stop button for starting and stopping the engine +
Active Cruise Control (ACC) +
The electronic parking lever +

Interior

Leather interior +

Wheels

Disc diameter 18
Rim type Alloy

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +
ventilated front seats +
Heated rear seats +
Heated steering wheel +

Glass, mirrors and sunroof

The rain sensor +
Heated side mirrors +
Power mirrors +
Electric folding mirrors +
Sun Roof +

Multimedia and instruments

Steering wheel controls +
Radio +
Touch Screen +
Bluetooth hands free +
CD player +
USB +
Number of speakers 12

Headlights and lighting

LED headlights +
Rear LED lights +
LED lights daylight +

Seats

Power front seats +
Memory seat adjustment +

Visibility and parking

Rear Parking Sensors +
Parking aid front +
System AVM (4 Camera Review projecting volume 360 ​​picture car parking) +

Trunk

contactless tailgate opening +

Security

Electronic systems

control system "blind zones" (RVM, BSM) +
Lane Assist +

Anti-theft systems

The electronic key (Smart key) +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Cushion for driver's knee +
2.4 GDi (190 HP) 6-car 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2359
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 190
Torque, Nm 240
RPM at max torque 4000
Engine 2.4 GDi
Compression 11.3
RPM at max power 6000

Dimensions

Seats 5
Length mm 4930
Width 1865
Height mm 1470
Wheelbase mm 2845
Front track, mm 1602
Rear track, mm 1610
Kerb weight, kg 1550
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.2
Fuel consumption (urban), l. 100 km 7.4
Fuel consumption (combined), l. 100 km 8.9
Acceleration (0-100 km/h), s 9.7
The maximum speed, km / h. 213

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car
Gearbox Machine
Transmission manufacturer Hyundai-KIA
Transmission country of origin Korea
3.0 GDi (260 HP) 8-speed automatic 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2999
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 260
Torque, Nm 304
RPM at max torque 5300
Engine 3.0 GDi
RPM at max power 6400

Dimensions

Seats 5
Length mm 4930
Width 1865
Height mm 1470
Wheelbase mm 2845
Front track, mm 1602
Rear track, mm 1610
Kerb weight, kg 1550
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13
Fuel consumption (urban), l. 100 km 6.8
Fuel consumption (combined), l. 100 km 9.1
Acceleration (0-100 km/h), s 7.9
The maximum speed, km / h. 230
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai
3.0 GDi (270 h.p.) 8-speed automatic 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2999
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 270
Torque, Nm 310
RPM at max torque 5300
Engine 3.0 GDi
RPM at max power 6400

Dimensions

Seats 5
Length mm 4930
Width 1865
Height mm 1470
Wheelbase mm 2845
Front track, mm 1602
Rear track, mm 1610
Kerb weight, kg 1550
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.5
Fuel consumption (urban), l. 100 km 8
Fuel consumption (combined), l. 100 km 9.9
Acceleration (0-100 km/h), s 7.9
The maximum speed, km / h. 230

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai
3.3 GDi (290 HP) 8-speed automatic 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3342
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 290
Torque, Nm 343
RPM at max torque 5200
Engine 3.3 GDi
RPM at max power 6400

Dimensions

Seats 5
Length mm 4930
Width 1865
Height mm 1470
Wheelbase mm 2845
Front track, mm 1602
Rear track, mm 1610
Kerb weight, kg 1550
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.9
Fuel consumption (urban), l. 100 km 8.4
Fuel consumption (combined), l. 100 km 10.3
Acceleration (0-100 km/h), s 7.4
The maximum speed, km / h. 230
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai
3.5 MPi (290 hp) 8-speed automatic 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3470
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 290
Torque, Nm 338
RPM at max torque 5200
Engine 3.5 MPi
Compression 11.5
RPM at max power 6400

Dimensions

Seats 5
Length mm 4930
Width 1865
Height mm 1470
Wheelbase mm 2845
Front track, mm 1602
Rear track, mm 1610
Kerb weight, kg 1550
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.9
Fuel consumption (urban), l. 100 km 8.4
Fuel consumption (combined), l. 100 km 10.3
Acceleration (0-100 km/h), s 7.4
The maximum speed, km / h. 230

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai
2.2 CRDi (202 hp) 8-speed automatic 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2199
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 202
Torque, Nm 441
RPM at max torque 1750-2750
Engine 2.2 CRDi
Compression 16.0
RPM at max power 3800
Turbo +
Engine code D4HC

Dimensions

Seats 5
Length mm 4930
Width 1865
Height mm 1470
Wheelbase mm 2845
Front track, mm 1602
Rear track, mm 1610
Kerb weight, kg 1550
Fuel tank, l 70

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.6
Fuel consumption (urban), l. 100 km 5.7
Fuel consumption (combined), l. 100 km 6.8

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai
FAQ

Hyundai Grandeur questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Hyundai Grandeur?

This page lists 8 trims for the Hyundai Grandeur, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Hyundai Grandeur?

The listed configurations show a power range of 190-290 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Hyundai Grandeur?

The available specification data shows engine displacement from 2199-3470 cc across the trims listed on this page.

Which transmissions are listed for the Hyundai Grandeur?

The transmission options currently shown for this model are: 8, 6, 8-speed automatic. Open a trim section to see the full data for a specific configuration.

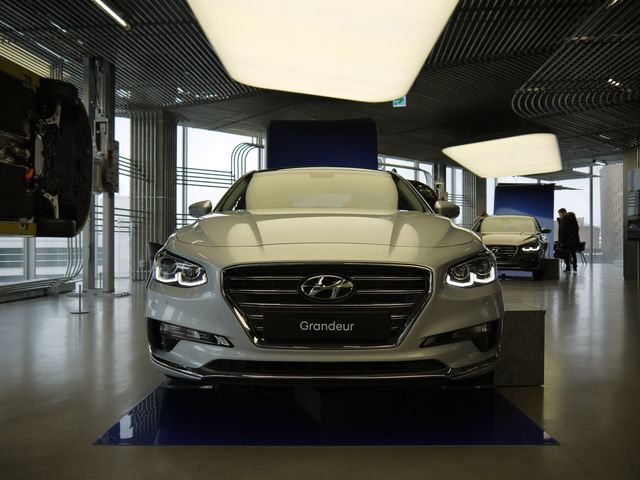

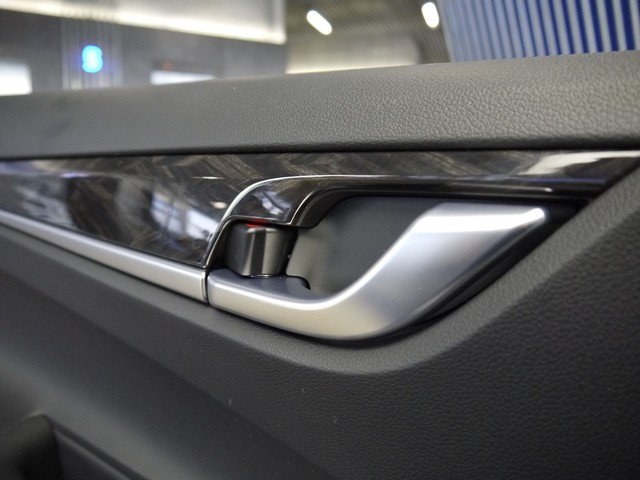

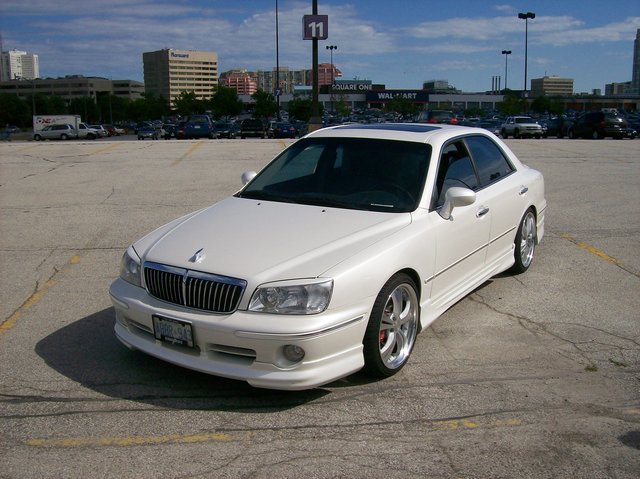

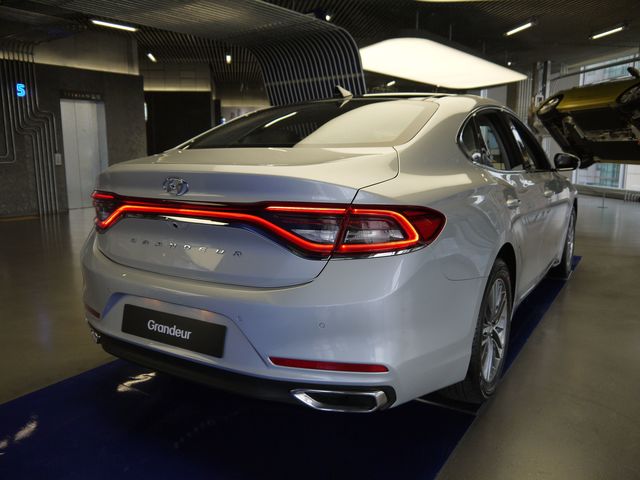

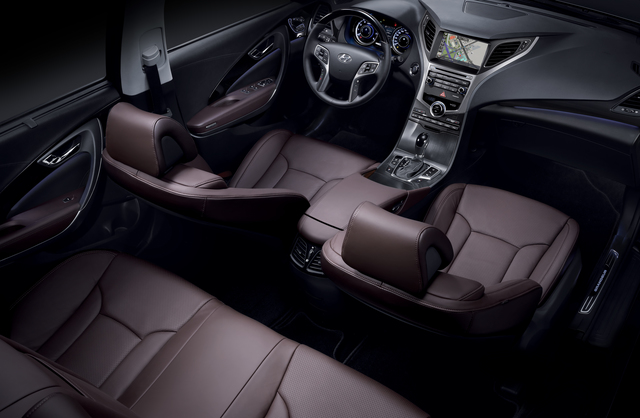

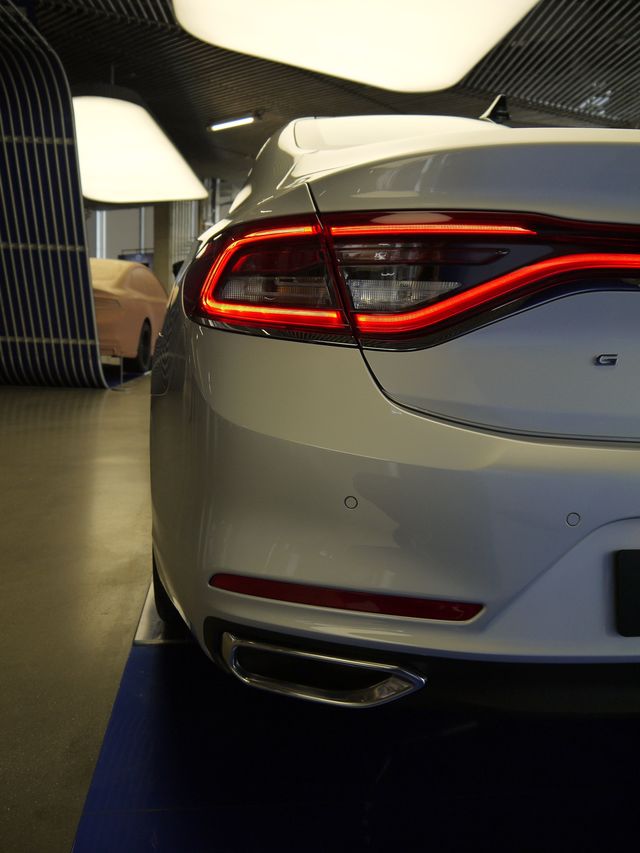

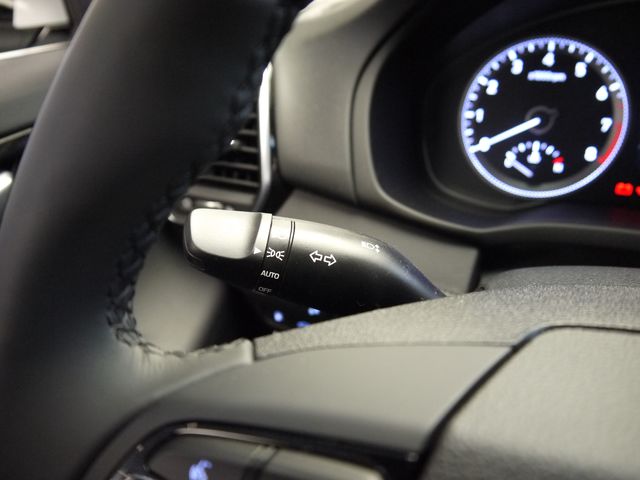

Are there photos for the Hyundai Grandeur?

Yes. The gallery includes 23 photos for the Hyundai Grandeur, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
