Isuzu D-Max specifications and photos
The 2016 Isuzu D-Max is a double-cab pickup truck representing a refreshed version of the second-generation model. Built on Isuzu's long history of commercial vehicle production, it focuses on utility, robustness, and everyday practicality. With selectable four-wheel drive and efficient diesel options, it is designed for both work and daily driving.
Isuzu D-Max at a glance
Quick model context before comparing photos and trim-level specifications.
First introduced in late 2015, this updated second-generation Isuzu D-Max targets buyers needing a dependable midsize pickup. Isuzu leverages its century-long experience in commercial manufacturing to deliver a chassis and suspension tuned for heavy-duty tasks. The double-cab configuration offers a five-seat layout with versatile rear seating that folds up to accommodate tall cargo inside the cabin. Outside, the cargo bed is designed to balance length and depth for practical loading, capable of carrying a payload of up to 1,035 kg. Buyers can choose between manual and automatic transmissions, paired with either a 1.9-liter or a 3.0-liter turbocharged diesel engine. Depending on the trim level, the vehicle transitions from a basic, black-bumpered workhorse to a more passenger-focused utility vehicle with chrome accents and upgraded cabin amenities, making it a versatile option in the midsize truck segment.
- Power: 163-177 hp
- Engine displacement: 1898-2999 cc
- Transmissions: 6-speed automatic, 6-speed manual
- Seating: 5 seats
Isuzu D-Max overview
Editorial context for design, cabin, performance, practicality, and buyer notes.

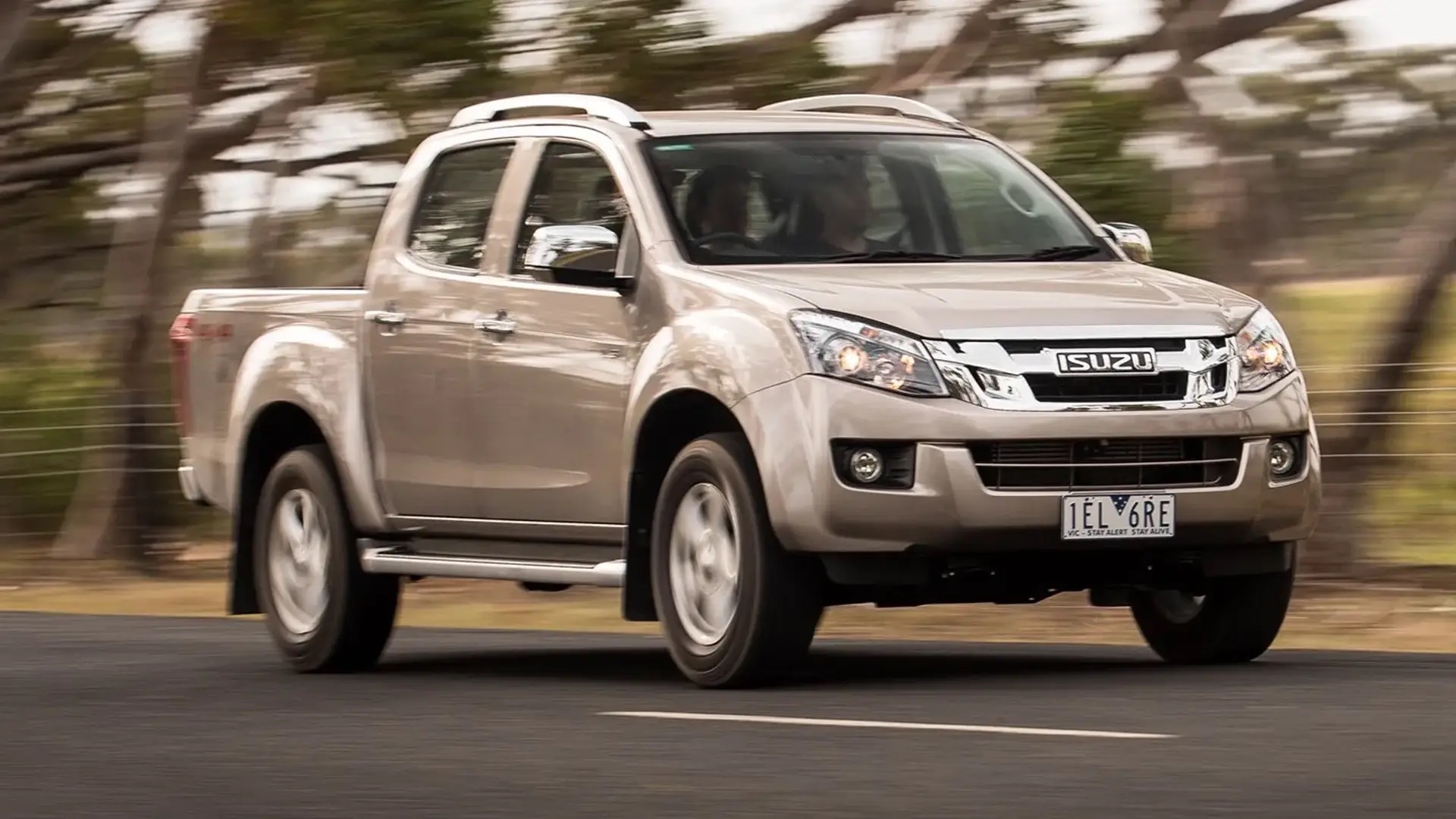

Design
The exterior design of the 2016 Isuzu D-Max varies significantly depending on the selected trim level. Base models feature black front and rear bumpers, a black radiator grille, and 16-inch steel wheels, emphasizing utility and low maintenance. Higher-end trims transition to a more premium look with chrome details on the grille, tailgate handle, and rear bumper, along with 18-inch alloy wheels. Projector headlights are standard across the range, providing improved nighttime visibility. The truck has a cargo bed measuring 1,552 mm in length and 1,530 mm in width, with a depth of 465 mm. To protect key components during off-road or utility use, the underbody is fitted with protective plates for the engine oil pan, transfer case, and fuel tank.
Interior
Inside the cabin, the double-cab D-Max accommodates up to five passengers with a two-row configuration. The rear seats feature a split cushion that can be raised to make room for large items inside. While entry-level trims use durable, easy-to-clean materials, top-tier versions feature leather upholstery and leather-wrapped elements. Comfort upgrades in higher trims include heated front seats, a power-adjustable driver’s seat, and automatic climate control. Tech features in advanced packages include a 7-inch touchscreen infotainment system, a multi-information instrument display, cruise control, a Live Surround Sound audio system with eight speakers, and USB ports in both the front and rear rows.
Performance
The D-Max is powered by one of two turbocharged diesel engines. The smaller 1.9-liter (RZ4E) engine produces 163 horsepower and 360 Nm of torque, while the larger 3.0-liter (4JJ1) engine delivers 177 horsepower and 430 Nm of torque. Transmission options include a six-speed manual or a six-speed Aisin automatic. Off-road capability is supported by a Part-time four-wheel-drive system, allowing drivers to switch between 2H and 4H modes while driving. A low-range 4L mode is available for difficult terrain. Ground clearance ranges from 225 mm on basic setups to 235 mm on premium trims, and the vehicle can ford water depths of up to 600 mm.
Practicality
Practicality is a core strength of the Isuzu D-Max, which offers a maximum payload capacity of 1,035 kg. The cargo bed is wide enough to fit bulky equipment between the wheel arches. Inside, the ability to flip up the rear seat cushions provides dry, secure storage for tools or luggage. The passenger cabin is equipped with multiple storage cubbies, and high-trim versions include side steps to make entry and exit easier. A towing capacity is supported by electronic trailer stability features that ensure control when hauling heavy loads.
Safety and tech
Standard safety equipment on the D-Max includes six airbags, electronic stability control, and a trailer stability assist system. Driver assistance features such as hill start assist and hill descent control are also standard, helping manage steep inclines. Depending on the market and trim, the vehicle features projector headlights, heated power-adjustable side mirrors, and keyless entry with a push-button start. A rearview camera is integrated into higher trims to assist with parking and trailer hookups.
Buyer notes
When shopping for a 2016 Isuzu D-Max, buyers should decide between the utility-focused base trims and the passenger-oriented LS or LS+ trims. The base trim is ideal for commercial work, using steel wheels, plastic bumpers, and simpler infotainment preparation. For daily driving or family use, the LS and LS+ packages are recommended, adding comfort features like climate control, leather seating, a touchscreen, and 18-inch alloy wheels. Because drivetrain configurations and exact trim equipment can vary by market, buyers should verify the specific engine and 4WD options on individual vehicles.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.9D AT LS+ | 1898 cc | 163 hp | 5 | 6-speed automatic |
| 1.9D AT LS | 1898 cc | 163 hp | 5 | 6-speed automatic |
| 1.9D MT L | 1898 cc | 163 hp | 5 | 6-speed manual |
| 1.9D MT LS+ | 1898 cc | 163 hp | 5 | 6-speed manual |
| 1.9D MT LS | 1898 cc | 163 hp | 5 | 6-speed manual |
| 1.9 (163 hp) 6-speed manual 4x4 | 1898 cc | 163 hp | 5 | 6-speed manual |
| 1.9 (163 hp) 6-speed automatic 4x4 | 1898 cc | 163 hp | 5 | 6-speed automatic |
| 3.0 (177 hp) 6-speed manual 4x4 | 2999 cc | 177 hp | 5 | 6-speed manual |
| 3.0 (177 hp) 6-speed automatic 4x4 | 2999 cc | 177 hp | 5 | 6-speed automatic |
| 3.0 (177 hp) 6-speed automatic | 2999 cc | 177 hp | 5 | 6-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

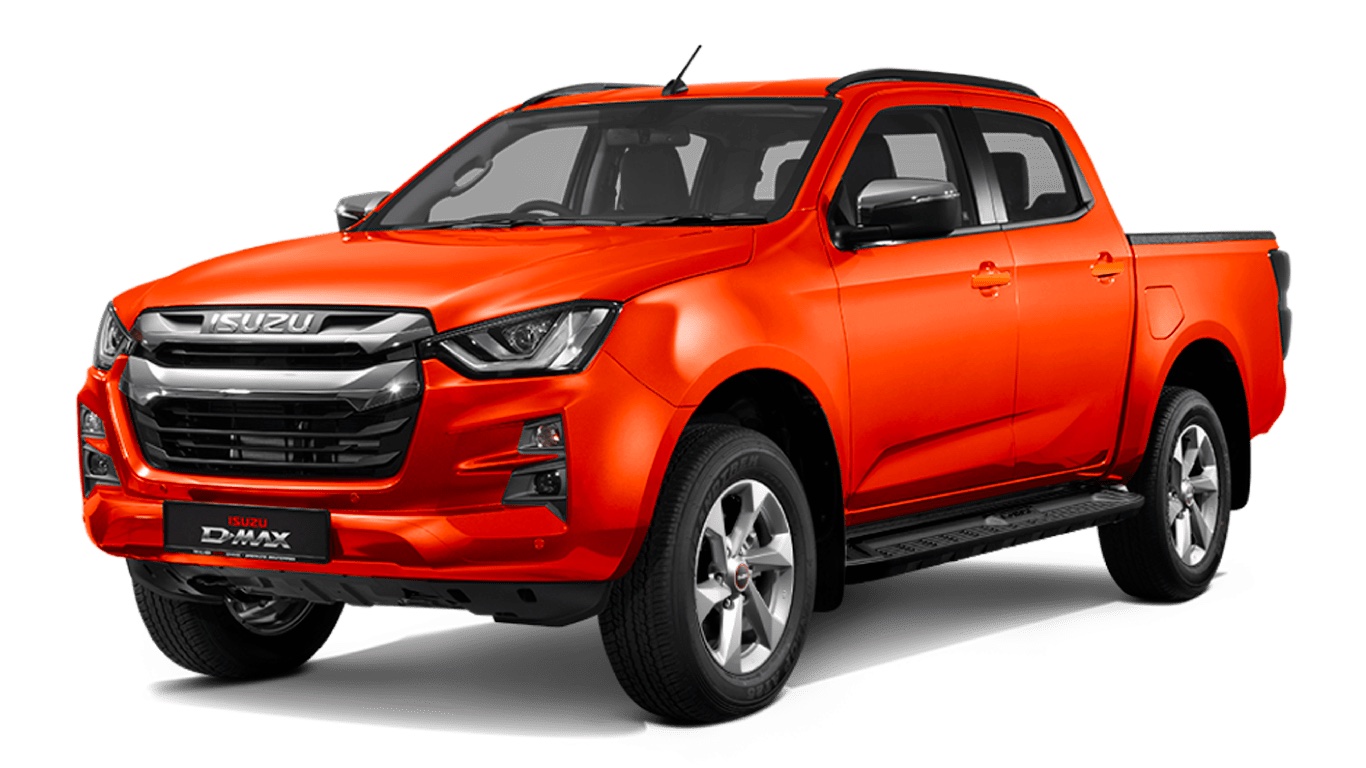

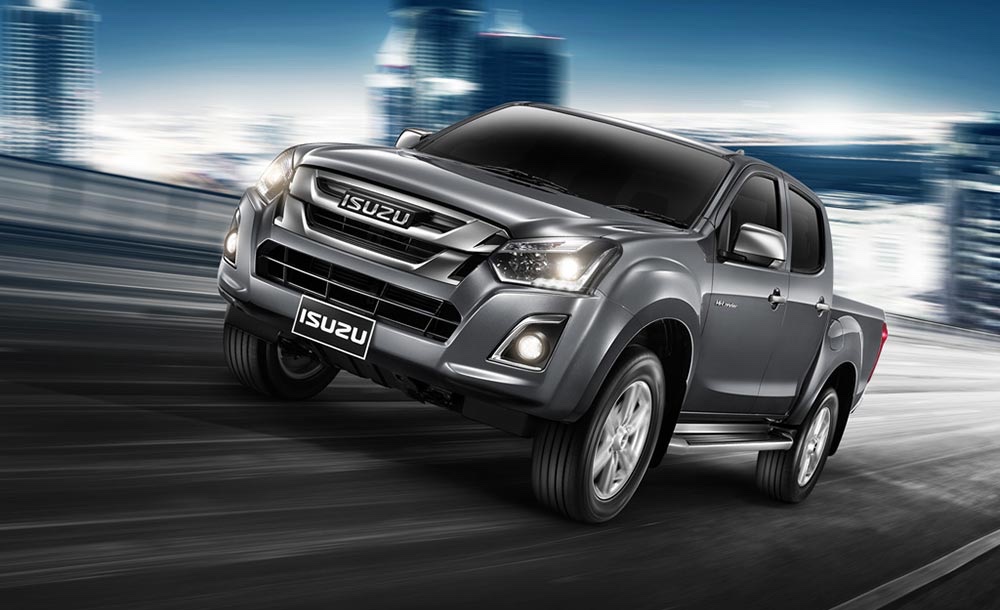

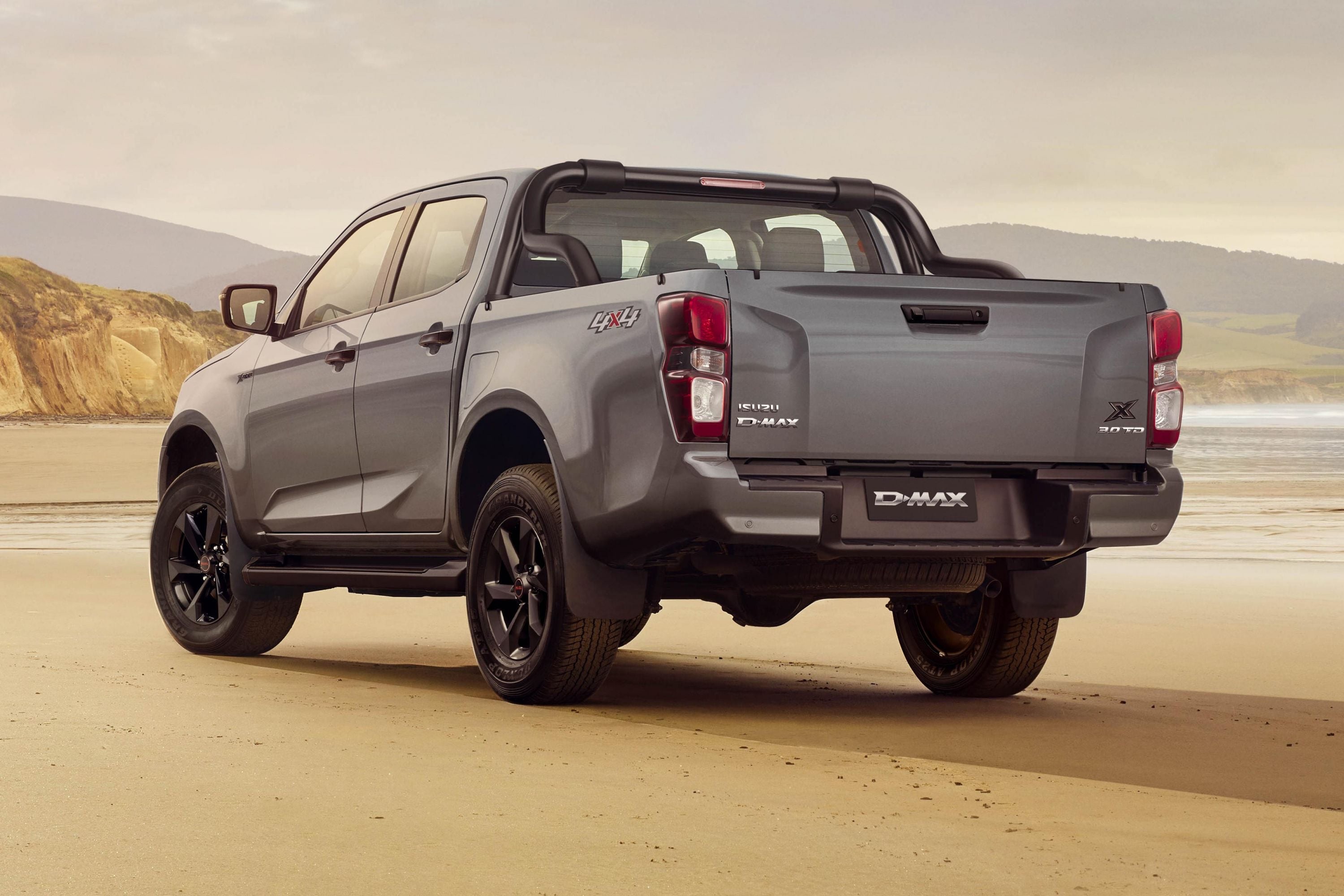

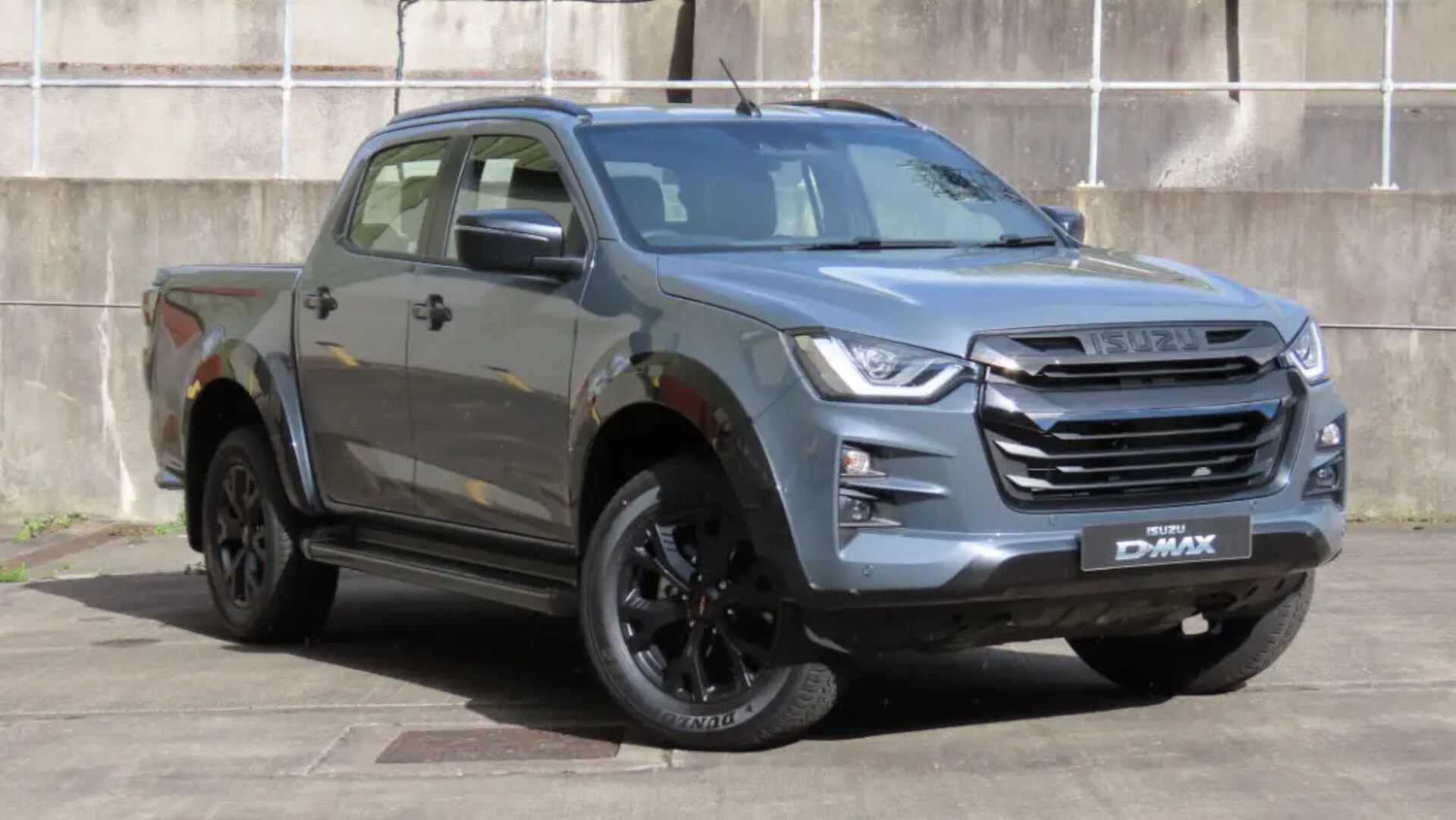

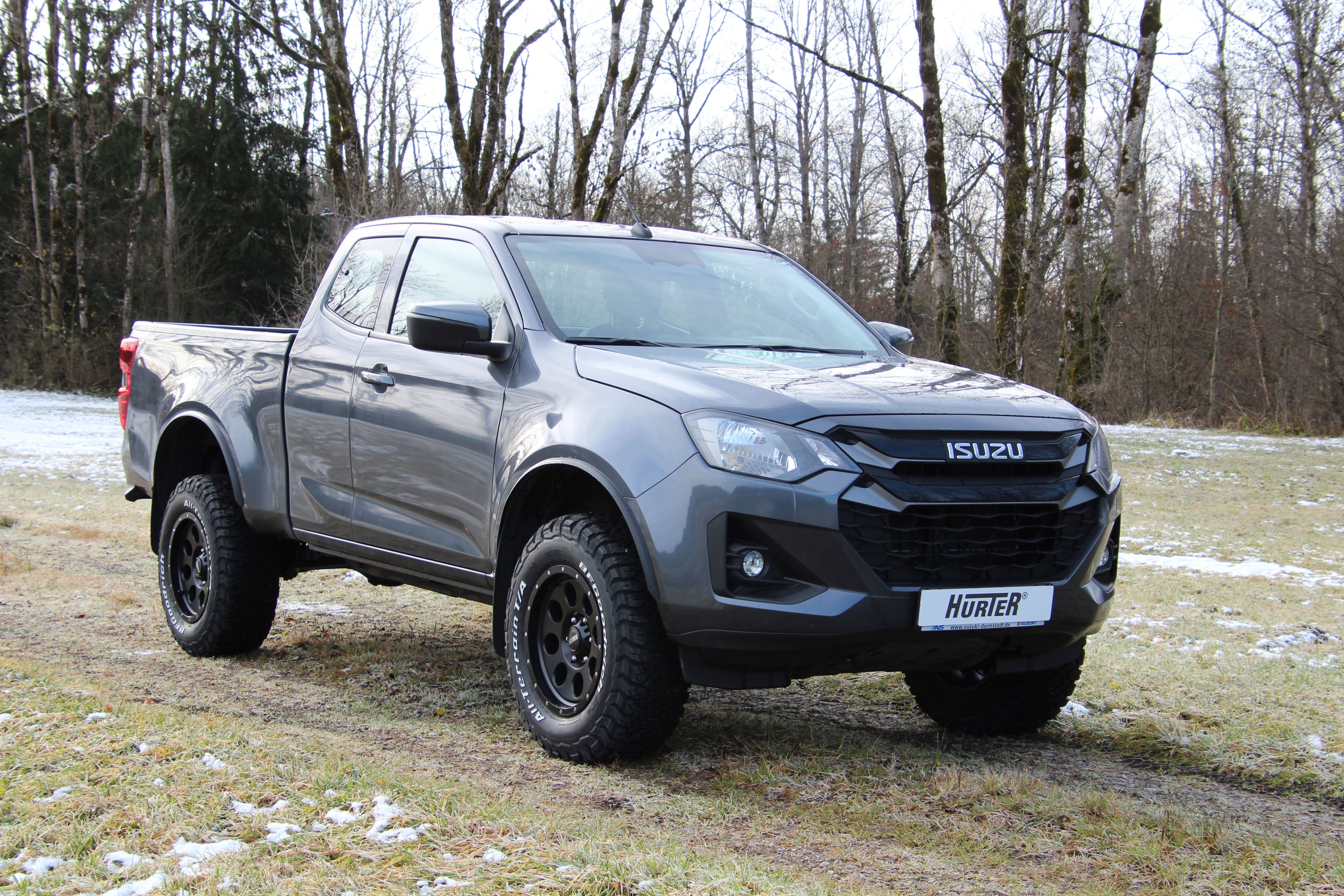

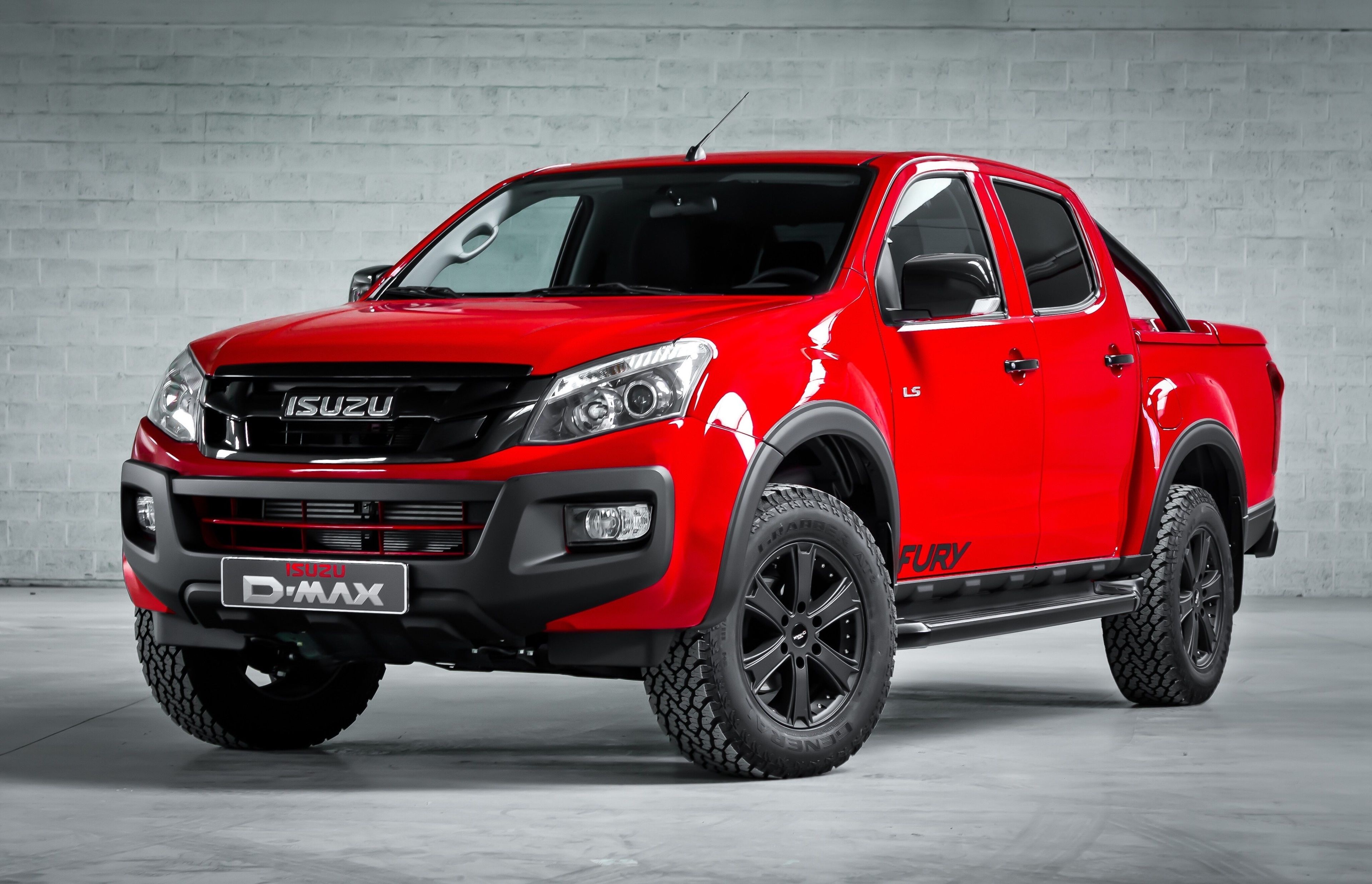

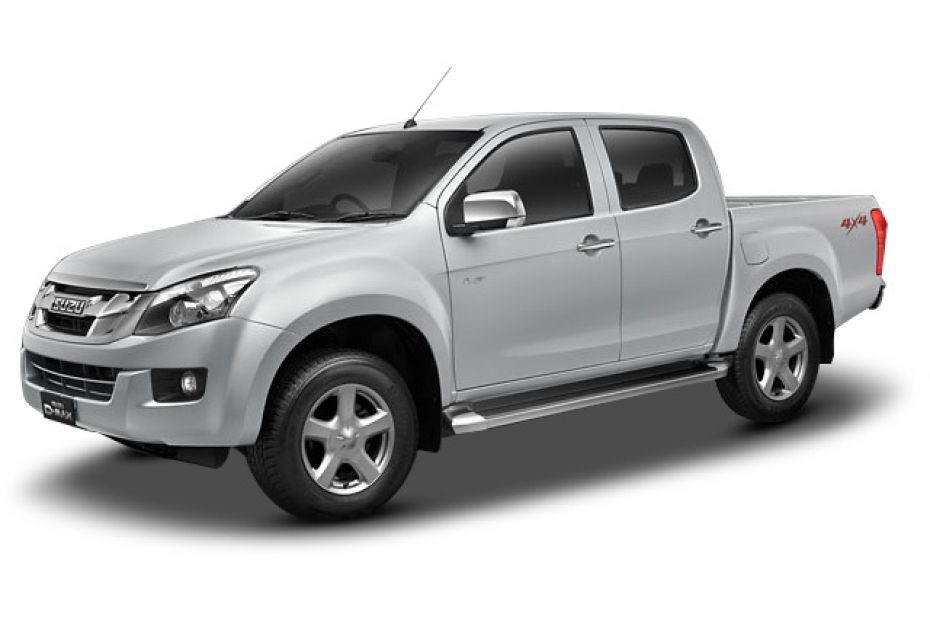

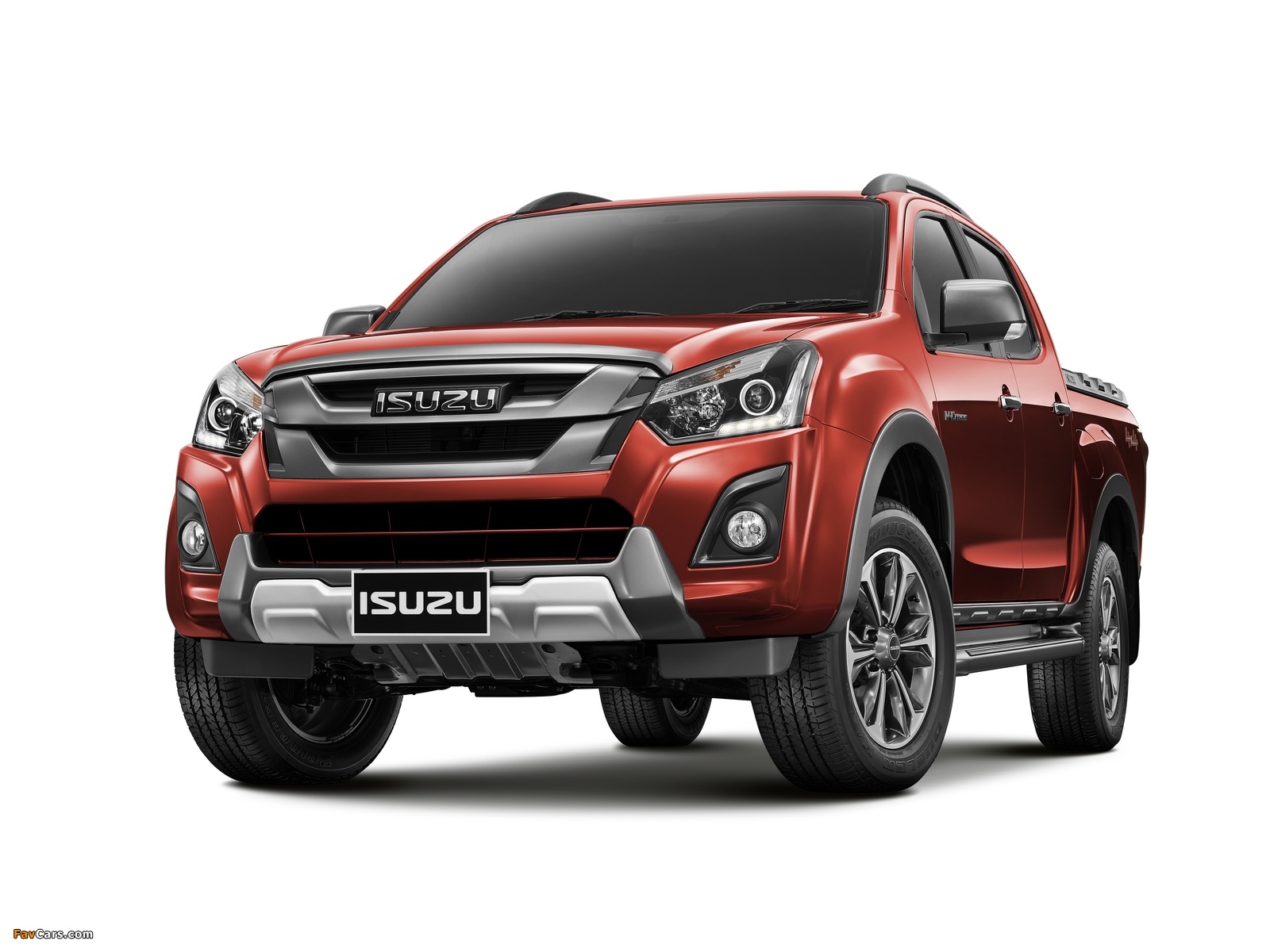

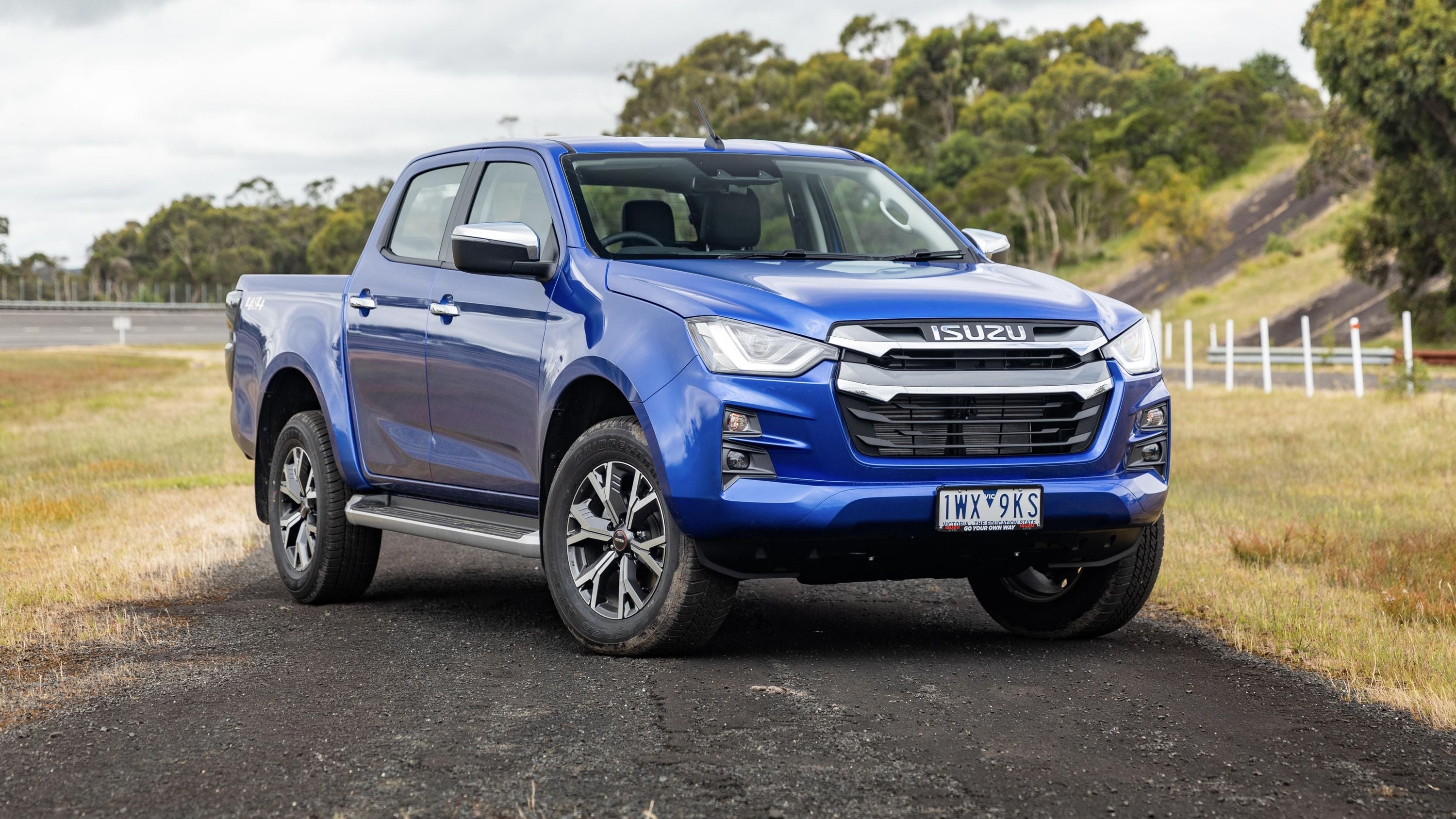

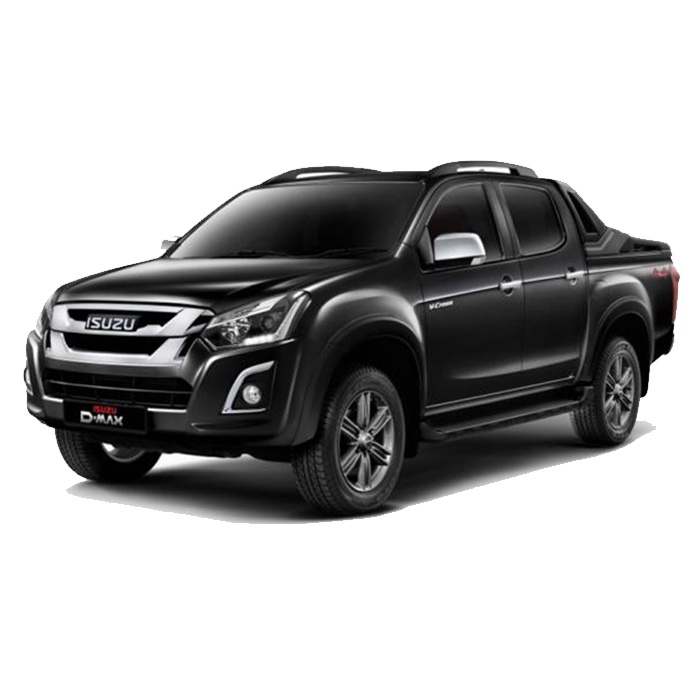

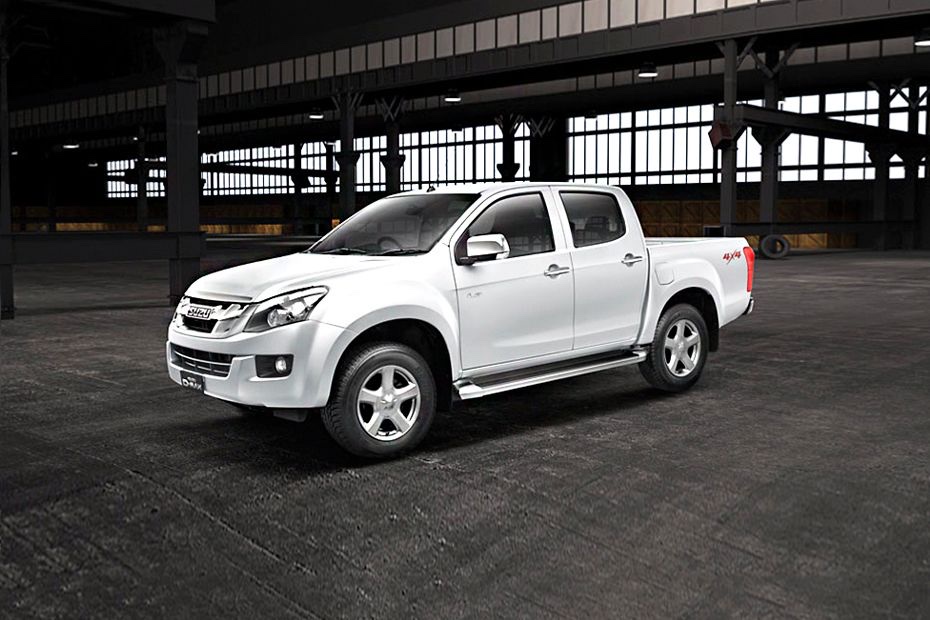

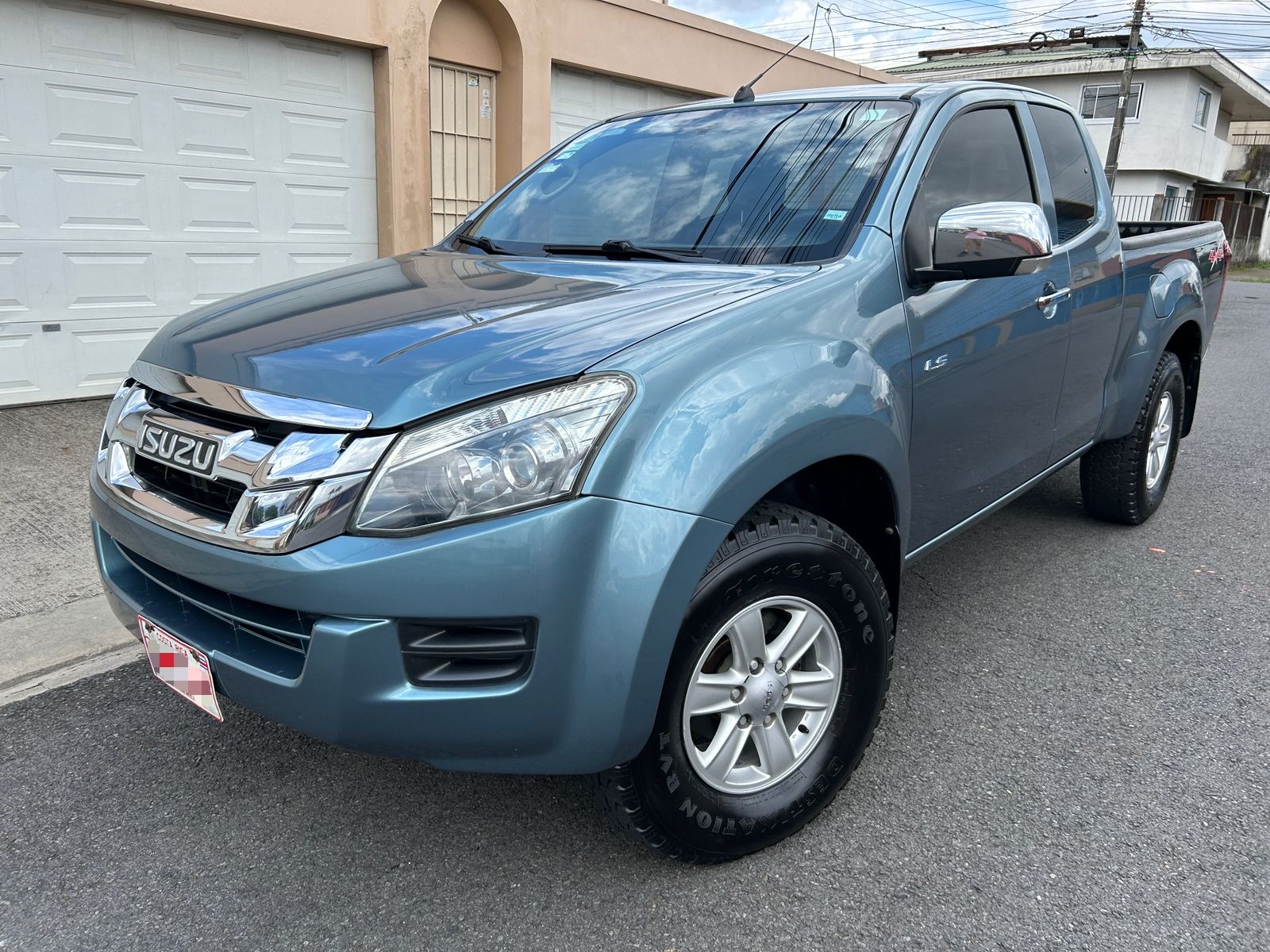

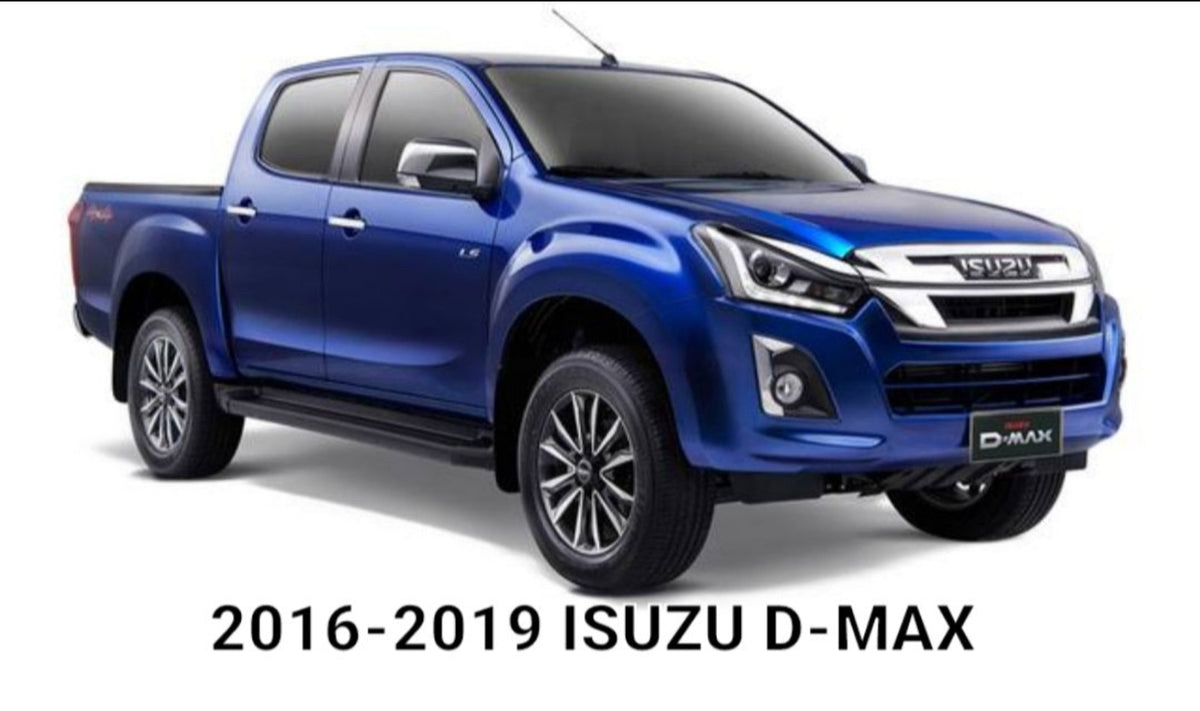

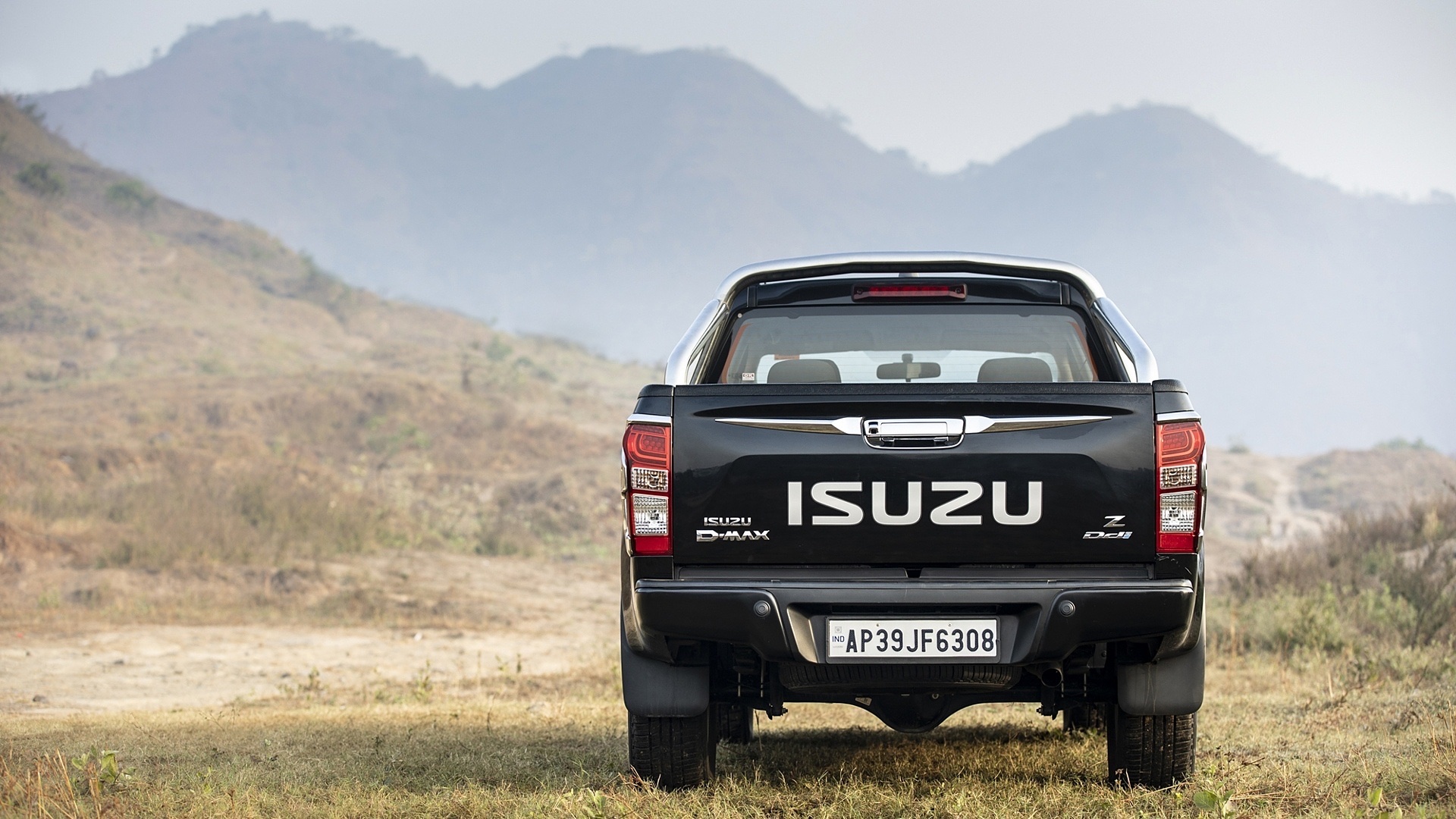

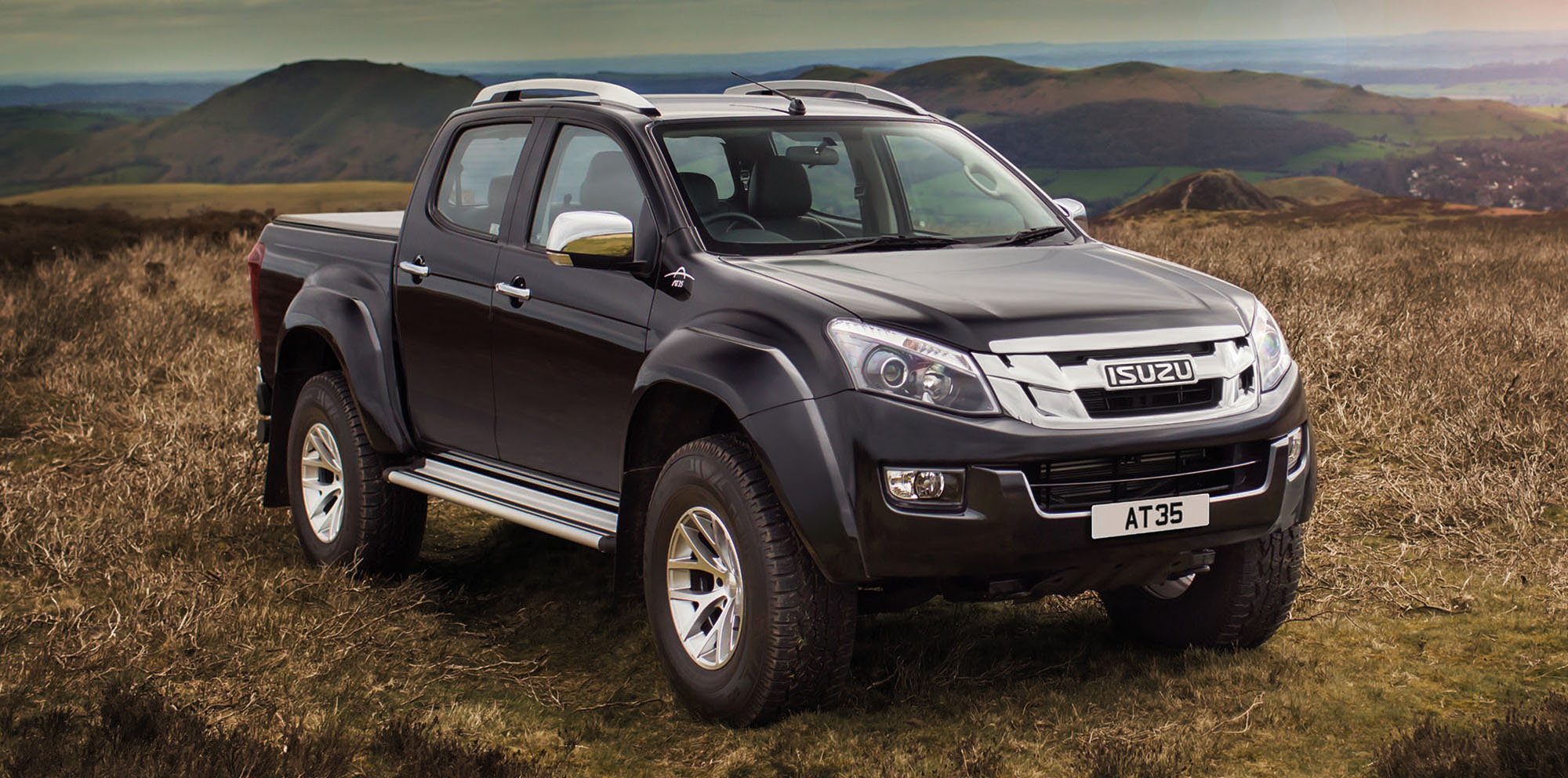

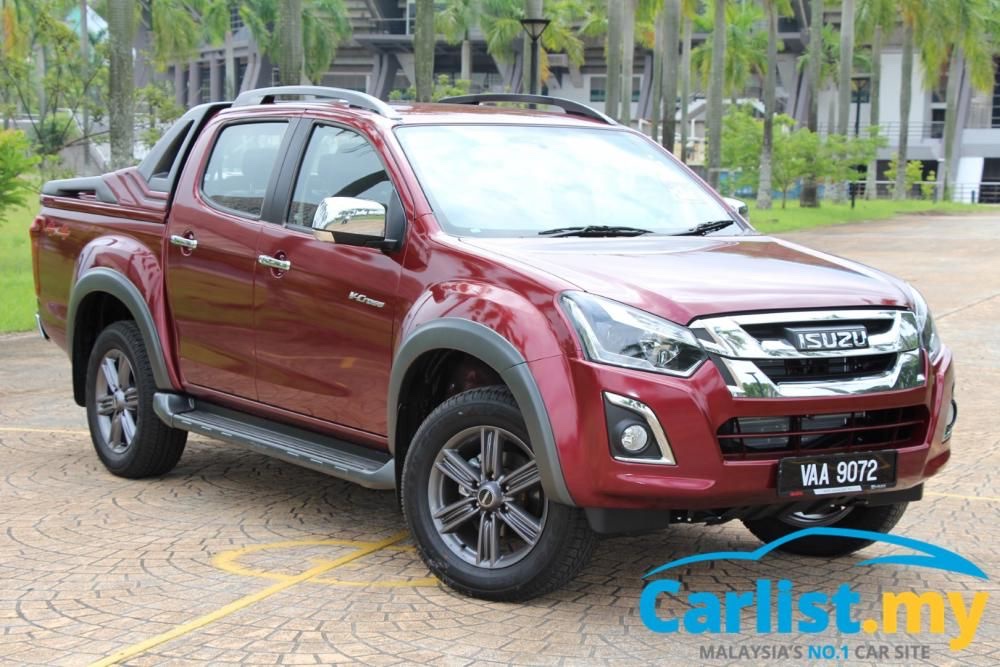

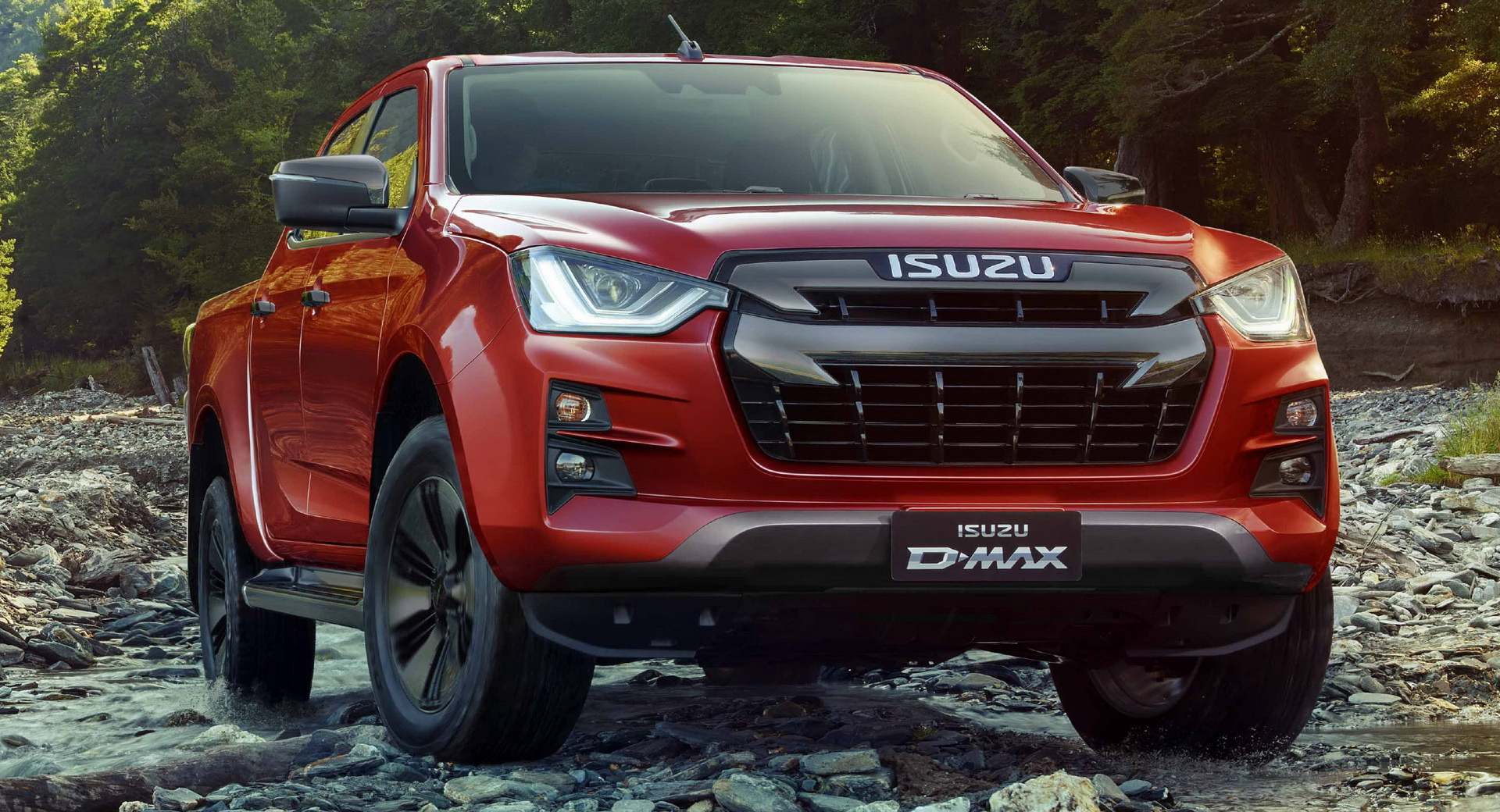

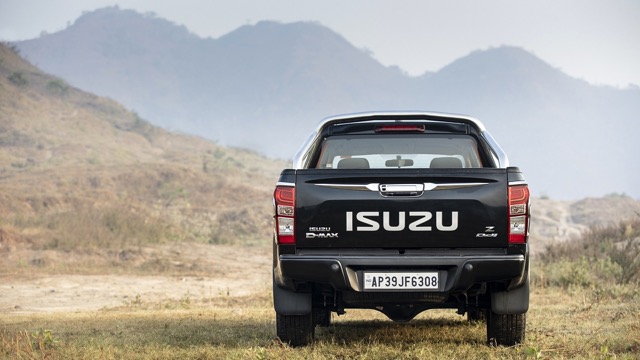

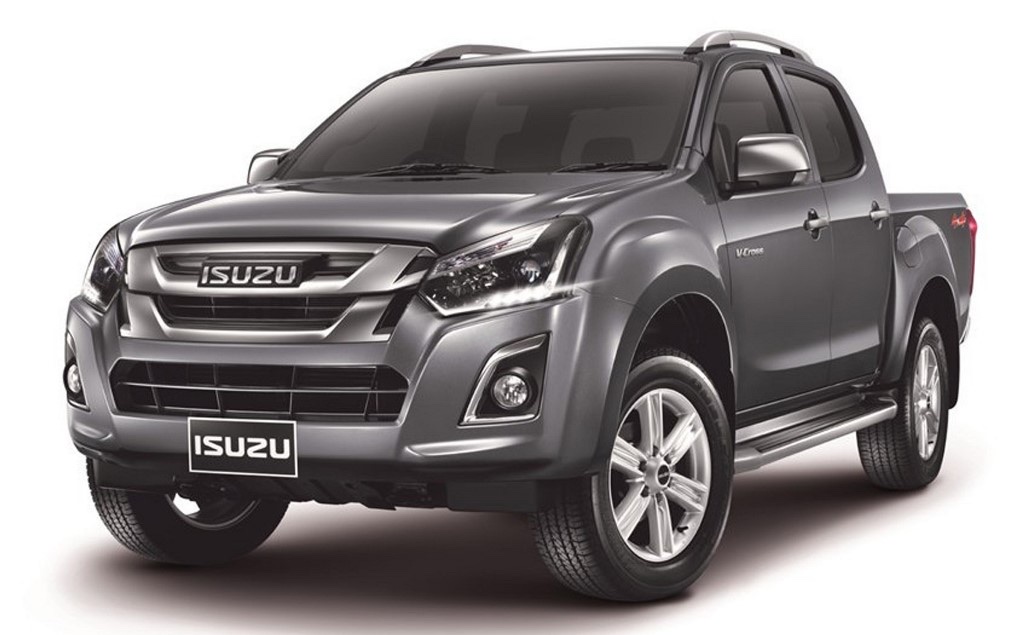

Isuzu D-Max photo gallery
19 images are collected here with the main specifications and trim data for this model.
Photo Isuzu D-Max
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.9D AT LS+ 102 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.3 |
|---|---|
| Fuel consumption highway, L/100 km | 6.9 |
| Fuel consumption combined, L/100 km | 7.8 |
| Top speed, km/h | 180 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.9 |
|---|---|
| Engine code | RZ4E-TC |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1898 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.9:1 |
| Power, hp | 163 |
| RPM at max power | 3600 |
| Torque, Nm | 360 |
| RPM at max torque | 2000–2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5295 |
| Height, mm | 1785 |
| Wheelbase, mm | 3095 |
| Front track, mm | 1570 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2045 |
| Gross weight, kg | 3000 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 235 |
| Width without mirrors, mm | 1860 |
Transmission and drive
| Transmission | 6-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
Suspension
| Front suspension type | Double wishbone with anti-roll bar |
|---|---|
| Rear suspension type | Dependent solid axle with leaf springs |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Hydraulic power steering |
|---|
Equipment
Exterior
| Mud flaps | + |
|---|---|
| Side steps | + |
Comfort
| Cruise control | + |
|---|---|
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Adjustable steering column | + |
Interior
| Leather-trimmed interior elements | + |
|---|---|
| Leather interior | + |
| Multifunction instrument display | + |
Wheels
| Rim diameter | 18 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Full-size spare wheel |
| Tires | 255/60R18 |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Climate control | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
| Engine protection plate | + |
| Fuel tank protection | + |
| Transfer case protection | + |
Seats
| Power front seats | + |
|---|---|
| Child seat anchors (LATCH/Isofix) | + |
| Front armrest | + |
| Height-adjustable driver's seat | + |
| Whiplash injury lessening front seats | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Headlight leveling | + |
| LED tail lights | + |
| Rear fog lights | + |
| Halogen headlights | + |
| Daytime running lights | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Radio | + |
| MP3 support | + |
| USB | + |
| Number of speakers | 8 |
| Touchscreen | + |
| Steering wheel controls | + |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|
Body paint and exterior parts
| Body-colored bumper | + |
|---|
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Electronic brakeforce distribution | + |
| Child locks | + |
| Brake assist | + |
| Traction control system | + |
Anti-theft systems
| Remote central locking | + |
|---|---|
| Immobilizer | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
1.9D AT LS 92 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.3 |
|---|---|
| Fuel consumption highway, L/100 km | 6.9 |
| Fuel consumption combined, L/100 km | 7.8 |
| Top speed, km/h | 180 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.9 |
|---|---|
| Engine code | RZ4E-TC |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1898 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.9:1 |
| Power, hp | 163 |
| RPM at max power | 3600 |
| Torque, Nm | 360 |
| RPM at max torque | 2000–2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5295 |
| Height, mm | 1785 |
| Wheelbase, mm | 3095 |
| Front track, mm | 1570 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2045 |
| Gross weight, kg | 3000 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 235 |
| Width without mirrors, mm | 1860 |
Transmission and drive
| Transmission | 6-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
Suspension
| Front suspension type | Double wishbone with anti-roll bar |
|---|---|
| Rear suspension type | Dependent solid axle with leaf springs |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Hydraulic power steering |
|---|
Equipment
Exterior
| Mud flaps | + |
|---|
Comfort
| Cruise control | + |
|---|---|
| Adjustable steering column | + |
Interior
| Leather-trimmed interior elements | + |
|---|
Wheels
| Rim diameter | 18 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Full-size spare wheel |
| Tires | 255/60R18 |
Climate and sound insulation
| Air conditioning | + |
|---|
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
| Engine protection plate | + |
| Fuel tank protection | + |
| Transfer case protection | + |
Seats
| Child seat anchors (LATCH/Isofix) | + |
|---|---|
| Front armrest | + |
| Height-adjustable driver's seat | + |
| Whiplash injury lessening front seats | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Headlight leveling | + |
| LED tail lights | + |
| Rear fog lights | + |
| Halogen headlights | + |
| Daytime running lights | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Radio | + |
| MP3 support | + |
| USB | + |
| Number of speakers | 6 |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
Body paint and exterior parts
| Body-colored bumper | + |
|---|
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Electronic brakeforce distribution | + |
| Child locks | + |
| Brake assist | + |
| Traction control system | + |
Anti-theft systems
| Remote central locking | + |
|---|---|
| Immobilizer | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
1.9D MT L 81 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 7.6 |
|---|---|
| Fuel consumption highway, L/100 km | 6.6 |
| Fuel consumption combined, L/100 km | 7 |
| Top speed, km/h | 180 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.9 |
|---|---|
| Engine code | RZ4E-TC |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1898 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.9:1 |
| Power, hp | 163 |
| RPM at max power | 3600 |
| Torque, Nm | 360 |
| RPM at max torque | 2000–2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5295 |
| Height, mm | 1785 |
| Wheelbase, mm | 3095 |
| Front track, mm | 1570 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2045 |
| Gross weight, kg | 3000 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 225 |
| Width without mirrors, mm | 1860 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Isuzu |
| Transmission country | Japan |
Suspension
| Front suspension type | Double wishbone with anti-roll bar |
|---|---|
| Rear suspension type | Dependent solid axle with leaf springs |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Hydraulic power steering |
|---|
Equipment
Exterior
| Mud flaps | + |
|---|
Comfort
| Adjustable steering column | + |
|---|
Wheels
| Rim diameter | 16 |
|---|---|
| Rim type | Steel |
| Spare wheel | Full-size spare wheel |
| Tires | 245/70R16 |
Climate and sound insulation
| Air conditioning | + |
|---|
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
| Engine protection plate | + |
| Fuel tank protection | + |
| Transfer case protection | + |
Seats
| Child seat anchors (LATCH/Isofix) | + |
|---|---|
| Front armrest | + |
| Whiplash injury lessening front seats | + |
Headlights and lighting
| Headlight leveling | + |
|---|---|
| Rear fog lights | + |
| Halogen headlights | + |
| Daytime running lights | + |
Multimedia and instruments
| Number of speakers | 2 |
|---|---|
| Radio pre-wiring | + |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Electronic brakeforce distribution | + |
| Child locks | + |
| Brake assist | + |
| Traction control system | + |
Anti-theft systems
| Remote central locking | + |
|---|---|
| Immobilizer | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
1.9D MT LS+ 101 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 7.6 |
|---|---|
| Fuel consumption highway, L/100 km | 6.6 |
| Fuel consumption combined, L/100 km | 7 |
| Top speed, km/h | 180 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.9 |
|---|---|
| Engine code | RZ4E-TC |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1898 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.9:1 |
| Power, hp | 163 |
| RPM at max power | 3600 |
| Torque, Nm | 360 |
| RPM at max torque | 2000–2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5295 |
| Height, mm | 1785 |
| Wheelbase, mm | 3095 |
| Front track, mm | 1570 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2045 |
| Gross weight, kg | 3000 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 235 |
| Width without mirrors, mm | 1860 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Isuzu |
| Transmission country | Japan |
Suspension
| Front suspension type | Double wishbone with anti-roll bar |
|---|---|
| Rear suspension type | Dependent solid axle with leaf springs |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Hydraulic power steering |
|---|
Equipment
Exterior
| Mud flaps | + |
|---|---|
| Side steps | + |
Comfort
| Cruise control | + |
|---|---|
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Adjustable steering column | + |
Interior
| Leather-trimmed interior elements | + |
|---|---|
| Leather interior | + |
| Multifunction instrument display | + |
Wheels
| Rim diameter | 18 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Full-size spare wheel |
| Tires | 255/60R18 |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Climate control | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
| Engine protection plate | + |
| Fuel tank protection | + |
| Transfer case protection | + |
Seats
| Power front seats | + |
|---|---|
| Child seat anchors (LATCH/Isofix) | + |
| Front armrest | + |
| Height-adjustable driver's seat | + |
| Whiplash injury lessening front seats | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Headlight leveling | + |
| LED tail lights | + |
| Rear fog lights | + |
| Halogen headlights | + |
| Daytime running lights | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Radio | + |
| MP3 support | + |
| USB | + |
| Number of speakers | 8 |
| Touchscreen | + |
| Steering wheel controls | + |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|
Body paint and exterior parts
| Body-colored bumper | + |
|---|
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Electronic brakeforce distribution | + |
| Child locks | + |
| Brake assist | + |
| Traction control system | + |
Anti-theft systems
| Remote central locking | + |
|---|---|
| Immobilizer | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
1.9D MT LS 91 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 7.6 |
|---|---|
| Fuel consumption highway, L/100 km | 6.6 |
| Fuel consumption combined, L/100 km | 7 |
| Top speed, km/h | 180 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.9 |
|---|---|
| Engine code | RZ4E-TC |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1898 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.9:1 |
| Power, hp | 163 |
| RPM at max power | 3600 |
| Torque, Nm | 360 |
| RPM at max torque | 2000–2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5295 |
| Height, mm | 1785 |
| Wheelbase, mm | 3095 |
| Front track, mm | 1570 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2045 |
| Gross weight, kg | 3000 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 235 |
| Width without mirrors, mm | 1860 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Isuzu |
| Transmission country | Japan |
Suspension
| Front suspension type | Double wishbone with anti-roll bar |
|---|---|
| Rear suspension type | Dependent solid axle with leaf springs |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Hydraulic power steering |
|---|
Equipment
Exterior
| Mud flaps | + |
|---|
Comfort
| Cruise control | + |
|---|---|
| Adjustable steering column | + |
Interior
| Leather-trimmed interior elements | + |
|---|
Wheels
| Rim diameter | 18 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Full-size spare wheel |
| Tires | 255/60R18 |
Climate and sound insulation
| Air conditioning | + |
|---|
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
| Engine protection plate | + |
| Fuel tank protection | + |
| Transfer case protection | + |
Seats
| Child seat anchors (LATCH/Isofix) | + |
|---|---|
| Front armrest | + |
| Height-adjustable driver's seat | + |
| Whiplash injury lessening front seats | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Headlight leveling | + |
| LED tail lights | + |
| Rear fog lights | + |
| Halogen headlights | + |
| Daytime running lights | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Radio | + |
| MP3 support | + |
| USB | + |
| Number of speakers | 6 |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
Body paint and exterior parts
| Body-colored bumper | + |
|---|
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Electronic brakeforce distribution | + |
| Child locks | + |
| Brake assist | + |
| Traction control system | + |
Anti-theft systems
| Remote central locking | + |
|---|---|
| Immobilizer | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
1.9 (163 hp) 6-speed manual 4x4 37 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 7.6 |
|---|---|
| Fuel consumption highway, L/100 km | 6.6 |
| Fuel consumption combined, L/100 km | 7 |
| Top speed, km/h | 180 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.9 |
|---|---|
| Engine code | RZ4E-TC |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1898 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.9:1 |
| Power, hp | 163 |
| RPM at max power | 3600 |
| Torque, Nm | 360 |
| RPM at max torque | 2000–2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5295 |
| Height, mm | 1785 |
| Wheelbase, mm | 3095 |
| Front track, mm | 1570 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2045 |
| Gross weight, kg | 3000 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 225 |
| Width without mirrors, mm | 1860 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Isuzu |
| Transmission country | Japan |
1.9 (163 hp) 6-speed automatic 4x4 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.3 |
|---|---|
| Fuel consumption highway, L/100 km | 6.9 |
| Fuel consumption combined, L/100 km | 7.8 |
| Top speed, km/h | 180 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.9 |
|---|---|
| Engine code | RZ4E-TC |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1898 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.9:1 |
| Power, hp | 163 |
| RPM at max power | 3600 |
| Torque, Nm | 360 |
| RPM at max torque | 2000–2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5295 |
| Height, mm | 1785 |
| Wheelbase, mm | 3095 |
| Front track, mm | 1570 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2045 |
| Gross weight, kg | 3000 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 225 |
| Width without mirrors, mm | 1860 |
Transmission and drive
| Transmission | 6-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
3.0 (177 hp) 6-speed manual 4x4 36 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.6 |
|---|---|
| Fuel consumption highway, L/100 km | 7.4 |
| Fuel consumption combined, L/100 km | 8.3 |
| Top speed, km/h | 170 |
| Emissions standard | Euro V |
Engine
| Engine | 3.0 |
|---|---|
| Engine code | 4JJ1E5S–LA/4JJ1–TC |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 177 |
| RPM at max power | 3600 |
| Torque, Nm | 430 |
| RPM at max torque | 2000–2200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5295 |
| Height, mm | 1785 |
| Wheelbase, mm | 3095 |
| Front track, mm | 1570 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2045 |
| Gross weight, kg | 3000 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 225 |
| Width without mirrors, mm | 1860 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Isuzu |
| Transmission country | Japan |
3.0 (177 hp) 6-speed automatic 4x4 37 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.2 |
|---|---|
| Fuel consumption highway, L/100 km | 7.3 |
| Fuel consumption combined, L/100 km | 8 |
| Top speed, km/h | 170 |
| Emissions standard | Euro V |
Engine
| Engine | 3.0 |
|---|---|
| Engine code | 4JJ1E5S–LA/4JJ1–TC |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 177 |
| RPM at max power | 3600 |
| Torque, Nm | 430 |
| RPM at max torque | 2000–2200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5295 |
| Height, mm | 1785 |
| Wheelbase, mm | 3095 |
| Front track, mm | 1570 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2045 |
| Gross weight, kg | 3000 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 225 |
| Width without mirrors, mm | 1860 |
Transmission and drive
| Transmission | 6-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
3.0 (177 hp) 6-speed automatic 36 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.5 |
|---|---|
| Fuel consumption highway, L/100 km | 6.7 |
| Fuel consumption combined, L/100 km | 7.7 |
| Emissions standard | Euro V |
Engine
| Engine | 3.0 |
|---|---|
| Engine code | 4JJ1E5S–LA/4JJ1–TC |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 177 |
| RPM at max power | 3600 |
| Torque, Nm | 430 |
| RPM at max torque | 2000–2200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5295 |
| Height, mm | 1785 |
| Wheelbase, mm | 3095 |
| Front track, mm | 1570 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2045 |
| Gross weight, kg | 3000 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 225 |
| Width without mirrors, mm | 1860 |
Transmission and drive
| Transmission | 6-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
Isuzu D-Max questions
Short answers based on the specifications and photos available in this catalog.
What engines are available in the 2016 Isuzu D-Max?
The 2016 Isuzu D-Max offers two turbocharged diesel engine options: a 1.9-liter engine producing 163 horsepower and a larger 3.0-liter engine making 177 horsepower.
Does the Isuzu D-Max have four-wheel drive?
Yes, the 2016 D-Max is available with a Part-time four-wheel-drive system that includes selectable 2H, 4H, and 4L modes, allowing drivers to engage 4WD on the fly.
What is the cargo capacity of the 2016 Isuzu D-Max?
The D-Max has a cargo bed measuring 1,552 mm in length and 1,530 mm in width. It offers a maximum payload capacity of 1,035 kg when equipped with the 1.9-liter diesel engine.
What are the main differences between the base and top trims?
The base trim is a utility vehicle with steel wheels, black bumpers, and a basic interior. Higher trims like the LS and LS+ add chrome exterior accents, 18-inch alloy wheels, leather upholstery, a 7-inch touchscreen, and automatic climate control.
Is the 2016 Isuzu D-Max good for off-road driving?
Yes, it is well-suited for off-road use, featuring a ground clearance of up to 235 mm, a water-fording depth of 600 mm, underbody protection for key components, and hill descent control.
Continue exploring Isuzu
Return to Isuzu models, browse the gallery, or compare the trims listed above.
