KIA Optima SW specifications and photos

KIA Optima SW specifications are shown with trim options, key technical data, and a model photo gallery. Compare 5 configurations by engine size, power, seating, and transmission. The gallery includes 20 photos for visual reference.

Years 2016 - 2018
Body type wagon
Trims 5
Photos 20

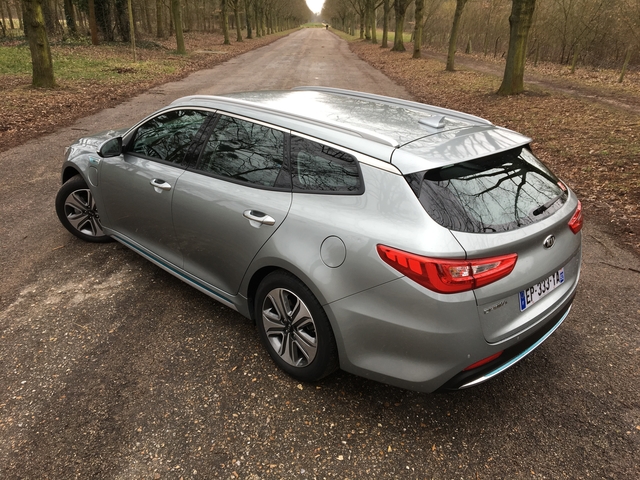

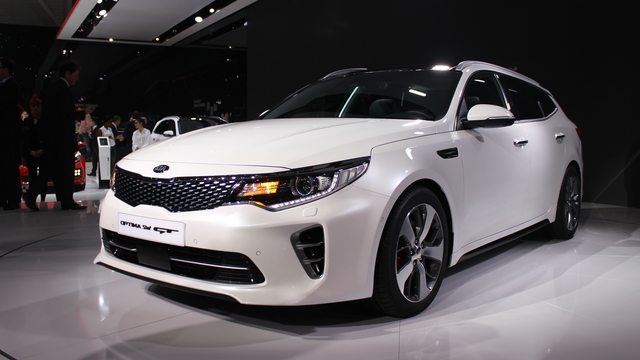

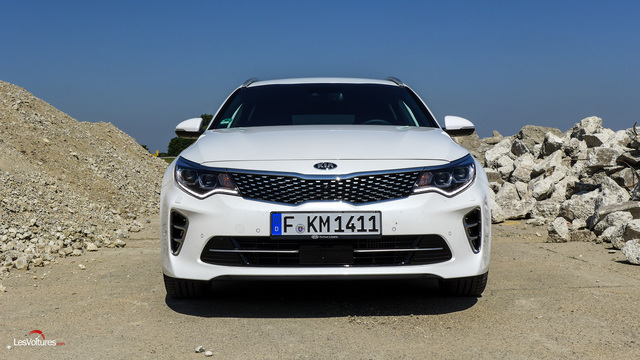

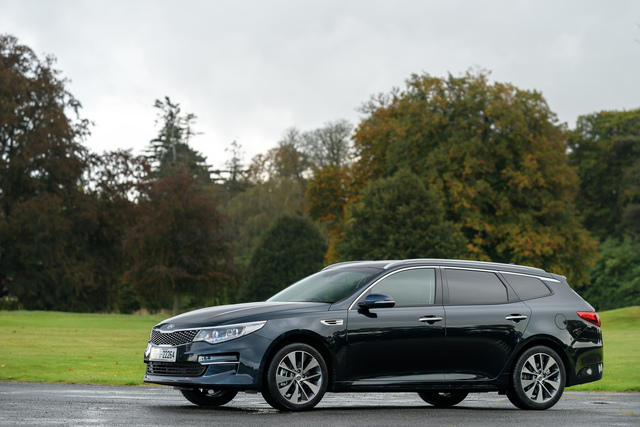

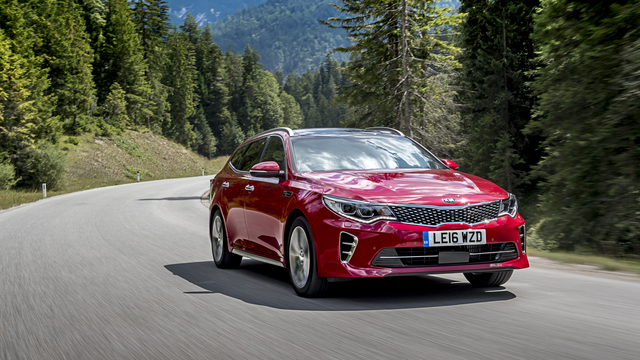

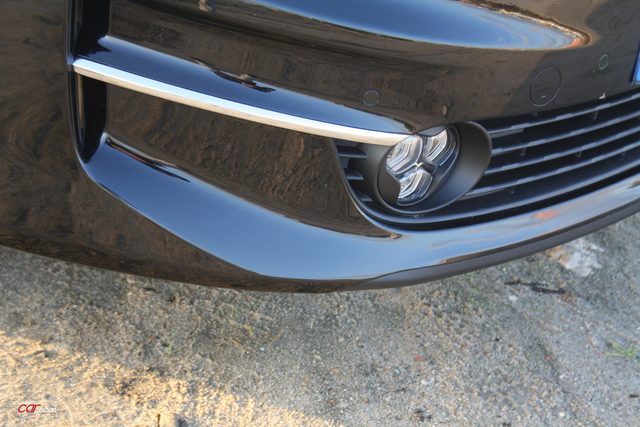

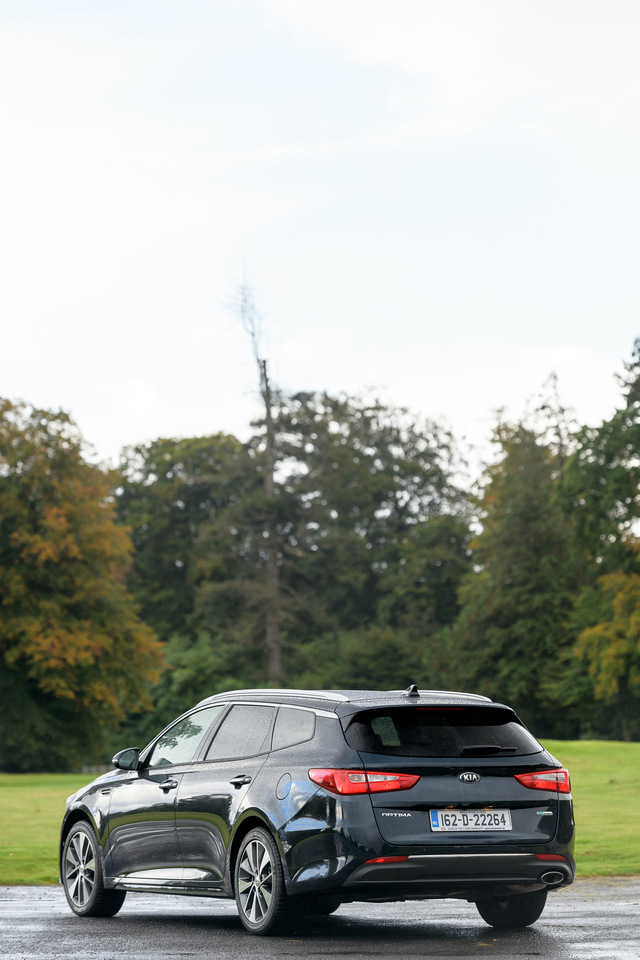

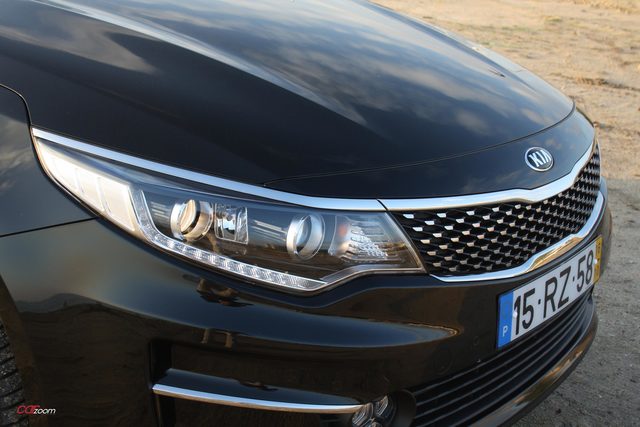

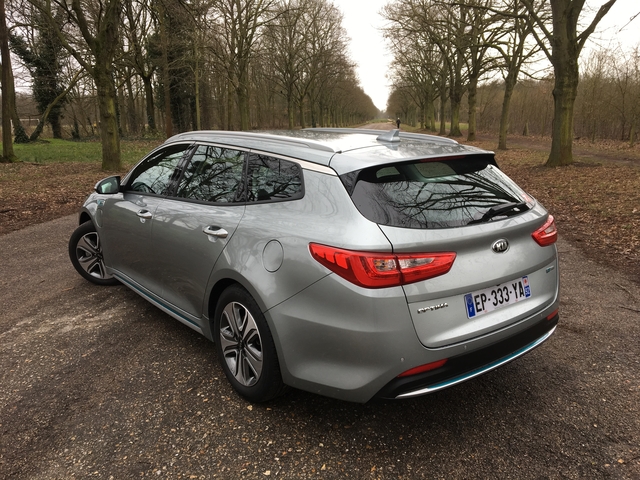

KIA Optima SW 2016 photo
Overview

KIA Optima SW at a glance

Quick model context before comparing photos and trim-level specifications.

Use this KIA Optima SW page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 141-245 hp and 1685-1999 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 141-245 hp
  • Engine displacement: 1685-1999 cc
  • Transmissions: 6-speed manual, 6, 7
  • Seating: 5 seats
Research hub

Photos, trims and specifications for KIA Optima SW

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 20 images Compare trims 5 configurations View detailed specs 1685-1999 cc Explore related pages KIA and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 141-245 hp
Engine displacement 1685-1999 cc
Seating 5 seats
Transmissions 6-speed manual, 6, 7
Trim / modification Engine Power Seats Transmission
2.0i (155 h.p.) 6-speed manual 1999 cc 155 hp 5 6-speed manual
2.0i (155 HP) 6-car Sportmatic 1999 cc 155 hp 5 6
2.0 T-GDi (245 hp) 6-car Sportmatic 1998 cc 245 hp 5 6
1.7 CRDI (141 HP) 6-speed manual 1685 cc 141 hp 5 6-speed manual
1.7 CRDI (141 hp) 7-DCT 1685 cc 141 hp 5 7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.0i (155 h.p.) 6-speed manual 2.0i (155 HP) 6-car Sportmatic 2.0 T-GDi (245 hp) 6-car Sportmatic 1.7 CRDI (141 HP) 6-speed manual 1.7 CRDI (141 hp) 7-DCT
2.0i (155 h.p.) 6-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1999
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 155
Torque, Nm 192
RPM at max torque 4700
Engine 2.0i
RPM at max power 6200

Dimensions

Seats 5
Length mm 4855
Width 1860
Height mm 1470
Wheelbase mm 2805
Front track, mm 1607
Rear track, mm 1614
Kerb weight, kg 1550
Trunk capacity, L 552
Fuel tank, l 70
Turning circle, m 10.9
Ground clearance, mm 135
Gross weight, kg 2070

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.5
Fuel consumption (urban), l. 100 km 5.9
Fuel consumption (combined), l. 100 km 7.6
Acceleration (0-100 km/h), s 9.6
The maximum speed, km / h. 206
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Kia Motors
2.0i (155 HP) 6-car Sportmatic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1999
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 155
Torque, Nm 192
RPM at max torque 4700
Engine 2.0i
RPM at max power 6200

Dimensions

Seats 5
Length mm 4855
Width 1860
Height mm 1470
Wheelbase mm 2805
Front track, mm 1607
Rear track, mm 1614
Kerb weight, kg 1550
Trunk capacity, L 552
Fuel tank, l 70
Turning circle, m 10.9
Ground clearance, mm 135
Gross weight, kg 2070

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.4
Fuel consumption (urban), l. 100 km 5.9
Fuel consumption (combined), l. 100 km 7.6
Acceleration (0-100 km/h), s 10.7
The maximum speed, km / h. 205
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-year Sportmatic
Gearbox Machine
Transmission manufacturer Kia Motors
2.0 T-GDi (245 hp) 6-car Sportmatic 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 245
Torque, Nm 353
RPM at max torque 1350-4000
Engine 2.0 T-GDi
RPM at max power 6000
Turbo +

Dimensions

Seats 5
Length mm 4855
Width 1860
Height mm 1470
Wheelbase mm 2805
Front track, mm 1607
Rear track, mm 1614
Kerb weight, kg 1550
Trunk capacity, L 552
Fuel tank, l 70
Turning circle, m 10.9
Ground clearance, mm 135
Gross weight, kg 2070

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.8
Fuel consumption (urban), l. 100 km 6.1
Fuel consumption (combined), l. 100 km 8.2
Acceleration (0-100 km/h), s 7.6
The maximum speed, km / h. 232
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-year Sportmatic
Gearbox Machine
Transmission manufacturer Kia Motors
1.7 CRDI (141 HP) 6-speed manual 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1685
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 141
Torque, Nm 340
RPM at max torque 1750-2500
Engine 1.7 CRDI
Compression 15.7
RPM at max power 4000
Turbo +
Engine code D4FD

Dimensions

Seats 5
Length mm 4855
Width 1860
Height mm 1470
Wheelbase mm 2805
Front track, mm 1607
Rear track, mm 1614
Kerb weight, kg 1550
Trunk capacity, L 552
Fuel tank, l 70
Turning circle, m 10.9
Ground clearance, mm 135
Gross weight, kg 2070

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.2
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.4
Acceleration (0-100 km/h), s 10.2
The maximum speed, km / h. 200
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Kia Motors
1.7 CRDI (141 hp) 7-DCT 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1685
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 141
Torque, Nm 340
RPM at max torque 1750-2500
Engine 1.7 CRDI
Compression 15.7
RPM at max power 4000
Turbo +
Engine code D4FD

Dimensions

Seats 5
Length mm 4855
Width 1860
Height mm 1470
Wheelbase mm 2805
Front track, mm 1607
Rear track, mm 1614
Kerb weight, kg 1550
Trunk capacity, L 552
Fuel tank, l 70
Turning circle, m 10.9
Ground clearance, mm 135
Gross weight, kg 2070

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.2
Fuel consumption (urban), l. 100 km 4.2
Fuel consumption (combined), l. 100 km 4.6
Acceleration (0-100 km/h), s 11.1
The maximum speed, km / h. 200
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer Hyundai-KIA
Transmission country of origin South Korea
FAQ

KIA Optima SW questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the KIA Optima SW?

This page lists 5 trims for the KIA Optima SW, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the KIA Optima SW?

The listed configurations show a power range of 141-245 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the KIA Optima SW?

The available specification data shows engine displacement from 1685-1999 cc across the trims listed on this page.

Which transmissions are listed for the KIA Optima SW?

The transmission options currently shown for this model are: 6-speed manual, 6, 7. Open a trim section to see the full data for a specific configuration.

Are there photos for the KIA Optima SW?

Yes. The gallery includes 20 photos for the KIA Optima SW, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
