KIA specifications

KIA Soul specifications and photos

KIA Soul specifications are shown with trim options, key technical data, and a model photo gallery. Compare 7 configurations by engine size, power, seating, and transmission. The gallery includes 38 photos for visual reference.

Years 2016 - 2018

Body type suv

Trims 7

Photos 38

Overview

KIA Soul at a glance

Quick model context before comparing photos and trim-level specifications.

Use this KIA Soul page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 123-204 hp and 1582-1591 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 123-204 hp
Engine displacement: 1582-1591 cc
Transmissions: 6, 7, 6-speed manual
Seating: 5 seats

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 123-204 hp

Engine displacement 1582-1591 cc

Seating 5 seats

Transmissions 6, 7, 6-speed manual

Trim / modification	Engine	Power	Seats	Transmission
1.6 AT	1591 cc	123 hp	5	6
1.6d AT	1582 cc	136 hp	5	7
1.6 MPi (123 hp) 6-auto H-matic	1591 cc	123 hp	5	6
1.6 GDI (132 h.p.) 6-speed manual	1591 cc	132 hp	5	6-speed manual
1.6 T-GDi (204 hp) 7-DCT	1591 cc	204 hp	5	7
1.6 CRDi (136 h.p.) 6-speed manual	1582 cc	136 hp	5	6-speed manual
1.6 CRDI (136 hp) 7-DCT	1582 cc	136 hp	5	7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

KIA Soul photo gallery

38 images are collected here with the main specifications and trim data for this model.

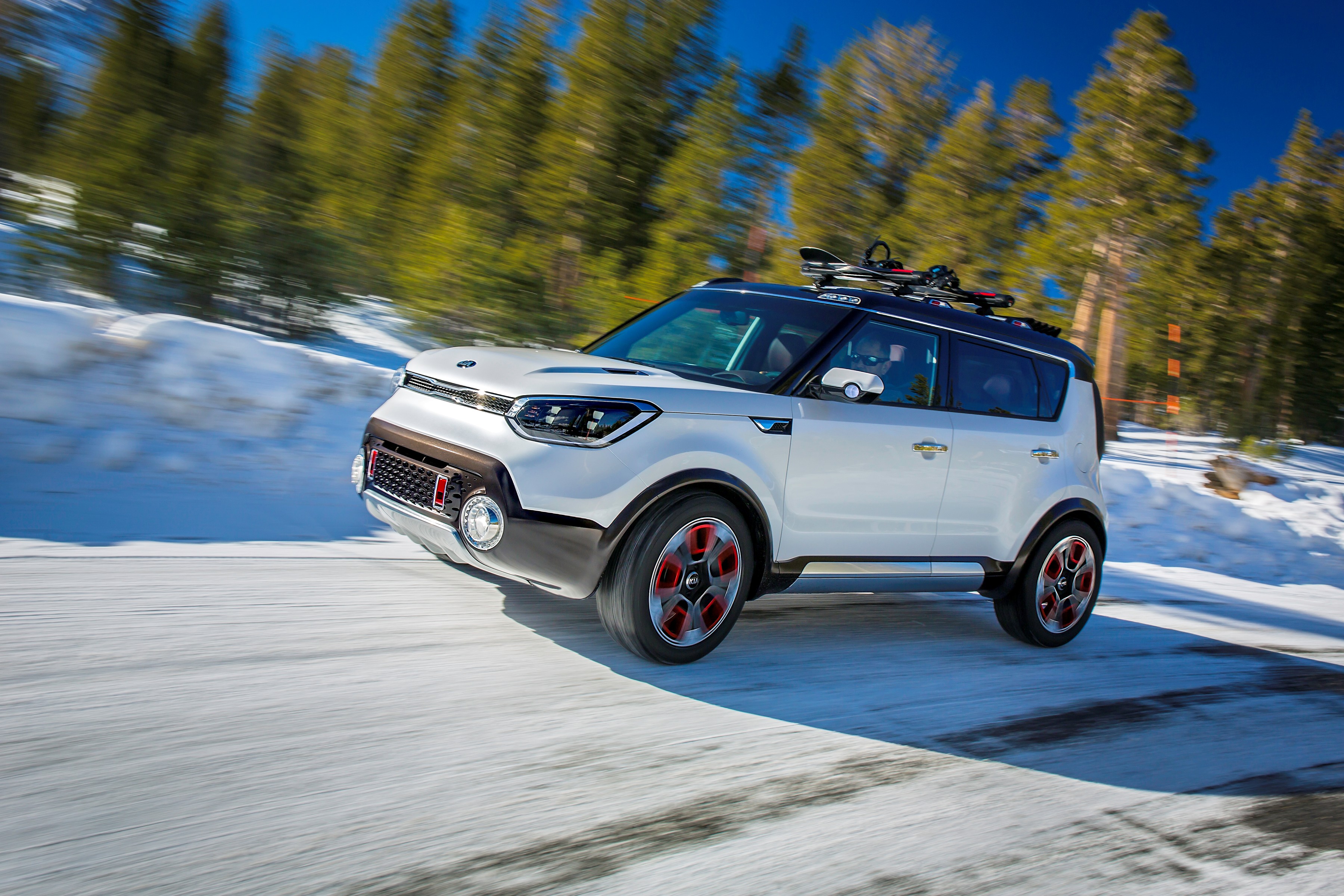

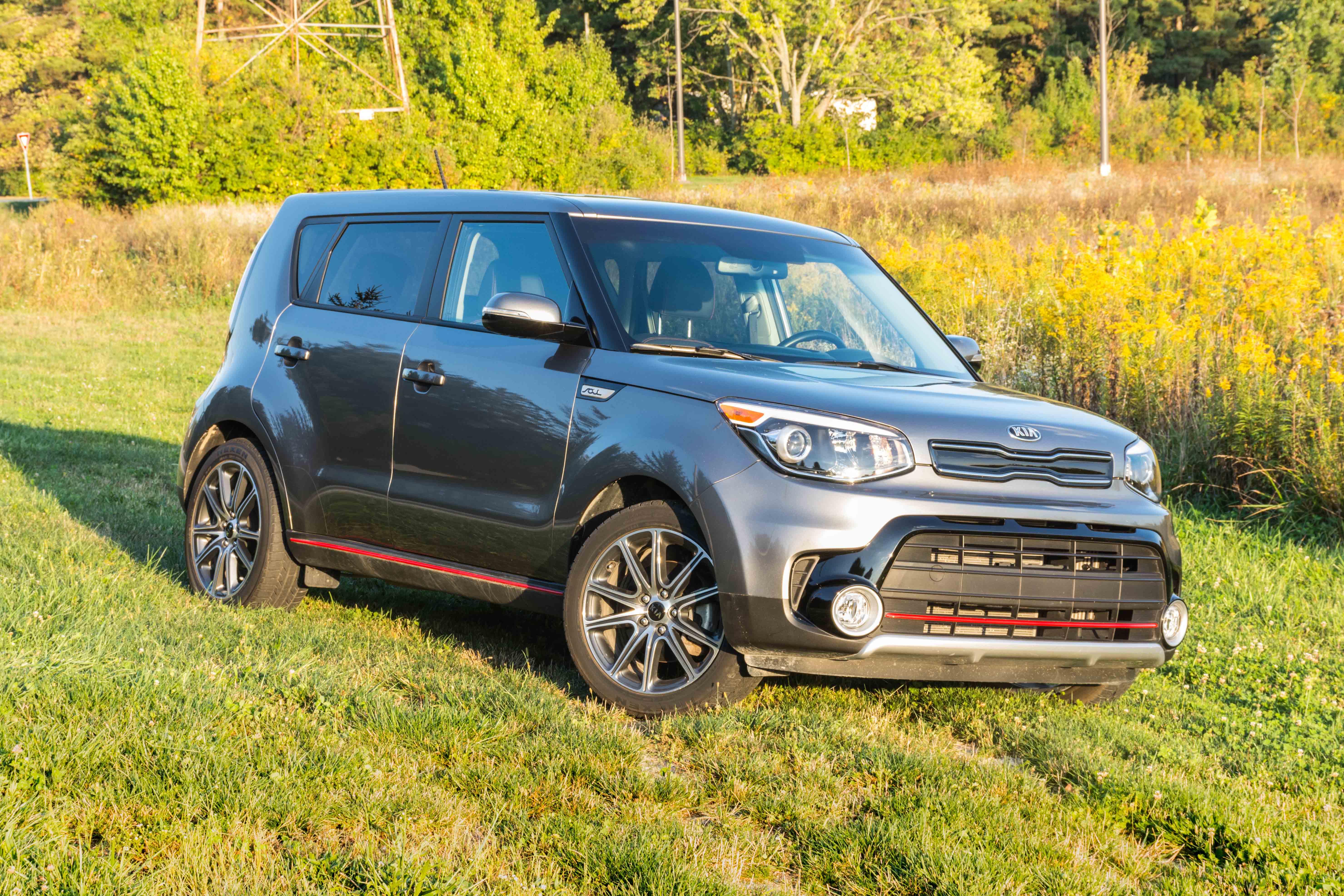

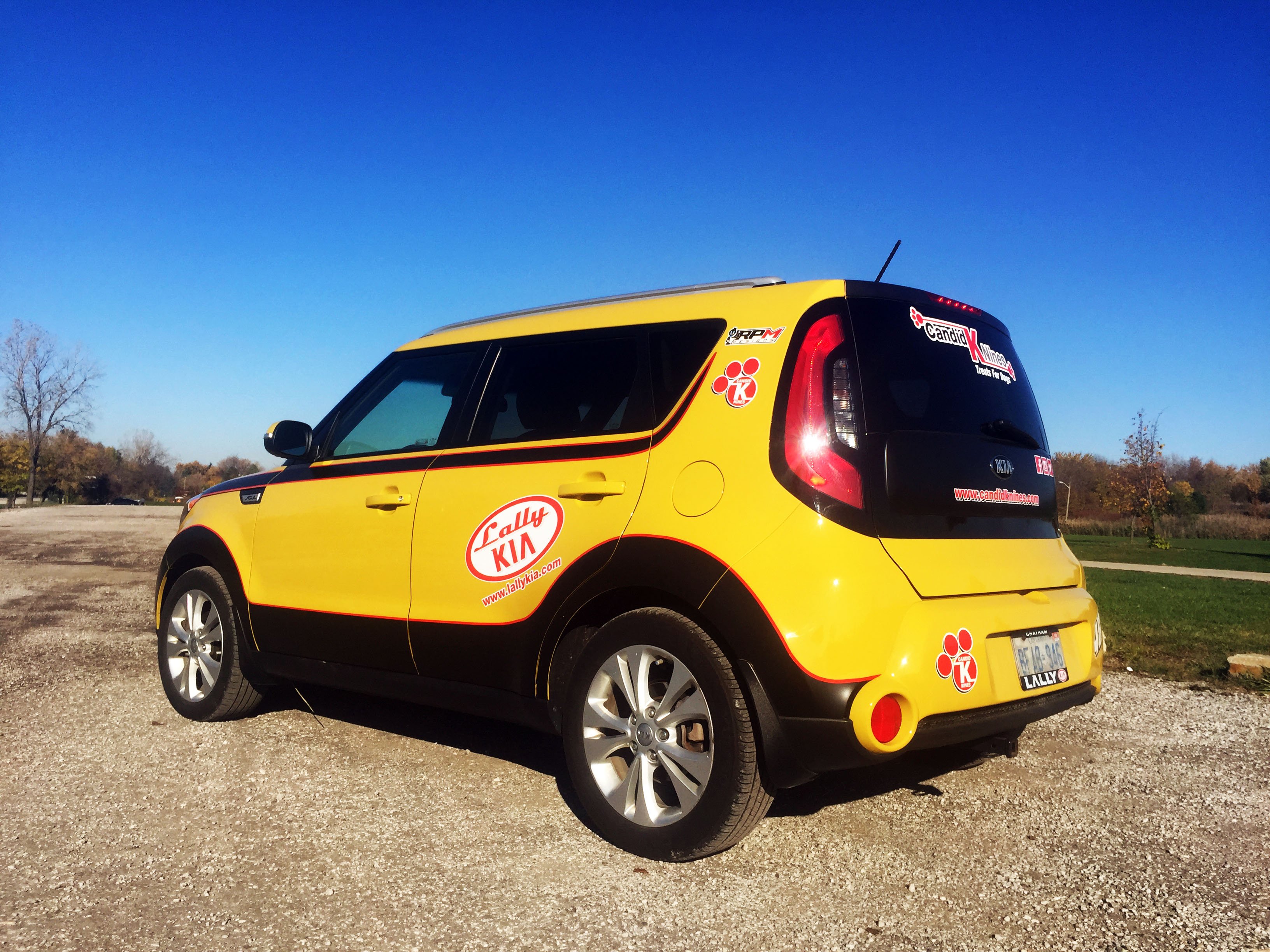

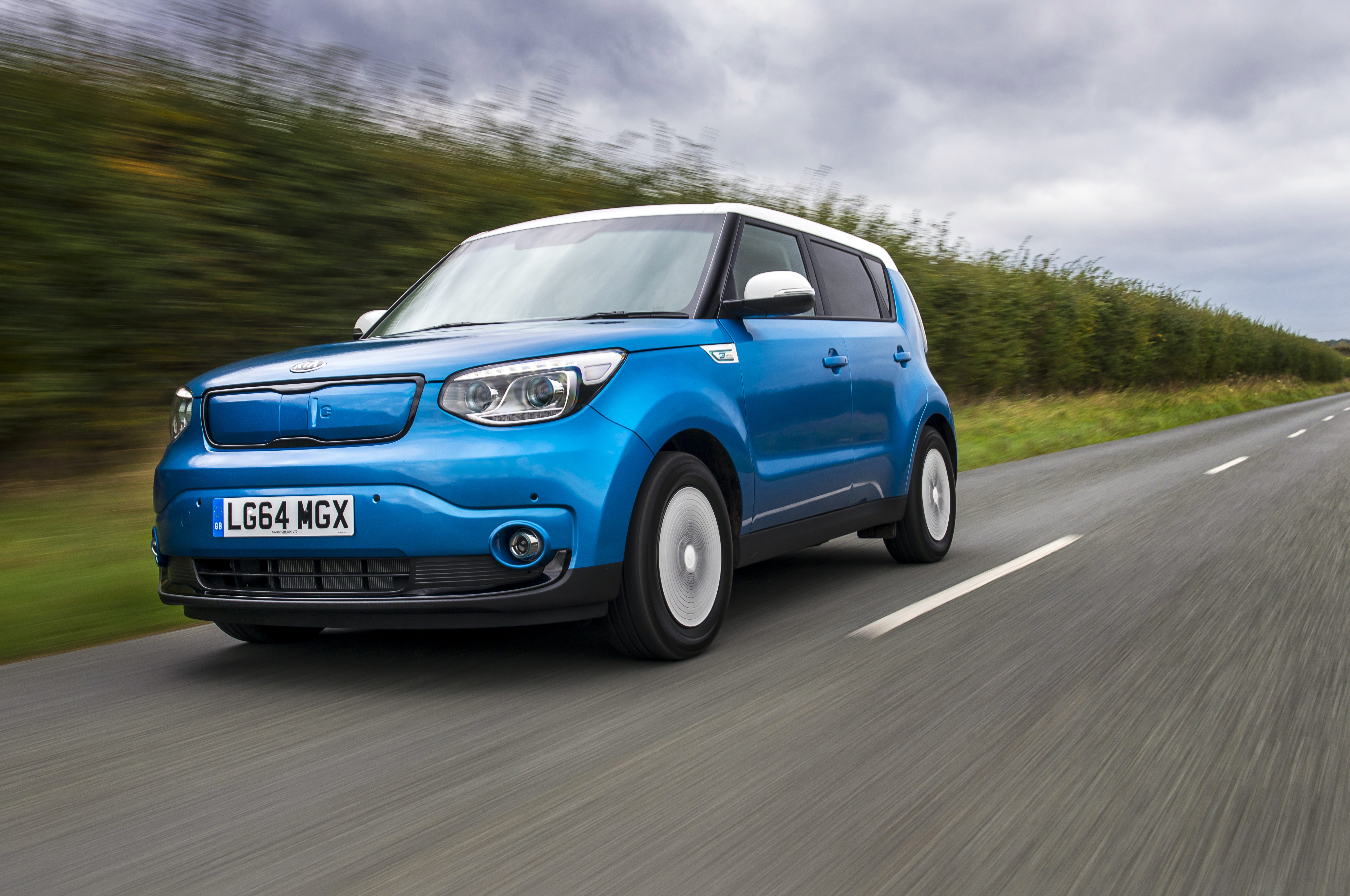

Photo KIA Soul

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.6 AT 1.6d AT 1.6 MPi (123 hp) 6-auto H-matic 1.6 GDI (132 h.p.) 6-speed manual 1.6 T-GDi (204 hp) 7-DCT 1.6 CRDi (136 h.p.) 6-speed manual 1.6 CRDI (136 hp) 7-DCT

1.6 AT 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1591
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	123
Torque, Nm	155
RPM at max torque	4200
Engine	1.6 MPi
Compression	10.5
RPM at max power	6300

Dimensions

Seats	5
Length mm	4140
Width	1800
Height mm	1600
Wheelbase mm	2570
Front track, mm	1576
Rear track, mm	1588
Kerb weight, kg	1290
Trunk capacity, L	354
Fuel tank, l	54

Suspension

Type of front suspension	MacPherson
Rear suspension	Torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9
Fuel consumption (urban), l. 100 km	7.6
Fuel consumption (combined), l. 100 km	8.4
Acceleration (0-100 km/h), s	11
The maximum speed, km / h.	185
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Front
Transmission	6-car H-matic
Gearbox	Machine
Transmission manufacturer	Kia Motors

1.6d AT 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1582
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	136
Torque, Nm	300
RPM at max torque	1750-2500
Engine	1.6 CRDI
Compression	17.3
RPM at max power	4000
Turbo	+

Dimensions

Seats	5
Length mm	4140
Width	1800
Height mm	1600
Wheelbase mm	2570
Front track, mm	1576
Rear track, mm	1588
Kerb weight, kg	1425
Trunk capacity, L	354
Fuel tank, l	54

Suspension

Type of front suspension	MacPherson
Rear suspension	Torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.3
Fuel consumption (urban), l. 100 km	6.8
Fuel consumption (combined), l. 100 km	6.6
Acceleration (0-100 km/h), s	12.2
The maximum speed, km / h.	182
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7-speed dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Hyundai-KIA
Transmission country of origin	South Korea

1.6 MPi (123 hp) 6-auto H-matic 33 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1591
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	123
Torque, Nm	155
RPM at max torque	4200
Engine	1.6 MPi
Compression	10.5
RPM at max power	6300

Dimensions

Seats	5
Length mm	4140
Width	1800
Height mm	1600
Wheelbase mm	2570
Front track, mm	1576
Rear track, mm	1588
Trunk capacity, L	354
Fuel tank, l	54

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9
Fuel consumption (urban), l. 100 km	7.6
Fuel consumption (combined), l. 100 km	8.4
Acceleration (0-100 km/h), s	11
The maximum speed, km / h.	185
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Front
Transmission	6-car H-matic
Gearbox	Machine
Transmission manufacturer	Kia Motors

1.6 GDI (132 h.p.) 6-speed manual 31 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1591
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	132
Torque, Nm	161
RPM at max torque	4850
Engine	1.6 GDI
RPM at max power	6300

Dimensions

Seats	5
Length mm	4140
Width	1800
Height mm	1600
Wheelbase mm	2570
Front track, mm	1576
Rear track, mm	1588
Trunk capacity, L	354
Fuel tank, l	54

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.6
Fuel consumption (urban), l. 100 km	5.6
Fuel consumption (combined), l. 100 km	6.7
Acceleration (0-100 km/h), s	11
The maximum speed, km / h.	185
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Kia Motors

1.6 T-GDi (204 hp) 7-DCT 35 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1591
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	204
Torque, Nm	265
RPM at max torque	1500-4500
Engine	1.6 T-GDi
RPM at max power	6000
Turbo	+
Engine code	G4FJ

Dimensions

Seats	5
Length mm	4140
Width	1800
Height mm	1600
Wheelbase mm	2570
Front track, mm	1576
Rear track, mm	1588
Trunk capacity, L	354
Fuel tank, l	54

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.7
Fuel consumption (urban), l. 100 km	5.8
Fuel consumption (combined), l. 100 km	6.9
Acceleration (0-100 km/h), s	7.8
The maximum speed, km / h.	196
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7-speed dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Hyundai-KIA
Transmission country of origin	South Korea

1.6 CRDi (136 h.p.) 6-speed manual 33 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1582
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	136
Torque, Nm	260
RPM at max torque	1500-3000
Engine	1.6 CRDi
RPM at max power	4000
Turbo	+
Engine code	D4FB

Dimensions

Seats	5
Length mm	4140
Width	1800
Height mm	1600
Wheelbase mm	2570
Front track, mm	1576
Rear track, mm	1588
Trunk capacity, L	354
Fuel tank, l	54

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.7
Fuel consumption (urban), l. 100 km	4.3
Fuel consumption (combined), l. 100 km	4.8
Acceleration (0-100 km/h), s	11.2
The maximum speed, km / h.	180
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Kia Motors

1.6 CRDI (136 hp) 7-DCT 35 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1582
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	136
Torque, Nm	300
RPM at max torque	1750-2500
Engine	1.6 CRDI
Compression	17.3
RPM at max power	4000
Turbo	+

Dimensions

Seats	5
Length mm	4140
Width	1800
Height mm	1600
Wheelbase mm	2570
Front track, mm	1576
Rear track, mm	1588
Trunk capacity, L	354
Fuel tank, l	54

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.3
Fuel consumption (urban), l. 100 km	6.8
Fuel consumption (combined), l. 100 km	6.6
Acceleration (0-100 km/h), s	12.2
The maximum speed, km / h.	182
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7-speed dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Hyundai-KIA
Transmission country of origin	South Korea

FAQ

KIA Soul questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the KIA Soul?

This page lists 7 trims for the KIA Soul, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the KIA Soul?

The listed configurations show a power range of 123-204 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the KIA Soul?

The available specification data shows engine displacement from 1582-1591 cc across the trims listed on this page.

Which transmissions are listed for the KIA Soul?

The transmission options currently shown for this model are: 6, 7, 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the KIA Soul?

Yes. The gallery includes 38 photos for the KIA Soul, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
