KIA Rio Hatchback specifications and photos

KIA Rio Hatchback specifications are shown with trim options, key technical data, and a model photo gallery. Compare 11 configurations by engine size, power, seating, and transmission. The gallery includes 15 photos for visual reference.

Years 2017

Body type hatchback

Trims 11

Photos 15

Overview

KIA Rio Hatchback at a glance

Quick model context before comparing photos and trim-level specifications.

Use this KIA Rio Hatchback page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 77-120 hp and 998-1396 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 77-120 hp
Engine displacement: 998-1396 cc
Transmissions: 5, 4, 5-speed manual
Seating: 5 seats

Research hub

Photos, trims and specifications for KIA Rio Hatchback

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 15 images Compare trims 11 configurations View detailed specs 998-1396 cc Explore related pages KIA and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 77-120 hp

Engine displacement 998-1396 cc

Seating 5 seats

Transmissions 5, 4, 5-speed manual

Trim / modification	Engine	Power	Seats	Transmission
1.2 MT Comfort	1248 cc	84 hp	5	5
1.4 AT Business	1368 cc	100 hp	5	4
1.4 AT Prestige	1368 cc	100 hp	5	4
1.2 MPi (84 hp) 5-MPP	1248 cc	84 hp	5	5
1.0 T-GDI (100 HP) 5-speed manual	998 cc	100 hp	5	5-speed manual
1.4 MPi (100 hp) 6-MPP	1368 cc	100 hp	5	6
1.4 MPi (100 hp) 4-speed automatic	1368 cc	100 hp	5	4-speed automatic
1.0 T-GDI (120 h.p.) 6-speed manual	998 cc	120 hp	5	6-speed manual
1.0 T-GDI (120 hp) 7-DCT	998 cc	120 hp	5	7
1.4 CRDi (77 hp) 6-speed manual	1396 cc	77 hp	5	6-speed manual
1.4 CRDI (90 hp) 6-speed manual	1396 cc	90 hp	5	6-speed manual

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

KIA Rio Hatchback photo gallery

15 images are collected here with the main specifications and trim data for this model.

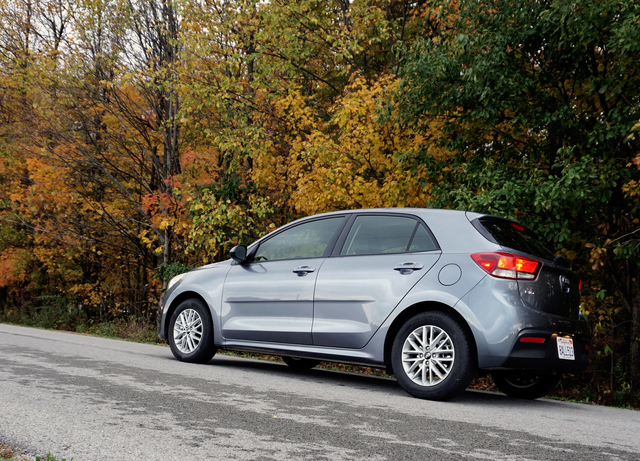

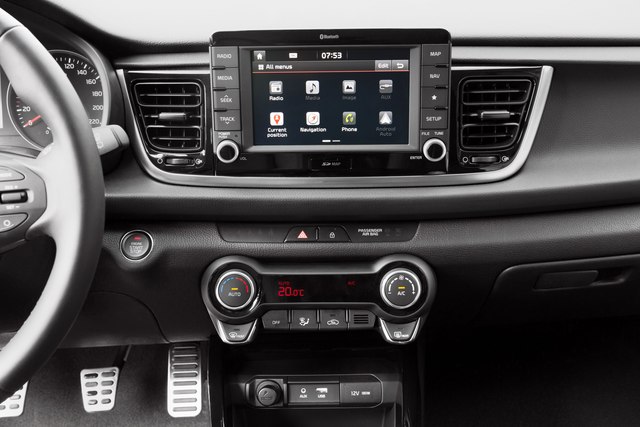

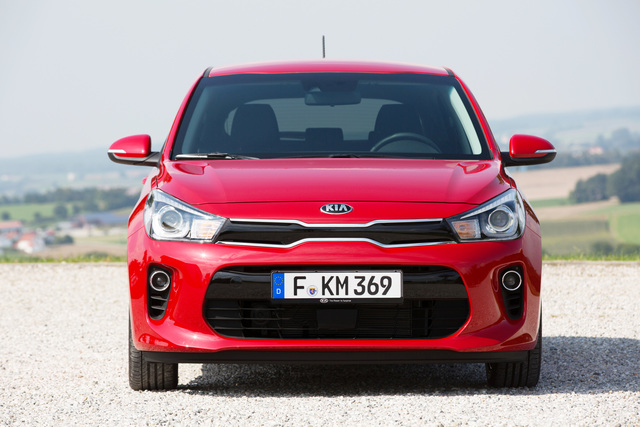

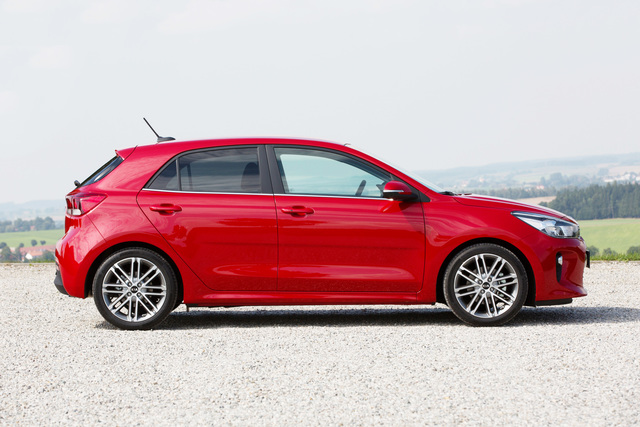

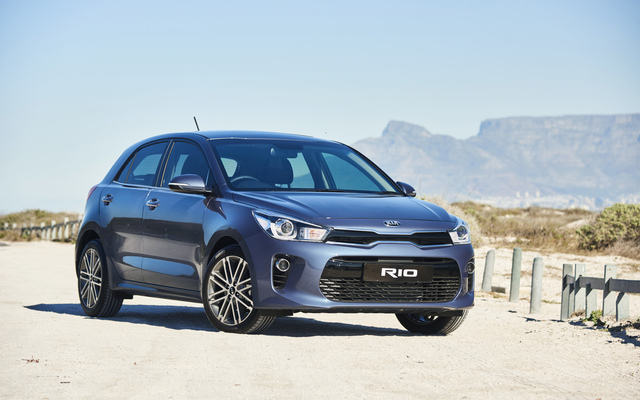

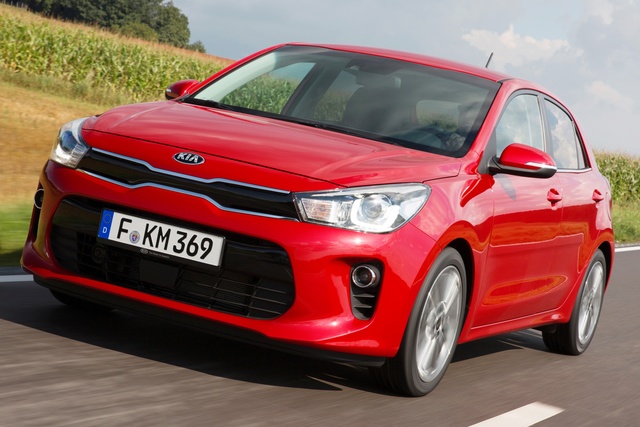

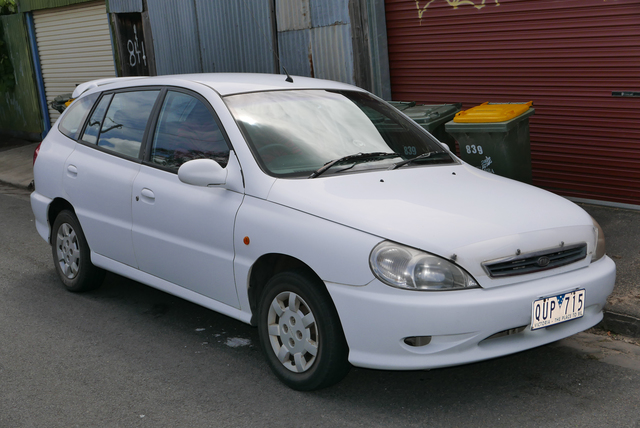

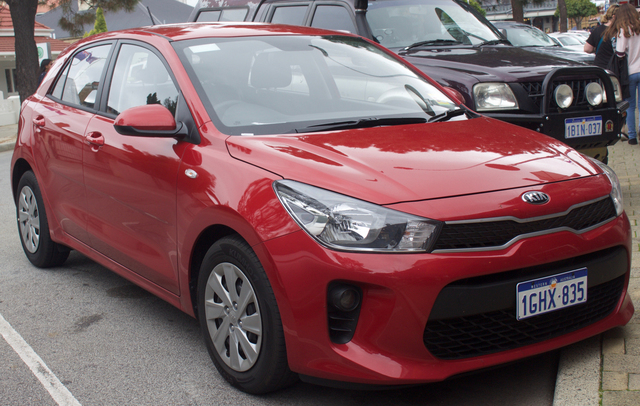

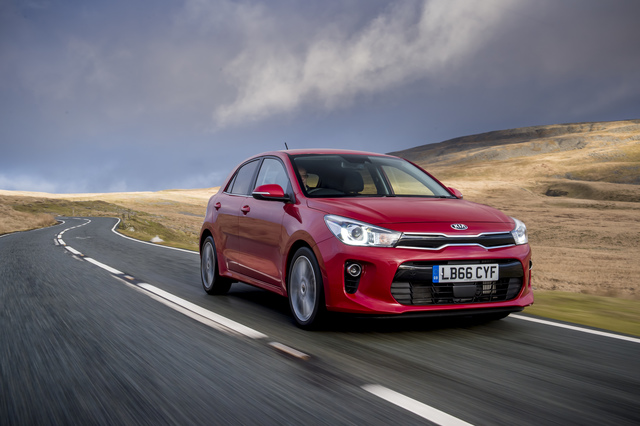

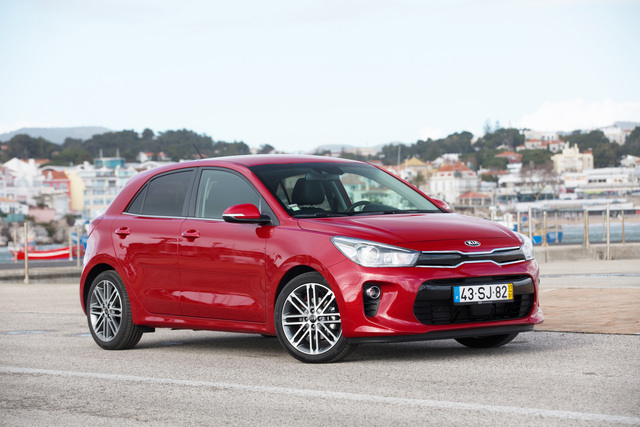

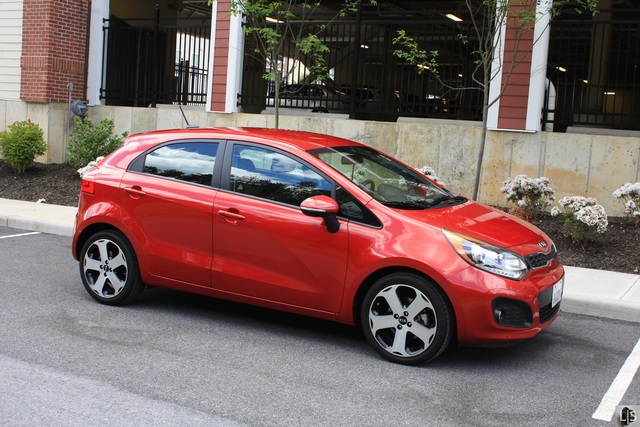

Photo KIA Rio Hatchback

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.2 MT Comfort 1.4 AT Business 1.4 AT Prestige 1.2 MPi (84 hp) 5-MPP 1.0 T-GDI (100 HP) 5-speed manual 1.4 MPi (100 hp) 6-MPP 1.4 MPi (100 hp) 4-speed automatic 1.0 T-GDI (120 h.p.) 6-speed manual 1.0 T-GDI (120 hp) 7-DCT 1.4 CRDi (77 hp) 6-speed manual 1.4 CRDI (90 hp) 6-speed manual

1.2 MT Comfort 78 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1248
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	84
Torque, Nm	122
RPM at max torque	4000
Engine	1.2 MPi
Compression	10.5
RPM at max power	6000
Engine code	G4LA

Dimensions

Seats	5
Length mm	4065
Width	1993
Height mm	1450
Wheelbase mm	2580
Front track, mm	1512
Rear track, mm	1518
Fuel tank, l	43
Ground clearance, mm	140
Width (without mirrors) mm	1725

Brake system

The front brakes	Disk
Rear brakes	Disk

Steering

Power steering	Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.8
Acceleration (0-100 km/h), s	12.9
The maximum speed, km / h.	173

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai-KIA
Transmission country of origin	South Korea

Equipment

Comfort

Tyre pressure monitoring	+
Adjustable steering column	+

Interior

On-board computer	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	15
Rim type	Steel
Tires	185/65R15
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
Heated steering wheel	+
Air Conditioning	+

Glass, mirrors and sunroof

Front power windows	+
Heated side mirrors	+
Heated rear window	+
Power mirrors	+
Rear electric windows	+
Tinted glass	+
AERO-windshield wipers	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
AUX	+
USB	+
Number of speakers	4

Headlights and lighting

Front fog lights	+
Rear fog lights	+

Seats

height-adjustable driver's seat	+
The back of the rear seat folds 60/40	+

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA)	+

Exterior

Rear spoiler	+
Stoplight on the spoiler	+
Fenders	+

Body and exterior paint

Door handles in body color	+
Exterior mirrors in body color	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

1.4 AT Business 81 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1368
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	100
Torque, Nm	134
RPM at max torque	4000
Engine	1.4 MPi
RPM at max power	6000
Engine code	G4LC

Dimensions

Seats	5
Length mm	4065
Width	1993
Height mm	1450
Wheelbase mm	2580
Front track, mm	1512
Rear track, mm	1518
Fuel tank, l	43
Ground clearance, mm	140
Width (without mirrors) mm	1725

Brake system

The front brakes	Disk
Rear brakes	Disk

Steering

Power steering	Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.2
Fuel consumption (urban), l. 100 km	4.9
Fuel consumption (combined), l. 100 km	6.1
Acceleration (0-100 km/h), s	13.9
The maximum speed, km / h.	166

Transmission and drive

Automatic transmission	+
Number of gears	4
Drive	Front
Transmission	4-speed automatic
Gearbox	Machine
Transmission manufacturer	Hyundai-KIA
Transmission country of origin	South Korea

Equipment

Comfort

Cruise Control	+
Tyre pressure monitoring	+
Adjustable steering column	+

Interior

On-board computer	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	15
Rim type	Steel
Tires	185/65R15
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
Heated steering wheel	+
Climate control	+

Glass, mirrors and sunroof

Front power windows	+
The rain sensor	+
Heated side mirrors	+
Heated rear window	+
Power mirrors	+
Rear electric windows	+
Tinted glass	+
AERO-windshield wipers	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	6

Headlights and lighting

Front fog lights	+
LED lights daylight	+

Seats

height-adjustable driver's seat	+
The back of the rear seat folds 60/40	+

Visibility and parking

Rear Parking Sensors	+

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA)	+

Exterior

Rear spoiler	+
Stoplight on the spoiler	+
Fenders	+

Body and exterior paint

Exterior mirrors in body color	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

1.4 AT Prestige 86 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1368
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	100
Torque, Nm	134
RPM at max torque	4000
Engine	1.4 MPi
RPM at max power	6000
Engine code	G4LC

Dimensions

Seats	5
Length mm	4065
Width	1993
Height mm	1450
Wheelbase mm	2580
Front track, mm	1512
Rear track, mm	1518
Fuel tank, l	43
Ground clearance, mm	140
Width (without mirrors) mm	1725

Brake system

The front brakes	Disk
Rear brakes	Disk

Steering

Power steering	Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.2
Fuel consumption (urban), l. 100 km	4.9
Fuel consumption (combined), l. 100 km	6.1
Acceleration (0-100 km/h), s	13.9
The maximum speed, km / h.	166

Transmission and drive

Automatic transmission	+
Number of gears	4
Drive	Front
Transmission	4-speed automatic
Gearbox	Machine
Transmission manufacturer	Hyundai-KIA
Transmission country of origin	South Korea

Equipment

Comfort

Cruise Control	+
Tyre pressure monitoring	+
Adjustable steering column	+

Interior

On-board computer	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Aluminum pedals	+

Wheels

Disc diameter	16
Rim type	Alloy
Tires	195/55R16
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
Heated steering wheel	+
Climate control	+

Glass, mirrors and sunroof

Front power windows	+
The rain sensor	+
Heated side mirrors	+
Heated rear window	+
Power mirrors	+
Rear electric windows	+
Electric folding mirrors	+
Tinted glass	+
AERO-windshield wipers	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
Touch Screen	+
AUX	+
Bluetooth hands free	+
USB	+
Number of speakers	6

Headlights and lighting

Front fog lights	+
LED lights daylight	+

Seats

height-adjustable driver's seat	+
The back of the rear seat folds 60/40	+

Visibility and parking

Rear View Camera	+
Rear Parking Sensors	+

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA)	+

Exterior

Rear spoiler	+
Stoplight on the spoiler	+
Fenders	+

Body and exterior paint

Exterior mirrors in body color	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+

Anti-theft systems

alarm	+
Central locking with remote control	+
The electronic key (Smart key)	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+

1.2 MPi (84 hp) 5-MPP 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1248
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	84
Torque, Nm	122
RPM at max torque	4000
Engine	1.2 MPi
Compression	10.5
RPM at max power	6000
Engine code	G4LA

Dimensions

Seats	5
Length mm	4065
Width	1990
Height mm	1460
Wheelbase mm	2580
Front track, mm	1518
Rear track, mm	1524
Kerb weight, kg	1110
Trunk capacity, L	325
Fuel tank, l	43
Turning circle, m	10.2
Ground clearance, mm	140
Gross weight, kg	1560
Width (without mirrors) mm	1725

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.8
Acceleration (0-100 km/h), s	12.9
The maximum speed, km / h.	173

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai-KIA
Transmission country of origin	South Korea

1.0 T-GDI (100 HP) 5-speed manual 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	998
Cylinders location	In-line
Number of cylinders	3
Valves	12
Power, hp	100
Torque, Nm	172
RPM at max torque	1500-4000
Engine	1.0 T-GDI
Compression	10.0
RPM at max power	4500
Turbo	+
Engine code	G3LC

Dimensions

Seats	5
Length mm	4065
Width	1990
Height mm	1460
Wheelbase mm	2580
Front track, mm	1518
Rear track, mm	1524
Kerb weight, kg	1110
Trunk capacity, L	325
Fuel tank, l	43
Turning circle, m	10.2
Ground clearance, mm	140
Gross weight, kg	1560
Width (without mirrors) mm	1725

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.2
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.5
Acceleration (0-100 km/h), s	10.7
The maximum speed, km / h.	186

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai-KIA
Transmission country of origin	South Korea

1.4 MPi (100 hp) 6-MPP 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1368
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	100
Torque, Nm	134
RPM at max torque	4000
Engine	1.4 MPi
RPM at max power	6000
Engine code	G4LC

Dimensions

Seats	5
Length mm	4065
Width	1990
Height mm	1460
Wheelbase mm	2580
Front track, mm	1518
Rear track, mm	1524
Kerb weight, kg	1110
Trunk capacity, L	325
Fuel tank, l	43
Turning circle, m	10.2
Ground clearance, mm	140
Gross weight, kg	1560
Width (without mirrors) mm	1725

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.3
Fuel consumption (urban), l. 100 km	4.3
Fuel consumption (combined), l. 100 km	5
Acceleration (0-100 km/h), s	12.2
The maximum speed, km / h.	175

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	South Korea

1.4 MPi (100 hp) 4-speed automatic 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1368
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	100
Torque, Nm	134
RPM at max torque	4000
Engine	1.4 MPi
RPM at max power	6000
Engine code	G4LC

Dimensions

Seats	5
Length mm	4065
Width	1990
Height mm	1460
Wheelbase mm	2580
Front track, mm	1518
Rear track, mm	1524
Kerb weight, kg	1110
Trunk capacity, L	325
Fuel tank, l	43
Turning circle, m	10.2
Ground clearance, mm	140
Gross weight, kg	1560
Width (without mirrors) mm	1725

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.2
Fuel consumption (urban), l. 100 km	4.9
Fuel consumption (combined), l. 100 km	6.1
Acceleration (0-100 km/h), s	13.9
The maximum speed, km / h.	166

Transmission and drive

Automatic transmission	+
Number of gears	4
Drive	Front
Transmission	4-speed automatic
Gearbox	Machine
Transmission manufacturer	Hyundai-KIA
Transmission country of origin	South Korea

1.0 T-GDI (120 h.p.) 6-speed manual 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	998
Cylinders location	In-line
Number of cylinders	3
Valves	12
Power, hp	120
Torque, Nm	172
RPM at max torque	1500-4000
Engine	1.0 T-GDI
Compression	10.0
RPM at max power	6000
Turbo	+
Engine code	G3LC

Dimensions

Seats	5
Length mm	4065
Width	1990
Height mm	1460
Wheelbase mm	2580
Front track, mm	1518
Rear track, mm	1524
Kerb weight, kg	1110
Trunk capacity, L	325
Fuel tank, l	43
Turning circle, m	10.2
Ground clearance, mm	140
Gross weight, kg	1560
Width (without mirrors) mm	1725

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.6
Fuel consumption (urban), l. 100 km	4.2
Fuel consumption (combined), l. 100 km	4.7
Acceleration (0-100 km/h), s	10.2
The maximum speed, km / h.	190

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	South Korea

1.0 T-GDI (120 hp) 7-DCT 41 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	998
Cylinders location	In-line
Number of cylinders	3
Valves	12
Power, hp	120
Torque, Nm	172
RPM at max torque	1500-4000
Engine	1.0 T-GDI
Compression	10.0
RPM at max power	6000
Turbo	+
Engine code	G3LC

Dimensions

Seats	5
Length mm	4065
Width	1990
Height mm	1460
Wheelbase mm	2580
Front track, mm	1518
Rear track, mm	1524
Kerb weight, kg	1110
Trunk capacity, L	325
Fuel tank, l	43
Turning circle, m	10.2
Ground clearance, mm	140
Gross weight, kg	1560
Width (without mirrors) mm	1725

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6
Fuel consumption (urban), l. 100 km	5
Fuel consumption (combined), l. 100 km	5.4
Acceleration (0-100 km/h), s	10.5
The maximum speed, km / h.	190
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7-speed dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Hyundai-KIA
Transmission country of origin	South Korea

1.4 CRDi (77 hp) 6-speed manual 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1396
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	77
Torque, Nm	240
RPM at max torque	1500-2000
Engine	1.4 CRDi
Compression	16,0
RPM at max power	4000
Turbo	+
Engine code	D4FC

Dimensions

Seats	5
Length mm	4065
Width	1990
Height mm	1460
Wheelbase mm	2580
Front track, mm	1518
Rear track, mm	1524
Kerb weight, kg	1110
Trunk capacity, L	325
Fuel tank, l	43
Turning circle, m	10.2
Ground clearance, mm	140
Gross weight, kg	1560
Width (without mirrors) mm	1725

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.2
Fuel consumption (urban), l. 100 km	3.1
Fuel consumption (combined), l. 100 km	3.5
Acceleration (0-100 km/h), s	14
The maximum speed, km / h.	165

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	South Korea

1.4 CRDI (90 hp) 6-speed manual 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1396
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	90
Torque, Nm	240
RPM at max torque	1500-2500
Engine	1.4 CRDI
Compression	17.0
RPM at max power	4000
Turbo	+
Engine code	D4FC

Dimensions

Seats	5
Length mm	4065
Width	1990
Height mm	1460
Wheelbase mm	2580
Front track, mm	1518
Rear track, mm	1524
Kerb weight, kg	1110
Trunk capacity, L	325
Fuel tank, l	43
Turning circle, m	10.2
Ground clearance, mm	140
Gross weight, kg	1560
Width (without mirrors) mm	1725

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.3
Fuel consumption (urban), l. 100 km	3.4
Fuel consumption (combined), l. 100 km	3.8
Acceleration (0-100 km/h), s	12
The maximum speed, km / h.	175

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	South Korea

FAQ

KIA Rio Hatchback questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the KIA Rio Hatchback?

This page lists 11 trims for the KIA Rio Hatchback, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the KIA Rio Hatchback?

The listed configurations show a power range of 77-120 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the KIA Rio Hatchback?

The available specification data shows engine displacement from 998-1396 cc across the trims listed on this page.

Which transmissions are listed for the KIA Rio Hatchback?

The transmission options currently shown for this model are: 5, 4, 5-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the KIA Rio Hatchback?

Yes. The gallery includes 15 photos for the KIA Rio Hatchback, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
