Lexus ES 300h specifications and photos
Lexus ES 300h specifications are shown with trim options, key technical data, and a model photo gallery. Compare 1 configurations by engine size, power, seating, and transmission. The gallery includes 37 photos for visual reference.
Lexus ES 300h at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Lexus ES 300h page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 218 hp and 2487 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 218 hp
- Engine displacement: 2487 cc
- Seating: 5 seats
Photos, trims and specifications for Lexus ES 300h
This model page brings gallery images, trim comparison, and detailed technical data together for the 2018 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| ES 300h | 2487 cc | 218 hp | 5 | - |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Lexus ES 300h photo gallery
37 images are collected here with the main specifications and trim data for this model.

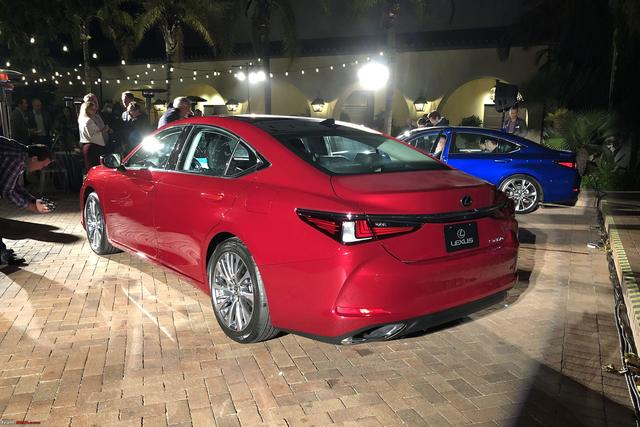

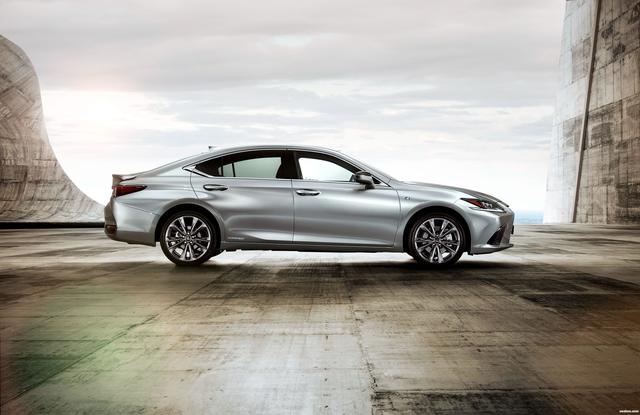

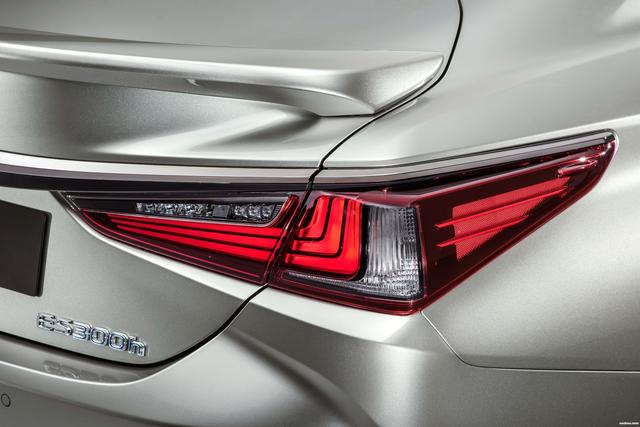

Photo Lexus ES 300h
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
ES 300h 33 specifications
Specifications
Engine
| Type of engine | Hybrid |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 2487 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 218 |
| Engine | 2.5h |
| Power electric motor HP | 120 |
| the motor torque Nm | 202 |
| Engine power, hp | 178 |
| Revolutions max. Engine power, vol. / min. | 5700 |
| the engine torque, Nm | 221 |
| Revolutions max. engine torque, vol. / min. | 3600-5200 |
| Engine code | A25A-FXS |
| EV-mode | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4975 |
| Width | 2117 |
| Height mm | 1445 |
| Wheelbase mm | 2870 |
| Front track, mm | 1590 |
| Rear track, mm | 1600 |
| Fuel tank, l | 50 |
| Width (without mirrors) mm | 1865 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 5.4 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.2 |
| Fuel consumption (combined), l. 100 km | 5.3 |
| Acceleration (0-100 km/h), s | 8.1 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Drive | Front |
| Transmission | CVT |
| Gearbox | Variable speed drive |
Lexus ES 300h questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Lexus ES 300h?
This page lists 1 trim for the Lexus ES 300h, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Lexus ES 300h?
The listed configurations show a power range of 218 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Lexus ES 300h?
The available specification data shows engine displacement from 2487 cc across the trims listed on this page.
Are there photos for the Lexus ES 300h?
Yes. The gallery includes 37 photos for the Lexus ES 300h, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
