Lexus LM specifications and photos
The 2019 Lexus LM marks the brand's first entry into the luxury minivan segment. Unveiled at the Shanghai Auto Show, it offers an executive transport experience focusing on exceptional ride comfort and passenger space.
Lexus LM at a glance
Quick model context before comparing photos and trim-level specifications.
Built on the New MC platform shared with the Toyota Alphard, the first-generation Lexus LM is positioned as a flagship luxury people mover. While it shares some underlying architecture and body panels with its Toyota sibling, the LM distinguishes itself through increased overall length, measuring 5,040 mm, and a dedicated focus on premium passenger accommodations. The vehicle is engineered specifically for chauffeur-driven buyers, prioritizing a smooth ride and quiet cabin. To achieve this, engineers equipped the multi-link rear suspension with specialized high-sensitivity shock absorbers designed to filter out minor road imperfections. It is available in two distinct powertrain configurations and seating layouts, catering to both corporate VIP transport and high-end family use.
- Power: 197-300 hp
- Engine displacement: 2494-3456 cc
- Transmissions: 8-speed automatic, CVT
- Seating: 4 seats
Photos, trims and specifications for Lexus LM
This model page brings gallery images, trim comparison, and detailed technical data together for the 2019 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
Lexus LM overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

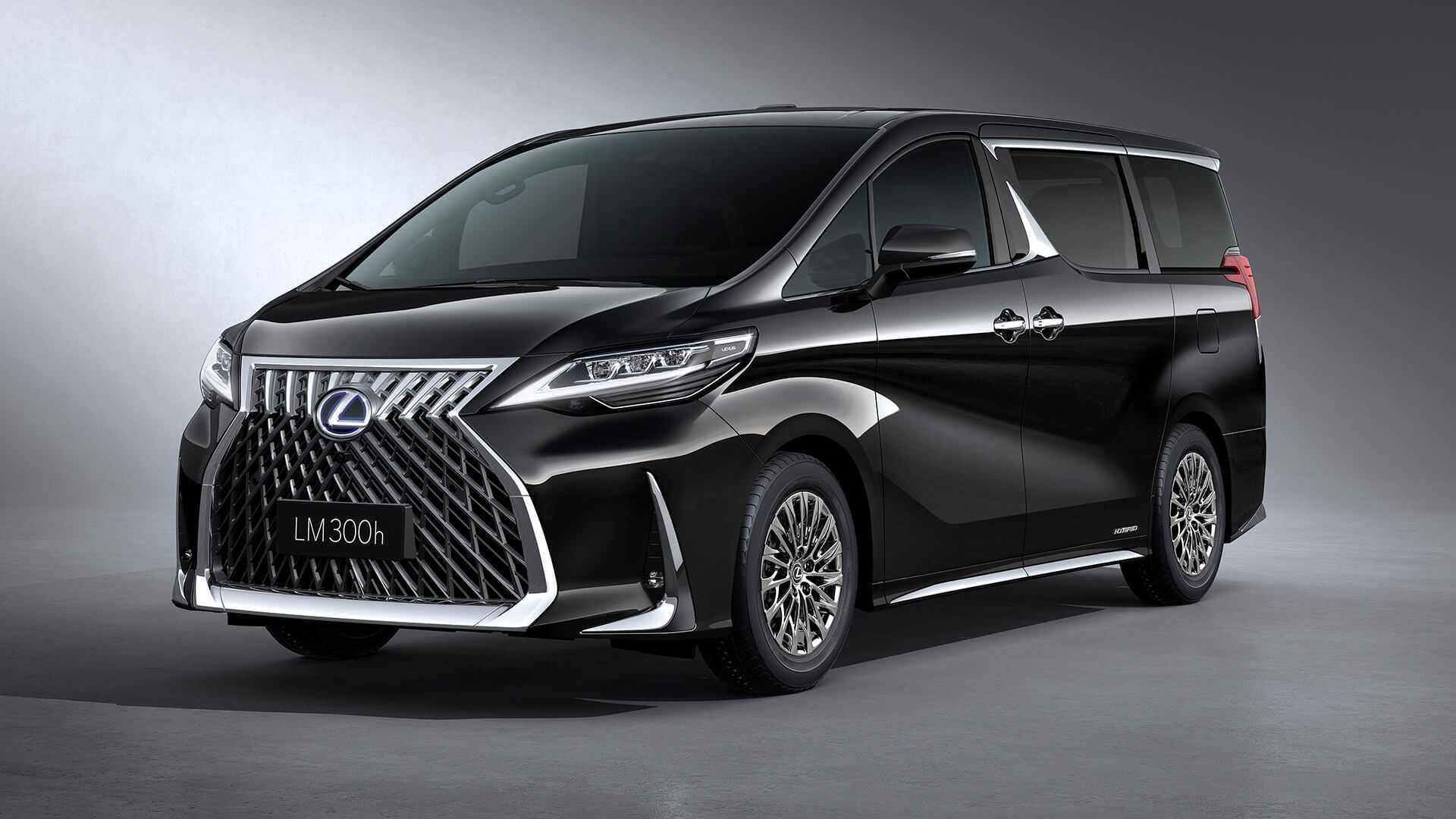

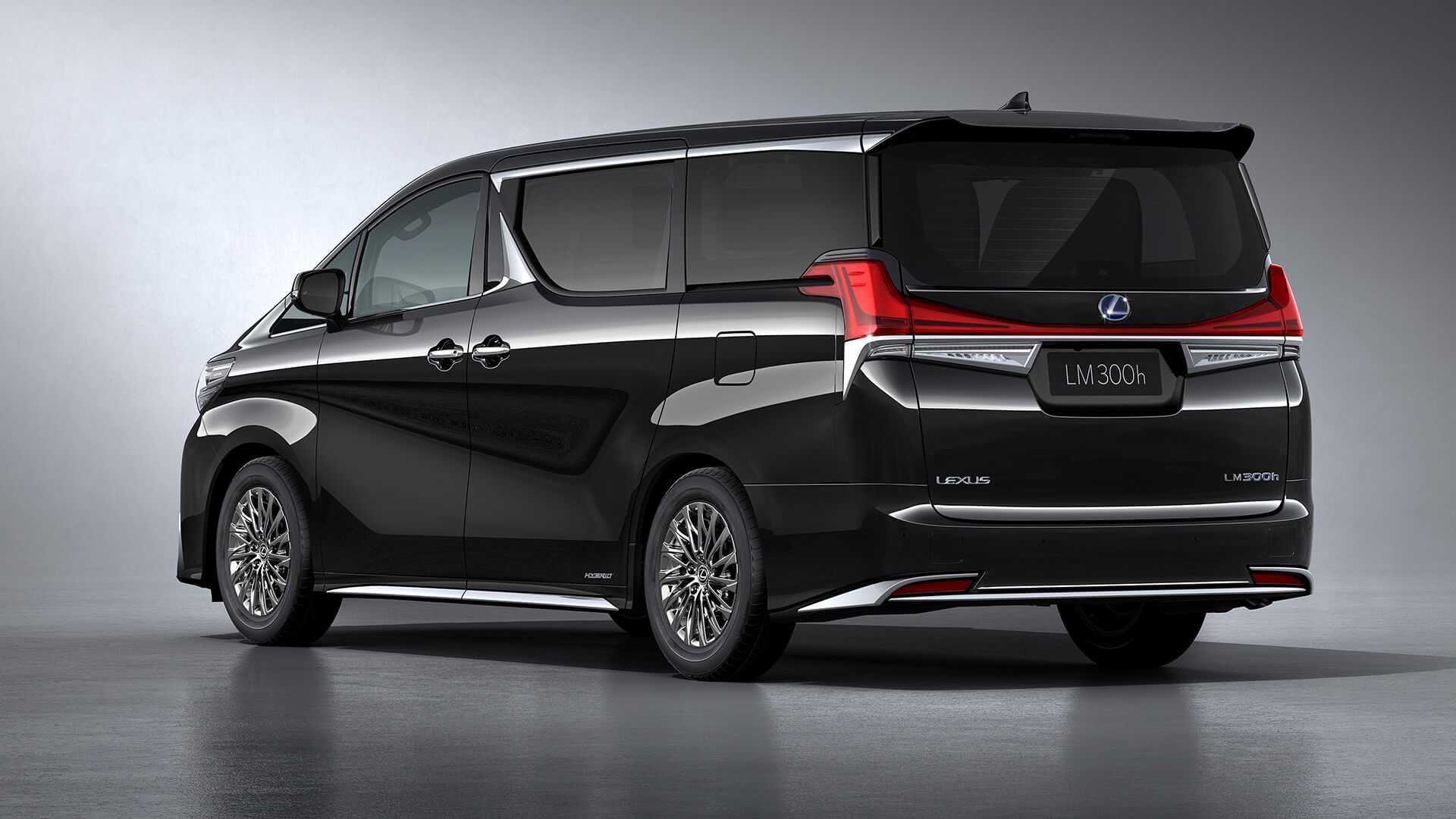

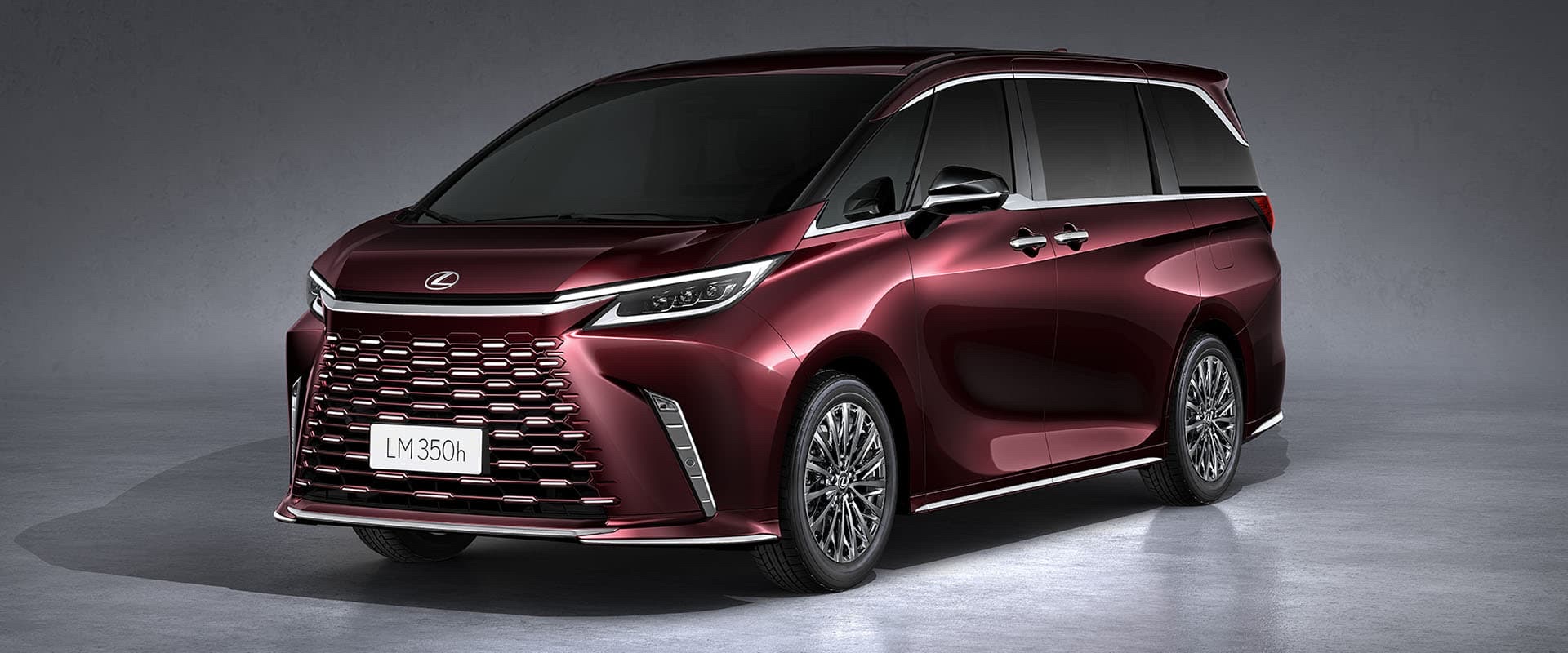

The exterior design clearly separates the LM from its corporate siblings, adopting the signature Lexus spindle grille in a massive, chrome-finished format. The front fascia features aggressive triple-LED headlights, while the rear styling is defined by a distinct full-width taillight cluster. Although the core structural silhouette remains similar to the Alphard, unique bumper treatments and detailing give the LM a more imposing presence on the road. The minivan has a commanding footprint, with a length of 5,040 mm, a width of 1,850 mm, and a 3,000 mm wheelbase, providing the necessary volume for its spacious cabin.
Interior
The cabin is where the Lexus LM truly differentiates itself, offered in both four- and seven-seat configurations. The flagship four-seat layout is designed for ultimate VIP transport, featuring a physical partition with dimmable glass separating the front and rear compartments. This rear suite includes two fully adjustable captain's chairs with heating, ventilation, massage functions, and integrated leg rests. Passengers control the environment via a central touchscreen armrest, managing the 14-liter refrigerator, panoramic roof, and a 19-speaker Mark Levinson audio system. A 26-inch display is mounted in the partition. The alternative seven-seat version includes second-row captain's chairs and a three-place third row.
Performance
Buyers can choose between a traditional V6 and a hybrid powertrain. The LM 350 model features a 3.5-liter naturally aspirated V6 engine producing 300 horsepower and 361 Nm of torque, paired with an 8-speed Aisin automatic transmission routing power to the front wheels. This setup reaches 100 km/h in 8.3 seconds. The alternative is the LM 300h, which uses a 2.5-liter four-cylinder hybrid system with two electric motors, delivering a combined 197 horsepower. The hybrid variant utilizes an e-CVT and features all-wheel drive, offering improved fuel efficiency at a claimed 6.4 liters per 100 km, with a 0-100 km/h time of 10.5 seconds.
Practicality
While traditional minivans focus on maximum passenger capacity and cargo volume, the Lexus LM prioritizes passenger comfort and space over outright utility. The four-seat model essentially sacrifices total passenger count for a limousine-like rear cabin, providing dedicated storage for items like briefcases and umbrellas. For buyers needing more conventional family capability, the seven-seat configuration offers greater flexibility. The 3,000 mm wheelbase ensures substantial legroom across the main seating rows, and the power-operated tailgate provides convenient access to the rear cargo area.
Safety and tech
Up front, the driver interfaces with a 12.3-inch display controlled via a center console touchpad, featuring Apple CarPlay and Android Auto integration. The LM is equipped with a comprehensive suite of advanced driver assistance systems. Standard safety technology includes adaptive cruise control, automatic emergency braking, blind-spot monitoring, and traffic sign recognition. The adaptive LED headlights feature automatic high-beam adjustment to prevent blinding oncoming traffic. Parking and low-speed maneuvers are aided by a 360-degree camera system, which can also project a feed to the digital rearview mirror.
Buyer notes
When comparing versions of the 2019 Lexus LM, the primary decision lies in the seating configuration and powertrain. The four-seat model is significantly more specialized, aimed directly at buyers who employ a driver, while the seven-seat version serves better as an ultra-luxury family vehicle. The V6 provides stronger acceleration, but the hybrid offers all-wheel drive and better efficiency. Note that specific equipment, such as the rear partition and 26-inch display, is tied to the four-seat specification, and availability of certain trims may vary significantly depending on the regional market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.5 Dual VVT-i (300 hp) 8-speed automatic | 3456 cc | 300 hp | 4 | 8-speed automatic |
| 2.5 Hybrid (197 hp) E-CVT 4x4 | 2494 cc | 197 hp | 4 | CVT |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

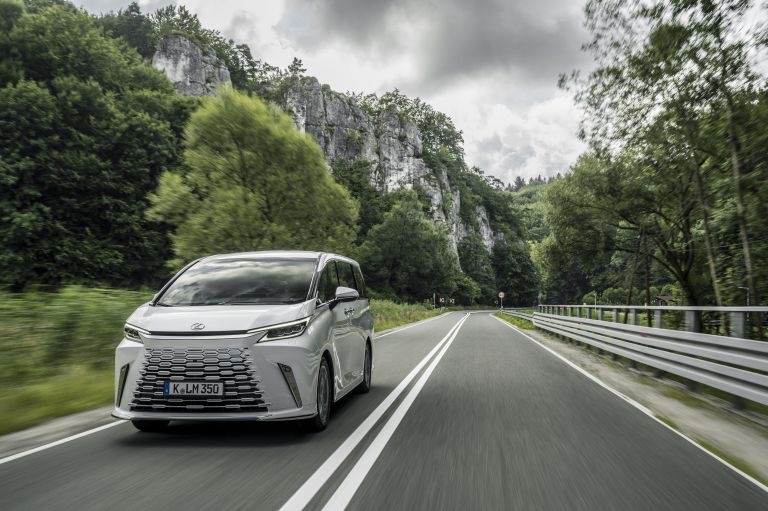

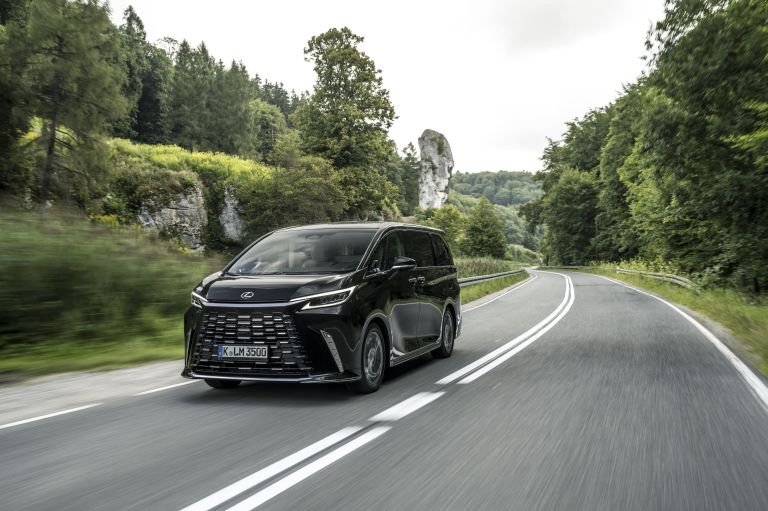

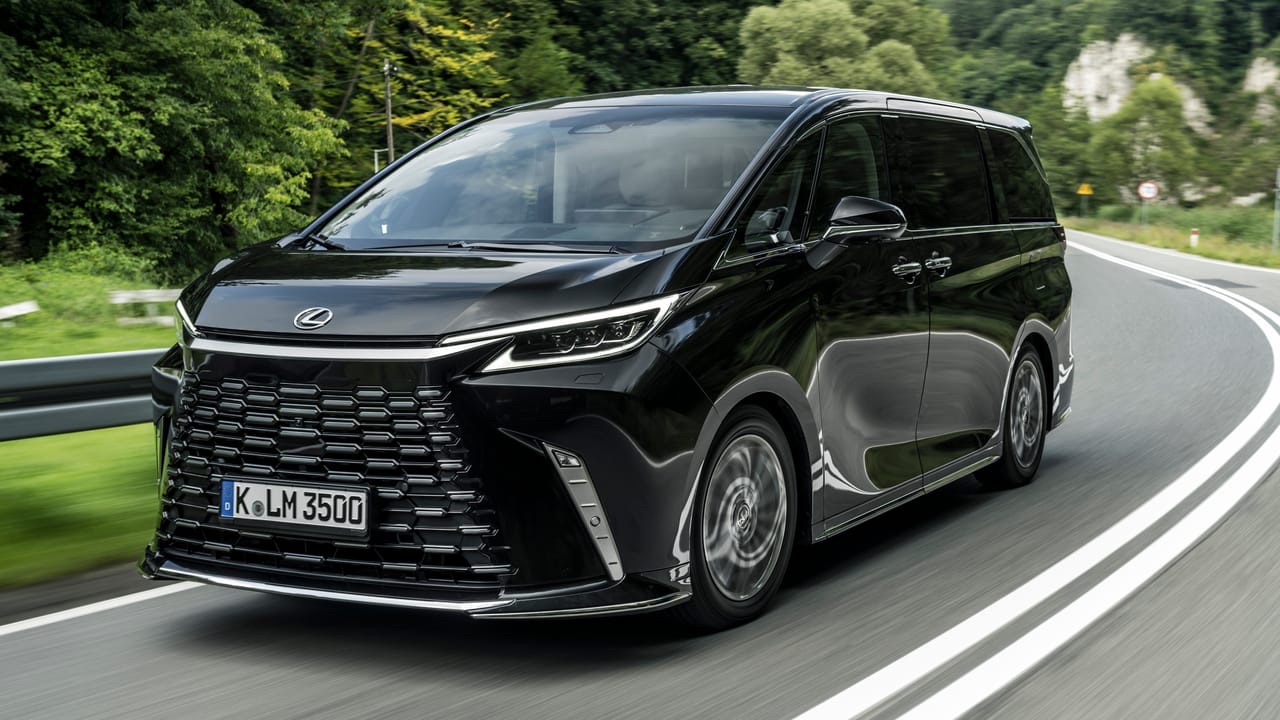

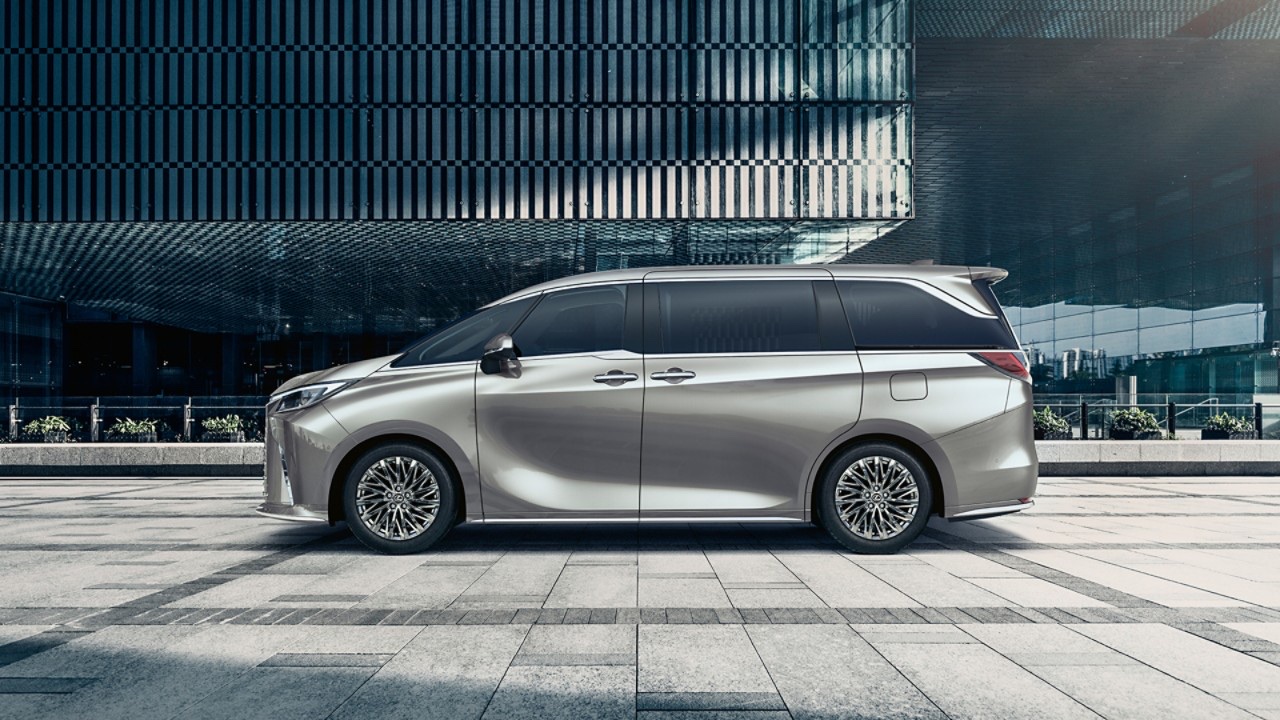

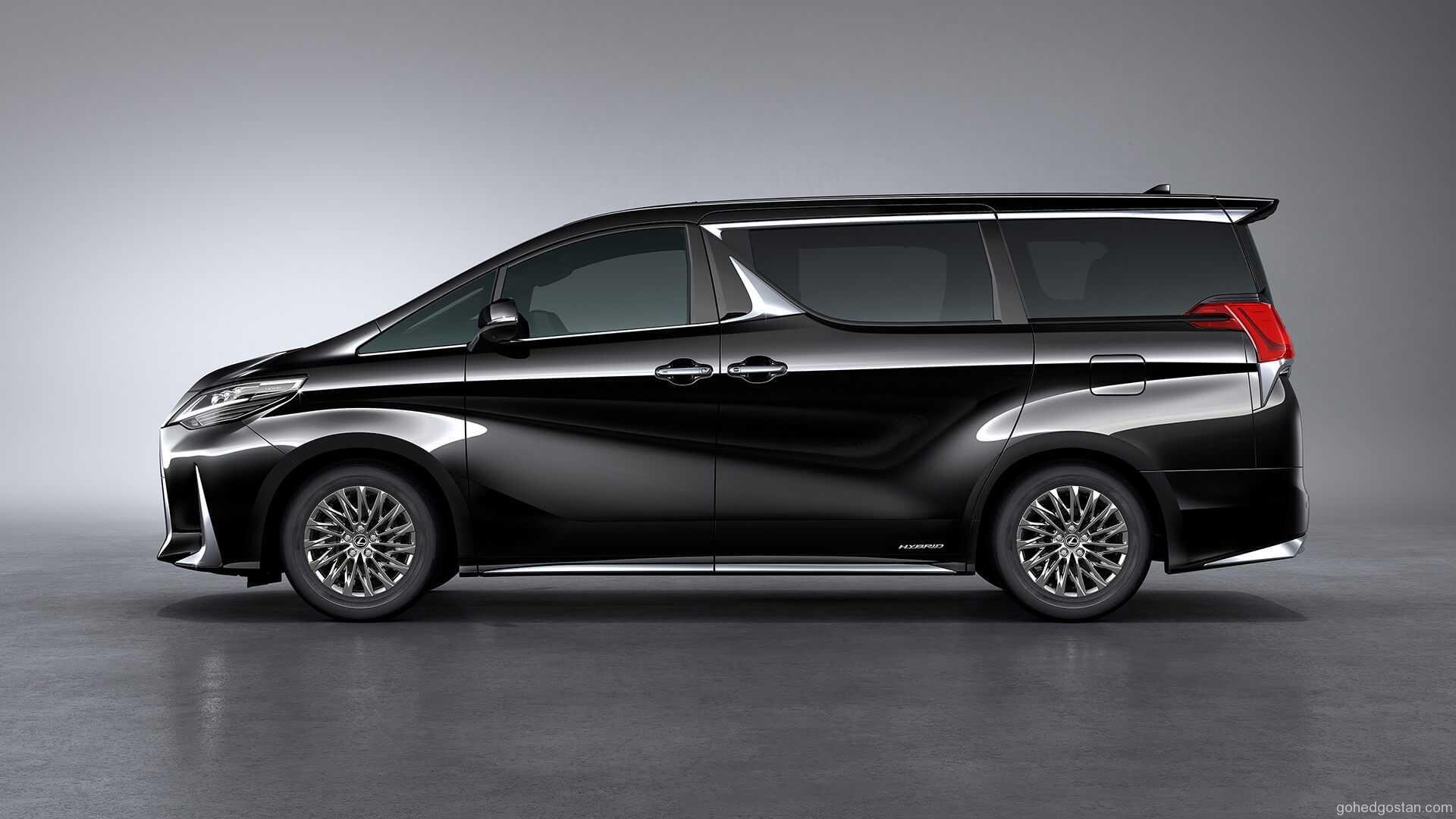

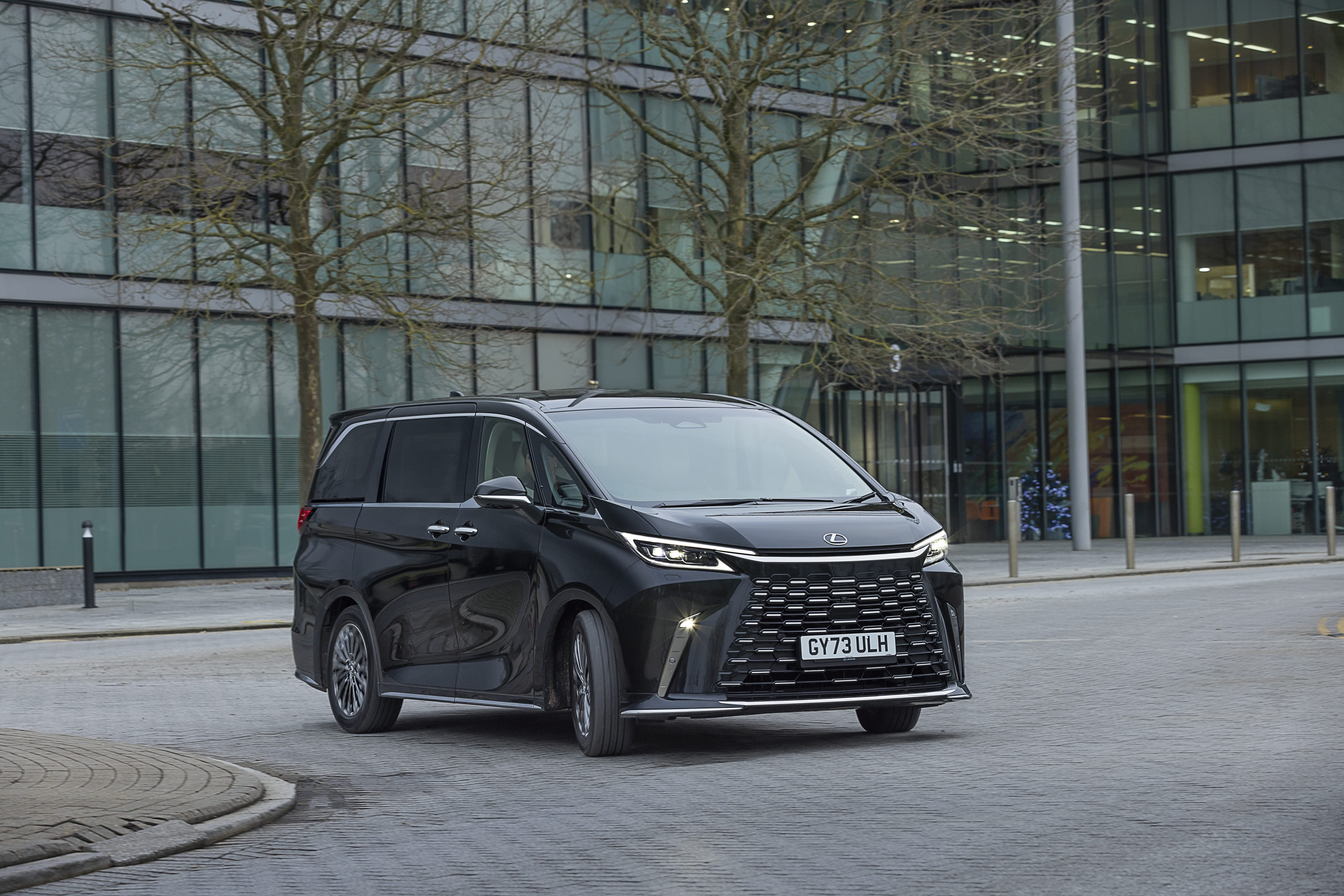

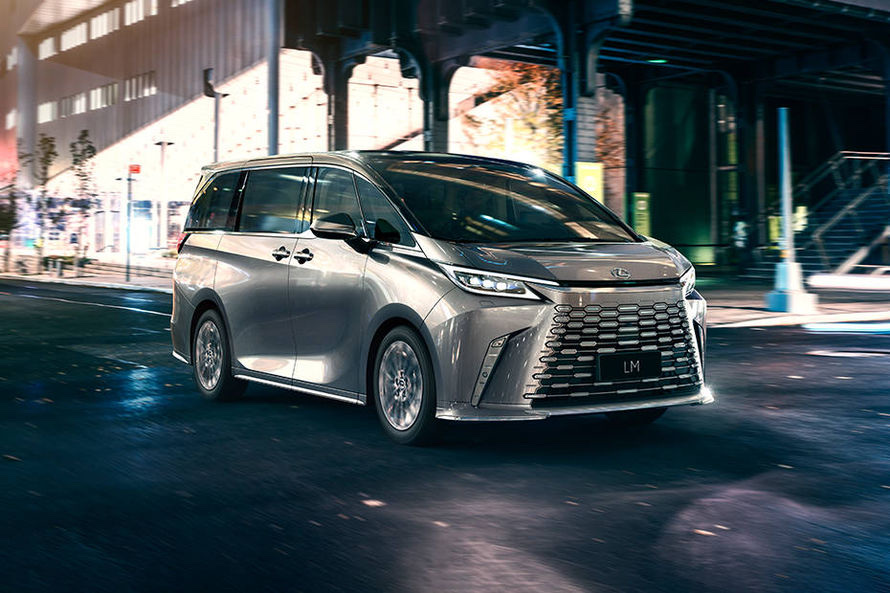

Lexus LM photo gallery
18 images are collected here with the main specifications and trim data for this model.

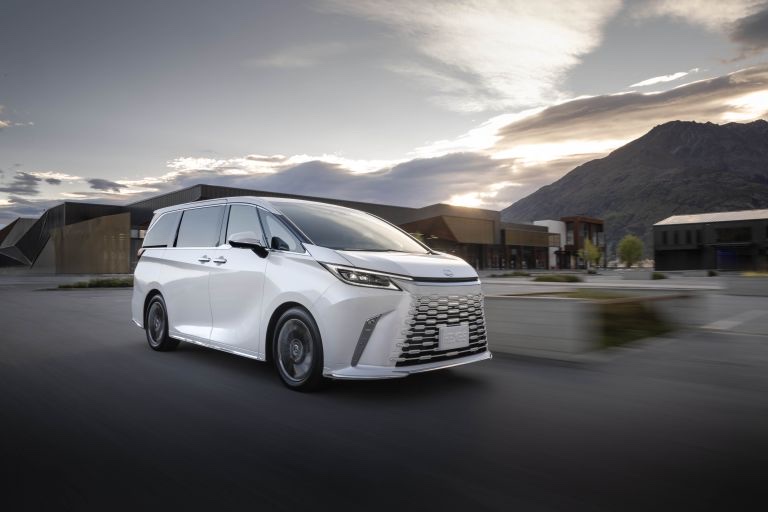

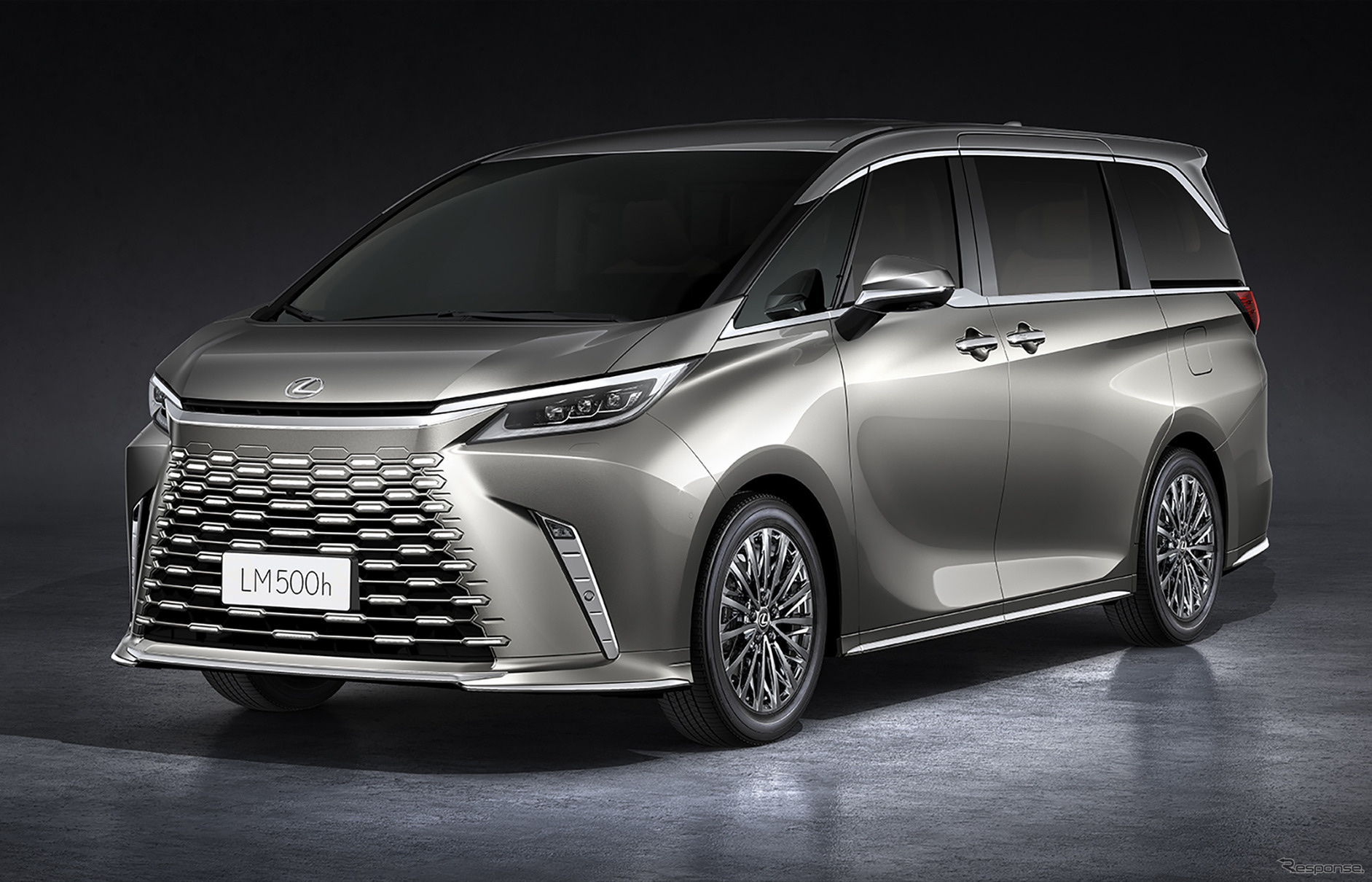

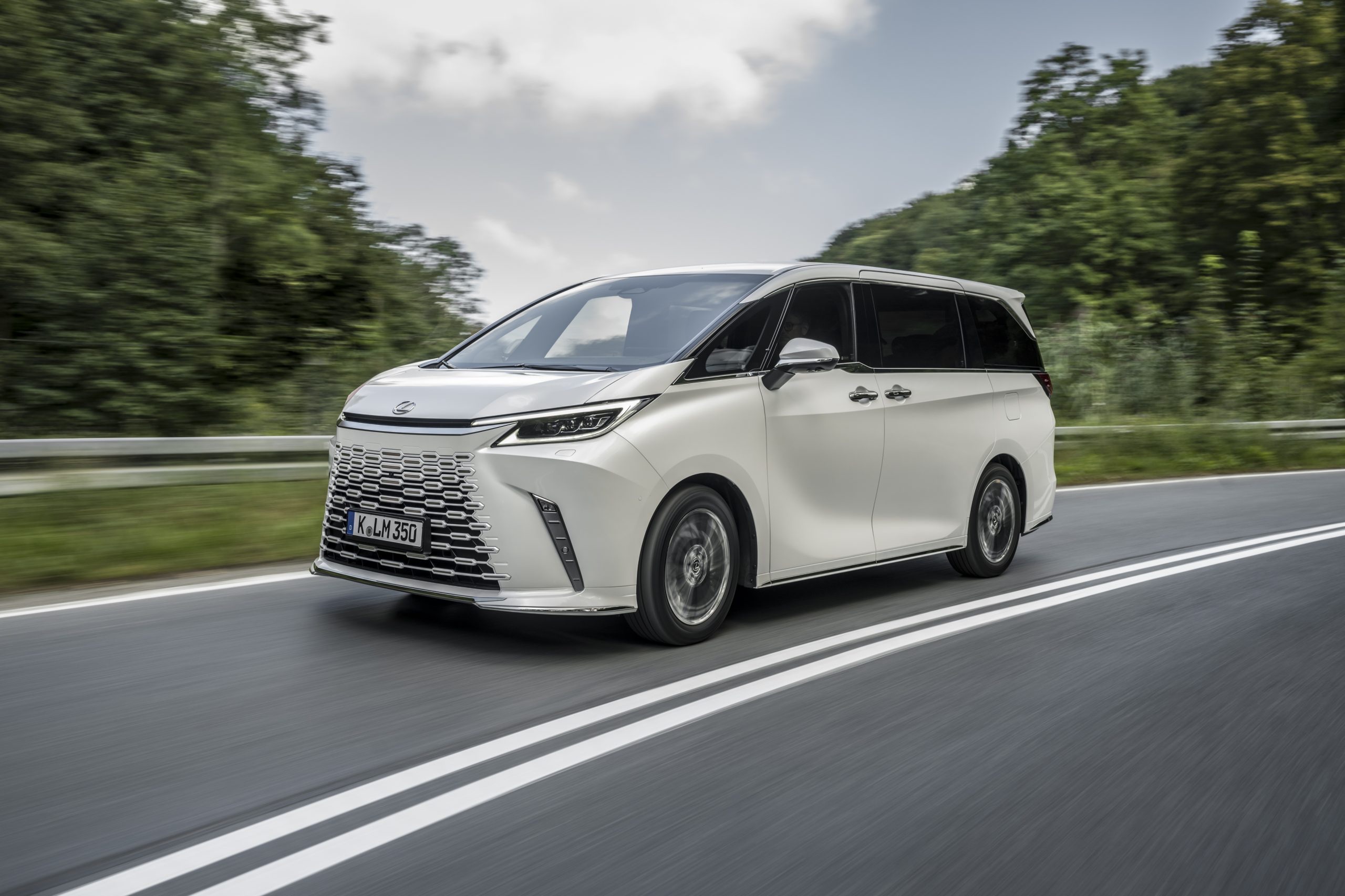

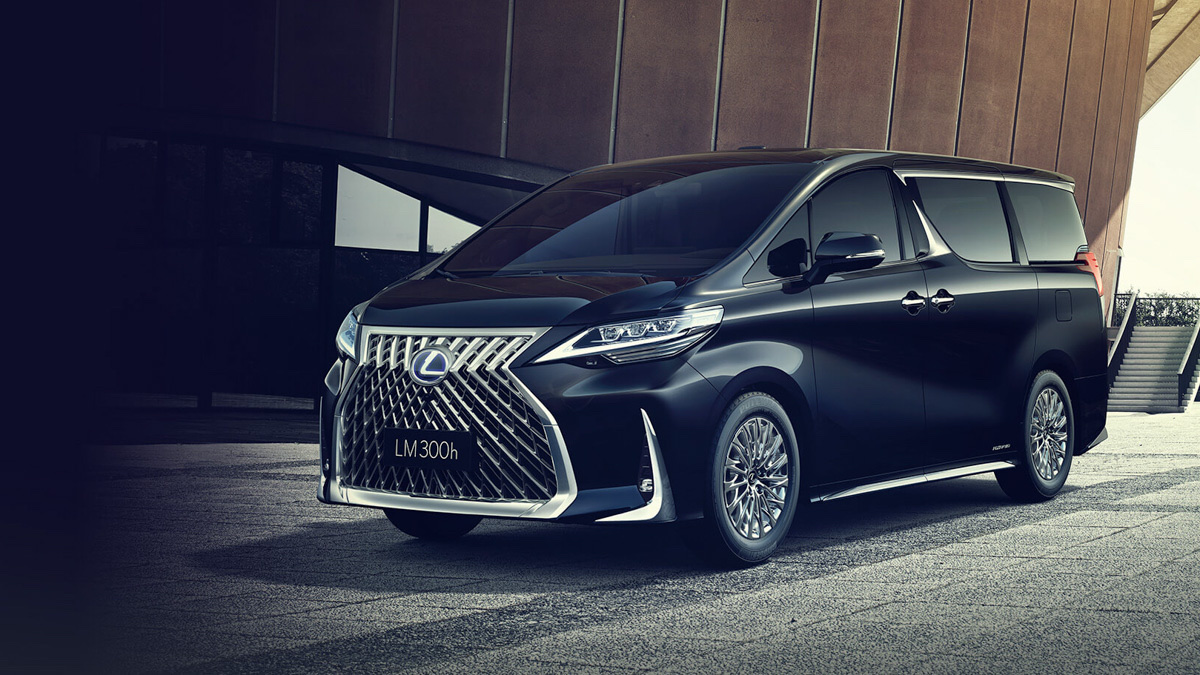

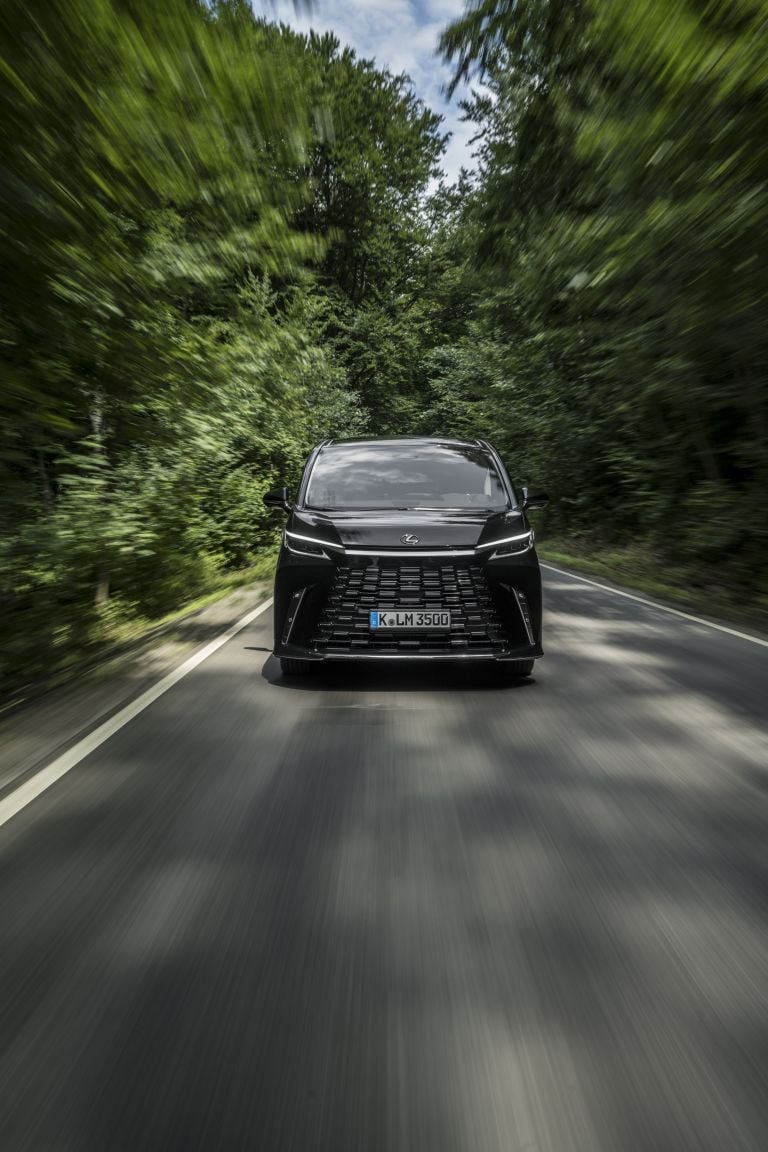

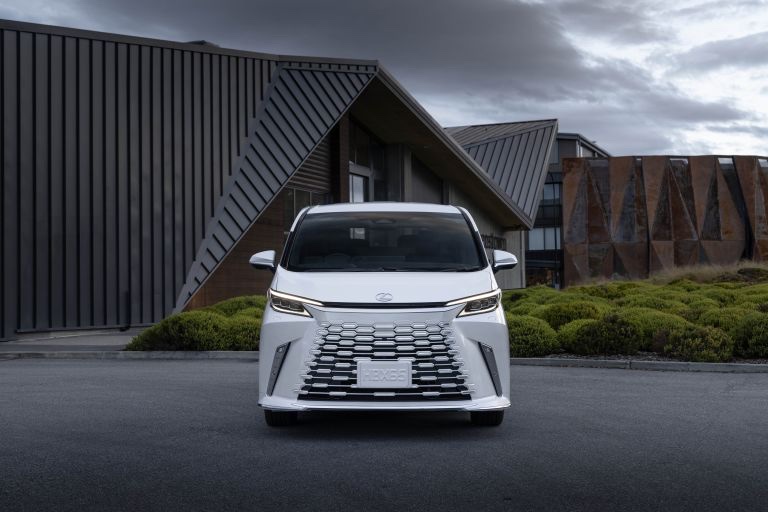

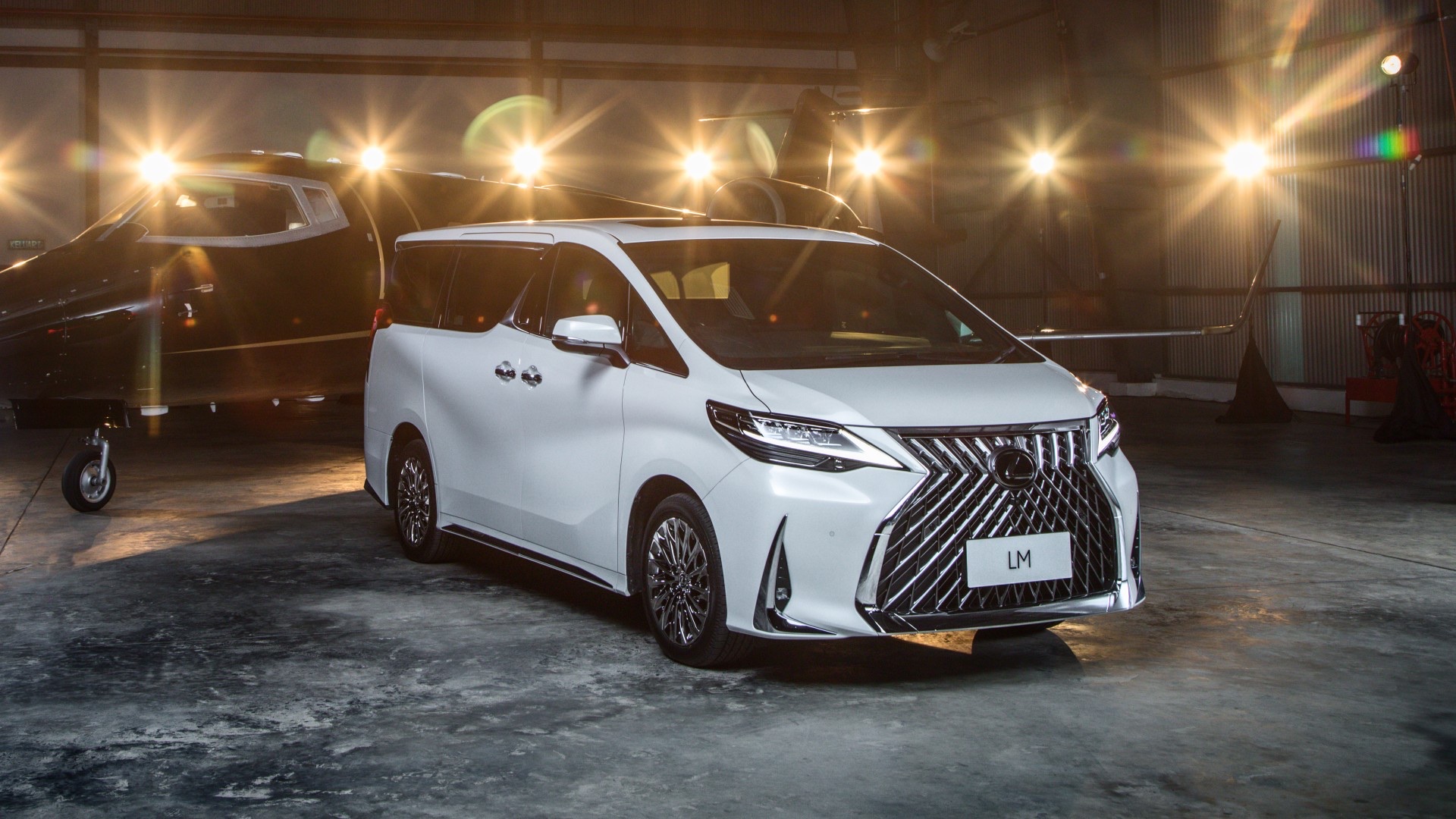

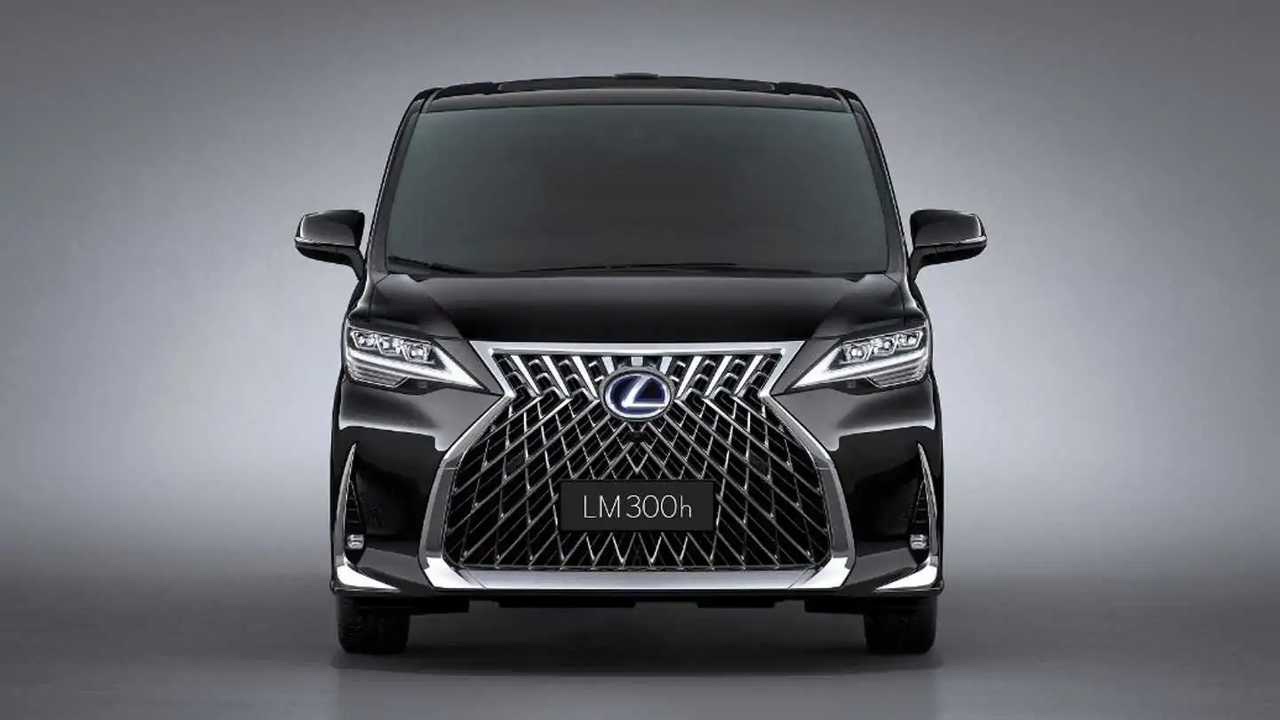

Photo Lexus LM
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.5 Dual VVT-i (300 hp) 8-speed automatic 33 specifications
Specifications
Performance and consumption
| Top speed, km/h | 180 |
|---|---|
| Acceleration 0-100 km/h, s | 8.3 |
Engine
| Engine | 3.5 Dual VVT-i |
|---|---|
| Engine code | 2GR-FKS |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 3456 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 300 |
| RPM at max power | 6600 |
| Torque, Nm | 361 |
| RPM at max torque | 4600-4700 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 5040 |
| Height, mm | 1895 |
| Wheelbase, mm | 3000 |
| Front track, mm | 1575 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2185 |
| Gross weight, kg | 2485 |
| Fuel tank capacity, L | 75 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 160 |
| Width without mirrors, mm | 1850 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
2.5 Hybrid (197 hp) E-CVT 4x4 37 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.4 |
|---|---|
| Top speed, km/h | 180 |
| Acceleration 0-100 km/h, s | 10.5 |
| Emissions standard | Euro IV |
Engine
| Engine | 2.5 Hybrid |
|---|---|
| Engine code | 2AR-FXE |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2494 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 12.5:1 |
| Power, hp | 197 |
| Torque, Nm | 210 |
| Number of electric motors | 2 |
| EV mode | + |
| Electric motor power, hp | 140 |
| Combustion engine power, hp | 155 |
| Combustion engine RPM at max power | 5700 |
| Electric motor torque, Nm | 270 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 5040 |
| Height, mm | 1895 |
| Wheelbase, mm | 3000 |
| Front track, mm | 1575 |
| Rear track, mm | 1570 |
| Kerb weight, kg | 2185 |
| Gross weight, kg | 2485 |
| Fuel tank capacity, L | 75 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 160 |
| Width without mirrors, mm | 1850 |
Transmission and drive
| Transmission | CVT |
|---|---|
| Transmission type | CVT |
| Drive | All-wheel drive |
| Automatic transmission | + |
Lexus LM questions
Short answers based on the specifications and photos available in this catalog.
What is the difference between the Lexus LM and Toyota Alphard?
The Lexus LM shares a platform with the Alphard but is longer and features unique exterior styling, including a large spindle grille. The interior materials are significantly upgraded, and the LM offers an exclusive four-seat VIP configuration with a privacy partition.
How many seats does the 2019 Lexus LM have?
The LM is available in two configurations: a traditional seven-seat layout and an ultra-luxury four-seat version designed primarily for chauffeur-driven passengers.
What engines are available in the Lexus LM?
There are two powertrain options: a 300-horsepower 3.5-liter V6 in the LM 350 and a 197-horsepower 2.5-liter hybrid system in the LM 300h.
Does the Lexus LM offer all-wheel drive?
Yes, the hybrid LM 300h model comes equipped with an all-wheel-drive system utilizing dual electric motors, while the V6 model is front-wheel drive.
What luxury features are in the rear cabin?
The four-seat version includes fully reclining, heated, ventilated, and massaging captain's chairs, a 26-inch screen, a 19-speaker Mark Levinson audio system, and a built-in refrigerator.
