Lexus LS specifications and photos
The 2020 Lexus LS is a full-size luxury sedan that serves as the flagship for the brand. This updated fifth-generation model focuses on refined comfort, advanced safety technology, and subtle exterior styling changes.
Lexus LS at a glance
Quick model context before comparing photos and trim-level specifications.
Introduced in July 2020, the restyled fifth-generation Lexus LS brings targeted improvements aimed at enhancing passenger comfort and driving refinement. As an F-segment luxury sedan, the LS competes at the top of the market, offering both rear-wheel drive and all-wheel drive configurations. Instead of a complete overhaul, Lexus focused on fine-tuning the driving dynamics, softening the adaptive suspension while stiffening the anti-roll bars, and revising the engine mounts for a smoother ride. Active noise cancellation has also been upgraded to ensure a quieter cabin. The updates solidify the position of the LS as a comfortable, tech-forward executive cruiser.
- Power: 315-422 hp
- Engine displacement: 3445-3456 cc
- Transmissions: Multistage Hybrid, 10-speed automatic
- Seating: 5 seats
Lexus LS overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

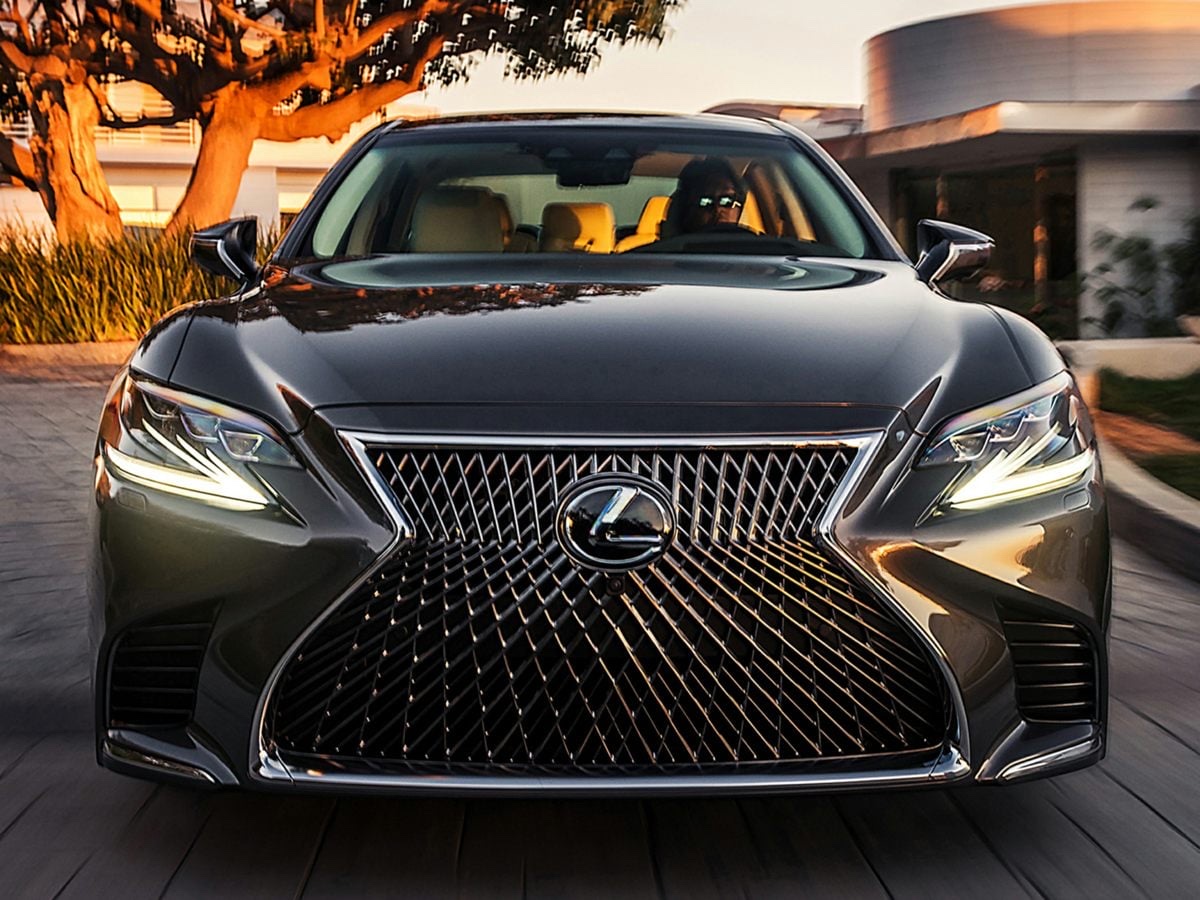

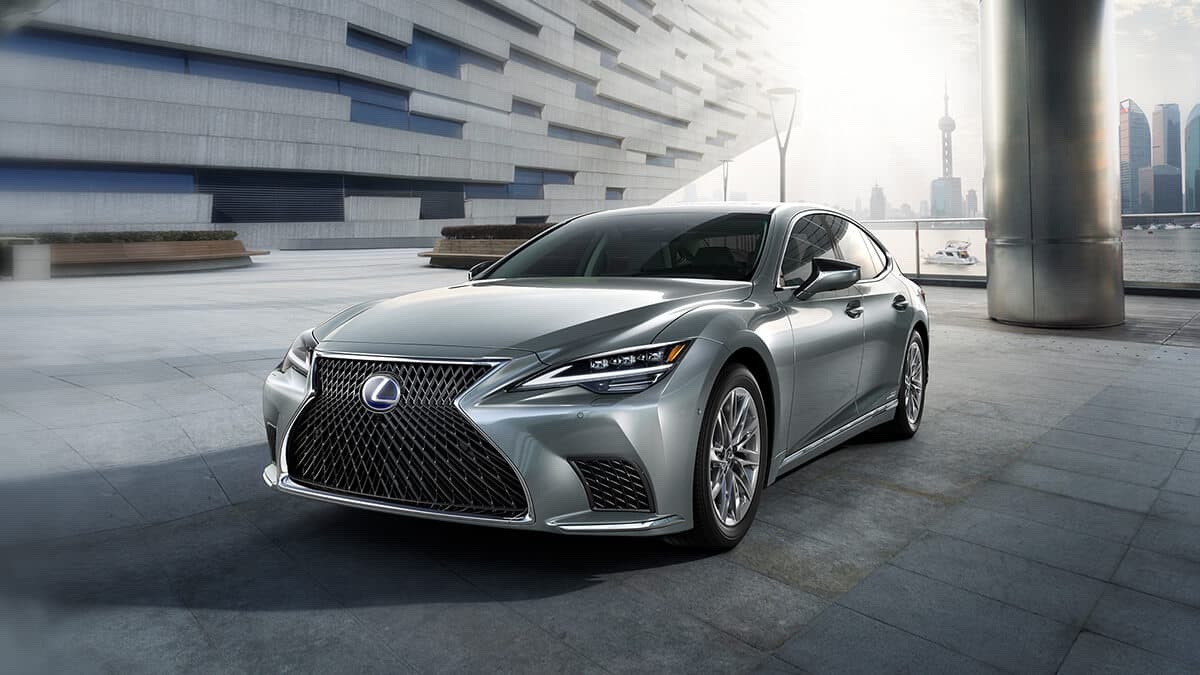

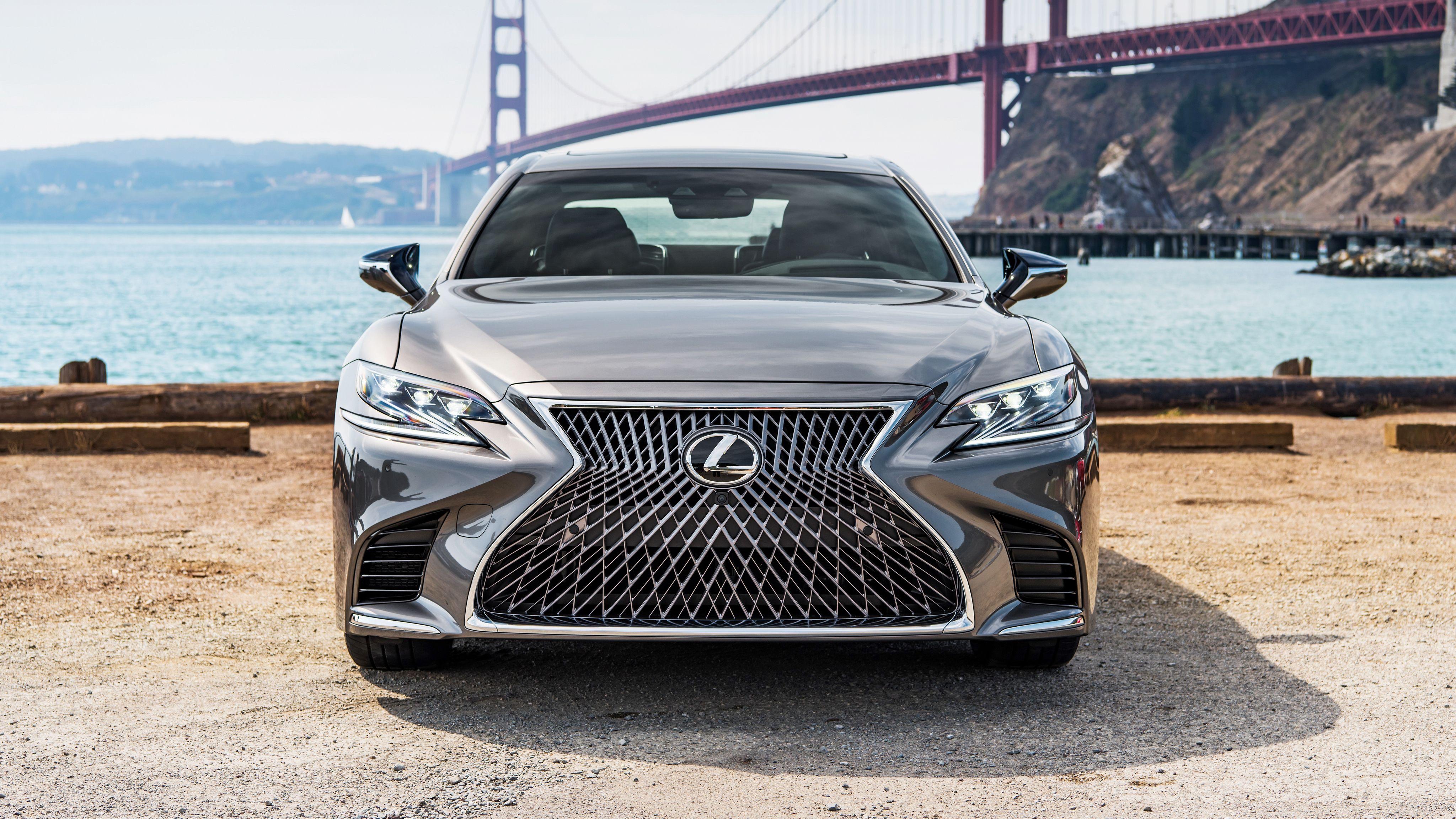

The exterior design of the 2020 LS sees subtle but effective changes. The most notable update is the headlights, which integrate the daytime running lights into a single unit and introduce BladeScan technology for improved illumination. The signature spindle grille now features a dark metallic finish, complementing the darkened decorative elements on the rear taillights. Additionally, the front bumper's side air intakes have been reshaped, and a new gray paint option, Gin-ei Luster, was added to the exterior color palette.
Interior
Inside, the 2020 LS maintains its high standard of luxury with improved materials and ergonomics. The central 12.3-inch infotainment display is now a touchscreen and has been moved closer to the driver for easier access, though the center console touchpad remains. The seats feature softer padding and deeper stitching for enhanced comfort. Rear passengers can opt for an Ottoman seat setup on the right side, complete with heating, ventilation, massage functions, 18-way adjustments, and dual 11.6-inch entertainment screens controlled via a central armrest display.
Performance
The 2020 LS offers three primary V6 powertrains, all paired with a 10-speed automatic transmission. The LS 350 features a naturally aspirated 3.5-liter V6 producing 315 horsepower. The LS 500 utilizes a twin-turbo V6 generating 422 horsepower and 600 Nm of torque, capable of a 0-100 km/h sprint in 4.9 seconds. The eco-focused LS 500h pairs a 3.5-liter V6 with an electric motor for a combined 359 horsepower, utilizing a Multistage Hybrid system. The transmission software has been recalibrated across the lineup for smoother, less frequent shifting, while the hybrid system is tuned to run in electric-only mode more often.
Practicality
As a large executive sedan, the LS prioritizes passenger space, particularly in the rear. With a generous wheelbase of 3125 mm and an overall length of 5235 mm, cabin room is substantial. The trunk offers 480 liters of cargo capacity, which is adequate for everyday use and airport runs, though slightly smaller than some segment rivals due to the luxury seating mechanisms and hybrid battery placement.
Safety and tech
Safety is a major focus for the 2020 update, marked by the introduction of the Lexus Teammate active safety system. Building on the Lexus Safety System+, this suite enables advanced driver assistance on highways, allowing the car to manage acceleration, braking, and lane changes under specific conditions. Other tech highlights include a higher-resolution digital rearview mirror and the new BladeScan adaptive headlight technology for better nighttime visibility.
Buyer notes
When comparing trims, buyers should decide between the traditional power of the twin-turbo LS 500 and the efficiency of the LS 500h hybrid. Those prioritizing rear-seat luxury should look for models equipped with the rear Ottoman seating package. Keep in mind that features like the advanced Lexus Teammate system and specific trim materials may vary depending on the local market and availability.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| LS 500h RWD | 3456 cc | 359 hp | 5 | Multistage Hybrid |
| LS 500h AWD | 3456 cc | 359 hp | 5 | Multistage Hybrid |
| LS 350 RWD | 3456 cc | 315 hp | 5 | 10-speed automatic |
| LS 500 AWD | 3445 cc | 422 hp | 5 | 10-speed automatic |
| LS 500 RWD | 3445 cc | 422 hp | 5 | 10-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

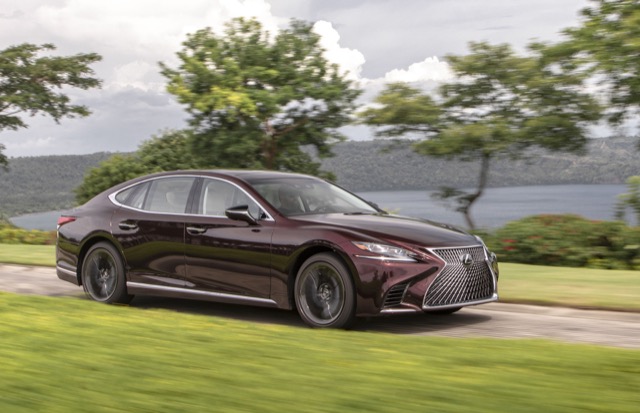

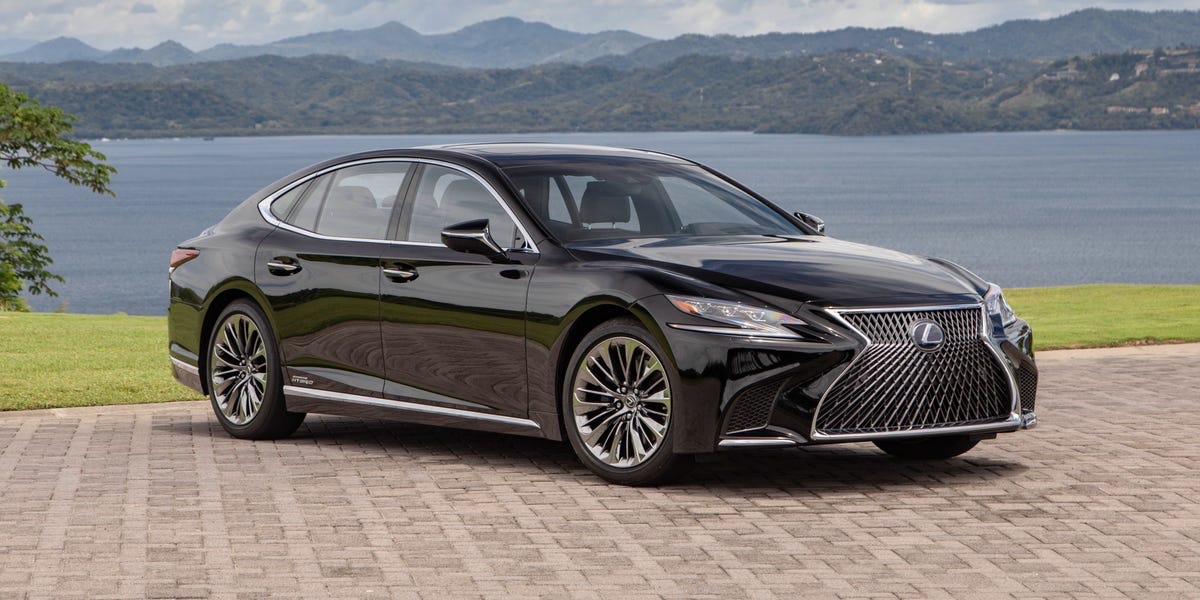

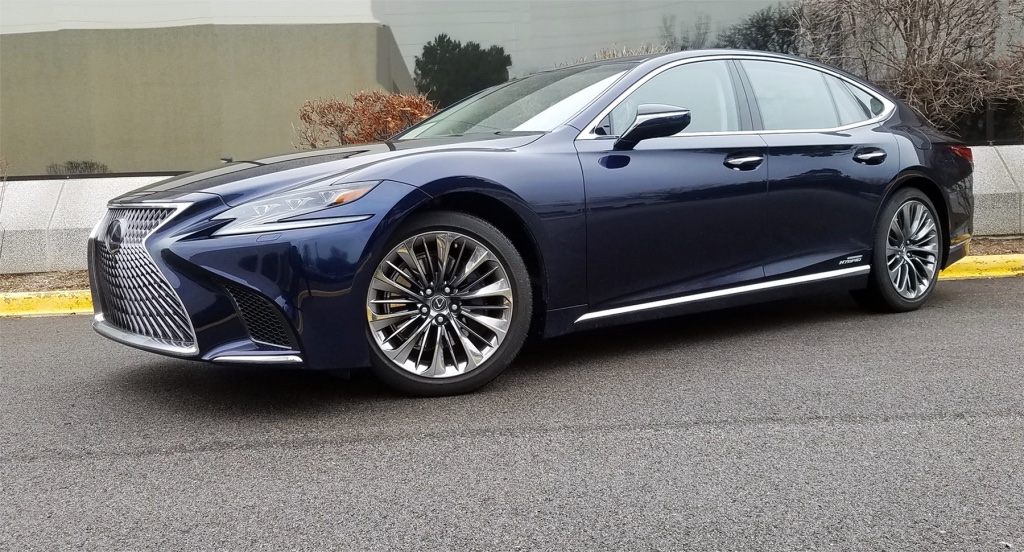

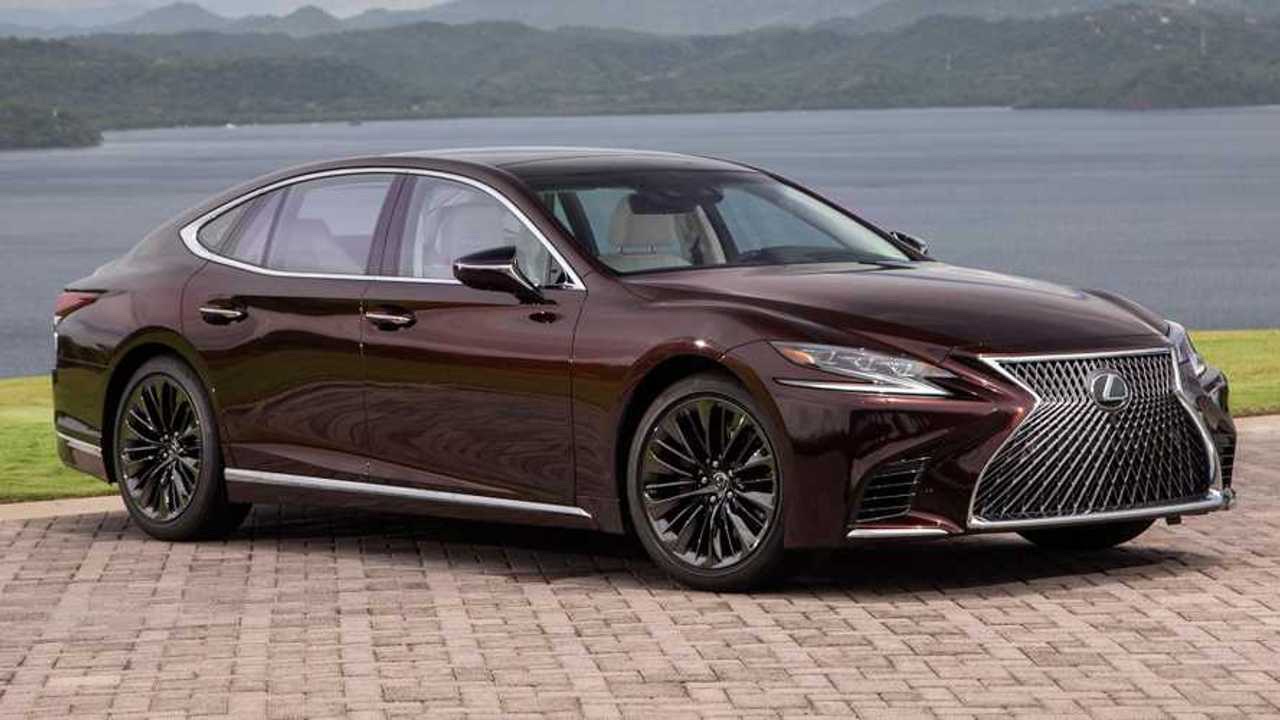

Lexus LS photo gallery
19 images are collected here with the main specifications and trim data for this model.

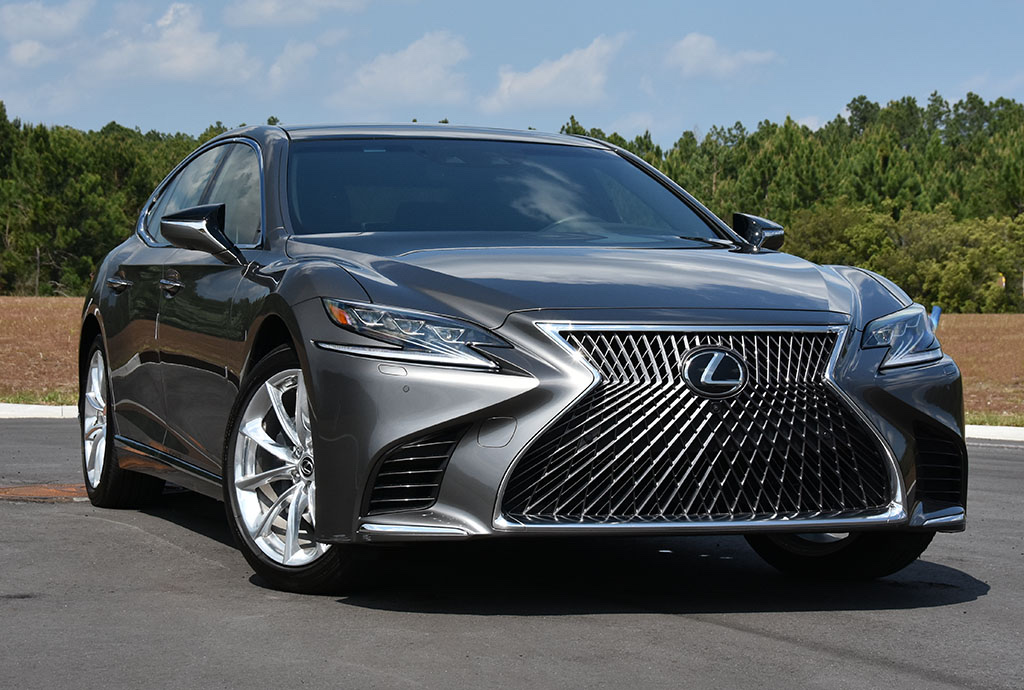

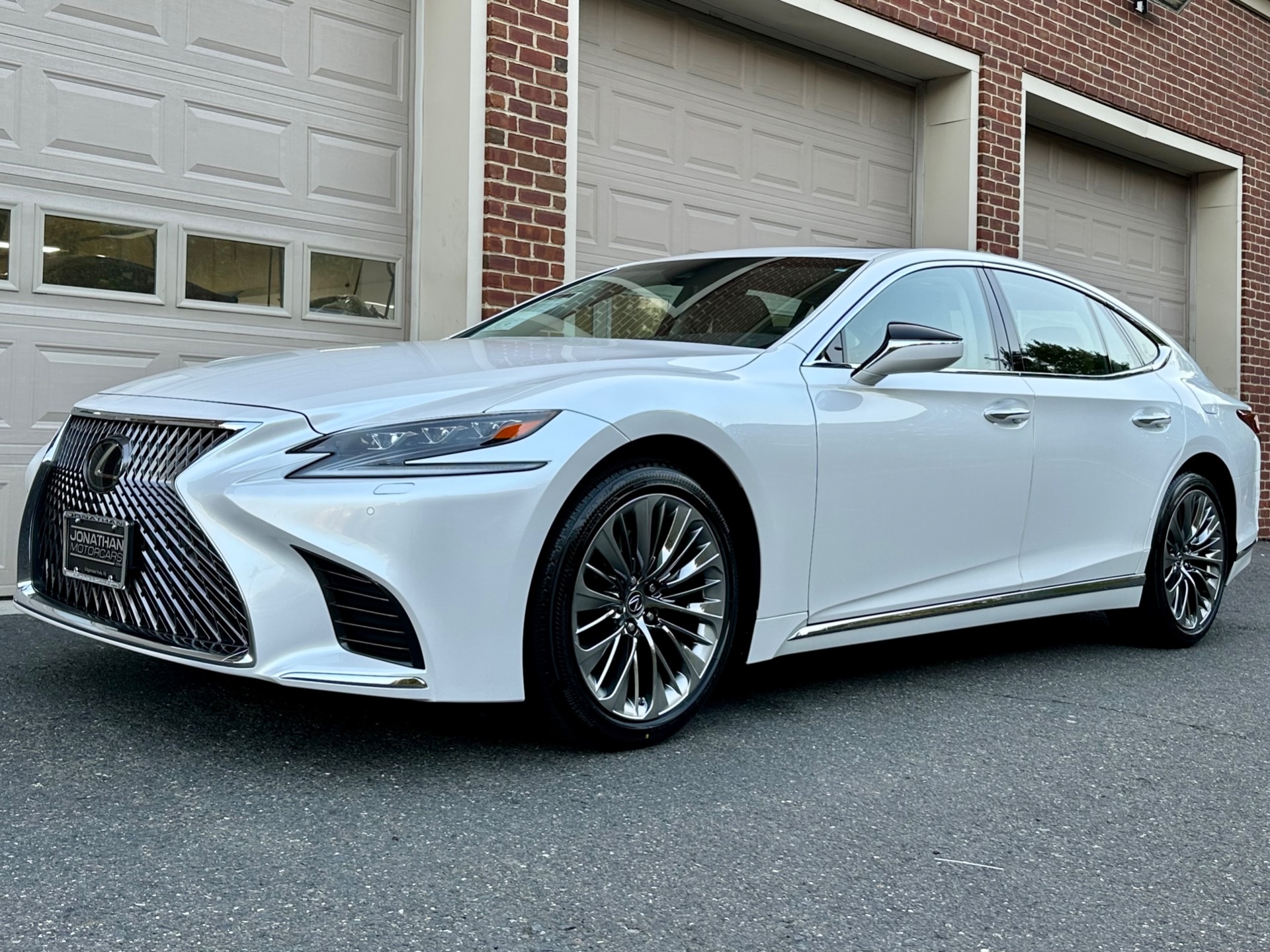

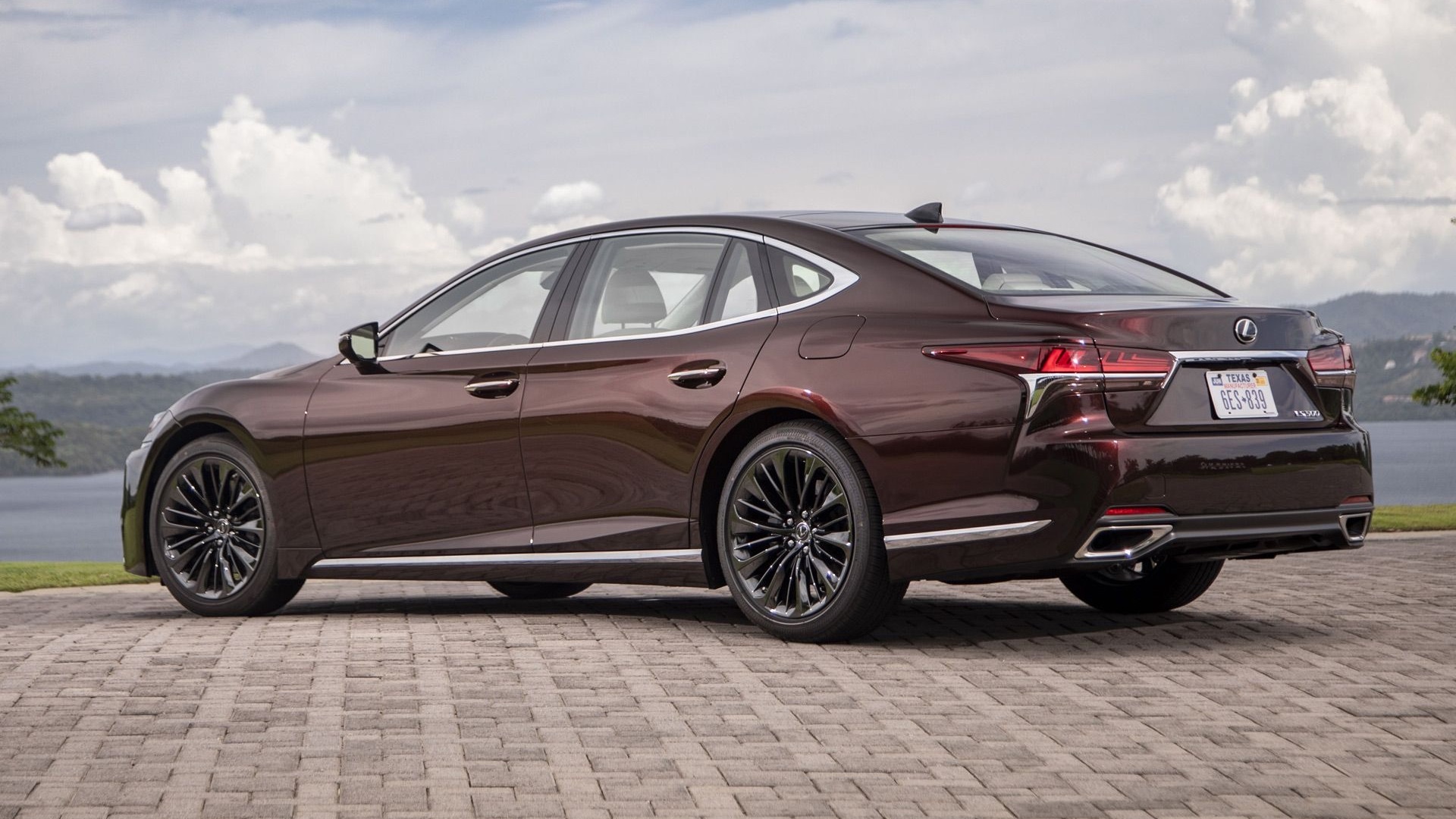

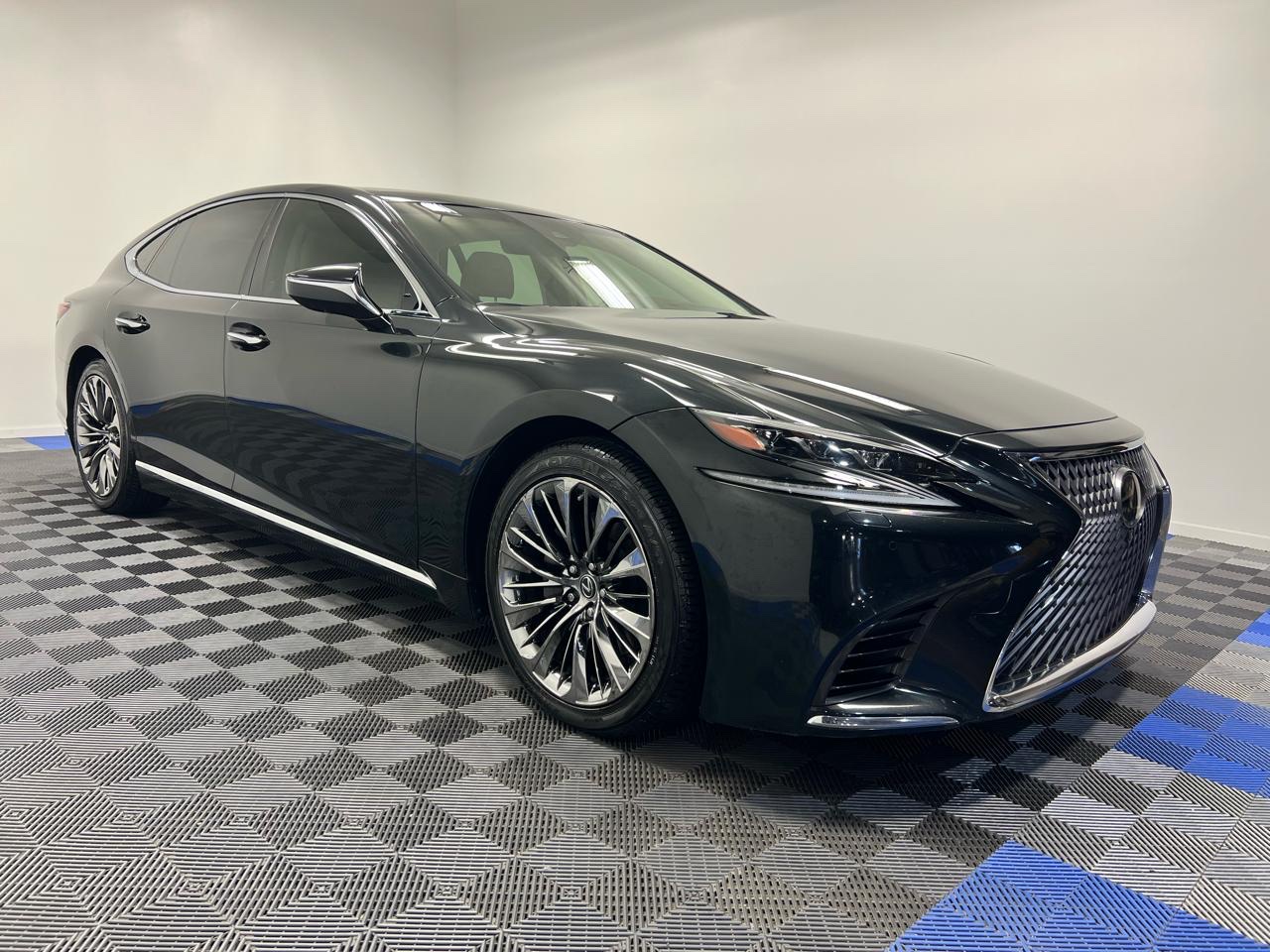

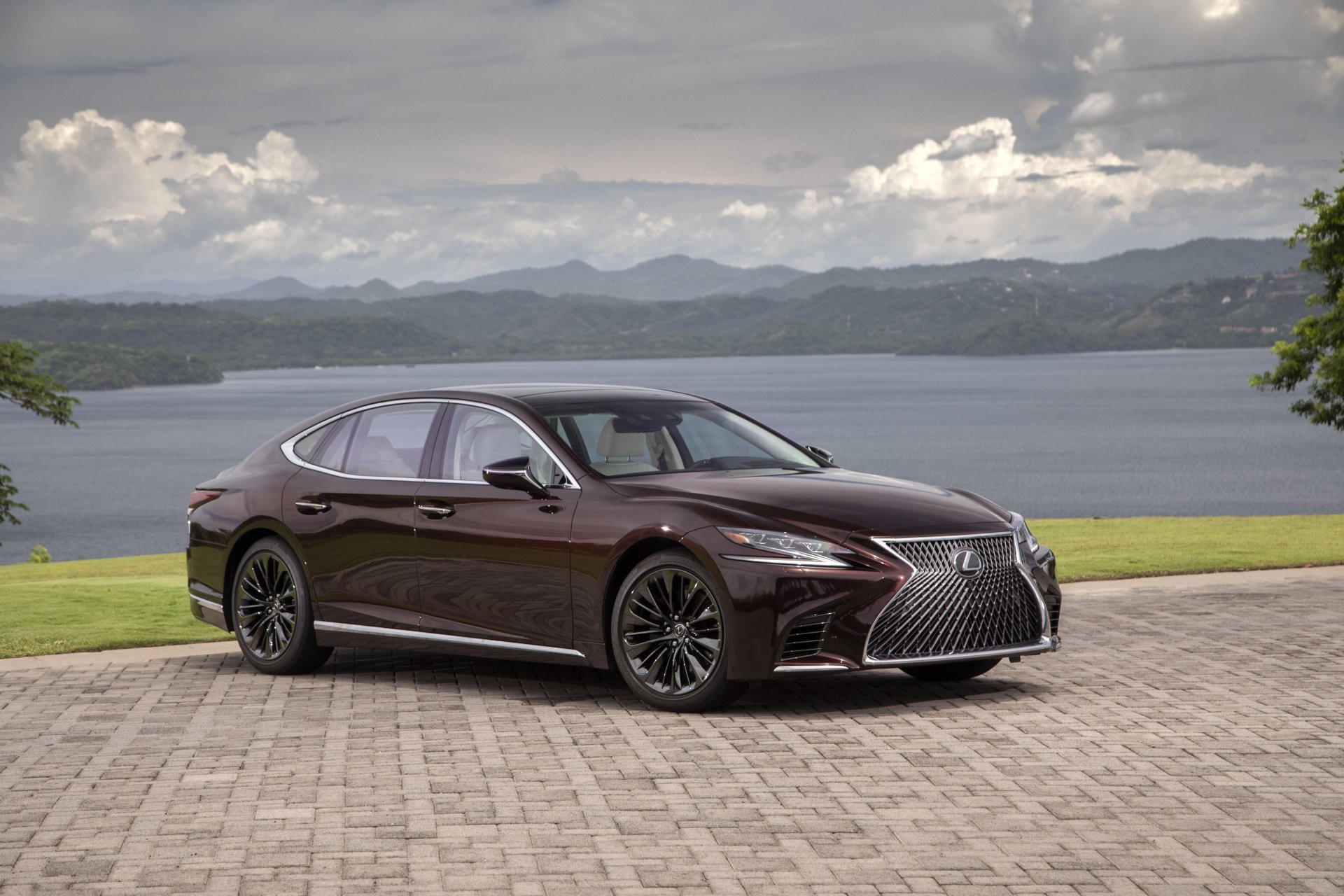

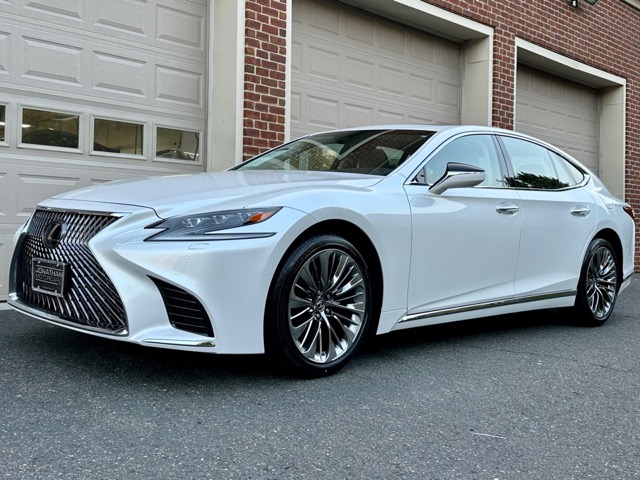

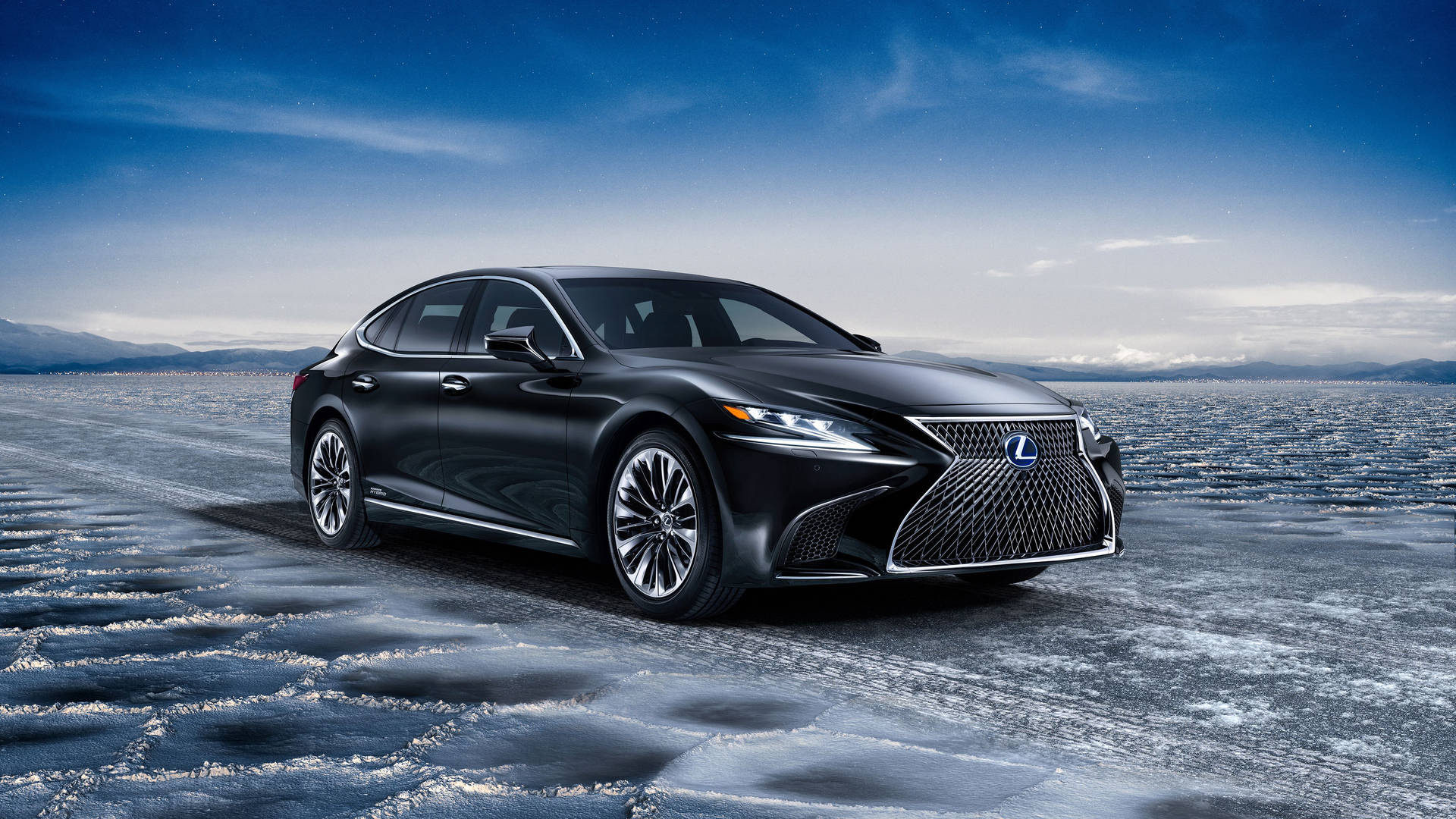

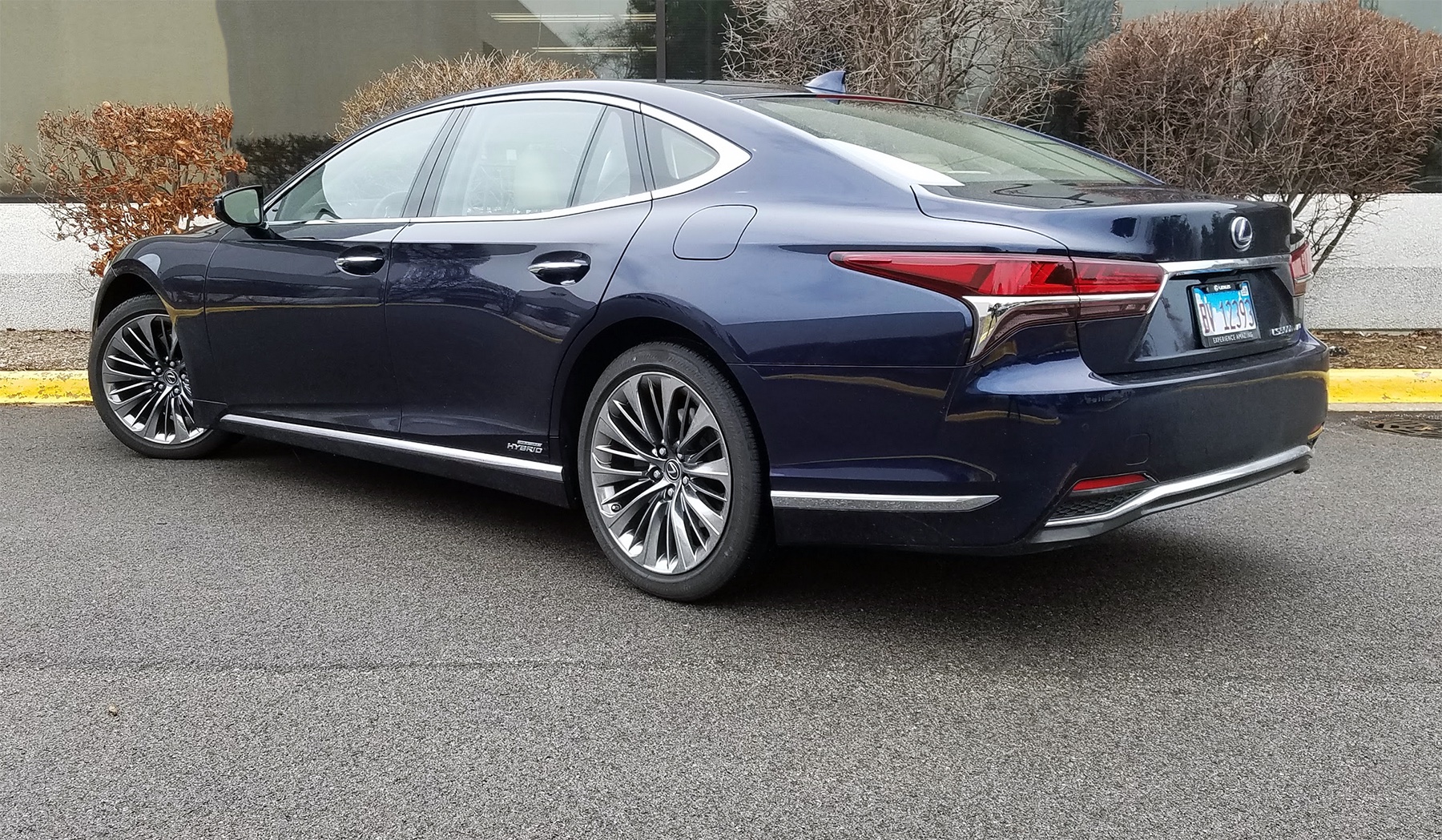

Photo Lexus LS
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
LS 500h RWD 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 7.7 |
|---|---|
| Fuel consumption highway, L/100 km | 5.7 |
| Fuel consumption combined, L/100 km | 6.3 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.5h |
|---|---|
| Engine code | 8GR-FXS |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 3456 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 13.0:1 |
| Power, hp | 359 |
| Electric motor power, hp | 179 |
| Combustion engine power, hp | 300 |
| Combustion engine RPM at max power | 6600 |
| Combustion engine torque, Nm | 348 |
| Combustion engine RPM at max torque | 4900 |
| Electric motor torque, Nm | 300 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5235 |
| Height, mm | 1470 |
| Wheelbase, mm | 3125 |
| Kerb weight, kg | 2130 |
| Fuel tank capacity, L | 82 |
| Turning circle, m | 11.2 |
| Ground clearance, mm | 147 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 480 |
Transmission and drive
| Transmission | Multistage Hybrid |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
LS 500h AWD 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 8.5 |
|---|---|
| Fuel consumption highway, L/100 km | 6.4 |
| Fuel consumption combined, L/100 km | 7.1 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.5h |
|---|---|
| Engine code | 8GR-FXS |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 3456 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 13.0:1 |
| Power, hp | 359 |
| Electric motor power, hp | 179 |
| Combustion engine power, hp | 300 |
| Combustion engine RPM at max power | 6600 |
| Combustion engine torque, Nm | 348 |
| Combustion engine RPM at max torque | 4900 |
| Electric motor torque, Nm | 300 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5235 |
| Height, mm | 1470 |
| Wheelbase, mm | 3125 |
| Kerb weight, kg | 2130 |
| Fuel tank capacity, L | 82 |
| Turning circle, m | 11.2 |
| Ground clearance, mm | 147 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 480 |
Transmission and drive
| Transmission | Multistage Hybrid |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
LS 350 RWD 35 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 13.1 |
|---|---|
| Fuel consumption highway, L/100 km | 7.6 |
| Fuel consumption combined, L/100 km | 9.6 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 6.5 |
| Emissions standard | Euro V |
Engine
| Engine | 3.5i Dual VVT-I |
|---|---|
| Engine code | 2GR-FKS |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3456 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 315 |
| RPM at max power | 6600 |
| Torque, Nm | 380 |
| RPM at max torque | 4800-4900 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5235 |
| Height, mm | 1470 |
| Wheelbase, mm | 3125 |
| Kerb weight, kg | 2130 |
| Fuel tank capacity, L | 82 |
| Turning circle, m | 11.2 |
| Ground clearance, mm | 147 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 480 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
LS 500 AWD 35 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 13.5 |
|---|---|
| Fuel consumption highway, L/100 km | 7.8 |
| Fuel consumption combined, L/100 km | 9.9 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.9 |
| Emissions standard | Euro V |
Engine
| Engine | 3.5i Dual VVT-I |
|---|---|
| Engine code | V35A-FTS |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3445 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 422 |
| RPM at max power | 6000 |
| Torque, Nm | 600 |
| RPM at max torque | 1600-4800 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5235 |
| Height, mm | 1470 |
| Wheelbase, mm | 3125 |
| Kerb weight, kg | 2130 |
| Fuel tank capacity, L | 82 |
| Turning circle, m | 11.2 |
| Ground clearance, mm | 147 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 480 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
LS 500 RWD 33 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 13.1 |
|---|---|
| Fuel consumption highway, L/100 km | 8.1 |
| Fuel consumption combined, L/100 km | 10.7 |
| Emissions standard | Euro V |
Engine
| Engine | 3.5i Dual VVT-I |
|---|---|
| Engine code | V35A-FTS |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3445 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 422 |
| RPM at max power | 6000 |
| Torque, Nm | 600 |
| RPM at max torque | 1600-4800 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5235 |
| Height, mm | 1470 |
| Wheelbase, mm | 3125 |
| Kerb weight, kg | 2130 |
| Fuel tank capacity, L | 82 |
| Turning circle, m | 11.2 |
| Ground clearance, mm | 147 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 480 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
Lexus LS questions
Short answers based on the specifications and photos available in this catalog.
What body style is the 2020 Lexus LS?
The Lexus LS is a full-size, four-door luxury sedan.
What engines are available for the 2020 LS?
It is available with a 315-hp 3.5L V6 (LS 350), a 422-hp twin-turbo V6 (LS 500), and a 359-hp hybrid V6 (LS 500h).
Does the 2020 Lexus LS have all-wheel drive?
Yes, both the LS 500 and LS 500h models are available with either rear-wheel drive or all-wheel drive.
What changes were made to the interior for 2020?
The central 12.3-inch display was upgraded to a touchscreen and moved closer to the driver. The seats also received softer padding for improved comfort.
How large is the trunk on the Lexus LS?
The trunk capacity of the 2020 Lexus LS is 480 liters.
