Lexus NX specifications and photos

The second generation of the Lexus NX brings significant updates to the premium compact crossover segment. Built on a new platform, it introduces the brand's first plug-in hybrid powertrain and a completely revamped interior architecture.

Years 2021

Body type suv

Trims 12

Photos 19

Overview

Lexus NX at a glance

Quick model context before comparing photos and trim-level specifications.

Revealed in mid-2021, the latest Lexus NX utilizes the TNGA GA-K platform, resulting in increased structural rigidity and slightly larger dimensions compared to its predecessor. The wheelbase has been stretched by 30 mm to 2690 mm, and overall length is up by 20 mm to 4660 mm. The generational shift focuses on expanding powertrain options, refining the driving dynamics with retuned suspension and variable-ratio steering, and integrating a much wider array of active safety and driver-assistance systems. It is aimed at buyers looking for a sophisticated, tech-forward daily driver with varied propulsion choices.

Power: 173-306 hp
Engine displacement: 1987-2487 cc
Transmissions: CVT, 8-speed automatic
Seating: 5 seats

Model guide

Lexus NX overview

Editorial context for design, cabin, performance, practicality, and buyer notes.

Design

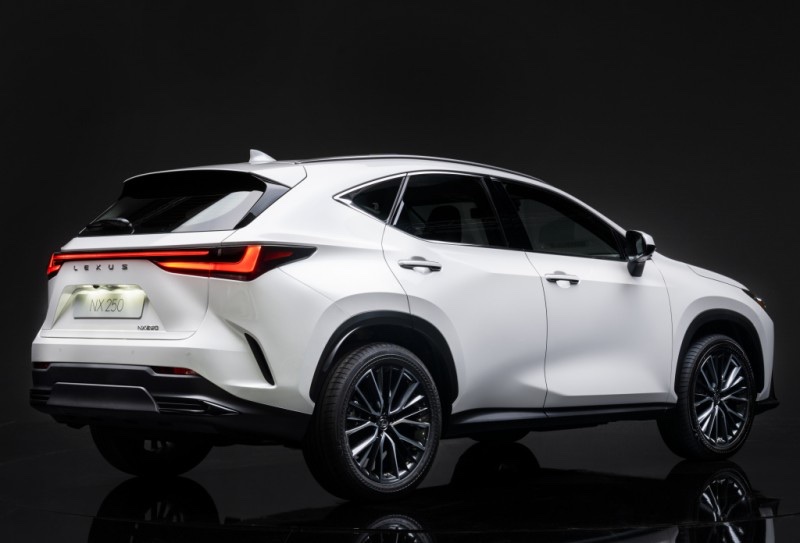

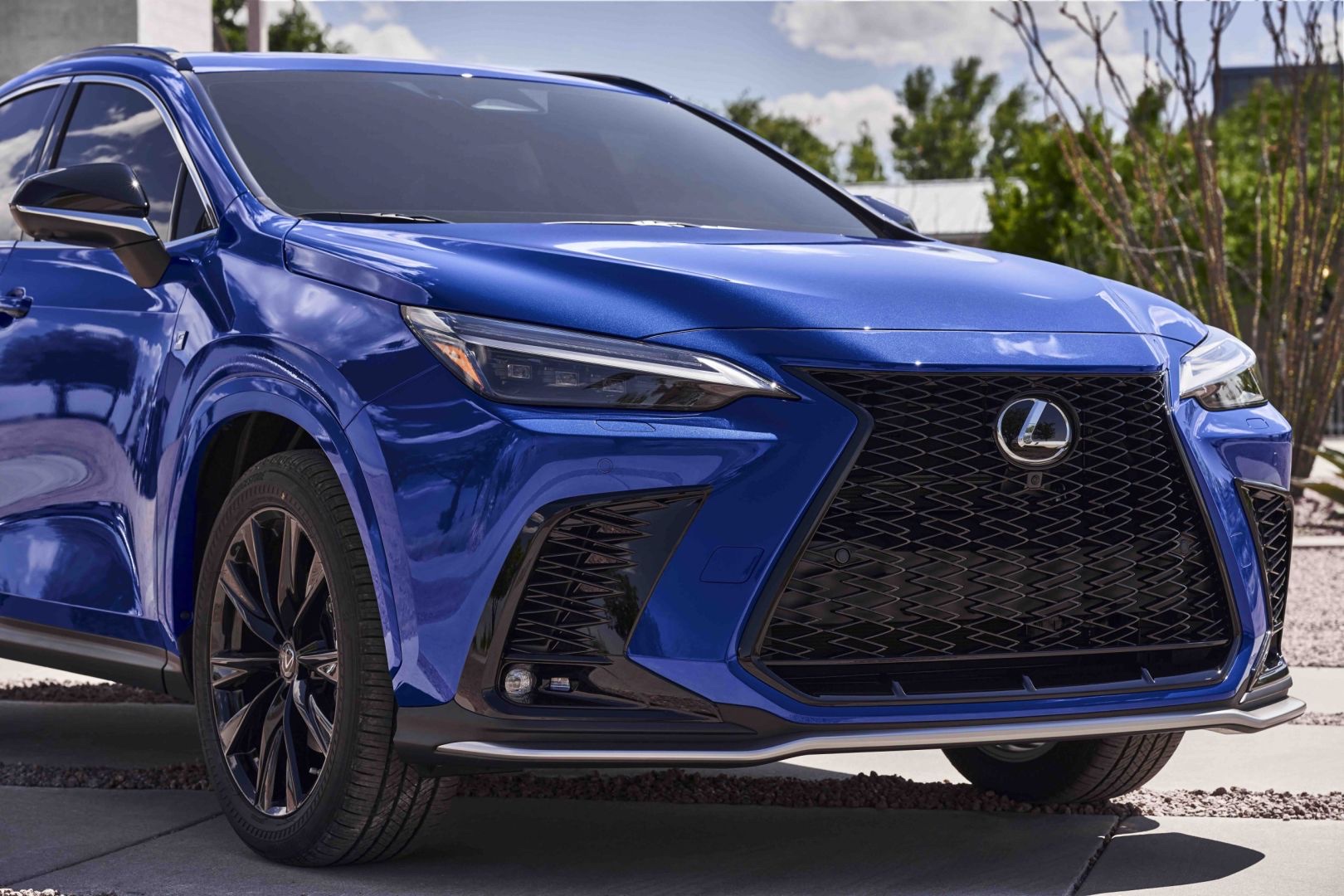

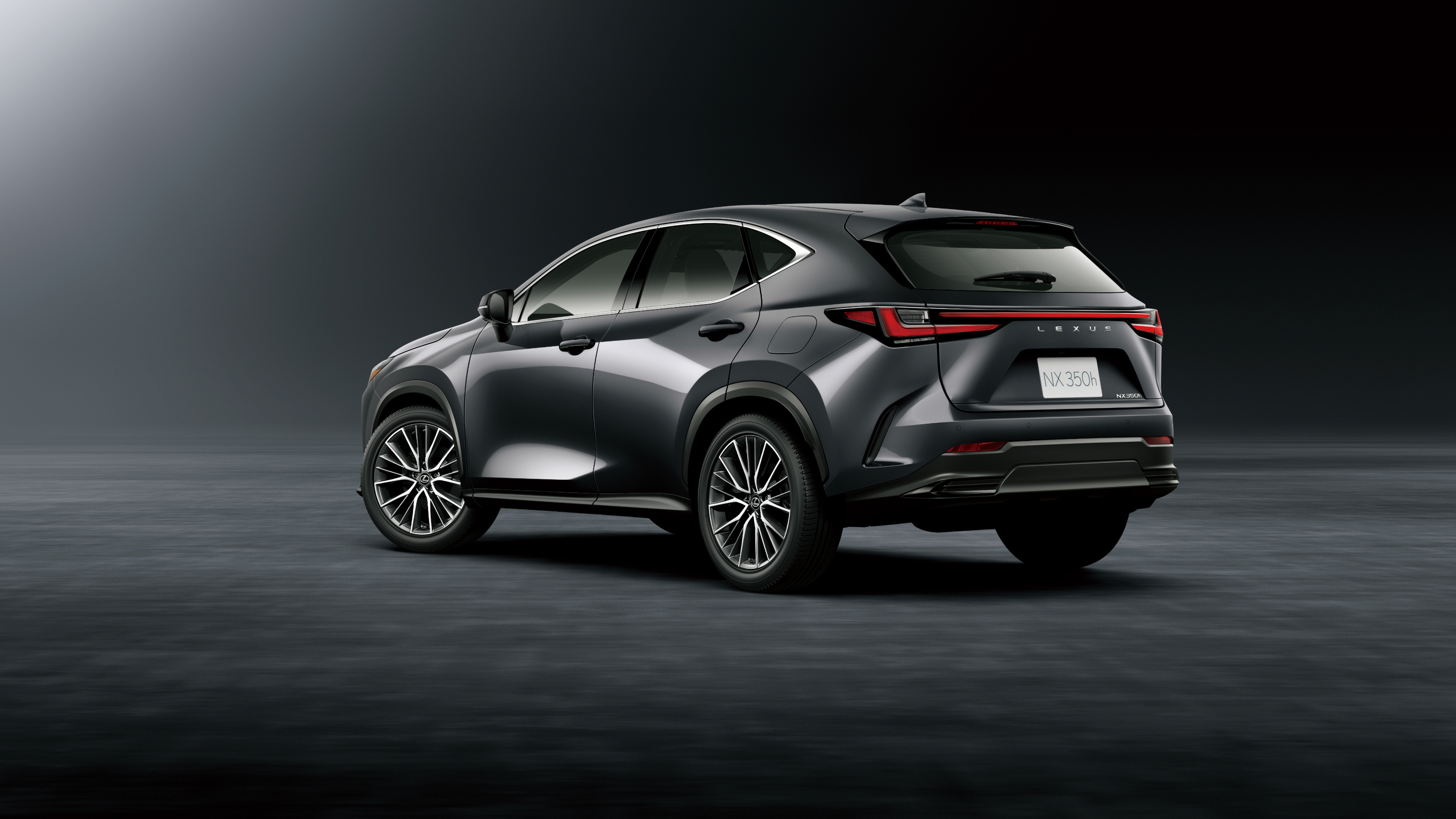

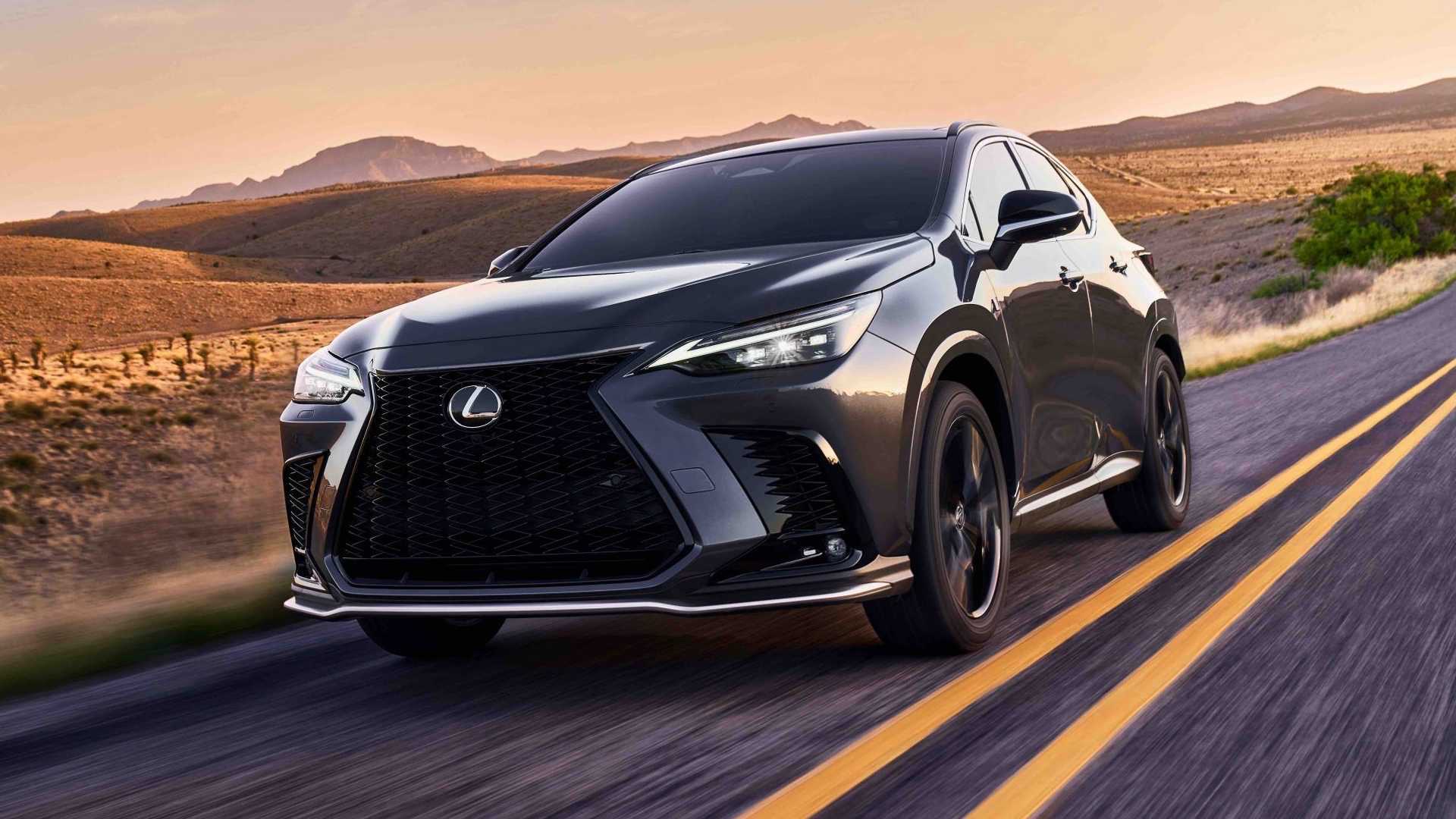

While retaining the familiar faceted surfacing of the brand, the new NX adopts a slightly softer exterior presence. The sharp daytime running lights are now integrated directly into the main headlight units, framing a larger, more vertical spindle grille. At the rear, the vehicle features a full-width LED light bar connecting the taillights, and the traditional emblem has been replaced by spaced-out 'Lexus' lettering. The crossover comes standard with 18-inch alloy wheels, with 20-inch options available on higher trims.

Interior

The cabin represents a major departure from the previous generation. It introduces a driver-focused layout featuring a standard digital instrument cluster and an available 14-inch touchscreen infotainment system that supports over-the-air updates. The center console is reorganized with a shift-by-wire gear selector. Lexus also offers 64 colors of ambient lighting. Redesigned door panels and a new steering wheel with partially touch-sensitive controls complete the updated environment.

Performance

The powertrain lineup is diverse. The headliner is the NX 450h+, the brand's first plug-in hybrid, pairing a 2.5-liter engine with electric motors and an 18.1-kWh battery for 306 horsepower, standard all-wheel drive, and a 6.3-second 0-100 km/h time. A standard hybrid, the 242-hp NX 350h, is also available in both front- and all-wheel drive. Conventional engine options include a 2.4-liter turbocharged four-cylinder producing 279 hp paired with an 8-speed automatic and AWD, as well as an entry-level 2.0-liter naturally aspirated engine making 173 hp with a continuously variable transmission.

Practicality

With a 520-liter trunk and a spacious cabin accommodating up to five passengers, the NX handles daily family duties effectively. The transition to the new platform and the extended wheelbase yield marginal improvements in overall passenger space, while ground clearance sits at a practical 188 mm for urban and light unpaved driving.

Safety and tech

The crossover is equipped with the Lexus Safety System+ suite. Using a millimeter-wave radar and a monocular camera, it manages adaptive cruise control and recognizes pedestrians, cyclists, and road signs. A notable addition is the Safe Exit Assist, which ties into the blind-spot monitoring system to prevent doors from being opened if a vehicle or bicycle is approaching from behind. Remote parking via a smartphone application is also supported.

Buyer notes

Shoppers should carefully consider their driving habits when choosing an engine. The plug-in hybrid offers up to 63 kilometers of electric range, making it ideal for short commutes, while the traditional 350h hybrid provides excellent mixed-cycle efficiency. The 2.4-liter turbo is the choice for more traditional performance. Available F Sport trims add adaptive suspension and distinct styling cues.

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 173-306 hp

Engine displacement 1987-2487 cc

Seating 5 seats

Transmissions CVT, 8-speed automatic

Trim / modification	Engine	Power	Seats	Transmission
350h	2487 cc	242 hp	5	CVT
350h	2487 cc	242 hp	5	CVT
450h+	2487 cc	306 hp	5	CVT
200	1987 cc	173 hp	5	CVT
2.4 (279 hp) 8-speed automatic 4x4	2393 cc	279 hp	5	8-speed automatic
2.0i AT Urban	1987 cc	173 hp	5	CVT
2.4i AT F Sport	2393 cc	279 hp	5	8-speed automatic
2.5 PHEV AT Executive+ 4x4	2487 cc	306 hp	5	CVT
2.5 PHEV AT Luxury 4x4	2487 cc	306 hp	5	CVT
2.5h AT Executive 4x4	2487 cc	242 hp	5	CVT
2.5h AT Executive+ 4x4	2487 cc	242 hp	5	CVT
2.5h AT Luxury 4x4	2487 cc	242 hp	5	CVT

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Lexus NX photo gallery

19 images are collected here with the main specifications and trim data for this model.

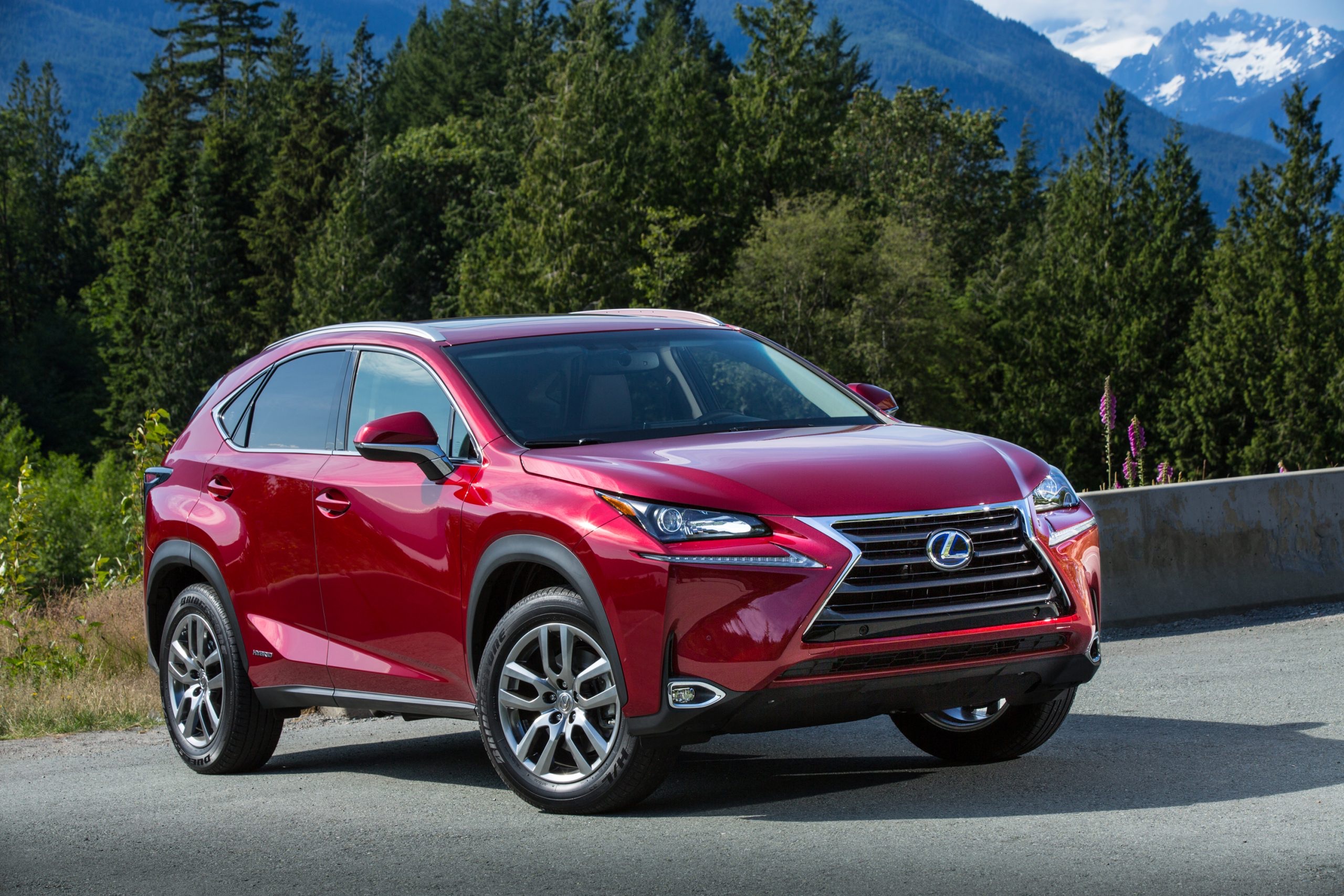

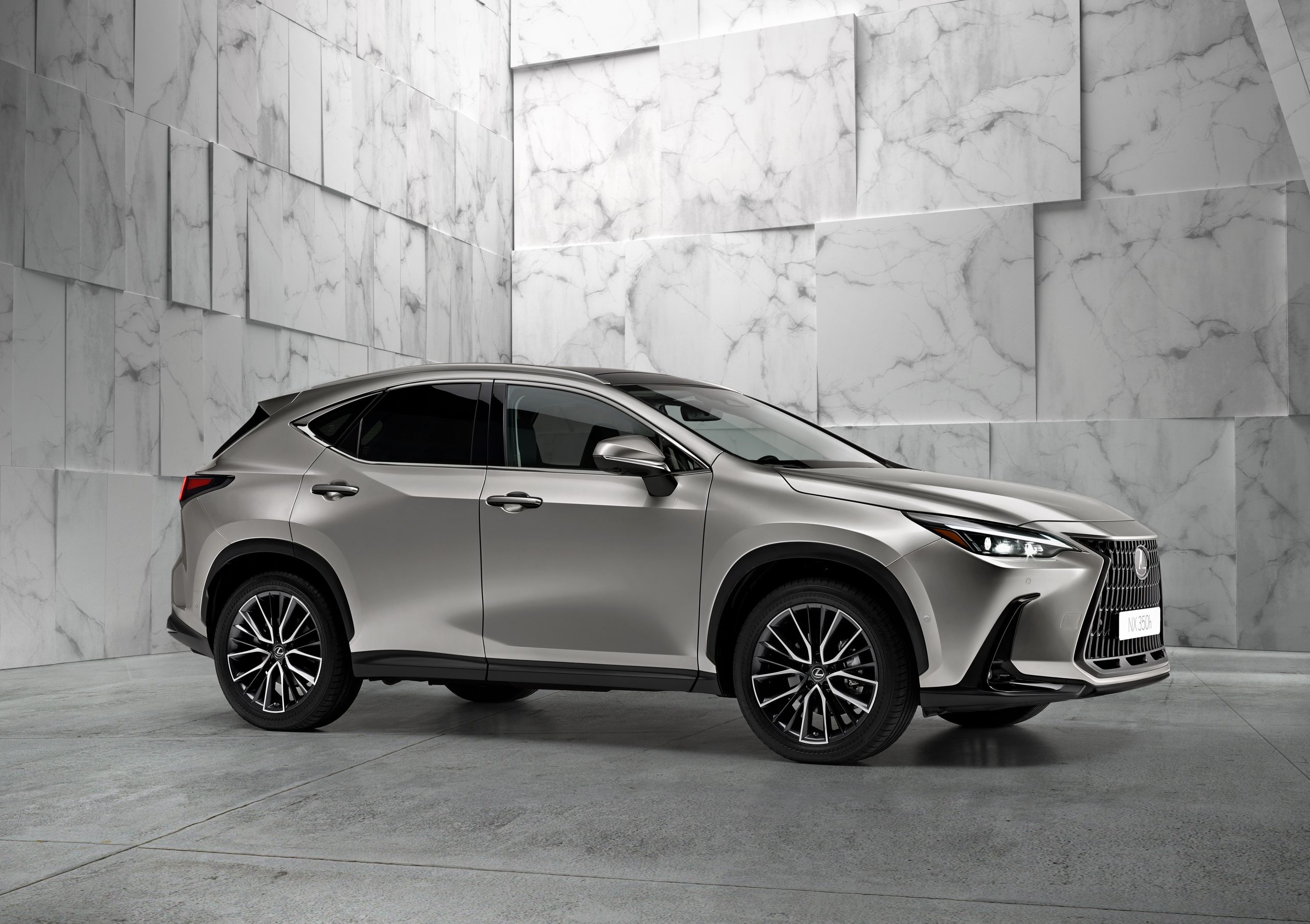

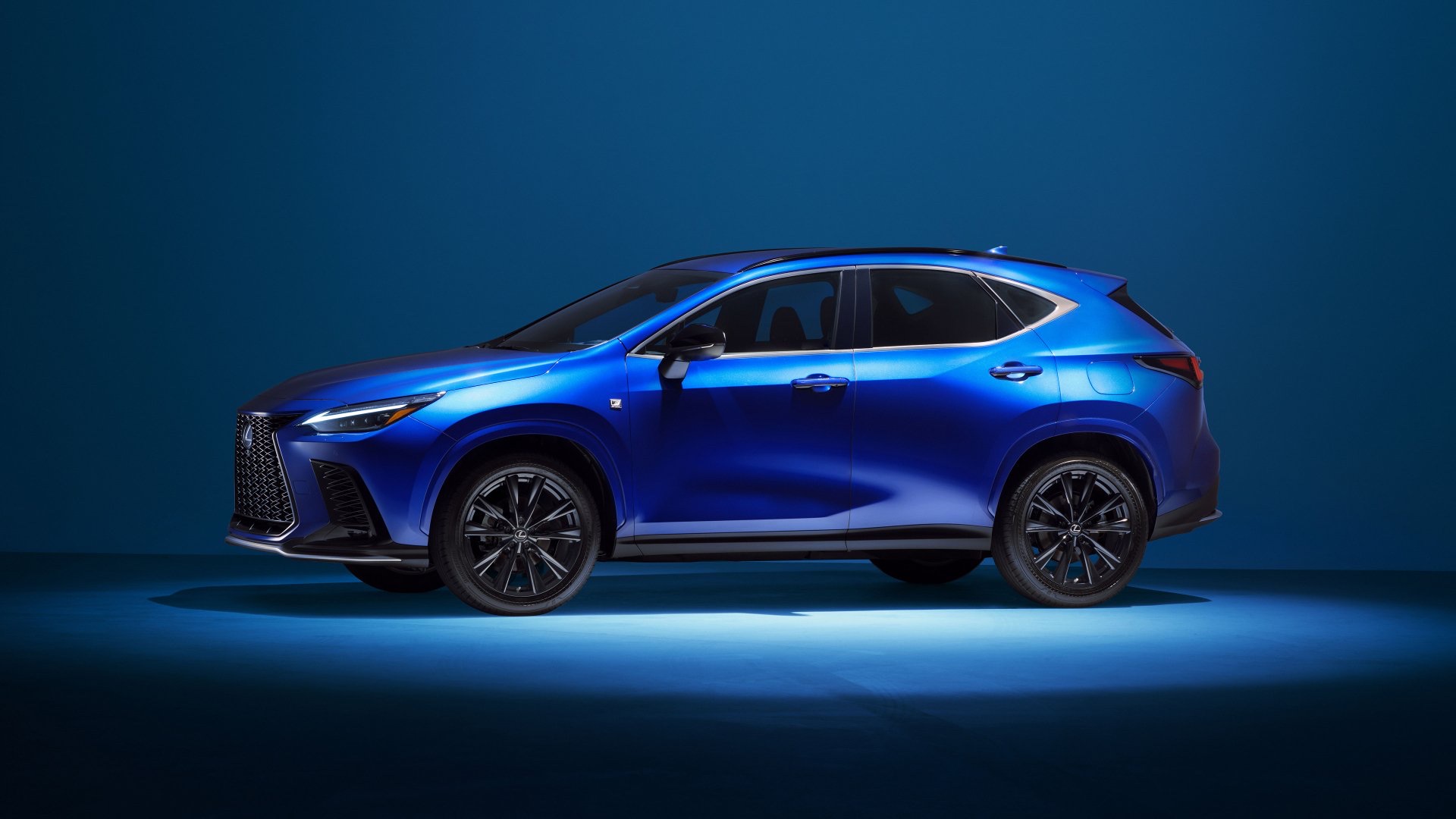

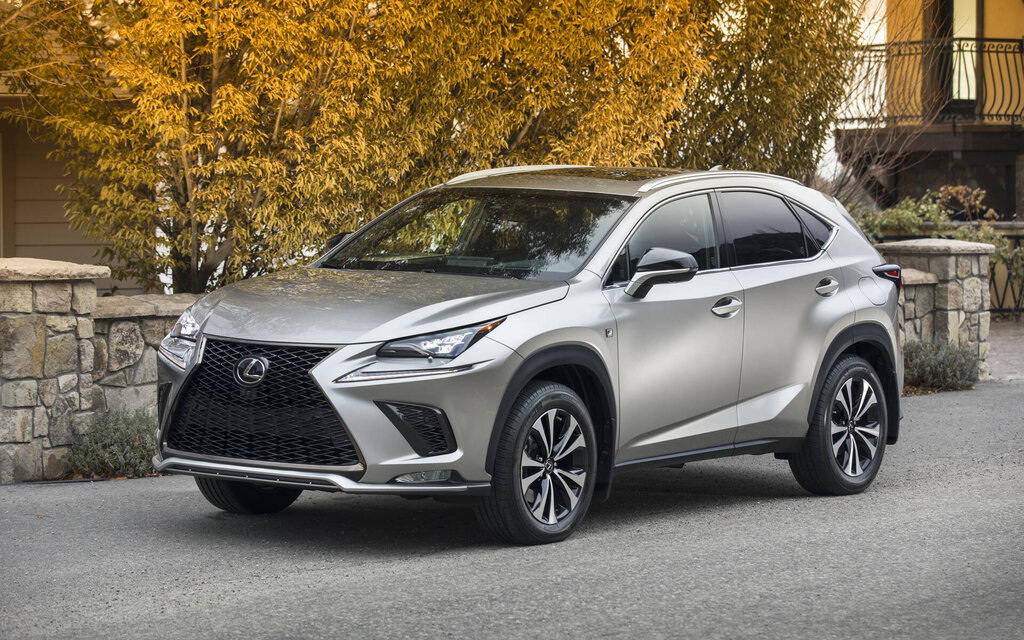

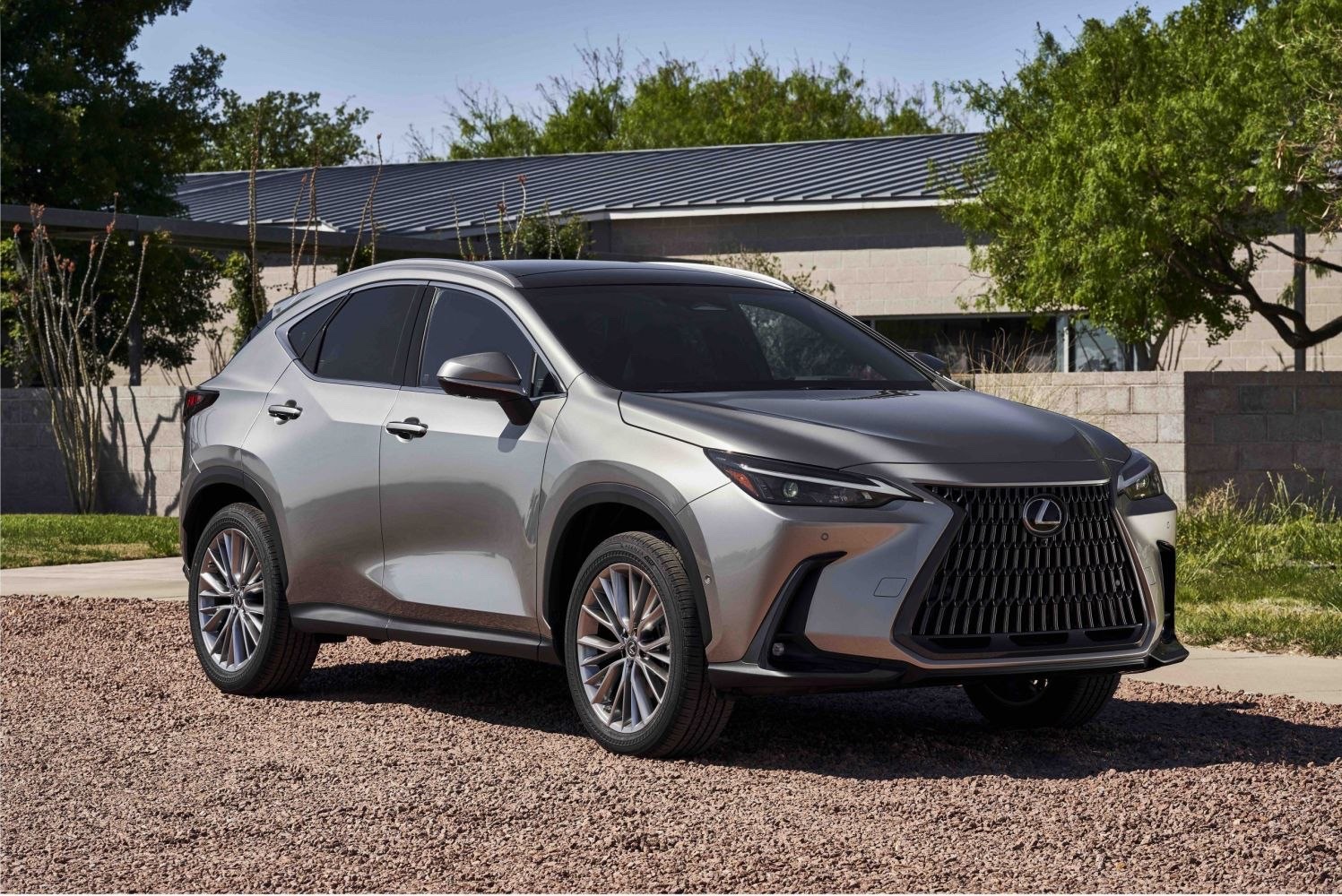

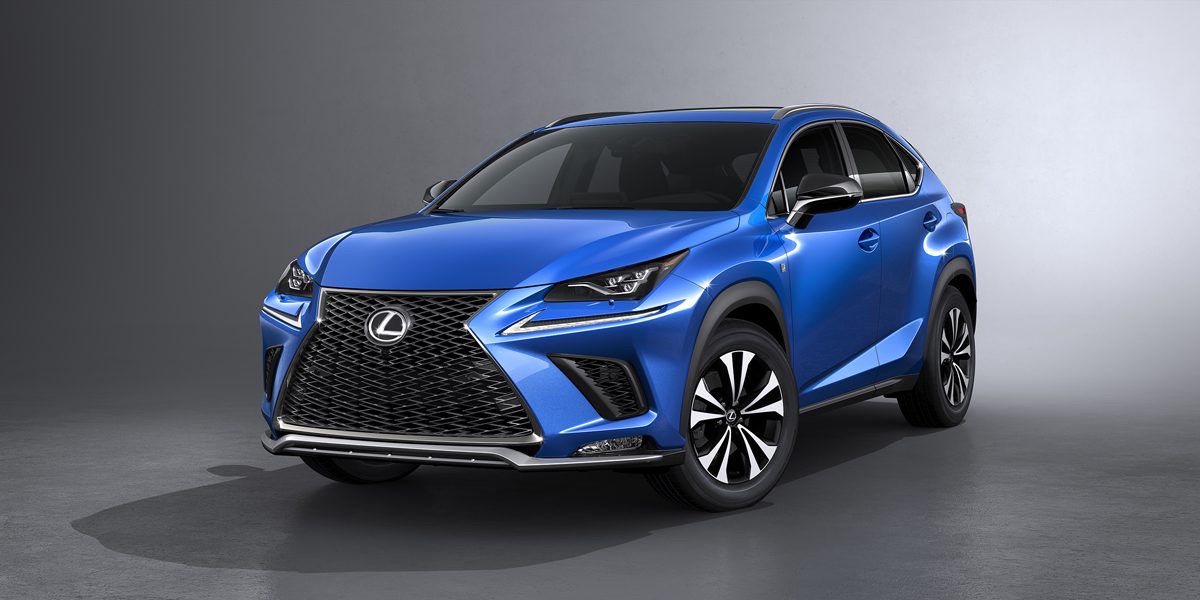

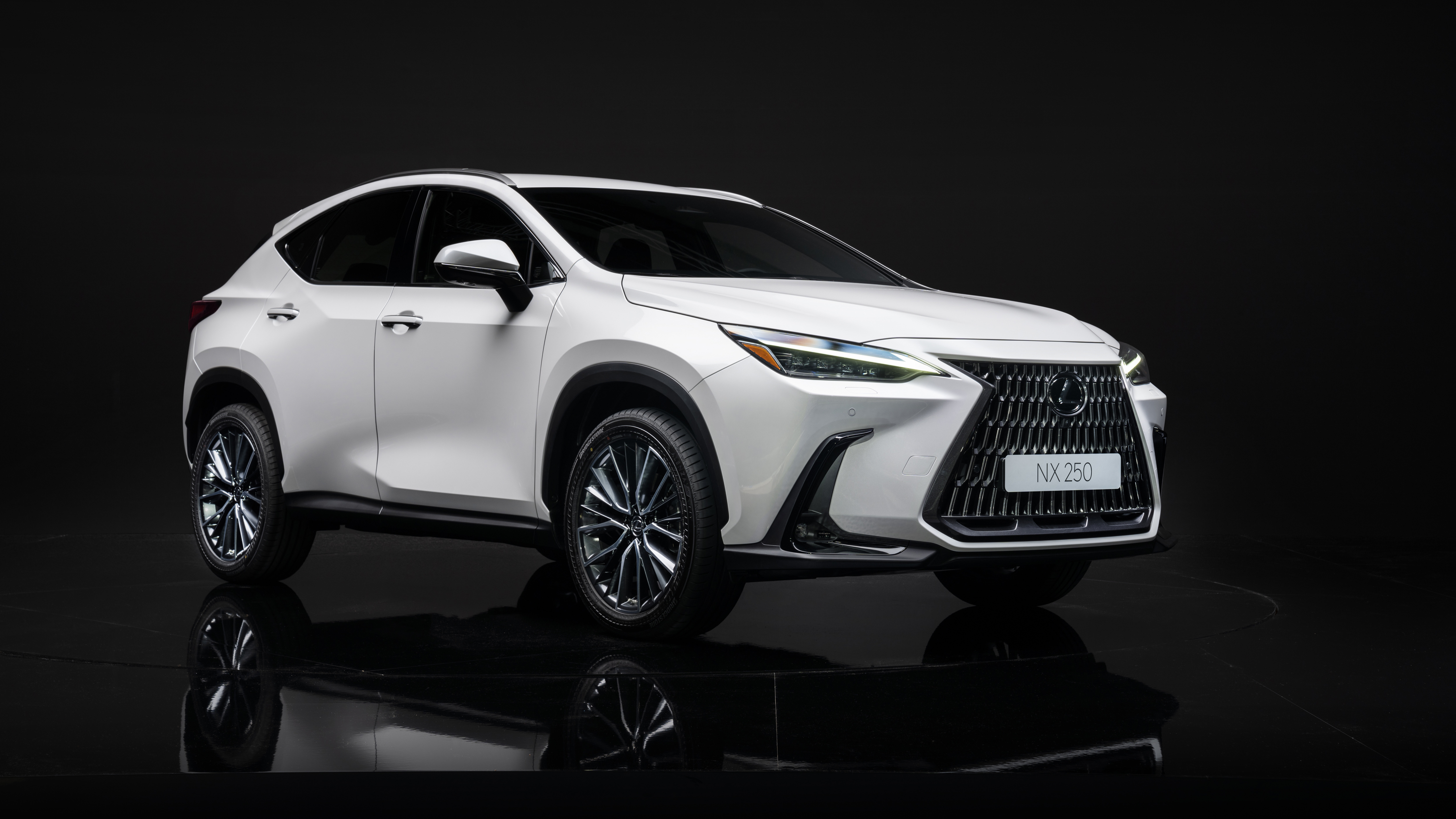

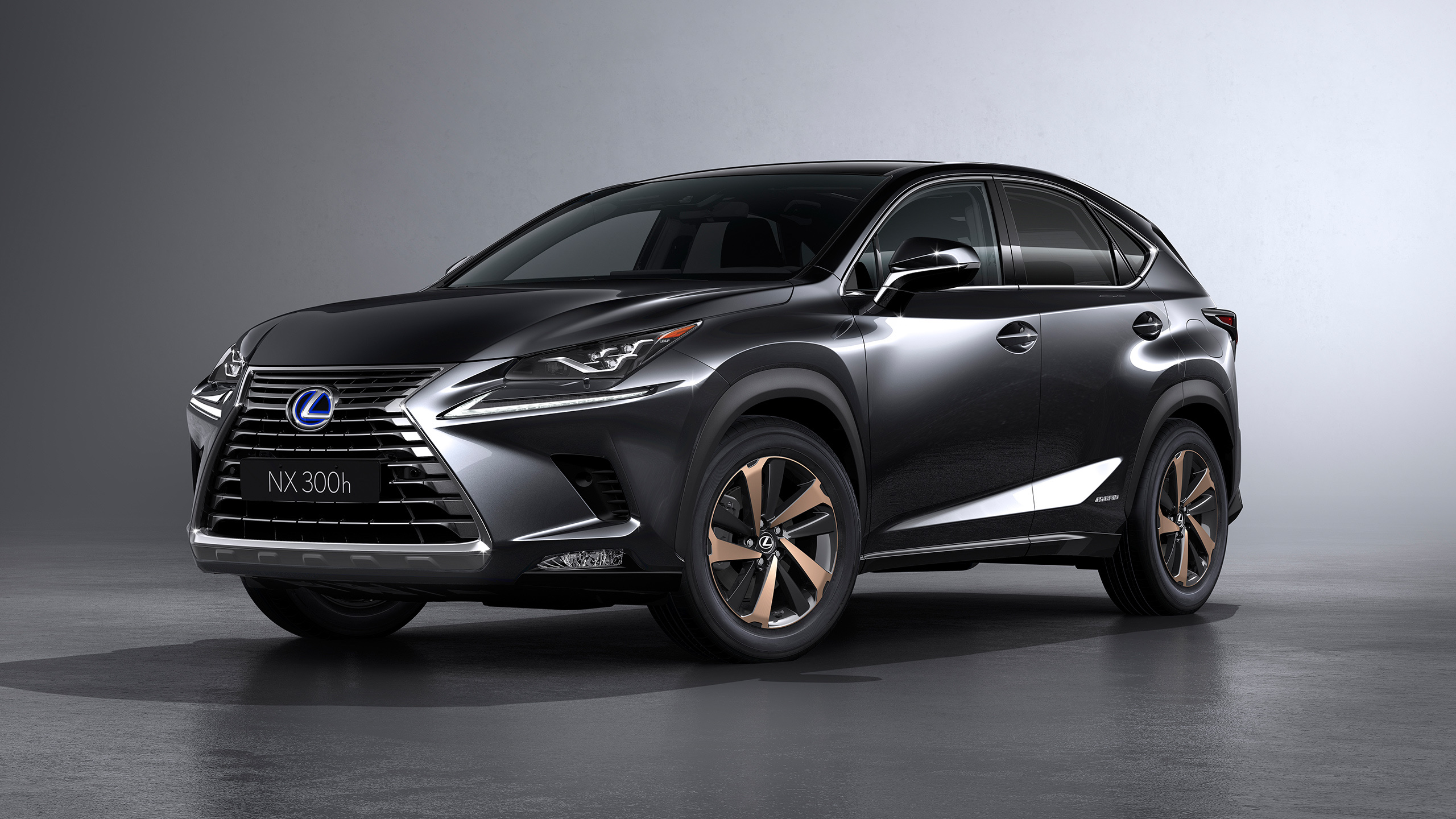

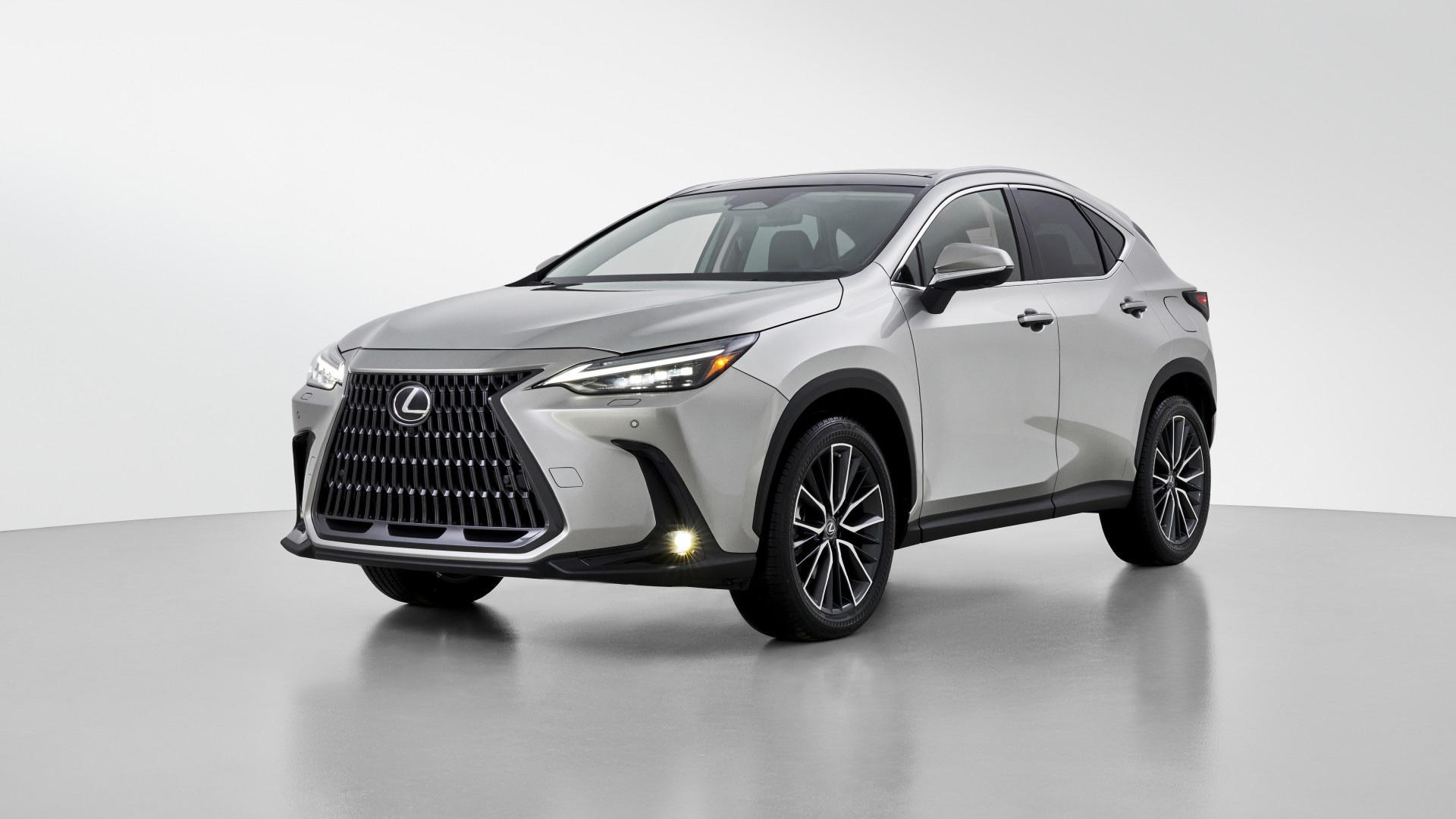

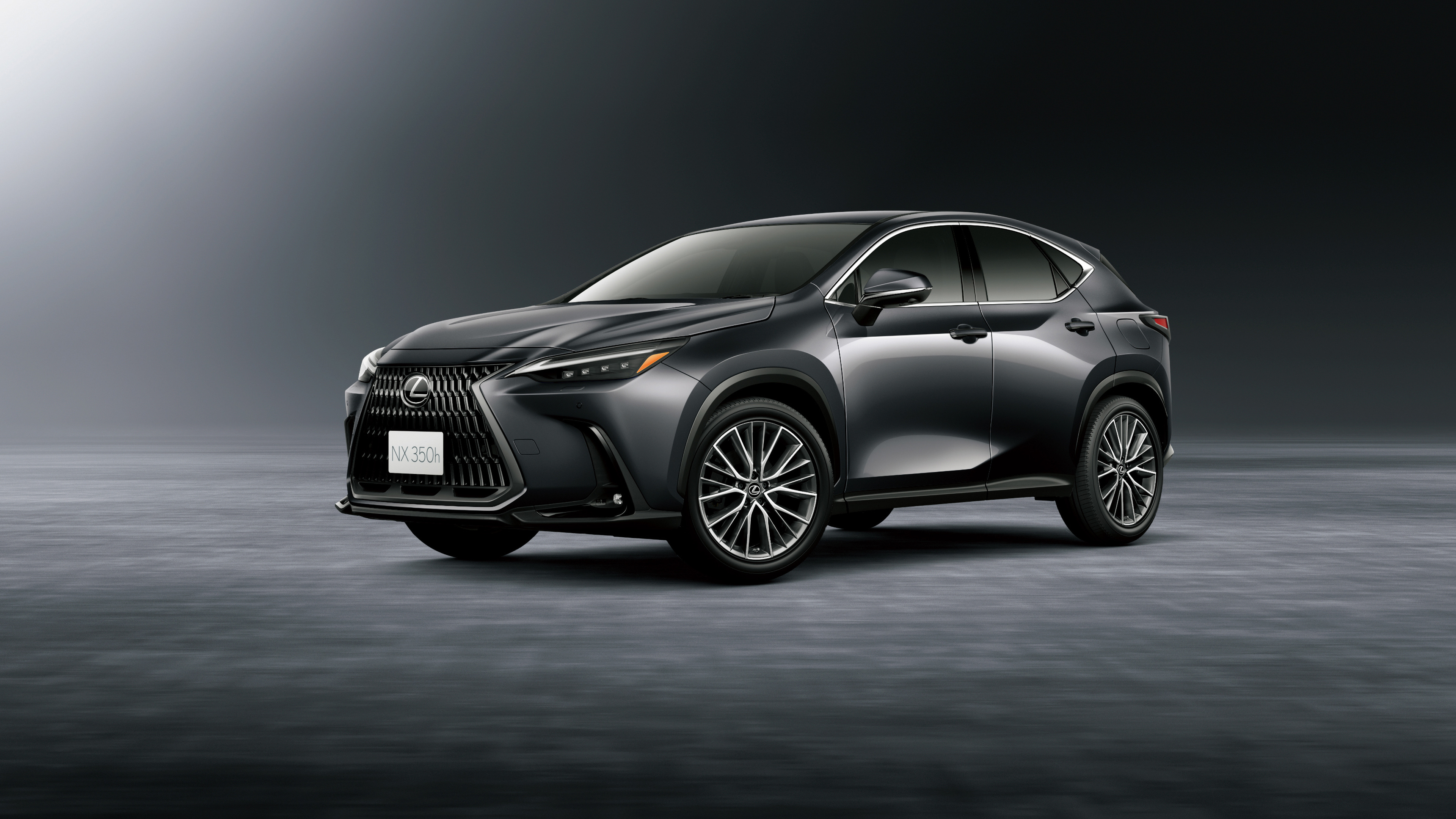

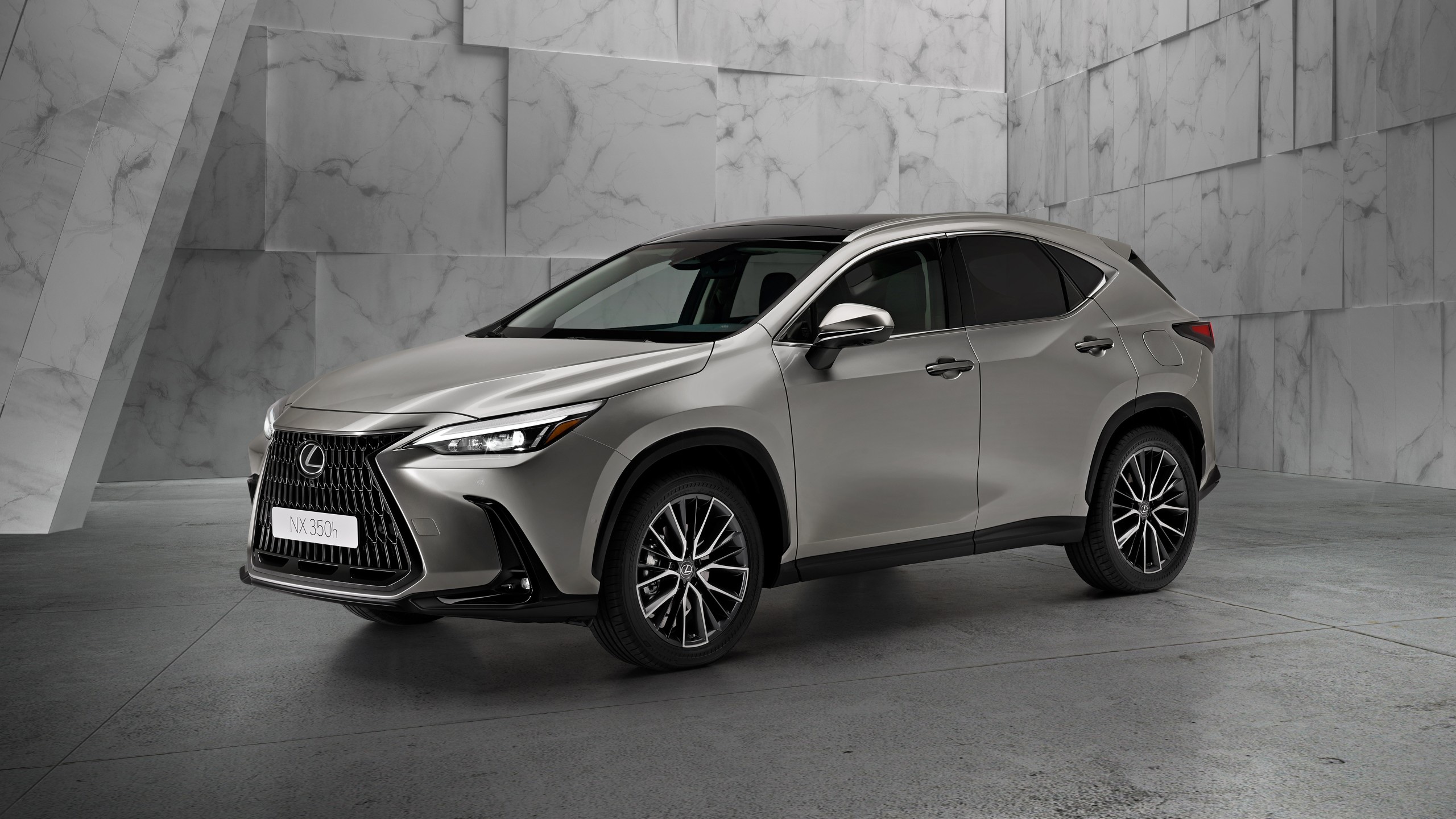

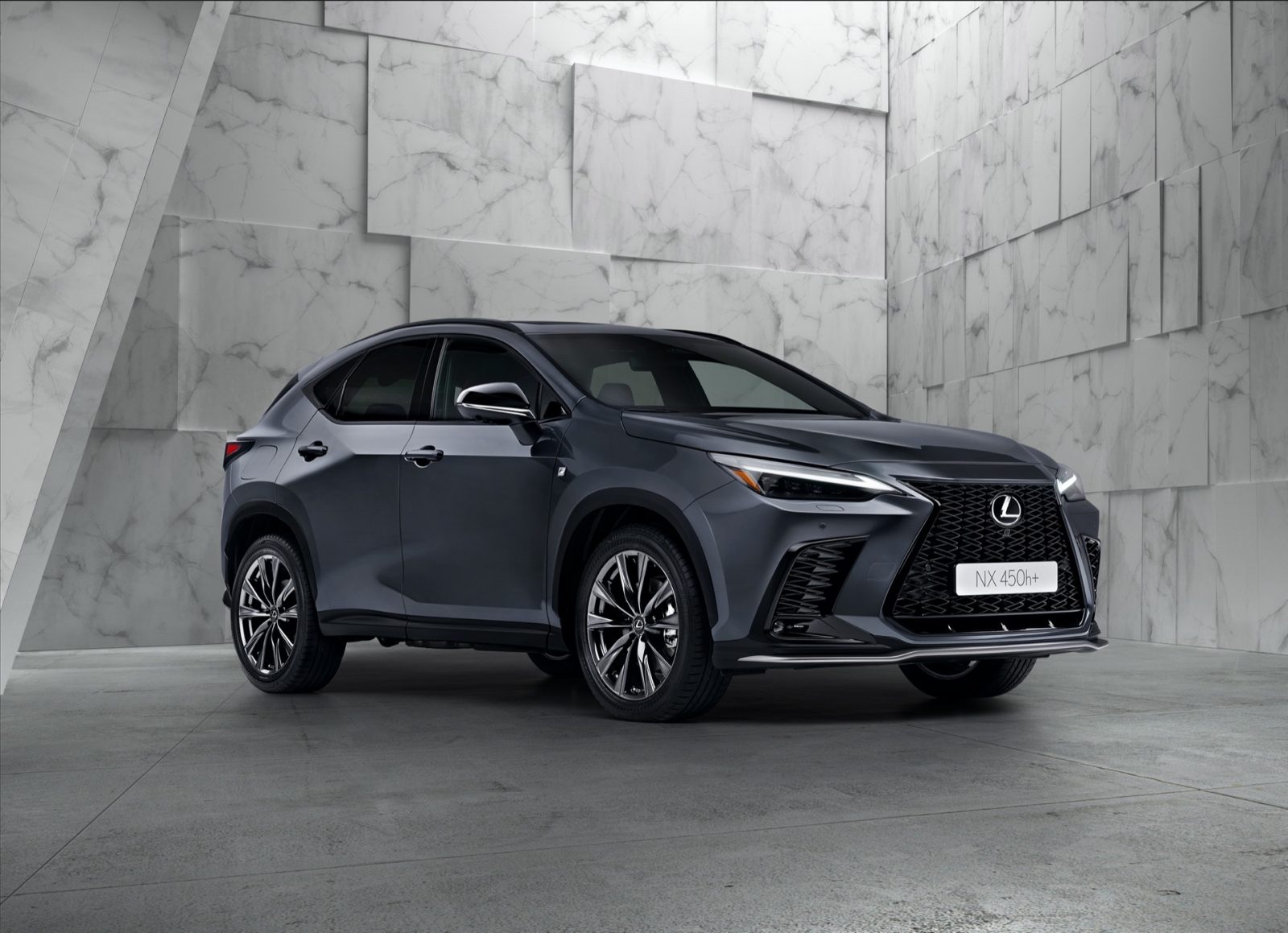

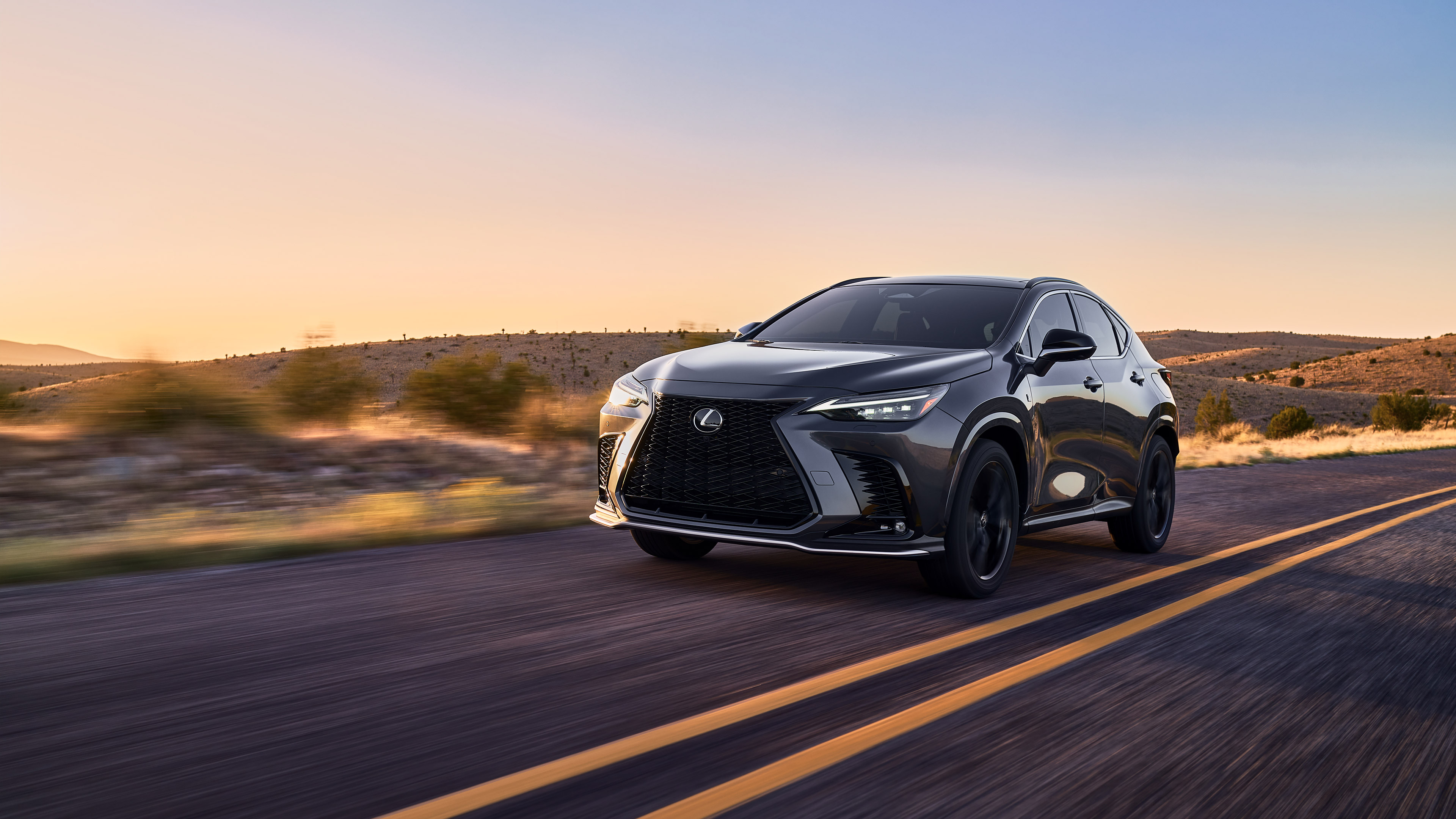

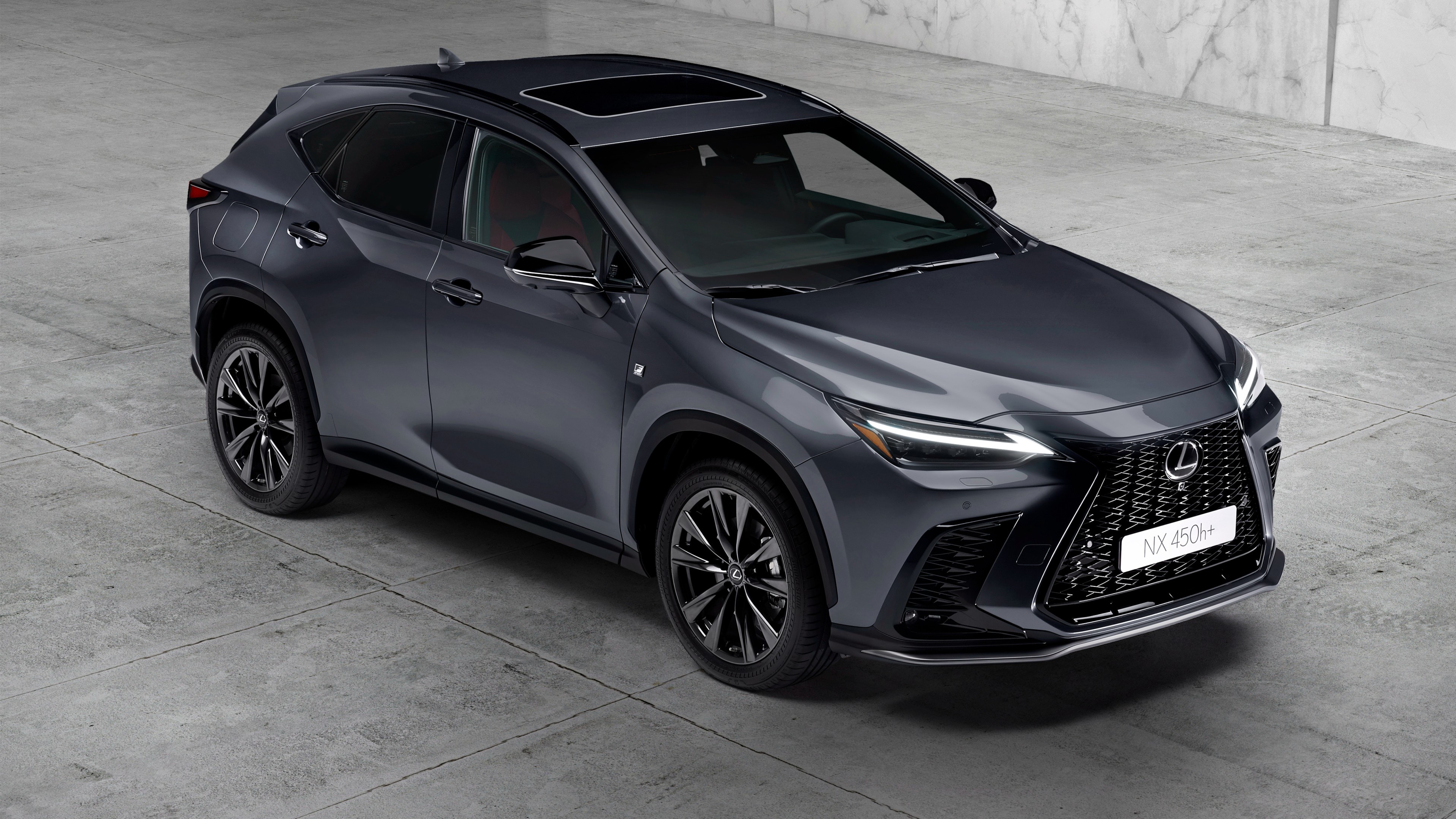

Photo Lexus NX

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

350h 350h 450h+ 200 2.4 (279 hp) 8-speed automatic 4x4 2.0i AT Urban 2.4i AT F Sport 2.5 PHEV AT Executive+ 4x4 2.5 PHEV AT Luxury 4x4 2.5h AT Executive 4x4 2.5h AT Executive+ 4x4 2.5h AT Luxury 4x4

350h 34 specifications

Specifications

Performance and consumption

Top speed, km/h	200
Acceleration 0-100 km/h, s	8.7
Emissions standard	Euro VI

Engine

Engine	2.5h
Engine code	A25A-FXS
Engine type	Hybrid
Fuel type	Gasoline
Engine displacement, cc	2487
Cylinder layout	Inline
Number of cylinders	4
Valves	16
Power, hp	242
Number of electric motors	1
Combustion engine power, hp	192
Combustion engine RPM at max power	6000
Combustion engine torque, Nm	221
Combustion engine RPM at max torque	4000

Dimensions

Seats	5
Length, mm	4660
Height, mm	1660
Wheelbase, mm	2690
Front track, mm	1605
Rear track, mm	1625
Kerb weight, kg	1670
Gross weight, kg	2160
Fuel tank capacity, L	55
Turning circle, m	11.6
Ground clearance, mm	188
Width without mirrors, mm	1865
Trunk capacity, L	520

Transmission and drive

Transmission	CVT
Transmission type	CVT
Drive	Front-wheel drive
Automatic transmission	+

350h 34 specifications

Specifications

Performance and consumption

Top speed, km/h	200
Acceleration 0-100 km/h, s	7.7
Emissions standard	Euro VI

Engine

Engine	2.5h
Engine code	A25A-FXS
Engine type	Hybrid
Fuel type	Gasoline
Engine displacement, cc	2487
Cylinder layout	Inline
Number of cylinders	4
Valves	16
Power, hp	242
Number of electric motors	2
Combustion engine power, hp	192
Combustion engine RPM at max power	6000
Combustion engine torque, Nm	221
Combustion engine RPM at max torque	4000

Dimensions

Seats	5
Length, mm	4660
Height, mm	1660
Wheelbase, mm	2690
Front track, mm	1605
Rear track, mm	1625
Kerb weight, kg	1670
Gross weight, kg	2160
Fuel tank capacity, L	55
Turning circle, m	11.6
Ground clearance, mm	188
Width without mirrors, mm	1865
Trunk capacity, L	520

Transmission and drive

Transmission	CVT
Transmission type	CVT
Drive	All-wheel drive
Automatic transmission	+

450h+ 38 specifications

Specifications

Performance and consumption

Fuel consumption combined, L/100 km	2.5
Top speed, km/h	200
Acceleration 0-100 km/h, s	6.3
Emissions standard	Euro VI

Engine

Engine	2.5 PHEV
Engine code	A25A-FXS
Engine type	Hybrid
Fuel type	Gasoline
Engine displacement, cc	2487
Cylinder layout	Inline
Number of cylinders	4
Valves	16
Compression ratio	14:1
Power, hp	306
Number of electric motors	2
EV mode	+
Plug-in charging support	+
Combustion engine power, hp	185
Combustion engine RPM at max power	6000
Combustion engine torque, Nm	227
Combustion engine RPM at max torque	3200–3700

Dimensions

Seats	5
Length, mm	4660
Height, mm	1660
Wheelbase, mm	2690
Front track, mm	1605
Rear track, mm	1625
Kerb weight, kg	1670
Gross weight, kg	2160
Fuel tank capacity, L	55
Turning circle, m	11.6
Ground clearance, mm	188
Width without mirrors, mm	1865
Trunk capacity, L	520

Transmission and drive

Transmission	CVT
Transmission type	CVT
Drive	All-wheel drive
Automatic transmission	+

200 35 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km	8.2
Fuel consumption highway, L/100 km	5.3
Fuel consumption combined, L/100 km	6.4
Acceleration 0-100 km/h, s	11.6
Emissions standard	Euro VI

Engine

Engine	2.0i
Engine code	M20A-FKS
Engine type	Internal combustion engine
Fuel type	Gasoline
Engine displacement, cc	1987
Cylinder layout	Inline
Number of cylinders	4
Valves	16
Compression ratio	13.0:1
Power, hp	173
RPM at max power	6600
Torque, Nm	203
RPM at max torque	4400-4900

Dimensions

Seats	5
Length, mm	4660
Height, mm	1660
Wheelbase, mm	2690
Front track, mm	1605
Rear track, mm	1625
Kerb weight, kg	1670
Gross weight, kg	2160
Fuel tank capacity, L	55
Turning circle, m	11.6
Ground clearance, mm	188
Width without mirrors, mm	1865
Trunk capacity, L	520

Transmission and drive

Transmission	CVT
Transmission type	CVT
Drive	Front-wheel drive
Automatic transmission	+

2.4 (279 hp) 8-speed automatic 4x4 36 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km	11.1
Fuel consumption highway, L/100 km	6.4
Fuel consumption combined, L/100 km	8.1
Acceleration 0-100 km/h, s	7

Engine

Engine	2.4
Engine code	T24A-FTS
Engine type	Internal combustion engine
Fuel type	Gasoline
Engine displacement, cc	2393
Cylinder layout	Inline
Number of cylinders	4
Valves	16
Turbocharger	+
Power, hp	279
RPM at max power	6000
Torque, Nm	205
RPM at max torque	4500-6000

Dimensions

Seats	5
Length, mm	4660
Height, mm	1660
Wheelbase, mm	2690
Front track, mm	1605
Rear track, mm	1625
Kerb weight, kg	1670
Gross weight, kg	2160
Fuel tank capacity, L	55
Turning circle, m	11.6
Ground clearance, mm	188
Width without mirrors, mm	1865
Trunk capacity, L	520

Transmission and drive

Transmission	8-speed automatic
Transmission type	automatic
Drive	All-wheel drive
Number of gears	8
Transmission manufacturer	Aisin
Automatic transmission	+

2.0i AT Urban 112 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km	8.2
Fuel consumption highway, L/100 km	5.3
Fuel consumption combined, L/100 km	6.4
Acceleration 0-100 km/h, s	11.6
Emissions standard	Euro VI

Engine

Engine	2.0i
Engine code	M20A-FKS
Engine type	Internal combustion engine
Fuel type	Gasoline
Engine displacement, cc	1987
Cylinder layout	Inline
Number of cylinders	4
Valves	16
Compression ratio	13.0:1
Power, hp	173
RPM at max power	6600
Torque, Nm	203
RPM at max torque	4400-4900

Dimensions

Seats	5
Length, mm	4660
Height, mm	1660
Wheelbase, mm	2690
Front track, mm	1605
Rear track, mm	1625
Kerb weight, kg	1670
Gross weight, kg	2160
Fuel tank capacity, L	55
Turning circle, m	11.6
Ground clearance, mm	188
Width without mirrors, mm	1865
Trunk capacity, L	520

Transmission and drive

Transmission	CVT
Transmission type	CVT
Drive	Front-wheel drive
Automatic transmission	+

Suspension

Front suspension type	MacPherson strut
Rear suspension type	Double-wishbone

Brake system

Front brakes	Ventilated disc
Rear brakes	Ventilated disc

Steering

Power steering	Electric power steering
