Lexus LX specifications and photos
The 2021 Lexus LX represents the fourth generation of the brand's flagship SUV. Built on a new body-on-frame architecture, it shifts toward turbocharged V6 power and upgraded interior technology while retaining its traditional off-road focus.
Lexus LX at a glance
Quick model context before comparing photos and trim-level specifications.
Transitioning to the GA-F platform shared with the Land Cruiser 300, the fourth-generation Lexus LX manages to shed approximately 200 kilograms compared to its predecessor. This weight reduction is achieved through the extensive use of aluminum for the hood, roof, doors, fenders, and trunk lid. The 2021 model replaces the older naturally aspirated V8s with smaller displacement turbocharged engines, pairing this modern powertrain approach with an advanced hydraulic suspension setup. The flagship SUV remains a dedicated body-on-frame vehicle designed for buyers who require genuine off-road capability without sacrificing luxury amenities.
- Power: 299-415 hp
- Engine displacement: 3346-3445 cc
- Transmissions: 10-speed automatic
- Seating: 5 seats
Lexus LX overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior of the LX maintains a commanding presence with dimensions measuring 5100 mm in length, 1990 mm in width, and 1885 mm in height, sitting on a 2850 mm wheelbase. Ground clearance is rated at 200 mm. Standard exterior equipment includes BladeScan headlights and LED lighting all around. The structural shift to the GA-F platform maintains the traditional imposing silhouette while integrating lightweight aluminum body panels to help optimize the center of gravity and overall structural rigidity.
Interior
Inside, Lexus has replaced analog dials with an 8-inch digital instrument cluster and introduced a dual-screen center console. A 12.3-inch upper touchscreen handles multimedia, while a lower 7-inch display manages climate control and driving modes. Beyond the standard five- and seven-seat configurations, the fourth generation introduces an exclusive four-seat VIP layout. This lounge-style setup includes reclining second-row seats with massage functions, an extending ottoman, independent climate control, and a central console display specifically for rear passengers.
Performance
The 2021 LX offers two turbocharged V6 engine options, both paired with a 10-speed Aisin automatic transmission. The gasoline LX 600 is powered by a 3.4-liter V6 producing 415 horsepower and 650 Nm of torque, achieving a 0-100 km/h time of 6.9 seconds. The LX 500d features a 3.3-liter diesel V6 delivering 299 horsepower and 700 Nm of torque, reaching 100 km/h in 7.9 seconds. The drivetrain features full-time four-wheel drive with a Torsen center differential, up to three locking differentials, and a low-range transfer case.
Practicality
With its 2850 mm wheelbase, the LX provides substantial interior volume, available in versatile five- and seven-seat configurations for family duty. A large 110-liter fuel tank ensures an excellent driving range for long trips. The shift to lighter body components helps mitigate the 2525 kg curb weight, making the vehicle slightly more manageable in everyday driving while retaining its heavy-duty towing and hauling foundations.
Safety and tech
The SUV comes standard with Lexus Safety System+ 2.5, which includes adaptive cruise control, automatic emergency braking, lane keeping assist, and road sign recognition. A fingerprint scanner is integrated into the ignition button for enhanced security. For off-road driving, the LX includes Crawl Control, Multi-Terrain Select, and a Multi-Terrain Monitor that provides specialized underfloor camera views of both the front and rear wheels.
Buyer notes
When evaluating the fourth-generation Lexus LX, buyers should carefully consider their seating needs, as the interior layouts range from a practical seven-seater to an ultra-luxury four-seat configuration. Engine choice between the high-torque diesel and the more powerful gasoline V6 will largely depend on driving habits and regional availability. Ensure to verify specific trim equipment, such as the Mark Levinson audio system and specific off-road hardware, which can vary widely by market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.5i Dual VVT-I (415 hp) 10-speed automatic 4x4 | 3445 cc | 415 hp | 5/7 | 10-speed automatic |
| 3.3d (299 hp) 10-speed automatic 4x4 | 3346 cc | 299 hp | 5/7 | 10-speed automatic |
| 3.3d AT Luxury 4WD | 3346 cc | 299 hp | 5 | 10-speed automatic |
| 3.3d AT Premium 4WD | 3346 cc | 299 hp | 5 | 10-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

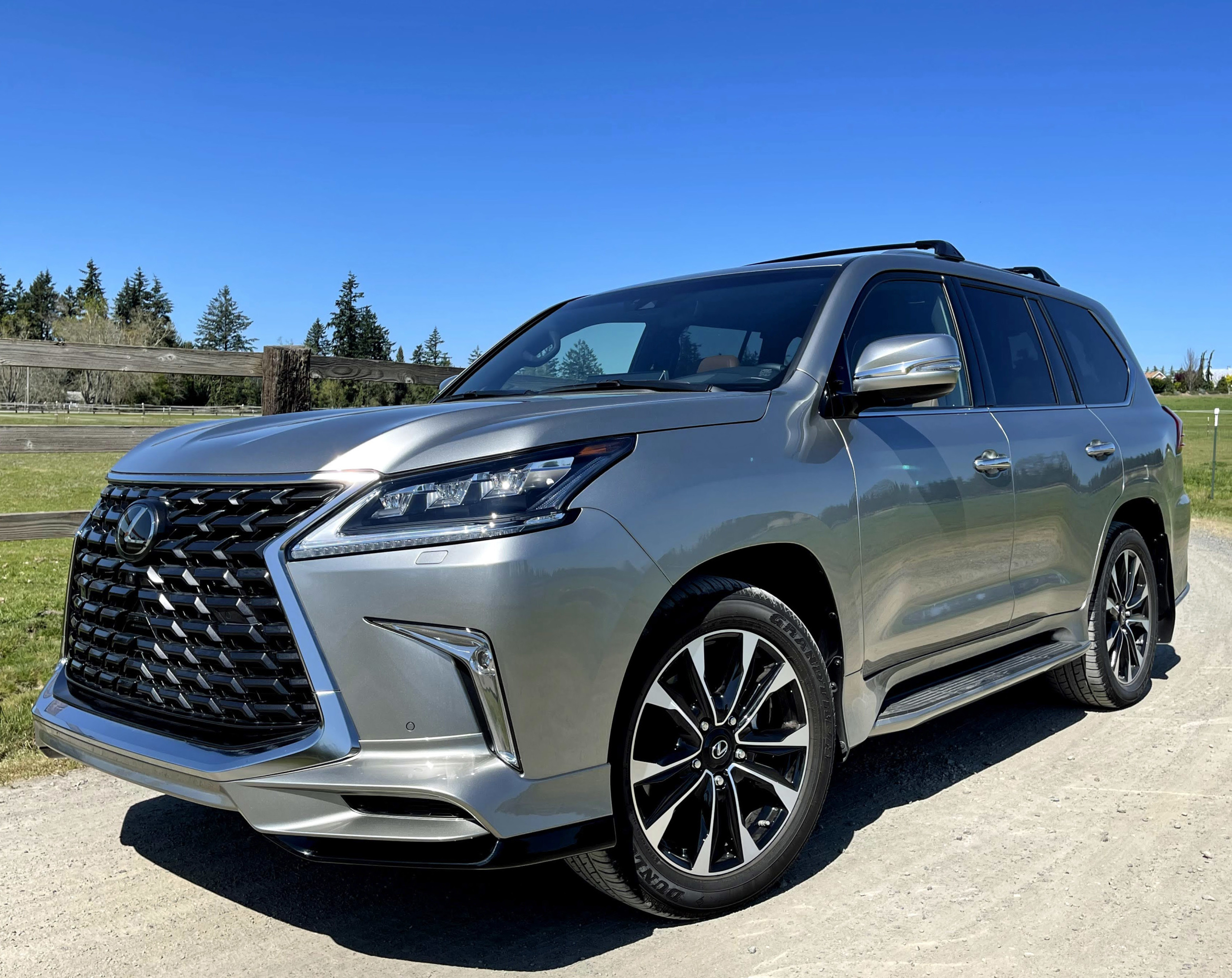

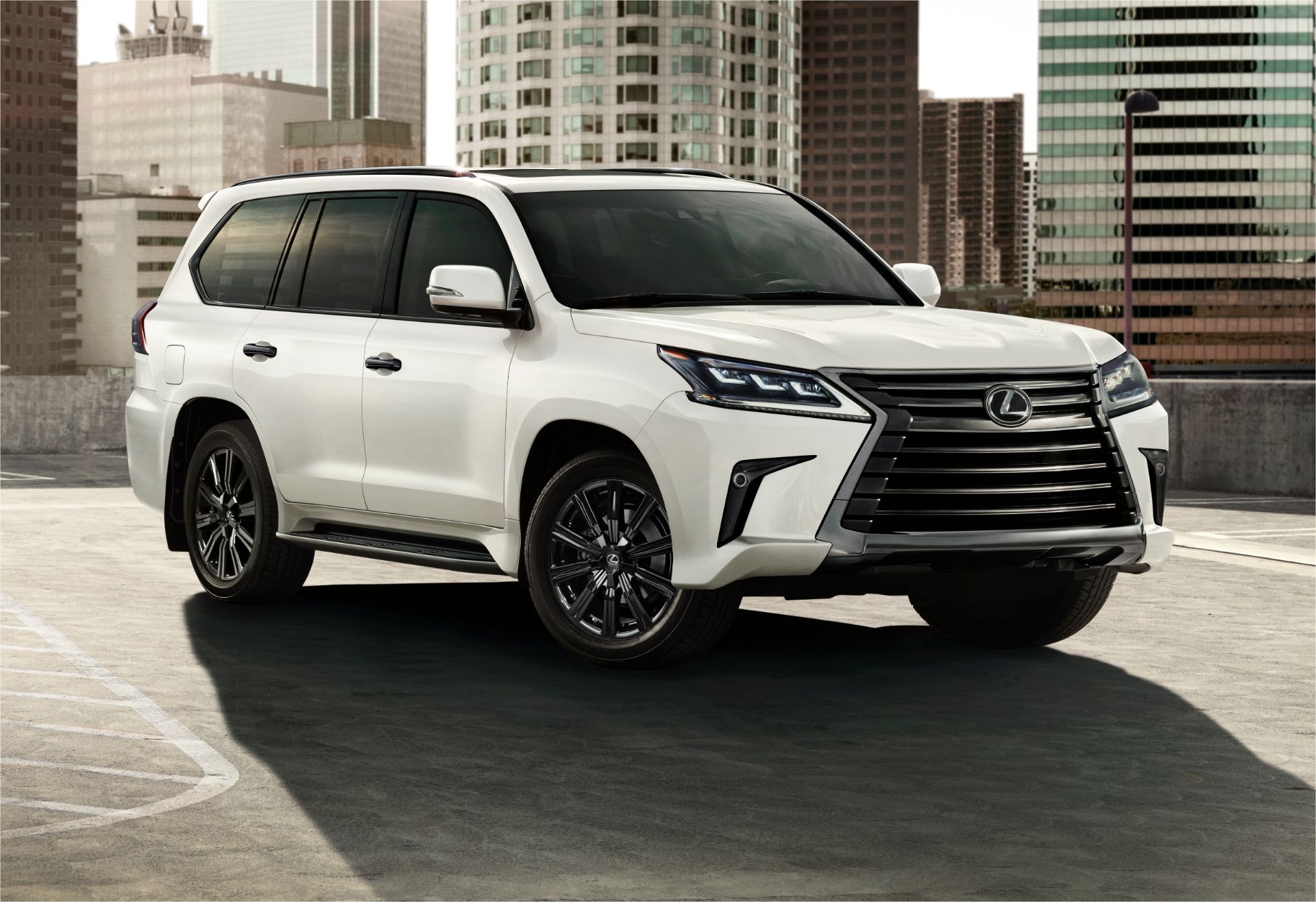

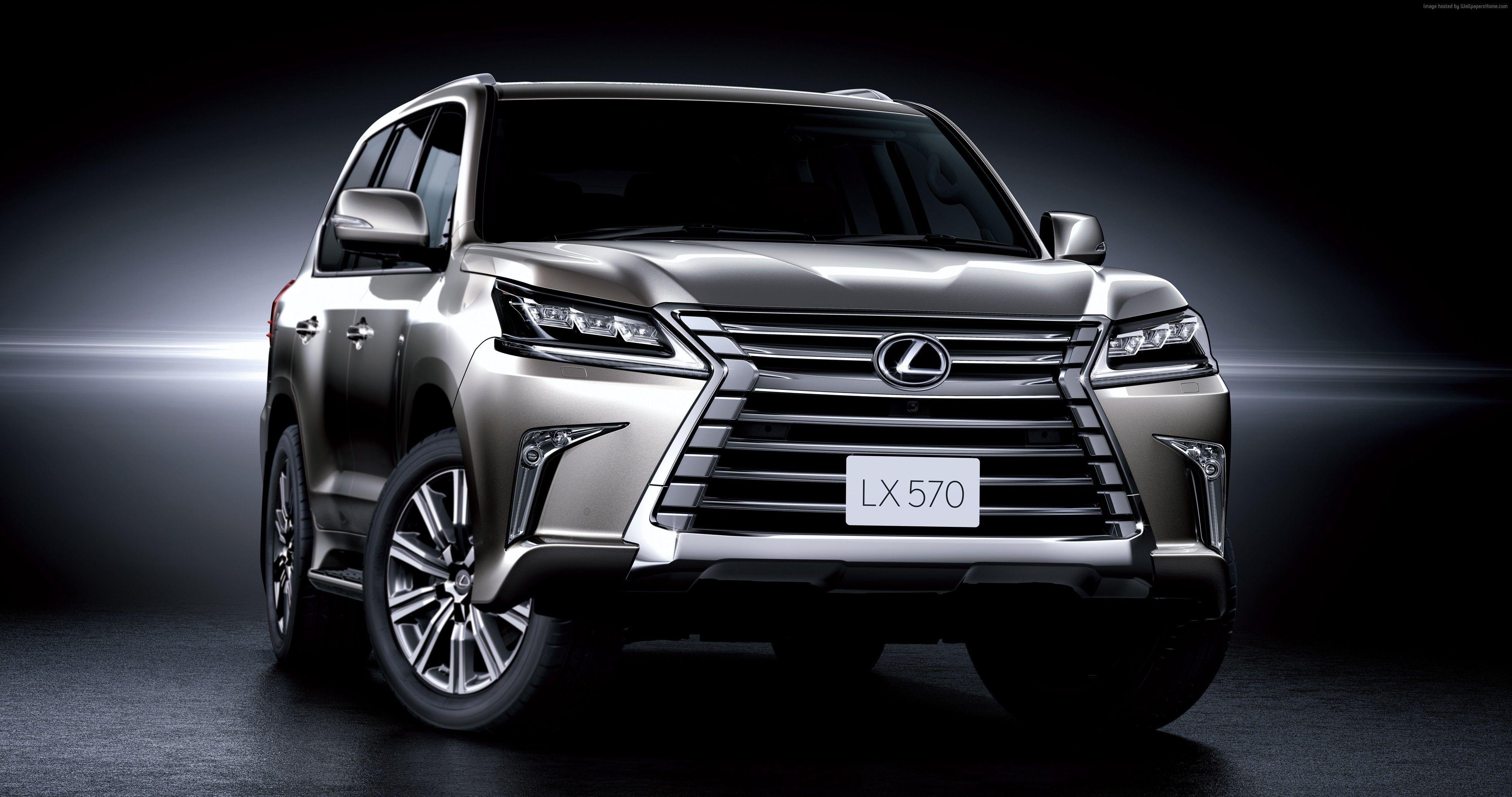

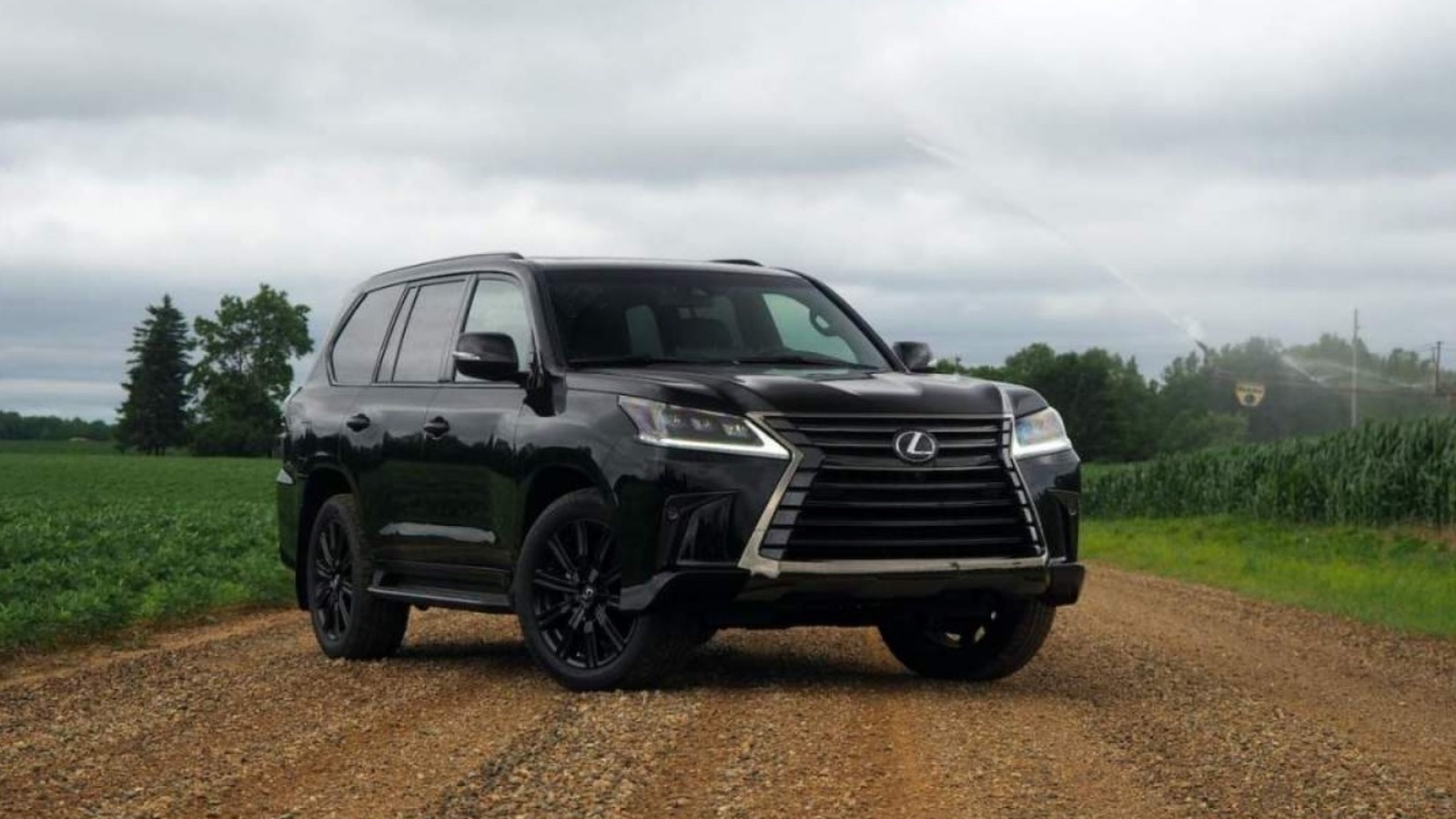

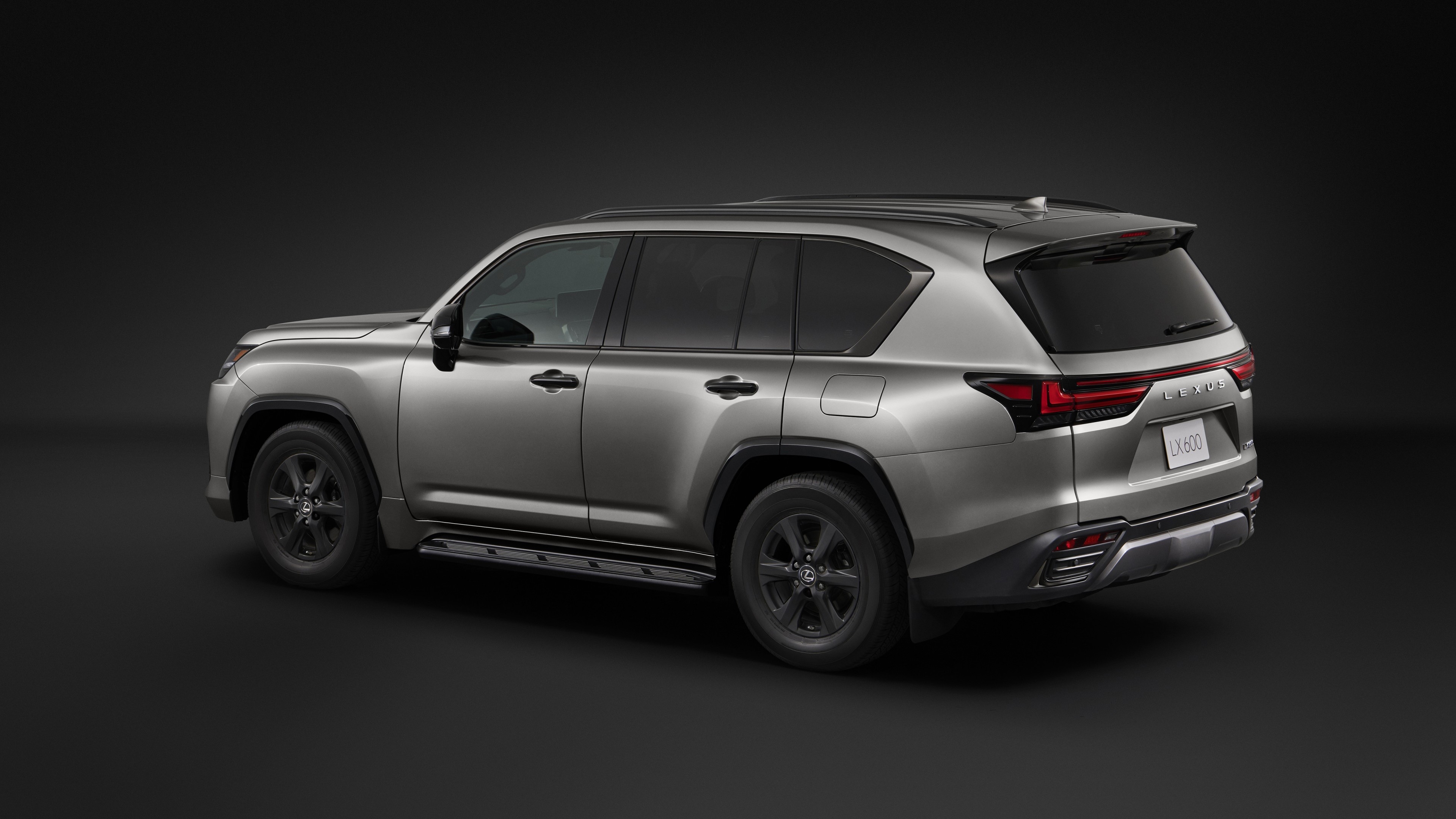

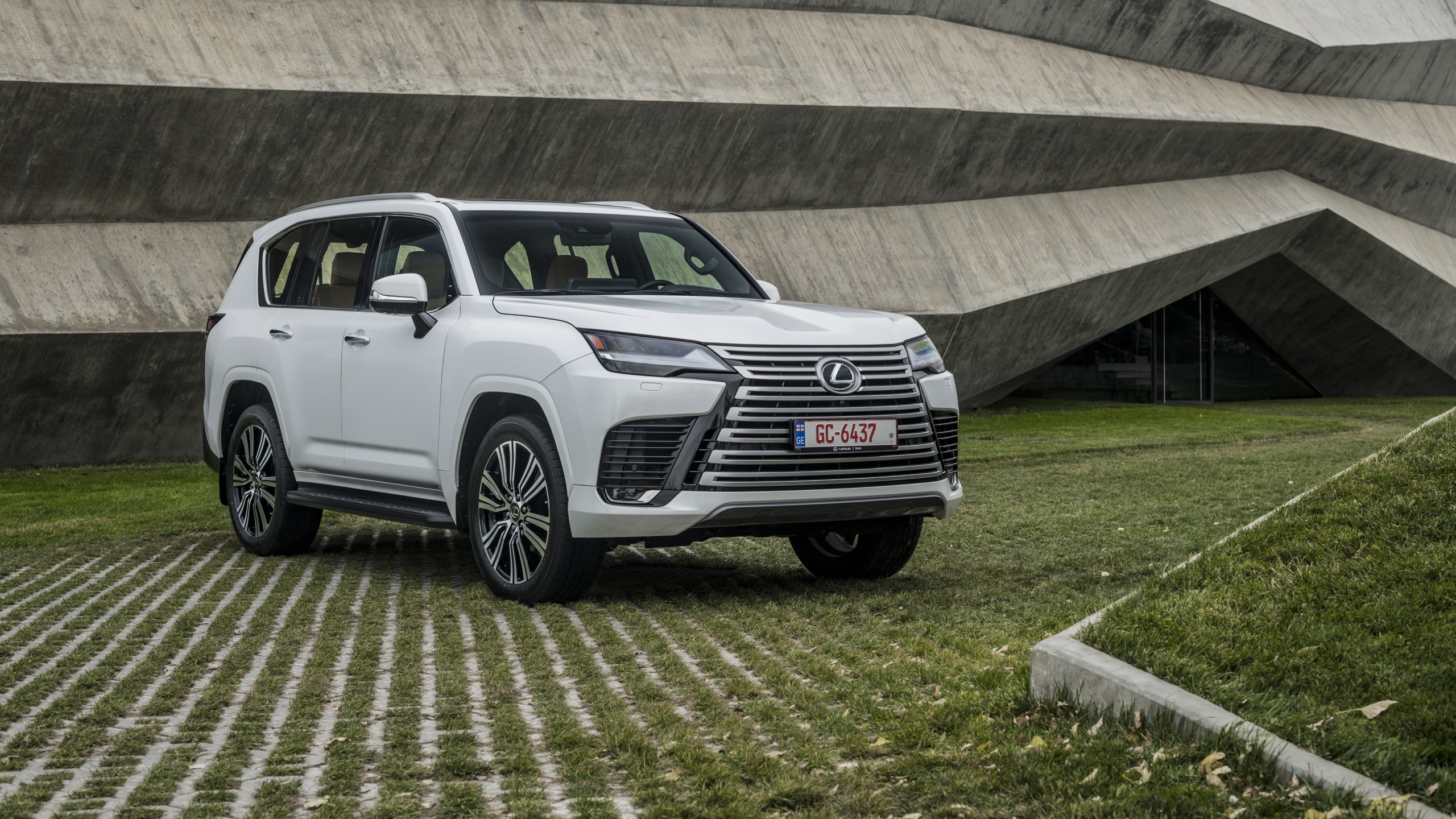

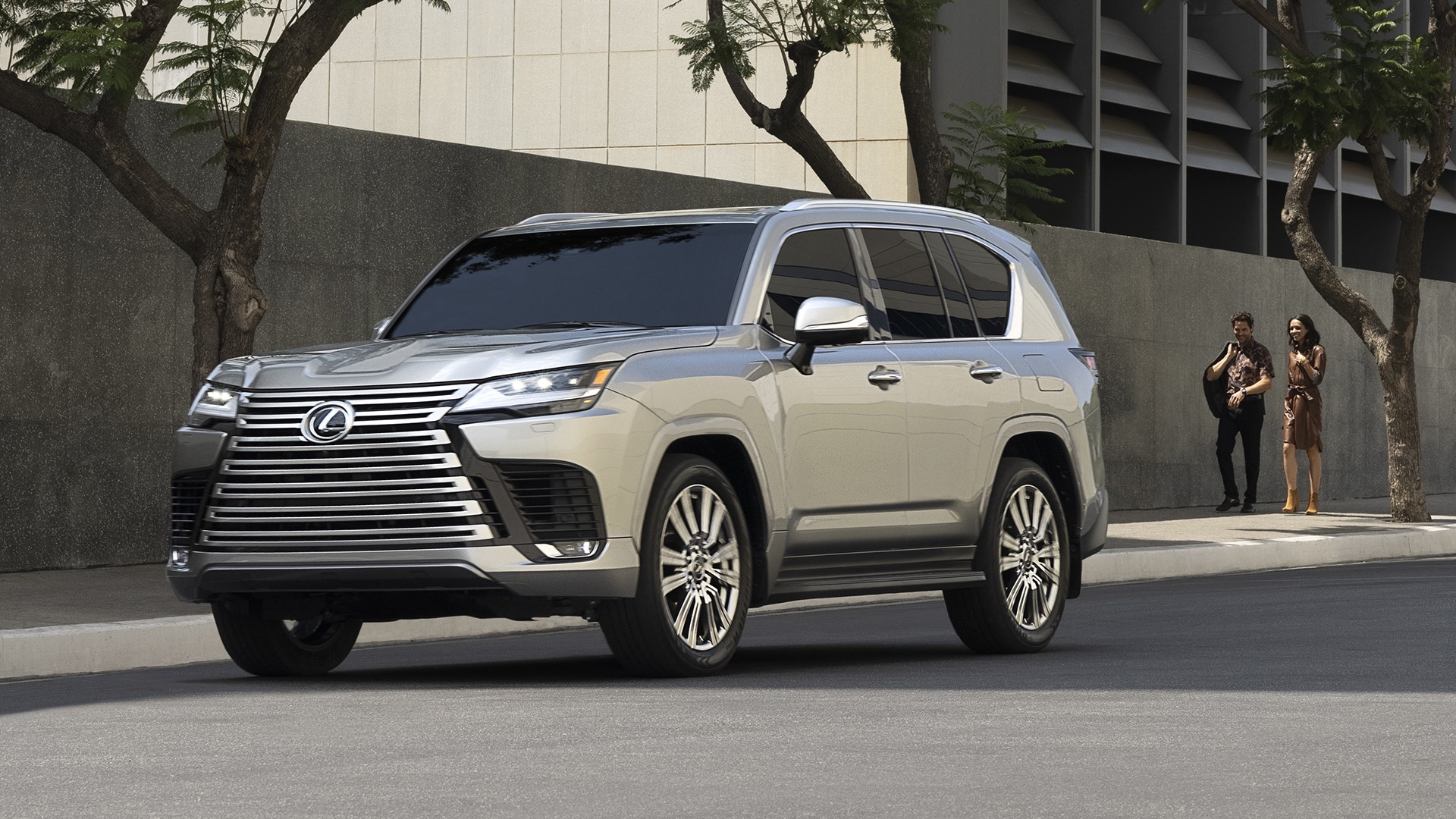

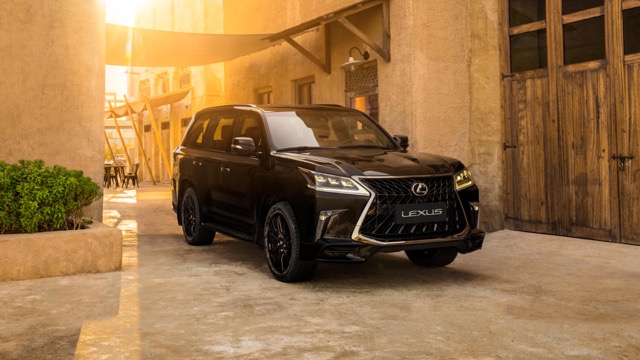

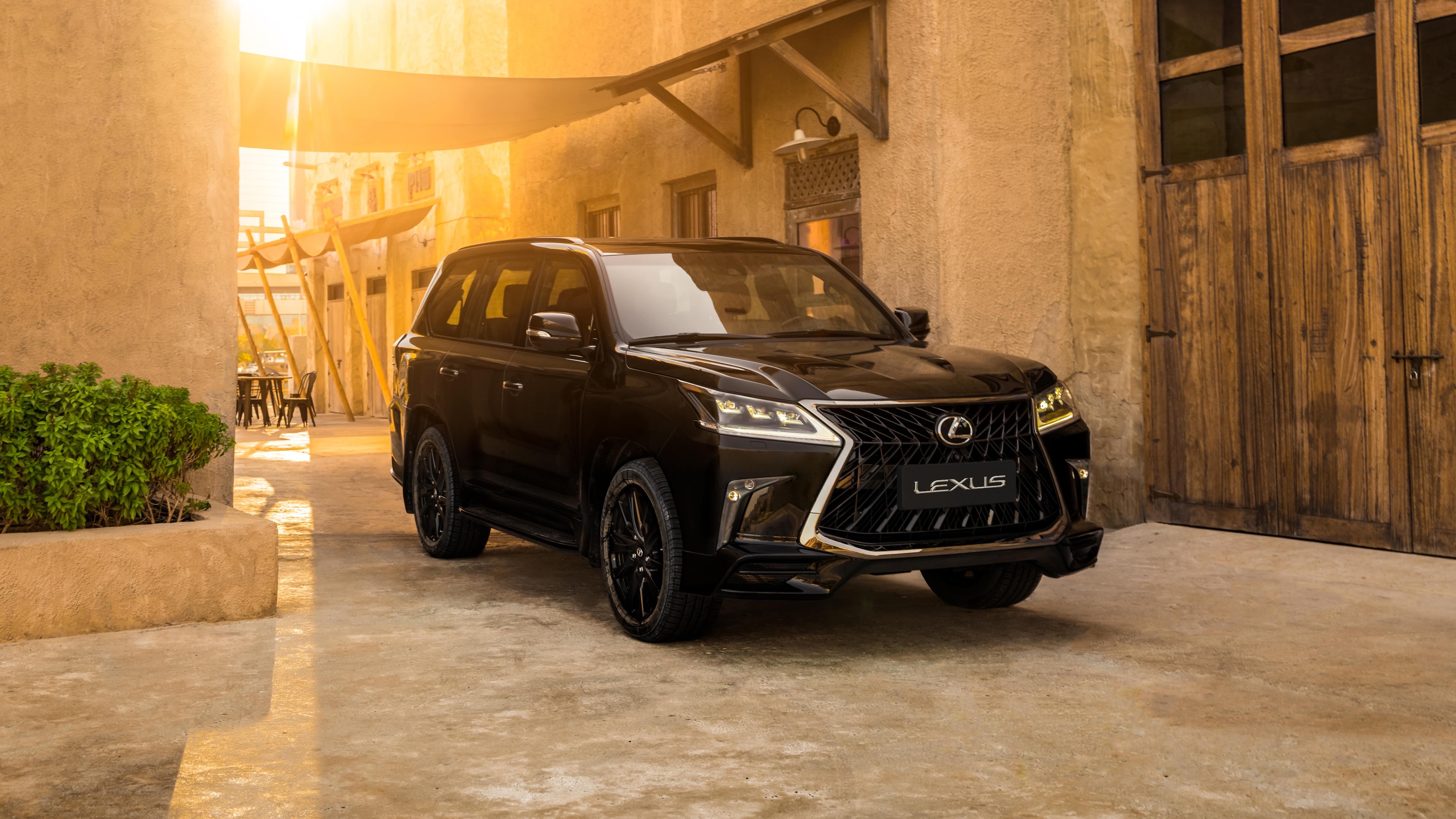

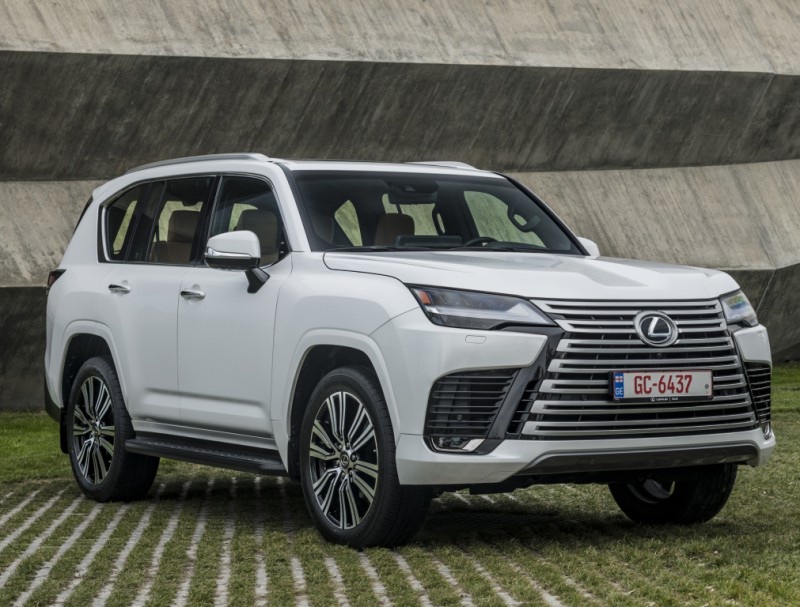

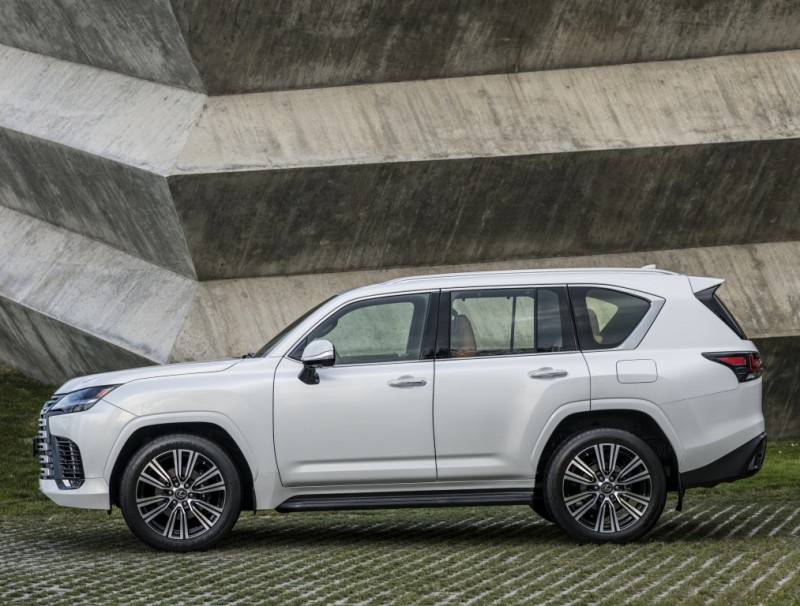

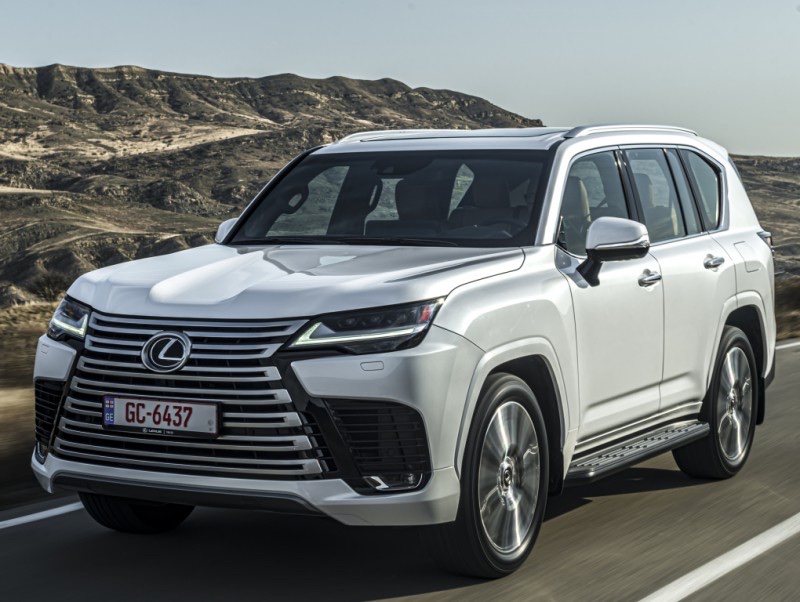

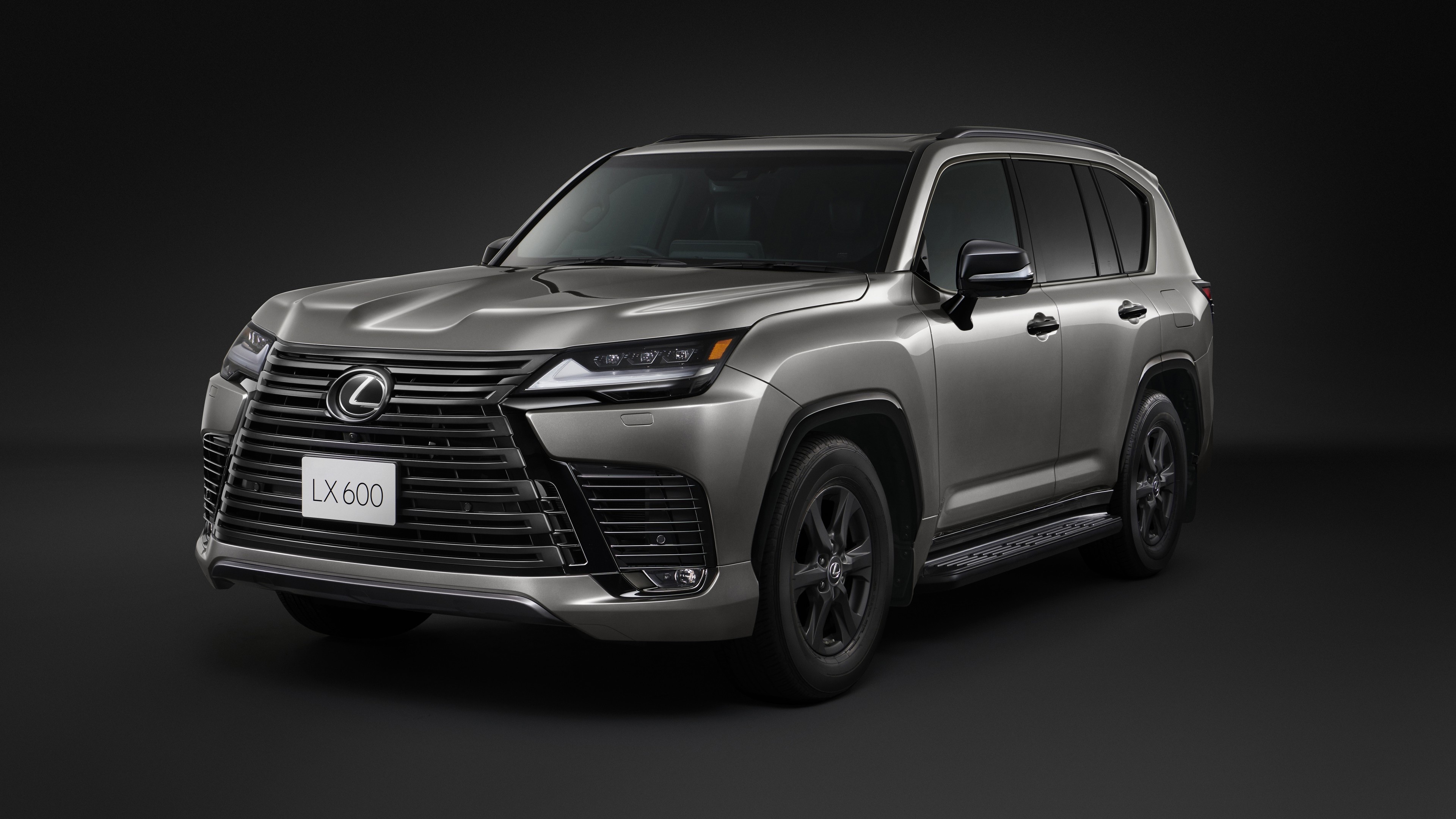

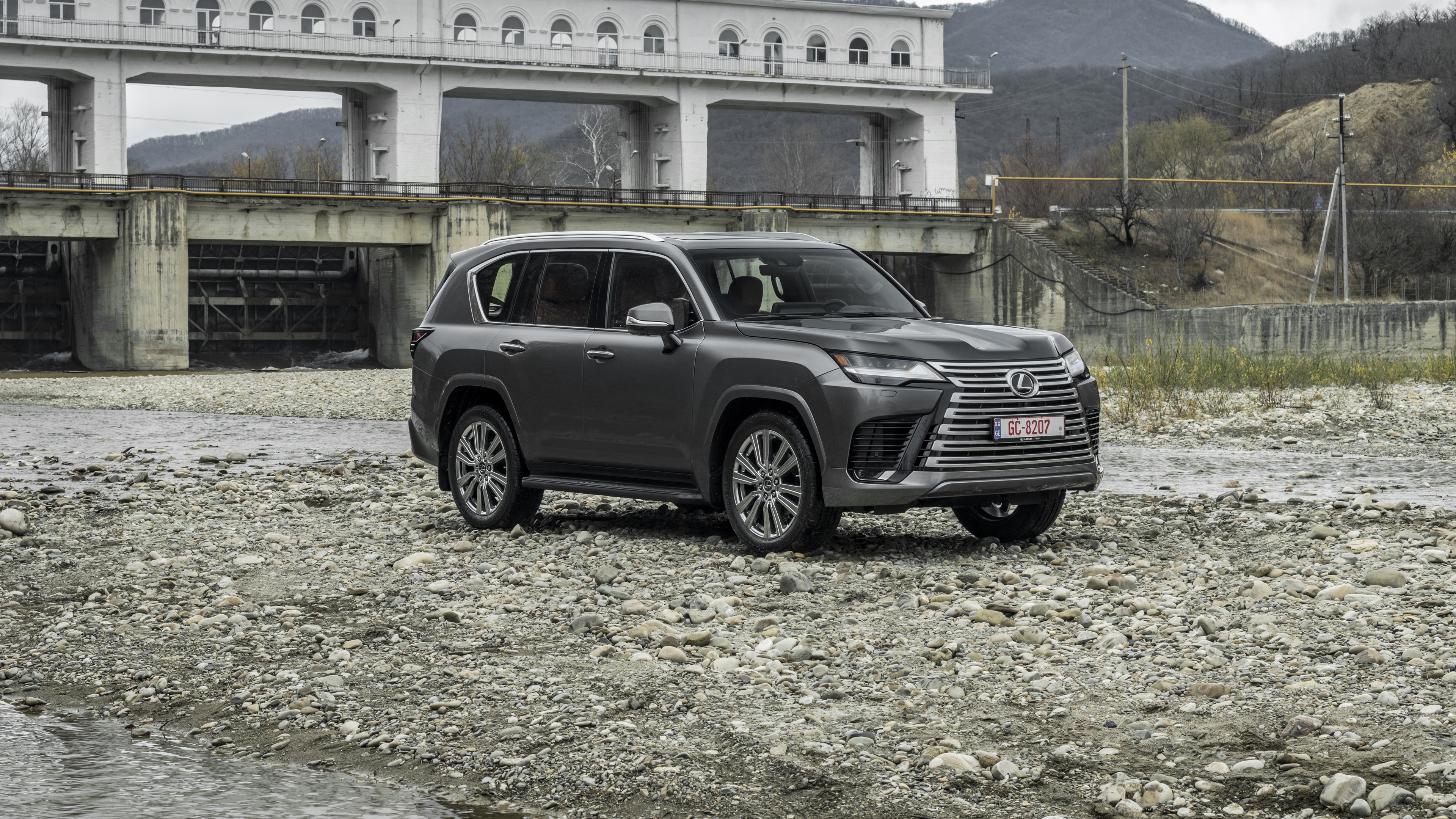

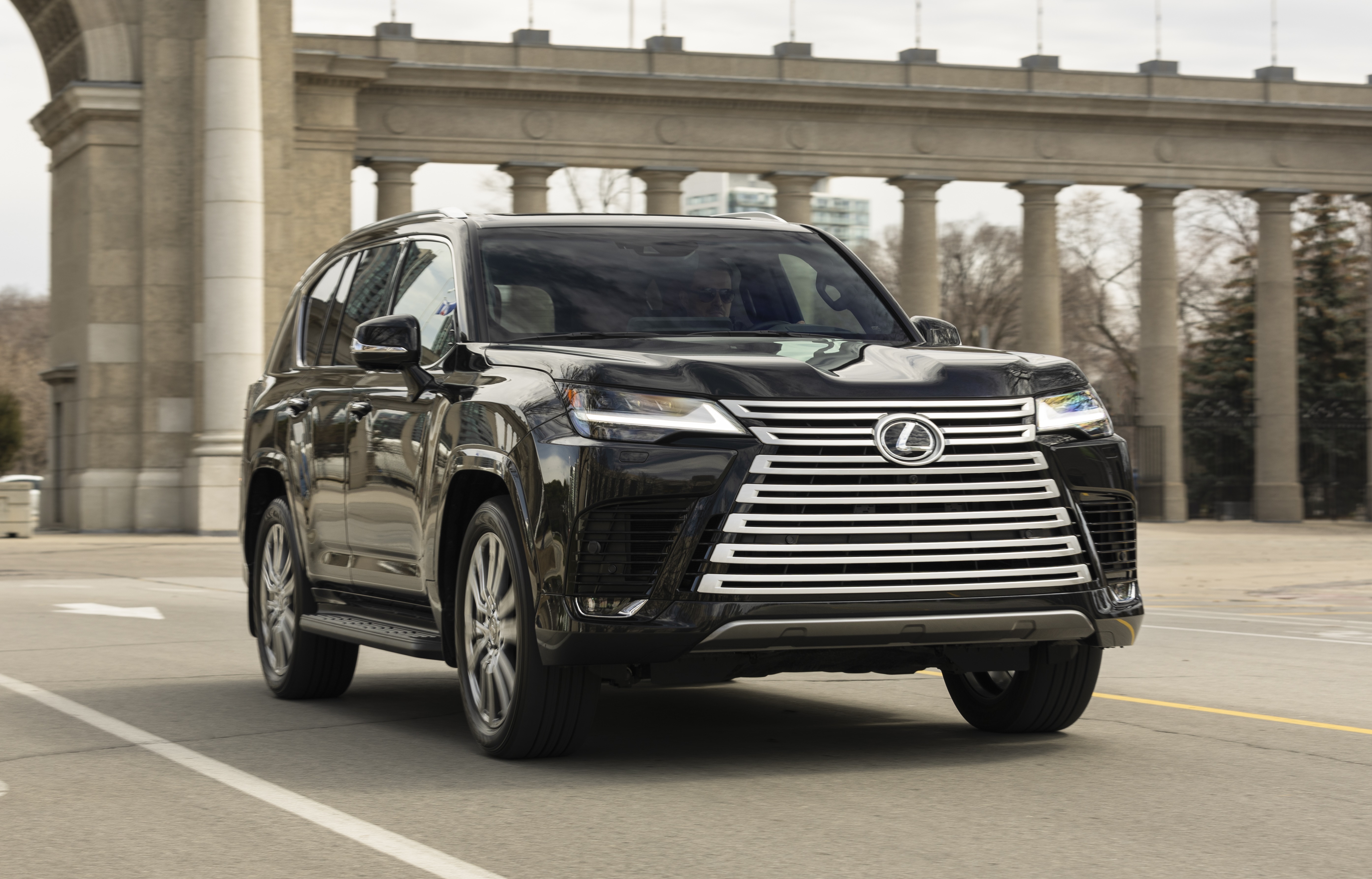

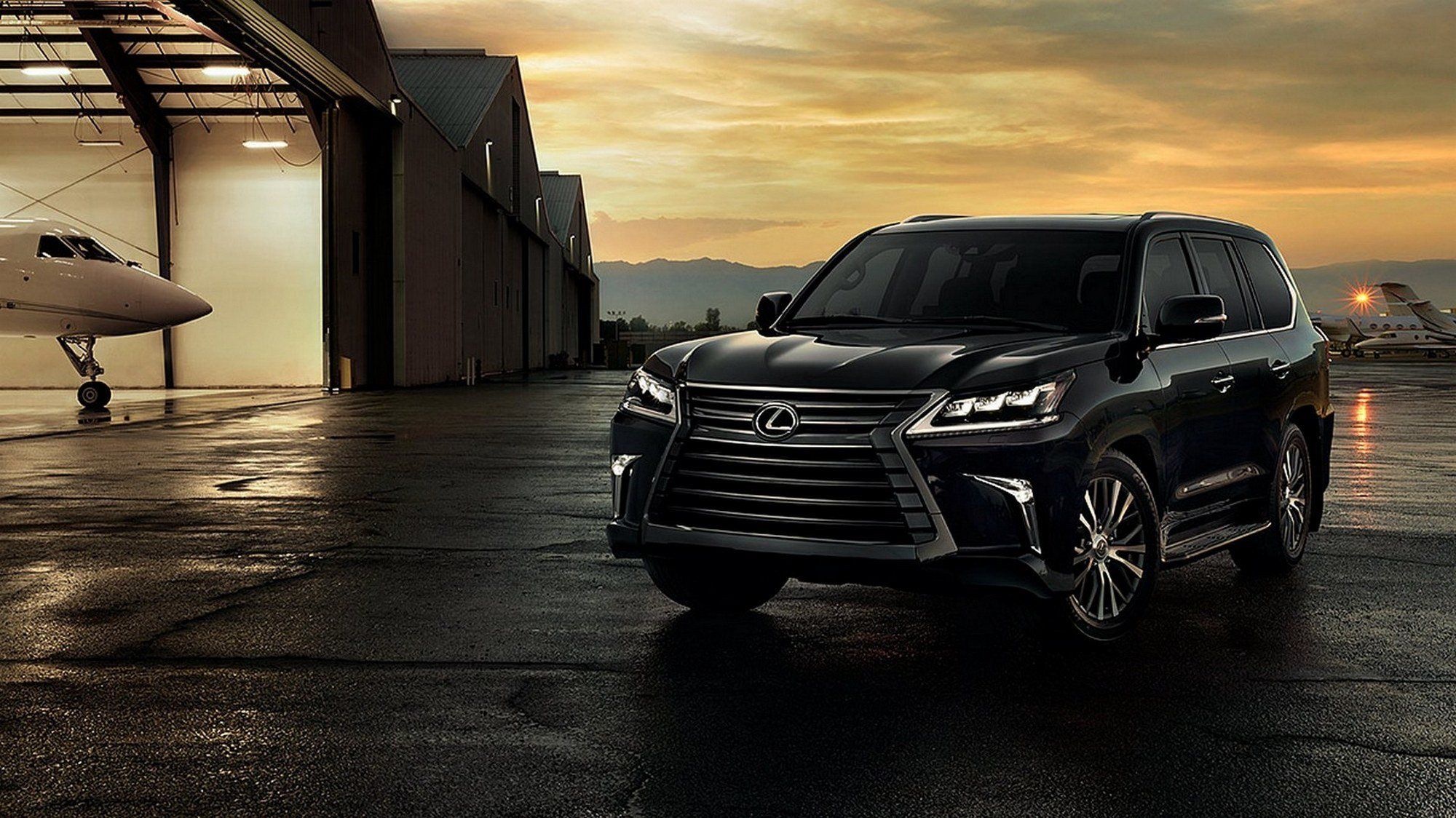

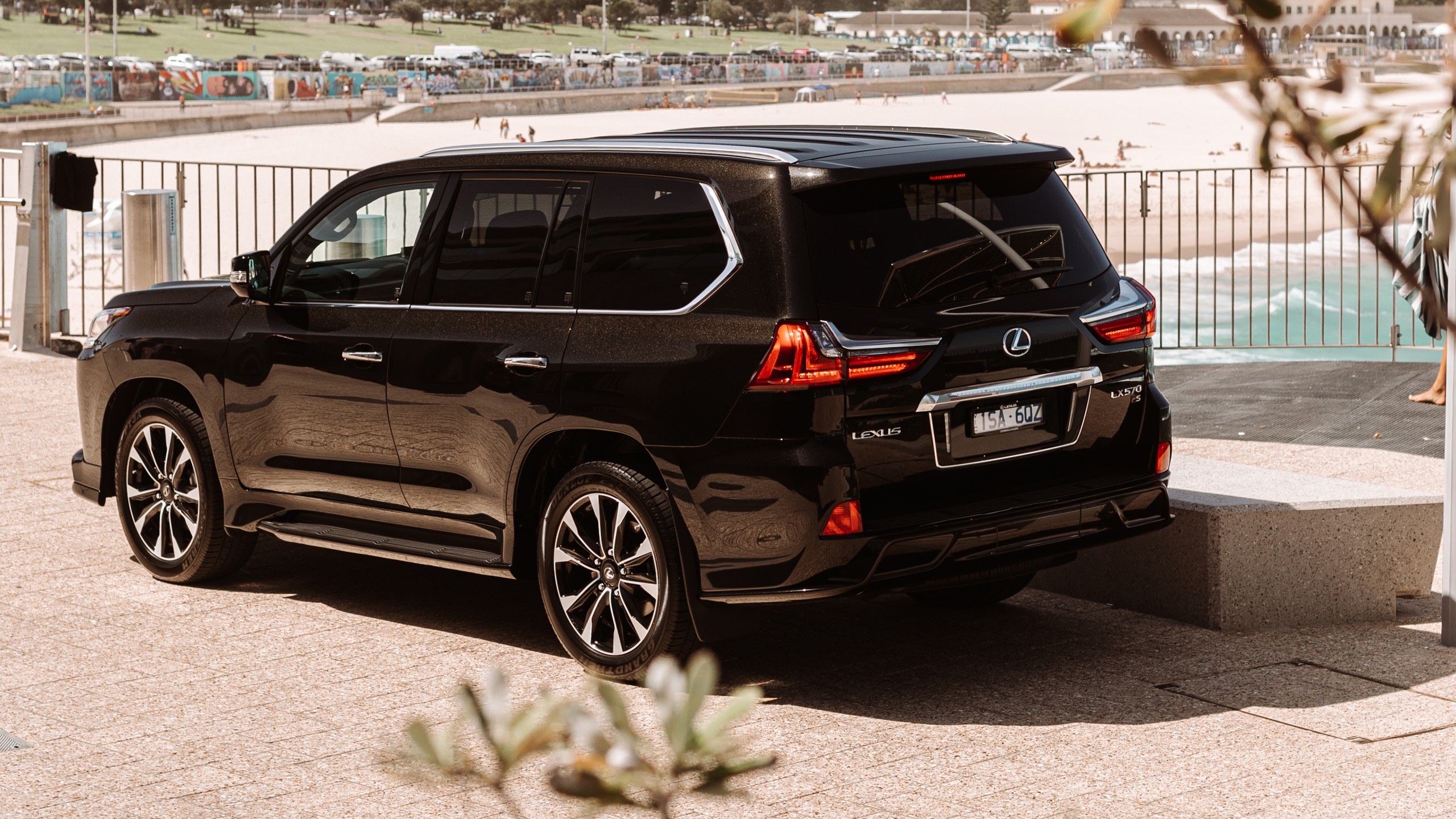

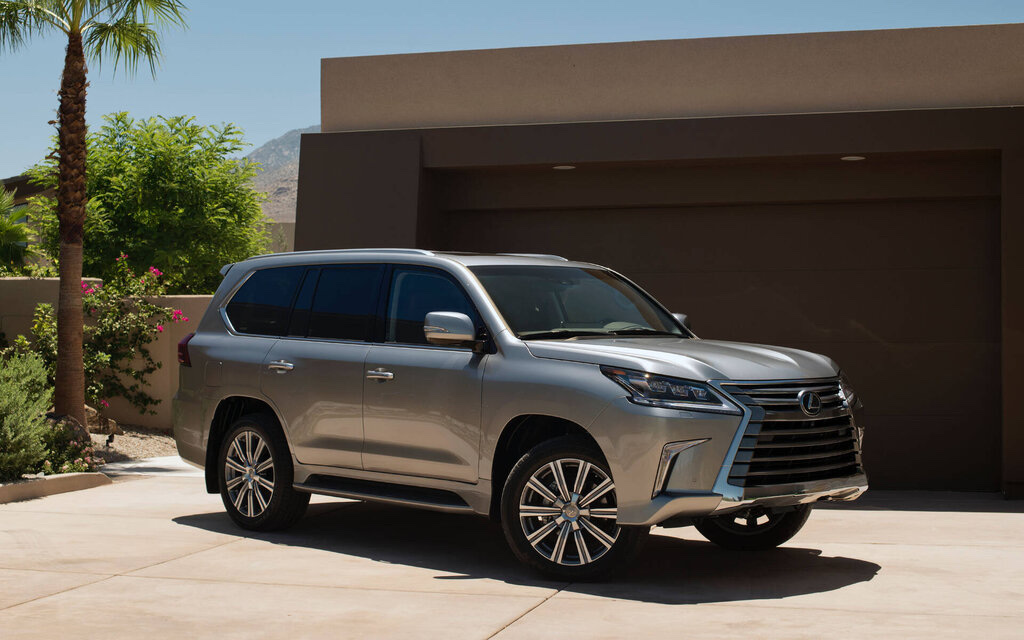

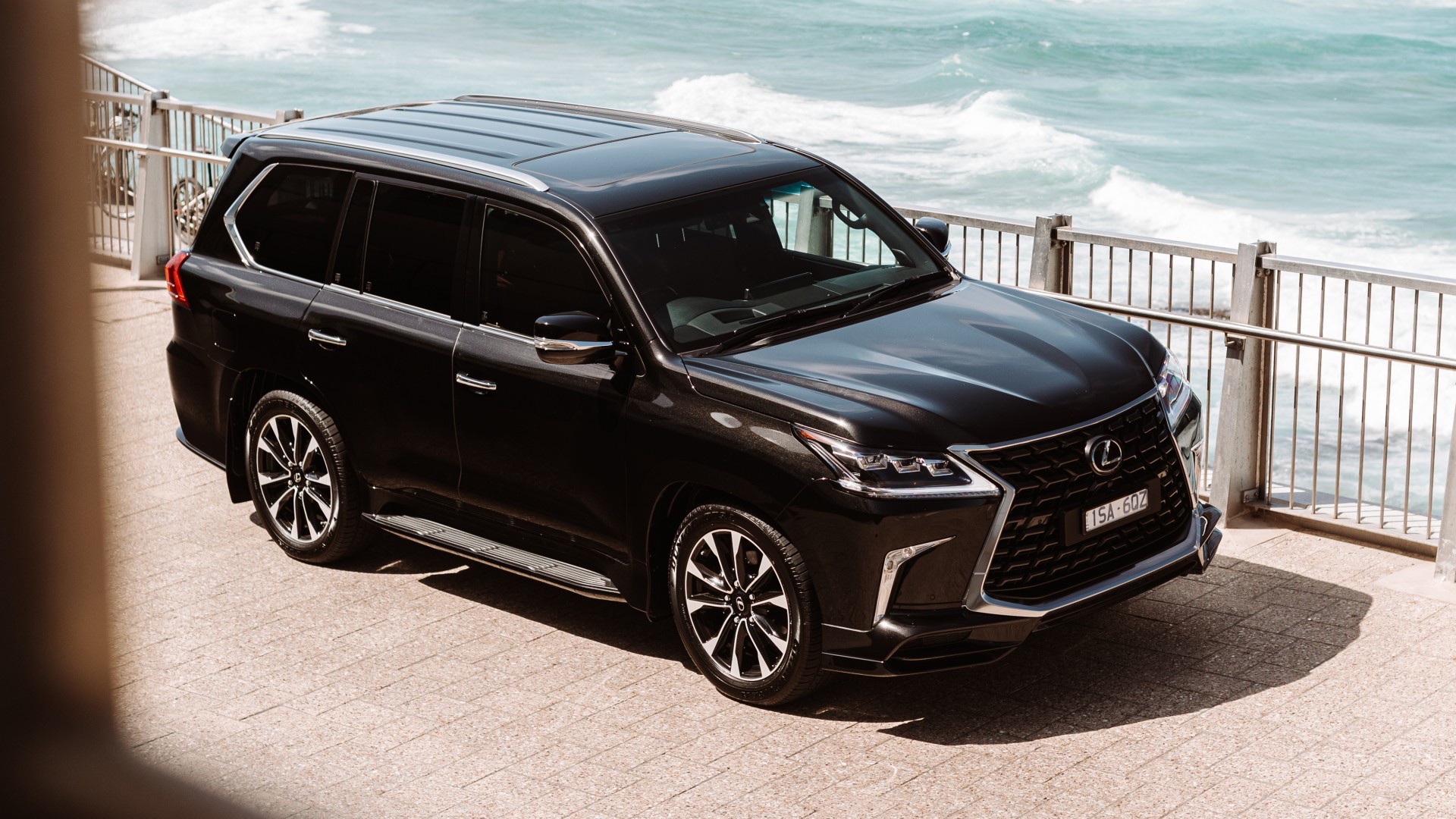

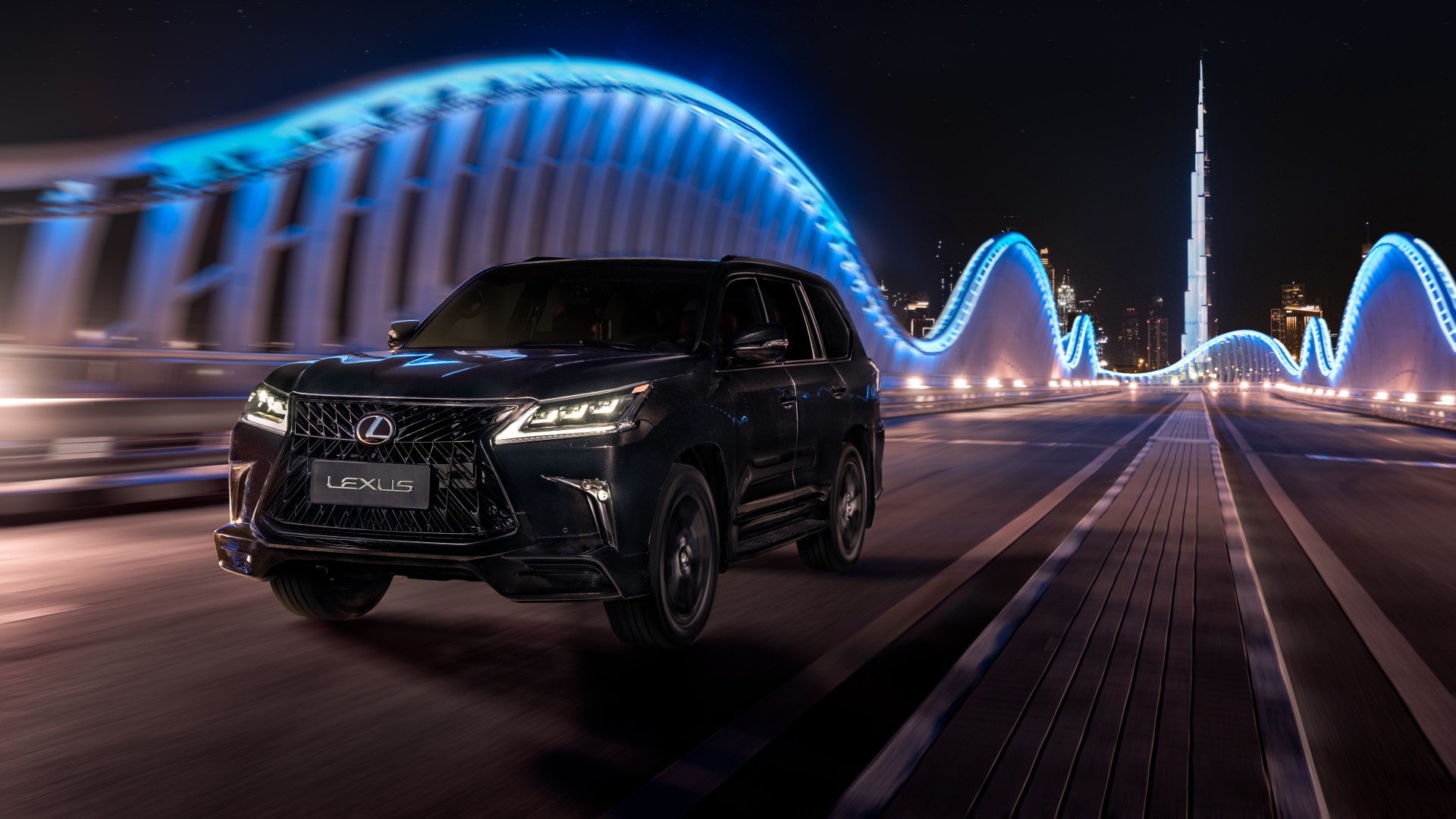

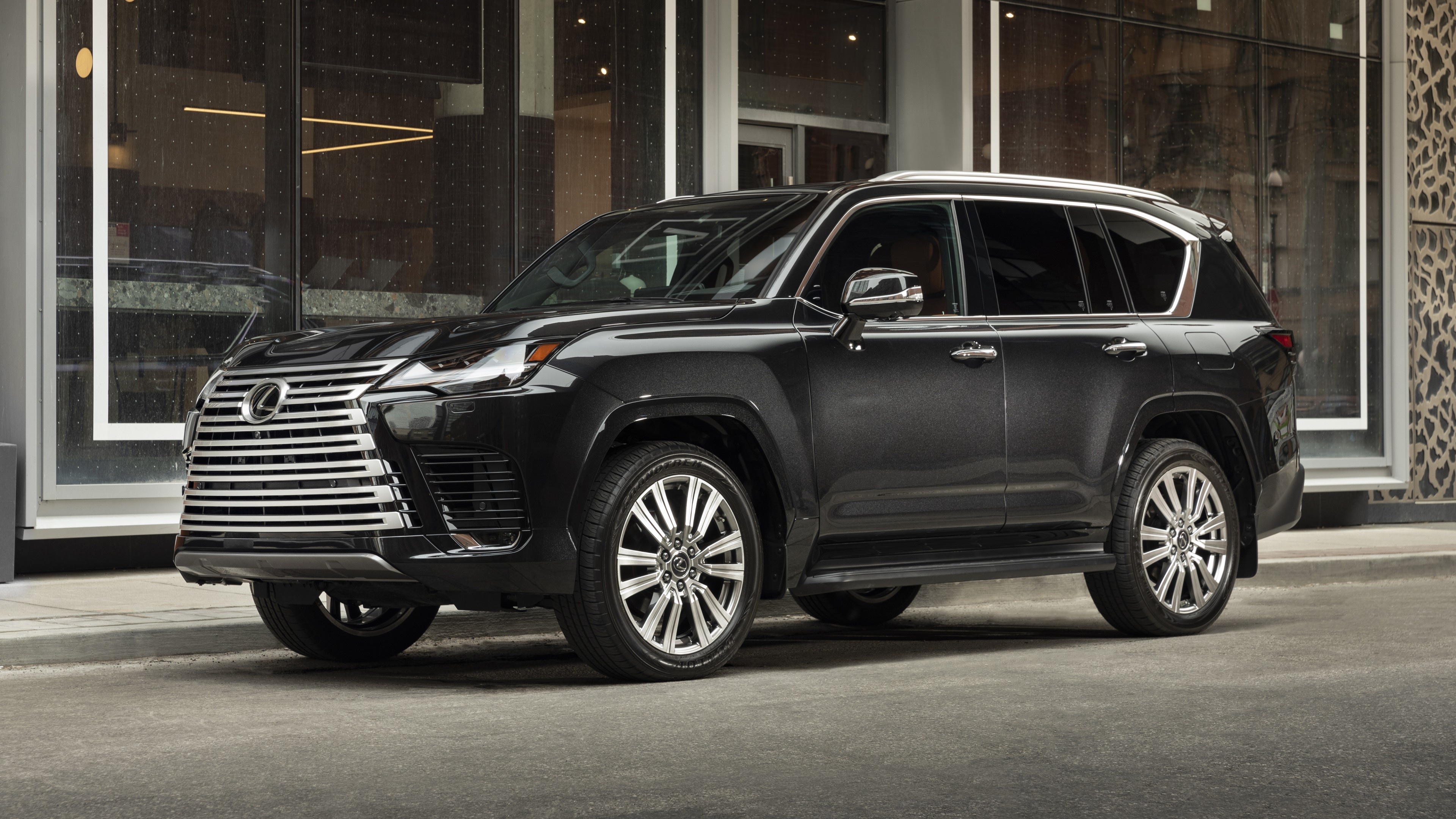

Lexus LX photo gallery
20 images are collected here with the main specifications and trim data for this model.
Photo Lexus LX
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.5i Dual VVT-I (415 hp) 10-speed automatic 4x4 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 13.8 |
|---|---|
| Fuel consumption highway, L/100 km | 10.7 |
| Fuel consumption combined, L/100 km | 12.4 |
| Top speed, km/h | 210 |
| Acceleration 0-100 km/h, s | 6.9 |
| Emissions standard | Euro V |
Engine
| Engine | 3.5i Dual VVT-I |
|---|---|
| Engine code | V35A-FTS |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3445 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.4:1 |
| Power, hp | 415 |
| RPM at max power | 5200 |
| Torque, Nm | 650 |
| RPM at max torque | 2000–2600 |
Dimensions
| Seats | 5/7 |
|---|---|
| Length, mm | 5100 |
| Height, mm | 1885 |
| Wheelbase, mm | 2850 |
| Front track, mm | 1675 |
| Rear track, mm | 1680 |
| Kerb weight, kg | 2525 |
| Gross weight, kg | 3280 |
| Fuel tank capacity, L | 110 |
| Turning circle, m | 12.8 |
| Ground clearance, mm | 200 |
| Width without mirrors, mm | 1990 |
| Trunk capacity, L | 1109 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
3.3d (299 hp) 10-speed automatic 4x4 36 specifications
Specifications
Performance and consumption
| Top speed, km/h | 210 |
|---|---|
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro V |
Engine
| Engine | 3.3d |
|---|---|
| Engine code | F33A-FTV |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 3346 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 15.4:1 |
| Power, hp | 299 |
| RPM at max power | 3600–4200 |
| Torque, Nm | 700 |
| RPM at max torque | 1600–2600 |
Dimensions
| Seats | 5/7 |
|---|---|
| Length, mm | 5100 |
| Height, mm | 1885 |
| Wheelbase, mm | 2850 |
| Front track, mm | 1675 |
| Rear track, mm | 1680 |
| Kerb weight, kg | 2525 |
| Gross weight, kg | 3280 |
| Fuel tank capacity, L | 110 |
| Turning circle, m | 12.8 |
| Ground clearance, mm | 200 |
| Width without mirrors, mm | 1990 |
| Trunk capacity, L | 1109 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
3.3d AT Luxury 4WD 132 specifications
Specifications
Performance and consumption
| Top speed, km/h | 210 |
|---|---|
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro V |
Engine
| Engine | 3.3d |
|---|---|
| Engine code | F33A-FTV |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 3346 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 15.4:1 |
| Power, hp | 299 |
| RPM at max power | 3600–4200 |
| Torque, Nm | 700 |
| RPM at max torque | 1600–2600 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5100 |
| Height, mm | 1885 |
| Wheelbase, mm | 2850 |
| Front track, mm | 1675 |
| Rear track, mm | 1680 |
| Kerb weight, kg | 2525 |
| Gross weight, kg | 3280 |
| Fuel tank capacity, L | 110 |
| Turning circle, m | 12.8 |
| Ground clearance, mm | 200 |
| Width without mirrors, mm | 1990 |
| Trunk capacity, L | 1109 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
Suspension
| Front suspension type | Double-wishbone |
|---|---|
| Rear suspension type | multi-link |
Brake system
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Ventilated disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Door sill plates | + |
|---|---|
| Roof rails | + |
| Mud flaps | + |
Comfort
| Cruise control | + |
|---|---|
| Paddle shifters | + |
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Steering wheel position memory | + |
| Power-adjustable steering wheel | + |
| Side mirror position memory | + |
| Adaptive cruise control | + |
| Electromechanical parking brake | + |
| Smart keyless entry and start | + |
| Adjustable headrests | + |
Interior
| Leather-trimmed interior elements | + |
|---|---|
| Wood interior trim | + |
| Leather interior | + |
| Multifunction instrument display | + |
Wheels
| Rim diameter | 20 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Full-size spare wheel |
| Tires | 265/55R20 |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated rear seats | + |
| Ventilated front seats | + |
| Heated steering wheel | + |
| Three-zone climate control | + |
Off-road
| Hill-start assist | + |
|---|---|
| Hill descent control | + |
| Crawl Control | + |
| Multi-Terrain Select | + |
| Off-road turn assist | + |
Seats
| Power front seats | + |
|---|---|
| Seat memory | + |
| Rear armrest | + |
| Height-adjustable driver's seat | + |
| Height-adjustable passenger seat | + |
| Power driver lumbar adjustment | + |
| Cooled front armrest | + |
| Front passenger lumbar support | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Light sensor | + |
| Headlight leveling | + |
| LED headlights | + |
| LED daytime running lights | + |
| Headlight washers | + |
| Adaptive high-beam system | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| Navigation system | + |
| Audio system | Mark Levinson QLI Reference Surround Sound; |
| Radio | + |
| USB | + |
| Number of speakers | 25 |
| Apple CarPlay / Android Auto | + |
| Touchscreen | + |
| Wireless phone charging | + |
| Steering wheel controls | + |
Trunk
| Power tailgate | + |
|---|---|
| Hands-free trunk opening | + |
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Front power windows | + |
| Rear power windows | + |
| Heated windshield wiper area | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
| Tinted glass | + |
| Auto-dimming rear-view mirror | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
| Electronic brakeforce distribution | + |
| Pre-collision system | + |
| Adaptive variable suspension | + |
| Safe exit assist | + |
| Front cross-traffic alert with automatic braking | + |
| Lane departure warning | + |
| Brake assist system | + |
| Proactive driving assist | + |
| Automatic ride-height control | + |
Anti-theft systems
| Immobilizer | + |
|---|---|
| Alarm system | + |
| Interior motion sensor | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
| Driver knee airbag | + |
| Front passenger knee airbag | + |
3.3d AT Premium 4WD 135 specifications
Specifications
Performance and consumption
| Top speed, km/h | 210 |
|---|---|
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro V |
Engine
| Engine | 3.3d |
|---|---|
| Engine code | F33A-FTV |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 3346 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 15.4:1 |
| Power, hp | 299 |
| RPM at max power | 3600–4200 |
| Torque, Nm | 700 |
| RPM at max torque | 1600–2600 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5100 |
| Height, mm | 1885 |
| Wheelbase, mm | 2850 |
| Front track, mm | 1675 |
| Rear track, mm | 1680 |
| Kerb weight, kg | 2525 |
| Gross weight, kg | 3280 |
| Fuel tank capacity, L | 110 |
| Turning circle, m | 12.8 |
| Ground clearance, mm | 200 |
| Width without mirrors, mm | 1990 |
| Trunk capacity, L | 1109 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
Suspension
| Front suspension type | Double-wishbone |
|---|---|
| Rear suspension type | multi-link |
Brake system
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Ventilated disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Door sill plates | + |
|---|---|
| Roof rails | + |
| Mud flaps | + |
Comfort
| Cruise control | + |
|---|---|
| Paddle shifters | + |
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Steering wheel position memory | + |
| Power-adjustable steering wheel | + |
| Side mirror position memory | + |
| Adaptive cruise control | + |
| Electromechanical parking brake | + |
| Smart keyless entry and start | + |
Interior
| Leather-trimmed interior elements | + |
|---|---|
| Wood interior trim | + |
| Leather interior | + |
| Multifunction instrument display | + |
Wheels
| Rim diameter | 20 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Full-size spare wheel |
| Tires | 265/55R20 |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated rear seats | + |
| Heated steering wheel | + |
| Ventilated rear seats | + |
| Three-zone climate control | + |
Off-road
| Hill-start assist | + |
|---|---|
| Hill descent control | + |
| Crawl Control | + |
| Multi-Terrain Select | + |
| Off-road turn assist | + |
Seats
| Power front seats | + |
|---|---|
| Seat memory | + |
| Rear armrest | + |
| Height-adjustable driver's seat | + |
| Height-adjustable passenger seat | + |
| Power driver lumbar adjustment | + |
| Power front headrests | + |
| Cooled front armrest | + |
| Ventilated and massaging front seats | + |
| Front passenger lumbar support | + |
| Power-folding second-row seats | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Light sensor | + |
| Headlight leveling | + |
| LED headlights | + |
| LED daytime running lights | + |
| Headlight washers | + |
| Adaptive high-beam system | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| Navigation system | + |
| Audio system | Mark Levinson QLI Reference Surround Sound; |
| Radio | + |
| USB | + |
| Number of speakers | 25 |
| Apple CarPlay / Android Auto | + |
| Touchscreen | + |
| Wireless phone charging | + |
| Steering wheel controls | + |
| Head-up display | + |
Trunk
| Power tailgate | + |
|---|---|
| Hands-free trunk opening | + |
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Front power windows | + |
| Rear power windows | + |
| Power sunroof | + |
| Heated windshield wiper area | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
| Tinted glass | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
| Electronic brakeforce distribution | + |
| Pre-collision system | + |
| Adaptive variable suspension | + |
| Safe exit assist | + |
| Front cross-traffic alert with automatic braking | + |
| Lane departure warning | + |
| Brake assist system | + |
| Proactive driving assist | + |
| Automatic ride-height control | + |
Anti-theft systems
| Immobilizer | + |
|---|---|
| Alarm system | + |
| Interior motion sensor | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
| Driver knee airbag | + |
| Front passenger knee airbag | + |
Lexus LX questions
Short answers based on the specifications and photos available in this catalog.
What generation is the 2021 Lexus LX?
It is the fourth generation of the flagship Lexus SUV, newly built on the GA-F platform.
What engines are available for the Lexus LX?
The lineup includes a 3.4-liter twin-turbo gasoline V6 (LX 600) and a 3.3-liter twin-turbo diesel V6 (LX 500d), both paired with a 10-speed automatic transmission.
Does the Lexus LX have three rows of seats?
Yes, the LX is available in a seven-seat configuration, alongside standard five-seat and luxury four-seat VIP layouts.
What off-road features does the LX have?
It includes full-time 4WD, a Torsen center differential, low-range gearing, Crawl Control, and a Multi-Terrain Monitor with an underfloor view.
How much ground clearance does the Lexus LX have?
The stated ground clearance is 200 mm, supported by a hydraulic suspension system with manual adjustment capabilities.
Continue exploring Lexus
Return to Lexus models, browse the gallery, or compare the trims listed above.
