Mercedes Citan Combi (W420) specifications and photos
The second-generation Mercedes-Benz Citan Combi, introduced in 2021, is a compact passenger van designed for practicality and everyday usability. Sharing its foundation with the Renault Kangoo, it receives distinct tuning and styling to align with the Mercedes-Benz brand identity.
Mercedes Citan Combi (W420) at a glance
Quick model context before comparing photos and trim-level specifications.
Debuting in August 2021, the Citan Combi (W420) marks the second iteration of the brand's compact van line. Built on the CMF-C platform, it serves as a versatile multi-purpose vehicle suitable for families and commercial shuttle duties. While it shares its architecture with the Renault Kangoo, Mercedes-Benz engineers revised the suspension components, including springs, shock absorbers, and stabilizer bars, to deliver a driving dynamic characteristic of the brand. This generation focuses on improving refinement, passenger comfort, and introducing modern infotainment and driver assistance technologies previously found mainly in the brand's passenger cars.
- Power: 95-131 hp
- Engine displacement: 1332-1461 cc
- Transmissions: 6-speed manual, dual-clutch
- Seating: 5 seats
Photos, trims and specifications for Mercedes Citan Combi (W420)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2021 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
Mercedes Citan Combi (W420) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.

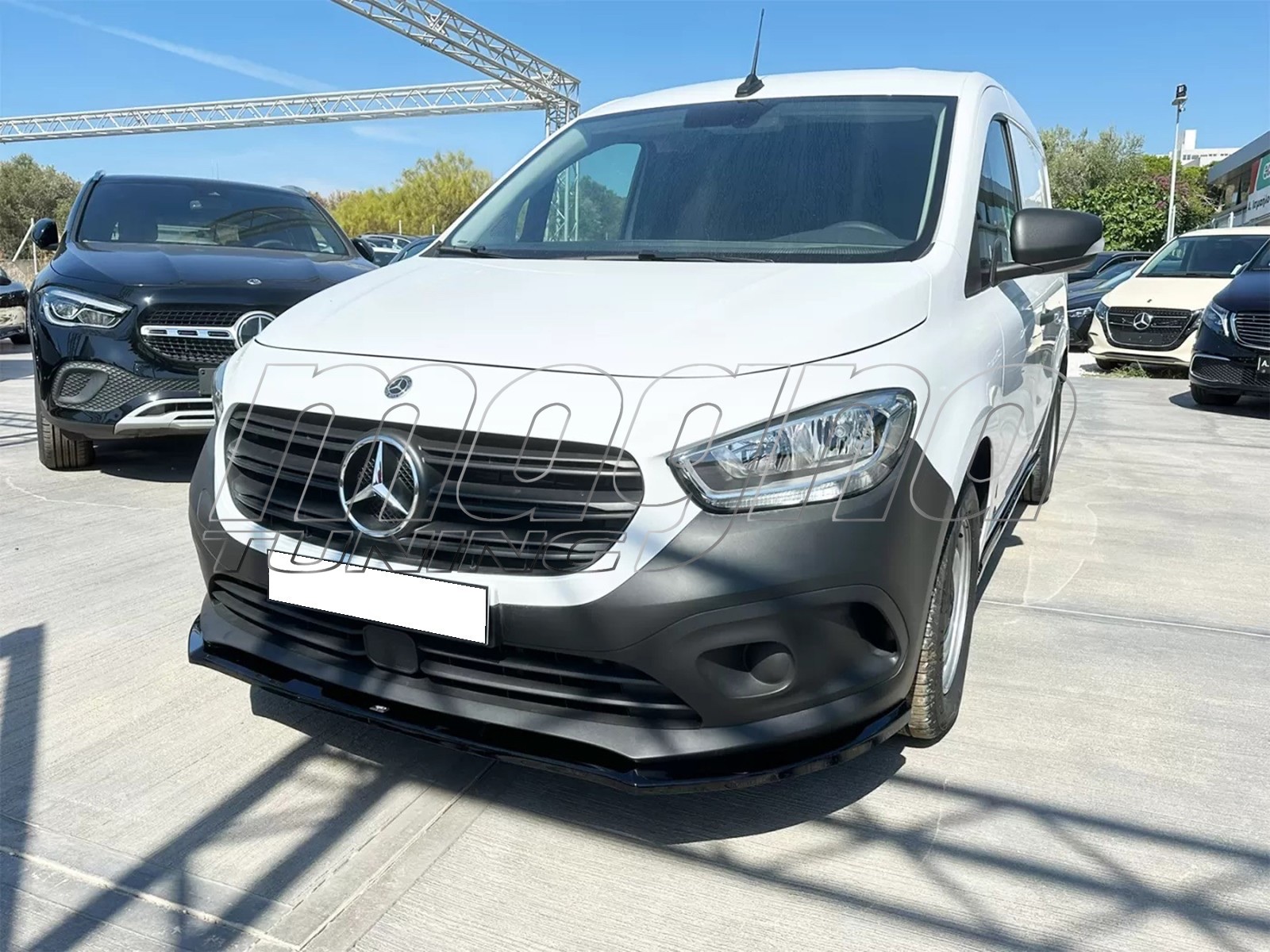

Design

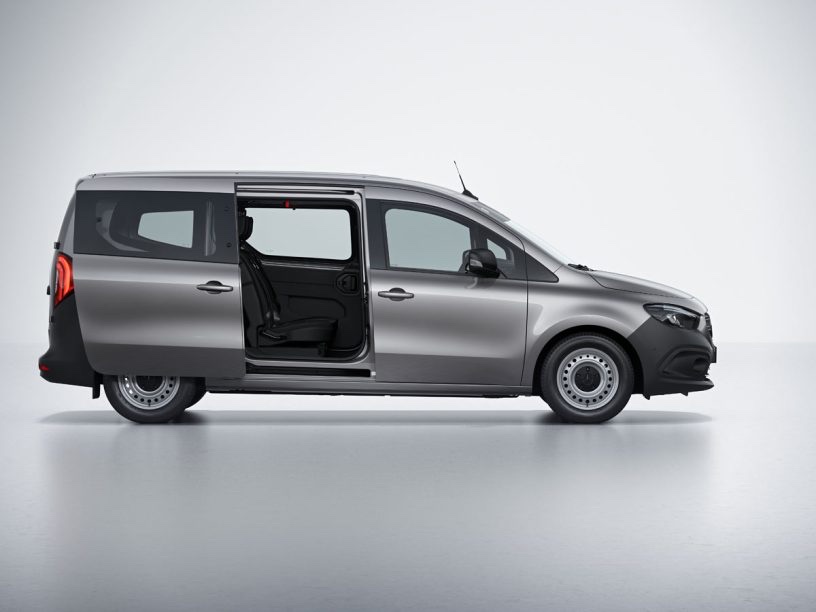

The exterior of the Citan Combi reflects the current Mercedes-Benz design language, distinguishing it from its platform siblings. The front fascia incorporates a prominent grille and styling cues typical of the brand's modern lineup. Measuring just under 4.5 meters in length, the van maintains a compact footprint suitable for urban environments. Access to the rear passenger compartment is provided by sliding doors on both sides, offering a wide opening for easy entry and exit. A standard top-hinged tailgate provides access to the cargo area, with asymmetrical barn-style doors available as an option.
Interior
Inside, the Citan Combi features a dashboard layout tailored to Mercedes-Benz standards. The cabin includes signature turbine-style air vents and a multifunctional steering wheel equipped with touch-control buttons. The centerpiece of the dashboard is the available MBUX infotainment system, accessible via a seven-inch touchscreen, supporting voice commands, Apple CarPlay, and Android Auto. Seating is configured for five passengers, with the rear bench offering a 60:40 split-folding capability to maximize cargo flexibility.
Performance
Powertrain options for the Citan Combi include a 1.5-liter diesel engine and a 1.3-liter turbocharged gasoline engine available in two output levels. The diesel variant (110 CDI) produces 95 horsepower and 260 Nm of torque. The gasoline engines (110 and 113) deliver 102 and 131 horsepower, respectively. A six-speed manual transmission is standard across the lineup, sending power to the front wheels. Buyers opting for the more powerful 131-horsepower gasoline engine can select an available seven-speed dual-clutch automatic transmission.
Practicality
Designed with utility in mind, the Citan Combi offers a versatile interior space. In its standard configuration with all seats in place, the cargo area provides 517 liters of volume. For larger hauling needs, folding the rear seats expands the capacity to 2,390 liters, creating a flat load floor. The sliding side doors, which open up to 615 mm wide, significantly improve accessibility in tight parking spaces, making it a highly practical choice for daily family transport or active lifestyles.
Safety and tech
The Citan Combi is equipped with a comprehensive suite of safety and convenience features. Available driver assistance systems include adaptive cruise control (Distronic), active lane-keeping assist, and blind-spot monitoring. The van also features a crosswind assist system to maintain stability at highway speeds. Additional available equipment includes LED headlights, a rearview camera, parking sensors, dual-zone climate control, and a wireless charging pad for mobile devices.
Buyer notes
Prospective buyers should note the difference in transmission availability, as the automatic dual-clutch gearbox is restricted to the higher-output gasoline engine. When comparing models, consider whether the standard liftgate or the optional barn doors better suit your frequent loading requirements. While sharing underpinnings with the Renault Kangoo, the Citan Combi positions itself with premium interior touches and specific suspension tuning. Availability of advanced driver aids and the MBUX system may vary depending on the selected trim level and regional market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| Citan 110 CDI | 1461 cc | 95 hp | 5 | 6-speed manual |
| Citan 110 | 1332 cc | 102 hp | 5 | 6-speed manual |
| Citan 113 | 1332 cc | 131 hp | 5 | 6-speed manual |
| Citan 113 | 1332 cc | 131 hp | 5 | dual-clutch |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Mercedes Citan Combi (W420) photo gallery
18 images are collected here with the main specifications and trim data for this model.

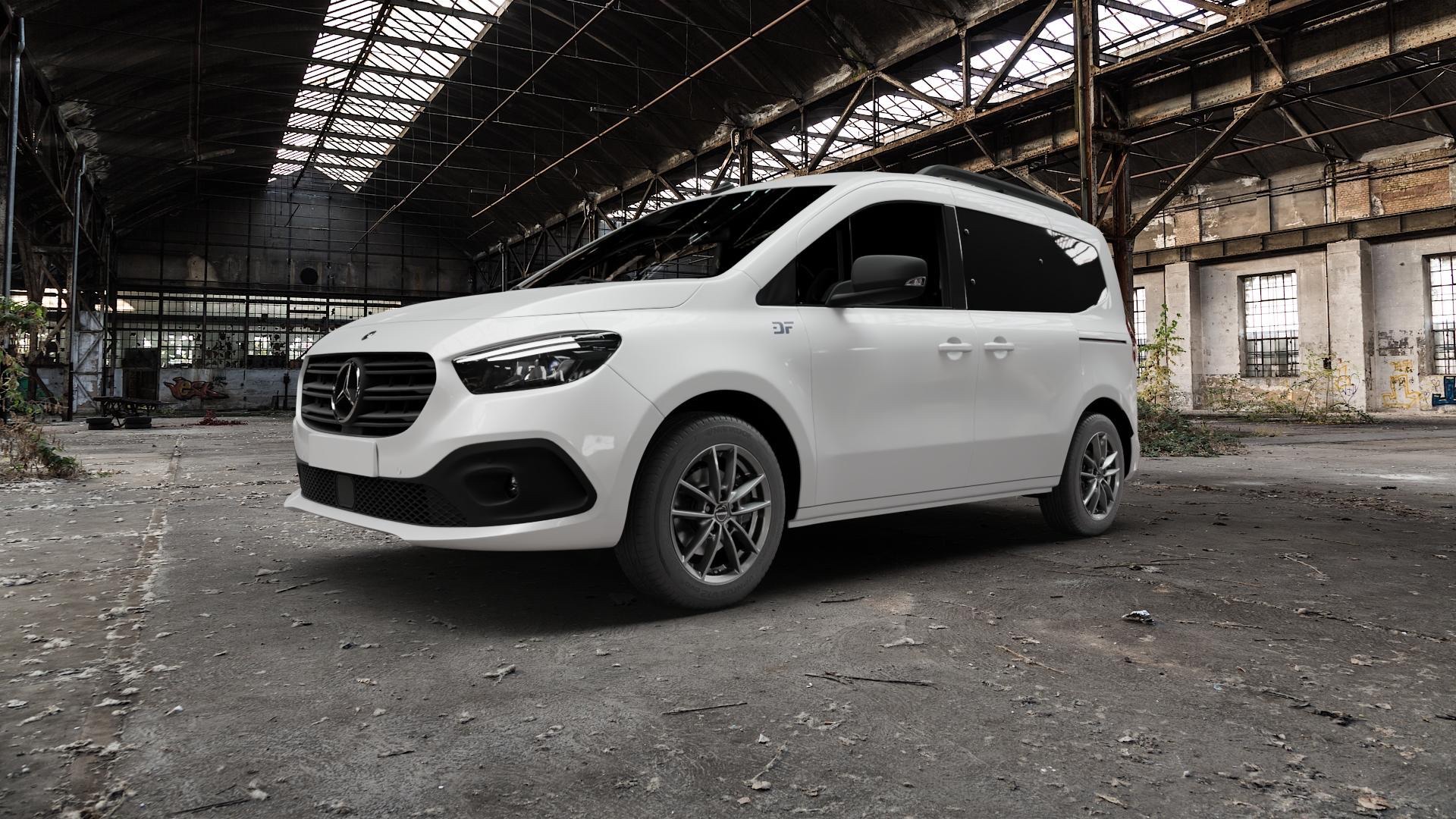

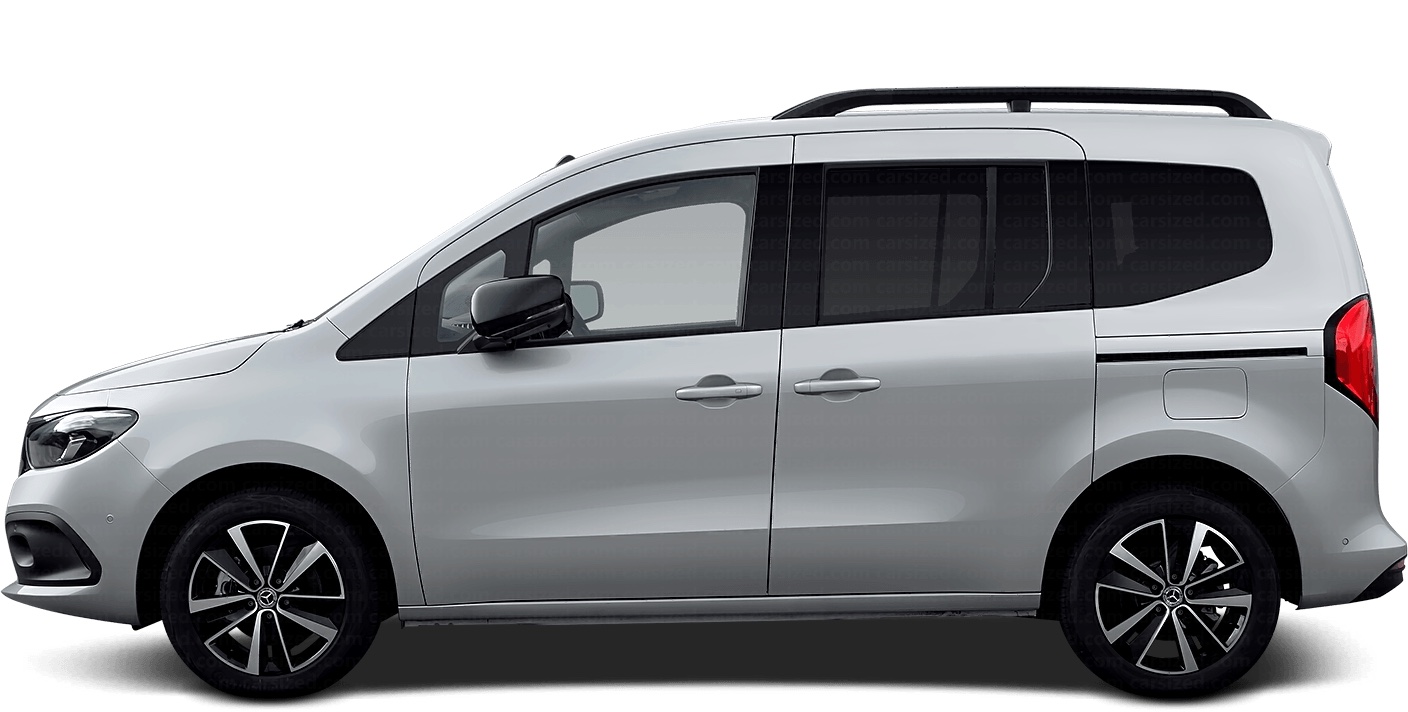

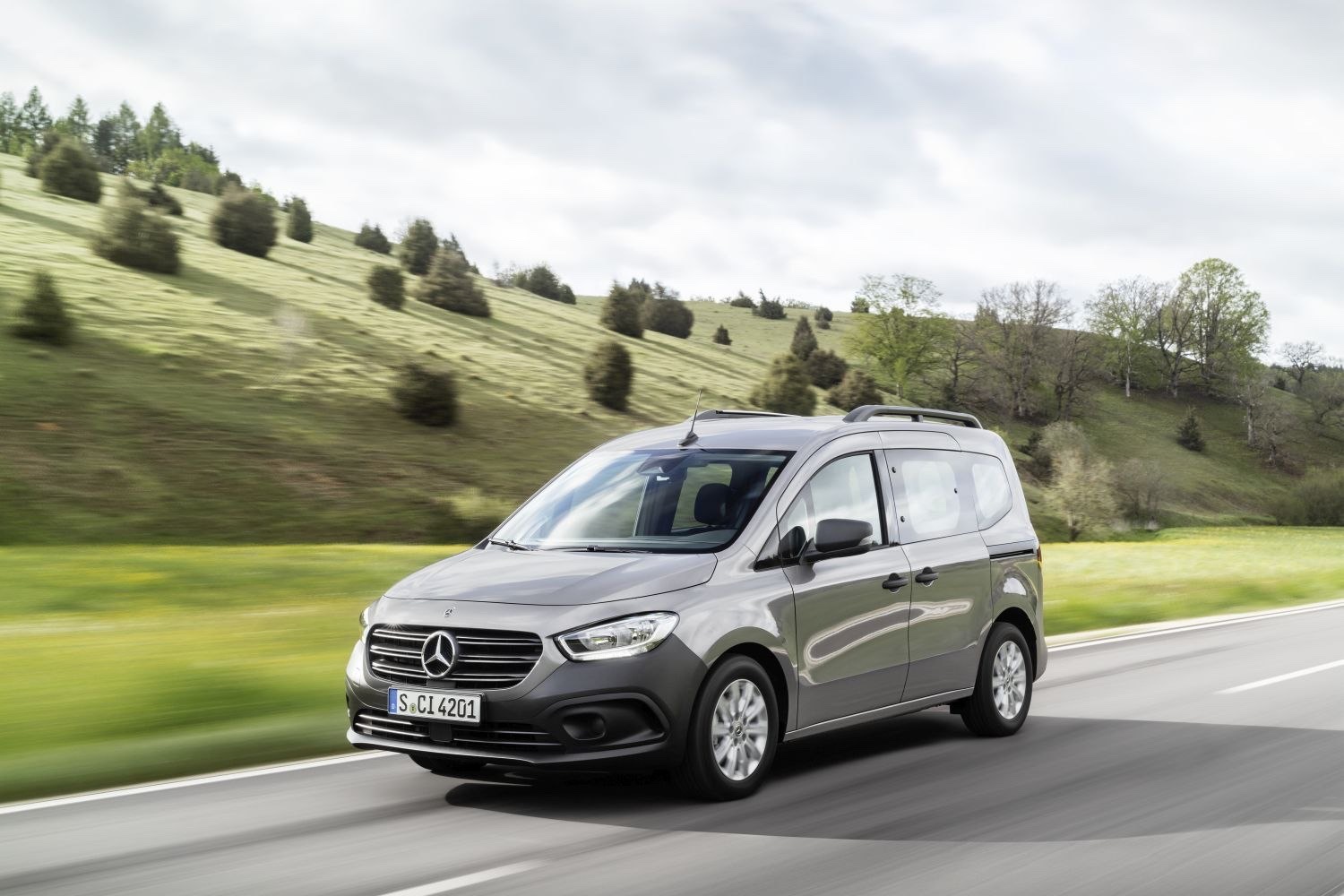

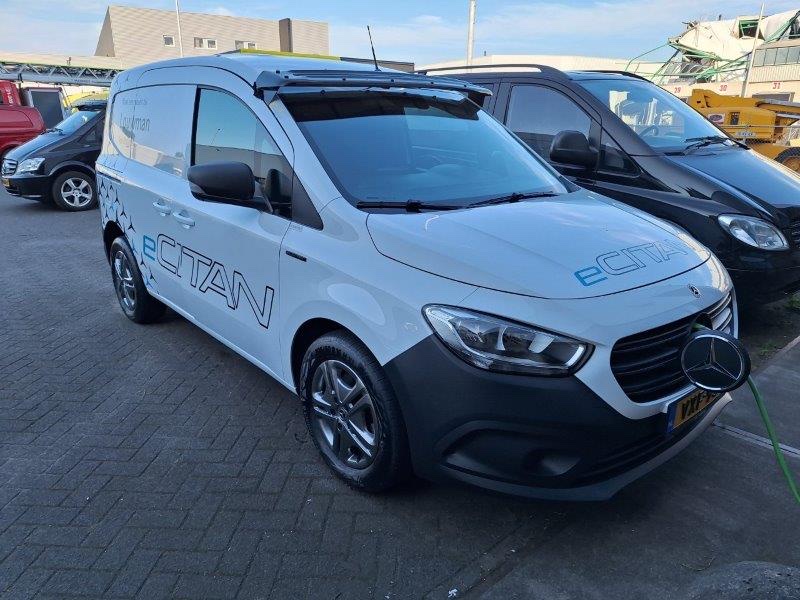

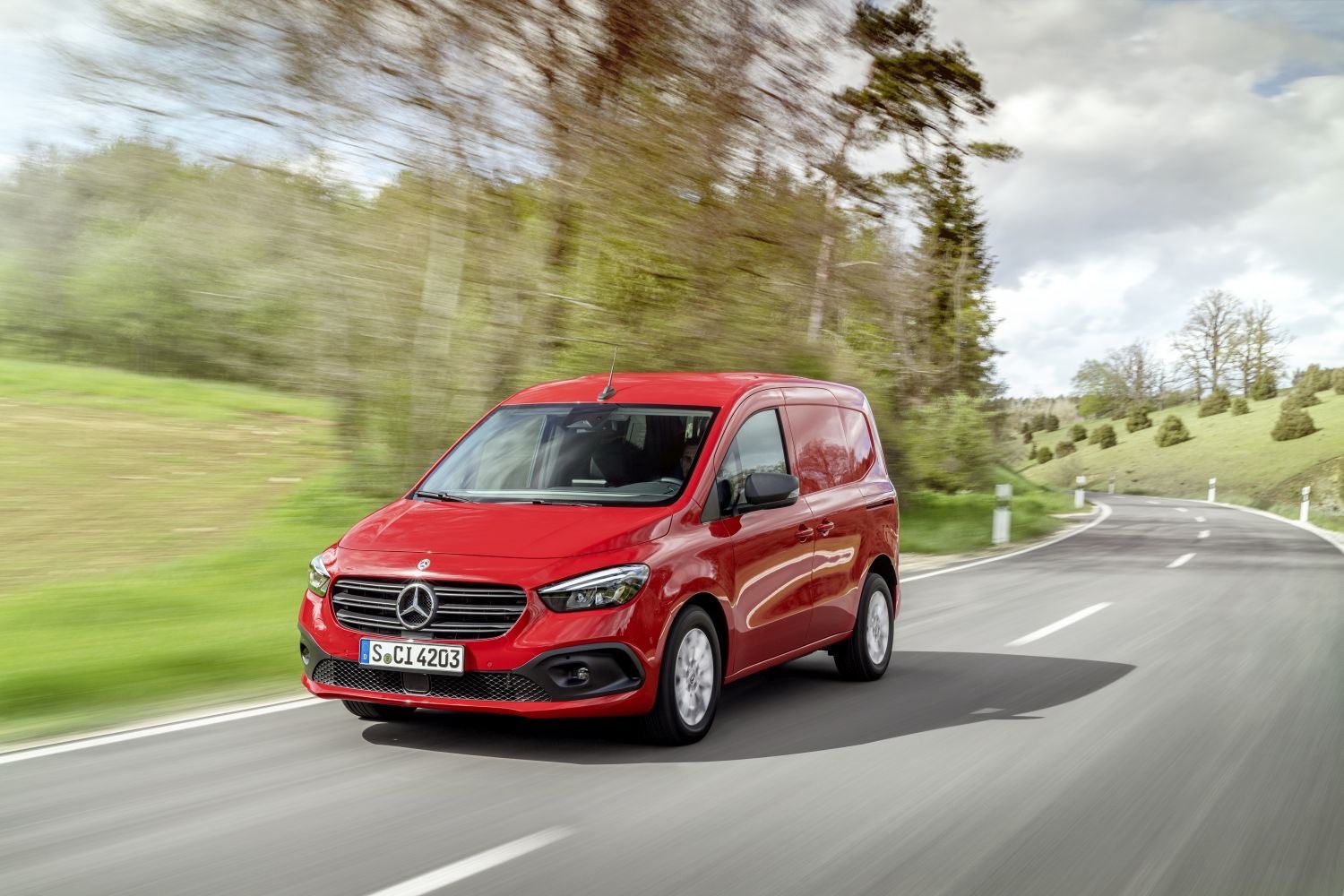

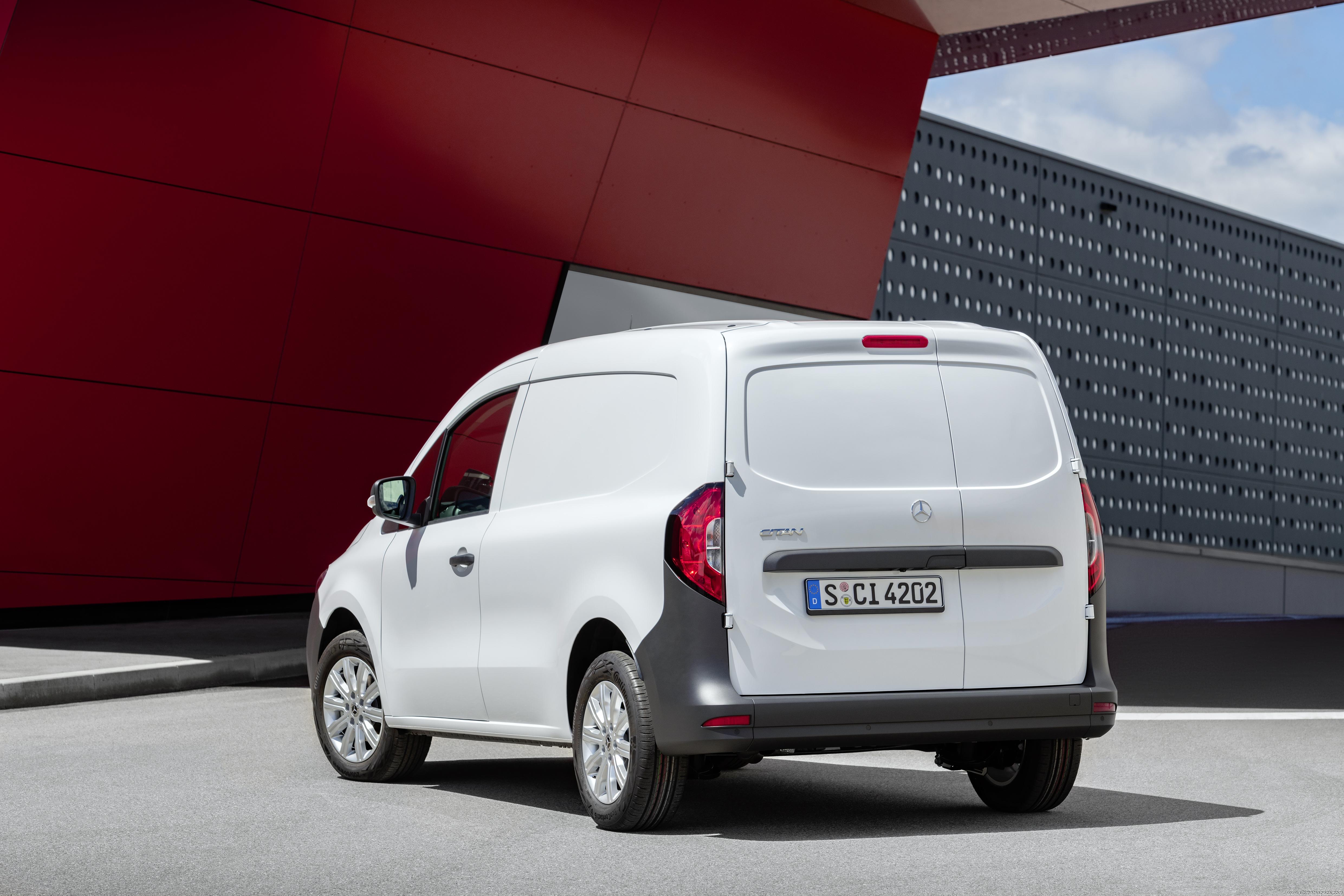

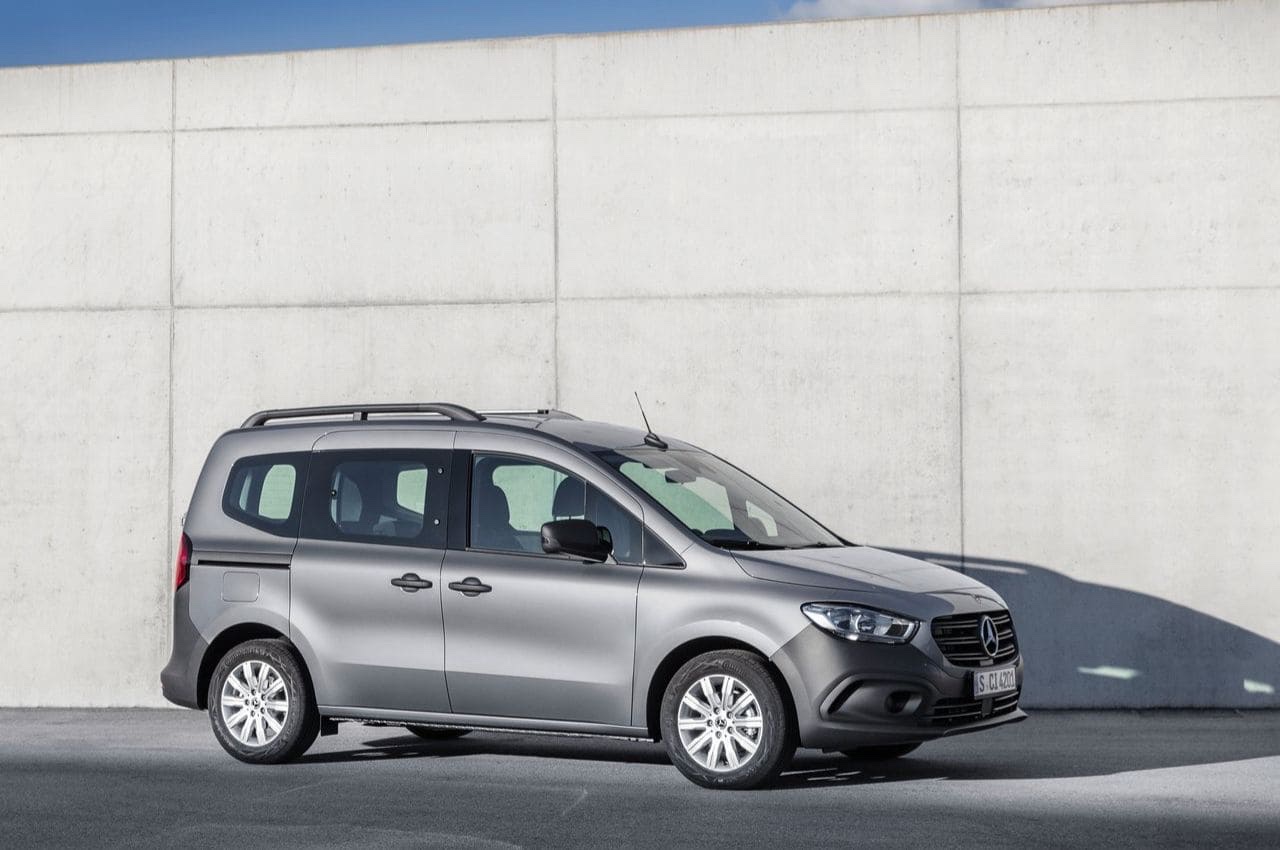

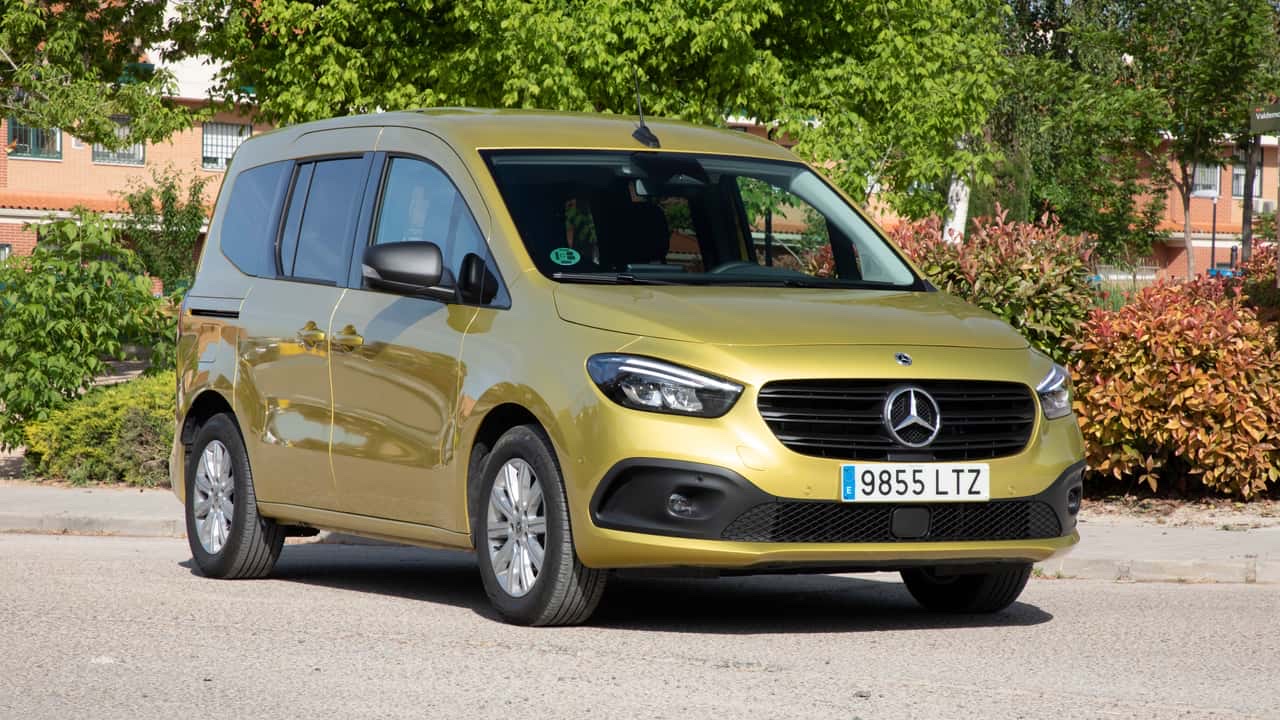

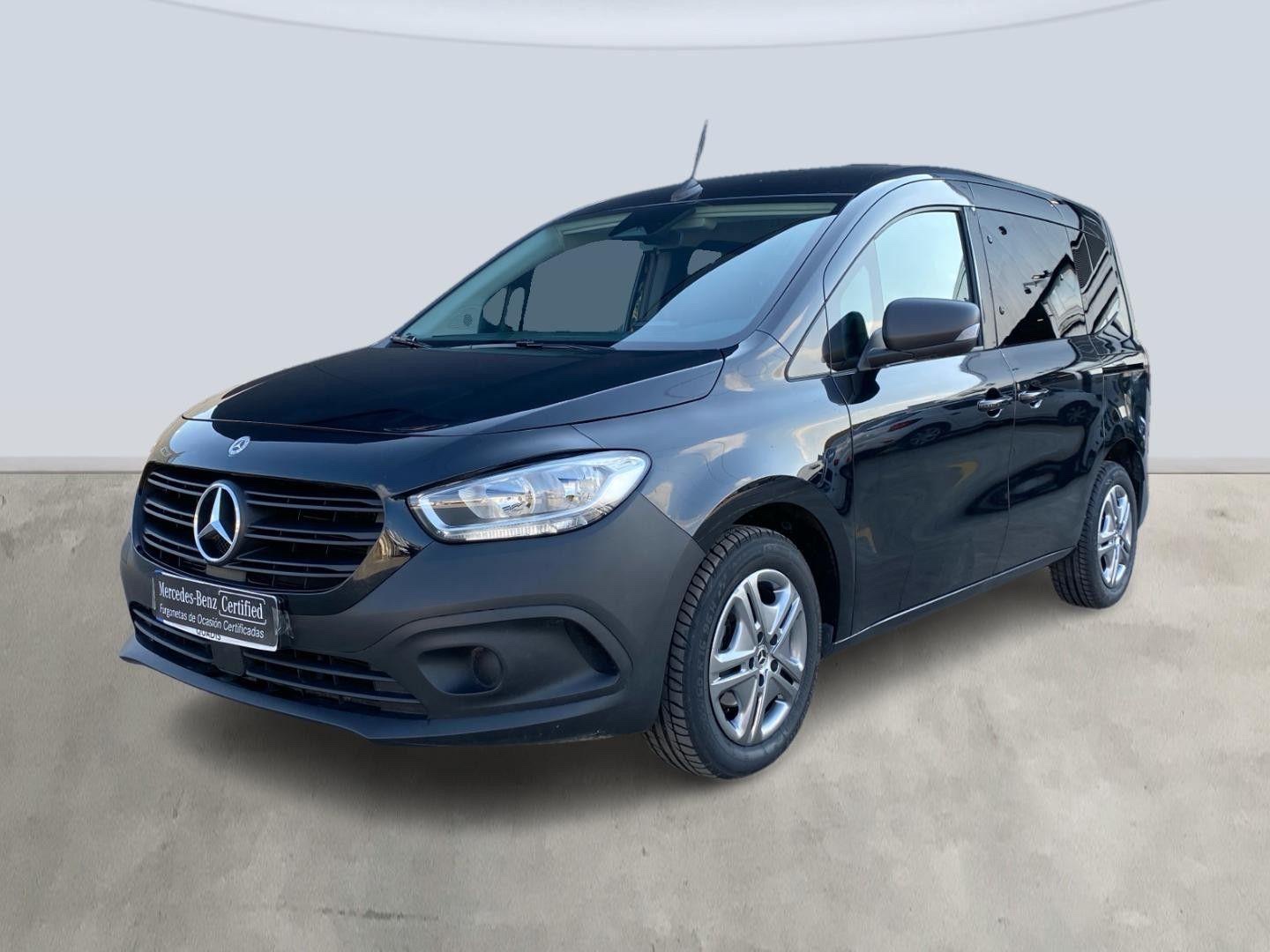

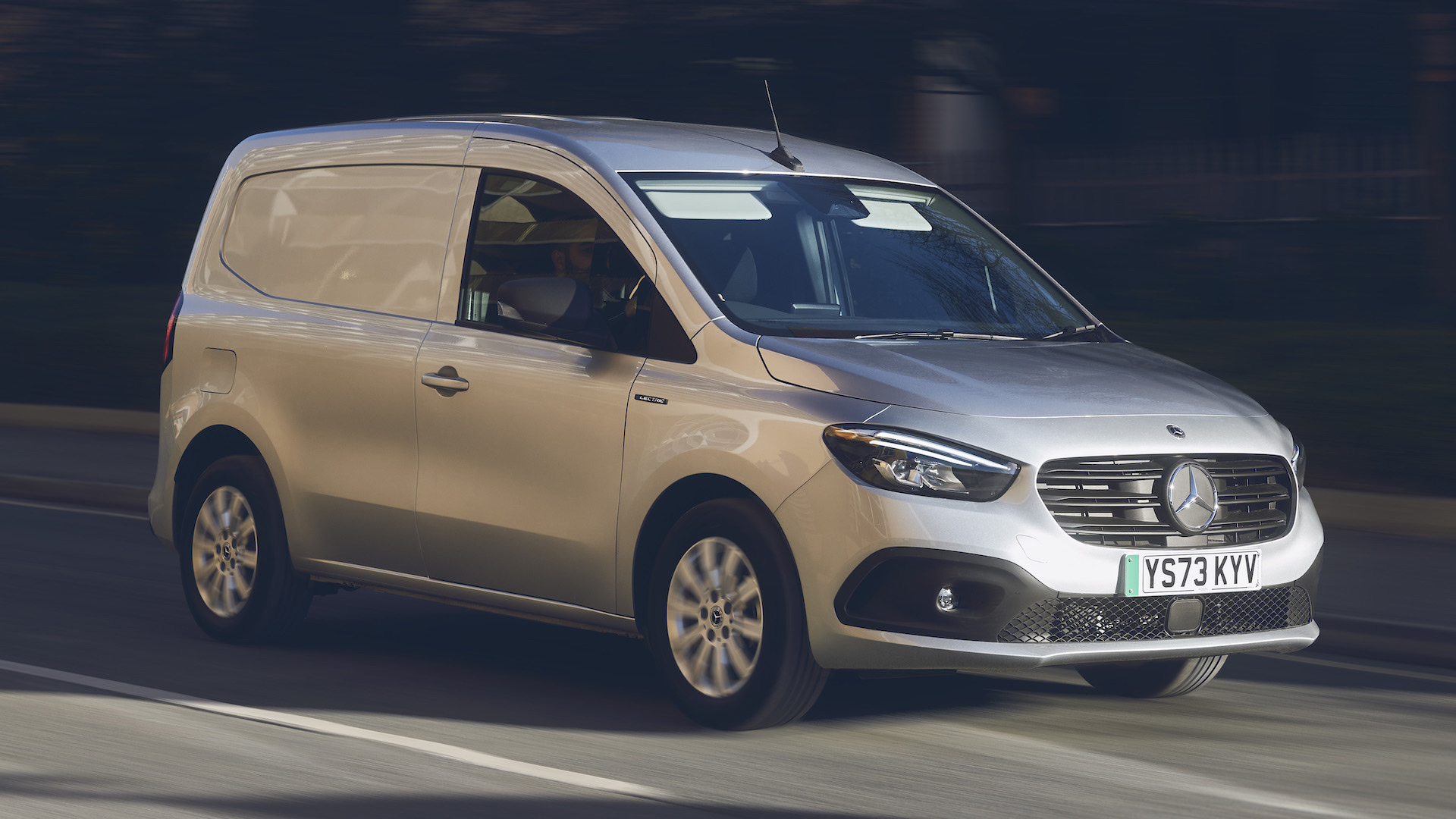

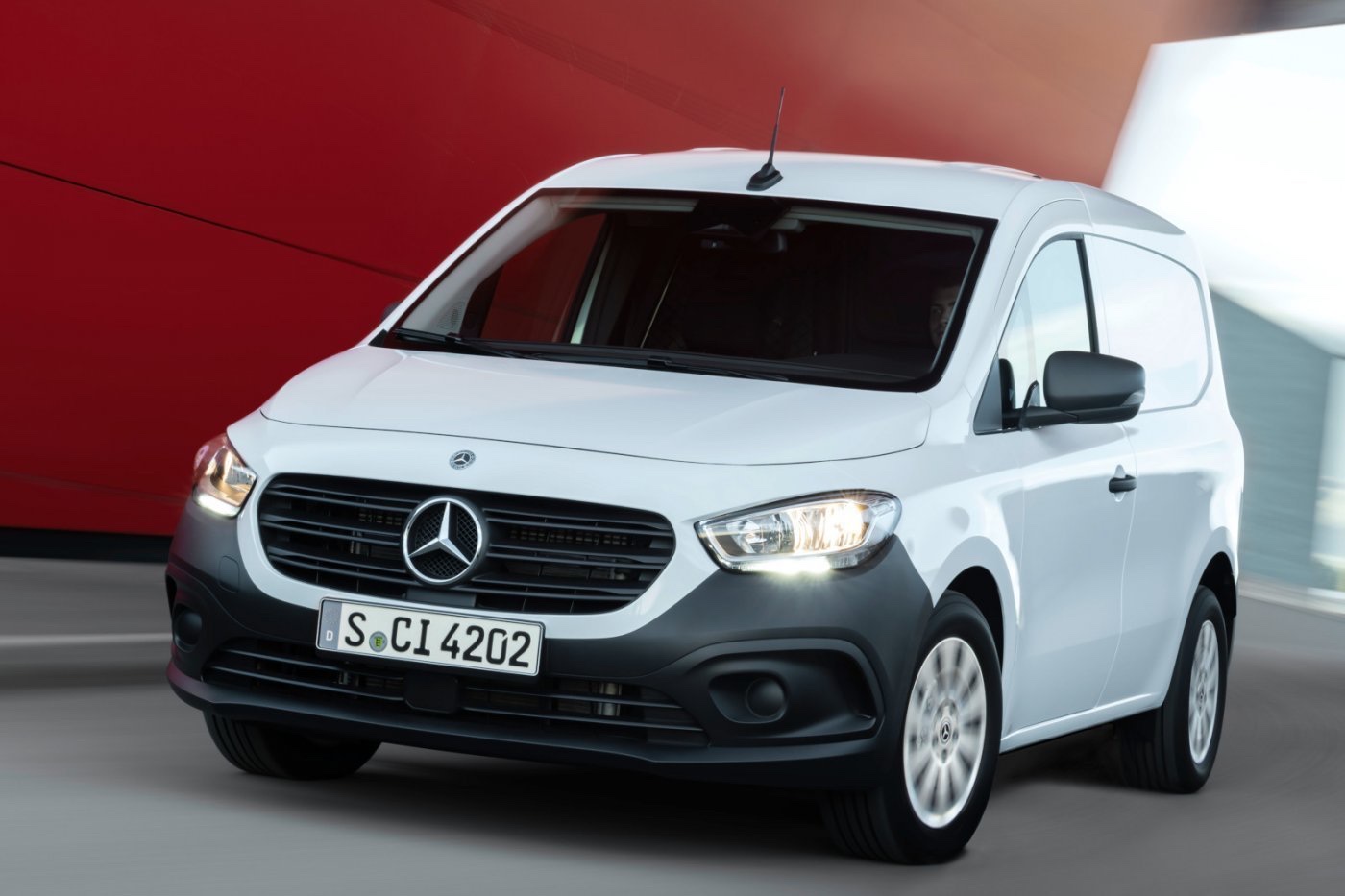

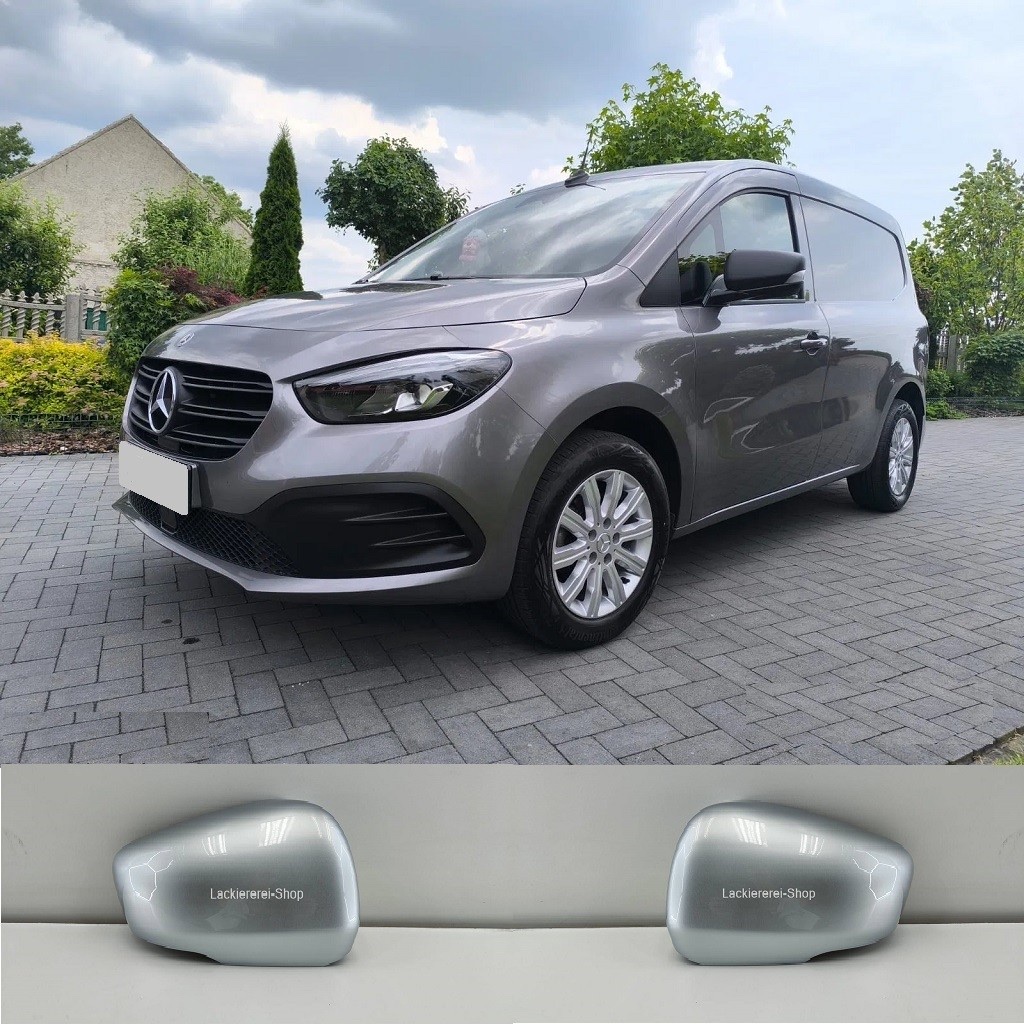

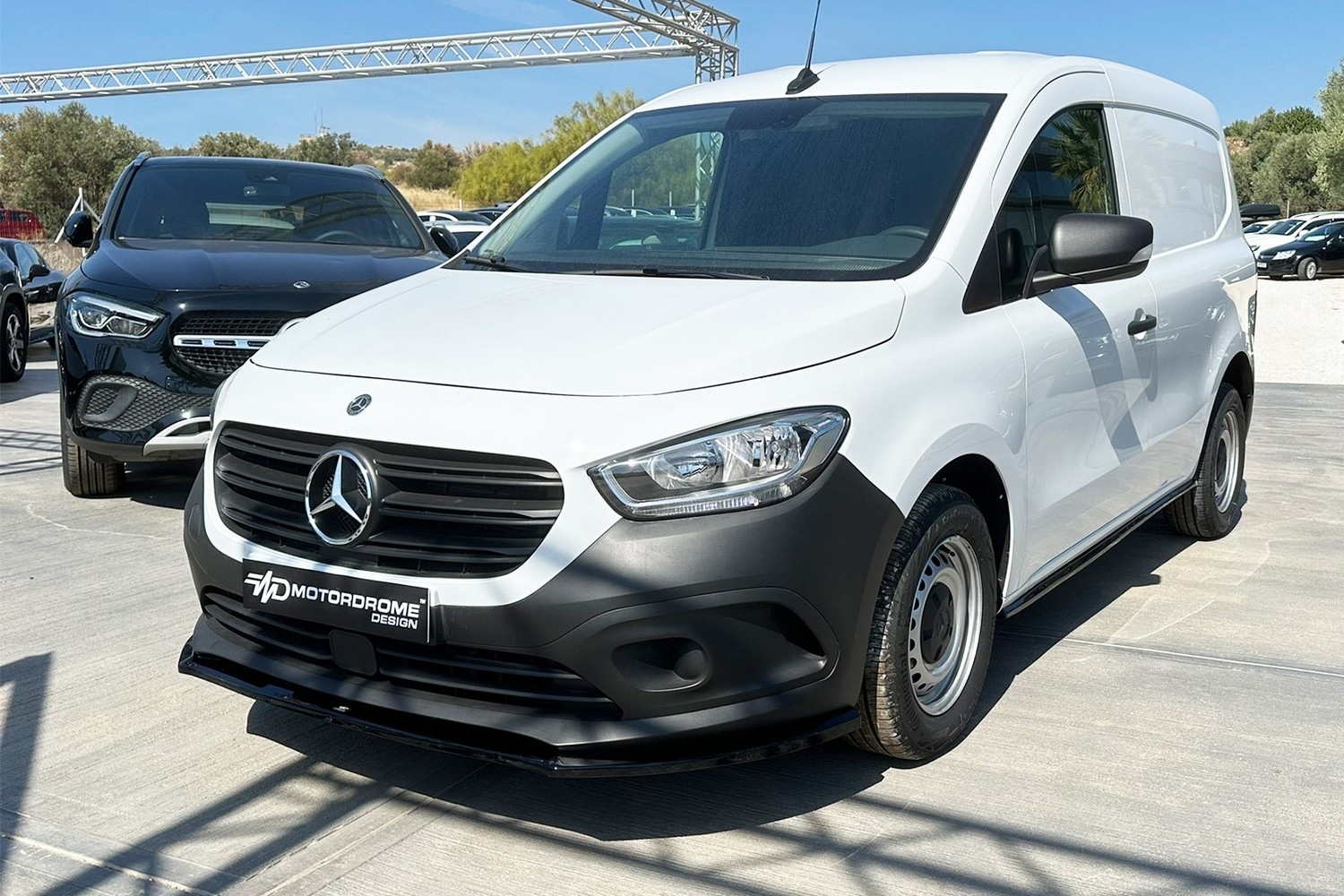

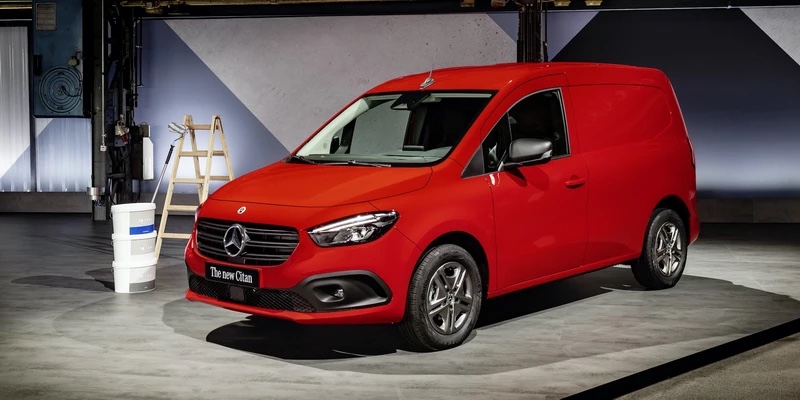

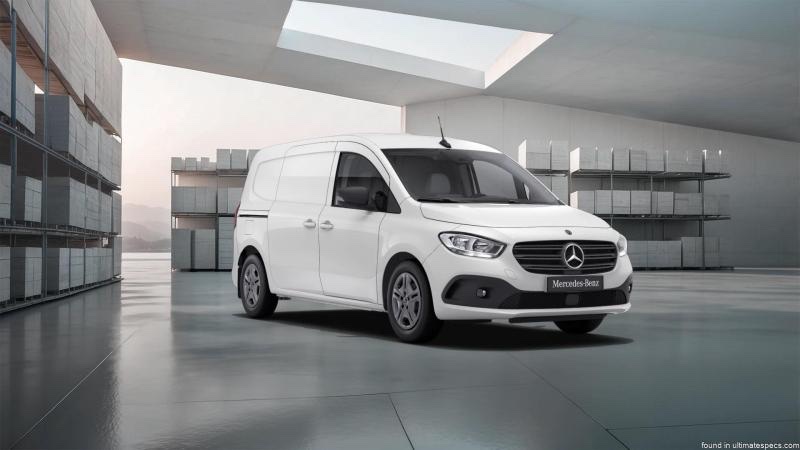

Photo Mercedes Citan Combi (W420)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
Citan 110 CDI 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.6 |
|---|---|
| Top speed, km/h | 164 |
| Acceleration 0-100 km/h, s | 15.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 CDI |
|---|---|
| Engine code | OM607 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 95 |
| RPM at max power | 3750 |
| Torque, Nm | 260 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4498 |
| Height, mm | 1811 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1636 |
| Gross weight, kg | 2174 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.2 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 517 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Daimler AG |
| Transmission country | Germany |
Citan 110 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.1 |
|---|---|
| Top speed, km/h | 168 |
| Acceleration 0-100 km/h, s | 14.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.3i |
|---|---|
| Engine code | M282 (Renault H5Ht) |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1332 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 102 |
| RPM at max power | 4500 |
| Torque, Nm | 200 |
| RPM at max torque | 1500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4498 |
| Height, mm | 1811 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1636 |
| Gross weight, kg | 2174 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.2 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 517 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Daimler AG |
| Transmission country | Germany |
Citan 113 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.1 |
|---|---|
| Top speed, km/h | 183 |
| Acceleration 0-100 km/h, s | 13 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.3i |
|---|---|
| Engine code | M282 (Renault H5Ht) |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1332 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 131 |
| RPM at max power | 5000 |
| Torque, Nm | 240 |
| RPM at max torque | 1600 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4498 |
| Height, mm | 1811 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1636 |
| Gross weight, kg | 2174 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.2 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 517 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Daimler AG |
| Transmission country | Germany |
Citan 113 31 specifications
Specifications
Engine
| Engine | 1.3i |
|---|---|
| Engine code | M282 (Renault H5Ht) |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1332 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 131 |
| RPM at max power | 5000 |
| Torque, Nm | 240 |
| RPM at max torque | 1600 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4498 |
| Height, mm | 1811 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1636 |
| Gross weight, kg | 2174 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.2 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 517 |
Transmission and drive
| Transmission | dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Mercedes Citan Combi (W420) questions
Short answers based on the specifications and photos available in this catalog.
What is the cargo capacity of the Mercedes Citan Combi?
The Citan Combi offers 517 liters of cargo space behind the second row of seats. By folding down the rear bench, the total volume can be expanded to 2,390 liters.
Does the Citan Combi come with an automatic transmission?
Yes, a seven-speed dual-clutch automatic transmission (7G-DCT) is available, but it is exclusively paired with the 131-horsepower 1.3-liter gasoline engine.
How does the Citan Combi differ from the Renault Kangoo?
While sharing the CMF-C platform, the Citan Combi features unique exterior styling, a bespoke interior with the MBUX infotainment system, and brand-specific suspension tuning for a distinct driving feel.
What safety features are available on the Citan Combi?
Available safety technologies include adaptive cruise control, active lane-keeping assist, blind-spot monitoring, and a crosswind assist system to improve stability during highway driving.
