The Mercedes-Benz Citan Furgon (W420) is a front-wheel-drive compact commercial van introduced in August 2021 as the model's second generation. It shares its core CMF-C architecture with the Renault Kangoo but features distinct Mercedes-Benz styling, chassis tuning, and equipment.
Mercedes Citan Furgon (W420) at a glance
Quick model context before comparing photos and trim-level specifications.
Developed in collaboration with the Renault-Nissan-Mitsubishi alliance, the second-generation Citan Furgon provides a commercial utility solution in a compact footprint. While it utilizes the shared CMF-C platform, Mercedes engineers have given the W420 its own unique suspension calibration and corporate identity to align with the brand's larger commercial lineup. Measuring nearly 4.5 meters in length in its standard configuration, this panel van is designed for urban logistics, tradespeople, and small delivery fleets. It offers a practical balance of maneuverability and cargo capacity, bridging the gap between light passenger vehicles and full-size transport vans.
- Power: 75-131 hp
- Engine displacement: 1332-1461 cc
- Transmissions: 6-speed manual, dual-clutch
- Seating: 2 seats
Mercedes Citan Furgon (W420) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior design clearly identifies the W420 as a Mercedes-Benz product, featuring a brand-specific front fascia, grille, and lighting units. In its standard wheelbase form, the van measures 4498 mm in length, 1859 mm in width, and 1832 mm in height. Access to the cargo area is provided through rear asymmetric swing doors—with a top-hinged tailgate available as an alternative—and either one or two side sliding doors that open to a width of 615 mm. An extended wheelbase version is also offered for those requiring additional cargo length.
Interior
Inside the cabin, the W420 incorporates signature Mercedes-Benz elements, including turbine-style air vents and a familiar multifunction steering wheel. Depending on the trim, the steering wheel features touch-sensitive control pads. The centerpiece of the dashboard on higher trims is a 7-inch touchscreen running the MBUX multimedia system, which supports voice commands. The seating configuration accommodates two occupants, though a flexible front passenger seat can be specified to fold down, allowing for the transportation of extra-long cargo items alongside the driver.
Performance
The W420 powertrain lineup includes both diesel and petrol options. The 1.5-liter four-cylinder turbodiesel (OM607) is available in three output levels: 75 hp, 95 hp, and 116 hp. The most powerful diesel variant includes an overboost function that temporarily increases output to 121 hp and 295 Nm of torque. For petrol buyers, a 1.3-liter turbocharged engine (M282) provides either 102 hp or 131 hp. A six-speed manual transmission is standard across the range, while a seven-speed dual-clutch automatic (7G-DCT) is available for the higher-output diesel and petrol models.
Practicality
As a dedicated commercial vehicle, the standard Citan Furgon offers up to 2.9 cubic meters of cargo volume and a maximum payload capacity of 782 kg. The loading area is designed to fit two standard Euro pallets, aided by a relatively low load floor height of just 59 cm. The W420's cargo bay adaptability, including the optional folding front seat and multiple door configurations, makes it highly suited for varied daily business operations and urban deliveries.
Safety and tech
While serving primarily as a commercial tool, the Citan Furgon integrates modern technology through the available MBUX infotainment suite. This system provides connectivity and interface control similar to the brand's passenger cars. Safety and driver assistance features are aligned with current commercial standards, though the exact sensor suites and active safety systems vary depending on the selected equipment grade and local market availability.
Buyer notes
When comparing trims for the Citan Furgon, buyers should note that the 7G-DCT automatic transmission is restricted to the more powerful 116 hp diesel and 131 hp petrol engines. The choice between rear swing doors and a single tailgate will dictate forklift accessibility versus weather protection during loading. Trim levels, technology packages, and standard equipment can differ significantly by region, so verifying local inventory configurations is recommended.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| Citan 108 CDI | 1461 cc | 75 hp | 2 | 6-speed manual |
| Citan 110 CDI | 1461 cc | 95 hp | 2 | 6-speed manual |
| Citan 112 CDI | 1461 cc | 116 hp | 2 | 6-speed manual |
| Citan 112 CDI | 1461 cc | 116 hp | 2 | dual-clutch |
| Citan 110 | 1332 cc | 102 hp | 2 | 6-speed manual |
| Citan 113 | 1332 cc | 131 hp | 2 | dual-clutch |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

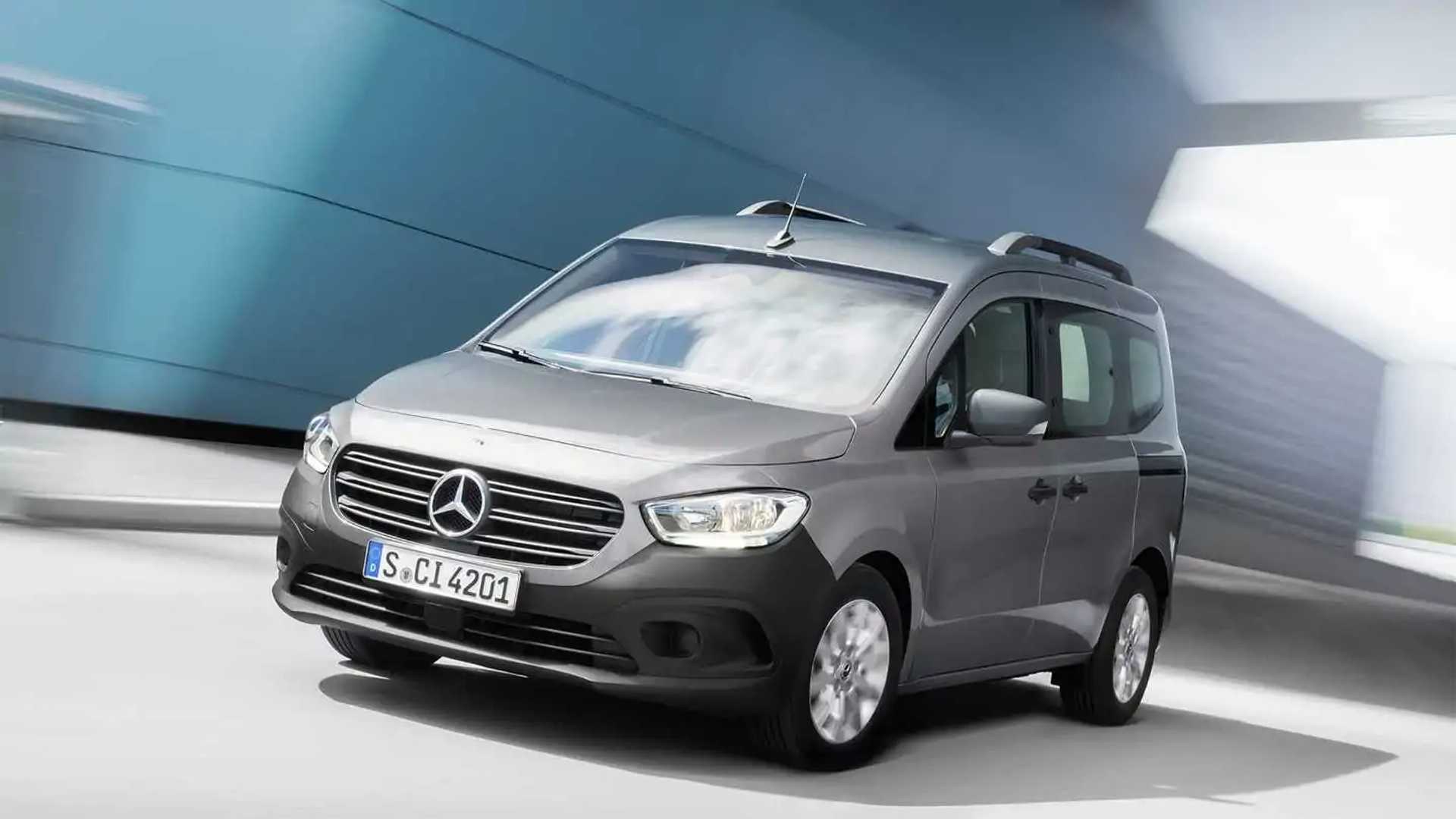

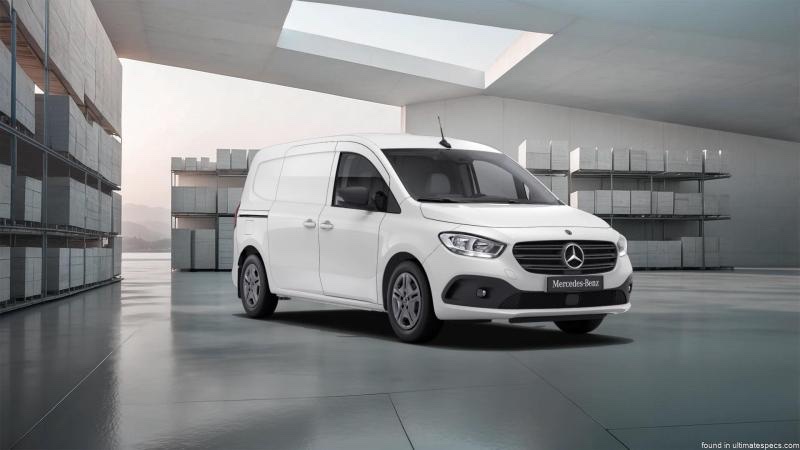

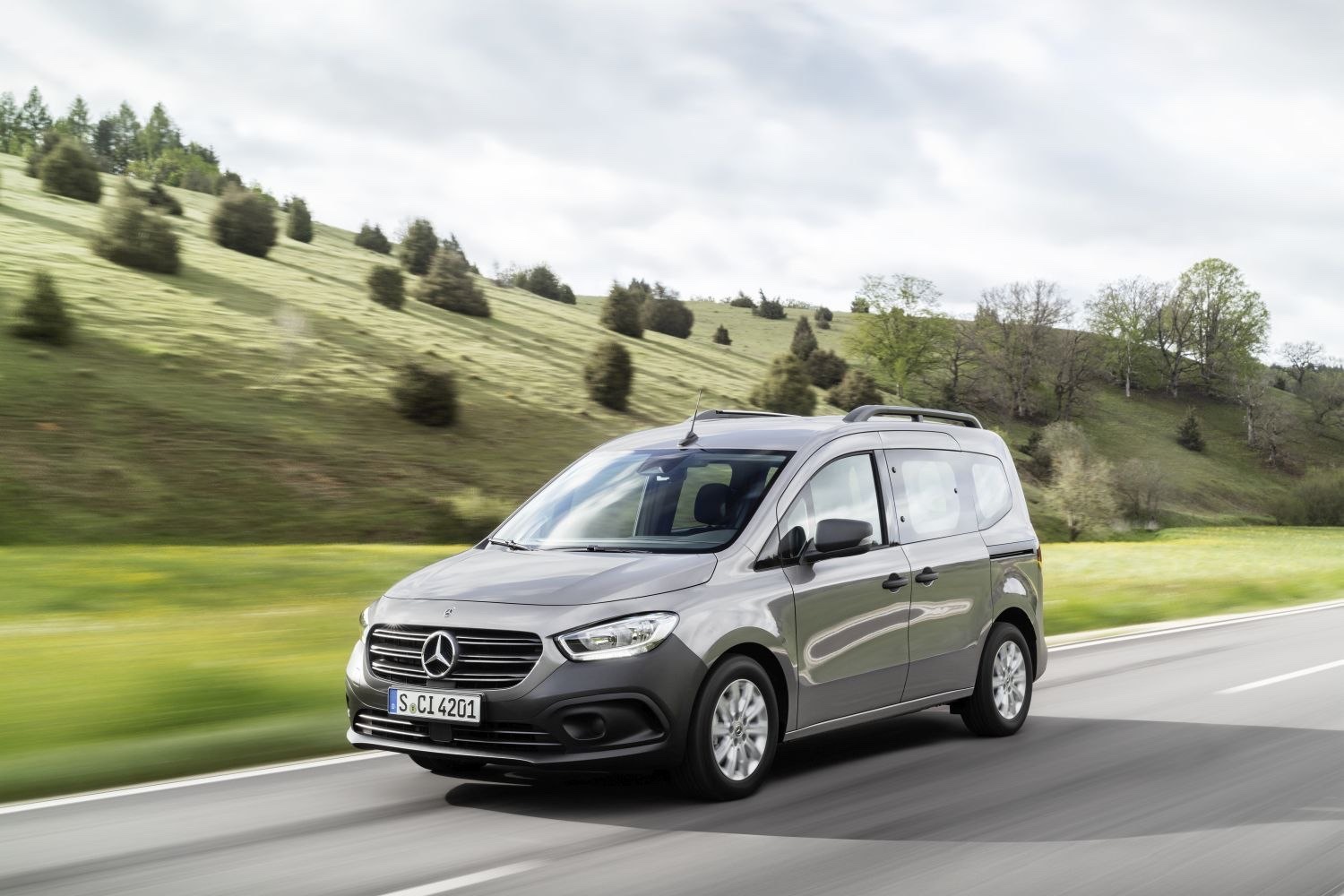

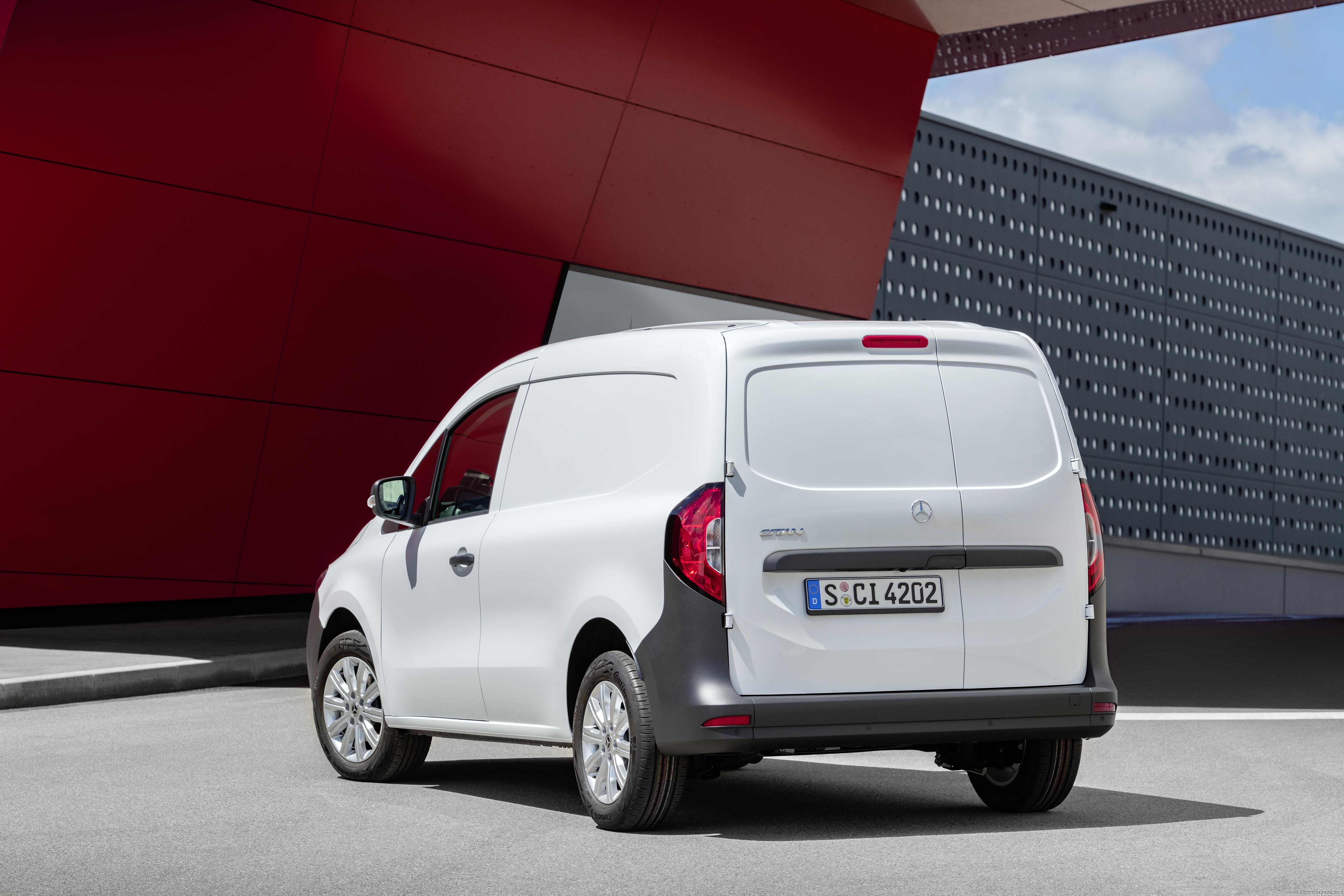

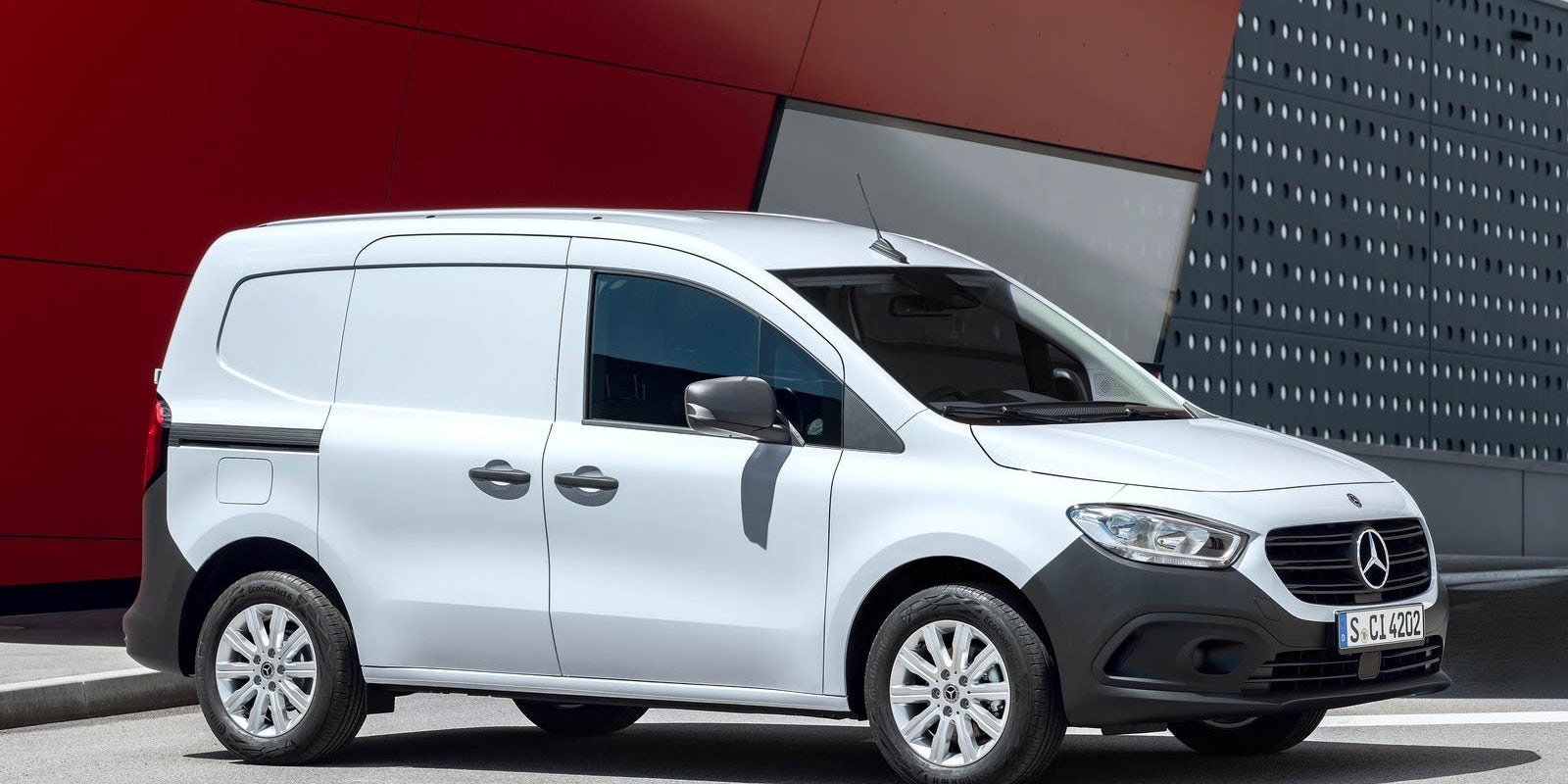

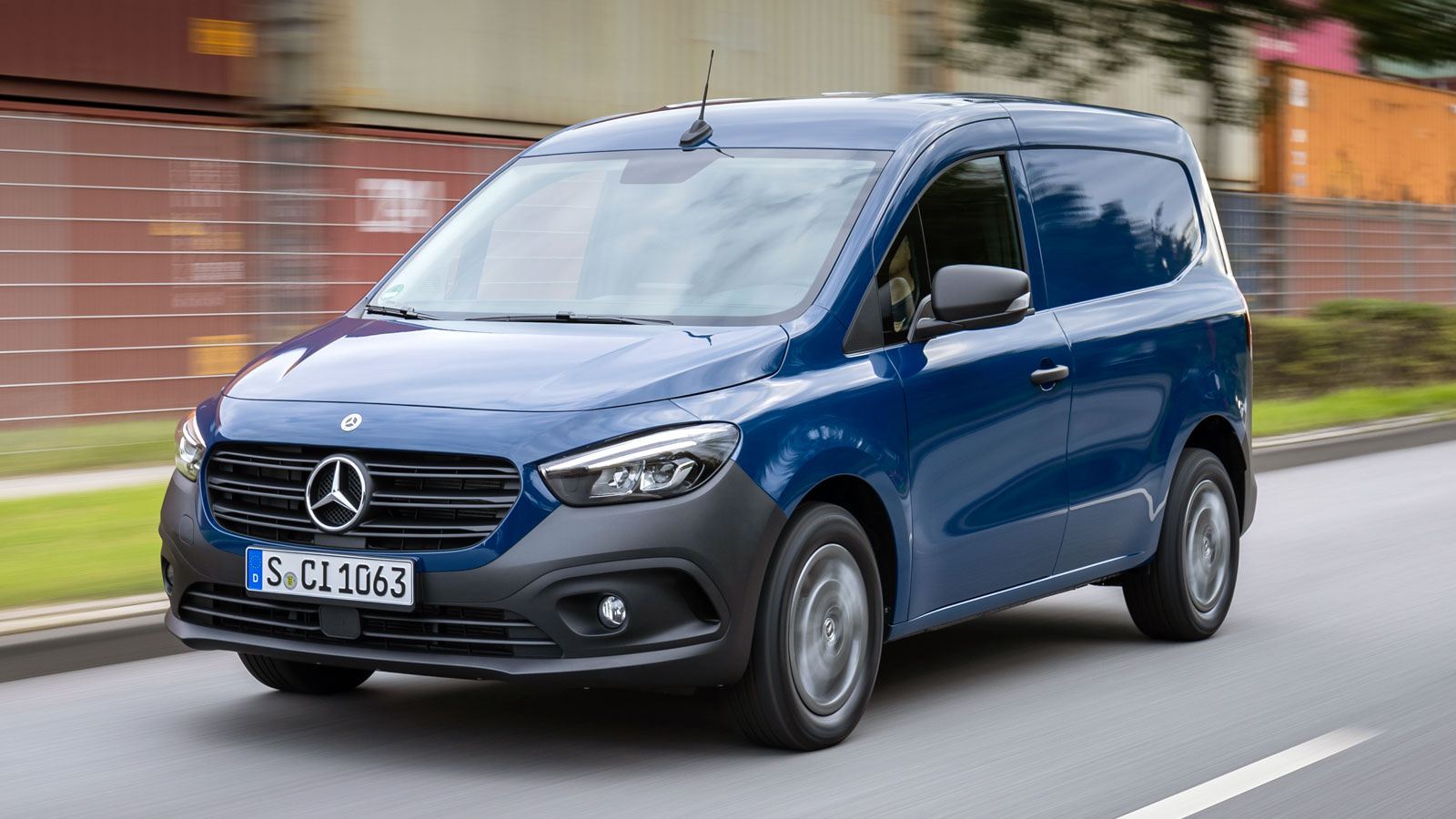

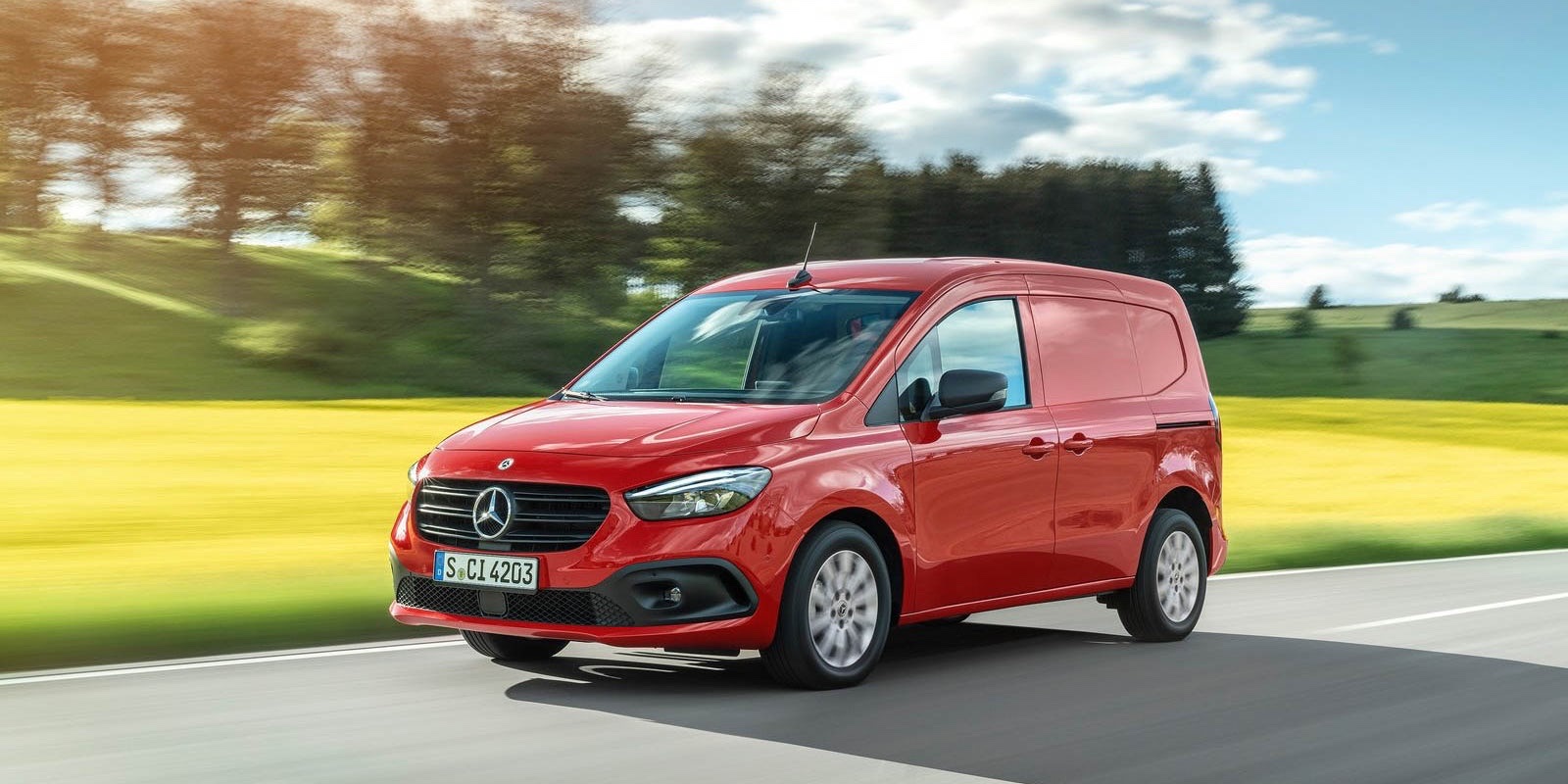

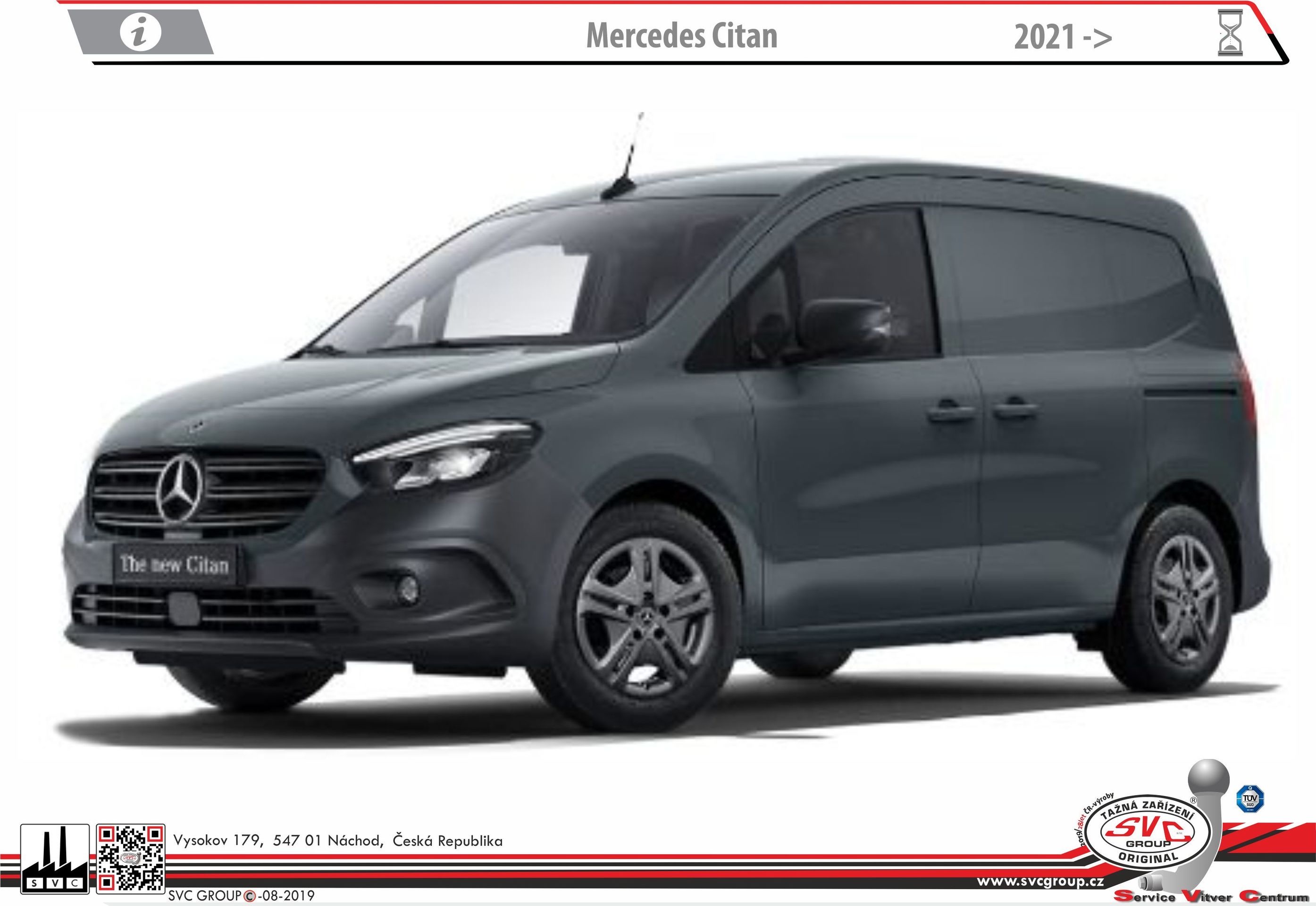

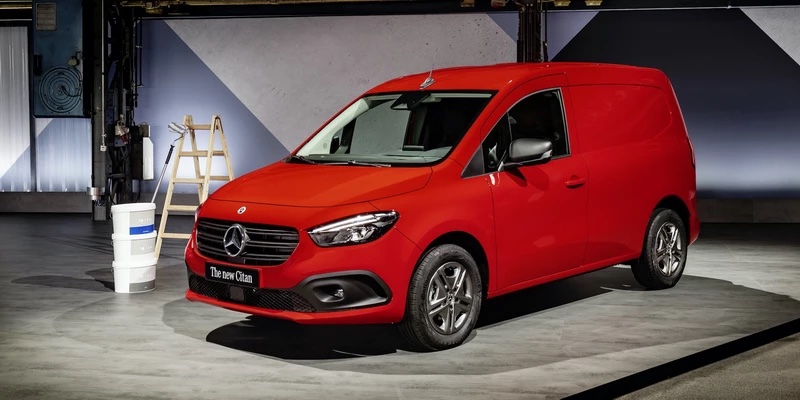

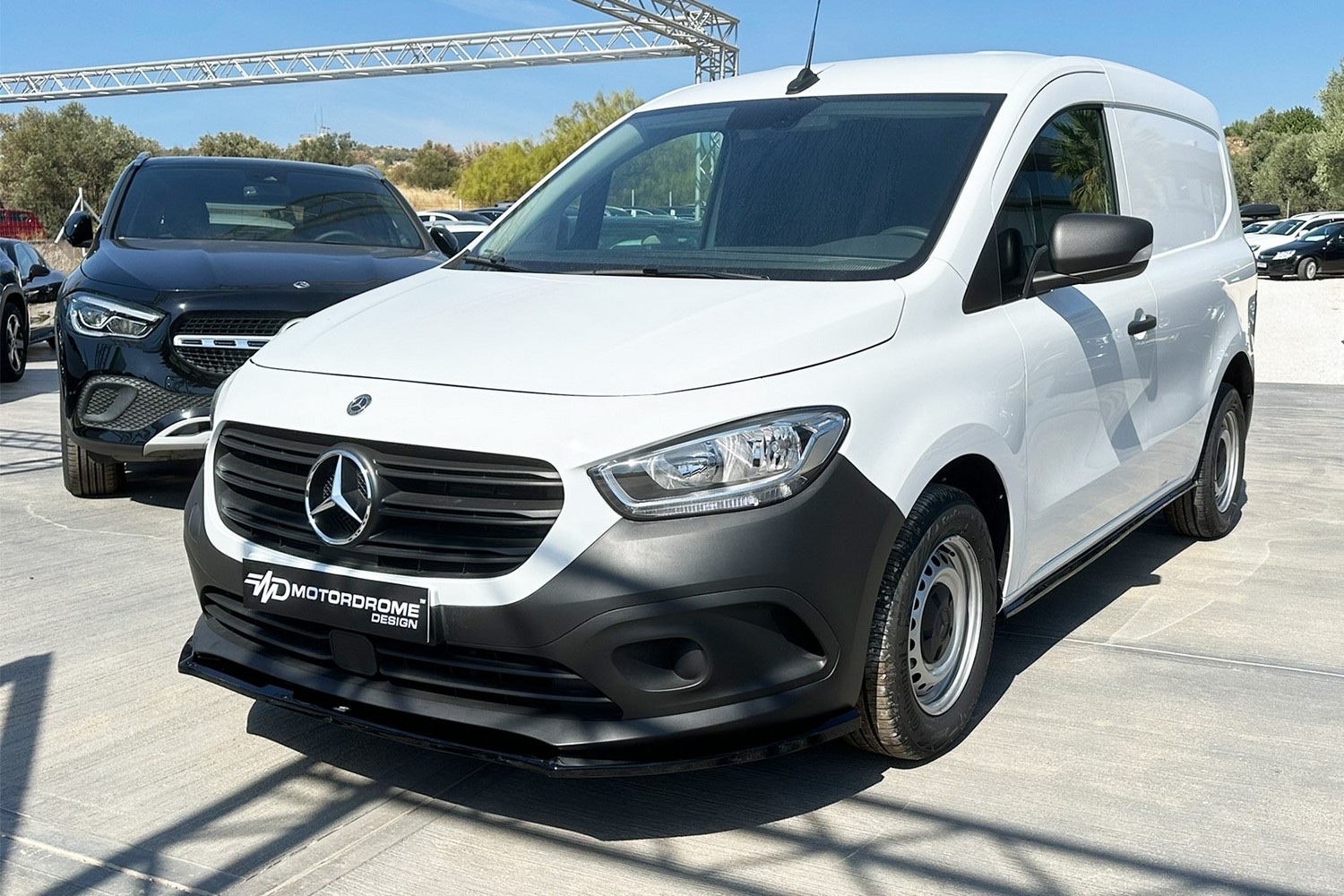

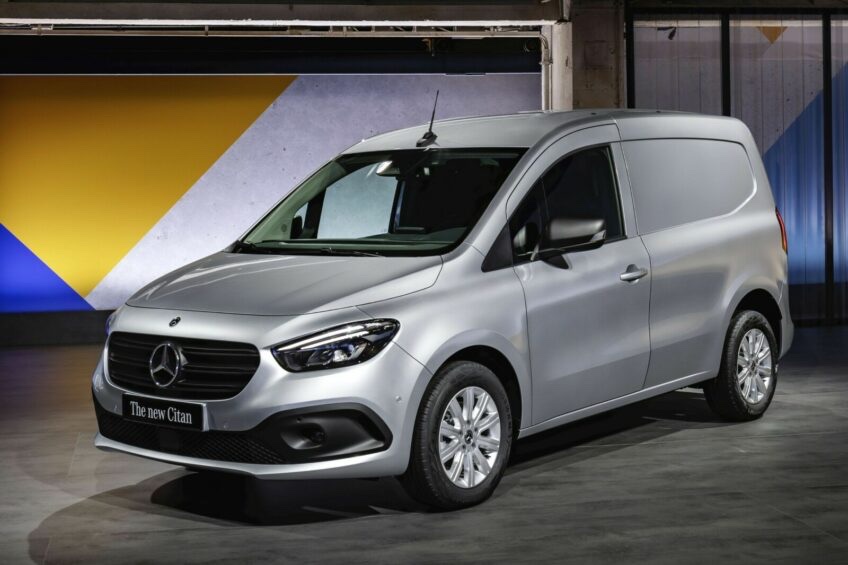

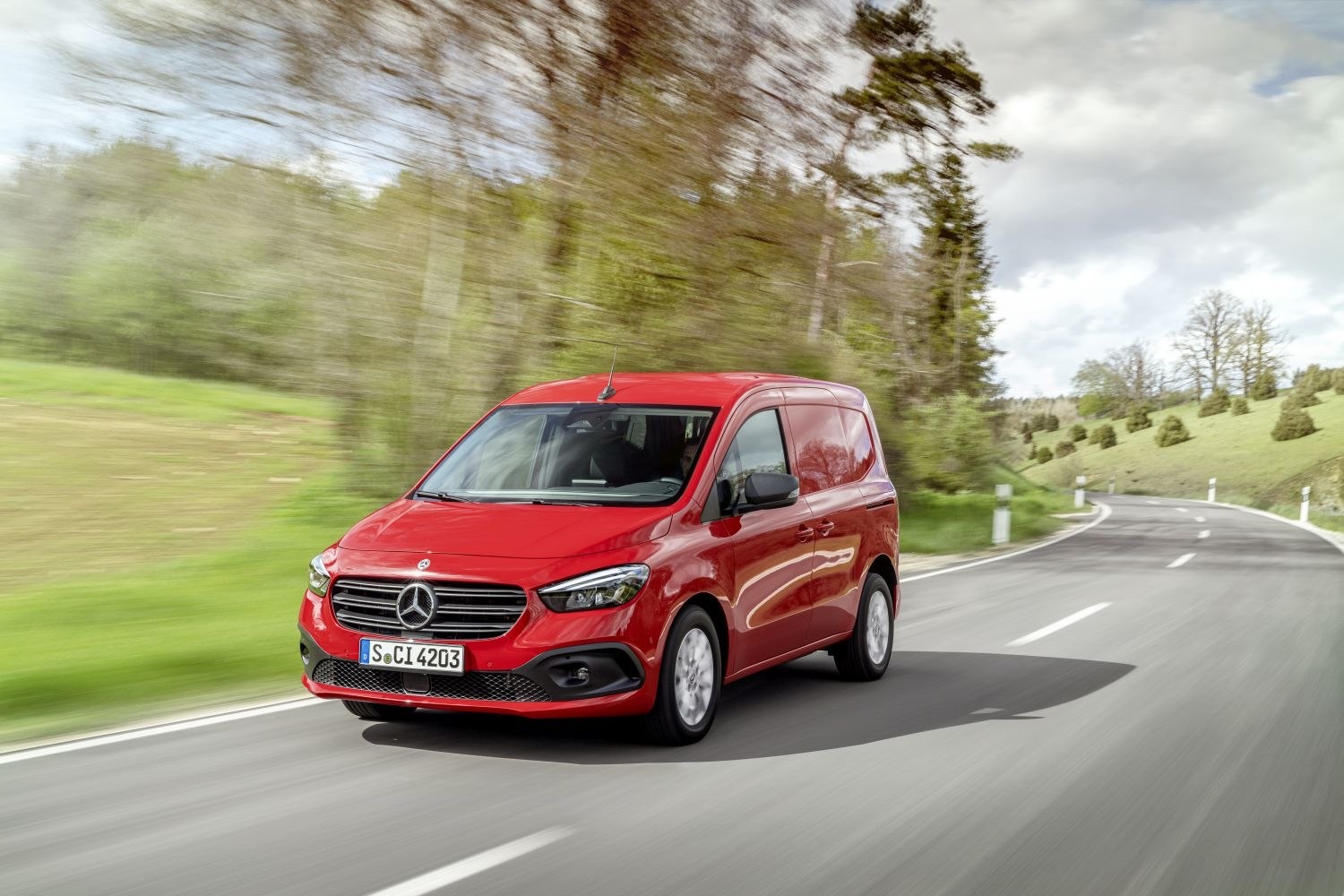

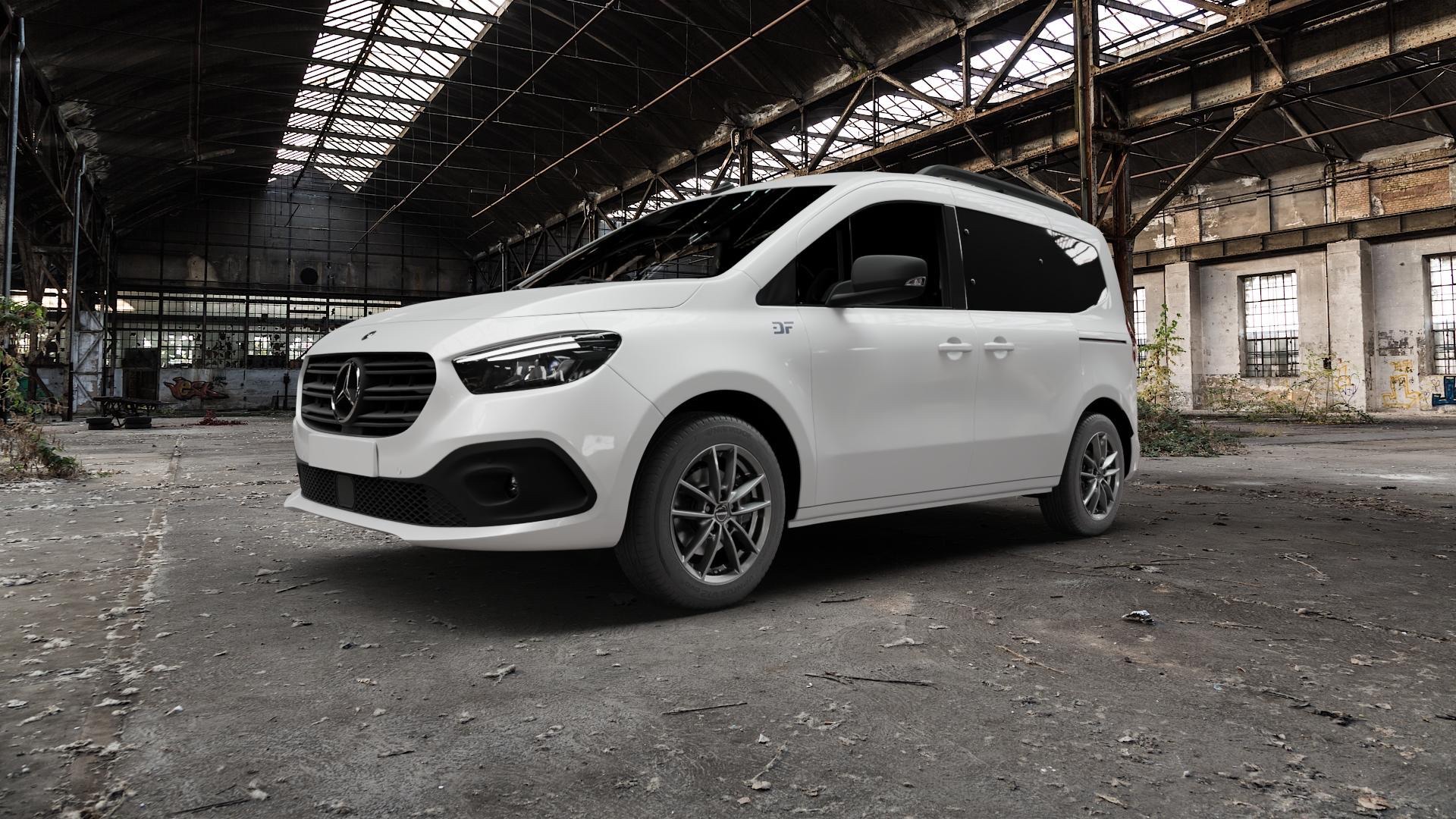

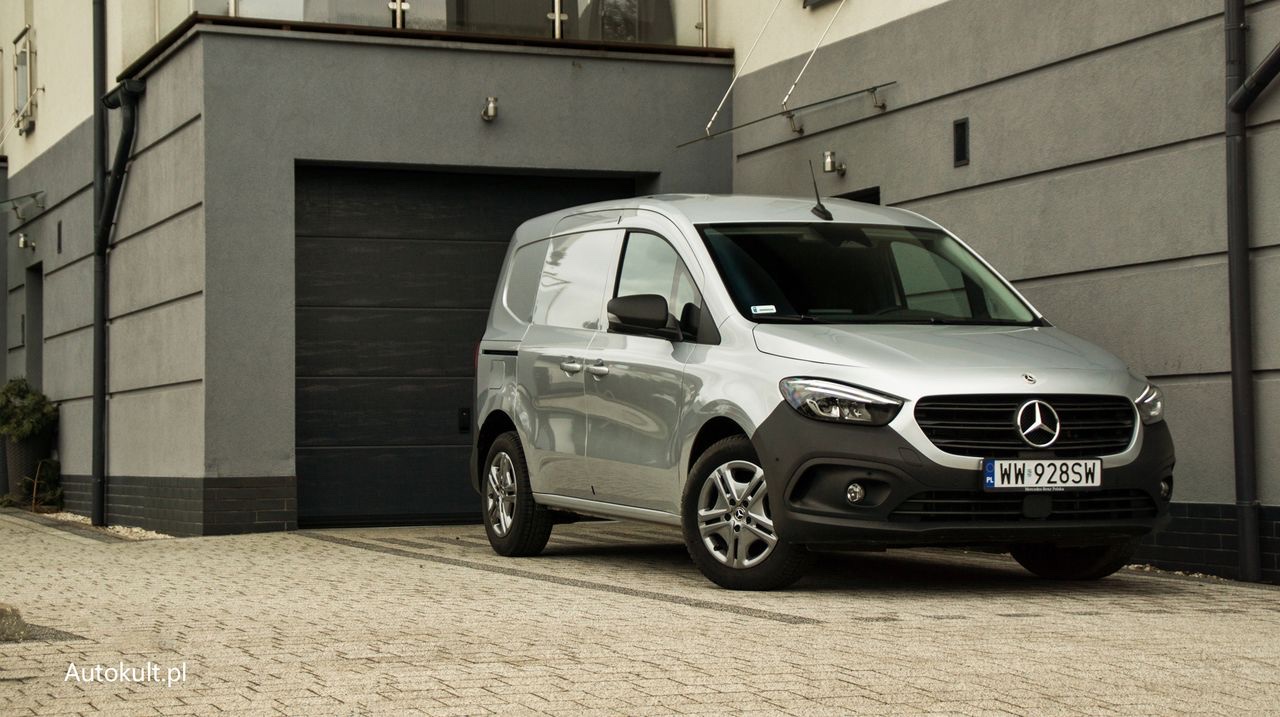

Mercedes Citan Furgon (W420) photo gallery
14 images are collected here with the main specifications and trim data for this model.
Photo Mercedes Citan Furgon (W420)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
Citan 108 CDI 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.4 |
|---|---|
| Top speed, km/h | 152 |
| Acceleration 0-100 km/h, s | 18 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 CDI |
|---|---|
| Engine code | OM607 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 75 |
| RPM at max power | 3750 |
| Torque, Nm | 230 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 2 |
|---|---|
| Length, mm | 4498 |
| Height, mm | 1832 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1462 |
| Gross weight, kg | 2013 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.2 |
| Width without mirrors, mm | 1859 |
| Cargo compartment volume, m3 | 2.9 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Daimler AG |
| Transmission country | Germany |
Citan 110 CDI 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.6 |
|---|---|
| Top speed, km/h | 164 |
| Acceleration 0-100 km/h, s | 13.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 CDI |
|---|---|
| Engine code | OM607 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 95 |
| RPM at max power | 3750 |
| Torque, Nm | 260 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 2 |
|---|---|
| Length, mm | 4498 |
| Height, mm | 1832 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1462 |
| Gross weight, kg | 2013 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.2 |
| Width without mirrors, mm | 1859 |
| Cargo compartment volume, m3 | 2.9 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Daimler AG |
| Transmission country | Germany |
Citan 112 CDI 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.8 |
|---|---|
| Top speed, km/h | 175 |
| Acceleration 0-100 km/h, s | 11.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 CDI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 116 |
| RPM at max power | 3750 |
| Torque, Nm | 270 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 2 |
|---|---|
| Length, mm | 4498 |
| Height, mm | 1832 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1462 |
| Gross weight, kg | 2013 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.2 |
| Width without mirrors, mm | 1859 |
| Cargo compartment volume, m3 | 2.9 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Daimler AG |
| Transmission country | Germany |
Citan 112 CDI 31 specifications
Specifications
Engine
| Engine | 1.5 CDI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 116 |
| RPM at max power | 3750 |
| Torque, Nm | 270 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 2 |
|---|---|
| Length, mm | 4498 |
| Height, mm | 1832 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1462 |
| Gross weight, kg | 2013 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.2 |
| Width without mirrors, mm | 1859 |
| Cargo compartment volume, m3 | 2.9 |
Transmission and drive
| Transmission | dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Citan 110 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.2 |
|---|---|
| Top speed, km/h | 168 |
| Acceleration 0-100 km/h, s | 14.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.3i |
|---|---|
| Engine code | M282 (Renault H5Ht) |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1332 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 102 |
| RPM at max power | 4500 |
| Torque, Nm | 200 |
| RPM at max torque | 1500 |
Dimensions
| Seats | 2 |
|---|---|
| Length, mm | 4498 |
| Height, mm | 1832 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1462 |
| Gross weight, kg | 2013 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.2 |
| Width without mirrors, mm | 1859 |
| Cargo compartment volume, m3 | 2.9 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Daimler AG |
| Transmission country | Germany |
Citan 113 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.1 |
|---|---|
| Top speed, km/h | 183 |
| Acceleration 0-100 km/h, s | 12 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.3i |
|---|---|
| Engine code | M282 (Renault H5Ht) |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1332 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 131 |
| RPM at max power | 5000 |
| Torque, Nm | 240 |
| RPM at max torque | 1600 |
Dimensions
| Seats | 2 |
|---|---|
| Length, mm | 4498 |
| Height, mm | 1832 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1462 |
| Gross weight, kg | 2013 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.2 |
| Width without mirrors, mm | 1859 |
| Cargo compartment volume, m3 | 2.9 |
Transmission and drive
| Transmission | dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Mercedes Citan Furgon (W420) questions
Short answers based on the specifications and photos available in this catalog.
What is the cargo volume of the W420 Citan Furgon?
The standard wheelbase W420 panel van provides a maximum cargo volume of 2.9 cubic meters and can accommodate two standard Euro pallets.
Are automatic transmissions available for the 2021 Citan?
Yes, a 7-speed dual-clutch automatic transmission (7G-DCT) is available, but only on the highest-output 112 CDI (116 hp) and 113 (131 hp) engine options.
Does the W420 share its platform with other vehicles?
The second-generation Citan is built on the CMF-C platform, which it shares with the Renault Kangoo. However, Mercedes applies its own exterior styling, interior components, and chassis tuning.
What is the maximum payload capacity of the W420 Citan?
The standard W420 Citan Furgon supports a maximum payload weight of up to 782 kg, depending on the specific engine and equipment installed.
