Mercedes Maybach S-Class (X222) specifications and photos

Mercedes Maybach S-Class (X222) specifications are shown with trim options, key technical data, and a model photo gallery. Compare 6 configurations by engine size, power, seating, and transmission. The gallery includes 15 photos for visual reference.

Years 2017
Body type sedan
Trims 6
Photos 15

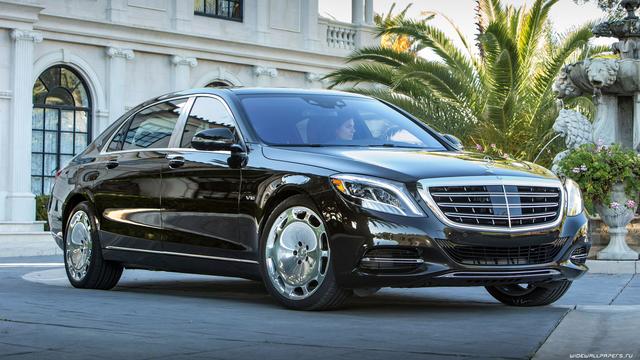

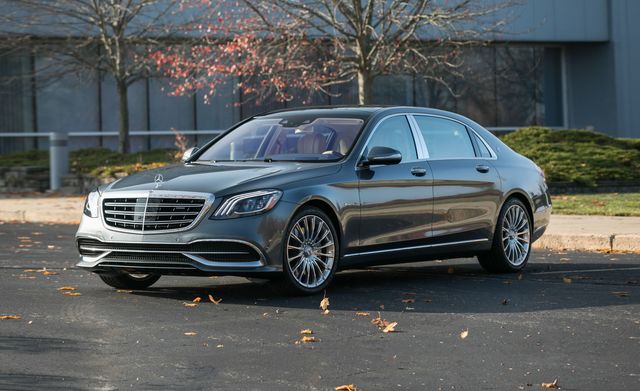

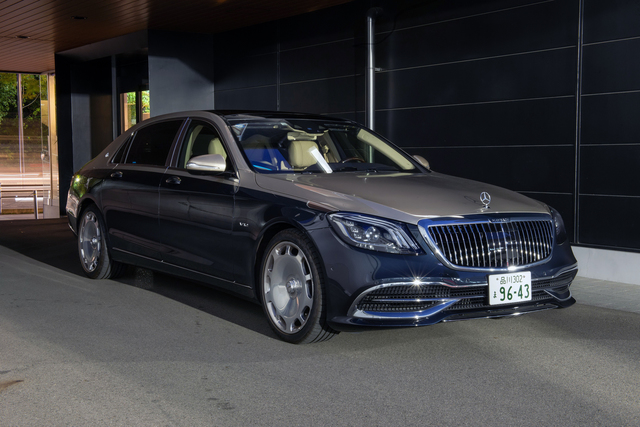

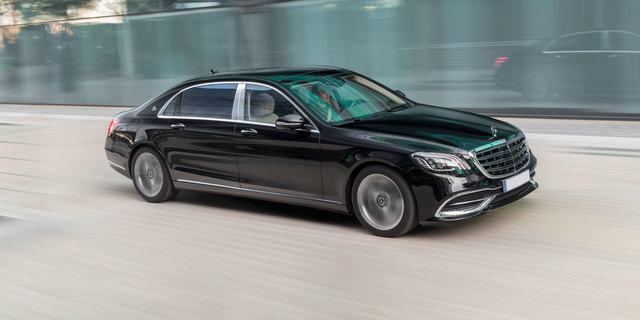

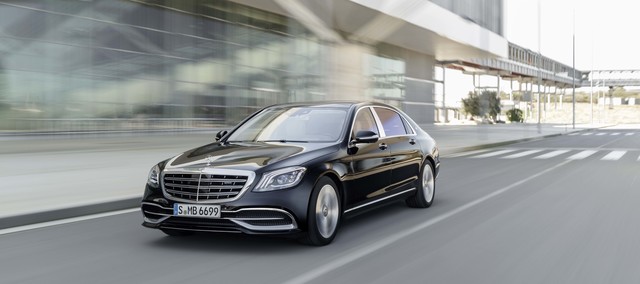

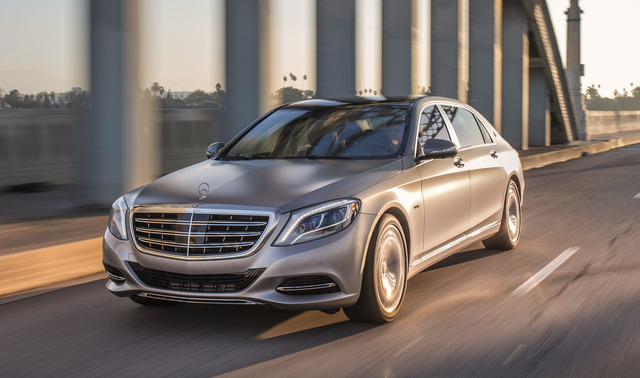

Mercedes Maybach S-Class (X222) 2017 photo
Overview

Mercedes Maybach S-Class (X222) at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Mercedes Maybach S-Class (X222) page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 469-630 hp and 3982-5980 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 469-630 hp
  • Engine displacement: 3982-5980 cc
  • Transmissions: 9, 7
  • Seating: 4 seats
Research hub

Photos, trims and specifications for Mercedes Maybach S-Class (X222)

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 15 images Compare trims 6 configurations View detailed specs 3982-5980 cc Explore related pages Mercedes and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 469-630 hp
Engine displacement 3982-5980 cc
Seating 4 seats
Transmissions 9, 7
Trim / modification Engine Power Seats Transmission
S 560 3982 cc 469 hp 4 9
S 560 4MATIC 3982 cc 469 hp 4 9
S 650 5980 cc 630 hp 4 7
560 3982 cc 469 hp 4 9
560 4Matic 3982 cc 469 hp 4 9
650 5980 cc 630 hp 4 7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

S 560 S 560 4MATIC S 650 560 560 4Matic 650
S 560 76 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3982
Cylinders location V-shaped
Number of cylinders 8
Valves 32
Power, hp 469
Torque, Nm 700
RPM at max torque 4000
Engine 4.0i
Compression 10.5
RPM at max power 5500
Engine code M176 DE40 AL

Dimensions

Seats 4
Length mm 5462
Width 2130
Height mm 1498
Wheelbase mm 3365
Front track, mm 1634
Rear track, mm 1632
Kerb weight, kg 2360
Trunk capacity, L 500
Fuel tank, l 80
Turning circle, m 12.9
Gross weight, kg 2820
Width (without mirrors) mm 1899

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.7
Fuel consumption (urban), l. 100 km 7
Fuel consumption (combined), l. 100 km 8.8
The maximum speed, km / h. 250

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Rear
Transmission 9G-Tronic
Gearbox Machine
Transmission manufacturer Daimler AG
Transmission country of origin Germany

Equipment

Comfort

Tyre pressure monitoring +
Power steering +
Multi-function steering wheel +
Electric parking brake +
Easy Entry function +

Interior

On-board computer +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 18
Rim type Alloy
Tires 245/50R18

Cabin climate and noise insulation

Heated front seats +
Heated rear seats +
4-zone climate control +

Glass, mirrors and sunroof

The rain sensor +
Heated rear window +
Power mirrors +
Electric folding mirrors +

Multimedia and instruments

Navigation system +
DVD-player +
Number of speakers 10

Headlights and lighting

LED headlights +
Light sensor +
Rear fog lights +
Rear LED lights +

Seats

Power front seats +
Rear Armrest +
Isofix child seat (LATCH, Isofix) +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +

Trunk

Remote unlocking of the boot lid +

Fuel economy

Start-Stop System +

Security

Electronic systems

Anti-lock braking system (ABS) +
Traction Control System (Traction control, ASR) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Brake Assist (BOS, BAS) +
Control System degree of fatigue of the driver ATTENTION ASSIST +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
S 560 4MATIC 77 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3982
Cylinders location V-shaped
Number of cylinders 8
Valves 32
Power, hp 469
Torque, Nm 700
RPM at max torque 4000
Engine 4.0i
Compression 10.5
RPM at max power 5500
Engine code M176 DE40 AL

Dimensions

Seats 4
Length mm 5462
Width 2130
Height mm 1498
Wheelbase mm 3365
Front track, mm 1634
Rear track, mm 1632
Kerb weight, kg 2360
Trunk capacity, L 500
Fuel tank, l 80
Turning circle, m 12.9
Gross weight, kg 2820
Width (without mirrors) mm 1899

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 12.3
Fuel consumption (urban), l. 100 km 7.5
Fuel consumption (combined), l. 100 km 9.3
Acceleration (0-100 km/h), s 4.9
The maximum speed, km / h. 250

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Full
Transmission 9G-Tronic
Gearbox Machine
Transmission manufacturer Daimler AG
Transmission country of origin Germany

Equipment

Comfort

Tyre pressure monitoring +
Power steering +
Multi-function steering wheel +
Electric parking brake +
Easy Entry function +

Interior

On-board computer +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 18
Rim type Alloy
Tires 245/50R18

Cabin climate and noise insulation

Heated front seats +
Heated rear seats +
4-zone climate control +

Glass, mirrors and sunroof

The rain sensor +
Heated rear window +
Power mirrors +
Electric folding mirrors +

Multimedia and instruments

Navigation system +
DVD-player +
Number of speakers 10

Headlights and lighting

LED headlights +
Light sensor +
Rear fog lights +
Rear LED lights +

Seats

Power front seats +
Rear Armrest +
Isofix child seat (LATCH, Isofix) +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +

Trunk

Remote unlocking of the boot lid +

Fuel economy

Start-Stop System +

Security

Electronic systems

Anti-lock braking system (ABS) +
Traction Control System (Traction control, ASR) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Brake Assist (BOS, BAS) +
Control System degree of fatigue of the driver ATTENTION ASSIST +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
S 650 78 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 5980
Cylinders location V-shaped
Number of cylinders 12
Valves 36
Power, hp 630
Torque, Nm 1000
RPM at max torque 2300-4300
Engine 6.0i
Compression 9.0
RPM at max power 4800-5400
Engine code M279 E60 AL

Dimensions

Seats 4
Length mm 5462
Width 2130
Height mm 1498
Wheelbase mm 3365
Front track, mm 1634
Rear track, mm 1632
Kerb weight, kg 2360
Trunk capacity, L 500
Fuel tank, l 80
Turning circle, m 12.9
Gross weight, kg 2820
Width (without mirrors) mm 1899

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 18.5
Fuel consumption (urban), l. 100 km 9.3
Fuel consumption (combined), l. 100 km 12.7
Acceleration (0-100 km/h), s 4.7
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Rear
Transmission 7G-Tronic Plus
Gearbox Machine
Transmission manufacturer Daimler AG
Transmission country of origin Germany

Equipment

Comfort

Tyre pressure monitoring +
Power steering +
Multi-function steering wheel +
Electric parking brake +
Easy Entry function +

Interior

On-board computer +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 18
Rim type Alloy
Tires 245/50R18

Cabin climate and noise insulation

Heated front seats +
Heated rear seats +
4-zone climate control +

Glass, mirrors and sunroof

The rain sensor +
Heated rear window +
Power mirrors +
Electric folding mirrors +

Multimedia and instruments

Navigation system +
DVD-player +
Number of speakers 10

Headlights and lighting

LED headlights +
Light sensor +
Rear fog lights +
Rear LED lights +

Seats

Power front seats +
Rear Armrest +
Isofix child seat (LATCH, Isofix) +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +

Trunk

Remote unlocking of the boot lid +

Fuel economy

Start-Stop System +

Security

Electronic systems

Anti-lock braking system (ABS) +
Traction Control System (Traction control, ASR) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Brake Assist (BOS, BAS) +
Control System degree of fatigue of the driver ATTENTION ASSIST +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
560 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3982
Cylinders location V-shaped
Number of cylinders 8
Valves 32
Power, hp 469
Torque, Nm 700
RPM at max torque 4000
Engine 4.0i
Compression 10.5
RPM at max power 5500
Engine code M176 DE40 AL

Dimensions

Seats 4
Length mm 5462
Width 2130
Height mm 1498
Wheelbase mm 3365
Front track, mm 1634
Rear track, mm 1632
Kerb weight, kg 2360
Trunk capacity, L 500
Fuel tank, l 80
Turning circle, m 12.9
Gross weight, kg 2820
Width (without mirrors) mm 1899

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.7
Fuel consumption (urban), l. 100 km 7
Fuel consumption (combined), l. 100 km 8.8
The maximum speed, km / h. 250

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Rear
Transmission 9G-Tronic
Gearbox Machine
Transmission manufacturer Daimler AG
Transmission country of origin Germany
560 4Matic 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3982
Cylinders location V-shaped
Number of cylinders 8
Valves 32
Power, hp 469
Torque, Nm 700
RPM at max torque 4000
Engine 4.0i
Compression 10.5
RPM at max power 5500
Engine code M176 DE40 AL

Dimensions

Seats 4
Length mm 5462
Width 2130
Height mm 1498
Wheelbase mm 3365
Front track, mm 1634
Rear track, mm 1632
Kerb weight, kg 2360
Trunk capacity, L 500
Fuel tank, l 80
Turning circle, m 12.9
Gross weight, kg 2820
Width (without mirrors) mm 1899

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 12.3
Fuel consumption (urban), l. 100 km 7.5
Fuel consumption (combined), l. 100 km 9.3
Acceleration (0-100 km/h), s 4.9
The maximum speed, km / h. 250

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Full
Transmission 9G-Tronic
Gearbox Machine
Transmission manufacturer Daimler AG
Transmission country of origin Germany
650 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 5980
Cylinders location V-shaped
Number of cylinders 12
Valves 36
Power, hp 630
Torque, Nm 1000
RPM at max torque 2300-4300
Engine 6.0i
Compression 9.0
RPM at max power 4800-5400
Engine code M279 E60 AL

Dimensions

Seats 4
Length mm 5462
Width 2130
Height mm 1498
Wheelbase mm 3365
Front track, mm 1634
Rear track, mm 1632
Kerb weight, kg 2360
Trunk capacity, L 500
Fuel tank, l 80
Turning circle, m 12.9
Gross weight, kg 2820
Width (without mirrors) mm 1899

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 18.5
Fuel consumption (urban), l. 100 km 9.3
Fuel consumption (combined), l. 100 km 12.7
Acceleration (0-100 km/h), s 4.7
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Rear
Transmission 7G-Tronic Plus
Gearbox Machine
Transmission manufacturer Daimler AG
Transmission country of origin Germany
FAQ

Mercedes Maybach S-Class (X222) questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Mercedes Maybach S-Class (X222)?

This page lists 6 trims for the Mercedes Maybach S-Class (X222), with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Mercedes Maybach S-Class (X222)?

The listed configurations show a power range of 469-630 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Mercedes Maybach S-Class (X222)?

The available specification data shows engine displacement from 3982-5980 cc across the trims listed on this page.

Which transmissions are listed for the Mercedes Maybach S-Class (X222)?

The transmission options currently shown for this model are: 9, 7. Open a trim section to see the full data for a specific configuration.

Are there photos for the Mercedes Maybach S-Class (X222)?

Yes. The gallery includes 15 photos for the Mercedes Maybach S-Class (X222), including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
