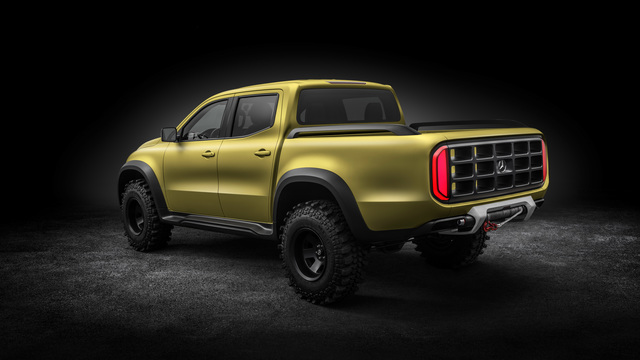

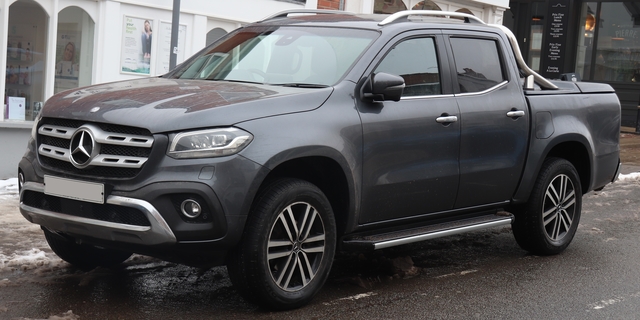

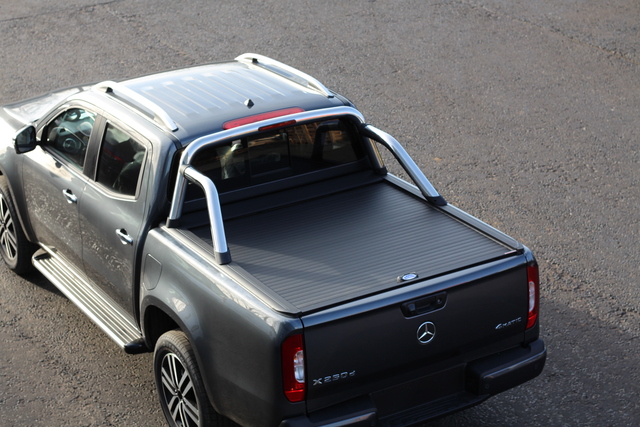

Mercedes X-Class (W470) specifications and photos

Mercedes X-Class (W470) specifications are shown with trim options, key technical data, and a model photo gallery. Compare 5 configurations by engine size, power, seating, and transmission. The gallery includes 27 photos for visual reference.

Years 2017
Body type pickup
Trims 5
Photos 27

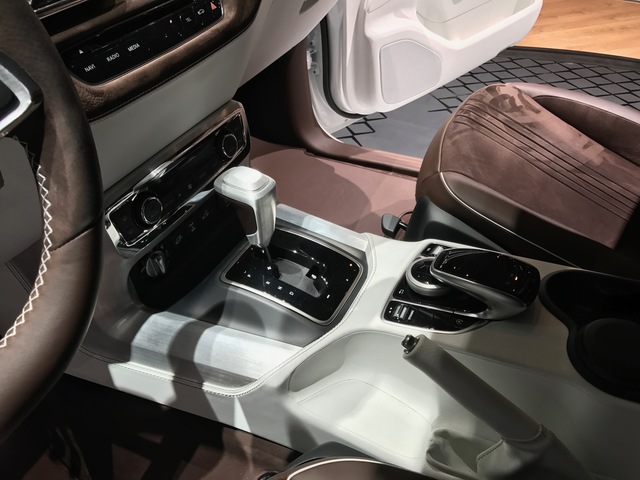

Interior of Mercedes X-Class (W470) 2017
Overview

Mercedes X-Class (W470) at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Mercedes X-Class (W470) page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 163-258 hp and 2298-2987 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 163-258 hp
  • Engine displacement: 2298-2987 cc
  • Transmissions: 6, 7
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Mercedes X-Class (W470)

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 27 images Compare trims 5 configurations View detailed specs 2298-2987 cc Explore related pages Mercedes and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 163-258 hp
Engine displacement 2298-2987 cc
Seating 5 seats
Transmissions 6, 7
Trim / modification Engine Power Seats Transmission
220d 2298 cc 163 hp 5 6
220d 4Matic 2298 cc 163 hp 5 6
250d 2298 cc 190 hp 5 6
250d 4Matic 2298 cc 190 hp 5 7
350d 4Matic 2987 cc 258 hp 5 7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

220d 220d 4Matic 250d 250d 4Matic 350d 4Matic
220d 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2298
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 403
RPM at max torque 1500-2500
Engine 2.3d
Turbo +
Engine code OM699

Dimensions

Seats 5
Length mm 5340
Width 2113
Height mm 1819
Wheelbase mm 3150
Front track, mm 1632
Rear track, mm 1625
Fuel tank, l 73
Turning circle, m 13.4
Ground clearance, mm 202
Gross weight, kg 3250
Width (without mirrors) mm 1916

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.7
Fuel consumption (urban), l. 100 km 7.2
Fuel consumption (combined), l. 100 km 7.4
Acceleration (0-100 km/h), s 12.5
The maximum speed, km / h. 172
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Rear
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Daimler AG
Transmission country of origin Germany
220d 4Matic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2298
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 403
RPM at max torque 1500-2500
Engine 2.3d
Turbo +
Engine code OM699

Dimensions

Seats 5
Length mm 5340
Width 2113
Height mm 1819
Wheelbase mm 3150
Front track, mm 1632
Rear track, mm 1625
Fuel tank, l 73
Turning circle, m 13.4
Ground clearance, mm 202
Gross weight, kg 3250
Width (without mirrors) mm 1916

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.1
Fuel consumption (urban), l. 100 km 7.3
Fuel consumption (combined), l. 100 km 7.6
Acceleration (0-100 km/h), s 12.9
The maximum speed, km / h. 170
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Daimler AG
Transmission country of origin Germany
250d 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2298
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 190
Torque, Nm 450
RPM at max torque 1500-2500
Engine 2.3d
Engine code OM699

Dimensions

Seats 5
Length mm 5340
Width 2113
Height mm 1819
Wheelbase mm 3150
Front track, mm 1632
Rear track, mm 1625
Fuel tank, l 73
Turning circle, m 13.4
Ground clearance, mm 202
Gross weight, kg 3250
Width (without mirrors) mm 1916

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.9
Fuel consumption (urban), l. 100 km 6.9
Fuel consumption (combined), l. 100 km 7.3
Acceleration (0-100 km/h), s 10.9
The maximum speed, km / h. 184
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Rear
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Daimler AG
Transmission country of origin Germany
250d 4Matic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2298
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 190
Torque, Nm 450
RPM at max torque 1500-2500
Engine 2.3d
Engine code OM699

Dimensions

Seats 5
Length mm 5340
Width 2113
Height mm 1819
Wheelbase mm 3150
Front track, mm 1632
Rear track, mm 1625
Fuel tank, l 73
Turning circle, m 13.4
Ground clearance, mm 202
Gross weight, kg 3250
Width (without mirrors) mm 1916

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.6
Fuel consumption (urban), l. 100 km 6.9
Fuel consumption (combined), l. 100 km 7.9
Acceleration (0-100 km/h), s 11.8
The maximum speed, km / h. 176
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Full
Transmission 7-car
Gearbox Machine
Transmission manufacturer Jatco (Nissan)
Transmission country of origin Japan
350d 4Matic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2987
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 258
Torque, Nm 550
RPM at max torque 1400-3200
Engine 3.0 CDi
RPM at max power 3400
Turbo +
Engine code OM642

Dimensions

Seats 5
Length mm 5340
Width 2113
Height mm 1819
Wheelbase mm 3150
Front track, mm 1632
Rear track, mm 1625
Fuel tank, l 73
Turning circle, m 13.4
Ground clearance, mm 202
Gross weight, kg 3250
Width (without mirrors) mm 1916

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 9
Acceleration (0-100 km/h), s 7.9
The maximum speed, km / h. 205
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Full
Transmission 7G-Tronic Plus
Gearbox Machine
Transmission manufacturer Daimler AG
Transmission country of origin Germany
FAQ

Mercedes X-Class (W470) questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Mercedes X-Class (W470)?

This page lists 5 trims for the Mercedes X-Class (W470), with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Mercedes X-Class (W470)?

The listed configurations show a power range of 163-258 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Mercedes X-Class (W470)?

The available specification data shows engine displacement from 2298-2987 cc across the trims listed on this page.

Which transmissions are listed for the Mercedes X-Class (W470)?

The transmission options currently shown for this model are: 6, 7. Open a trim section to see the full data for a specific configuration.

Are there photos for the Mercedes X-Class (W470)?

Yes. The gallery includes 27 photos for the Mercedes X-Class (W470), including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
