Mercedes S-Class Cabriolet (A217) specifications and photos

Mercedes S-Class Cabriolet (A217) specifications are shown with trim options, key technical data, and a model photo gallery. Compare 6 configurations by engine size, power, seating, and transmission. The gallery includes 18 photos for visual reference.

Years 2015 - 2017

Body type cabriolet

Trims 6

Photos 18

Overview

Mercedes S-Class Cabriolet (A217) at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Mercedes S-Class Cabriolet (A217) page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 455-612 hp and 4663-5980 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 455-612 hp
Engine displacement: 4663-5980 cc
Transmissions: 9, 7
Seating: 4 seats

Research hub

Photos, trims and specifications for Mercedes S-Class Cabriolet (A217)

This model page brings gallery images, trim comparison, and detailed technical data together for the 2015 generation.

Open photo gallery 18 images Compare trims 6 configurations View detailed specs 4663-5980 cc Explore related pages Mercedes and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 455-612 hp

Engine displacement 4663-5980 cc

Seating 4 seats

Transmissions 9, 7

Trim / modification	Engine	Power	Seats	Transmission
500 AT	4663 cc	455 hp	4	9
63 AMG AT 4MATIC	5461 cc	585 hp	4	7
65 AMG AT	5980 cc	612 hp	4	7
500	4663 cc	455 hp	4	9
63 AMG 4Matic	5461 cc	585 hp	4	7
65 AMG	5980 cc	612 hp	4	7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Mercedes S-Class Cabriolet (A217) photo gallery

18 images are collected here with the main specifications and trim data for this model.

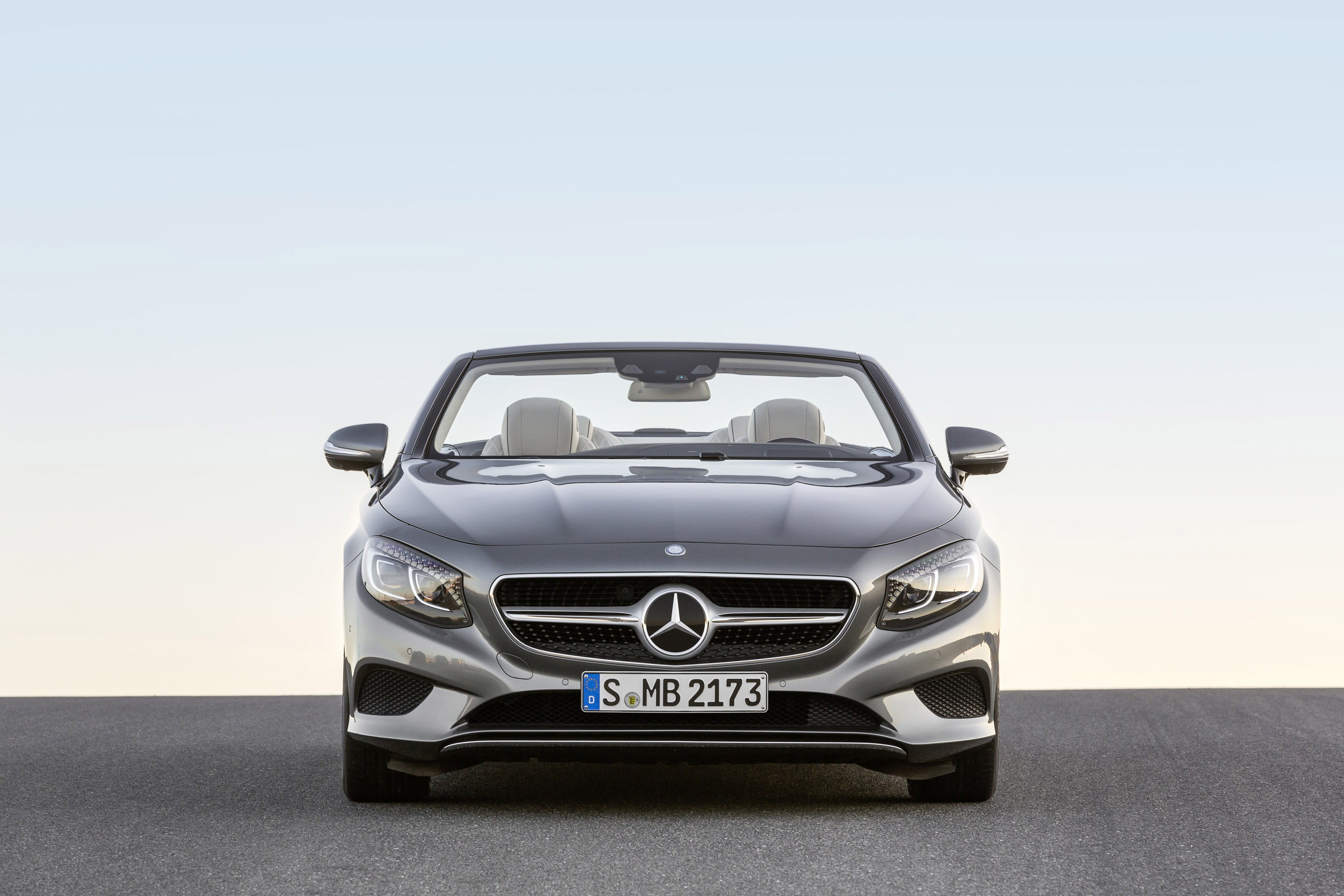

Photo Mercedes S-Class Cabriolet (A217)

Mercedes S-Class Cabriolet (A217) 2015 photo

Interior of Mercedes S-Class Cabriolet (A217) 2015

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

500 AT 63 AMG AT 4MATIC 65 AMG AT 500 63 AMG 4Matic 65 AMG

500 AT 82 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	4663
Cylinders location	V-shaped
Number of cylinders	8
Valves	32
Power, hp	455
Torque, Nm	700
RPM at max torque	1800-3500
Engine	4.7i
Compression	10.5
RPM at max power	5250-5500
Engine code	M278 DE46 AL

Dimensions

Seats	4
Length mm	5027
Width	2108
Height mm	1417
Wheelbase mm	2945
Front track, mm	1625
Rear track, mm	1649
Kerb weight, kg	2115
Trunk capacity, L	350
Fuel tank, l	80
Turning circle, m	11.6
Gross weight, kg	2590
Width (without mirrors) mm	1899

Suspension

Type of front suspension	Multi-link
Rear suspension	Multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	12.2
Fuel consumption (urban), l. 100 km	7.5
Fuel consumption (combined), l. 100 km	9.1
Acceleration (0-100 km/h), s	4.6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Comfort

Cruise Control	+
Power steering	+
Easy Entry function	+
The electronic parking lever	+

Interior

Leather interior	+
Sports steering wheel	+
Trip Computer	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/50R18

Glass, mirrors and sunroof

Front power windows	+
The rain sensor	+
Heated rear window	+
Electric folding mirrors	+

Multimedia and instruments

Bluetooth hands free	+
DVD-player	+

Headlights and lighting

LED headlights	+
Rear LED lights	+
LED lights daylight	+

Seats

Power front seats	+
Rear Armrest	+
Armrest front	+
Isofix child seat (LATCH, Isofix)	+

Visibility and parking

Rear View Camera	+
Parktronic	+

Trunk

trunk control	+

Fuel economy

Start-Stop System	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Traction Control System (Traction control, ASR)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Brake Assist (BOS, BAS)	+
sensor Brake pad wear	+

Anti-theft systems

Other	Keyless entry system;

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+
Cushion for driver's knee	+
Deactivating the front passenger airbags	+

63 AMG AT 4MATIC 82 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	5461
Cylinders location	V-shaped
Number of cylinders	8
Valves	32
Power, hp	585
Torque, Nm	900
RPM at max torque	2250-3750
Engine	5.5i
Compression	10
RPM at max power	5500
Engine code	M157 DE55 AL

Dimensions

Seats	4
Length mm	5027
Width	2108
Height mm	1417
Wheelbase mm	2945
Front track, mm	1625
Rear track, mm	1649
Kerb weight, kg	2115
Trunk capacity, L	350
Fuel tank, l	80
Turning circle, m	11.6
Gross weight, kg	2590
Width (without mirrors) mm	1899

Suspension

Type of front suspension	Multi-link
Rear suspension	Multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	14.3
Fuel consumption (urban), l. 100 km	8.2
Fuel consumption (combined), l. 100 km	10.4
Acceleration (0-100 km/h), s	3.9
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7G-AMG Speedshift MC
Gearbox	1 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Comfort

Cruise Control	+
Power steering	+
Easy Entry function	+
The electronic parking lever	+

Interior

Leather interior	+
Sports steering wheel	+
Trip Computer	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/50R18

Glass, mirrors and sunroof

Front power windows	+
The rain sensor	+
Heated rear window	+
Electric folding mirrors	+

Multimedia and instruments

Bluetooth hands free	+
DVD-player	+

Headlights and lighting

LED headlights	+
Rear LED lights	+
LED lights daylight	+

Seats

Power front seats	+
Rear Armrest	+
Armrest front	+
Isofix child seat (LATCH, Isofix)	+

Visibility and parking

Rear View Camera	+
Parktronic	+

Trunk

trunk control	+

Fuel economy

Start-Stop System	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Traction Control System (Traction control, ASR)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Brake Assist (BOS, BAS)	+
sensor Brake pad wear	+

Anti-theft systems

Other	Keyless entry system;

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+
Cushion for driver's knee	+
Deactivating the front passenger airbags	+

65 AMG AT 81 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	5980
Cylinders location	V-shaped
Number of cylinders	12
Valves	36
Power, hp	612
Torque, Nm	1000
RPM at max torque	2300-4300
Engine	6.0i
Compression	9.0
RPM at max power	4300-5600
Engine code	M279 E60 AL

Dimensions

Seats	4
Length mm	5027
Width	2108
Height mm	1417
Wheelbase mm	2945
Front track, mm	1625
Rear track, mm	1649
Kerb weight, kg	2115
Trunk capacity, L	350
Fuel tank, l	80
Turning circle, m	11.6
Gross weight, kg	2590
Width (without mirrors) mm	1899

Suspension

Type of front suspension	Multi-link
Rear suspension	Multi-link

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	17.1
Fuel consumption (urban), l. 100 km	8.9
Fuel consumption (combined), l. 100 km	12
Acceleration (0-100 km/h), s	4.1
The maximum speed, km / h.	250

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Rear
Transmission	7G-AMG Speedshift Pl
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Comfort

Cruise Control	+
Power steering	+
Easy Entry function	+
The electronic parking lever	+

Interior

Leather interior	+
Sports steering wheel	+
Trip Computer	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/50R18

Glass, mirrors and sunroof

Front power windows	+
The rain sensor	+
Heated rear window	+
Electric folding mirrors	+

Multimedia and instruments

Bluetooth hands free	+
DVD-player	+

Headlights and lighting

LED headlights	+
Rear LED lights	+
LED lights daylight	+

Seats

Power front seats	+
Rear Armrest	+
Armrest front	+
Isofix child seat (LATCH, Isofix)	+

Visibility and parking

Rear View Camera	+
Parktronic	+

Trunk

trunk control	+

Fuel economy

Start-Stop System	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Traction Control System (Traction control, ASR)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Brake Assist (BOS, BAS)	+
sensor Brake pad wear	+

Anti-theft systems

Other	Keyless entry system;

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+
Cushion for driver's knee	+
Deactivating the front passenger airbags	+

500 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	4663
Cylinders location	V-shaped
Number of cylinders	8
Valves	32
Power, hp	455
Torque, Nm	700
RPM at max torque	1800-3500
Engine	4.7i
Compression	10.5
RPM at max power	5250-5500
Engine code	M278 DE46 AL

Dimensions

Seats	4
Length mm	5027
Width	2108
Height mm	1417
Wheelbase mm	2945
Front track, mm	1625
Rear track, mm	1649
Kerb weight, kg	2115
Trunk capacity, L	350
Fuel tank, l	80
Turning circle, m	11.6
Gross weight, kg	2590
Width (without mirrors) mm	1899

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	12.2
Fuel consumption (urban), l. 100 km	7.5
Fuel consumption (combined), l. 100 km	9.1
Acceleration (0-100 km/h), s	4.6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

63 AMG 4Matic 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	5461
Cylinders location	V-shaped
Number of cylinders	8
Valves	32
Power, hp	585
Torque, Nm	900
RPM at max torque	2250-3750
Engine	5.5i
Compression	10
RPM at max power	5500
Engine code	M157 DE55 AL

Dimensions

Seats	4
Length mm	5027
Width	2108
Height mm	1417
Wheelbase mm	2945
Front track, mm	1625
Rear track, mm	1649
Kerb weight, kg	2115
Trunk capacity, L	350
Fuel tank, l	80
Turning circle, m	11.6
Gross weight, kg	2590
Width (without mirrors) mm	1899

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	14.3
Fuel consumption (urban), l. 100 km	8.2
Fuel consumption (combined), l. 100 km	10.4
Acceleration (0-100 km/h), s	3.9
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7G-AMG Speedshift MCT
Gearbox	1 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

65 AMG 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	5980
Cylinders location	V-shaped
Number of cylinders	12
Valves	36
Power, hp	612
Torque, Nm	1000
RPM at max torque	2300-4300
Engine	6.0i
Compression	9.0
RPM at max power	4300-5600
Engine code	M279 E60 AL

Dimensions

Seats	4
Length mm	5027
Width	2108
Height mm	1417
Wheelbase mm	2945
Front track, mm	1625
Rear track, mm	1649
Kerb weight, kg	2115
Trunk capacity, L	350
Fuel tank, l	80
Turning circle, m	11.6
Gross weight, kg	2590
Width (without mirrors) mm	1899

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	17.1
Fuel consumption (urban), l. 100 km	8.9
Fuel consumption (combined), l. 100 km	12
Acceleration (0-100 km/h), s	4.1
The maximum speed, km / h.	250

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Rear
Transmission	7G-AMG Speedshift Plus
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

FAQ

Mercedes S-Class Cabriolet (A217) questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Mercedes S-Class Cabriolet (A217)?

This page lists 6 trims for the Mercedes S-Class Cabriolet (A217), with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Mercedes S-Class Cabriolet (A217)?

The listed configurations show a power range of 455-612 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Mercedes S-Class Cabriolet (A217)?

The available specification data shows engine displacement from 4663-5980 cc across the trims listed on this page.

Which transmissions are listed for the Mercedes S-Class Cabriolet (A217)?

The transmission options currently shown for this model are: 9, 7. Open a trim section to see the full data for a specific configuration.

Are there photos for the Mercedes S-Class Cabriolet (A217)?

Yes. The gallery includes 18 photos for the Mercedes S-Class Cabriolet (A217), including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
