Nissan NV300 specifications and photos

Nissan NV300 specifications are shown with trim options, key technical data, and a model photo gallery. Compare 4 configurations by engine size, power, seating, and transmission. The gallery includes 18 photos for visual reference.

Years 2016
Body type van
Trims 4
Photos 18

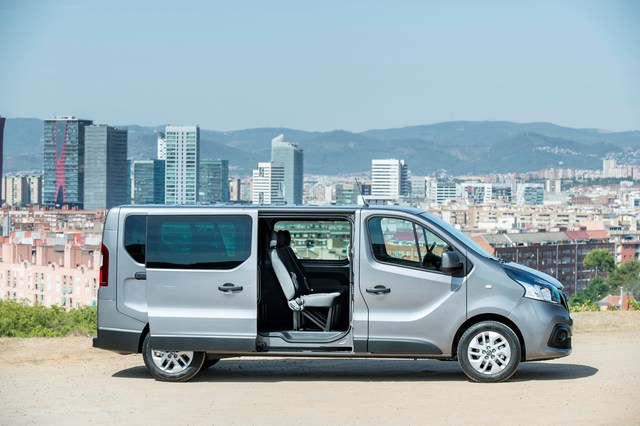

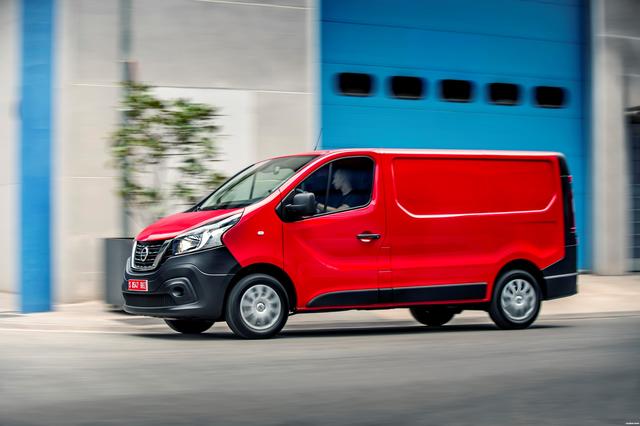

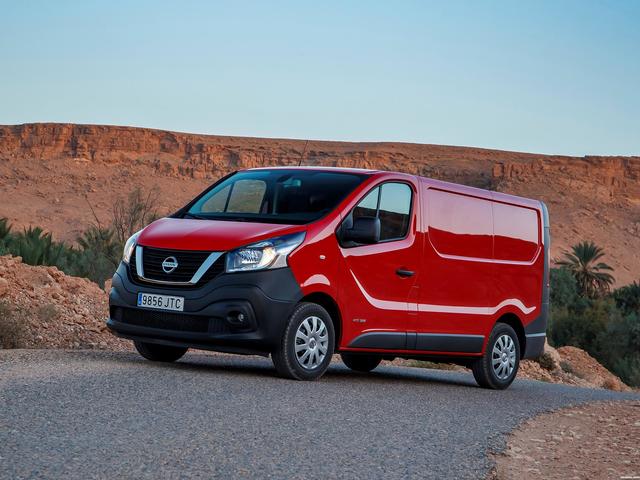

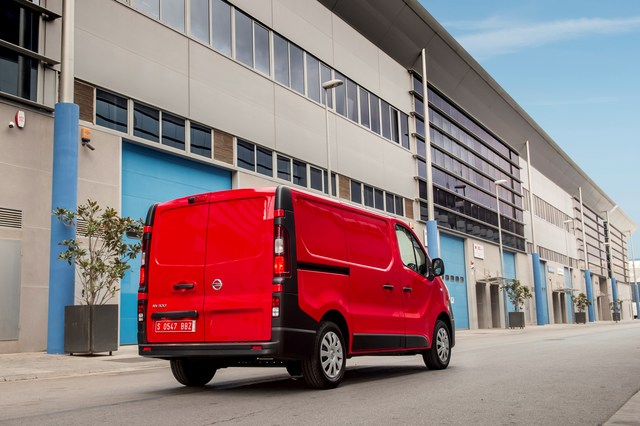

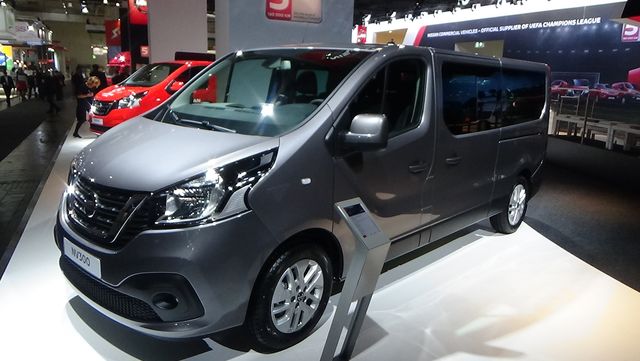

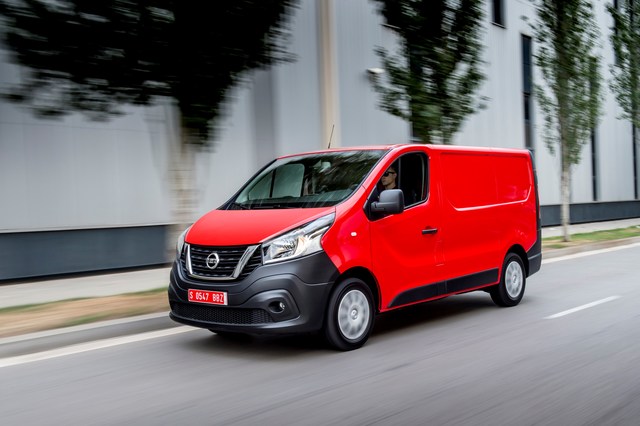

Nissan NV300 2016 photo
Overview

Nissan NV300 at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Nissan NV300 page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 95-145 hp and 1598 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 95-145 hp
  • Engine displacement: 1598 cc
  • Transmissions: 6-speed manual
  • Seating: 3 seats
Research hub

Photos, trims and specifications for Nissan NV300

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 18 images Compare trims 4 configurations View detailed specs 1598 cc Explore related pages Nissan and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 95-145 hp
Engine displacement 1598 cc
Seating 3 seats
Transmissions 6-speed manual
Trim / modification Engine Power Seats Transmission
1.6d (95 h.p.) 6-speed manual 1598 cc 95 hp 3 6-speed manual
1.6 dCi (120 hp) 6-speed manual 1598 cc 120 hp 3 6-speed manual
1.6 dCi (125 h.p.) 6-speed manual 1598 cc 125 hp 3 6-speed manual
1.6 dCi (145 h.p.) 6-speed manual 1598 cc 145 hp 3 6-speed manual

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.6d (95 h.p.) 6-speed manual 1.6 dCi (120 hp) 6-speed manual 1.6 dCi (125 h.p.) 6-speed manual 1.6 dCi (145 h.p.) 6-speed manual
1.6d (95 h.p.) 6-speed manual 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 95
Torque, Nm 260
RPM at max torque 1500
Engine 1.6d
RPM at max power 3500
Turbo +
Engine code R9M

Dimensions

Seats 3
Length mm 4999
Width 2283
Height mm 1971
Wheelbase mm 3098
Kerb weight, kg 1800
Fuel tank, l 80
Gross weight, kg 2800
Width (without mirrors) mm 1956
The volume of the cargo compartment, m3 5.2

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 6.5
The maximum speed, km / h. 154
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Nissan
Transmission country of origin Japan
1.6 dCi (120 hp) 6-speed manual 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 120
Torque, Nm 300
RPM at max torque 1500
Engine 1.6 dCi
RPM at max power 3500
Turbo +
Engine code R9M

Dimensions

Seats 3
Length mm 4999
Width 2283
Height mm 1971
Wheelbase mm 3098
Kerb weight, kg 1800
Fuel tank, l 80
Gross weight, kg 2800
Width (without mirrors) mm 1956
The volume of the cargo compartment, m3 5.2

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 6.5
The maximum speed, km / h. 163
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Nissan
Transmission country of origin Japan
1.6 dCi (125 h.p.) 6-speed manual 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 125
Torque, Nm 320
RPM at max torque 1500
Engine 1.6 dCi
RPM at max power 3500
Turbo +
Engine code R9M

Dimensions

Seats 3
Length mm 4999
Width 2283
Height mm 1971
Wheelbase mm 3098
Kerb weight, kg 1800
Fuel tank, l 80
Gross weight, kg 2800
Width (without mirrors) mm 1956
The volume of the cargo compartment, m3 5.2

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 6
The maximum speed, km / h. 177
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Nissan
Transmission country of origin Japan
1.6 dCi (145 h.p.) 6-speed manual 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 145
Torque, Nm 340
RPM at max torque 1500
Engine 1.6 dCi
RPM at max power 3500
Engine code R9M

Dimensions

Seats 3
Length mm 4999
Width 2283
Height mm 1971
Wheelbase mm 3098
Kerb weight, kg 1800
Fuel tank, l 80
Gross weight, kg 2800
Width (without mirrors) mm 1956
The volume of the cargo compartment, m3 5.2

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 6.1
The maximum speed, km / h. 183
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Nissan
Transmission country of origin Japan
FAQ

Nissan NV300 questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Nissan NV300?

This page lists 4 trims for the Nissan NV300, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Nissan NV300?

The listed configurations show a power range of 95-145 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Nissan NV300?

The available specification data shows engine displacement from 1598 cc across the trims listed on this page.

Which transmissions are listed for the Nissan NV300?

The transmission options currently shown for this model are: 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Nissan NV300?

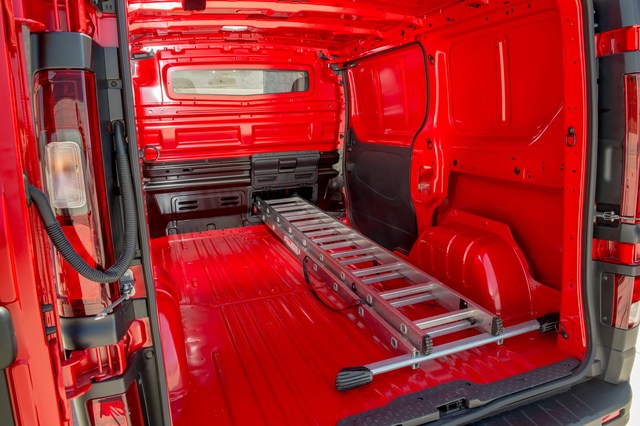

Yes. The gallery includes 18 photos for the Nissan NV300, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
