Ravon Matiz specifications and photos
Ravon Matiz specifications are shown with trim options, key technical data, and a model photo gallery. Compare 2 configurations by engine size, power, seating, and transmission. The gallery includes 4 photos for visual reference.
Ravon Matiz at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Ravon Matiz page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 51 hp and 796 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 51 hp
- Engine displacement: 796 cc
- Transmissions: 5, 5-speed manual
- Seating: 5 seats
Photos, trims and specifications for Ravon Matiz
This model page brings gallery images, trim comparison, and detailed technical data together for the 2015 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 0.8i 51 MT | 796 cc | 51 hp | 5 | 5 |
| 0.8i (51 h.p.) 5-speed manual | 796 cc | 51 hp | 5 | 5-speed manual |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

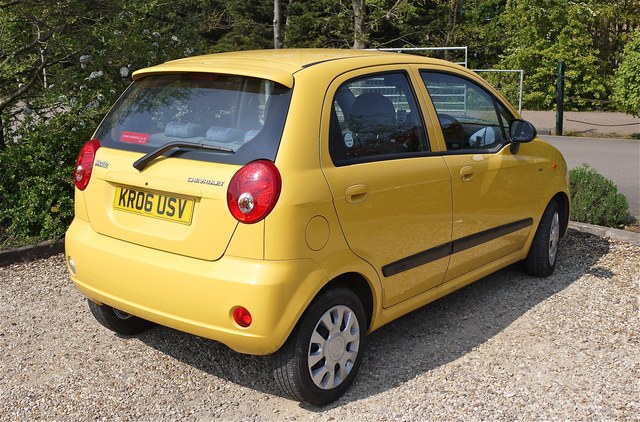

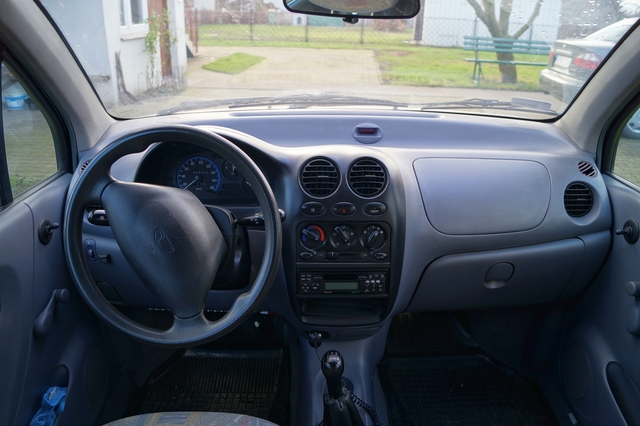

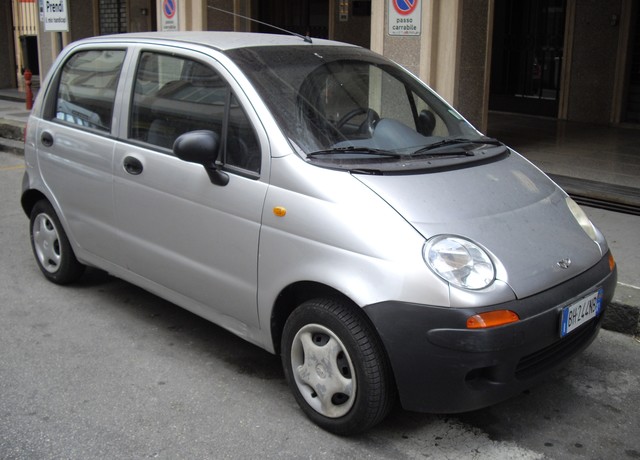

Ravon Matiz photo gallery
4 images are collected here with the main specifications and trim data for this model.
Photo Ravon Matiz
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
0.8i 51 MT 42 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 796 |
| Cylinders location | In-line |
| Number of cylinders | 3 |
| Valves | 12 |
| Power, hp | 51 |
| Torque, Nm | 64 |
| RPM at max torque | 3400 |
| Engine | 0.8i |
| Compression | 9.3 |
| RPM at max power | 5900 |
| Engine code | F8CV |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 3497 |
| Height mm | 1485 |
| Wheelbase mm | 2340 |
| Front track, mm | 1315 |
| Rear track, mm | 1280 |
| Kerb weight, kg | 770 |
| Trunk capacity, L | 155 |
| Fuel tank, l | 35 |
| Turning circle, m | 9.1 |
| Ground clearance, mm | 150 |
| Gross weight, kg | 1210 |
| Width (without mirrors) mm | 1495 |
Suspension
| Type of front suspension | McPherson |
|---|---|
| Rear suspension | Torsion beam |
Brake system
| The front brakes | Disk |
|---|---|
| Rear brakes | Drum |
Steering
| Power steering | Power steering |
|---|
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 7.4 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5 |
| Acceleration (0-100 km/h), s | 17 |
| The maximum speed, km / h. | 144 |
| The rate of toxicity | Euro IV |
Transmission and drive
| Number of gears | 5 |
|---|---|
| Drive | Front |
| Transmission | 5-speed manual |
| Gearbox | Mechanics |
Equipment
Wheels
| Disc diameter | 13 |
|---|---|
| Tires | 145/70R13 |
0.8i (51 h.p.) 5-speed manual 35 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 796 |
| Cylinders location | In-line |
| Number of cylinders | 3 |
| Valves | 12 |
| Power, hp | 51 |
| Torque, Nm | 64 |
| RPM at max torque | 3400 |
| Engine | 0.8i |
| Compression | 9.3 |
| RPM at max power | 5900 |
| Engine code | F8CV |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 3497 |
| Height mm | 1485 |
| Wheelbase mm | 2340 |
| Front track, mm | 1315 |
| Rear track, mm | 1280 |
| Kerb weight, kg | 770 |
| Trunk capacity, L | 155 |
| Fuel tank, l | 35 |
| Turning circle, m | 9.1 |
| Ground clearance, mm | 150 |
| Gross weight, kg | 1210 |
| Width (without mirrors) mm | 1495 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 7.4 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5 |
| Acceleration (0-100 km/h), s | 17 |
| The maximum speed, km / h. | 144 |
| The rate of toxicity | Euro IV |
Transmission and drive
| Number of gears | 5 |
|---|---|
| Drive | Front |
| Transmission | 5-speed manual |
| Gearbox | Mechanics |
Ravon Matiz questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Ravon Matiz?
This page lists 2 trims for the Ravon Matiz, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Ravon Matiz?
The listed configurations show a power range of 51 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Ravon Matiz?
The available specification data shows engine displacement from 796 cc across the trims listed on this page.
Which transmissions are listed for the Ravon Matiz?
The transmission options currently shown for this model are: 5, 5-speed manual. Open a trim section to see the full data for a specific configuration.
Are there photos for the Ravon Matiz?
Yes. The gallery includes 4 photos for the Ravon Matiz, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
