Renault Scenic specifications and photos

Renault Scenic specifications are shown with trim options, key technical data, and a model photo gallery. Compare 17 configurations by engine size, power, seating, and transmission. The gallery includes 23 photos for visual reference.

Years 2016
Body type minivan
Trims 17
Photos 23

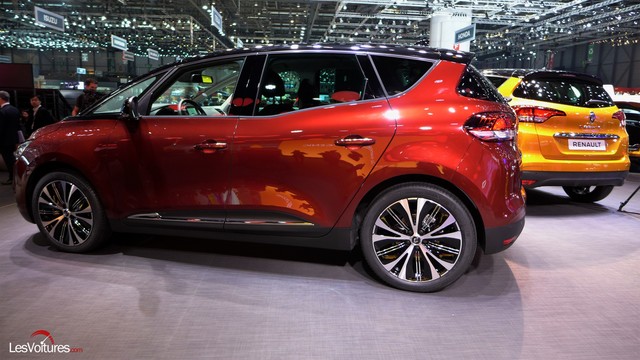

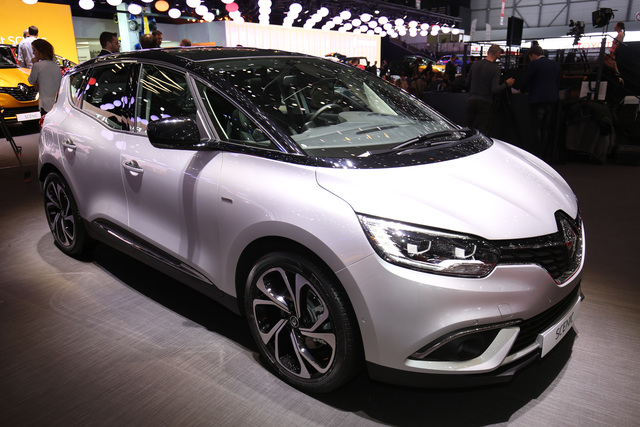

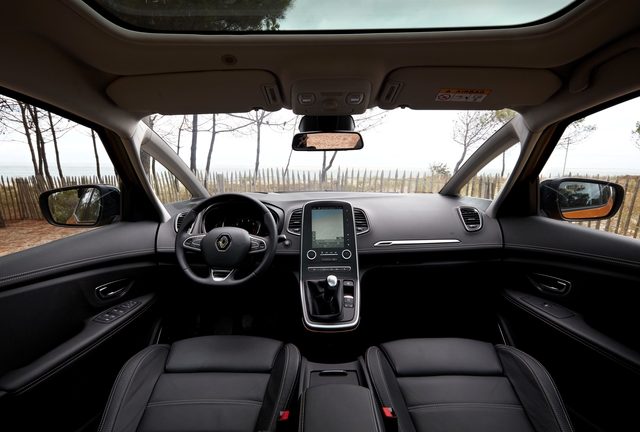

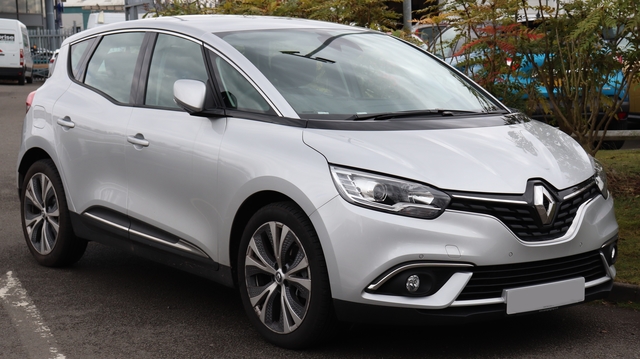

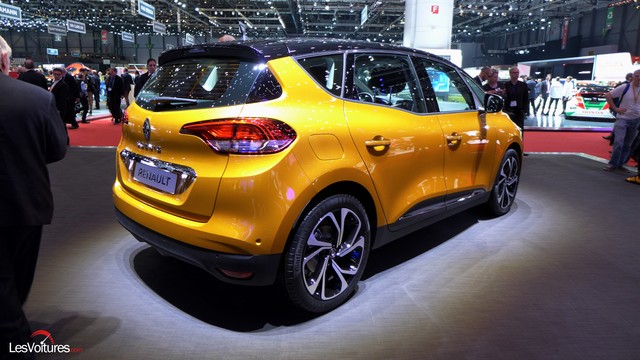

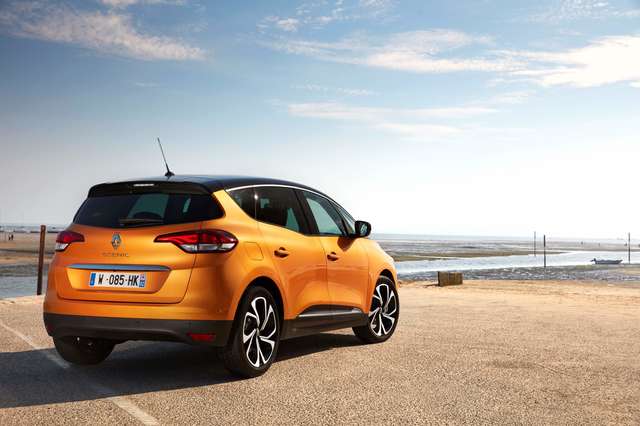

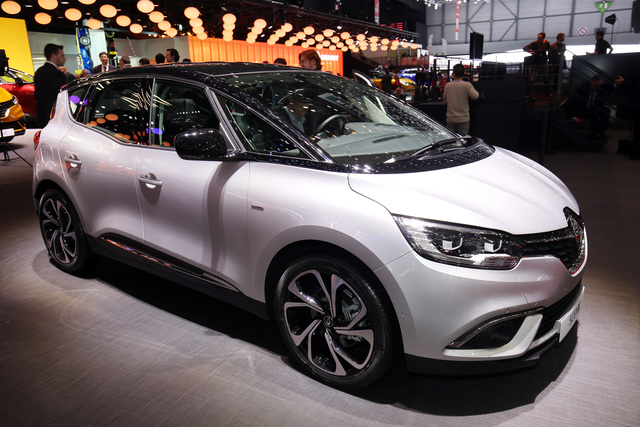

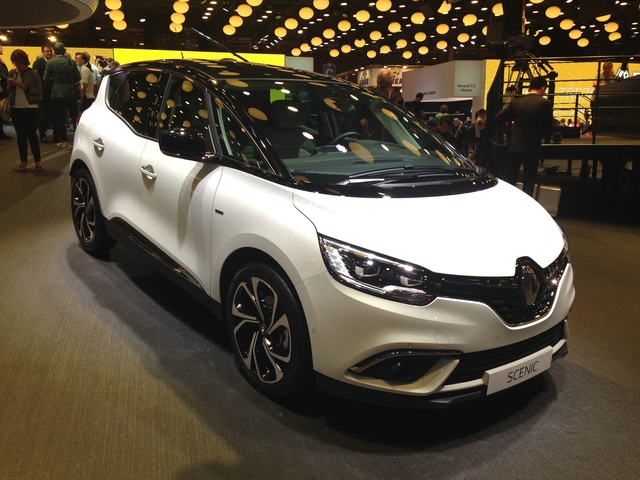

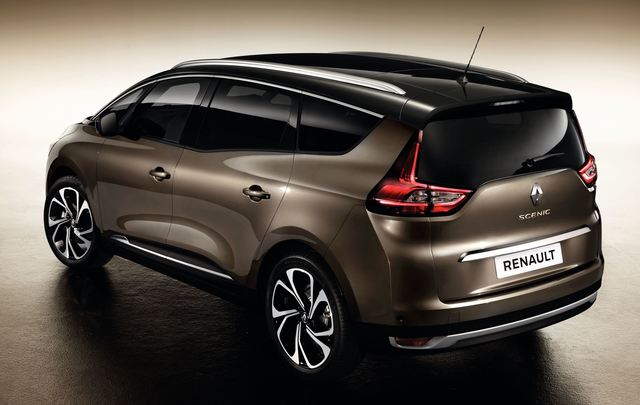

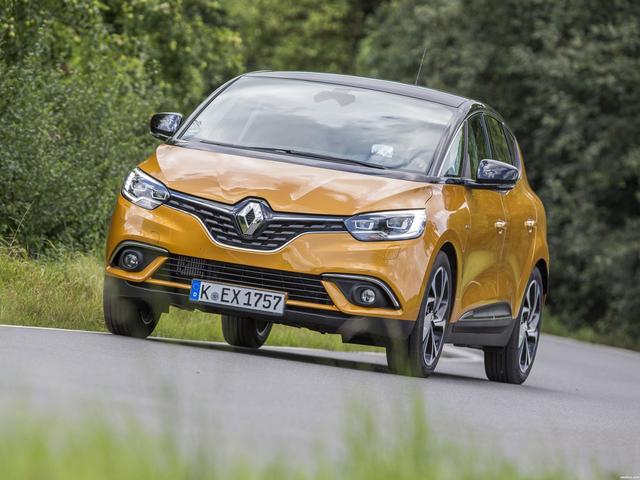

Renault Scenic 2016 minivan
Overview

Renault Scenic at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Renault Scenic page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 110-163 hp and 1198-1598 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 110-163 hp
  • Engine displacement: 1198-1598 cc
  • Transmissions: 6, 7, 6-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Renault Scenic

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 110-163 hp
Engine displacement 1198-1598 cc
Seating 5 seats
Transmissions 6, 7, 6-speed manual
Trim / modification Engine Power Seats Transmission
1.2i 6MT (115) 1198 cc 115 hp 5 6
1.2i 6MT (130) 1198 cc 130 hp 5 6
1.5 d 6MT (110) 1461 cc 110 hp 5 6
1.5 d 7AT (110) 1461 cc 110 hp 5 7
1.6 d 6MT (130) 1598 cc 130 hp 5 6
1.6 d 6AT (160) 1598 cc 160 hp 5 6
1.2 TCe (115 HP) 6-speed manual 1198 cc 115 hp 5 6-speed manual
1.3i (115 HP) 6-speed manual 1332 cc 115 hp 5 6-speed manual
1.2 TCe (130 HP) 6-speed manual 1198 cc 130 hp 5 6-speed manual
1.3i (140 h.p.) 6-speed manual 1332 cc 140 hp 5 6-speed manual
1.3i (140 HP) 7-EDC 1332 cc 140 hp 5 7
1.3i (163 HP) 6-speed manual 1332 cc 163 hp 5 6-speed manual
1.3i (163 h.p.) 7-EDC 1332 cc 163 hp 5 7
1.5 dCi (110 HP) 6-speed manual 1461 cc 110 hp 5 6-speed manual
1.5 dCi (110 HP) 7-EDC 1461 cc 110 hp 5 7
1.6 dCi (130 HP) 6-speed manual 1598 cc 130 hp 5 6-speed manual
1.6 dCi (160 HP) 6-EDC (QuickShift) 1598 cc 160 hp 5 6

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.2i 6MT (115) 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1198
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 115
Torque, Nm 190
RPM at max torque 2000
Engine 1.2 TCe
Compression 10.0
RPM at max power 4500
Turbo +
Engine code H5Ft

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Kerb weight, kg 1503
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Gross weight, kg 2031
Width (without mirrors) mm 1866

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.2
Fuel consumption (urban), l. 100 km 5
Fuel consumption (combined), l. 100 km 5.8
Acceleration (0-100 km/h), s 12.3
The maximum speed, km / h. 185
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR

Equipment

Wheels

Disc diameter 20
Rim type Alloy
Tires 195/55R20
1.2i 6MT (130) 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1198
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 130
Torque, Nm 205
RPM at max torque 2000
Engine 1.2 TCe
Compression 9.1
RPM at max power 5500
Turbo +
Engine code H5Ft

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Kerb weight, kg 1505
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Gross weight, kg 2021
Width (without mirrors) mm 1866

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.2
Fuel consumption (urban), l. 100 km 5
Fuel consumption (combined), l. 100 km 5.8
Acceleration (0-100 km/h), s 11.4
The maximum speed, km / h. 195
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR

Equipment

Wheels

Disc diameter 20
Rim type Alloy
Tires 195/55R20
1.5 d 6MT (110) 42 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1461
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 110
Torque, Nm 260
RPM at max torque 1750-2500
Engine 1.5 dCi
RPM at max power 4000
Turbo +
Engine code K9K 896

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Kerb weight, kg 1505
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Gross weight, kg 2046
Width (without mirrors) mm 1866

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.2
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 3.9
Acceleration (0-100 km/h), s 12.4
The maximum speed, km / h. 184
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR

Equipment

Wheels

Disc diameter 20
Rim type Alloy
Tires 195/55R20
1.5 d 7AT (110) 44 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1461
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 110
Torque, Nm 260
RPM at max torque 1750-2500
Engine 1.5 dCi
RPM at max power 4000
Turbo +
Engine code K9K 896

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Kerb weight, kg 1576
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Gross weight, kg 2097
Width (without mirrors) mm 1866

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.2
Fuel consumption (urban), l. 100 km 3.9
Fuel consumption (combined), l. 100 km 4
Acceleration (0-100 km/h), s 12.4
The maximum speed, km / h. 184
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-EDC
Gearbox 2 clutch robot
Transmission manufacturer Getrag
Transmission country of origin Germany

Equipment

Wheels

Disc diameter 20
Rim type Alloy
Tires 195/55R20
1.6 d 6MT (130) 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 130
Torque, Nm 320
RPM at max torque 1750
Engine 1.6 dCi
Compression 15.4
RPM at max power 4000
Turbo +
Engine code R9M

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Kerb weight, kg 1615
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Gross weight, kg 2123
Width (without mirrors) mm 1866

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.1
Fuel consumption (urban), l. 100 km 4.1
Fuel consumption (combined), l. 100 km 4.5
Acceleration (0-100 km/h), s 11.4
The maximum speed, km / h. 194
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR

Equipment

Wheels

Disc diameter 20
Rim type Alloy
Tires 195/55R20
1.6 d 6AT (160) 44 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 160
Torque, Nm 380
RPM at max torque 1750
Engine 1.6 dCi
RPM at max power 4000
Turbo +
Engine code R9M

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Kerb weight, kg 1614
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Gross weight, kg 2133
Width (without mirrors) mm 1866

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5
Fuel consumption (urban), l. 100 km 4.3
Fuel consumption (combined), l. 100 km 4.5
Acceleration (0-100 km/h), s 9.6
The maximum speed, km / h. 208
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-EDC (QuickShift)
Gearbox 2 clutch robot
Transmission manufacturer Getrag
Transmission country of origin Germany

Equipment

Wheels

Disc diameter 20
Rim type Alloy
Tires 195/55R20
1.2 TCe (115 HP) 6-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1198
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 115
Torque, Nm 190
RPM at max torque 2000
Engine 1.2 TCe
Compression 10.0
RPM at max power 4500
Turbo +
Engine code H5Ft

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Width (without mirrors) mm 1866

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.2
Fuel consumption (urban), l. 100 km 5
Fuel consumption (combined), l. 100 km 5.8
Acceleration (0-100 km/h), s 12.3
The maximum speed, km / h. 185
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR
1.3i (115 HP) 6-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1332
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 115
Torque, Nm 220
RPM at max torque 1500
Engine 1.3i
RPM at max power 4500
Turbo +
Engine code H5Ht

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Width (without mirrors) mm 1866

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.8
Fuel consumption (urban), l. 100 km 4.6
Fuel consumption (combined), l. 100 km 5.4
Acceleration (0-100 km/h), s 11.3
The maximum speed, km / h. 182
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR
1.2 TCe (130 HP) 6-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1198
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 130
Torque, Nm 205
RPM at max torque 2000
Engine 1.2 TCe
Compression 9.1
RPM at max power 5500
Turbo +
Engine code H5Ft

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Width (without mirrors) mm 1866

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.2
Fuel consumption (urban), l. 100 km 5
Fuel consumption (combined), l. 100 km 5.8
Acceleration (0-100 km/h), s 11.4
The maximum speed, km / h. 195
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR
1.3i (140 h.p.) 6-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1332
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 240
RPM at max torque 1600
Engine 1.3i
RPM at max power 5000
Turbo +
Engine code H5Ht

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Width (without mirrors) mm 1866

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.8
Fuel consumption (urban), l. 100 km 4.7
Fuel consumption (combined), l. 100 km 5.5
Acceleration (0-100 km/h), s 10.1
The maximum speed, km / h. 195
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR
1.3i (140 HP) 7-EDC 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1332
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 240
RPM at max torque 1600
Engine 1.3i
RPM at max power 5000
Turbo +
Engine code H5Ht

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Width (without mirrors) mm 1866

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.8
Fuel consumption (urban), l. 100 km 4.7
Fuel consumption (combined), l. 100 km 5.5
Acceleration (0-100 km/h), s 10.2
The maximum speed, km / h. 195
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-EDC
Gearbox 2 clutch robot
Transmission manufacturer Getrag
Transmission country of origin Germany
1.3i (163 HP) 6-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1332
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 260
RPM at max torque 1800
Engine 1.3i
RPM at max power 5500
Turbo +
Engine code H5Ht

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Width (without mirrors) mm 1866

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.8
Fuel consumption (urban), l. 100 km 4.6
Fuel consumption (combined), l. 100 km 5.4
Acceleration (0-100 km/h), s 9.9
The maximum speed, km / h. 200
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR
1.3i (163 h.p.) 7-EDC 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1332
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 270
RPM at max torque 1800
Engine 1.3i
RPM at max power 5500
Engine code H5Ht

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Width (without mirrors) mm 1866

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.8
Fuel consumption (urban), l. 100 km 4.7
Fuel consumption (combined), l. 100 km 5.5
Acceleration (0-100 km/h), s 9.1
The maximum speed, km / h. 200
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-EDC
Gearbox 2 clutch robot
Transmission manufacturer Getrag
Transmission country of origin Germany
1.5 dCi (110 HP) 6-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1461
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 110
Torque, Nm 260
RPM at max torque 1750-2500
Engine 1.5 dCi
RPM at max power 4000
Turbo +
Engine code K9K 896

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Width (without mirrors) mm 1866

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.2
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 3.9
Acceleration (0-100 km/h), s 12.4
The maximum speed, km / h. 184
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR
1.5 dCi (110 HP) 7-EDC 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1461
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 110
Torque, Nm 260
RPM at max torque 1750-2500
Engine 1.5 dCi
RPM at max power 4000
Turbo +
Engine code K9K 896

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Width (without mirrors) mm 1866

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.2
Fuel consumption (urban), l. 100 km 3.9
Fuel consumption (combined), l. 100 km 4
Acceleration (0-100 km/h), s 12.4
The maximum speed, km / h. 184
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-EDC
Gearbox 2 clutch robot
Transmission manufacturer Getrag
Transmission country of origin Germany
1.6 dCi (130 HP) 6-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 130
Torque, Nm 320
RPM at max torque 1750
Engine 1.6 dCi
Compression 15.4
RPM at max power 4000
Turbo +
Engine code R9M

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Width (without mirrors) mm 1866

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.1
Fuel consumption (urban), l. 100 km 4.1
Fuel consumption (combined), l. 100 km 4.5
Acceleration (0-100 km/h), s 11.4
The maximum speed, km / h. 194
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR
1.6 dCi (160 HP) 6-EDC (QuickShift) 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 160
Torque, Nm 380
RPM at max torque 1750
Engine 1.6 dCi
RPM at max power 4000
Turbo +
Engine code R9M

Dimensions

Seats 5
Length mm 4406
Width 2128
Height mm 1653
Wheelbase mm 2734
Front track, mm 1602
Trunk capacity, L 506
Fuel tank, l 52
Turning circle, m 11.2
Ground clearance, mm 170
Width (without mirrors) mm 1866

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5
Fuel consumption (urban), l. 100 km 4.3
Fuel consumption (combined), l. 100 km 4.5
Acceleration (0-100 km/h), s 9.6
The maximum speed, km / h. 208
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-EDC (QuickShift)
Gearbox 2 clutch robot
Transmission manufacturer Getrag
Transmission country of origin Germany
FAQ

Renault Scenic questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Renault Scenic?

This page lists 17 trims for the Renault Scenic, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Renault Scenic?

The listed configurations show a power range of 110-163 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Renault Scenic?

The available specification data shows engine displacement from 1198-1598 cc across the trims listed on this page.

Which transmissions are listed for the Renault Scenic?

The transmission options currently shown for this model are: 6, 7, 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Renault Scenic?

Yes. The gallery includes 23 photos for the Renault Scenic, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
