Suzuki Swift 5-door specifications and photos

Suzuki Swift 5-door specifications are shown with trim options, key technical data, and a model photo gallery. Compare 9 configurations by engine size, power, seating, and transmission. The gallery includes 27 photos for visual reference.

Years 2017
Body type hatchback
Trims 9
Photos 27

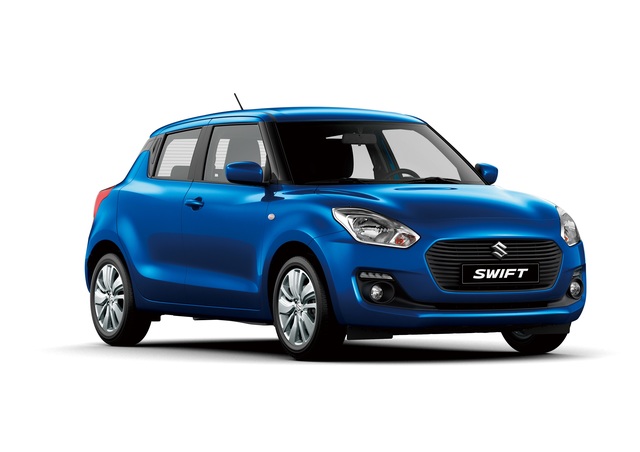

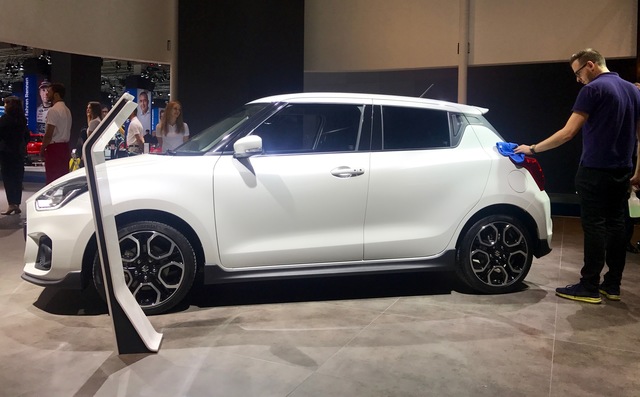

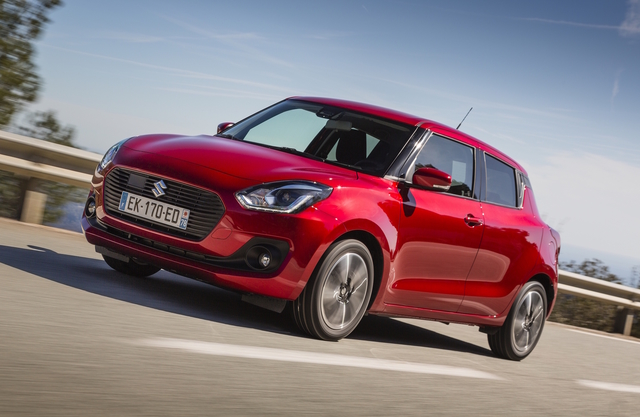

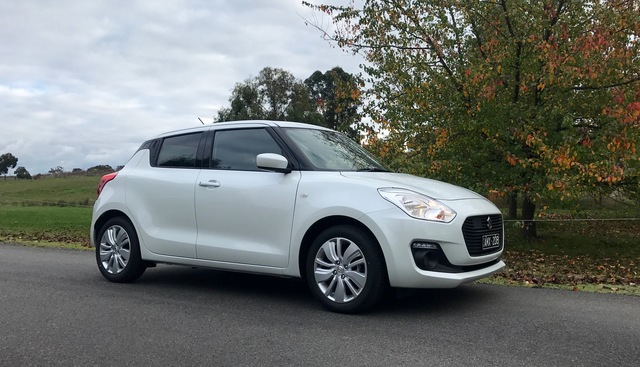

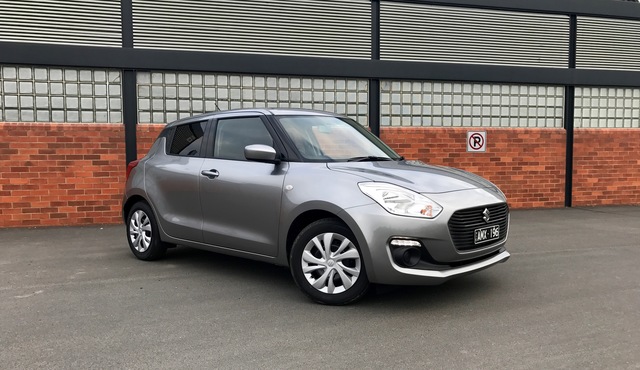

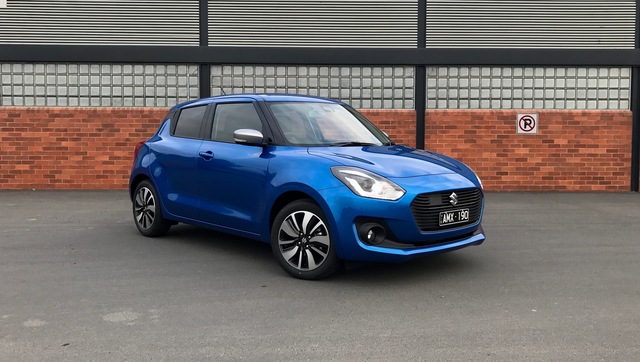

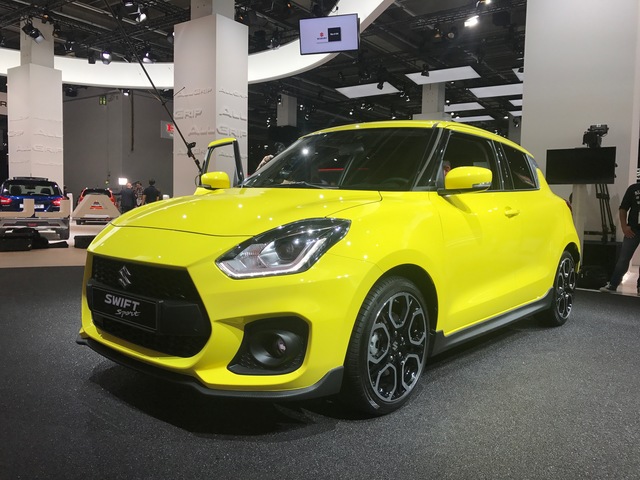

Suzuki Swift 5-door 2017 hatchback
Overview

Suzuki Swift 5-door at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Suzuki Swift 5-door page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 90-112 hp and 998-1242 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 90-112 hp
  • Engine displacement: 998-1242 cc
  • Transmissions: 5, 6, 5-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Suzuki Swift 5-door

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 27 images Compare trims 9 configurations View detailed specs 998-1242 cc Explore related pages Suzuki and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 90-112 hp
Engine displacement 998-1242 cc
Seating 5 seats
Transmissions 5, 6, 5-speed manual
Trim / modification Engine Power Seats Transmission
1.2h AT 1242 cc 90 hp 5 5
1.2 5MT 1242 cc 90 hp 5 5
1.2 AT 1242 cc 90 hp 5 5
1.2h AT AWD 1242 cc 90 hp 5 5
1.0 6AT 998 cc 112 hp 5 6
1.2i (90 h.p.) 5-speed manual 1242 cc 90 hp 5 5-speed manual
1.2i (90 h.p.) 5-speed manual 4x4 1242 cc 90 hp 5 5-speed manual
1.0 Boosterjet (112 HP) 6-car 998 cc 112 hp 5 6
1.0i BoosterJet (112 HP) 5-Mech 998 cc 112 hp 5 5

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.2h AT 1.2 5MT 1.2 AT 1.2h AT AWD 1.0 6AT 1.2i (90 h.p.) 5-speed manual 1.2i (90 h.p.) 5-speed manual 4x4 1.0 Boosterjet (112 HP) 6-car 1.0i BoosterJet (112 HP) 5-Mech
1.2h AT 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1242
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 90
Torque, Nm 120
RPM at max torque 4400
Engine 1.2i
Compression 12.5
RPM at max power 6000
Engine code K12C

Dimensions

Seats 5
Length mm 3840
Width 1695
Height mm 1500
Wheelbase mm 2450
Front track, mm 1485
Rear track, mm 1480
Kerb weight, kg 910
Fuel tank, l 37
Turning circle, m 9.6
Ground clearance, mm 120

Suspension

Type of front suspension MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Drum

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.4
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4.3
Acceleration (0-100 km/h), s 11.9
The maximum speed, km / h. 180
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Suzuki

Equipment

Wheels

Disc diameter 16
Rim type Alloy
Tires 185/55R16
1.2 5MT 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1242
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 90
Torque, Nm 120
RPM at max torque 4400
Engine 1.2i
Compression 12.5
RPM at max power 6000
Engine code K12C

Dimensions

Seats 5
Length mm 3840
Width 1695
Height mm 1500
Wheelbase mm 2450
Front track, mm 1485
Rear track, mm 1480
Kerb weight, kg 870
Fuel tank, l 37
Turning circle, m 9.6
Ground clearance, mm 120

Suspension

Type of front suspension MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Drum

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.4
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4.3
Acceleration (0-100 km/h), s 11.9
The maximum speed, km / h. 180
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Suzuki

Equipment

Wheels

Disc diameter 16
Rim type Alloy
Tires 185/55R16
1.2 AT 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1242
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 90
Torque, Nm 120
RPM at max torque 4400
Engine 1.2i
Compression 12.5
RPM at max power 6000
Engine code K12C

Dimensions

Seats 5
Length mm 3840
Width 1695
Height mm 1500
Wheelbase mm 2450
Front track, mm 1485
Rear track, mm 1480
Kerb weight, kg 890
Fuel tank, l 37
Turning circle, m 9.6
Ground clearance, mm 120

Suspension

Type of front suspension MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Drum

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.9
Fuel consumption (urban), l. 100 km 4.3
Fuel consumption (combined), l. 100 km 4.9
Acceleration (0-100 km/h), s 12.6
The maximum speed, km / h. 170
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Full
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Suzuki

Equipment

Wheels

Disc diameter 16
Rim type Alloy
Tires 185/55R16
1.2h AT AWD 43 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1242
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 90
Torque, Nm 120
RPM at max torque 4400
Engine 1.2i
Compression 12.5
RPM at max power 6000
Engine code K12C

Dimensions

Seats 5
Length mm 3840
Width 1695
Height mm 1525
Wheelbase mm 2450
Front track, mm 1485
Rear track, mm 1475
Kerb weight, kg 970
Fuel tank, l 37
Turning circle, m 9.6
Ground clearance, mm 145

Suspension

Type of front suspension MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Drum

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.9
Fuel consumption (urban), l. 100 km 4.3
Fuel consumption (combined), l. 100 km 4.9
Acceleration (0-100 km/h), s 12.6
The maximum speed, km / h. 170
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Full
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Suzuki

Equipment

Wheels

Disc diameter 16
Rim type Alloy
Tires 185/55R16
1.0 6AT 45 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 998
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 112
Torque, Nm 160
RPM at max torque 1700-4000
Engine 1.0 Boosterjet
RPM at max power 5500
Turbo +
Engine code K10C

Dimensions

Seats 5
Length mm 3840
Width 1695
Height mm 1500
Wheelbase mm 2450
Front track, mm 1485
Rear track, mm 1480
Kerb weight, kg 930
Fuel tank, l 37
Turning circle, m 9.6
Ground clearance, mm 120

Suspension

Type of front suspension MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Drum

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.4
Fuel consumption (urban), l. 100 km 4.3
Fuel consumption (combined), l. 100 km 5
Acceleration (0-100 km/h), s 10
The maximum speed, km / h. 190
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan

Equipment

Wheels

Disc diameter 16
Rim type Alloy
Tires 185/55R16
1.2i (90 h.p.) 5-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1242
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 90
Torque, Nm 120
RPM at max torque 4400
Engine 1.2i
Compression 12.5
RPM at max power 6000
Engine code K12C

Dimensions

Seats 5
Length mm 3840
Height mm 1500
Wheelbase mm 2450
Front track, mm 1485
Rear track, mm 1480
Kerb weight, kg 870

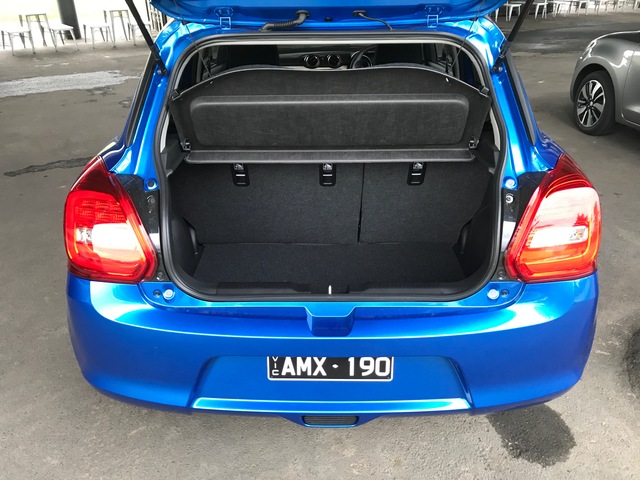

Trunk capacity, L 265
Fuel tank, l 37
Turning circle, m 9.6
Ground clearance, mm 120
Width (without mirrors) mm 1735

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.4
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4.3
Acceleration (0-100 km/h), s 11.9
The maximum speed, km / h. 180
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Suzuki
1.2i (90 h.p.) 5-speed manual 4x4 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1242
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 90
Torque, Nm 120
RPM at max torque 4400
Engine 1.2i
Compression 12.5
RPM at max power 6000
Engine code K12C

Dimensions

Seats 5
Length mm 3840
Height mm 1500
Wheelbase mm 2450
Front track, mm 1485
Rear track, mm 1480
Kerb weight, kg 870
Trunk capacity, L 265
Fuel tank, l 37
Turning circle, m 9.6
Ground clearance, mm 120
Width (without mirrors) mm 1735

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.9
Fuel consumption (urban), l. 100 km 4.3
Fuel consumption (combined), l. 100 km 4.9
Acceleration (0-100 km/h), s 12.6
The maximum speed, km / h. 170
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Full
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Suzuki
1.0 Boosterjet (112 HP) 6-car 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 998
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 112
Torque, Nm 160
RPM at max torque 1700-4000
Engine 1.0 Boosterjet
RPM at max power 5500
Turbo +
Engine code K10C

Dimensions

Seats 5
Length mm 3840
Height mm 1500
Wheelbase mm 2450
Front track, mm 1485
Rear track, mm 1480
Kerb weight, kg 870
Trunk capacity, L 265
Fuel tank, l 37
Turning circle, m 9.6
Ground clearance, mm 120
Width (without mirrors) mm 1735

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.4
Fuel consumption (urban), l. 100 km 4.3
Fuel consumption (combined), l. 100 km 5
Acceleration (0-100 km/h), s 10
The maximum speed, km / h. 190
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
1.0i BoosterJet (112 HP) 5-Mech 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 998
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 112
Torque, Nm 170
RPM at max torque 2000-3500
Engine 1.0i BoosterJet
Compression 10.0
RPM at max power 5500
Turbo +
Engine code K10C

Dimensions

Seats 5
Length mm 3840
Height mm 1500
Wheelbase mm 2450
Front track, mm 1485
Rear track, mm 1480
Kerb weight, kg 870
Trunk capacity, L 265
Fuel tank, l 37
Turning circle, m 9.6
Ground clearance, mm 120
Width (without mirrors) mm 1735

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.7
Fuel consumption (urban), l. 100 km 4
Fuel consumption (combined), l. 100 km 4.6
Acceleration (0-100 km/h), s 10.6
The maximum speed, km / h. 195
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Suzuki
FAQ

Suzuki Swift 5-door questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Suzuki Swift 5-door?

This page lists 9 trims for the Suzuki Swift 5-door, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Suzuki Swift 5-door?

The listed configurations show a power range of 90-112 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Suzuki Swift 5-door?

The available specification data shows engine displacement from 998-1242 cc across the trims listed on this page.

Which transmissions are listed for the Suzuki Swift 5-door?

The transmission options currently shown for this model are: 5, 6, 5-speed manual. Open a trim section to see the full data for a specific configuration.

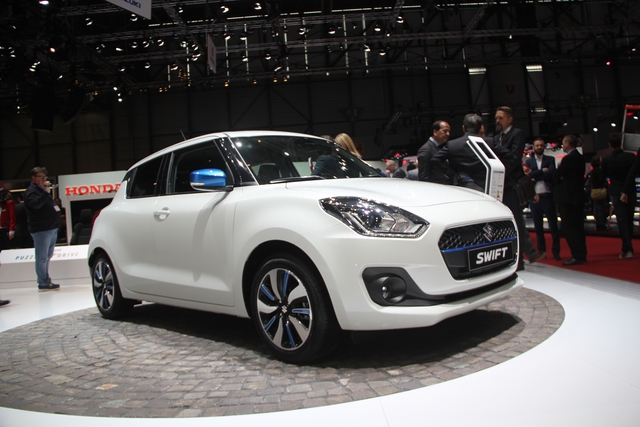

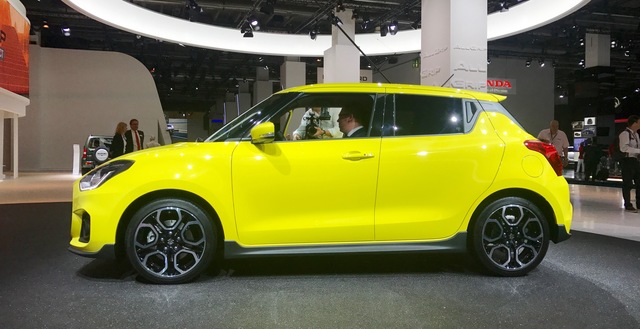

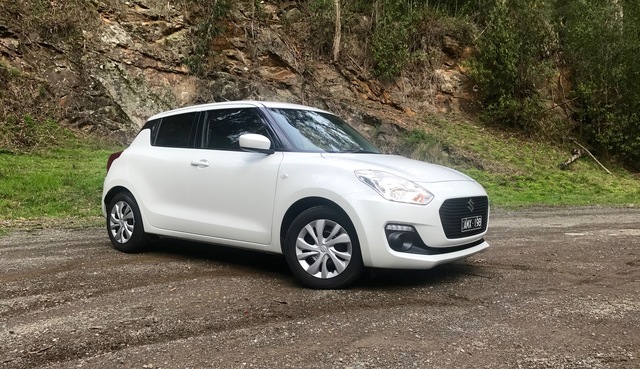

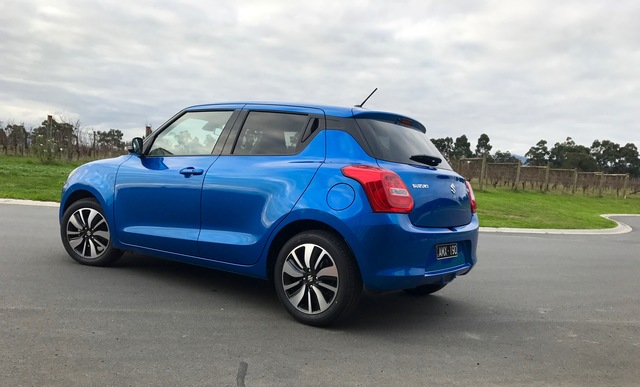

Are there photos for the Suzuki Swift 5-door?

Yes. The gallery includes 27 photos for the Suzuki Swift 5-door, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
