Toyota Alphard specifications and photos

Toyota Alphard specifications are shown with trim options, key technical data, and a model photo gallery. Compare 4 configurations by engine size, power, seating, and transmission. The gallery includes 16 photos for visual reference.

Years 2015 - 2018
Body type minivan
Trims 4
Photos 16

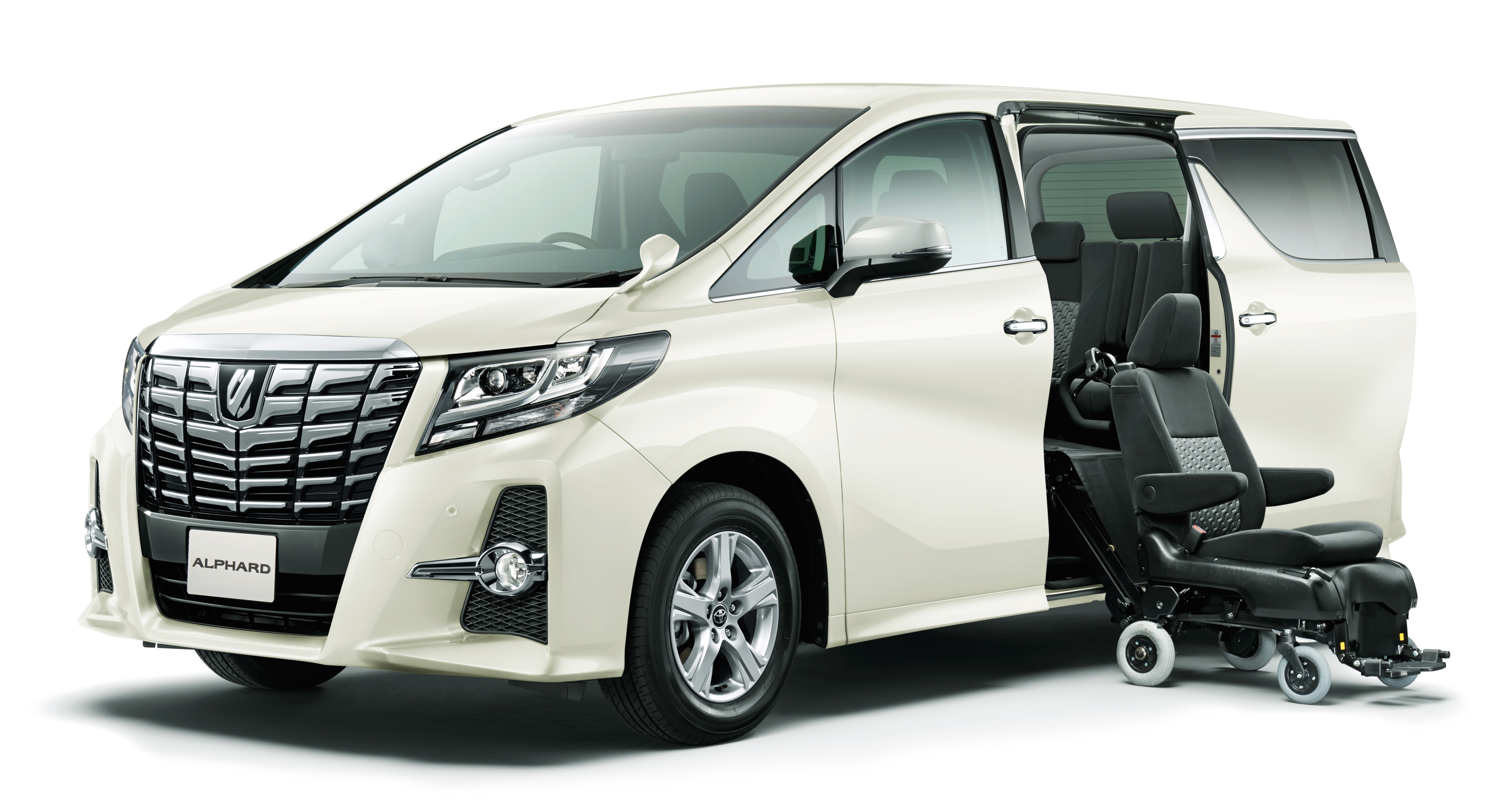

Toyota Alphard 2015 minivan
Overview

Toyota Alphard at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Toyota Alphard page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 197-280 hp and 2494-3456 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 197-280 hp
  • Engine displacement: 2494-3456 cc
  • Transmissions: 6, 6-speed automatic
  • Seating: 6-7 seats
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 197-280 hp
Engine displacement 2494-3456 cc
Seating 6-7 seats
Transmissions 6, 6-speed automatic
Trim / modification Engine Power Seats Transmission
2.5h 197 AT 4WD 2494 cc 197 hp 6 -
3.5i 275 AT 3456 cc 280 hp 6 6
3.5 Dual VVT-i (280 HP) 6-speed automatic 3456 cc 280 hp 7 6-speed automatic
2.5 Hybrid (197 HP) e-CVT 4x4 2494 cc 197 hp 7 -

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.5h 197 AT 4WD 3.5i 275 AT 3.5 Dual VVT-i (280 HP) 6-speed automatic 2.5 Hybrid (197 HP) e-CVT 4x4
2.5h 197 AT 4WD 43 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 2494
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 197
Torque, Nm 210
Engine 2.5 Hybrid
Compression 12.5
Number of motors 2
Power electric motor HP 140
the motor torque Nm 270
Engine power, hp 155
Revolutions max. Engine power, vol. / min. 5700
Engine code 2AR-FXE
EV-mode +

Dimensions

Seats 6
Length mm 4915
Height mm 1895
Wheelbase mm 3000
Front track, mm 1600
Rear track, mm 1595
Kerb weight, kg 2210
Fuel tank, l 75
Turning circle, m 11.4
Gross weight, kg 2665
Width (without mirrors) mm 1850
The volume of the cargo compartment, m3 1.9

Suspension

Type of front suspension McPherson
Rear suspension Two-lever

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 5.2

Transmission and drive

Automatic transmission +
Drive Full
Transmission CVT
Gearbox Variable speed drive
Transmission manufacturer Aisin
Transmission country of origin Japan

Equipment

Wheels

Disc diameter 18
Tires 235/50R18
3.5i 275 AT 45 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3456
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 280
Torque, Nm 330
RPM at max torque 4700
Engine 3.5 Dual VVT-i
Compression 10.8
RPM at max power 6200
Engine code 2GR-FE

Dimensions

Seats 6
Length mm 4915
Height mm 1895
Wheelbase mm 3000
Front track, mm 1600
Rear track, mm 1595
Kerb weight, kg 2210
Fuel tank, l 75
Turning circle, m 11.4
Gross weight, kg 2665
Width (without mirrors) mm 1850
The volume of the cargo compartment, m3 1.9

Suspension

Type of front suspension McPherson
Rear suspension Two-lever

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 14.7
Fuel consumption (urban), l. 100 km 8.7
Fuel consumption (combined), l. 100 km 10.9
Acceleration (0-100 km/h), s 8.3
The maximum speed, km / h. 200
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan

Equipment

Wheels

Disc diameter 18
Tires 235/50R18
3.5 Dual VVT-i (280 HP) 6-speed automatic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3456
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 280
Torque, Nm 330
RPM at max torque 4700
Engine 3.5 Dual VVT-i
Compression 10.8
RPM at max power 6200
Engine code 2GR-FE

Dimensions

Seats 7
Length mm 4915
Height mm 1895
Wheelbase mm 3000
Kerb weight, kg 2210
Fuel tank, l 75
Turning circle, m 11.4
Gross weight, kg 2665
Width (without mirrors) mm 1850
The volume of the cargo compartment, m3 1.9

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 14.7
Fuel consumption (urban), l. 100 km 8.7
Fuel consumption (combined), l. 100 km 10.9
Acceleration (0-100 km/h), s 8.3
The maximum speed, km / h. 200
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.5 Hybrid (197 HP) e-CVT 4x4 34 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 2494
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 197
Torque, Nm 210
Engine 2.5 Hybrid
Compression 12.5
Number of motors 2
Power electric motor HP 140
the motor torque Nm 270
Engine power, hp 155
Revolutions max. Engine power, vol. / min. 5700
Engine code 2AR-FXE
EV-mode +

Dimensions

Seats 7
Length mm 4915
Height mm 1895
Wheelbase mm 3000
Kerb weight, kg 2210
Fuel tank, l 75
Turning circle, m 11.4
Gross weight, kg 2665
Width (without mirrors) mm 1850
The volume of the cargo compartment, m3 1.9

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 5.2

Transmission and drive

Automatic transmission +
Drive Full
Transmission CVT
Gearbox Variable speed drive
Transmission manufacturer Aisin
Transmission country of origin Japan
FAQ

Toyota Alphard questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Toyota Alphard?

This page lists 4 trims for the Toyota Alphard, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Toyota Alphard?

The listed configurations show a power range of 197-280 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Toyota Alphard?

The available specification data shows engine displacement from 2494-3456 cc across the trims listed on this page.

Which transmissions are listed for the Toyota Alphard?

The transmission options currently shown for this model are: 6, 6-speed automatic. Open a trim section to see the full data for a specific configuration.

Are there photos for the Toyota Alphard?

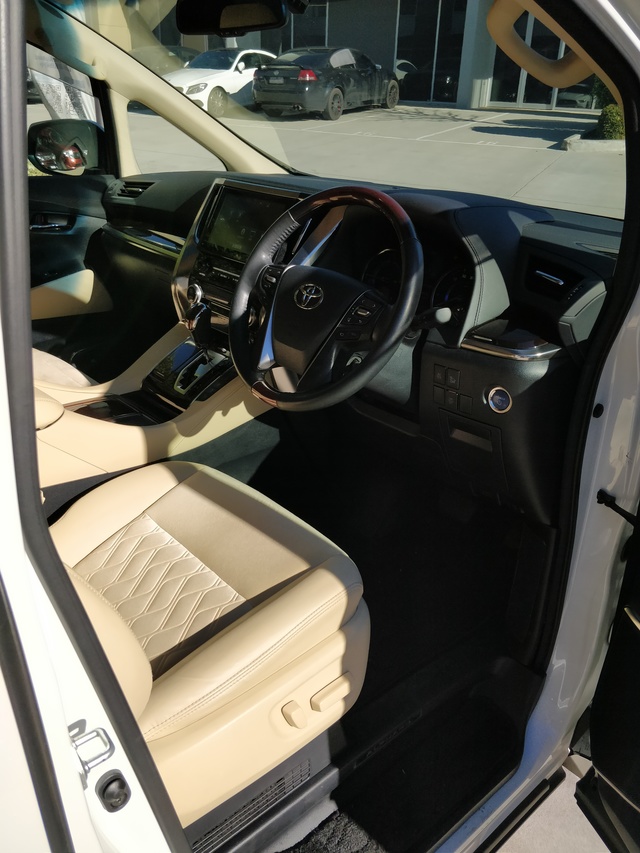

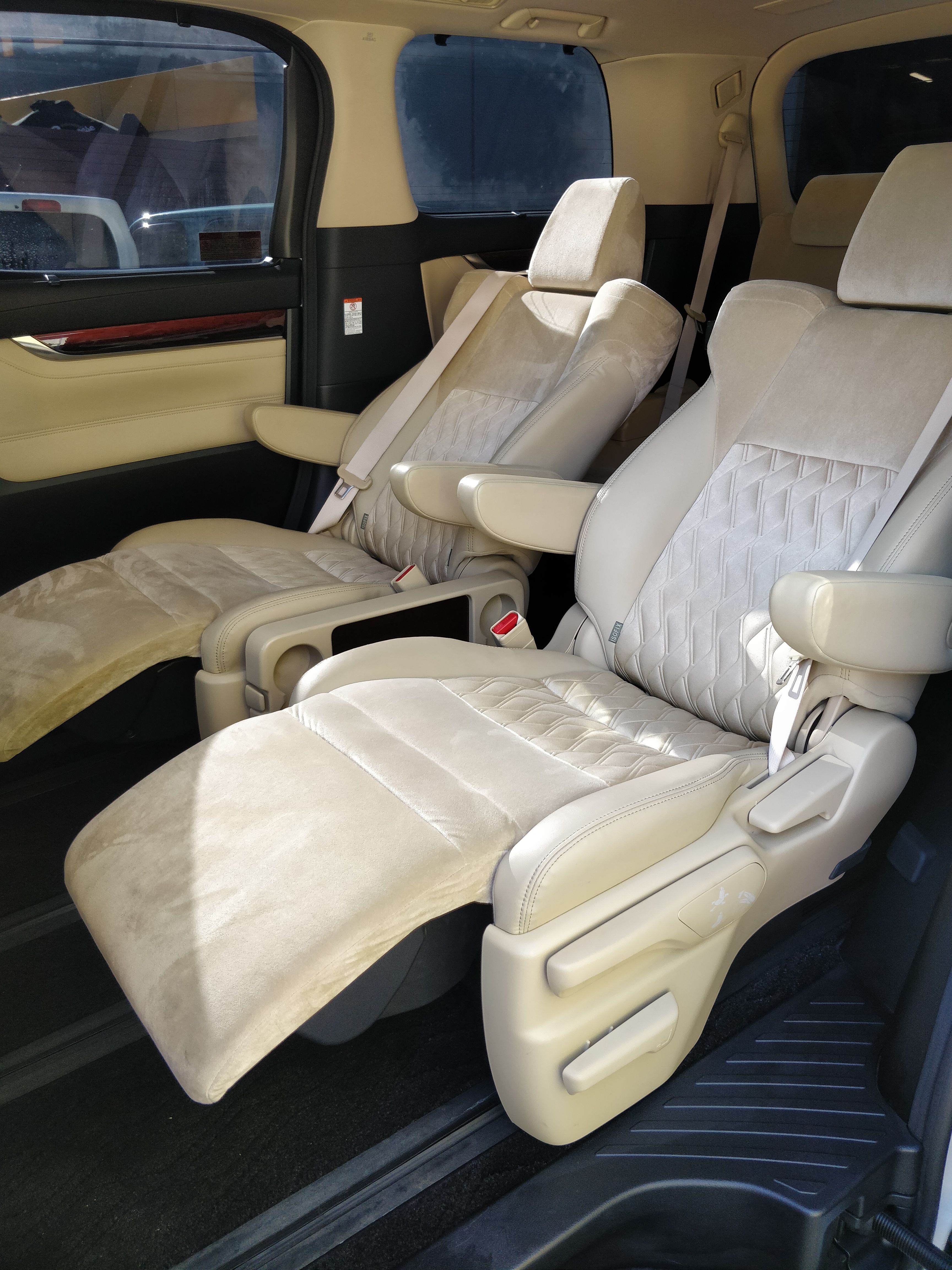

Yes. The gallery includes 16 photos for the Toyota Alphard, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
