Toyota Avalon specifications and photos
Toyota Avalon specifications are shown with trim options, key technical data, and a model photo gallery. Compare 1 configurations by engine size, power, seating, and transmission. The gallery includes 18 photos for visual reference.
Toyota Avalon at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Toyota Avalon page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 268 hp and 3456 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 268 hp
- Engine displacement: 3456 cc
- Transmissions: 6-speed automatic
- Seating: 5 seats
Photos, trims and specifications for Toyota Avalon
This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.5 Dual VVT-i (268 HP) 6-speed automatic | 3456 cc | 268 hp | 5 | 6-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

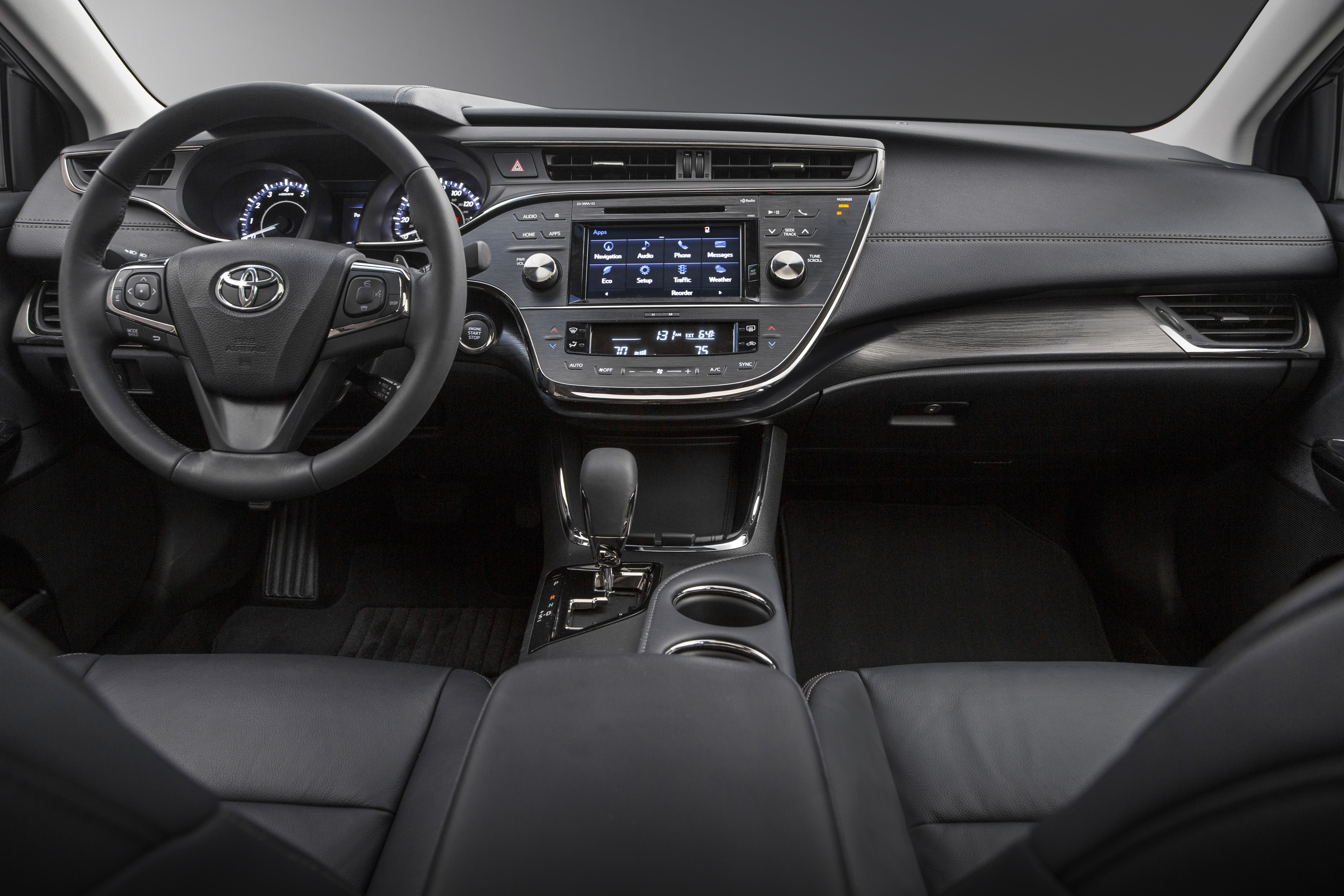

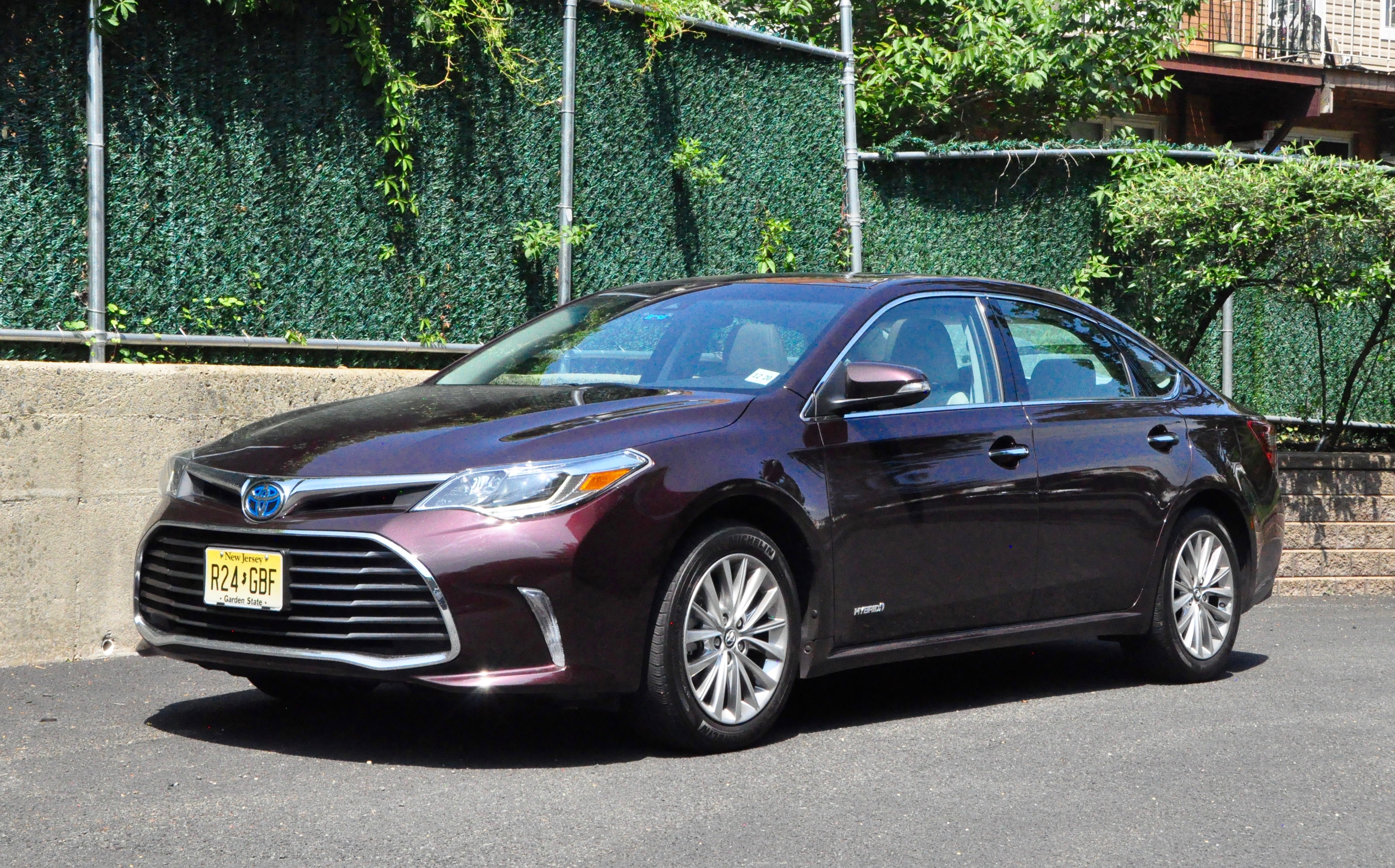

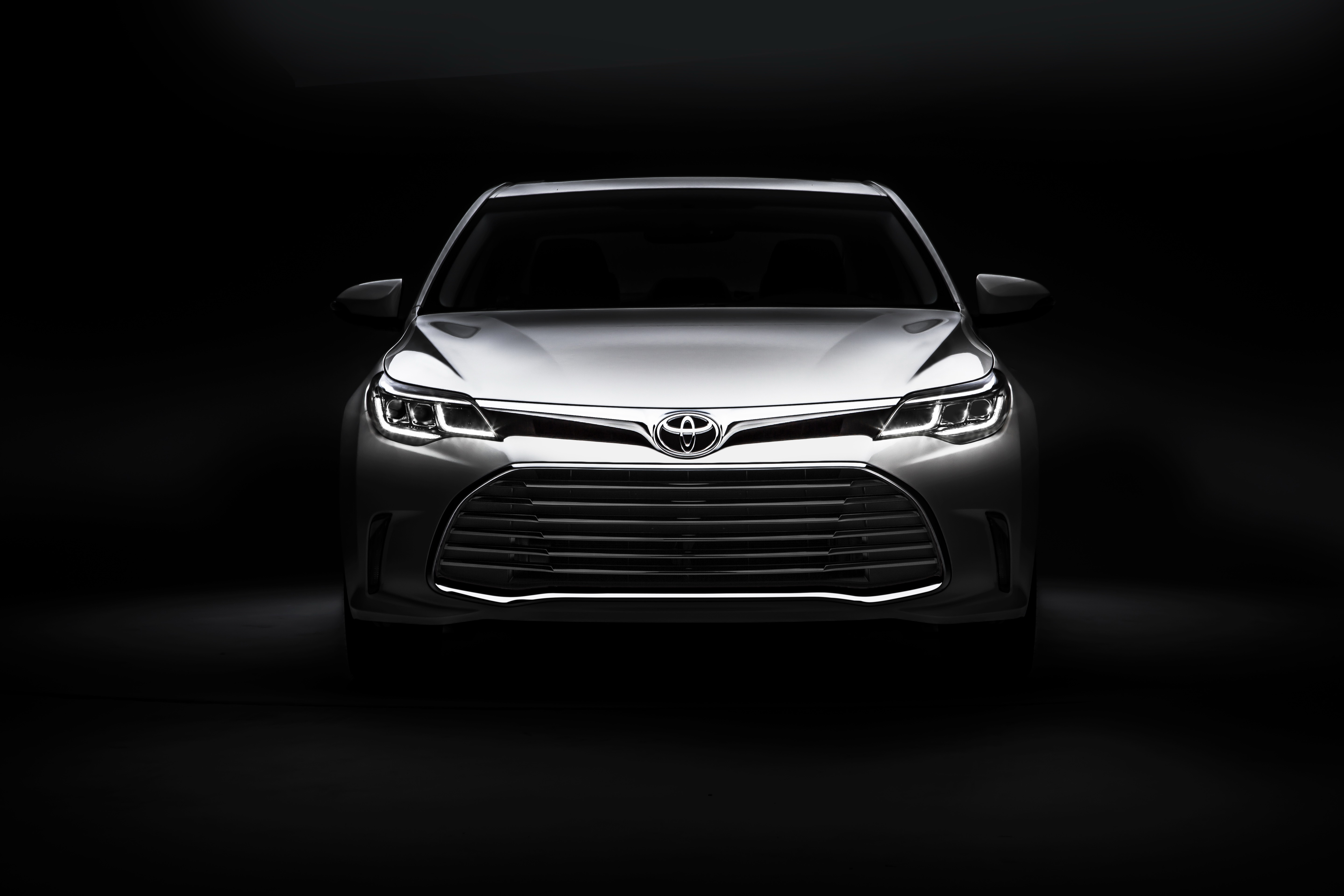

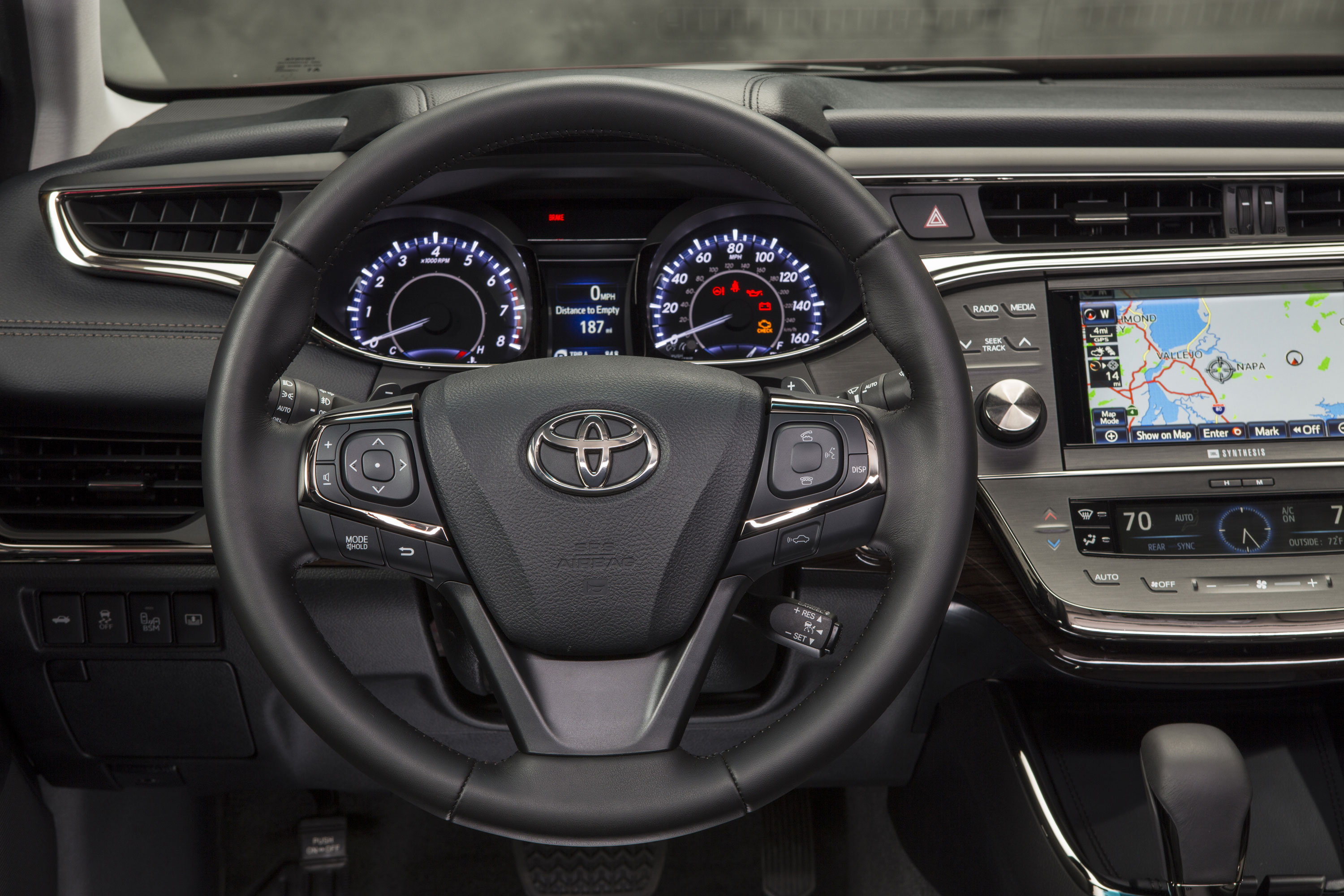

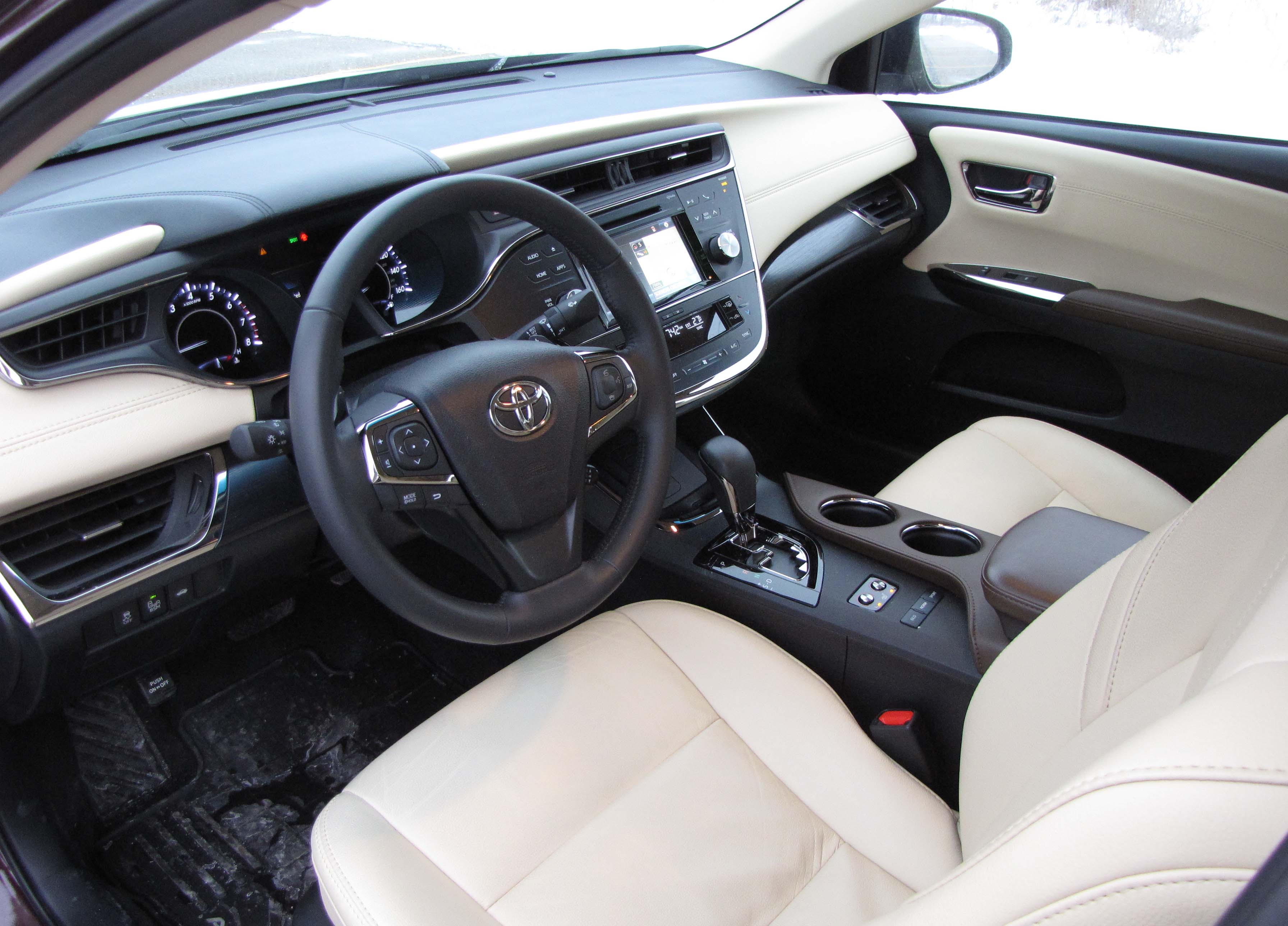

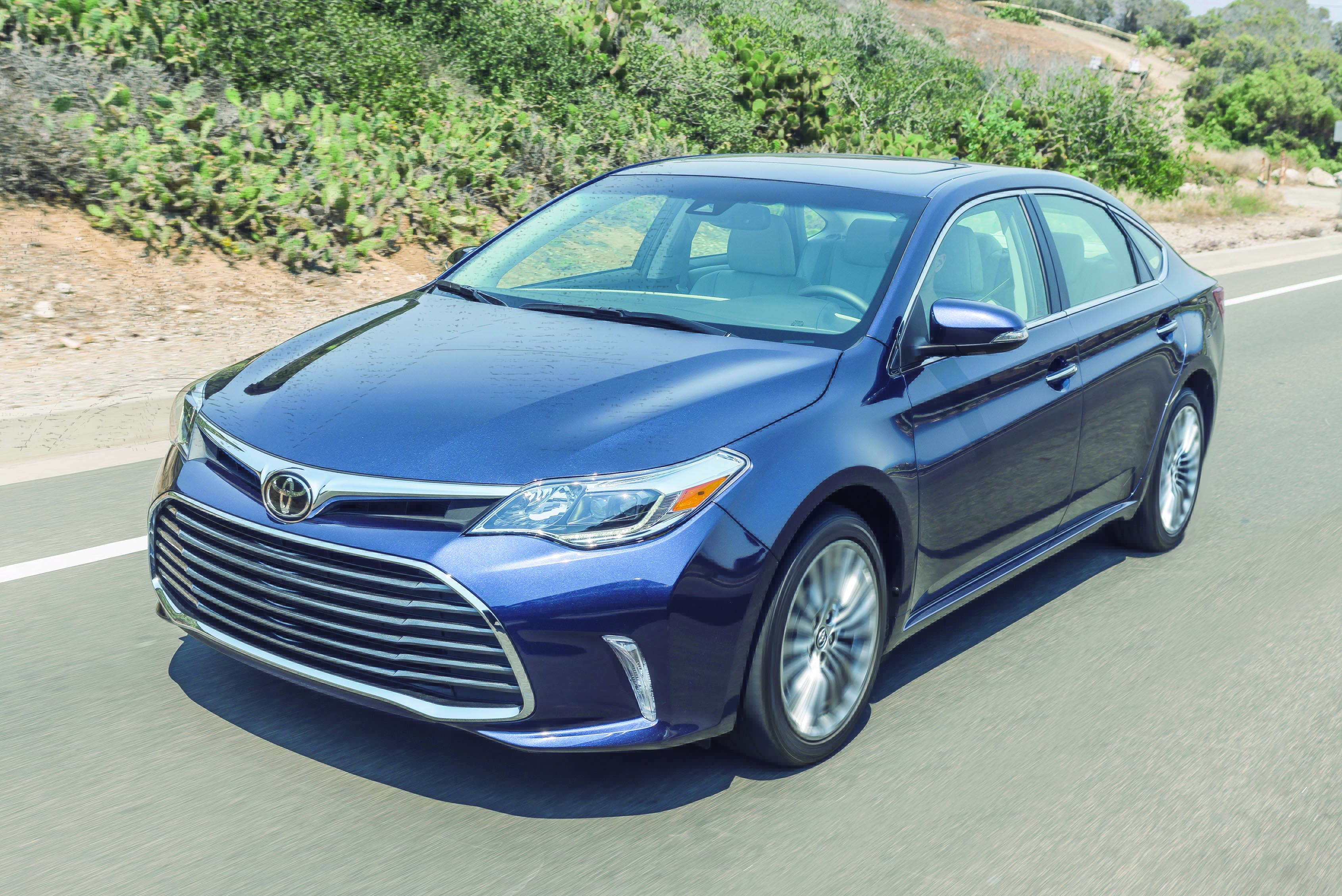

Toyota Avalon photo gallery
18 images are collected here with the main specifications and trim data for this model.
Photo Toyota Avalon
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.5 Dual VVT-i (268 HP) 6-speed automatic 34 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3456 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 268 |
| Torque, Nm | 336 |
| RPM at max torque | 4700 |
| Engine | 3.5 Dual VVT-i |
| Compression | 10.8 |
| RPM at max power | 6200 |
| Engine code | 2GR-FE |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4960 |
| Height mm | 1460 |
| Wheelbase mm | 2820 |
| Front track, mm | 1590 |
| Rear track, mm | 1580 |
| Trunk capacity, L | 1610 |
| Fuel tank, l | 453 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 141 |
| Width (without mirrors) mm | 1835 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 11.4 |
|---|---|
| Fuel consumption (urban), l. 100 km | 7.7 |
| Fuel consumption (combined), l. 100 km | 9.7 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 6 |
| Drive | Front |
| Transmission | 6-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
Toyota Avalon questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Toyota Avalon?
This page lists 1 trim for the Toyota Avalon, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Toyota Avalon?
The listed configurations show a power range of 268 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Toyota Avalon?
The available specification data shows engine displacement from 3456 cc across the trims listed on this page.
Which transmissions are listed for the Toyota Avalon?
The transmission options currently shown for this model are: 6-speed automatic. Open a trim section to see the full data for a specific configuration.
Are there photos for the Toyota Avalon?
Yes. The gallery includes 18 photos for the Toyota Avalon, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
